Product Type	Cooker Hood (Extractor Hood)
Brand	Whirlpool
Model	AR GA 001/1 IX
Installation	Wall-mounted or island
Width	89.8 cm
Depth	50.0 cm
Height (min-max)	15.0 - 20.0 cm
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Motor Power	250 W
Max Extraction Rate	600 m³/h
Noise Level (max speed)	65 dB(A)
Number of Speeds	3
Control Type	Push buttons
Lighting	LED, 2 x 1.5 W
Grease Filter Type	Aluminum, washable
Carbon Filter (optional)	Yes, replaceable
Energy Class	A
Safety Features	Thermal cut-out, safety switch
Spare Parts Available	Filters, LED bulbs, motor
Color	Stainless steel

Frequently Asked Questions - AR GA 001/1 IX WHIRLPOOL

How do I clean the grease filter?

The grease filter is washable. Remove it and soak in warm soapy water, then rinse and dry. Alternatively, you can wash it in the dishwasher at low temperature. Ensure it is completely dry before reinstalling.

How often should I replace the carbon filter?

The carbon filter should be replaced every 3-6 months, depending on usage. When it becomes saturated, it reduces the hood's efficiency. Always use genuine Whirlpool filters for optimal performance.

Why is my hood making a loud noise?

Check if the grease filter is clean and properly installed. A clogged filter can cause increased noise. Also ensure the ductwork is not obstructed. If noise persists, contact a qualified technician.

Can I use the hood in recirculation mode?

Yes, this hood can be used in recirculation mode with an optional carbon filter (not included in the box). Install the carbon filter in the motor unit and ensure the outlet is directed back into the room.

What size duct is required for extraction?

The hood is designed for a duct diameter of 150 mm. Use rigid or flexible ducting of the same size to ensure efficient airflow. If using a smaller diameter, performance may be reduced.

How do I replace the LED bulbs?

Switch off the power. Remove the bulb cover by gently prying it off. Pull out the old LED module and insert a new one of the same type (e.g., 1.5W LED). Ensure proper connection and replace the cover.

What is the recommended installation height?

For gas hobs, the minimum distance between the hob and the hood is 65 cm. For electric hobs, it is 55 cm. Follow these guidelines for safety and optimal performance.

How can I reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the speed decrease button for about 3 seconds until the indicator light turns off. Check your manual for exact instructions.

Why does the hood not start?

Check the power supply: ensure the unit is plugged in and the circuit breaker is on. Also, the safety switch may have tripped – reset it. If the problem persists, contact customer service.

Where can I find spare parts?

Original Whirlpool spare parts are available from authorized dealers or online. Use the model number AR GA 001/1 IX to find compatible parts such as filters, bulbs, and motors.

USER MANUAL AR GA 001/1 IX WHIRLPOOL

GB User and maintenance manual

Whirlpool

IMPORTANT SAFETY INSTRUCTIONS

These instructions shall also be available on website: docs.whirlpool.eu

YOUR SAFETY AND THAT OF OTHERS IS HIGHLY IMPORTANT.

This manual and the appliance itself provide important safety warnings, to be read and observed at all times.

This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others.

All safety warnings are preceded by the attention symbol and the following terms:

DANGER:

indicates a hazardous situation which, if not avoided, will cause serious injury.

WARNING:

indicates a hazardous situation which, if not avoided, could cause serious injury.

All safety warnings specify the potential danger/warning to which they refer and indicate how to reduce the risk of injury, damage and electrical shock resulting from incorrect use of the appliance. Comply with the following instructions:

• Installation or maintenance must be carried out by a specialized technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically requested in the user manual.
• The appliance must be disconnected from the power supply before carrying out any installation work.
• Earthing of the appliance is compulsory. (Not necessary for class II hoods identified by the symbol on the specifications label).
• The power supply cable must be long enough to permit connecting the appliance to the mains socket outlet.
• Do not pull the power supply cable in order to unplug the appliance.
• The electrical components must no longer be accessible to the user after installation.
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
• This appliance may be used by children older than 8 years of age and by persons with reduced physical, sensory or mental capacities or with inadequate experience and knowledge only if they are supervised or if they have been taught how to use the appliance in conditions of safety and if they are aware of the dangers involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children, unless they are supervised by adults.
• Do not repair or replace any part of the appliance unless specifically indicated in the manual. Defective parts must be replaced using genuine parts. All other maintenance services must be carried out by a specialized technician.
• Children must be supervised to ensure they do not play with the appliance.
• When drilling through a wall or the ceiling, pay attention not to damage electric connections and/or pipes.
• The ventilation ducts must always discharge to the outside.
• Exhaust air must not be vented through a flue used for removal of fumes produced by appliances burning gas or other fuels, but must have a separate outlet. All national regulations governing extraction of fumes must be observed.
• If the hood is used together with other appliances operating on gas or other fuels, the negative pressure in the room must not exceed 4 Pa (4 x 10^-5 bar). For this reason, make sure the room is adequately ventilated.
• The Manufacturer declines any liability for improper use or incorrect setting of the controls.
• Regular cleaning and maintenance is essential to correct functioning and good performance of the appliance. Frequently clean all encrustations from dirty surfaces to prevent the accumulation of grease. Regularly clean or replace the filters.
• Never flame cook food (flambé) under the appliance. Using free flames might cause fire.
• Do not leave frying pans unattended when frying, as the frying oil may catch fire.
• Failure to observe the instructions for cleaning the hood and replacing the filters may result in a fire.
• The fume extractor hood must never be opened without the grease filters installed and it should be kept under constant supervision.
• Gas appliances must be used under the extractor hood only with pans resting.
• When using more than three gas cooking points, the hood should be operating at power level 2 or greater. This will eliminate heat congestion in the appliance.
• Before touching the bulbs, first ensure that they are cold.
• Do not use or leave the hood without its lamps correctly installed - risk of electric shock.
• Wear work gloves for all installation and maintenance operations.
• The product is not suitable for outdoor use.
• When the hob is in use, accessible parts of the hood may become hot.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

KEEP THIS BOOKLET FOR FUTURE CONSULTATION.

Declaration of conformity C€

This appliance has been designed, manufactured and marketed in compliance with:

Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.

Energy saving tips

• Switch ON the hood at minimum speed when you start cooking and keep it running for a few minutes after cooking is finished.
• Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations.
• Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency.
• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

INSTALLATION

After unpacking the appliance, check for any transport damage. In the event of problems, contact the dealer or your nearest After-sales Service. To prevent any damage, only remove the appliance from its polystyrene foam packaging at the time of installation.

PREPARING FOR INSTALLATION

WARNING:

This is a heavy product; the hood should only be lifted and installed by two or more people.

The minimum distance between the support of the cooking pans on top of the cooker and the bottom of the hood must not be less than 50 cm for electric cookers and 65 cm for gas or mixed cookers. Before installation also check the minimum distances stated in the manual of the cooker.

If the installation instructions for the cooker specify a greater distance between cooker and hood, this distance must be observed.

ELECTRICAL CONNECTION

Make sure the power voltage specified on the appliance rating plate is the same as the mains voltage.

This information may be found on the inside of the hood, under the grease filter.

Power cable replacement (type H05 VV-F 3 x 0,75 mm ² ) must be carried out by a qualified electrician. Contact an authorized service centre.

If the hood is fitted with an electric plug, connect the plug to a socket complying with current regulations, located in an accessible place after installation. If no plug is fitted (direct wiring to the mains), or if the socket is not located in an accessible place, install a standardised double pole power switch that will enable complete isolation from the mains in case of category III overvoltage conditions, in accordance with installation rules.

GENERAL RECOMMENDATIONS

Before use

Remove cardboard protection pieces, protective film and adhesive labels from accessories. Check the appliance for any transport damage.

During use

To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents.

SAFEGUARDING THE ENVIRONMENT

Disposal of packing

The packing material is 100% recyclable and is marked with the recycle symbol ⬆. The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

Scrapping the product

• This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

Scrapping of household appliances

• This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before scrapping, cut off the power supply cable.
• For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance.

TROUBLESHOOTING GUIDE

The appliance does not work:

• Check for the presence of mains electrical power and if the appliance is connected to the electrical supply;
• Turn off the appliance and restart it to see if the fault persists.

The hood's suction level is not sufficient:

• Check the suction speed and adjust as necessary;
• Check that the filters are clean;
• Check the air vents for any obstructions.

The light does not work;

• Check the light bulb and replace if necessary;
• Check that the light bulb has been correctly fitted.

AFTER-SALES SERVICE

Before calling the After-Sales Service:

1. See if you can solve the problem yourself with the help of the suggestions given in the "Troubleshooting guide".
2. Switch the appliance off and back on again to see if the fault persists.

If after the above checks the fault still occurs, get in touch with the nearest After-Sales Service.

Always specify:

• A brief description of the fault; • The exact type and model of the appliance; • The service number (number after the word "Service" on the rating plate), located on the inside of the appliance. The service number is also indicated on the guarantee booklet; • Your full address; • Your telephone number.

SERVICE

0000 000 00000

If any repairs are required, please contact an authorised After-sales Service (to guarantee that original spare parts will be used and repairs carried out correctly).

CLEANING

• Never use steam cleaning equipment.
• Disconnect the appliance from the power supply.

IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth.

- Clean the surfaces with a damp cloth. If it is very dirty, add a few drops of washing up detergent to the water. Finish off with a dry cloth.

IMPORTANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the enamel surface.

- Use detergents specifically designed for cleaning the appliance and follow the manufacturer instructions.

IMPORTANT: clean the filters at least monthly to remove any oil or grease residuals.

MAINTENANCE

ATTENTION:

• Use protective gloves.
• Disconnect the appliance from the power supply.

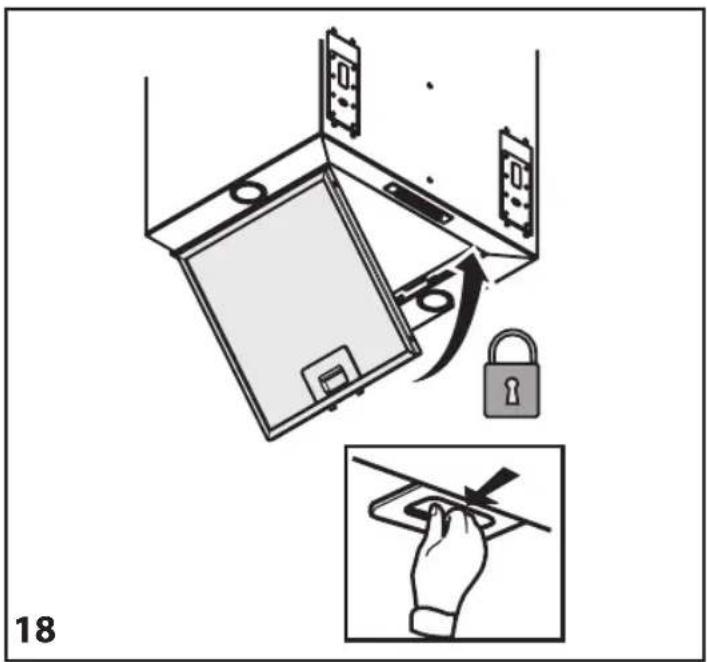

GREASE FILTERS

The metal grease filter has an unlimited life and should be cleaned once a month by hand or in a dishwasher at low temperature and with a short cycle. Cleaning in a dishwasher may cause discoloring of the grease filter, but its filtering efficiency is unaffected.

Pull out the handle to remove the filter.

Wash the filter and leave it to dry, proceeding in reverse order to refit.

REPLACING HALOGEN LAMPS

Disconnect the hood from the household power supply.

1. Use a small screwdriver to gently prise (at the three points indicated) the lamp cover off.
2. Remove the burnt-out lamp and fit a new one.

Lamp Power(W)	Socket Voltage(V)	Dimension (mm)	ILCOS D Code(according IEC 61231)
	20 GU4	12	35(Diameter)36°(Beam Angle)HRGS/UB-20-12-GU4-35/36

1. Refit (snap-on) the lamp cover.

ACTIVATED CARBON FILTER (filter hoods only):

It retains the unpleasant odors produced during cooking.

Change the carbon filter every 4 months

Fitting or changing the carbon filter

1. Remove the grease filter.
2. Hook the carbon filter at the back on the metal tab of the hood first then fix it at the front to the two knobs. Proceed in reverse order for removal.
3. Refit the grease filter.

MATERIAL SUPPLIED

Remove all the components from the packets. Check that all the components are included.

• Hood assembled with motor, lamps, activated carbon and grease filters installed.
• Instructions for assembly and use
• 1 deflector
• 1 assembly template
• 2 washers
• 4 wall plugs ∅ 8mm
• 4 screws ∅ 5x45
• 4 screws ∅ 3.5 x 9.5

INSTALLATION - PRELIMINARY ASSEMBLY INSTRUCTIONS

The hood is designed for installation and use in "Extractor version" or in "Filter version".

Note: The model with electric shutter can only be used in "Extractor version" and the exhaust pipe must be connected to a peripheral extraction unit.

Extractor Version

Fumes are extracted and expelled to the outside through an exhaust pipe (not supplied) fixed to the hood exhaust pipe connector.

Depending on the exhaust pipe purchased, provide for suitable fixing to the exhaust pipe connector.

IMPORTANT: If already installed, remove the carbon filter/s.

Filter Version

Air is filtered through the carbon filter/s and recycled into the surrounding environment.

IMPORTANT: check that air recirculation is facilitated.

If the hood does not have a carbon filter/s, order one/them and fit it/them before use.

Install the hood away from very dirty locations, windows, doors and sources of heat.

The hood comes supplied with all the materials required for installation on most walls/ceilings. However, a qualified technician is needed to make sure that the plugs are suitable for your ceiling.

INSTALLATION DIMENSIONS

Note: The front panel is supplied as a kit to be purchased separately. The dimensions given refer to available standard kits.

INSTALLATION - ASSEMBLY INSTRUCTIONS

The instructions below, to be carried out in the order in which they are numbered, refer to the figures (with the same step numbers) given on the last pages of this manual.

IMPORTANT: The front panel comes in a different pack.

The hood cannot be installed and/or used without the front panel. Alternative front panels can be purchased as accessories.

IMPORTANT: It is advisable to install the hood before the side wall units.

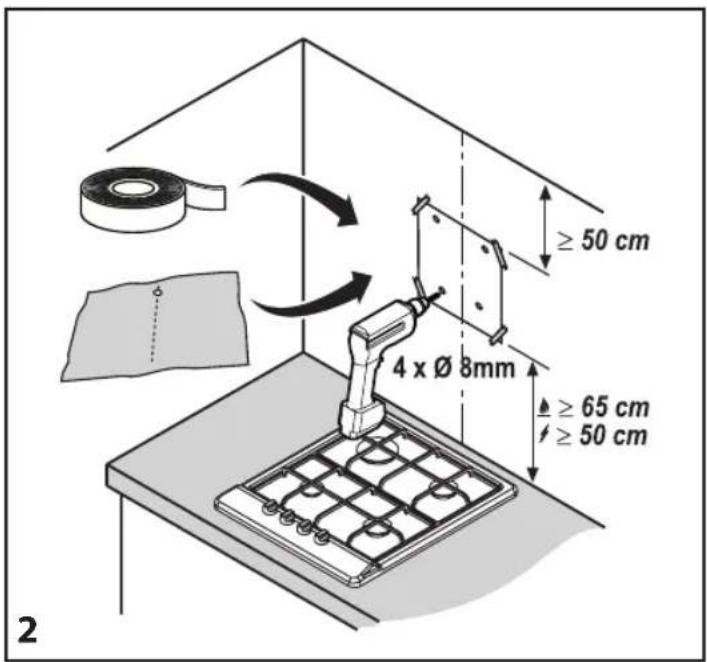

1. Mark a line on the wall, up to the ceiling, corresponding to the centre line.
2. Place the template against the wall (fix it with adhesive tape): the vertical centre line printed on the template must match the centre line drawn on the wall, and the bottom edge of the template must match the bottom edge of the hood.

IMPORTANT: Leave at least 50 cm for the front panel, between the top edge of the template and ceiling line

Make 4 holes as indicated.

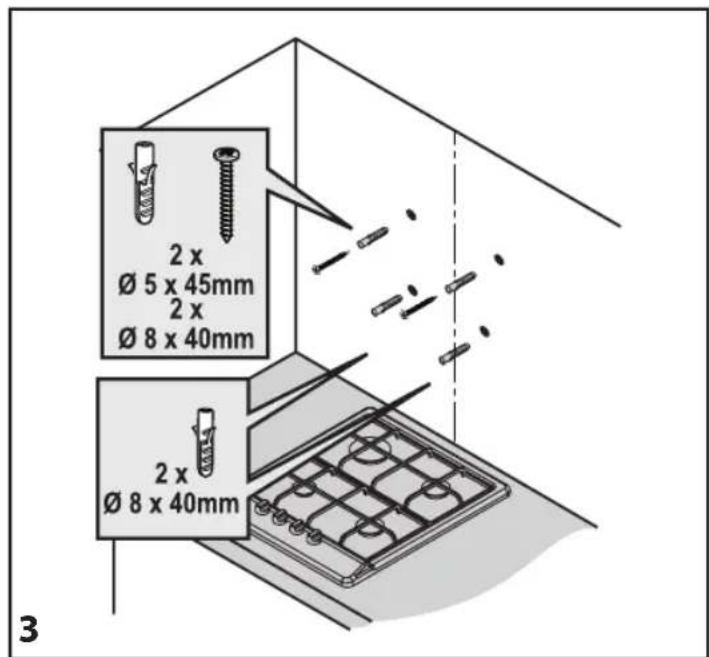

1. Remove the template and fit the 4 plugs and 2 screws as indicated.
2. Tighten the 2 screws a little, leaving a space of about 5 mm.
3. For Extractor Version only - Make a ∅ 16 cm hole in the ceiling for the flue pipe.
4. Remove the grease filter from the covering.
5. Remove the carbon filter from the covering.
6. Remove the 2 safety screws (for transport) and remove the hood from the outer covering.
7. Remove the tape fixing the control electronics box to the motor body. Tighten down the already partially tightened screws fixing the box to the motor body. Secure the cable to the cable clamp.
8. Connect the flue pipe to the collar; the pipe must be run towards the outside (extractor version) or towards the deflector (filter version - pipe length 17 cm). IMPORTANT: The flue pipe must be purchased separately and have an external diameter of not more than ∅ 15.3 cm. It is advisable to use smooth pipes.

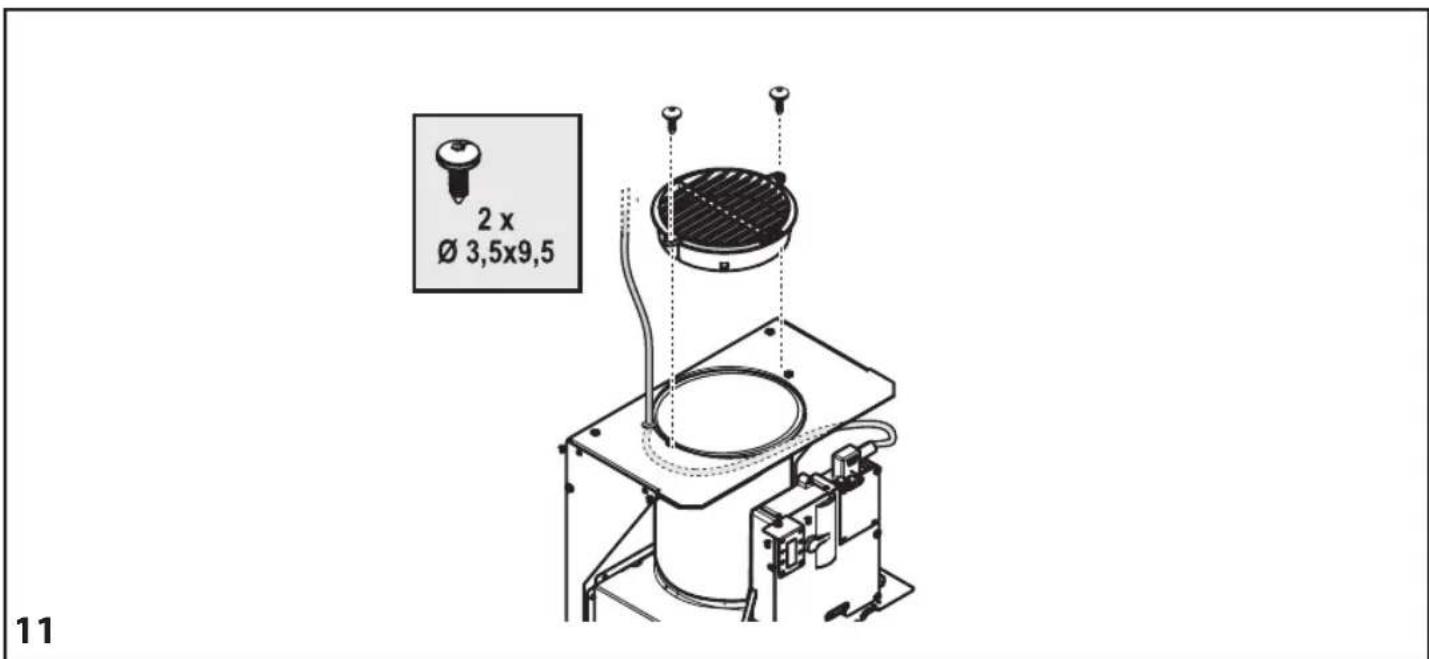

9. Filter Version only: Fix the deflector.
10. Hook the hood to the wall, between the previously fixed 2 screws (step 4) and secure it with 2 screws and 2 washers.
11. Adjust the position of the hood with a level. IMPORTANT: The level is not supplied inside the hood packaging.
12. Tighten down the 4 screws fixing the hood to the wall.
13. Hook the outer covering to the hood: make sure the 4 slots in the covering match the side hooking screws of the hood. Secure the covering with 2 screws.
14. Carry out the motor and lights electrical connections. IMPORTANT: Fit the front panel to the hood according to the instructions provided with the panel.
15. For Filter Version only: Install the carbon filter.
16. Refit the grease filter.
17. Fit the decorative front panel, supplied in a different pack, as follows:

a) Carefully take the panel with both hands and fix it just above the position of the middle logo.

b) Lift the panel and centre it on the hood structure, respecting: the alignment between the bottom part of the panel and that of the hood, and the alignment between the position of the middle logo on the panel and the hood pushbutton panel under the structure.

c) Fixing the decorative panel on the structure: slide the two bottom pins of the panel into the two bottom slots in the structure;

d) Panel safety fixing: secure the panel to the hood structure with the two top screws.

IMPORTANT: Make sure the panel is fixed securely to the structure.

IMPORTANT: If the decorative panel has exposed front screws, they must not be removed by the customer.

Check hood operation, referring to the section giving a description of the hood and its use.

DESCRIPTION AND USE OF HOOD

1. Control panel.
2. Grease filter.
3. Halogen lamps.
4. Front panel

Note: The front panel is supplied as a kit to be purchased separately.

CONTROL PANEL

a. Lights ON/OFF button b. Motor ON/OFF and minimum speed (extraction power) selection button c. Medium speed (extraction power) selection button d. Maximum speed (extraction power) selection button

15
