USER MANUAL Powertel 2780 Amplicomms

Contents

Getting started....4

Check box contents 4

Set up your phone system .... 4

Location 4

Connect the base unit 5

Connect the cordless handset 6

Controls 8

Cordless handset. 8

Base unit....11

Display icons 13

Navigating the menu.... 14

Open main menu....14

Menu layout....14

Making and receiving calls 16

Making a call, answering a call, ending a call. 16

Handsfree. 16

Audio assist 16

Equaliser 16

Volume control 17

Mute 17

Temporary ringer silence 17

Redial 17

Caller list 18

Chain dialling....18

Find handset 19

Internal call....19

Transfer an external call internally. 20

Conference....20

Phonebook 21

Create a new entry 21

Using the phonebook 21

Reminder 22

Add a reminder 22

Review reminders 23

Delete reminders....23

Settings....23

Ringtones....23

Tones 23

Set date and time 24

Set the time format 24

Set the date format 24

Display language....24

Voice language 25

Clear voicemail indicator 25

Rename cordless handset 25

CID time sync. 26

Dial mode....26

Flash time....26

Registering a handset 27

Reset. 27

Quiet mode 27

Answering machine....28

Switching the answering machine on/off 28

Hear messages 28

Record personal announcement 30

Call screening 30

Call intercept 31

Delete messages 31

Record a memo 32

Number of rings 32

Remote access code 32

Message alert tone 33

Message recording time....33

Remote access....34

Appendix. 35

Help and support....35

Safety information 35

Intended use 35

Phone location....35

Power supply 36

Energy efficient power adapter 36

Medical equipment 36

Rechargeable batteries 37

Hearing aid compatibility 37

Disposal 37

Technical details 38

Maintenance 39

Guarantee 39

Declaration of conformity....40

Getting started

Important: Please make sure you've read the safety information on page 35 before you set up your phone system.

Check box contents

If you have purchased a PowerTel 2780 pack you should have:

• 1 base unit
  • 1 AC power adaptor for the base unit
  • 1 cordless handset
  • 3 AAA NiMH rechargeable batteries
  • 1 battery compartment cover
  • 1 telephone line cord

Important: Use only the power adaptors, telephone line cord and batteries supplied with your PowerTel 2780, otherwise your phone may not work.

Set up your phone system

Location

Place the base unit near a mains socket and a telephone wall jack to ensure that the connection cables are long enough. Keep the unit approx. 1 m away from other electronic devices to prevent interference. The base unit uses radio signals to connect with the cordless handset. Signal strength depends on the base unit's location. The maximum range is 300 m based on an unobstructed line of sight; the range is shorter inside buildings because of walls and other obstacles.

Connect the base unit

1. Plug the connector on the cable end into the corresponding jack on the underside of the base and plug the power adaptor into the wall socket.
2. Plug the small connector on the end of the telephone line cord into the corresponding jack on the base and plug the other end into the telephone jack.

Note: Guide the connection cables through the strain-relief tabs on the base so the unit sits flush with the desk.

For pluggable equipment, the socket-outlet (power adaptor) shall be installed near the equipment and shall be easily accessible.

Important: Use only the power adaptors, telephone line cord and batteries supplied with your PowerTel 2780, otherwise your phone may not work.

Do not block access to the wall power supply with furniture or other items.

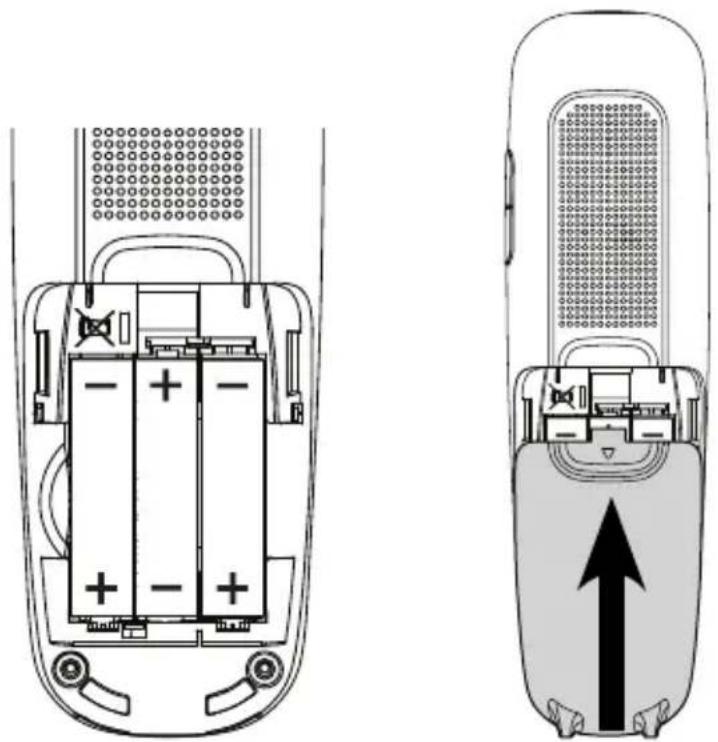

Connect the cordless handset

1. Open the battery compartment and insert the batteries. Pay attention to the correct polarity.
2. Slide the battery compartment cover towards the centre of the handset until it clicks into place.

Technical line drawing of a mobile phone casing showing front and side views with battery, ventilation slots, and an upward arrow (no text or symbols)

For a full charge, the handset must be left in the base unit for at least 16 hours (check the base unit's power supply!).

Important: Use only the battery supplied with this product. If the battery needs to be replaced later on the same battery type must be used.

Controls

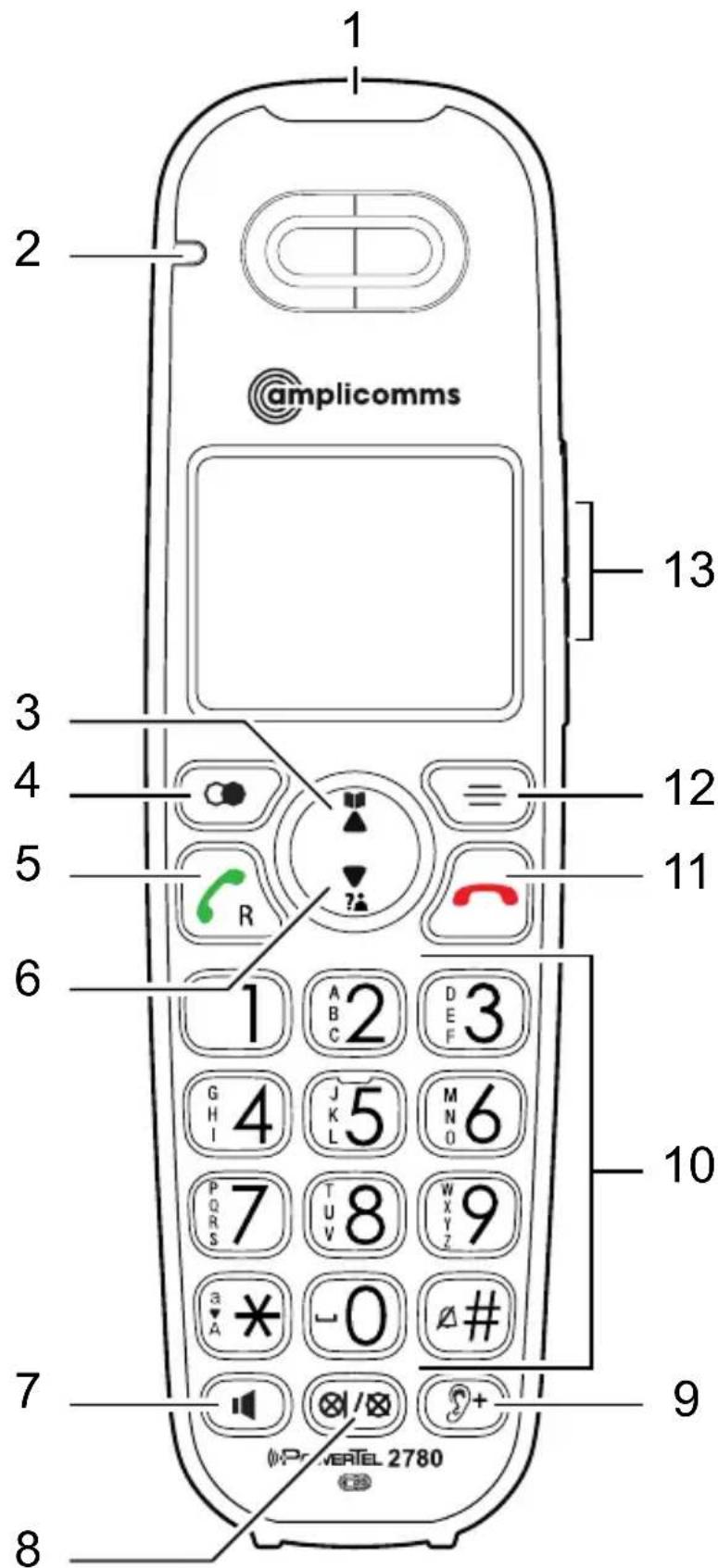

Cordless handset

1 Incoming call light

- Flashes when there is an incoming call/ the base is paging the handset.

2 Charge light

- On when the handset is charging.

3 Phonebook/Up

- Press to review the phonebook when in idle.

- Press to scroll up while in menus or lists.

- Press to move the cursor to the right while entering names or numbers.

4 Redial/Pause

- In idle state: press to open redial list. Press repeatedly to view the last 10 numbers dialed.

- Press and hold to insert a dialing pause while dialing or entering numbers.

5 Call/Recall

- Press to make or answer a call.

- Press to access network features during a call.

6 Caller list/Down

- Press to review the caller list when in idle.

- Press to scroll down while in menus or lists.

- Press to move the cursor to the left while entering names or numbers.

7 Speaker

- Press to make or answer a call using the speakerphone.

- Press to switch between the handset speakerphone and the handset earpiece during a call.

8 Mute/Delete

- Press to mute the microphone during a call.

- Press to silence the handset ringer temporarily while the phone is ringing (the call can still be accepted if the caller hasn't hung up).

- Press to delete an individual entry while reviewing the redial list/phonebook/ caller list/reminder.

9 Audio-Assist

- Press to enhance the clarity and loudness of the caller's voice during a call.

10 Alphanumeric keypad

• Press to enter numbers or characters/*/#.
• Press any key to answer an incoming call.
• Press star key to switch between upper case and lower case while entering characters.
• Press and hold hash key to set and turn on the quiet mode, or turn it off.

11 End call/Cancel

• Press to hang up during a call.
• Press to cancel an operation, or back up to the previous menu while in a menu. Press and hold to return to idle mode while in a menu.
• Press to silence the handset ringer temporarily while the phone is ringing (the call can still be accepted if the caller hasn't hung up).
• Press and hold to erase the missed call indicator when idle.

12 Menu/Select

• Press to show the menu.
• Press to select an item or save an entry/setting while in a menu.

13 Volume keys

• Press to adjust the handset ringer volume when in idle.
• Press to adjust the listening volume during a call or message playback.

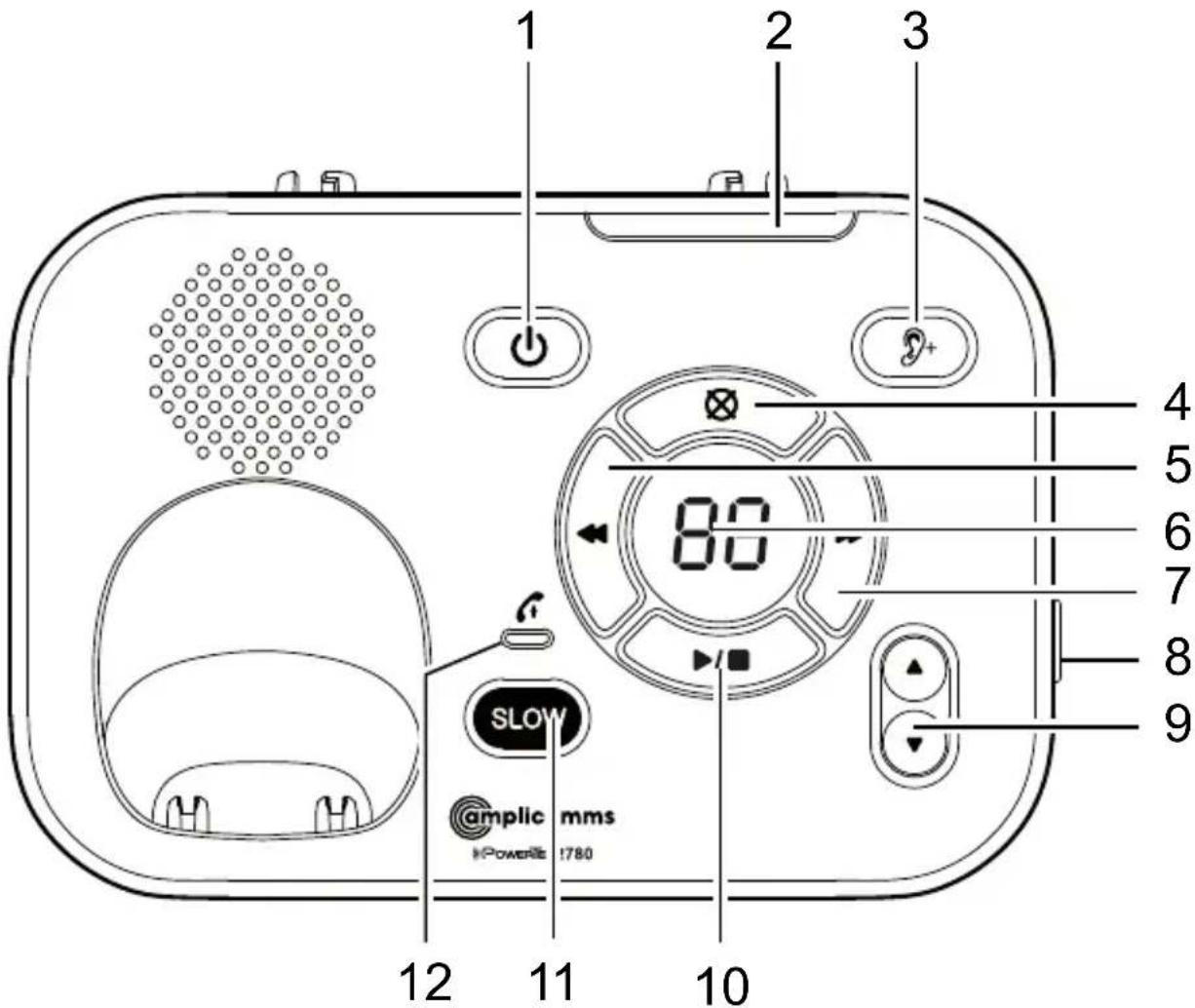

Base unit

1 Answering machine on/off

- Press to turn the built-in answering machine on/off. Lit when the answering system is turned on.

2 Incoming call light

- Flashes when there is an incoming call.

3 Audio-Assist

- Press to enhance the clarity and loudness of the caller's voice whilst playback answering machine messages.

4 Delete

- Press to delete the current message/announcement/reminder.

5 Repeat

• Press once to repeat the current message.
• Press twice to play the previous message.

6 Display

- Show the number of messages, and the other information of the answering system or telephone base.

7 Skip

- Press to skip to the next message during message playback.

8 Page

- Press to page all handsets when in idle.

9 Volume keys

• Press to adjust the ringer volume when in idle.
• Press to adjust the listening volume during message playback.

10 Play/Stop

- Press to start or stop message playback.

11 Slow

- Press to slow down the answering machine or reminder message playback.

12 "In use" light

• On when there is an incoming call or the phone is in use or the answering system is answering an incoming call.
• On when a device is being registered.
• Flashes when devices are being deregistered.
• Flashes when another telephone (cordless handset) on the same line is in use.

Display icons

Battery is low; place handset in charger to recharge.

Full battery power level.

2/3 battery power level.

1/3 battery power level.

The handset speakerphone is in use.

Ringer off.

New voicemail from your telephone service provider (depending on provider).

MUTE

Microphone is muted.

NEW

New call list- Missed and new calls.

ANS ON

The answering machine is turned on.

New message on the answering machine.

Navigating the menu

This chapter describes how to use the menu to access features on the telephone.

Open main menu

1. Press
2. Use and to select the desired menu item and press
3. Press to cancel an operation, back up to the previous menu, or exit that menu.
4. Press and hold down to return to idle state.

Note: If a key is not pressed within 30 seconds, the telephone automatically returns to idle mode.

Menu layout

Play messages

Answering sys Announcement

Delete all old

Record memo

Answer ON/OFF

Ans sys setup

Intercom (only for several registered handsets))

Phonebook Review

Add contact

Caller ID log Review

Del all calls

Reminder Review

Set reminder

On/off

Ringers Ringer volume Ringer tone

Tones Key tone

Battery low

Out of range

Set date/time

Time format

Date format

Settings LCD language

Voice language

Clr voicemail

Rename handset

CID time sync

Dial mode

Flash time

Reset

Making and receiving calls

Making a call, answering a call, ending a call

To make a call

Enter the telephone number and press

- or -

Press or. When you hear a dial tone, enter the telephone number.

To answer a call

Press or or any dialling key.

To end a call

Press or place the handset in the charger.

Handsfree

Whilst in a call press 📄 to deactivate, press the same key again.

Audio assist

Use this feature to enhance the clarity and loudness of a caller's voice on the earpiece when listening to a message or an announcement.

Whilst in a call press ⓨ+

CAUTION: The volume is very high!

To deactivate, press the same key again.

Equaliser

This feature allows you to change the quality of the audio for both handset earpiece and speakerphone to best suit your hearing.

1. Whilst in a call press the menu key

1. Press to confirm.

2. Select Natural, Treble 1, Treble 2 or Bass and press ≡ to save your setting.

Volume control

Whilst in a call press the volume buttons on the side.

Mute

The mute function allows you to hear the other party but the other party cannot hear you.

Whilst in a call press 📄press again to resume the conversation.

Temporary ringer silence

When the telephone is ringing, you can temporarily silence the ringer without disconnecting the call. The next call rings normally at the preset volume.

Press

Redial

The last 10 telephone numbers dialled are stored in the system memory.

1. Press in idle state.

2. Select the desired entry with and or press repeatedly.

3. Press or to dial the telephone number.

Caller list

Note: This function is only available if your telephone service provider has activated the CLIP (Calling Line Identification Presentation) service attribute. Please contact your service provider for more information.

The phone numbers of incoming calls are stored in a call log. For new entries you will see a message on the display.

Calling from the caller list

1. Press in idle state.
2. Select the desired entry with and
3. Press or to dial the telephone number.

Saving an entry from the caller list to the phone book

1. Open the caller list and select an entry.
2. Press ≡
3. Edit the telephone number if necessary and press
4. Enter the name and press

Chain dialling

Use this feature to initiate a dialling sequence from numbers stored in the phonebook, caller list or redial list whilst you are on a call.

Selecting an entry from the phone book/caller list

1. Press the menu key whilst in a call
2. Select Phonebook or Caller ID log and press
3. Select the desired entry and press to dial the telephone number.

Selecting an entry from the redial list

1. Whilst in a call press
2. Select an entry using the arrow keys or by repeatedly pressing and press to dial the telephone number.

Find handset

You can locate a missing handset or alert a handset user that they are wanted by causing the handset to beep from the base unit.

Start paging

Press the paging button on the right-hand side of the base unit to page all registered cordless handsets.

Stop paging

On the base unit: press the paging button again. On the cordless handset: press or any dialling key, or place the handset in the base unit/charger.

Internal call

Use the intercom feature for conversations between two system devices. These calls are free of charge.

1. Press the menu key ☐, select Intercom and press ☐. If only 2 devices are available the second one will ring right away. If there are several registered cordless handsets, choose one and press ☐.
2. To answer the call, press or or any dialling key.

Transfer an external call internally

While on an external call, you can transfer the call from one cordless handset to another registered to the same base unit.

1. Whilst in a call press ≡, select Transfer and press ≡. If only one additional cordless handset is registered, this one will ring right away. If there are several registered cordless handsets, choose one and press ≡
2. To answer the call, press or any dialing key.

Conference

You can set up a three-party conference with two handsets and an external call partner.

1. You are in an external call.
2. If only one additional cordless handset is registered, this one will ring right away. If there are several registered cordless handsets, choose one and press
3. If the internal call has been accepted, press
4. Select Share call and press
   The conference is set up.

Phonebook

The phonebook stores up to 100 entries that can be accessed by all devices. You can find a phonebook entry by entering the first letter of the stored name using the numeric keys. If necessary, use the arrow keys to select the desired entry.

Create a new entry

1. In idle state press the menu key
2. Select Phonebook and press
3. Select Add contact and press
4. Enter the telephone number
5. or -
   add a phone number from the redial list. Press , Select the desired entry and press ≡

1. Press

2. Enter the name and press

Using the phonebook

Open the phonebook () and select the desired entry.

Make a call

Press

Edit an entry

Press on the cordless handset. Edit the entry and press

Delete an entry

Press ☑To confirm press .

Reminder

The Reminder function can be used to remind you of important events with a voice message recorded on the answering machine. You can set the reminder to remind you only once or on a daily, weekly or monthly basis.

You can store up to 9 reminders in total. Each reminder can be up to four minutes in length. The total storage capacity for the answering machine and reminders is approximately 30 minutes.

If you record a reminder the cordless handset will notify you at the specified time with an alert tone and a message on the display.

Always play the reminder message all the way to the end. The phone will return to idle mode after the message is finished.

To hear a reminder

When the reminder alert tone sounds, press

Add a reminder

1. In idle state press the menu key
2. Select Reminder and press
3. Select Set reminder and press
4. Enter day, month and year for the reminder and press
5. Enter hours and minutes for the reminder and press
6. After the tone speak your reminder message into the microphone. Press key 5 when done.
7. Select the frequency you would like to set and press

Review reminders

1. In idle state press the menu key
2. Select Reminder and press
3. Select Review reminder and press
4. The reminders will be played back in sequence. Press key 6 to skip to the next reminder. Press key 4 to hear the current reminder again. Press key 4 twice to hear the previous reminder again.

Delete reminders

1. During playback, press Ⓞ/⊗

Settings

Ringtones

1. In idle state press the menu key
2. Select Ringers and press
3. Select Ringer volume and press press

- or -

Select Ringer tone and press ≡. Select a melody and press ≡

Tones

1. In idle state press the menu key
2. Select Tones and press
3. Key tone: adjust the volume and press
4. Battery low: turn the low battery alert tone on or off and press ≡
5. Out of range: turn the out-of-range alert tone on or off and press ≡

Set date and time

Entries in the caller list and messages on the answering machine display the date and time of a call. Setting the correct date and time is also important for the proper playback of reminders.

1. In idle state press the menu key
2. Select Set date/time and press
3. Enter day, month and year and press
4. Enter hours and minutes and press

Set the time format

1. In idle state press the menu key
2. Select Time format and press
3. Select 12-HR or 24-HR and press

Set the date format

1. In idle state press the menu key
2. Select Date format and press
3. Select MM/DD/YY or DD/MM/YY and press

Display language

This setting sets the language for messages shown on the display (menu).

1. In idle state press the menu key
2. Select Settings and press
3. Select LCD language and press
4. Select the desired language and press
5. To confirm press

Voice language

This setting sets the language for the default announcements on the answering machine.

1. In idle state press the menu key
2. Select Settings and press
3. Select Voice language and press
4. Select the desired language for the default announcements on the answering machine and press

Clear voicemail indicator

Use this feature when the telephone indicates that there is a new voicemail, but there is none. This feature only turns off the indicators. It does not delete your voicemail messages.

As long as you have new voicemail messages, your telephone service provider continues to send the signal to turn on the indicators.

1. In idle state press the menu key
2. Select Settings and press
3. Select Clear voicemail and press
4. To confirm press

Rename cordless handset

You can edit the name for the cordless handset.

1. In idle state press the menu key
2. Select Settings and press
3. Select Rename handset and press
4. Delete the name with and enter the new name.
5. Press

CID time sync

If you subscribe to a Calling Number Display service, the date and time are set automatically with each incoming call. Follow the steps below to turn the CID time sync feature on or off. For more information contact your telephone service provider.

1. In idle state press the menu key
2. Select Settings and press
3. Select CID time sync and press
4. Select On or Off and press ≡.

Dial mode

The standard dialling mode for analogue phones is "touch-tone". On some older phone systems the dialling mode must be set to "pulse". Please see your phone system's user guide for more information.

1. In idle state press the menu key
2. Select Settings and press
3. Select Dial mode and press
4. Select Touch-tone or Pulse and press ≡.

Flash time

The use of supplementary services requires a flash signal of a specific length. You can obtain information about available supplementary services and the required flash time from your telephone service provider.

1. In idle state press the menu key
2. Select Settings and press
3. Select Flash time and press
4. Select Short, Medium or Long and press ≡.

Registering a handset

You can connect up to 5 cordless handsets to your base unit. New cordless handsets (PowerTel 2701, available as an accessory) must be registered prior to use.

Registering a brand new PowerTel 2701:

1. Place the handset in the base cradle. After a short time the handset will be registered.

Reset

1. In idle state press the menu key
2. Select Reset and press
3. To confirm press

Quiet mode

You can turn on the quiet mode for a period of time (1-12 hours). During this period, all tones (except paging tone) and call screening are muted.

When you turn on the quiet mode, the answering machine turns on automatically. When the quiet mode duration expires, the answering machine remains on.

1. Press and hold down the Hash key for approx. 3 seconds.
2. Enter the desired duration (1-12), then press

To turn the quiet mode off, press and hold down the Hash key fo#approx. 3 seconds.

Answering machine

The answering machine can store up to 99 messages.

A message must not be longer than 3 minutes (adjustable, see below). Total recording time for messages, memos and reminders is approx. 30 minutes. You should delete the messages you've heard to make room for new ones. Once the memory is full the answering machine will not record any new calls.

The answering machine comes with a default announcement that can be replaced with your own (see below).

Switching the answering machine on/off

On the base unit

Press

On the cordless handset

1. In idle state press the menu key
2. Select Answering sys and press
3. Select Answer ON/OFF and press
4. Select On or Off and press ≡.

Hear messages

On the base unit

Press ▶/■

If there are both old and new messages playback of the new messages will start right away. If there are only old or only new messages playback will start right away.

During playback you can:

• adjust the volume with
• skip to the next message with
• repeat the current message with
  skip back to the previous message.

- delete the current message with .⊗

- stop or resume playback ▶/■

- reduce playback speed with

On the cordless handset

1. In idle state press the menu key

1. Press to select Play messages.

If there are both old and new messages you can select whether you want to listen to old or new messages. If there are only old or only new messages playback will start right away.

During playback you can:

- adjust the playback volume with the volume buttons on the side,

- skip to the next message with key 6,

- repeat the current message with key 4. Press key 4 twice to skip back to the previous message.

- delete the current message with Ⓗ/⊗

- press to switch between speakerphone mode and handset mode.

- press to enhance clarity and loudness of message.

- press to call back the caller. To confirm press . If you don't want to call back, press

Record personal announcement

You can record an announcement of up to 90 seconds in length, but any announcement shorter than two seconds will not be recorded.

1. In idle state press the menu key
2. Select Answering sys and press
3. Press to select Announcement.
4. Press to select Record annc.
5. Speak your announcement after the tone and press key 5 when done.

Call screening

Use this feature to choose whether incoming messages can be heard on the cordless handset or the base unit while they are being recorded. The setting applies to both devices.

1. In idle state press the menu key
2. Select Answering system and press
3. Select Ans sys setup and press
4. Select Call screening and press
5. Select On or Off and press ≡.

On the base unit

If the answering machine and call screening are on, the announcement and the incoming message will be heard on the base unit while the call is answered by the answering machine. During this you can:

• adjust the volume with
• press to temporarily turn off the feature.

On the cordless handset

If the answering machine and call screening are on, press ☐. The announcement and the incoming message will be heard on the handset while the call is answered by the answering machine. During this you can:

• adjust the playback volume with the volume buttons (on the side of the cordless handset),
• press to temporarily turn off the feature,
• press to temporarily turn on the feature if it is set to off,
• press to switch between speakerphone mode and handset mode.

Call intercept

When a caller is leaving a message on the answering machine and you hear the message being recorded, you can intercept the call.

Press

Delete messages

You can only delete old (reviewed) messages.

1. In idle state press the menu key
2. Select Answering system and press
3. Select Delete all old and press
4. To confirm press ≡

Record a memo

Memos are your own recorded messages used as reminders for yourself or others using the same answering machine. Play and delete them in the same way as incoming messages.

1. In idle state press the menu key
2. Select Answering sys and press
3. Select Record memo and press
4. Speak your memo after the tone and press key 5 when done.

Number of rings

You can set the number of rings (2, 4, 6, 8 or 10) before the answering machine records a call.

1. In idle state press the menu key
2. Select Answering system and press
3. Select Ans sys setup and press
4. Select # of rings and press
5. Select an entry from the list and press

Remote access code

A two-digit security code is required to access the answering machine remotely from any touch-tone telephone. The preset code is "00". You can set the code from "00" to "99".

1. In idle state press the menu key
2. Select Answering system and press
3. Select Ans sys setup and press
4. Select Remote code and press
5. Enter a two-digit code and press

Message alert tone

When this feature is on, the base unit beeps every 10 seconds when there are new messages on the answering machine. The alert tone is only heard on the base unit. Press any key (except Paging and Boost) to switch the alert off for the current message only. The alert will sound again for the next new message.

1. In idle state press the menu key
2. Select Answering system and press
3. Select Ans sys setup and press
4. Select Msg alert tone and press
5. Select On or Off and press ≡.

Message recording time

You can set the recording time allowed for incoming messages (1 minute, 2 minutes or 3 minutes).

1. In idle state press the menu key
2. Select Answering system and press
3. Select Ans sys setup and press
4. Select Recording time and press
5. Select an entry from the list and press

Remote access

To get access to your answering machine remotely from any touch-tone telephone you have to enter the two-digit remote access code.

1. Dial your telephone number from any touch-tone telephone.
2. If the answering machine is on, your call will be answered after the pre-set number of rings.

If the answering machine is off, your call will be answered after approx. 16 rings.

1. Enter the two-digit remote access code. You will hear a confirmation tone.

2. Press below keys will have the following options:

3. key 2 - play all messages

4. key 4 - skip to previous message (during playback)
5. key 5 - delete message (during playback)
6. key 6 - skip to the next message (during playback)
7. key 7 - turm the answering machine on
8. key 9 - turn the answering machine off.

Appendix

Help and support

If you need help and you're in the UK, please first check and see if your problem can be solved using the troubleshooting guide below. If not, please call us on 0844 800 6503 (using a UK landline, at time of going to print: calls cost 6p for connection charge and then 5p a minute. Mobile costs may vary). Lines are open Monday to Friday, 9am to 5pm, excluding public holidays. If you've a claim on your 2-year guarantee, please contact your supplier.

Some issues may be resolved by simply disconnecting the power to the unit. Switch off the power to the base station and remove the batteries in the handset for about 20 minutes. Reconnect everything to determine if the issue has been resolved.

Safety information

Please read this User Guide carefully.

Intended use

This phone is suitable for use on either a public telephone network or on an approved Private exchange (PABX). Any other use is considered unintended use. Unauthorised modifications are prohibited. Do not attempt to carry out repairs yourself.

Phone location

Make sure your phone:

• is on a dry, flat and stable surface

• isn't a trip hazard with its power cable
  • is at least one metre from other electrical appliances
• isn't exposed to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Please take care that the power supply isn't obstructed by furniture.

Power supply

Important: Use only the power adaptors supplied with your PowerTel 2780.

Energy efficient power adapter

The included mains adaptor meets the ecodesign requirements of the European Union (Directive 2005/32/EC). Thus, its power consumption is considerably lower, both in operating and in idle mode, compared with the previous design.

Medical equipment

Do not use your phone:

• near emergency or intensive care medical equipment
• during an electrical storm

It is recommended that if you have a pacemaker fitted you check with a medical expert or your health adviser before using this product.

Rechargeable batteries

Do not throw the batteries into a fire or water.

Hearing aid compatibility

You phone works with most popular hearing aids. However, given the wide range of hearing aids available, we are unable to guarantee that your phone will function fully with every hearing aid.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries represent a hazard to health and the environment!

Never open, damage or swallow batteries or allow them to pollute the environment. They may contain toxic, ecologically hazardous heavy metals. You are legally required to dispose of batteries and rechargeable batteries safely, either at a retailer that sells batteries or at an appropriate collection point that provides a suitable container. Never put batteries in the household waste. Disposal is free of charge. Lithium batteries and battery packs of all kinds should be fully discharged before you drop them off. Be sure to take precautions against short-circuits, e.g.

by covering poles with adhesive tape, to prevent the risk of a fire.

Packaging materials must be disposed of according to local regulations.

Technical details

Standard DECT

Power supply (base unit) Input: 100-240V 50/60Hz

Output: 6VDC 800mA

Manufacturer and model (UK-plug):

Chousen, CS6F60080FBF

Tenpao, S006MB0600080

Range Outdoors approx. 300m,

Indoors approx. 50m

Standby Up to 100hrs

Maximum Talk Time Up to 10hrs

Maximum earpiece volume +40 dB

Rechargeable batteries 3 x AAA 1.2V 500mAh NiMH

Manufacturer and model:

GPI, VT50AAAHC

Corun, NI-MHAAAJ500

Dialling mode Tone (DTMF) / Pulse

Recall time (Flash) Short (100 ms), Medium

(250 ms), Long (600 ms)

Optimum ambient temperature 0°C to 45°C

Optimum relative humidity 20% to 80%

Use only the provided batteries and the provided power supplies!

Maintenance

• Please clean your equipment's surfaces with a soft, lint-free cloth.
  • Never use cleaning agents or solvents.

Guarantee

AMPLICOMMS equipment is produced and tested according to the latest production methods. The use of carefully chosen materials and highly developed technologies ensures trouble free functioning and a long service life. The terms of the warranty do not apply where the cause of the equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of the warranty do not apply to the rechargeable batteries or power adaptors used in the products. The warranty period is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the warranty period will be eliminated free of charge. Rights to claims under the warranty terms are voided following intervention by the purchaser or third parties.

Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influences are not covered by the warranty.

In the case of complaints, we reserve the right to repair or replace defective parts or provide a replacement device. Replaced parts or devices become our property.

Rights to compensation in the case of damage are excluded

where there is no evidence of intent or gross negligence by the manufacturer.

If your equipment shows signs of a defect during the warranty period, please return it to the sales outlet where you purchased the AMPLICOMMS equipment together with the purchase receipt. All claims under the warranty terms in accordance with this agreement must be asserted exclusively with regard to your sales outlet.

The right to assert a warranty claim expires two years after the purchase of our products.

Declaration of conformity

CE

This device fulfils the requirements stipulated in the EU directive: 2014/53/EU.

Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our website

www.amplicomms.com.

Inhoudsopgave

Technical line drawing of a battery pack and its internal structure, showing top and side views with no text or symbols.

Technical line drawing of a device interior showing top and side views with battery, circuit board, and directional arrow (no text or symbols)
