BSUO 3O23 PF X - Dishwasher BAUKNECHT - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Bauknecht
Model	BSUO 3O23 PF X
Dimensions (H x W x D)	81.5 cm x 59.8 cm x 55.5 cm
Weight	45 kg
Capacity	14 Place Settings
Energy Class	E (EU 2019/2017)
Energy Consumption	95 kWh/100 cycles
Water Consumption	11 L/cycle
Noise Level	46 dB(A)
Number of Programs	6 (Eco, Intensive, Normal, Quick, Glass, Pre-rinse)
Drying System	Heat Exchanger
Control Type	Electronic with LED Display
Salt and Rinse Aid Indicators	Yes
Delay Start	Up to 24 Hours
Child Lock	Yes
Safety Features	Anti-flood System, Aqua Stop
Maintenance and Cleaning	Self-cleaning filter, removable spray arms
Spare Parts Availability	Minimum 10 years
Color	Stainless Steel (X)

Frequently Asked Questions - BSUO 3O23 PF X BAUKNECHT

How do I start a wash cycle on the Bauknecht BSUO 3O23 PF X?

Load the dishwasher, add detergent, select the desired program using the program selector, then press the Start button. Close the door securely to begin.

What does the 'Eco' program do?

The Eco program is designed for normally soiled dishes, using less water and energy. It runs longer but is the most efficient cycle.

How do I clean the filters?

Turn off the appliance. Remove the lower rack, then unscrew the cylindrical filter and lift out the flat filter. Rinse under running water, scrub if needed, and reassemble.

What should I do if the dishwasher displays an error code?

Refer to the troubleshooting section of the manual. Common codes like F1 indicate water inlet issues, F3 means heating problem. Reset by switching off for 30 seconds. If persistent, contact service.

How do I add rinse aid?

Open the rinse aid dispenser lid on the inside of the door, pour liquid rinse aid until the level indicator is full, then close the lid. Adjust dosage if needed.

Can I use regular dishwasher salt?

Yes, use granulated dishwasher salt specifically for water softeners. Fill the salt reservoir (located under the lower basket) before starting a cycle.

Why is my dishwasher not drying properly?

Ensure you use rinse aid. Check if the drying option is enabled. Also, plastic items may not dry as well. Try opening the door slightly after cycle.

How do I reset the appliance to factory settings?

Press and hold the Start button for 5 seconds until the display shows 'R'. Release, then press Start again to confirm. The machine will reset.

What is the 'Aqua Stop' feature?

Aqua Stop is a safety system that prevents water leaks. If a leak is detected, the water supply is automatically cut off and the drain pump activates.

Where can I find replacement parts or accessories?

Visit the Bauknecht spare parts website or contact authorized service centers. Provide your model number BSUO 3O23 PF X for correct parts.

USER MANUAL BSUO 3O23 PF X BAUKNECHT

THANK YOU FOR BUYING A BAUKNECHT PRODUCT.

In order to receive a more complete assistance, please register your appliance on: www.bauknecht.eu/register

www

You can download the Safety Instructions and the Use and Care Guide, by visiting our website

docs.bauknecht.eu and following the Instructions on the back of this booklet.

Before using the appliance carefully read Health and Safety guide.

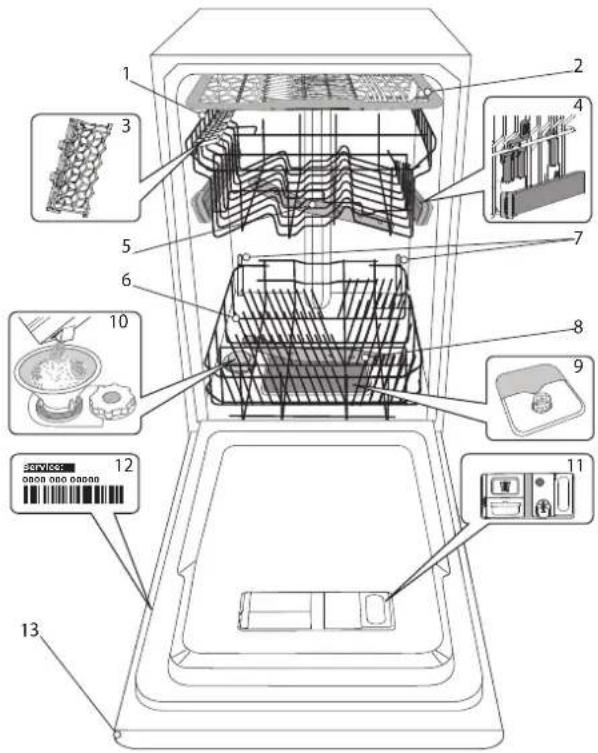

PRODUCT DESCRIPTION

APPLIANCE

1. Upper rack
2. Cutlery rack
3. Foldable flaps
4. Upper rack height adjuster
5. Upper spray arm
6. Lower rack
7. Power Clean® support
8. Lower spray arm
9. Filter Assembly
10. Salt reservoir
11. Detergent and Rinse Aid dispensers
12. Rating plate
13. Control panel

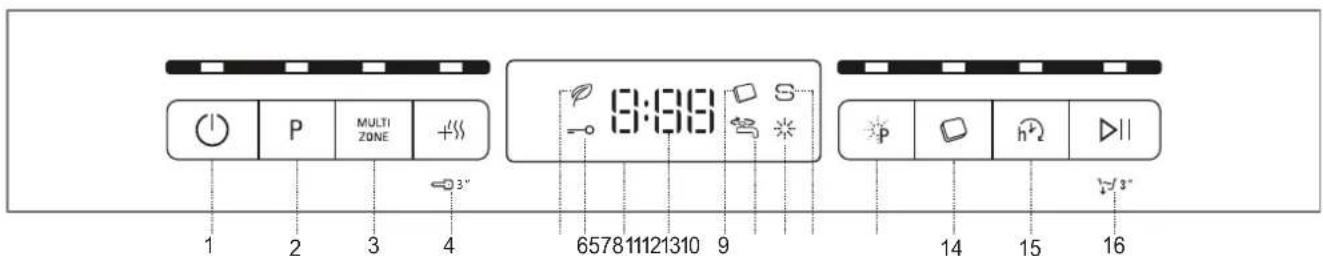

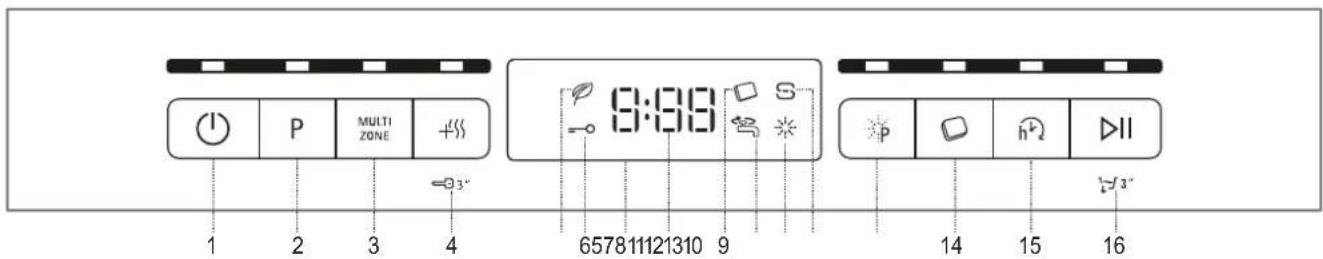

CONTROL PANEL

1. On-Off/Reset button with indicator light
2. Program selection button with indicator light
3. Multizone button with indicator light
4. Extra Dry button with indicator light / Key lock
5. Eco program indicator light
6. Key lock indicator light
7. Display

8. Program number and remaining time indicator

9. Tablet (Tab) indicator light

10. Closed water tap indicator light
11. Rinse Aid refill indicator light
12. Salt refill indicator light
13. Power Clean® button with indicator light
14. Tablet (Tab) button with indicator light
15. Delay button with indicator light
16. Start/Pause button with indicator light / Drain out

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

- It is important that the salt reservoir be never empty.

• It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and should be filled when the SALT REFILL indicator light in the control panel is lit.

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced fruit (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory setting is for average (3) water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button START/Pause for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
• The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees
1 S	Soft 0 - 6 0 - 10
2	Medium	7 - 11	11 - 20
3	Average	12 - 17	21 - 30
4	Hard	18 - 34	31 - 60
5	Very hard	35 - 50	61 - 90

- Switch off the appliance by pressing the ON/OFF button.

Setting is complete!

As soon as this procedure is complete, run a program without loading.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result.

FILLING THE RINSE AID DISPENSER

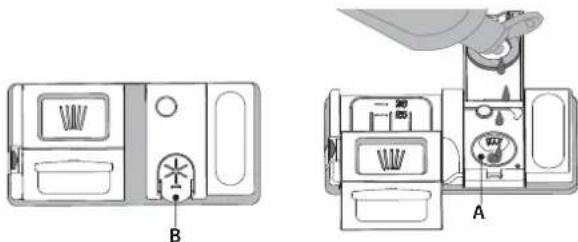

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✦ in the control panel is lit.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button START/Pause three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to 1 (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 4 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.

• If you see bluish streaks on the dishes, set a low number (2-3).
• If there are drops of water or limescale marks on the dishes, set a mid-range number (4-5).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device A. Introduce the detergent into the dry dispenser B only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser B there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

PROGRAMS TABLE

Program			Drying phase	Available options*)	Detergent container		Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
					Tub	B
1	Eco 50°	ECO	√	MULTI ZONE +P h↓	√	√	4:00 9.0 0.74
2	Sensor 50-60°		√	MULTI ZONE +P h↓	√	√	1:20 - 3:00 7.0	- 14.0 0.70 - 1.10
3	Intensive 65°		√	MULTI ZONE +P h↓	- 2:40	√.0	1.30
4	Daily 50°		√	MULTI ZONE +P h↓	- 1:20	√.0	1.10
5	Glass	45°	√	MULTI ZONE +P h↓	- 1:40	√.0	1.00
6	Express 30'	50°	-	MULTI ZONE h↓	- 0:30	√.0	0.50
7	Silent	50°	√	MULTI ZONE +P h↓	- 3:35	√.5	1.00
8	Hygiene 70°		√		-	√	1:40 12.0	1.30
9	Pre-Wash		-	MULTI ZONE h↓	-	-	0:10 4.5 0.01

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.
Note for Test Laboratories:
for information on comparative EN testing conditions, please send an email to the following address: [e-mail]
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
** The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.
Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Normally soiled crockery. Standard program, the most efficient in terms of its combined energy and water consumption.

2 SENSOR

For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.

3 INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

4 DAILY

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.

5 GLASS

Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.

6 EXPRESS 30'

Program to be used for lightly-soiled dishes with no dried food residues.

7 SILENT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

8 HYGIENE

Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher.

9 PRE-WASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

Notes:

Please note that cycles like Express or Fast are most effective for lightly soiled dishes. To reduce consumption even further, only run the dishwasher when it is full.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

MULTI MULTIZONE

ZONE If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent. Select the program and then press the MULTIZONE button: the indicator over the button lights up and the symbol of the chosen rack will appear on the display. By default the appliance washes dishes in all racks. To wash only the specific rack, press this button repeatedly:

| _ | shown on the display (only lower rack)

^2 1-1 shown on the display (only upper rack)

3 shown on the display (only cutlery rack)

OFF shown on the display (option is OFF and the appliance will wash dishes in all racks).

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly.

+''EXTRA DRY

To improve the drying of the dishes, after selecting the program, press the EXTRA DRY button and the indicator light comes on.

A higher temperature during the final rinse and an extended drying phase allow for improving drying. To deselect the option, press the same button again. The EXTRA DRY option results in the lengthening of the wash cycle.

KEYLOCK

A long press (for 3 seconds) of EXTRA DRY button, will activate the KEYLOCK function. The KEYLOCK function will block the control panel except the ON/OFF button. To deactivate the KEYLOCK, long press again.

WATER TAP CLOSED - Alarm

Flashes when there is no inlet water or water tap is closed.

POWER CLEAN®

Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles. Press this button to activate POWER CLEAN® (the indicator lights up).

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used.

Press the TABLET button (the indicator light will light up / the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

h↓ DELAY The start c

The start of the program may be delayed for a period of time between 0:30 and 24 hours.

1. Select the program and any desired options. Press the DELAY button (repeatedly) to delay the start of the program. Adjustable from 0:30 to 24 hours. With each press of the button, the delay start increases by: 0:30 if selection below 4 hours, 1:00 if selection is below 12 hours, 4 hours if selection is above 12 hours. If 24 hours reached, and the button is pressed, the delayed start is deactivated.

2. Press the START/PAUSE button: the timer will begin counting down;

3. Once this time has elapsed, the indicator light switches off and the program begins automatically.

If at the time of the countdown the START/PAUSE button is pressed again the DELAY option is cancelled and the selected program starts automatically.

The DELAY function cannot be set once a program has been started.

DRAIN OUT To stop and can

To stop and cancel the active cycle, the Drain Out function can be used.

A long press of START/PAUSE button, will activate the DRAIN OUT function. The active program will be stopped and the water in the dishwasher will be drained out.

LOADING THE RACKS

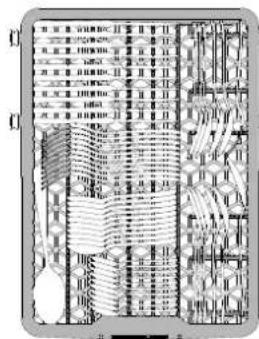

CUTLERY RACK

The third rack was designed to house the cutlery.

Arrange the cutlery as shown in the figure. A separate arrangement of the cutlery makes collection easier after washing and improves washing and drying performance.

Knives and other utensils with sharp edges must be positioned with the blades facing downwards.

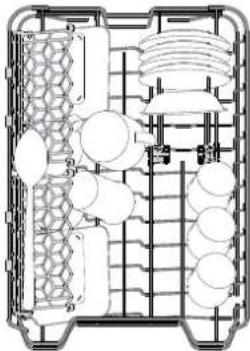

UPPER RACK

Architectural floor plan showing room layouts and structural elements (no text or labels)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

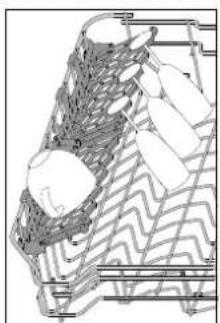

The upper rack has tip-up supports which can be used in a vertical position when arranging tea/ dessert saucers or in a lower position to load bowls and food containers.

(loading example for the upper rack)

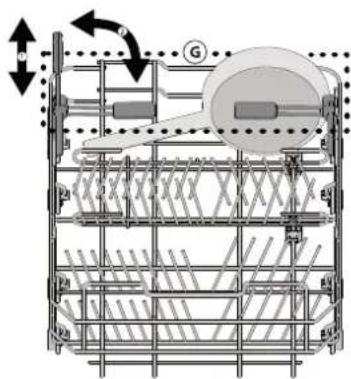

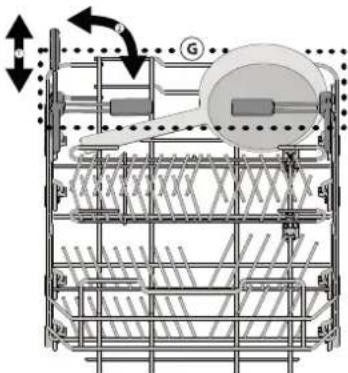

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper basket can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up compartments by creating more space upwards.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position,

press the levers (A) at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded.

NEVER raise or lower the basket on one side only.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

Architectural or engineering diagram showing layered structures with no visible text or symbols

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots. Depending on the model: - to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down.

- to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

LOWER RACK

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

For pots, lids, plates, salad bowls, cutlery etc... Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm.

The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

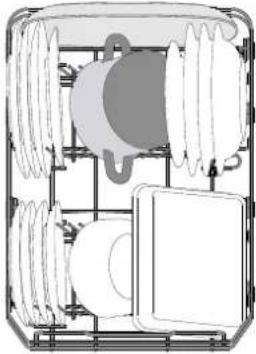

(loading example for the lower rack)

POWER CLEAN®

Power Clean® uses the special water jets in the rear of cavity to wash more intensively the high dirty items. The lower rack has a Space Zone, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in upright position, thus taking up less space.

Placing the pots/casseroles faced to the Power Clean® component please activate the POWER CLEAN® on the panel.

How to use Power Clean®:

1. Adjust the Power Clean ^® area G folding down the rear plate holders to load pots.

2. Load pots and casseroles inclined vertically in Power Clean ^® area. Pots have to be inclined towards the power water jets.

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Press the ON/OFF button.

3. LOAD THE RACKS

(see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

(see PROGRAMS TABLE).

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button. Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing the START/PAUSE button. When the program starts you hear a beep.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and the display shows End. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: press and hold the ON/OFF button, the machine will switch off. Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; start the cycle by pressing the START/PAUSE button.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (be ware of HOT steam!) and place the crockery inside the dishwasher. Close the door and press the START/PAUSE button the cycle will begin from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Once the door has been closed or the electricity supply is restored, to start again the cycle from where it was interrupted, press the START/PAUSE button.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  • Copper and tin crockery.
  • Crockery soiled with ash, wax, lubricating grease or ink.
  The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water: to obtain the best washing results, you need to keep them clean.

The dishwasher must not be used without filters or if the filter is loose.

After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).
2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).

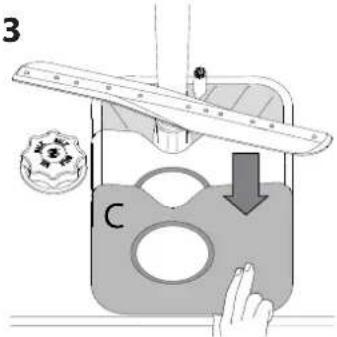

3. Slide out the stainless-steel plate filter C (Fig 3).
4. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

Technical diagram of a mechanical assembly with a hand operating a rotating component (no text or symbols present)

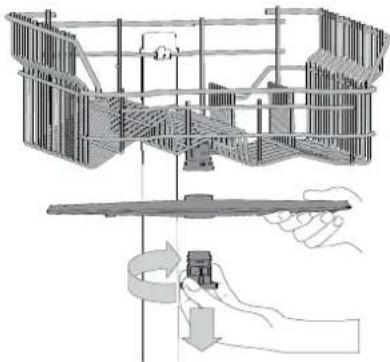

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Illustration of a hand using a tool to interact with a mechanical device, showing a rotating component and a magnified view (no text or symbols)

The lower spray arm may be removed by pulling it upwards.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service whose contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage. The dishwasher starts automatically when the power returns.
	The dishwasher door is not closed. Vigorous push the door until you hear the "click".
	It does not respond to commands.	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program.
The dishwasher won't drain.	The wash cycle has not finished yet. Wait until the wash cycle finishes.
	The drain hose is bent. Check that the drain hose is not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Reset dishwasher by pressing the DRAIN button (see OPTIONS AND FUNCTIONS) and run new program without detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).
	There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

Using QR Code

• Visiting our website docs.bauknecht.eu and parts-selfservice.europeanappliances.com
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

400011264247D

12/2024 as - Xerox Fabriano

DAGLIG REFERENCEOVERSIGT

VEJLEDNING

TAK FORDI DU HAR K∅BT ET BAUKNECHT-PRODUKT.

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced cross-section nearby (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Til sart og let service: glas, kopper, underkopper, lave salatskåle.

Architectural or engineering diagram showing layered structures and pathways (no visible text or labels)

Top-down schematic of a vehicle's internal components, showing fan, seat, and dashboard (no text or labels)

Til gryder, tallerkener, salatskåle, bestik osv. Store tallerkener og låg bør placeres i siderne for at undgå, at spulearmen støder imod dem.

Technical diagram of a mechanical assembly with gears and shafts, no visible text or symbols

DAGLIG BRUG

1. KONTROLLER VANDTILSLUTNINGEN

Technical diagram of a mechanical assembly with hand and rotating component (no text or symbols)

Den øverste spulearm afmonteres ved at dreje plastlåseringen med uret. Den øverste spulearm monteres igen, så siden med flest huller vender opad.

12/2024 as - Xerox Fabriano

KURZANLEITUNG

GUIDE

DANKE, DASS SIE SICH FÜR EIN BAUKNECHT

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced food item (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Diagram of a shopping cart with patterned basket and hand handle (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

TÄGLICHER GEBRAUCH

Technical diagram of a mechanical assembly with hand operating a tool and rotating component (no text or symbols)

Illustration of a hand using a ruler to press a mechanical component with a gear-like base (no text or symbols)

12/2024 as - Xerox Fabriano

PÄIVITTÄISKÄYTÖN VIITE-OPAS

KIITOS SIITÄ, ETTÄ OSTIT BAUKNECHT-TUOTTEEN.

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced fruit (no text or symbols)

LISÄVALINNAT JA TOIMINNOT

LISÄVALINNAT voidaan valita suoraan painamalla vastaavaa painiketta (ks. KÄYTTÖPANEELI).

Architectural floor plan showing room layouts and structural elements (no text or labels)

TAIVUTETTAVIEN LÄPPIEN SÄÄDETTÄVÄT ASENNOT

Architectural or engineering diagram showing layered structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

PÄIVITTÄINEN KÄYTTÖ

1. TARKASTA VESILIITÄNTÄ

2. KYTKE ASTIANPESUKONE PÄÄLLE

Paina VIRTA-painiketta.

3. TÄYTÄ KORIT

(ks. KORIEN TÄYTTÄMINEN)

4. PESUAINELOKERON TÄYTTÄMINEN

(ks. OHJELMATAULUKKO).

5. VALITSE OHJELMA JA TEE JAKSON LISÄVALINNAT

Technical diagram of a mechanical assembly with hand and rotating component (no text or symbols)

VEDENOTTOLETKUN PUHDISTAMINEN

400011264247D

12/2024 as - Xerox Fabriano

DAGLIG REFERANSE

LISTE

TAKK FOR AT DU HAR KJ∅PT ET BAUKNECHT

1. ∅vre kurv
2. Bestikkskuff
3. Klaffer som kan slås ned
4. Høydeinnstilling øvre kurv
5. ∅vre dusjarm
6. Nedre kurv
7. Power Clean® støtte
8. Nedre dusjarm
9. Filterenhet
10. Saltbeholder
11. Dispenser for oppvaskmiddel og skyllemiddel
12. Typeplate
13. Betjeningspanel

BETJENINGSPANEL

1. På-Av/Reset knapp med indikatorlampe
2. Programvelger med indikatorlampe
3. Multizone-knapp med indikatorlampe
4. Knapp for Extra Dry med indikatorlampe / Tastelås
5. ∅ko-program indikatorlampe
6. Indikatorlampe for tastelås
7. Display

8. Programnummer og indikator for gjenværende tid

9. Oppvasktabletter (Tab) indikatorlampe

10. Stengt vannkran indikatorlampe
11. Indikatorlampe for påfylling skyllemiddel
12. Indikatorlampe for påfylling av salt
13. Power Clean ^® knapp med indikatorlampe
14. Knapp med indikatorlampe for oppvasktabletter (Tab)
15. Utsatt start-knapp med indikatorlampe
16. Start/Pause knappe med indikatorlampe/ Tømming

F∅RSTE GANGS BRUK

SALT, SKYLLEMIDDEL OG VASKEMIDDEL

RÅD MED HENSYN TIL F∅RSTE GANGS BRUK

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced fruit (no text or symbols)

Top-down architectural floor plan showing room layouts and structural elements (no text or labels)

Architectural or engineering diagram showing layered structure with no visible text or symbols

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

DAGLIG BRUK

1. KONTROLLER VANNTILKOPLINGEN

Technical diagram of a mechanical assembly with hand and curved arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to press a small bowl into a container, with an upward arrow indicating motion (no text or symbols present)

12/2024 as - Xerox Fabriano

DAGLIG INFORMATIONSBOK

TACK FÖR ATT DU HAR KÖPT EN PRODUKT FRÅN

Illustration of a hand pouring granular material into a bowl on a stand next to a slice of onion (no text or symbols)

Architectural floor plan of a building showing internal layout and structural elements (no text or labels)

FÄLLBARA KOPPSTÄLL MED JUSTERBART LÄGE

Architectural line drawing of a building facade with grid lines and structural elements (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

DAGLIG ANVÄNDNING

1. KONTROLLERA ANSLUTNINGEN TILL VATTENLEDNINGEN

5. VÄLJ PROGRAM OCH ANPASSA DET

RENGÖRING AV SPOLARMARNA

Technical diagram of a mechanical assembly with hand operating a tool, showing internal components and motion arrows (no text or labels)

12/2024 as - Xerox Fabriano
