Type of Product	Freestanding Refrigerator-Freezer
Brand	Whirlpool
Model	BLF 7121 W
Total Net Capacity	340 L
Refrigerator Net Capacity	240 L
Freezer Net Capacity	100 L
Energy Efficiency Class	E
Annual Energy Consumption	240 kWh
Noise Level	42 dB(A)
Dimensions (H x W x D)	177.5 x 60.0 x 65.0 cm
Weight	68 kg
Power Supply	220-240 V, 50 Hz
Main Functions	Adjustable thermostat, interior LED light, reversible door, bottle rack, egg tray, ice cube tray
Defrost Type	Automatic refrigerator defrost, manual freezer defrost
Maintenance & Cleaning	Clean interior with mild detergent, vacuum condenser coils every 6 months, replace door seals if worn
Safety Features	Child lock, tempered glass shelves, anti-tip bracket, proper ventilation required
Spare Parts & Repairability	Spare parts available online: control board, compressor, door seals, shelves, thermostat. Repairability rating: 7.5/10
General Information	White finish, reversible door, includes user manual, designed for household use

Frequently Asked Questions - BLF 7121 W WHIRLPOOL

What is the recommended temperature setting for the refrigerator compartment?

The optimal temperature is between 3°C and 5°C. Use the adjustable thermostat inside the fridge to set it.

How often should I defrost the freezer?

Defrost the freezer when ice thickness exceeds 5 mm. For manual defrost, unplug the appliance and let ice melt naturally. Do not use sharp objects to remove ice.

Why is my refrigerator making unusual noises?

Normal noises include gurgling (refrigerant flow), clicking (thermostat), and humming (compressor). Loud noises may indicate improper leveling. Ensure the fridge is level and stable.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and possibly help from another person.

How do I clean the condenser coils?

Unplug the fridge, locate the coils at the back or bottom, and use a vacuum cleaner with a brush attachment. Clean every 6 months for efficiency.

What should I do if the refrigerator is not cooling?

Check if it's plugged in, thermostat set correctly, and door seals are tight. Also clean the condenser coils. If problem persists, contact Whirlpool service.

Is it normal for the exterior to feel warm?

Yes, the sides can be warm due to the condenser dissipating heat. This is normal operation. Ensure proper ventilation around the appliance.

How can I reduce energy consumption?

Keep the fridge away from heat sources, set temperature correctly, avoid frequent door opening, and ensure good ventilation around the appliance.

What type of light does the refrigerator use?

It uses an LED light inside the fridge compartment. If it fails, contact a qualified technician for replacement.

Can I store hot food in the refrigerator?

No, allow hot food to cool to room temperature before storing. Placing hot food inside can raise internal temperature and compromise food safety.

USER MANUAL BLF 7121 W WHIRLPOOL

User Manual

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance,

please register your appliance on www.whirlpool.eu/register

INDEX

HEALTH & SAFETY GUIDE....3

Safety instructions....3

Product Description 5

Accessories* 5

Control panel....6

Refrigerator light....7

Shelves 7

Door....7

No-frost refrigerator compartment 7

How to use the appliance 8

First time use 8

Refrigerator compartment and food storage 8

How to store fresh food and beverage 8

Freezer compartment and food storage....9

Removing the freezer drawer container....9

Tips for freezing and storing fresh food 9

Frozen food: shopping tips 9

Storage times for home frozen foods 10

Defrosting the freezer compartment....10

Functional sounds 10

Alarm table....11

Recommendation in case of no use of the appliance 11

Cleaning and maintenance 11

Troubleshooting....12

After-sales service 13

INSTALLATION GUIDE....14

SAFETY INSTRUCTIONS

IMPORTANT TO BE READ AND OBSERVED

Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

⚠️ Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

PERMITTED USE

⚠️ CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. ⚠️ This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.

⚠ This appliance is not for professional use. Do not use the appliance outdoors.

The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range. Climatic Class Amb. T. (°C)

SN: From 10 to 32 °C; N: From 16 to 32 °C

ST: From 16 to 38 °C; T: From 16 to 43 °C

This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

WARNING: Do not damage the appliance

refrigerant circuit pipes.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

⚠ WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

⚠ WARNING: Ice makers and/or water dispensers not directly connected to the water supply must be filled with potable water only.

⚠ WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar).

Do not store explosive substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance.

⚠ Do not swallow the contents (non-toxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

⚠ For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the refrigerator is in function.

⚠ Do not store glass containers with liquids in the freezer compartment since they may break.

Do not obstruct the fan (if included) with food items. After placing the food check that the door of the compartments closes properly, especially the freezer door.

⚠ Damaged gaskets must be replaced as soon as possible.

⚠ Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.

⚠ Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.

Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box, etc.). Unless specified in the specific booklet of product, they can be removed, maintaining equivalent performances.

⚠ C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.

INSTALLATION

⚠ The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

⚠️ Installation, including water supply (if any) and electrical connections, and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

⚠️ Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.

⚠️ To guarantee adequate ventilation, leave a space on both sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50 mm, to avoid access to hot surfaces. A reduction of this space will increase the Energy consumption of product.

⚠ WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions. It is forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil).

ELECTRICAL WARNINGS

⚠ It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.

⚠ Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.

If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard - risk of electric shock.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.

Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior and door liners, or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol.

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery, and recycling of household electrical appliances, contact your local authority, the collection service for household waste, or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Install the appliance in a dry, well-ventilated room far away from any heat source (e.g., radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate.

To guarantee adequate ventilation, follow installation instructions. Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency.

Frequent door opening might cause an increase in energy consumption. The internal temperature of the appliance and the energy consumption may also be affected by the ambient temperature, as well as the location of the appliance. Temperature setting should take these factors into consideration.

Reduce door opening to a minimum.

When thawing frozen food, place it in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing them in the appliance.

The positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such a way as to ensure proper air circulation (food should not touch each other, and distance between food and the rear wall should be kept).

You can increase the storage capacity of frozen food by removing baskets and, if present, the Stop Frost shelf.

Do not worry about noises coming from the compressor, which are described as normal noises in this product's Quick Guide.

PRODUCT DESCRIPTION

Refrigerator Compartment

1. Fan*
2. Fan cover*
3. Electronic control panel/light unit
4. Shelves
5. Rating plate with commercial name
6. Fruits and vegetables crisper
7. Door reversibility kit
8. Door trays
9. Egg tray*
10. Bottle separator*
11. Bottle balcony*
12. Door seal

Freezer Compartment

1. Door seals
2. Freezer drawers
3. Shelves
4. Bottom drawer: coolest zone best for freezing fresh food
5. Ice tray*

ACCESSORIES*

EGG TRAY, BOTTLE SEPARATOR, ICE TRAY

* Available only on certain models

CONTROL PANEL

LED LIGHT

The light system inside the fridge compartment uses LEDs.

light, allowing better illumination as well as very low energy consumption. If the LED light system does not work, please contact the Service to replace it.

Important: The refrigerator compartment light switches on when the refrigerator door is opened.

6TH SENSE

This function automatically works to ensure the optimal conditions to preserve the stored food. The "6th Sense" function is automatically activated when:

This function automatically works to ensure the optimal conditions to preserve the stored food. The "6th Sense" function is automatically activated when:

• A large amount of food is loaded into the refrigerator.
• the refrigerator door is left open for a long time
• a prolonged power failure takes place, causing the internal temperature of the appliance to increase to values that cannot guarantee safe storage of food.

The use of the Fast Cooling function is recommended to increase the cooling capacity of the refrigerator compartment when placing a very high quantity of food within it.

The use of the Fast Cooling function is recommended to increase the cooling capacity of the refrigerator compartment when placing a very high quantity of food within it.

To activate the Fast Cooling function, press and hold the Temperature button on the control panel for 3 seconds until all 3 LEDs turn on.

The function is automatically deactivated after 24 hours and returns to the previously selected set point.

The function can be manually deactivated by pressing and holding the Temperature button on the control panel for 3 seconds.

Note: The Fast Cooling function should also be switched ON before placing fresh food to be frozen in the freezer compartment, in order to maximize the freezing capacity.

1. Indicator LEDs (to display the current temperature setpoint or the Fast Cooling function)
2. Fast Cooling Button / Temperature Button

TEMPERATURE SETTING

Press the Temperature button on the control panel to adjust the temperature from the warmest through the lower to the coldest level. Pressing the Temperature button, the temperature setting will change cyclically. At first plug-in of the appliance, the temperature setpoint is present at the medium position (factory setting). The following table shows the temperature setpoints:

High temp.

Med-high temp.

Medium temp.

Med-low temp.

Low temp.

Fast Cooling

Note: Displayed set points correspond to the average temperature throughout the whole refrigerator.

FAN*

The Fan improves temperature distribution inside the refrigerator compartment, allowing better preservation of stored food. By default, the fan is switched on. To turn off the fan, press the fan button. Please note that when the fan is switched on, it will not continuously work. The fan will start/stop working depending on the temperature and/or humidity level inside the fridge. It is therefore absolutely normal if the fan does not move even if the fan is switched on. If the appliance has the Fan, it can be equipped with the antibacterial filter. Remove it from the box placed in the crisper drawer and insert it into the fan cover. The replacement procedure is included in the filter box.

ANTIBACTERIAL FILTER*

Remove it from the box placed in the Fruit and vegetable drawer and insert it into the cover of the fan. The replacement procedure is included in the filter box. Replace it every 6 months to ensure optimal protection inside your refrigerator. Visit the website page or contact consumer service to purchase the filter.

FREEZING FRESH FOOD

Place fresh food to be frozen on the shelf in the freezer compartment, avoiding direct contact with food that is already frozen. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate. To freeze fresh food, place the freezer compartment shelf in the bottom position.

REFRIGERATOR LIGHT

The light system inside the fridge compartment uses LED lights, allowing better lighting as well as very low energy consumption.

If the LED light system does not work, please contact the Service to replace it.

Important: The refrigerator compartment light switches on when the refrigerator door is opened.

If the door is kept open for more than 8 minutes, the light will be automatically switched off.

SHELVES

All shelves, flaps, and pull-out baskets are removable.

DOOR

DOOR REVERSIBILITY

Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

Follow instruction in Installation Guide.

NO-FROST REFRIGERATOR COMPARTMENT

Refrigerator compartment defrosting is completely automatic. Droplets of water on the rear wall inside the refrigerator compartment indicate that the automatic defrost phase is in progress.

The defrost water is automatically run into a drain hole and collected in a container, where it evaporates.

HOW TO USE THE APPLIANCE

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply.

Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. Position the antibacterial antiodour filter in the fan as demonstrated in the filter packaging (if available).

REFRIGERATOR COMPARTMENT AND FOOD STORAGE

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors.

In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves.

In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

AIR VENTILATION

The natural circulation of air in the refrigerator compartment results in zones with different temperatures. It is coldest directly above the fruits and vegetables crisper and at the rear wall. It is warmest at the top front of the compartment. Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance.

HOW TO STORE FRESH FOOD AND BEVERAGE

Foods which give off a large amount of ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, melons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example, do not store tomatoes together with kiwi fruits or cabbage.

Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods.

If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer, or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

Legend

TEMPERATE ZONE

Suggested for the storage of tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for storage of cheese, milk, dairy food, delicatessen, yogurt

FRUIT & VEGETABLE DRAWER

FREEZER COMPARTMENT AND FOOD STORAGE

The freezer compartment follows for the storage of frozen food (for the period indicated on the packaging) and the freezing of fresh food.

The quantity of fresh food that can be frozen in 24 hours is written on the rating plate.

Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around the food packages to allow air to circulate freely. It is advisable that you do not re-freeze food that has partially defrosted. It is important to wrap the food in a way that prevents the ingress of water, humidity or condensation.

To get more volume, the freezer compartment can be used without the freezer drawers. Make sure that the door is closed properly.

ICE CUBES

Fill 2/3 of the ice tray with water and put it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice under any circumstances.

Legend FREEZING ZONE DRAWER (MAX COOL ZONE) Suggested to freeze fresh/cooked food.

FREEZER DRAWER

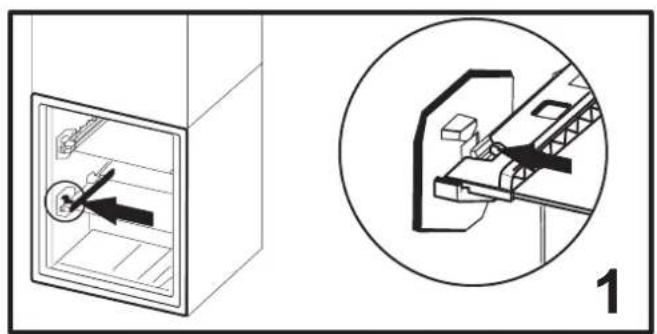

REMOVING THE FREEZER DRAWER CONTAINER

• Open the freezer door.
• Pull the upper container upwards by the right and left corners (1).
• Remove the drawer (2). • Install the upper container in the reverse order.

TIPS FOR FREEZING AND STORING FRESH FOOD

• We recommend to label and date all your frozen food. Adding a label will help you to identify foods and to know when they should be used before their quality deteriorates. Do not re-freeze defrosted food.
• Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
• Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.

- Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavor. Some meat, especially game, should be hung before it is frozen.

• Always leave hot food to cool before placing in the freezer.

- Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen.

- Do not freeze bottles with liquid.

FROZEN FOOD: SHOPPING TIPS

When purchasing frozen food products:

- Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.

- When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.

- Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun. - When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.

• Once at home, place the frozen foods immediately in the freezer.
• If food has defrosted even partially, do not refreeze it. Consume within 24 hours.
• Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package. • Always observe the storage information on the package.

STORAGE TIMES FOR HOME FROZEN FOODS

Product Storage period

Butter or margarine 6 months
Cheese 3 months
Fish	2/3 months
Shellfish	1 month
Fruits (except citrus) 8-12 months
Ice cream or sherbet 2/3 months
Meat
Ham- sausage	2 months
Roasts (beef-pork- lamb)	8/12 months
Steaks or chops (beef-lamb-pork)	4 months
Milk, fresh fluid 1-3 months
Poultry (chicken-turkey) 5-7 months
Vegetables 8-12 months

DEFROSTING THE FREEZER COMPARTMENT

The freezer should be defrosted once or twice a year or when excessive frost is present (3 mm thickness). The formation of frost is normal.

The amount and rate at which frost accumulates depends on room conditions and how often the door is open.

To defrost the unit, switch off the product and take out all food.

Leave the freezer door open to allow the frost to melt.

Use the box under the bottom front of the appliance to collect water (shown in the figure).

Clean the inside of the freezer. Rinse and dry thoroughly.

Switch the appliance back on and store the food inside.

FUNCTIONAL SOUNDS

Sounds coming from your appliances are normal since they have a number of fans and engines to regulate performances that switch on and off automatically.

SOME OF THE FUNCTIONAL SOUNDS CAN BE REDUCED THROUGH:

• Leveling the appliance and installing it on an even surface.
• Separating and avoiding contact between the appliance and furniture.
• Checking if the internal components are correctly placed.
• Checking if bottles and containers are not in contact with each other.

SOME OF THE FUNCTIONAL SOUNDS YOU MIGHT HEAR

1. A hissing sound when switching on the appliance for the first time or after a long pause.

1. A gurgling sound when refrigerant fluid enters into the pipes.

1. BRRR sound is from the compressor running.

1. Buzzing sound when water valve or fan start working.

1. A cracking sound when compressor starts.

1. The CLICK is from the thermostat which adjusts how often the compressor is running.

Alarm type Signal Cause Cure

Door open alarm. Refrigerator	Light blinks. The door has remained open for more than 5 minutes.	Close the door.
Door open alarm. Refrigerator	Light OFF. The door has remained open for more than 8 minutes.	Close the door.
Malfunction. Any temperature indicators blinks.	Product malfunction. Contact the After-sales Service.

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

IN THE EVENT OF NON-USE OF THE APPLIANCE

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

IN THE EVENT OF AN INTERRUPTION TO THE POWER SUPPLY

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

• Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors. - Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth. - Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.

Important:

• The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.
• The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.

To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided.

TROUBLESHOOTING

What to do if... Possible reasons Solutions

The appliance is not working.	There may be an appliance power supply problem.	·Check if power cable plugged into a live socket with the proper voltage.·Check if the protection devices and fuses of the electrical system in your home
There is water in the defrost pan.	This is normal in hot, damp weather. The pan can even be half full.	·Make sure the appliance is level so that the water does not overflow.
The edges of the appliance cabinet, which come in contact with the door seal, are warm to the touch.	This is not a defect. This is normal in hot weather and when the compressor is running.
The light does not work.	The light may need replacing. The appliance may be in On/ Stand-by model.	·Make sure if the protection devices and fuses of the electrical system in your home work well.·Check if the power cable is plugged into a live socket with the proper voltage·In case the LEDs are broken the user must call the Service for exchange of the same type available only at our After-sales Service Centers or authorized dealers.
The motor seems to run too much.	Motor running time depends on different things: number of door openings, amount of food stored, temperature of the room, setting of the temperature controls.	·Make sure that the appliance controls are correctly set.·Check if there is not a large amount of food been added to the appliance.·Check that the door is not opened too often.·Check that the door close properly.
The appliance temperature is too high.	There could be various causes (see “Solutions”).	·Make sure that the condenser (back the appliance) is free of dust and fluff.·Make sure that the door properly closed.·Make sure that the door seals properly fitted.·On hot days or if the room is warm, the motor naturally runs longer.·If the appliance door has been left open for a while or if large amounts of food have been stored, the motor will run longer in order to cool down the interior of the appliance.
The doors do not open and close properly.	There could be various causes (see “Solutions”).	·Check that food packages are not blocking the door.·Check that the internal parts or automatic ice maker are not out of position.·Check that the door seals are not dirty or sticky.·Ensure the appliance is level.

AFTER-SALES SERVICE

BEFORE CALLING THE AFTER-SALES SERVICE

1. See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING.
2. Switch the appliance off and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE

To receive assistance, call the number shown on the warranty booklet or follow the instructions on the website www.whirlpool.eu

When contacting our Client After sales service, always specify:

• a brief description of the fault;

• the type and exact model of the appliance;

- the service number (number after the word Service on the rating plate). The service number is also indicated on the guarantee booklet;

- your full address;

- your telephone number.

If any repairs are required, please contact an authorised after-sales service (to guarantee that original spare parts will be used and repairs carried out correctly).
