Product Type	Microwave Oven
Brand	Kooper
Model	2159711
Capacity	20 liters
Dimensions (H x W x D)	260 x 450 x 350 mm
Weight	10.5 kg
Power Output	800 W
Voltage / Frequency	230 V / 50 Hz
Display Type	LED digital display
Control Type	Touch control with buttons
Defrost Function	Yes, by weight or time
Preset Programs	8 auto-cook menus
Child Lock	Yes
Turntable	Yes, 245 mm glass
Interior Light	Yes
Door Opening	Side hinge, push-button
Cleaning & Maintenance	Wipe interior with damp cloth; avoid abrasives
Safety Features	Door interlock, overheat protection
Spare Parts Availability	Through Kooper service centers
Warranty	2 years

Frequently Asked Questions - 2159711 Kooper

How do I set the clock on my Kooper microwave?

Press the 'Clock' button, then use the numeric keypad to enter the current time. Press 'Clock' again to confirm. Refer to the manual for specific steps.

What is the maximum cooking time?

The maximum cooking time is 95 minutes for most models. For longer times, use the defrost or multi-stage cooking feature.

Can I use metal containers in the microwave?

No, metal can cause sparks and damage the appliance. Use only microwave-safe glass, ceramic, or plastic containers.

How to clean the interior?

Wipe with a soft damp cloth and mild detergent. Do not use abrasive cleaners. For odors, place a bowl of water with lemon slices and heat for 3 minutes.

What does the 'Child Lock' function do?

It disables the control panel to prevent accidental operation by children. Press and hold 'Stop' for 3 seconds to activate or deactivate.

Why is my microwave not heating?

Check if the door is fully closed, the power cord is plugged in, and the timer is set. If still not heating, the magnetron may be faulty and require service.

How do I defrost food?

Use the 'Defrost' function and enter the weight of the food. The microwave will automatically set time and power level for even thawing.

Can I cook popcorn in this microwave?

Yes, use the 'Popcorn' preset if available, or follow package instructions. Use a microwave-safe bowl and monitor to avoid burning.

What does the 'Sensor Reheat' function do?

It automatically detects the moisture released from food and adjusts cooking time for optimal reheating. Works best with moist foods.

Where can I get replacement parts?

Contact Kooper customer service or visit an authorized service center. Use only genuine Kooper spare parts.

USER MANUAL 2159711 Kooper

TIMER

ISTRUZIONI PER L'USO

FOR A CORRECT AND SAFE USE OF THE APPLIANCE

EN Kooper®

GENERAL SAFETY INSTRUCTIONS

WARNING! READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL VERY CAREFULLY AND SAVE THEM FOR FUTURE REFERENCE DURING THE WHOLE LIFE OF THE PRODUCT SINCE THEY PROVIDE IMPORTANT INDICATIONS ABOUT THE FUNCTIONING AND THE SAFETY OF INSTALLATION, USE AND MAINTAINANCE OF THE PRODUCT.

RISK FOR CHILDREN!

- A POWER DEVICE IS NOT A TOY. AFTER USE, STORE IT OUT OF REACH OF CHILDREN. KEEP PACKING MATERIAL (PLASTIC BAGS, CARTON, ETC.) OUT OF REACH OF CHILDREN.

- THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN UNLESS THEY ARE OLDER THAN 8 AND SUPERVISED. KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8 YEARS.

- CHILDREN SHOULD BE SUPERVISED TO MAKE SURE THEY DO NOT PLAY WITH THE APPLIANCE.

RISK OF INJURY!

• TO AVOID INJURIES, DO NOT INTRODUCE YOUR HANDS IN THE MACHINE WHILE IT IS OPERATING AND KEEP AWAY HAIR, CLOTHES AND OTHER OBJECTS.

- SWITCH OFF AND UNPLUG THE APPLIANCE BEFORE CHANGING THE ACCESSORIES! DO NOT CONNECT THE PLUG TO THE POWER SOCKET IF THE NECESSARY ACCESSORIES ARE NOT INSTALLED.

- NEVER TOUCH THE MOVING PARTS OF THE APPLIANCE AND ALWAYS WAIT FOR THE APPLIANCE TO STOP COMPLETELY.

RISK OF ELECTRIC SHOCK!

- THIS APPLIANCE IS INTENDED TO WORK ONLY WITH AC. BEFORE OPERATING, MAKESURETHATMAINSVOLTAGERATINGCORRESPONDS TO THE VALUE INDICATED ON THE RATING PLATE OF THE PRODUCT.

- CONNECT THE APPLIANCE ONLY TO OUTLETS WITH A MINIMUM ELECTRIC CURRENT OF 10 AMPERE.

DO NOT PULL THE POWER CORD OR THE APPLIANCE ITSELF IN

• ORDER TO UNPLUG IT FROM THE OUTLET.

UNWIND COMPLETELY THE POWER CORD BEFORE SWITCHING ON

• THE APPLIANCE.

- USE AN EXTENSION CORD ONLY IF IT IS IN PERFECT CONDITIONS.

- DO NOT LET THE CORD HANG OVER SHARP EDGES. DO NOT SQUASH IT.

- DO NOT LET THE APPLIANCE EXPOSED TO THE WEATHER (RAIN, FREEZING, SUN, ETC).

- NEVER USE THE APPLIANCE:

- WITH WET OR DAMP HANDS;

- IF IT HAS FALLEN AND IT CLEARLY BROKE OR DOESN'T WORK PROPERLY;

• IN CASE OF FAULTY PLUG OR POWER CORD;

• IN PRESENCE OF HUMIDITY OR GAS.

NEVER COVER THE APPLIANCE WITH TOWELS, CLOTHES, ETC.

- PLACE THE APPLIANCE ONLY ON HORIZONTAL AND STABLE SURFACES, FAR FROM SHOWERS, BATHTUBS, SINKS, ETC.

HOWEVER, IF THE APPLIANCE FALLS INTO THE WATER, UNPLUG IT IMMEDIATELY AND TAKE IT ONLY AFTERWARDS. IN THIS CASE, STOP

• USING THE APPLIANCE AND HAVE IT CHECKED BY QUALIFIED

- PERSONNEL.

ONLY OPERATE THE APPLIANCE IN VERTICAL POSITION.

- ALWAYS UNPLUG FROM THE MAINS SUPPLY IMMEDIATELY AFTER THE USE AND BEFORE ANY CLEANING OR MAINTENANCE OPERATION.

- THE APPLIANCE MAY ONLY BE REPAIRED BY A SPECIALIZED TECHNICIAN.

- REPAIRING THE APPLIANCE BY YOURSELF MIGHT BE EXTREMELY DANGEROUS.

- ALWAYS CUT THE POWER CORD OF A BROKEN UNIT IN ORDER TO MAKE IT UNUSABLE BEFORE THROWING IT AWAY.

- CLEAN THE APPLIANCE WITH A DAMP CLOTH AFTER IT COOLED DOWN. DO NOT USE SOLVENTS OR ABRASIVE PRODUCTS.

- THE APPLIANCE IS INTENDED ONLY FOR HOME USE. IT CAN ONLY BE USED INDOOR.

THIS APPLIANCE CANNOT BE USED FOR COMMERCIAL PURPOSES.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

POWER:

1000W

OVEN CAPACITY: 20 L

TURNTABLE DIAMETER: 250 mm

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to personor exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. Only use utensils suitable for use in microwave ovens.

5. The oven should be cleaned regularly and any food deposits should be removed.

6. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

7. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

8. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

9. Do not overcook food.

10. Do not use the oven cavity for storage purposes.

Do not store items, such as bread, cookies, etc. inside the oven.

1. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

2. Install or locate this oven only in accordance with the installation instructions provided.

3. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

4. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

5. Do not let cord hang over edge of table or counter.

6. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

7. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

1. Children should be supervised to ensure that they do not play with the appliance.

2. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

3. Accessible parts may become hot during use. Young children should be kept away.

4. Steam cleaner is not to be used.

5. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

6. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)

7. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

8. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)

9. The rear surface of appliance shall be placed against a wall.

10. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with

a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or

tripping over a longer cord.2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

INSTALLATION

1 SELECT A LEVEL SURFACE THAT PROVIDE ENOUGH OPEN SPACE FOR THE INTAKE AND/OR OUTLET VENTS

A minimum clearance of 7.5cm is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 30 cm above the oven.
(2) Do not remove the legs from the bottom of the oven.
(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. PLUG YOUR OVEN INTO A STANDARD HOUSEHOLD OUTLET. BE SURE THE VOLTAGE AND THE FREQUENCY IS THE SAME AS THE VOLTAGE AND THE FREQUENCY ON THE RATING LABEL.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. THE ACCESSIBLE SURFACE MAY BE HOT DURING OPERATION.

SETTING UP YOUR OVEN

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following

ACCESSORIES:

Names of Oven Parts and Accessories

1 Glass tray
1 Turntable ring assembly
1 Instruction Manual

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

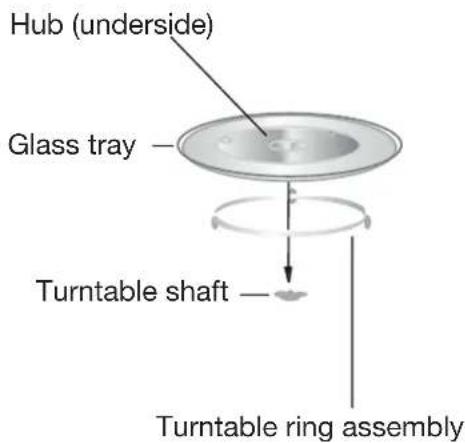

TURNTABLE INSTALLATION

a. Never place the glass tray upside down.
The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact an authorized service center.

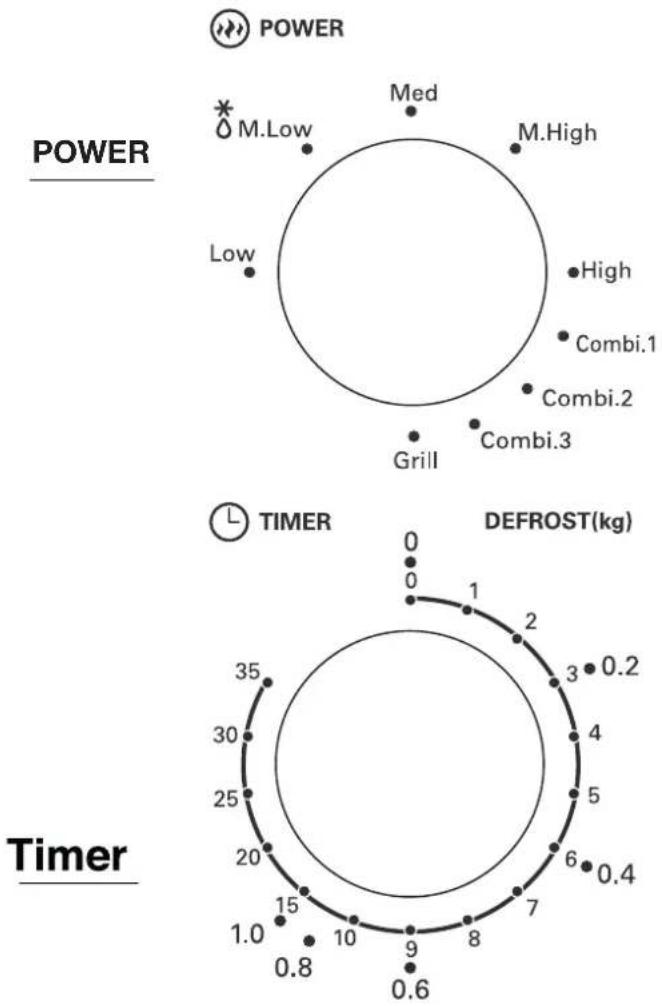

OPERATION CONTROL PANEL AND FEATURES OPERATION INSTRUCTIONS

1. To set cooking power by turning the power knob to desired level.

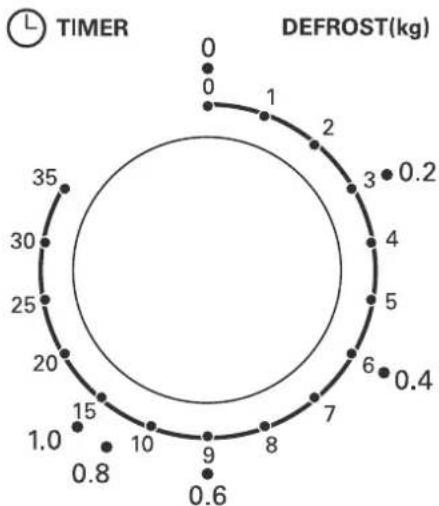

2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

FUNCTION/POWER OUTPUT (%) APPLICATION
LOW 17% MICROONDE SOFTEN ICE CREAM
MED. LOW (DEFROST) 33%	MICROWAVE SOUP STEW,	SOFTEN BUTTER OR DEFROST
MED. 55% MICROWAVE STEW, FISH
MED. HIGH 77% MICROWAVE RICE, FISH, CHICKEN, GROUND MEAT
HIGH 100% MICROWAVE REHEAT, MILK, BOIL		WATER, VEGETABLES, BEVERAGE
COMBI.1 8 0% GRILL + 20% MICRO. SAUSAGE, LAMB, KABOBS, SEAFOOD, STEAK
COMBI.2	70% GRILL + 30% MICRO.	CHICKEN PIECES, CHICKEN BREASTS, PORK CHOPS
COMBI.3	60% GRILL + 40% MICRO.	WHOLE CHICKEN
GRILL	100% GRILL	BAKEN BREAD, SLICE FOOD

NOTICE: WHEN REMOVING FOOD FROM THE OVEN, PLEASE ENSURE THAT THE OVEN POWER IS SWITCHED OFF BY TURNING THE TIMER SWITCH TO 0 (ZERO). FAILURE TO DO SO, AND OPERATING THE MICROWAVE OVEN WITHOUT FOOD IN IT, CAN RESULT IN OVERHEATING AND DAMAGE TO THE MAGNETRON.

UTENSILS

See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

UTENSIL TEST:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

UTENSILS REMARKS
BROWNING DISH	FOLLOW MANUFACTURER'S INSTRUCTIONS. THE BOTTOM OF BROWNING DISH MUST BE AT LEAST 5MM ABOVE THE TURNTABLE. INCORRECT USAGE MAY CAUSE THE TURNTABLE TO BREAK.
DINNERWARE	MICROWAVE-SAFE ONLY. FOLLOW MANUFACTURER'S INSTRUCTIONS. DO NOT USE CRACKED OR CHIPPED DISHES.
GLASS JARS	ALWAYS REMOVE LID. USE ONLY TO HEAT FOOD UNTIL JUST WARM. MOST GLASS JARS ARE NOT HEAT RESISTANT AND MAY BREAK.
GLASSWARE	HEAT-RESISTANT OVEN GLASSWARE ONLY. MAKE SURE THERE IS NO METALIC TRIM. DO NOT USE CRACKED OR CHIPPED DISHES.
OVEN COOKING BAGS	FOLLOW MANUFACTURER'S INSTRUCTIONS. DO NOT CLOSE WITH METAL TIE. MAKE SLITS TO ALLOW STEAM TO ESCAPE.
PAPER PLATES AND CUPS	USE FOR SHORT-TERM COOKING/WARMING ONLY. DO NOT LEAVE OVEN UNATTENDED WHILE COOKING.
PAPER TOWELS	USE TO COVER FOOD FOR REHEATING AND ABSORBING FAT. USE WITH SUPERVISION FOR A SHORT-TERM COOKING ONLY.
PARCHMENT PAPER USE	AS A COVER TO PREVENT SPLATTERING OR A WRAP FOR STEAMING.
PLASTIC	MICROWAVE-SAFE ONLY. FOLLOW THE MANUFACTURER'S INSTRUCTIONS. SHOULD BE LABELED “MICROWAVE SAFE”. SOME PLASTIC CONTAINERS SOFTEN, AS THE FOOD INSIDE GETS HOT. “BOILING BAGS” AND TIGHTLY CLOSED PLASTIC BAGS SHOULD BE SLIT, PIERCED OR VENTED AS DIRECTED BY PACKAGE.
PLASTIC WRAP	MICROWAVE-SAFE ONLY. USE TO COVER FOOD DURING COOKING TO RETAIN MOISTURE. DO NOT ALLOW PLASTIC WRAP TO TOUCH FOOD.
THERMOMETERS MICROWAVE-SAFE ONLY (MEAT AND CANDY THERMOMETERS).
WAX PAPER USE AS A COVER TO PREVENT SPLATTERING AND RETAIN MOISTURE.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

UTENSILS REMARKS
ALUMINUM TRAY	MAY CAUSE ARCING. TRANSFER FOOD INTO MICROWAVE-SAFE DISH
FOOD CARTON WITH METAL HANDLE	MAY CAUSE ARCING. TRANSFER FOOD INTO MICROWAVE-SAFE DISH
METAL OR METAL TRIMMED UTENSILS	METAL SHIELDS THE FOOD FROM MICROWAVE ENERGY. METAL TRIM MAY CAUSE ARCING.
METAL TWIST TIES	MAY CAUSE ARCING AND COULD CAUSE A FIRE IN THE OVEN.
PAPER BAGS MAY	Y CAUSE A FIRE IN THE OVEN.
PLASTIC FOAM	PLASTIC FOAM MAY MELT OR CONTAMINATE THE LIQUID INSIDE WHEN EXPOSED TO HIGH TEMPERATURE.
WOOD	WOOD WILL DRY OUT WHEN USED IN THE MICROWAVE OVEN AND MAY SPLIT OR CRACK.

TROUBLE SHOOTING

MICROWAVE OVEN INTERFERING TV RECEPTION

Radio and TV reception may be interfered when Microwave oven interfering microwave oven operating. It is similar to the interference of small electrical appliances, like TV reception mixer, vacuum cleaner, and electric fan. It is normal

DIM OVEN LIGHT

In low power microwave cooking, oven light may become dim. it is normal.

STEAM ACCUMULATING ON DOOR, HOT AIR OUT OF VENTS

In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.

OVEN STARTED ACCIDENTALLY WITH NO FOOD IN.

It is forbidden to run the unit without any food inside. IT IS VERY DANGEROUS.

TROUBLE POSSIBLE CAUSE REMEDY
OVEN CAN NOT BE STARTED.	(1) POWER CORD NOT PLUGGED IN TIGHTLY.	UNPLUG. THEN PLUG AGAIN AFTER 10 SECONDS.
	2) Fuse blowing circuit breaker works. do not use the microwave oven
	(3) TROUBLE WITH OUTLET	TEST OUTLET WITH OTHER ELECTRICAL APPLIANCES.
OVEN DOES NOT HEAT	DOOR NOT CLOSED WELL. CLOSE DOOR WELL.
GLASS TURNTABLE MAKES NOISE WHEN MICROWAVE OVEN OPERATES	DIRTY ROLLER REST AND OVEN BOTTOM.	REFER TO “MAINTENANCE OF MICROWAVE” TO CLEAN DIRTY PARTS.

CLEANING

BE SURE TO UNPLUG THE APPLIANCE FROM THE POWER SUPPLY.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

TRATTAMENTO DEL DISPOSITIVO ELETTRICO ED ELETTRONICO A FINE VITA

Information for users about the correct disposal of the product according to the European Directive 2012/19/EU and to the Legislative Decree N. 49/2014.

Dear Customer,

It is important to remind you that, as a good citizen, you cannot dispose of this product as municipal waste; you have to do a separate collection.

The symbol labelled on the appliance indicates that the rubbish is subject to "separate collection".

Electrical and electronic appliance cannot be considered as domestic waste. Therefore, at the end of its useful life, this product should not be disposed with municipal wastes. The user must therefore assign or (have collected) the rubbish to a treatment facility under local administration, or hand it over to the reseller in exchange for an equivalent new product. The separate collection of the rubbish and the successive treatment, recycling and disposal operations promote production of appliances made with recycled materials and reduce negative effects on health and the environment caused by improper treatment of rubbish.

Thank you!
