Product Type	Heated Blanket / Cushion
Brand	Kooper
Model	2411928
Dimensions (Blanket)	160 x 130 cm
Dimensions (Cushion)	40 x 40 cm (folded)
Weight	Approx. 1.2 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	120 W
Heat Levels	6 adjustable temperature settings
Auto Shut-Off	Yes, after 3 hours
Material	Microfiber fleece exterior
Heating Element	Carbon fiber with overheat protection
Safety Features	Overheat protection, automatic shut-off, low EMF
Washing Instructions	Machine washable at 30°C, remove controller
Certifications	CE, RoHS
Package Contents	Heated blanket/cushion, controller, user manual
Warranty	2 years
Repairability	Spare parts available (heating pad, controller)

Frequently Asked Questions - 2411928 Kooper

Can I wash the heated blanket/cushion?

Yes, you can machine wash the blanket or cushion at 30°C (86°F) on a gentle cycle. Always disconnect the controller before washing. Do not use bleach or fabric softener. Tumble dry on low or air dry.

How do I adjust the heat settings?

Press the button on the controller to cycle through 6 temperature levels (L1 to L6). The display shows the current level. Level 6 is the highest heat.

Does the heated blanket automatically shut off?

Yes, for safety, the product has an automatic shut-off after 3 hours of continuous use. You can restart it by pressing the power button.

Can I use the heated blanket as a cushion?

Yes, the product is designed as a 2-in-1. You can fold it into a cushion shape and use it on sofas or chairs. The heating function works in both configurations.

Is it safe for pets to use?

It is not recommended for pets. Pets may chew the cord or scratch the fabric, posing safety hazards. Additionally, pets may not regulate temperature well.

How do I clean stains without washing the whole blanket?

For small stains, use a damp cloth with mild soap to spot clean. Avoid soaking the heating elements. Do not iron the blanket.

What power does the heated blanket consume?

The power consumption is 120 watts (at maximum setting). This makes it energy-efficient compared to space heaters.

Can I leave the heated blanket on overnight?

While it has an auto shut-off for safety, it is not recommended to leave it on unattended for long periods. Use it to preheat the bed and turn off before sleeping.

How should I store the heated blanket when not in use?

Store it in a cool, dry place. Do not fold it tightly or place heavy objects on top. Loosely roll or fold to avoid damaging the heating wires.

What should I do if the blanket does not heat?

First, check that the controller is securely connected and the power outlet is working. Try resetting by unplugging and plugging back in. If it still does not heat, contact customer service.

USER MANUAL 2411928 Kooper

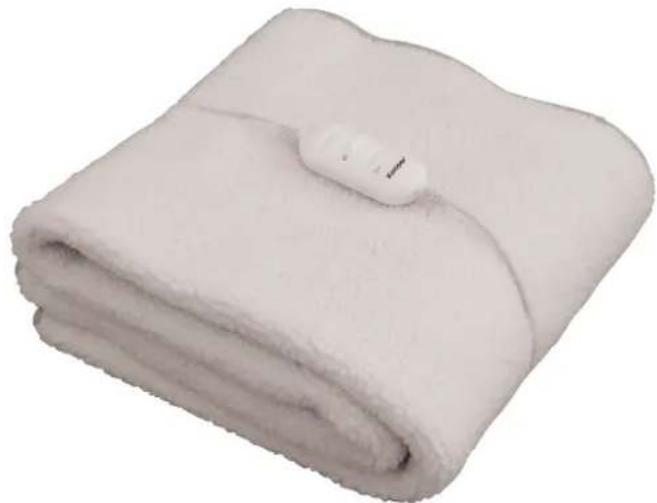

White textured cushion with a metallic cable attached, no visible text or symbols

Folded gray textured towel with a small white object attached at the top (no text or symbols visible)

Folded white fabric towel with a small button on the cover (no text or symbols visible)

Plaid medical device with earplugs placed on a checkered blanket (no text or symbols visible)

Pisola

Pisolona

2171202 - 2171203 - 2401245 - 2401246 - 2411928 - 2411929 - 2411930 - 2411931

PERICOLO PER I BAMBINI!

• UN APPARECCHIO ELETTRICO NON È UN GIOCATTOLO. UTILIZZARLO E RIPORLO FUORI DALLA PORTATA DEI BAMBINI. I COMPONENTI DELL'IMBALLAGGIO (EVENTUALI SACCHETTI IN PLASTICA, CARTONI, ECC.) DEVONO ESSERE TENUTI LONTANI DALLA PORTATA DEI BAMBINI.
  • L'APPARECCHIO PUÒ ESSERE UTILIZZATO DA BAMBINI DI ETÀ NON INFERIORE A 8 ANNI E DA PERSONE CON RIDOTTE CAPACITÀ FISICHE, SENSORIALI O MENTALI, O PRIVE DI ESPERIENZA O DELLA NECESSARIA CONOSCENZA, PURCHÉ SOTTO SORVEGLIANZA OPPURE DOPO CHE LE STESSE ABBIANO RICEVUTO ISTRUZIONI RELATIVE ALL'USO SICURO DELL'APPARECCHIO E ALLA COMPRENSIONE DEI PERICOLI AD ESSO INERENTI. I BAMBINI NON DEVONO GIOCARE CON L'APPARECCHIO. LA PULIZIA E LA MANUTENZIONE DESTINATA AD ESSERE EFFETTUATA DALL'UTILIZZATORE NON DEVE ESSERE EFFETTUATA DA BAMBINI SENZA SORVEGLIANZA.
  • I BAMBINI DEVONO ESSERE TENUTI SOTTO CONTROLLO PER EVITARE CHE GIOCHINO CON L'APPARECCHIO.

PERICOLO LESIONI!

• PER EVITARE LESIONI TENERE LONTANI CAPELLI, VESTITI E ALTRI OGGETTI.
- PRIMA DI SOSTITUIRE GLI ACCESSORI SPEGNERE L'APPARECCHIO E STACCARE LA SPINA! NON INSERIRE LA SPINA DELL'APPARECCHIO NELLA PRESA SENZA AVER PRIMA INSTALLATO TUTTI GLI ACCESSORI NECESSARI.
- NON TOCCARE MAI LE PARTI IN MOVIMENTO DELL'APPARECCHIO ED ATTENDERE SEMPRE L'ARRESTO.

PERICOLO SCOSSA ELETTRICA!

• QUESTO APPARECCHIO È CONCEPITO PER FUNZIONARE UNICAMENTE A CORRENTE ALTERNATA. PRIMA DI METTERLO IN FUNZIONE ASSICURARSI CHE LA TENSIONE DI RETE CORRISPONDA A QUELLA INDICATA SULLA TARGHETTA DATI.
  • COLLEGARE L'APPARECCHIO SOLO A PRESE DI CORRENTE AVENTI PORTATA MINIMA 10 AMPERE.
  • NON TIRATE IL CAVO DI ALIMENTAZIONE O L'APPARECCHIO STESSO PER TOGLIERE LA SPINA DALLA PRESA DI CORRENTE.

• SVOLGERE COMPLETAMENTE IL CAVO DI ALIMENTAZIONE ELETTRICA PRIMA DI METTERE IN FUNZIONE L'APPARECCHIO.
  • UTILIZZARE UNA PROLUNGA ELETTRICA SOLO SE IN PERFETTO STATO.
  • NON LASCIARE MAI SCORRERE IL CAVO DI ALIMENTAZIONE SU SPIGO-LI TAGLIENTI; EVITARE DI SCHIACCIARLO.
  • NON LASCIARE L'APPARECCHIO ESPOSTO AD AGENTI ATMOSFERICI (PIOGGIA, GELO, SOLE, ECC.).
  • NON UTILIZZARE MAI L'APPARECCHIO:

• CON LE MANI BAGNATE O UMIDE;
• SE È CADUTO E PRESENTA EVIDENTI ROTTURE O ANOMALIE DI FUNZIONAMENTO;
• SE LA SPINA O IL CAVO DI ALIMENTAZIONE ELETTRICA È DIFETTOSO;
• IN AMBIENTI UMIDI O SATURI DI GAS.
  • NON COPRIRE L'APPARECCHIO CON ASCIUGAMANI, INDUMENTI, ECC.
• COLLOCARE L'APPARECCHIO SOLO SU PIANI DI APPOGGIO ORIZZONTALI E STABILI, LONTANO DA DOCCE, VASCHE DA BAGNO, LAVANDINI, ECC.
• SE L'APPARECCHIO DOVESSE CADERE IN ACQUA, ESTRARRE IMME-DIATAMENTE LA SPINA E SOLO SUCCESSIVAMENTE PRENDERE L'APPARECCHIO. IN QUESTO CASO NON UTILIZZARE PIÙ L'APPARECCHIO, MA FARLO CONTROLLARE DA UN LABORATORIO SPECIALIZZATO. UTILIZZARE L'APPARECCHIO SOLO IN POSIZIONE VERTICALE.
• TOGLIERE SEMPRE LA SPINA DALLA RETE DI ALIMENTAZIONE ELETTRICA IMMEDIATAMENTE DOPO L'USO E PRIMA DI ESEGUIRE QUALSIASI INTERVENTO DI PULIZIA O MANUTENZIONE.
• LE EVENTUALI RIPARAZIONI DEVONO ESSERE ESEGUITE SOLO DA UN TECNICO SPECIALIZZATO.
• RIPARARE DA SÉ L'APPARECCHIO PUÒ ESSERE ESTREMAMENTE PERI-COLOSO.
• UN APPARECCHIO FUORI USO DEVE ESSERE RESO INUTILIZZABILE, TAGLIANDO IL CAVO DI ALIMENTAZIONE ELETTRICA, PRIMA DI BUTTARLO.
• PULIRE L'APPARECCHIO UTILIZZANDO UN PANNO UMIDO. NON USARE SOLVENTI O DETERSIVI ABRASIVI.
  • L'APPARECCHIO È CONCEPITO PER L'USO DOMESTICO.
  • L'APPARECCHIO PUÒ ESSERE UTILIZZATO ESCLUSIVAMENTE IN AMBIENTI CHIUSI.
• IL PRESENTE APPARECCHIO NON DEVE ESSERE IMPIEGATO PER SCO-PI COMMERCIALI.

GENERAL SAFETY INSTRUCTIONS

WARNING! READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL VERY CAREFULLY AND SAVE THEM FOR FUTURE REFERENCE DURING THE WHOLE LIFE OF THE PRODUCT SINCE THEY PROVIDE IMPORTANT INDICATIONS ABOUT THE FUNCTIONING AND THE SAFETY OF INSTALLATION, USE AND MAINTAINANCE OF THE PRODUCT.

RISK FOR CHILDREN!

• A POWER DEVICE IS NOT A TOY. AFTER USE, STORE IT OUT OF REACH OF CHILDREN. KEEP PACKING MATERIAL (PLASTIC BAGS, CARTON, ETC.) OUT OF REACH OF CHILDREN.
• THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN UNLESS THEY ARE OLDER THAN 8 AND SUPERVISED. KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8 YEARS.
• CHILDREN SHOULD BE SUPERVISED TO MAKE SURE THEY DO NOT PLAY WITH THE APPLIANCE.

RISK OF INJURY!

• TO AVOID INJURIES, DO NOT INTRODUCE YOUR HANDS IN THE MACHINE WHILE IT IS OPERATING AND KEEP AWAY HAIR, CLOTHES AND OTHER OBJECTS.
- SWITCH OFF AND UNPLUG THE APPLIANCE BEFORE CHANGING THE ACCESSORIES! DO NOT CONNECT THE PLUG TO THE POWER SOCKET IF THE NECESSARY ACCESSORIES ARE NOT INSTALLED.
- NEVER TOUCH THE MOVING PARTS OF THE APPLIANCE AND ALWAYS WAIT FOR THE APPLIANCE TO STOP COMPLETELY.

RISK OF ELECTRIC SHOCK!

- THIS APPLIANCE IS INTENDED TO WORK ONLY WITH AC. BEFORE OPERATING, MAKE SURE THAT MAINS VOLTAGE RATING CORRESPONDS TO THE VALUE INDICATED ON THE RATING PLATE OF THE PRODUCT.

• CONNECT THE APPLIANCE ONLY TO OUTLETS WITH A MINIMUM ELECTRIC CURRENT OF 10 AMPERE.
• DO NOT PULL THE POWER CORD OR THE APPLIANCE ITSELF IN ORDER TO UNPLUG IT FROM THE OUTLET.
• UNWIND COMPLETELY THE POWER CORD BEFORE SWITCHING ON THE APPLIANCE.
• USE AN EXTENSION CORD ONLY IF IT IS IN PERFECT CONDITIONS.
• DO NOT LET THE CORD HANG OVER SHARP EDGES. DO NOT SQUASH IT.
• DO NOT LET THE APPLIANCE EXPOSED TO THE WEATHER (RAIN, FREEZING, SUN, ETC).
  • NEVER USE THE APPLIANCE:
• WITH WET OR DAMP HANDS;
• IF IT HAS FALLEN AND IT CLEARLY BROKE OR DOESN'T WORK PROPERLY;
• IN CASE OF FAULTY PLUG OR POWER CORD;
• IN PRESENCE OF HUMIDITY OR GAS.
• NEVER COVER THE APPLIANCE WITH TOWELS, CLOTHES, ETC.
• PLACE THE APPLIANCE ONLY ON HORIZONTAL AND STABLE SURFACES, FAR FROM SHOWERS, BATHTUBS, SINKS, ETC.
• HOWEVER, IF THE APPLIANCE FALLS INTO THE WATER, UNPLUG IT IMMEDIATELY AND TAKE IT ONLY AFTERWARDS. IN THIS CASE, STOP USING THE APPLIANCE AND HAVE IT CHECKED BY QUALIFIED PERSONNEL.
  • ONLY OPERATE THE APPLIANCE IN VERTICAL POSITION.
• ALWAYS UNPLUG FROM THE MAINS SUPPLY IMMEDIATELY AFTER THE USE AND BEFORE ANY CLEANING OR MAINTENANCE OPERATION.
• THE APPLIANCE MAY ONLY BE REPAIRED BY A SPECIALIZED TECHNICIAN.
• REPAIRING THE APPLIANCE BY YOURSELF MIGHT BE EXTREMELY DANGEROUS.
• ALWAYS CUT THE POWER CORD OF A BROKEN UNIT IN ORDER TO MAKE IT UNUSABLE BEFORE THROWING IT AWAY.
• CLEAN THE APPLIANCE WITH A DAMP CLOTH AFTER IT COOLED DOWN. DO NOT USE SOLVENTS OR ABRASIVE PRODUCTS.
• THE APPLIANCE IS INTENDED ONLY FOR HOME USE. IT CAN ONLY BE USED INDOOR.
• THIS APPLIANCE CANNOT BE USED FOR COMMERCIAL PURPOSES.

SAFETY INSTRUCTIONS

1. If the electric blanket is used incorrectly (folded, rolled, etc.) and for too long it may overheat, in this case, the protection function will activate and the blanket will not generate heat. Do not attempt to repair the blanket yourself. The electric blanket can only be repaired by authorized technicians. Avoid handling on your own the internal components of the electric blanket.
2. When the power blanket has lower voltage, the heating capacity of the electric blanket decreases and temperature slowly increases while staying relatively low. This does not mean that the blanket is malfunctioning: users must ensure that the blanket is connected to a proper voltage socket.
3. The luminous indicator and the circuit of the electric blanket are connected in parallel. In the event of a luminous indicator failure, there will be no impact on the operation of the electric blanket, but additional care is needed to check and understand when the blanket is on or off to prevent the internal electrical components from overheating.

WARNINGS AND PRECAUTIONS

To prevent accidents, users must follow the instructions below. Otherwise the manufacturer declines all responsibility:

1. Do not fold the electric blanket when it is connected to the electricity supply and avoid folding it too tightly even when it is disconnected (Fig. 1);
2. Do not roll or cover the blanket with heavy objects during use. The bed and mattress used must ensure that the blanket remains well stretched. Avoid causing overheating of the equipment (Fig. 2);
3. Do not insert pins into the blanket or cut it. Don't slam it. Do not secure the equipment with pins or other metal objects (Fig. 3);
4. To warm up, lie down over the blanket: Do not wrap in the blanket and do not use it for other purposes (Fig. 4);

1. To prevent health damages, avoid using the equipment with newborns, children, invalid people, pregnant women or people insensitive to heat (ex. with circulatory problems) (Fig. 5);
2. Do not switch on the blanket if it is folded, pressed or surmounted by heavy objects, to avoid overheating (Fig. 6)
3. Do not expose the electric blanket to atmospheric agents and direct sunlight. Do not iron the appliance to avoid damaging the insulation of the heating cables (Fig. 7);
4. Avoid using the thermal blanket at the same time as other heating equipment. (Fig. 8);

1. Do not smoke and/or ignite flames near the blanket (Fig. 9);

2. Turn off the blanket or remove the plug from the socket if nobody is home, to avoid the risk of accidents (Fig. 10);

1. Never leave the blanket unattended when it is on.

2. Avoid turning off the equipment by pulling the wire. Do not carry the electric blanket by pulling the electric wire, which may be damaged.

3. Use the blanket only with the included electrical switch.

4. Store the electric blanket in a dry place. Do not place any heavy object on the blanket other than those who have the mere cover function. Before the following use of the electric blanket, carefully check its condition. If parts are damaged, do not turn the equipment on.

5. Avoid dismantling or attempting to repair the electric blanket yourself, and do not use it for uses other than those mentioned in this instruction manual. Otherwise, the user will assume all responsibility in case of any damage.

6. The electrical cable of the electric blanket cannot be replaced: if it is damaged, the equipment must be completely replaced.

7. Do not use the blanket on mechanically adjustable beds. In that case, make sure that the blanket or cable are not trapped in the structure.

8. Children must not use the electric blanket.

9. According to international conventions, under normal operating conditions, the electric blanket lasts for 8 years. However, for safety reasons, it is advisable to have the equipment checked after 5 years to control the electrical insulation. Products that will be approved may still be used.

10. IF YOU WISH TO LEAVE THE BLANKET ON DURING THE NIGHT, PLACE THE SELECTOR SWITCH TO THE LOW POSITION (NOT HIGH)

Users are required to observe points 1, 2, 3, 4, 6, 8, 10. Not doing so may result in overheating or excessively high temperatures due to improper use of the electric blanket, which could cause fire, damage to people or property.

ATTENTION: MAXIMUM OPERATING TEMPERATURE: 30° PERCEIVED TEMPERATURE: 50°

USAGE ENVIRONMENT

When the environment temperature is not higher than 40 °C, the blanket will reach a temperature of up to 40% higher. When the temperature does not exceed 20 °C, the temperature of the blanket will reach up to 90% more. The thermal blanket operates regularly under 1000 meters above sea level.

HOW TO USE

Place the thermal blanket on the bed, making sure that the lower side reaches the height of the feet. Be careful not to place the blanket under the pillow. For a correct use of the electric blanket, place it between the mattress and the sheet.

- Temperature Adjustment: Insert the plug into an AC 220v-50hz power outlet before bedtime. Initiate the electric blanket by pressing the power button at “high”: a luminous indicator will begin to signal that the equipment is operating. It is advisable to preheat the blanket for 30-50 minutes; Then, depending on your needs, position the switch to “low” to maintain a correct temperature during the night or turn off the equipment (“off”) if you want to stop the heat emission (in this case the luminous indicator goes off).

• The operation control device has 3 positions (0-1-2): set the dial to 2 (maximum temperature) for about 1 hour before bedtime; then set it to 1 to prevent the temperature from becoming too high and to save energy. If you wish to leave the blanket on during the night, place the selector switch to the Low position (not High). If you want to turn it off at bedtime, place the selector on 0 and unplug it from the socket.

When the thermal blanket is working, the control switch must not be placed under the pillow or blankets or covered by other objects. Do not leave the control switch near heat sources, and check that it is not overheated or damaged.

DAILY CONTROL AND WARNINGS

To ensure that users safely use of the electric blanket and to avoid any accident, it is recommended to pay attention to the following:

1. Check the power supply cables, plugs and cables used to connect the equipment. In case of damage, avoid using the equipment and take it to an authorised repair/maintenance centre.
2. During use, check regularly that the electric blanket is well laid out, firmly fixed to the mattress, not folded and not rolled, to avoid malfunctioning.
3. Frequently check the possible presence of damaged signs in the equipment; in case you find some, bring the equipment to an authorised repair/maintenance centre.
4. Should the electrical cables inside the electric blanket move freely or emit unpleasant odours, avoid using the equipment and take it to an authorised repair/maintenance centre. To carry out this check, simply stretch the blanket over the bed and touch it with your hand.
5. When the electric blanket is on the bed, prevent the children from jumping over. If by escaping the control of an adult they jump on the blanket, check all its parts before using it again.
6. When an accident or failure occurs (smoke, fire, noise or unusual odours, etc.), immediately pull the plug out of the power outlet. Then proceed with further precautions.

The electric blanket can only be repaired by authorized technicians. Do not handle the internal components of the equipment yourself.

WASHING

You can wash the blanket ONLY

• Before washing the blanket, remove the plug and let it cool down.
• Disconnect the remote control from the blanket.
• Without the remote control, wash the blanket in the washing machine at 30^ using the delicate cycle.
• Use washing powder or washing powder for delicate clothes.
• Do not use the spin cycle.
• Hang out the blanket to dry in a clean, dry place.
• When the electric blanket is completely dry, accurately reconnect the switch to the blanket. The electric blanket must only be used with the supplied control unit.

TRATTAMENTO DEL DISPOSITIVO ELETTRICO ED ELETTRONICO A FINE VITA

Information for users about the correct disposal of the product according to

the European Directive 2012/19/EU and to the Legislative Decree N. 49/2014.

Dear Customer,

It is important to remind you that, as a good citizen, you cannot dispose of this product as municipal waste; you have to do a separate collection.

The symbol labelled on the appliance indicates that the rubbish is subject to “separate collection”.

Electrical and electronic appliance cannot be considered as domestic waste. Therefore, at the end of its useful life, this product should not be disposed with municipal wastes. The user must therefore assign or (have collected) the rubbish to a treatment facility under local administration, or hand it over to the reseller in exchange for an equivalent new product.

The separate collection of the rubbish and the successive treatment, recycling and disposal operations promote production of appliances made with recycled materials and reduce negative effects on health and the environment caused by improper treatment of rubbish.

Thank you!

Kooper®
