SC8790 - Vacuum Cleaner SAMSUNG - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Samsung
Model	SC8790
Color	Red / Black (typical)
Dimensions (L x W x H)	Approx. 400 x 250 x 280 mm
Weight	Approx. 5.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1600 W
Dust Capacity	2.0 L (dust bag type)
Filtration System	HEPA 13 filter
Suction Power	Adjustable electronic suction control
Cord Length	6.0 m
Operating Radius	9.0 m
Noise Level	Approx. 78 dB(A)
Attachments Included	Crevice tool, dusting brush, upholstery nozzle, turbo brush
Bag Type	Disposable dust bag (type VCA-SBB810)
Filter Maintenance	Washable exhaust filter; replace HEPA filter every 6 months
Safety Features	Overheat protection, motor safety thermostat
Repairability	Spare parts available (dust bags, filters, brush roll, hoses)
General Information	Floor type selector for carpets and hard floors; pedal on/off switch; automatic cord rewind

Frequently Asked Questions - SC8790 SAMSUNG

How do I replace the dust bag in my Samsung SC8790?

Open the front cover of the vacuum cleaner. Remove the full dust bag by pulling it out from the holder. Insert a new dust bag (type VCA-SBB810) until it clicks into place. Close the cover securely.

How often should I clean or replace the HEPA filter?

The HEPA filter should be cleaned every 3 months by tapping it gently. Replace it every 6 months or when it appears damaged. Always use genuine Samsung HEPA filters for best performance.

The vacuum cleaner loses suction. What should I check?

Check if the dust bag is full and replace if needed. Ensure the filters (exhaust and HEPA) are clean. Inspect the hose and attachments for blockages. Also check that the brush roll is not tangled with hair or debris.

Can I use the SC8790 on hardwood floors?

Yes, the SC8790 has a floor type selector. Turn it to the 'hard floor' setting to prevent scratching. Use the appropriate attachment (e.g., combination floor nozzle) for best results.

How do I rewind the power cord automatically?

Simply press the cord rewind button located on the top of the vacuum cleaner. Hold the plug during rewinding to avoid whip damage.

What should I do if the vacuum cleaner overheats?

Turn off and unplug the vacuum immediately. Check for blockages in the hose or brush roll. Clean the filters and empty the dust bag. Allow the vacuum to cool down for at least 30 minutes before restarting.

Does the SC8790 have a turbo brush?

Yes, the SC8790 typically includes a turbo brush for removing pet hair from upholstery and carpets. To maintain it, remove any hair or threads wrapped around the brush roll regularly.

Where can I purchase spare parts for the Samsung SC8790?

Spare parts such as dust bags, filters, hoses, and brush rolls are available from Samsung official stores, authorized dealers, and online retailers. Always use genuine parts for optimal performance and safety.

How do I clean the exhaust filter?

Remove the exhaust filter cover and take out the filter. Wash it under lukewarm running water without detergent. Let it dry completely (at least 24 hours) before reinserting. Do not use a washing machine or dryer.

Why does the vacuum cleaner smell bad during use?

A bad smell often indicates a full dust bag or dirty filters. Replace the dust bag and clean/replace the filters. Also check for any debris stuck in the hose or brush roll. If the smell persists, the motor may be overheating; allow the vacuum to cool.

USER MANUAL SC8790 SAMSUNG

Vacuum Cleaner User Manual

* Before operating this unit, please read the instructions carefully.

* For indoor use only.

English

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service,

please register your product at

www.samsung.com/register

Safety Information

SAFETY INFORMATION

- Before operating the appliance, please read this manual thoroughly and retain it for your reference.

- Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

WARNING	Indicates that a danger of death or serious injury exists.
CAUTION	Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

	Represents something you must NOT do.
	Represents something you must follow.
	Indicates that you must disconnect the power plug from the socket.

IMPORTANT SAFEGUARDS

1. Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
2. WARNING: Do not use the vacuum cleaner when rug or floor is wet. Do not use to suck up water.
3. Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
4. Do not use the vacuum cleaner without a dust bin. Empty the dust bin before it is full in order to maintain the best efficiency.
5. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
6. Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.
7. Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before emptying the dust bin. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
9. Children should be supervised to ensure that they do not play with the appliance.
10. The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
11. The use of an extension cord is not recommended.
12. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
13. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
14. Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set.
15. Unplug the cleaner when not in use. Turn off the power switch before unplugging.

ASSEMBLING THE CLEANER

05 Assembling the Cleaner

MAINTAIN TOOLS AND FILTER

08 Using accessory

09 Maintain floor tools

11 Emptying the dust bin

12 Cleaning the dust pack

14 Cleaning the motor protection filter

14 Cleaning the outlet filter

15 Change the battery

TROUBLESHOOTING

Assembling the Cleaner

- Please do not press the button of the dust bin handle when carrying the machine.

- For storage, park the floor nozzle.

Operating the cleaner

Power cord

When removing the plug from the electrical outlet, grasp the plug, not the cord.

Power control (infrared control)

Hose

1. Vacuum cleaner ON/OFF (⏻)

Press the ON/OFF button to operate the vacuum cleaner. Press again to stop the vacuum cleaner.

2. Vacuum cleaner (-, +)

Press the MODE button repeatedly to select the correct mode.

(ON) MIN → MID → MAX

3. Using Auto mode

Press the Auto button to operate the vacuum cleaner automatically.

Don't cover the handle sender when you use a handle control button.

6_ operating the cleaner

Body

Press the power control button repeatedly to select the correct mode.

(ON(MAX) → OFF)

If the remote control is not working, the cleaner can be operated using the control button on the body of the machine.

	The IR light indicates the part that receives the infra-red signal from the handle control.
	The filter light is illuminated when the dust pack requires checking or emptying. An audio signal will also sound.
	This indicates that the automatic suction mode is selected. The level of suction is indicated by the LED display.

Maintain tools and filter

USING ACCESSORY

Accessory

- Push the accessory onto the end of the hose handle.

- To use the dusting tool, push the accessory onto the end of the hose handle.

- To use the upholstery tool, push the accessory onto the end of the hose handle.

Pipe

- Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

- To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

Maintain tools and filter

MAINTAIN FLOOR TOOLS

Elbow Extending Tube (Option)

1. Connect the elbow extending tube to the connecting part for the hose knob and telescopic pipe.
2. Fit the telescopic pipe to the lower part of the elbow extending tube.
3. Press the PUSH button.
4. With the PUSH button pressed, the elbow extending tube is folded.
5. Using the elbow extending tube allows hard to reach areas (e.g. under furniture) to be cleaned without having to kneel down.

3 Way Brush (Option)

Carpet Cleaning Floor Cleaning

• Adjust the inlet lever according to the floor surface.
• Remove waste matter completely if the inlet is blocked.

2-Step Brush (Option)

Carpet Cleaning Floor Cleaning

• Adjust the inlet lever according to the floor surface.
• Remove waste matter completely if the inlet is blocked.

Parquet Master Brush (Option)

• Vacuum dust in wide area at once. - Remove waste matter completely if the inlet is blocked.

maintain tools and filter

Parquet Brush (Option)

• Vacuum dust in wide area at once. - Remove waste matter completely if the inlet is blocked.

Blanket Brush (Option)

For picking up pet hair and fibre on upholstery and bed linen.

2 Turbine-

1. Remove waste matter completely when inlet is blocked.
2. Turn the lock button to (☐), and remove.
3. To reassemble, align the cover to the front of the main body and close. After closing the cover, ensure that the lock button is turned to the (☐) position.

Use for bedclothes only. Be cautious not to damage brush during unclogging.

Super turbine brush (Option)

For improved pickup of pet hair and fibre on carpets.

1

4

5

3

6

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.

1. Turn the lock button to unlock position using a coin (☐).
2. Remove the guide air using a coin.
3. Remove waste matter such as dust and hair tangled around the brushbar using scissors.
4. Remove dust inside the brush housing using a dry duster or crevice tool.
5. Assemble the guide air.
6. Turn the lock button to lock position using a coin (☐).

Please be careful not to damage the brush.

Maintain tools and filter.

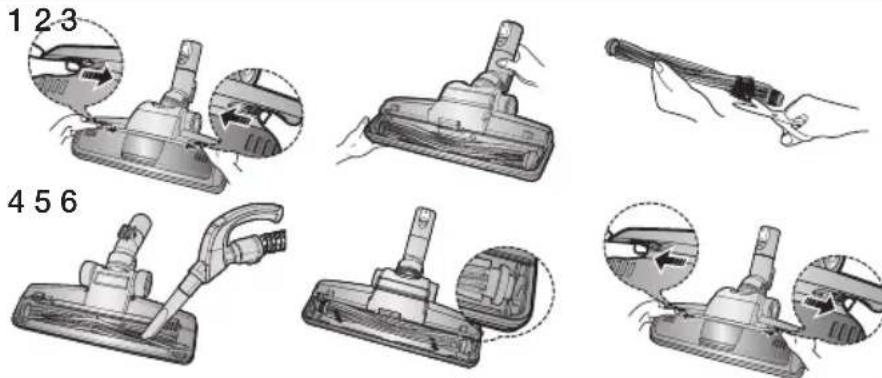

Power Pet Plus Brush (Option)

For improved pickup of pet hair and fibre on carpets.

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.

1. Push the Open button of the transparent screen cover to separate the cover.
2. Remove the brushbar from the transparent screen.
3. Remove waste matter such as dust and hair tangled around the brushbar using scissors.
4. Remove dust inside the brush housing using a dry duster or crevice tool.
5. Insert brushbar into rotating belt and assemble.
6. Click the transparent screen cover back into place to reassemble.

EMPTYING THE DUST BIN

1

Once dust reaches the dust full mark, empty the dust bin.

2

Take the dust bin out by pressing the button.

3

Separate the dust bin cover.

4

Throw the dust away in the bin.

5

After emptying the dust bin, remove obstacles like hair and fur from the cap of the dust bin.

6

Before use, push the dust bin into the main body and press the cover of the vacuum cleaner until you hear the "click" sound.

Maintain tools and filter

- Empty into a plastic bag. (recommended for asthma/allergy sufferers)

You may rinse the dust bin with cold water.

Option

When emptying any vacuum cleaner it is difficult to avoid exposure to dust. To minimize this risk, please ensure that you encase the dust pot in a large bag to empty it and close the bag as tightly as possible around the pot. Remove the pot and close the bag as tightly and quickly as possible and dispose of it immediately. It is advisable to wear disposable gloves and a face mask while emptying the cleaner. If at all possible, ask a non-allergy sufferer to empty the dust pot when required.

Cleaning the Dust Pack

When to Clean the Dust Pack

- The lamp will turn red when suction is reduced. If the light comes on, please clean the dust pack.

- Turn the vacuum power to 'MAX'.

- If the filter check indicator turns red with the inlet floating 10cm above flat floor, clean the dust pack.

When suction is noticeably reduced continuously, please clean the dust pack.

12_ maintain tools and filter

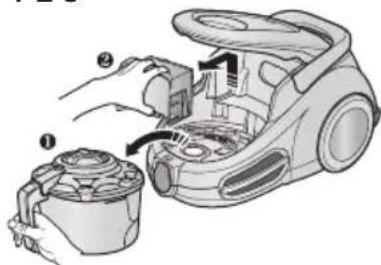

1Remove the dust bin and dust pack as shown.	2Remove the fixed frame of the dust pack cover.	3Remove the sponge and filter from the dust pack.
4Wash the sponge and the filter of the dust pack with water.	5Let the sponge and filter dry in the shade for more than 12 hours.	6Put the sponge and filter into the dust pack.

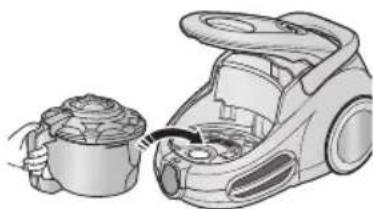

7Before reassembly, align the dust pack cover and dust pack correctly.	8Put the assembled dust pack into the main body.

Make sure the filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

Maintain tools and filter

Cleaning the motor protection filter

• Take out both the dust bin and the dust pack.

- Remove the motor protection filter from the main body. Shake and tap the dust from it and put back in machine.

Cleaning the outlet filter

123

Remove the dust bin and HEPA filter as shown.

Clean the HEPA filter.

Let the HEPA filter dry in the shade for more than 12 hours.

4

Put assembled HEPA filter into the main body.

Make sure the filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

Maintain tools and filter

Change the battery

1. When the vacuum cleaner does not work, replace the batteries. If the problem persists, please contact our authorized dealer.
2. Use 2 batteries of size AAA.

1. Never disassemble or recharge the batteries.
2. Never heat up the batteries or throw them into fire.
3. Do not reverse (+), (-) poles.
4. Dispose of the batteries properly.

Battery type: AAA size

Troubleshooting

PROBLEM SOLUTION
Motor does not start	Check cable, pulg and socket.Leave to cool.
Suction force is gradually decreasing	Check for blockage and remove.
Cord does not rewind fully • Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner does not pick up dirt	Check hose and replace if required.
Low or decreasing suction	Please check filter and, if required, clean as illustrated in the instructions. if filters are out of condition change them to new ones.
Body overheating • Please check filters, If required clean as illustrated in the instruction.
Static electricity discharge • Please decrease power suction.

This vacuum cleaner is approved for the following.

EMC Directive: 2004/108/EEC

Low Voltage Directive: 2006/95/EC

use the vacuum cleaner

POWER CORD

CAUTION

(ON (ON) MIN → MID → MAX)

(ON (ON)(MAX) → OFF (OFF))

Tube

Textile brush (optional)

4

2

5

3

6

CLEANING THE OUTLET FILTER

123

BATTERY TYPE: AAA size

CAUTION

- Grasp the plug, not the cord, when removing it from the power outlet.

SUCTION POWER CONTROL (INFRARED REMOTE)

- HOSE

1. Vacuum cleaner ON/OFF

Press the ON/OFF button to use the vacuum cleaner. Press again to stop the vacuum cleaner.

2. Vacuum cleaner (-,+)

Touch

• Set the suction power to 'MAX'.

CLEANING THE EXHAUST FILTER

123

use the vacuum cleaner

POWER CORD

CAUTION

- When removing the plug from the wall outlet, hold the plug itself, not the cord.

STRØMSTYRING (INFRARØD KONTROLL)

- SLANGE

(PÅ) MIN → MID → MAKS

Rør

4

5

3

6

Before use, push the dust container into the main body of the vacuum cleaner and push the dust cover down until you hear a click.

CLEANING THE EXHAUST FILTER

123

Let the HEPA filter dry in the shade for at least 12 hours.

4

Place the HEPA filter back into the vacuum cleaner.

POWER CORD

When unplugging the plug from the socket, grasp the plug, not the power cord.

POWER SWITCH (INFRARED REMOTE)

- HOSE

Pipe

4

2

5

3

6

CLEANING THE EXHAUST AIR FILTER

123

BATTERY TYPE: AAA SIZE
