B-25 Mitchell - Remote control toy Flyzone - Free user manual and instructions

Product Type	Remote Control Airplane
Brand	Flyzone
Model	B-25 Mitchell
Scale	1:18
Wingspan	48 in (122 cm)
Length	34 in (86 cm)
Weight	2.5 lbs (1134 g)
Radio System	2.4GHz 4-channel transmitter
Battery	11.1V 2200mAh LiPo (included)
Motor	Dual brushless motors
Material	Foam construction
Recommended Age	14+
Flight Time	8-10 minutes
Range	300 meters (984 ft)
Charging Time	1-2 hours
Assembly Required	Minor assembly (wing attachment)
Functions	Throttle, rudder, elevator, ailerons
Landing Gear	Retractable
Propeller	Two counter-rotating propellers
Safety	Requires adult supervision
Cleaning	Wipe with dry cloth
Spare Parts Availability	Replacement parts available from Flyzone dealers

Frequently Asked Questions - B-25 Mitchell Flyzone

What battery does the Flyzone B-25 Mitchell use?

The aircraft uses an 11.1V 2200mAh LiPo battery, included in the package.

How long does the battery take to charge?

Charging takes approximately 1-2 hours using the included charger.

What is the flight time of the B-25 Mitchell?

Flight time is typically 8-10 minutes depending on throttle use and wind conditions.

What is the control range?

The 2.4GHz transmitter provides a range of up to 300 meters (984 feet).

Is assembly required?

Yes, minor assembly is needed, mainly attaching the wings. Detailed instructions are in the manual.

Can I fly the B-25 Mitchell in windy conditions?

It is recommended to fly in calm winds (less than 10 mph) for optimal control and safety.

Where can I find replacement parts?

Replacement parts are available from Flyzone dealers and online hobby shops.

What is the recommended age for this RC plane?

Due to complexity, the recommended age is 14 years and older with adult supervision.

Does the B-25 Mitchell have retractable landing gear?

Yes, the landing gear is retractable, adding to scale realism.

How do I download the user manual?

The manual is available for free in PDF format on the product page at notice-facile.com.

USER MANUAL B-25 Mitchell Flyzone

RTF READY-TO-FLY Tx-R ^TM TRANSMITTER-READY Flyzone® how high will you soar

ASSEMBLE ONLY WITH ADULT SUPERVISION

Please read through this instruction booklet to THOROUGHLY familiarize yourself with the assembly and flight characteristics of this airplane prior to assembly. Please inspect all parts carefully before starting assembly! If any parts are missing, broken or defective, or if you have any questions about the assembly or flying of this airplane, please call us at [phone] and we'll be glad to help.

This product is suitable only for people of 14 years and older.

WARRANTY

Flyzone® guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This warranty does not cover any component parts damaged by use or modification. In no case shall Flyzone's liability exceed the original cost of the purchased kit. Further, Hobbico, Inc. reserves the right to change or modify this warranty without notice. In that Hobbico, Inc. has no control over the final assembly or material used for final assembly, no liability shall be assumed nor accepted for any damage resulting from the use by the user of the final user-assembled product. By the act of using the user-assembled product, the user accepts all resulting liability. If the buyer is not prepared to accept the liability associated with the use of this product, the buyer is advised to return this kit immediately in new and unused condition to the place of purchase. To make a warranty claim send the defective part or item to Hobby Services at the address below:

Hobby Services

3002 N. Apollo Dr. Suite 1

Champaign IL 61822 USA

Include a letter stating your name, return shipping address, as much contact information as possible (daytime telephone number, fax number, e-mail address), a detailed description of the problem and a photocopy of the purchase receipt. Upon receipt of the package, the problem will be evaluated as quickly as possible.

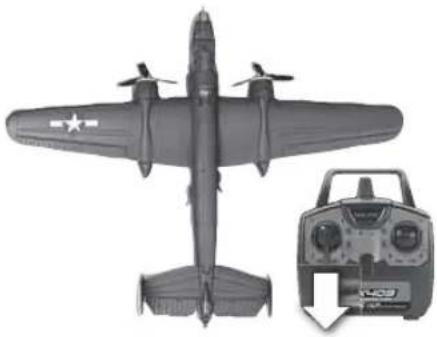

Check the parts against those shown. If any parts are damaged or missing, please call Hobby Services at: [phone].

Note: Tx-R version (FLZA2302) does not include transmitter. It does include a 1S charger (not pictured).

FCC AND ETSI

FCC REQUIREMENT

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.

(1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

CE COMPLIANCE INFORMATION FOR THE EUROPEAN UNION

Instructions for Disposal of Waste Equipment by Private Users in the European Union: This symbol on the product or its packaging indicates that this product must not be disposed of with other household waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the location where you purchased the product.

Declaration of Conformity:

Product: Tactic TTX403 2.4GHz 4-Channel Tx Rx Item number: TACJ2403, Equipment class: 1

Tactic TTX403 transmitter and Tactic TR421 receiver: The objects of the declaration described here are in conformity with the requirements of the specifications listed below, following the provisions of the European 2006/95/EC Low Voltage Directive:

EN 60950-1:2006 Safety

The objects of the declaration described here are in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1995/5/EC:

ETSI EN 300 328 V1.7.1 Technical requirements for radio equipment ETSI EN 301 489-1 V1.8.1, 301 489-17 V1.3.2 General EMC requirements for radio equipment

Tactic

c/o Hobbico, Inc.

2904 Research Road

Champaign, IL USA 61826

The associated regulatory agencies of the following countries recognize the noted certifications to this product as authorized for sale and use.

UK DE DK BG SE FI FR
EE LV LT PL CZ SK HU
RO SI AT IT ES PT IE
NL LU MT CY GR

PRECAUTIONS

Your Micro B-25 Mitchell should not be considered a toy, but rather a sophisticated, working model that functions very much like a full-size airplane. Because of its performance capabilities, the Micro B-25 Mitchell, if not assembled and operated correctly, could possibly cause injury to yourself or spectators and damage to property.

1. Operate the plane according to the instructions. DO NOT alter or modify the model. If you make any modifications, you void your warranty.
2. Test the operation of the model before each flight to ensure that all equipment is operating properly and that the model remains structurally sound.
3. Fly only indoors or outdoors on very calm days (with wind speeds less than 5mph) and in large open areas free of trees, people, buildings, or any other obstacles.
4. Although the Micro B-25 Mitchell is designed to be easy to fly, it is not for the first-time pilot. We strongly recommend getting assistance from an experienced pilot for your first flights. If you're not a member of an R/C club, your local hobby shop has information about clubs in your area whose membership includes experienced pilots. You can also contact the National Academy of Model Aeronautics (AMA) which has over 2,500 chartered clubs across the country. Instructor training programs and insured newcomer training are available through any of these clubs. Contact the AMA at the following address or toll-free phone number:

Academy of Model Aeronautics

5151 East Memorial Drive Ph. [phone]

Muncie, IN 47302-9252 Fx. [phone]

www.modelaircraft.org

The R/C model hobby becomes more and more enjoyable as your experience grows. Your chances for success and graduation to higher levels are very good if you take your time and follow the flying instructions carefully and completely. We hope you enjoy flying your Micro B-25 Mitchell plane.

TRANSMITTER CAUTIONS

• Do not use rechargeable (NiCd) batteries. ● Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (NiCd) batteries.

BATTERY CHARGING PRECAUTIONS

1. Always remove the battery from your Micro B-25 Mitchell before charging. 2. Do not leave a charging battery unattended! Unplug the battery if it gets warm, even if the charge LED has not gone out. 3. Use only the charger that comes with your Micro B-25 Mitchell!

WARNING: Misuse or malfunction may overheat the battery and charger, resulting in personal injury or damage to surroundings.

LITHIUM POLYMER BATTERY RECYCLING

ATTENTION: The product you have purchased is powered by a rechargeable battery. At the end of the battery's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste system. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

WARNING: This product contains a chemical known to the State of California to cause cancer.

1. Plug the white micro connector from the ESC into the receiver board. Be careful to plug the battery in correctly.

1. Connect the power lead.

1. Attach the wing.

1. Insert the main landing gear. 5. Insert the nose gear.

GLOSSARY

Ailerons: The flight control on the airplane that controls the ability of the airplane to bank left and right. Center of Gravity (C.G.): Point at which the aircraft must balance in order to fly properly. Elevator: The flight control that controls pitch attitude. By adding power and pitching up, you can make the model climb or loop. Glide Slope: The proper path for an airplane approaching a landing strip. Lithium Polymer (LiPo) Battery: Rechargeable battery which is used to power the airplane. LiPo batteries are lighter and smaller than most other types of rechargeable batteries. Receiver: The unit in the aircraft that receives the signal from the transmitter to provide the input to the servos. Rudder: The flight control that controls the yaw (turning left or right). Servo: The device on the model that moves the flight controls. Transmitter (TX): The hand-held unit that sends the signals to the control unit, or receiver (RX), in the aircraft.

PREPARE THE TTX403 TRANSMITTER

For more information on the Tactic Radio System included with the Micro B-25 RTF version Mitchell visit www.tacticrc.com

Install (5) "AA" batteries.

CHARGE THE 3.7V 250MAH LIPO BATTERY

Do not use the charge feature while flying the Micro B-25 Mitchell!

Leave the TTX403 unpowered.

Push down and slide to open the charger cover.

Insert battery to charge. Make sure the battery plug is oriented properly before inserting. Illuminated green light indicates charging. (It may be necessary to cycle the on/off switch to begin charging.) When the LED goes out, charging is complete.

TX-R ONLY: CHARGE THE 3.7V 250MAH LIPO BATTERY

1. Install the (5) AA batteries in the included 1S charger using the polarity diagram shown in the battery compartment.
2. Plug the 3.7V battery into the charger as shown. The illuminated LED indicates charging.

Warning: Do not connect the battery other than in the orientation shown!

1. When the LED goes out, charging is complete.

TTX403 FUNCTIONS

TX-R ONLY: POWER ANYLINK OR A TACTIC 2.4GHZ TRANSMITTER

AnyLink must be in Normal Mapping (1 Beep) when Futaba®, Hitec® or Tower Hobbies transmitters are used with Tx-R aircraft. If using a Spektrum® or JR® transmitter, AnyLink must be in Alternate Mapping (2 Beeps). To change the mapping, consult your AnyLink instruction manual.

All trademarks are property of their respective owners.

LINKING TO MICRO TX-R AIRCRAFT

Micro Tx-R aircraft include a receiver that auto-links to a Tactic transmitter. Once the receiver is powered, it will link automatically to a present and compatible Tactic SLT 2.4GHz signal. Please follow these steps to safely link your transmitter and aircraft the first time.

1. Always power the transmitter or AnyLink first.
2. Make sure the throttle stick is down.
3. Plug in the battery to the aircraft.

HELPFUL TIP: If you are going to fly with a group, pre-link your transmitter and receiver prior to arriving at the flying location. This must be done in an environment free of Tactic SLT 2.4GHz signals. Pre-linking ensures that familiarity is established between your transmitter and receiver. Familiarity guarantees that as long as your transmitter is powered first, your receiver will link to your transmitter regardless of the other compatible signals in the environment.

INSTALLATION AND REMOVAL OF THE LIPO BATTERY

Keep hands clear of the propellers during battery installation and removal.

Remove nose cone. Use two fingers to secure connector during battery installation and removal.

Press battery into place to secure.

Replace nose cone.

Disconnect and remove the battery after each flight by holding the battery lead with two fingers and removing the battery from the lead with the other hand. Do not yank or jerk the battery from the aircraft. This could dislodge the RX board from the Micro B-25 Mitchell.

CHECK THE CONTROL SURFACE DIRECTION

Left stick moves left, rudders move left, causing the aircraft to yaw left. Nosewheel points left. Right stick moves left, left aileron moves up and right aileron moves down, causing the aircraft to bank to the left.

CENTER THE CONTROL SURFACES

Before flight, center aileron control surface with aileron trim adjustment.

Before flight, center elevator control surface with elevator trim adjustment.

Before flight, center the rudder control surface using the rudder trim adjustment.

REVERSING THE CONTROL THROWS

If you ever need to reverse the control throws, follow this simple procedure.

CAUTION: Unplug the battery from the model before attempting to reverse the control throws.

Press and hold one of the corresponding control surface trim buttons and cycle the power off and then on to reverse any control surface direction. You will hear a "Beep Beep Beep" sound.

ARMING THE MOTORS

Keep hands and onlookers clear of the propeller during arming and operation.

Switch on the transmitter and position the throttle control stick in the low or minimum position. Plug the battery into the plane.

Raise the throttle control stick to the maximum or high position. You will hear a "Beep" sound.

Return the throttle control stick to the minimum position. You will hear a "Beep Beep" sound. The motors are now armed and the propellers will operate if the throttle stick is raised.

ADJUSTING THE RUDDER AND ELEVATOR LINKAGES

To alter the center position of the rudder and elevator control throws, follow these steps. Be sure to unplug the battery from the model before attempting to mechanically adjust the linkages.

CHOOSING A FLYING SITE

5 minute flight times (outdoor) 8–10 minute flight times (indoor)

RANGE CHECK

With the transmitter powered and the battery plugged into the Micro B-25 Mitchell, walk 50' [15m] from the aircraft and check the control functions for proper and smooth operation.

FLYING THE MICRO B-25

If at any time during operation, the controls or propellers become jammed or unresponsive, reduce the power to the propellers and land. Fix the problem before attempting to fly.

Take off (or hand launch) heading directly into the wind.

NOTE: If you hand launch, you can remove the landing gear by gently pulling the landing gear wires straight out of the mounts. When flying without landing gear, land on grass only to minimize damage to the motor nacelles and fuselage. Cut power to the motors completely just before the propellers touch the ground to prevent any damage.

Hand launch with throttle set at 3/4 to full power, wings level and with a slight toss (it is not necessary to aggressively throw this model to hand launch it).

Once in the air, gain altitude to allow yourself sufficient reaction time to make a correction during flight. Once you're comfortable, adjust the aileron and elevator trims one click at a time so that the Micro B-25 Mitchell flies straight and level with the control sticks centered.

Concentrate on using small aileron control inputs so the model turns without banking the wings excessively. A slight amount of up elevator may be necessary to maintain altitude going into a turn and the elevator will need to be returned to neutral when coming out of a turn to avoid gaining altitude.

It's recommended that you attempt to land before the motors lose power and don't have enough voltage to maintain altitude or the low-voltage cut-off stops the motors. Always land directly into the wind if possible. Gradually reduce power when you are close to the landing spot and when close to the ground and about to touch down, pull the elevator stick back slightly to raise the nose of the model and slow the landing speed to "flare" for landing. Unplug the battery from the model and switch off the transmitter. Allow the motors to cool between flights.

PROPELLER REPLACEMENT

To replace the propellers, first make sure the battery is unplugged. Remove the spinner by gently wiggling it and breaking the glue joint that holds the spinner in place on the propeller. Gently and carefully hold the motor shaft with needle nose pliers or a hemostat to keep it from rotating and gently unscrew the propellers from the shafts. As shown in the picture, the left propeller unscrews clockwise and the right propeller unscrews counterclockwise. BE SURE you replace the propeller with the same rotating direction propeller! The spinner can be glued back on the propeller with a small amount of aliphatic (white) glue. Allow the glue to dry sufficiently before flying the model. Gently pull on the spinner to make sure it is really glued to the propeller.

REPAIRS

Repairs can be made to the Micro B-25 Mitchell by using the following items:

● Thick Foam Safe CA (for parts adhesion), GPMR6072 ● Foam safe CA accelerator, GPMR6035 ● Formula 560 canopy glue, PAAR3300 ● Two sets of needle nose pliers or hemostats, HCAR0625 ● Hobby Knife (#11 blade), RMXR6900 - Clear tape

REPLACEMENT PARTS

To order replacement parts for the Micro B-25 Mitchell, use the order numbers in the list below. Replacement parts are available only as listed. Replacement parts are not available from Product Support, but can be purchased from hobby shops or mail order/Internet order firms. If you need assistance locating a dealer to purchase parts from, contact:

Product Support

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

Stock No. Description

FLZA6244 1S LiPo Charger

FLZA6565 Wing Parts Set

FLZA6566 Fuselage Parts Set

FLZA6567 Tail Surface Parts Set

FLZA6568 Nacelles Set

FLZA6569 Canopy Hatch

FLZA6570 Tail Gunner Canopy

FLZA6571 Wheels/landing Gear Set

FLZA6572 Propeller Set (L&R)

Stock No. Description

FLZA6573 Spinner Set (L&R)

FLZA6574 Plastic Parts Set

FLZA6575 Motor Set (L&R)

FLZA6576 Aileron Servos Set

FLZA6577 Receiver/ESC/Servos Board

FLZA6578 Gearbox Parts Set (1 set)

GPMP0770 1S 3.7V 250mAh 20C LiPo

TACJ2403 TTX403 4-Channel SLT Mini Transmittter
