Product Type	Freestanding Electric Cooker with Induction Hob
Model	CFIB636DV WIFI
Brand	Candy
Width	60 cm
Depth	60 cm
Height	90 cm
Weight	50 kg
Power Supply	220-240 V ~ 50/60 Hz
Total Power	7.2 kW
Hob Type	4 Induction Zones
Oven Type	Electric Fan Oven
Oven Capacity	73 L
Energy Efficiency Class	A+
Wi-Fi Connectivity	Yes (Candy simply-Fi)
Control Type	Touch Controls + Knobs
Cleaning	Enamel Interior, Easy-Clean Hob
Safety Features	Child Lock, Overheat Protection, Auto Shut-Off
Repairability Index	8.5/10 (approximate)
Spare Parts Availability	7 years (standard Candy policy)
Installation Type	Freestanding
Color	Stainless Steel / Black Glass

Frequently Asked Questions - CFIB636DV WIFI CANDY

How do I connect the cooker to Wi-Fi?

Download the Candy simply-Fi app, create an account, and follow the in-app instructions. Ensure your smartphone is connected to a 2.4 GHz network and the cooker is in pairing mode (usually by pressing the Wi-Fi button).

What do I do if the induction hob does not work?

Check that the cookware is magnetic and has a flat base. Ensure the hob is receiving power and the child lock is off. If the issue persists, reset the cooker by turning off the mains for 10 seconds.

Can I use the oven with the fan on?

Yes, the oven features a fan-assisted mode that distributes heat evenly. Select the fan symbol on the control panel for best results.

How do I clean the induction hob?

Use a soft cloth and a dedicated induction hob cleaner. Avoid abrasive sponges. Wipe off spills immediately to prevent staining.

What is the maximum load for the oven?

The recommended maximum load for baking is 6 kg (e.g., a large turkey). For roasting, distribute food evenly on shelves.

How do I activate the child lock?

Press and hold the key symbol button for 3 seconds until a beep sounds. To deactivate, repeat the process.

Why is the oven not heating?

Check that the timer is not set to a delayed start. Ensure the oven function selector is on a cooking mode. If it still does not heat, consult the manual or contact support.

Where can I find spare parts?

Spare parts can be ordered through Candy official website or authorized service centers. Use the model number CFIB636DV WIFI for correct identification.

Is the cooker energy efficient?

Yes, it is rated energy class A+, consuming approximately 0.99 kWh per cycle (standard load). The induction hob is also highly efficient.

Can I use aluminum foil in the oven?

Yes, but avoid covering the bottom or fan holes. Use foil to cover food loosely to prevent drips.

USER MANUAL CFIB636DV WIFI CANDY

Instruction Manual For Induction Hob

ENGLISH

Electrical circuit board with two circular components and horizontal lines (no text or symbols)

Thank you for purchasing the CANDY induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

By placing the CE marking on this product, we declare, on our own responsibility, compliance to all the European safety, health and environmental requirements stated in the legislaon for this product.

Safety Reminding and Maintenance:

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children must not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do not store items on the cooking surfaces.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not use a steam cleaner for cleaning operations
• Metallic objects such as knives, forks, spoons and sauce pan lids must not be placed on the hob surface as they can get hot. Any spillage should be removed from the lid before opening.
• The hob surface must be allowed to cool down before closing the lid.
• After use, switch off the hob element by its control. Do not rely on the pan detector.
• This appliance is not intended to be operated by means of an external timer or separate remote - control system.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Dear Customer:

Thank you for purchases induction hob.

Please read this instruction manual carefully before using the hob and keep it in a s for future reference.

Product Introduction

The induction hob caters for all kind of cooking, with its electrokriegnitions, micro-computerised controls and multi-functions, making it the ideal choice family.

Manufactured with specially imported materials, the induction hob is extremely, user-durable and safe.

Working Principle

THIS INFORMATION IS IN ANOTHER INDUCITON HOB AND IS A BETTER EXPLAINATION

INDUCTION

An electronic generator powers a coil located inside the appliance. This coil creates a magnetic field, so that when the pan is placed on the hob, it is permeated by the induction currents. These currents make the pan into a real heat transmitter, while the glass ceramic hob remains cold.

This system is designed for use with magnetic-bottomed pans.

Diagram of a conveyor belt system with steam rising from a container, showing motion arrows (no text or symbols)

pan
magnetic circuit ceramic glass plate
induction coil Induced currents

Safety

Installation

This hob was specified for domestic use.

In its constant search to improve products CANDY reserves the right to modify any technical, programme or aesthetic aspects of the appliance at any time.

● Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

● Detection of small or non-magnetic items

When a pan with a diameter of less than or some other small item (e.g. knife, fork) a non-magnetic pan (e.g. aluminium) has be placed on the hob, a buzzer will sound for approximately one minute, after which the hob will automatically go to standby.

Residual heat warning

When the hob has been operating for some there will be some residual heat. The letter appears to warn that the hob is still hot.

Auto shutdown

Another safety feature of the induction hob is aut shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level	The heating zone shut down automatically after
1~5	8 hours
6~10	4 hours
11~14	2 hours
15	1hours

When the pan is removed from the cooking zone, the zone stops heating and a buzzer will sound for one minute then the hob will switch itself off.

Warning: Anyone who has been fitted with heart pacemaker should consult a doctor be using the induction.

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 50mm space needs to be left around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

or L(m een m)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	60	56	560 4 +1	+490+ 4 +1	50 mini

ake sure the

Induction hob is well ventilated and the air inlet and outlet are not blocked. Ensure the Induction hob is in good vestaking. As shown below

Note: The safety distance between the hotplate and the cupboard above the auto hotplate should be at least 760mm.

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob
• the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

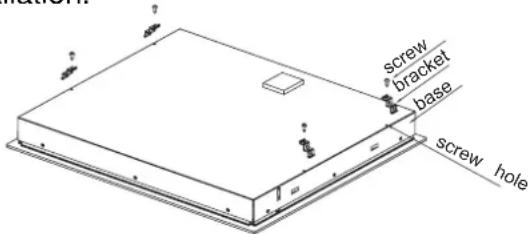

Adjusting the bracket position

Fix the hob on the work surface by screwing 4 brackets on the bottom of hob(see picture) after installation.

Cautions

1. The induction hob must be installed by qualified personnel or technicians. Please never conduct the poeration by yourself.
2. The hob must not be installed directly above a dishwasher, fridge, freezer, washing machine or tumble dryer, as the humidity may damage the hobs electronics
3. The induction hob should be installed in such a way that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

1. The domestic wiring system is suitable for the power drawn by the hob.

2. The voltage corresponds to the value given in the rating plate

3. The power supply cable sections can withstand the load specified on the rating plate.

Adapters, reducers or branching devices must not be used to connect the hob to the mains power supply, as they can cause overheating and fires.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75 C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a domestic qualified electrician.

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. the method of connection is shown below.

Voltage&frequency	Wire connection
400V 2-N50/60Hz	Brown Black	Gray&Blue	Yellow/Green
220-240V50/60Hz	[yw35]Brown&Black	Gray&Blue	[767T]Yellow/Green

• If the cable is damaged or to be replaced, the operation must be carried out by the after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.

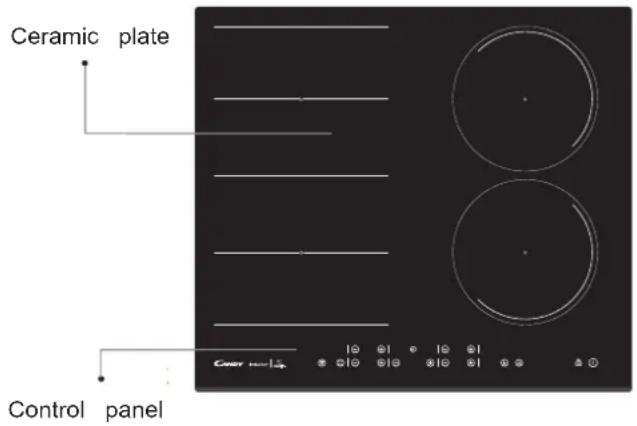

Diagram of induction hob:

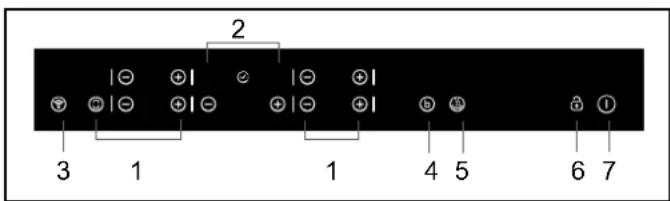

Schematic diagram of the control panel

1. Power regular control
2. Timer regular control
3. WIFI control
4. Booster control
5. Keep warm control
6. Lock/Inlock control
7. On/Off control

Instructions for Use

When the power is switched on, the buzzendwition and all the indicators will come one second and then go off. The hob is now standby modePlace the pan in the centre of the cooking zone.

Operating instructions

1. Press the "①" control, all the indicators show "--".

Select the power level by pressing the "+" or "-" control for the relevant cooking zone. To begin with the indicator shows "8" or "1" by pressing the "+" or "-" control. Adjust up or down by pressing the "+" or "-" control.

8

If you press the "+" and "-" controls simultaneously, the power setting returns to "0" and the cooking zone switches off.

NB : When the "①" control is pressed, the induction hob returns to standby mode if no other operation is carried out within one minute.

Boost function

Press the "b" control, the power level indicator showing "b"

Warning:

1. The boost function only operates for 5 minutes, after which the cooking zone will revert to its original setting.
2. The boost function works on the all cooking zone.
3. As the boost function of 1st or 3rd cooking zone is activated, the PRO zone is limited at level 2 automatically. Vice versa if the boost function of PRO cooking zone is activated, both the 1st and 3rd cooking zone are limited at level 2 automatically.

Cancelling the "BOOST" mode

Cancel the "Boost" mode by pressing the "+" or "-" control of the corresponding zone.

b

Using the Timer

You can use the timer in two different ways:

- You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

Instructions for Use

• You can set it to turn cooking zones off after the set time is up.
• You can set the timer for up to 9 hour and 59 minutes.

Using the Timer as a Minute Minder If you are not selecting any cooking zone

1. Make sure the cooktop is turned on. Note: you can use the minute minder even if you're not selecting any cooking zone.

2. Set the time by touching the “-” or “+” control of the timer

Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute.

Hold the “-” r “+” control of the timer to decrease or increase by 10 minutes.

1. Touching the “-” and “+” together, the timer is cancelled, and the "0:00" will show in the minute display.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

1. Buzzer will beep for 30 seconds and the timer indicator shows “- - “ when the setting time

finished.

Setting the timer to turn cooking zones off If the timer is set on one zone:

1. Touching the heating zone selection control that you want to set the timer for.

1. Touch " - " or " + " control, The minder indicator will start flashing and "0:10" will show in the timer display.

1. Set the time by touching the " - " or " + " control of the timer

Hint: Touch the “-” or “+” control of the timer once will decrease or increase by 1 minute. Touch and hold the “-” or “+” control of the timer will decrease or increase by 10 minutes.

1. Touching the “-” and “+” together, the timer is cancelled, and the "00" will show in the minute display.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

1. When cooking time expires, the corresponding cooking zone will be switch off automatically.

Other cooking zone will keep operating if they are turned on previously.

Instructions for Use

If the timer is set on more than one zone:

1. When you set the time for several cooking zones simultaneously, decimal dots of the relevant cooking zones are on. The minute display shows the min. timer. The dot of the corresponding zone flashes.

1. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

Using the Keep Warm function Activated the Keep warm function

1. Touching the heating zone selection control

1. Touching the keep warm control 📋, the zone indicator show “/”

Cancel the keep warm function

Touch "-" or "+" control of the corresponding zone, then the cooking zone will revert to the level you select.

Safety mode

To ensure the safety of children, the induction hob is fitted with an safety lock.

○ Lock:

In working mode, press the " 🔒" key, the hob then goes into the lock mode, timer will display "LOC" and the rest of the keys are disabled except the "①" key.

In standby mode, press the "lock" key, the hob then goes into the lock mode, the timer shows "Loc" and the rest of the keys are disabled. The timer shows "Loc" for a while and then goes off.

If you press the ① control, "LOC" will be displayed for a while.

○ Unlock:

Hold down the "Lock" key for 3 second, and the lock function will be deactivate.

WIFI FUNCTION

First of all, you should download Simply-Fy and install to your portable device. Then enroll your induction hob. Refer to annex for details.

To use the WIFI function, switch the hob on and press the WIFI control. The wifi LED will flash fast for 5 seconds which means the WIFI module is booting up. If the WIFI module connects to the router, the wifi LED will remain on all all the time. Otherwise, the WIFI LED will be flashing in cycles of 1 second on 1 second off.

When the connection is made, you can find numerous information on imply-Fy, e.g. Zone power, time remaining etc.

Instructions for Use

FLEXIBLE AREA

This area can be used as a single zone or as two different zones, accordingly to your cooking needs.

Flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, the part that is not covered by cookware is automatically switched off after one minute.

To grant a correct pan detection and a even heat distribution, the cookware should be correctly placed:

• In the front or rear side of the flexible zone when the cookware is smaller than 22 cm.
• Anywhere with bigger cookware.

As large zone

To activate the flexible area as a single large zone, simply press the dedicated keys.

The power setting works as any other cooking zone.

If the pan is moved from the front to the rear part of the zone (or vice versa), the flexible area automatically detects the new position, keeping the same power.

Deactivation of the continuum zone

Resetting the power of the continuum zone or pressing the continuum key again

As two independent zones

To use the flexible area as two different zones with different power settings, press the dedicated controls.

The maximum power of cooking zones is as follows:

Heating Zone	Normal	Boost
1	1800	3000
2	1800	3000
Flexible Area	3000	4000
3	1800	3000
4	1800	3000

The above may vary according to size the material it is made from

of the pan and

Selection of cooking vessels

Iron oil frying pan

Stainless steel pot Iron pan

Iron kettle

Enamel stainless steel kettle

Enamel cooking utensil

Iron plate

You may have a number of different cooking vessels

1 This induction hob can identify a variety of cooking vessels, which you can test one of the following methods:

Place the vessel on the cooking zone. If the corresponding cooking zone display a power level, then the vessel is suitable, then the vessel is not suitable for use with the induction hob.

2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is su for use with the induction hob.

NB: The base of the vessel must contain magnetic material.

It must have a flat bottom with a diameter of 14 more than cm.

3 Use pans whose diameter is as large as the graphic of the zone selected.

Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob.

Safety Reminding and Maintenance:

Simple line drawing of a refrigerator inside a circular frame (no text or symbols)

A dedicated power protection air switch must be used.

Simple black arrow pointing right inside a gray circle (no text or symbols)

For indoor use only.

Symbolic illustration of a submerged object with waves, enclosed in a circular frame (no text or symbols)

Never wash the induction directly with water.

Prohibition sign with a diagonal line crossing over a fire symbol (no text or numbers present)

do not store detergents or flammable materials beneath the hob.

Prohibition symbol of a cylindrical can with a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object, enclosed in a circular border (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

Prohibition sign showing a fork and knife crossed over a table, enclosed in a circle (no text or symbols)

Always open sealed containers. When a cooking zone has been time to time check that not leave metallic objects, such as cans, before heating for a long time the surface (e.g. glass, paper, such as knives, forks, spoons them, otherwise they may remain hot for some time is obstructing the air intake and lids on the hobast they may explode. afterwards - so do not touch beneath the induction hob. get hot. the ceramic surface.

Prohibition symbol of a water droplet with flame-like patterns, no text present

Symbol of a cooking pot with a crossed-out diagonal line, commonly used to indicate prohibition or no use.

Symbol of prohibition with a hand holding a star over a document, enclosed in a circle (no text or symbols)

Symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

iDo not place rough or uneven vessels on the hob, as they may damage the ceramic

Never use the induction hob Never have the induction If the surface of the hob near another appliance which hot plate to work without food cracked, switch off the generates a high temperature, inside, otherwise its operational appliance to avoid any such as a gas cooker or performance may be affected possibility of electric shock paraffin heater. and danger may happen.

Illustration of a hand pressing down on a surface with a circular frame (no text or symbols)

Illustration of a child standing at a desk with a book on top, enclosed in a circular frame (no text or symbols)

Simple line drawing of a coiled wire or cable with three terminals, enclosed in a circular border (no text or symbols)

Clean the induction hob Keep children or infirm persfinshe power cable is damaged regularly to stop foreign objectaway from the appliance. it should be replaced by our from getting into the fan Nender let them use it service agent or by another preventing the appliance fromunsupervised. suitably qualified person. working properly.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labelled in compliance with European directive 2012/19EU for Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Cleaning and Maintenance

The surface of the induction hob may be easily cleaned in the following

Type of contamination	Method of cleaning	Cleaning materials
Light Cleaning	The HGB SHOULD NOT BE IMMERSED IN HOT WATER!!!
Rings and lime scale	Apply white vinegar to the area, wipe a soft cloth or use a commercially available product	Special adhesive for ceramic glass
Food residue, melted aluminium or plastics	Use a special scraper for ceramic glass to remove residue (a silicon product best)	Special adhesive for ceramic glass

NB: Disconnect the power supply before cleaning.

Failure Display and Inspection

If any abnormality occurs, the induction hob will automatically go into protective mode an one of the following codes:

Problem	Possible causes	What to do
F1-F6	Temperature sensor failure	Please contact the supplier.
F9-FA	Temperature sensor of the IGBT failure.	Please contact the supplier.
FC	The connection between the display board and the main board has failed.	Please contact the supplier.
E1/E2	Abnormal supply voltage Please	inspect whether power supply is normal.Power on after the power supply is normal.
E3/E4	Temperature sensor of the ceramic glass plate is high	Please restart after the induction hob cools down.
E5	Temperature sensor of the IGBT is high	Please restart after the induction hob cools down.

The above table shows how to assess and check common faults.

Do not dismantle the appliance yourself, otherwise you may damage the induction hob.

Customer Care Service

If a fault should occur, before calling After Sales Service, please do the following:

-Check that the appliance is correctly plugged in

-Read the failure and display table above

If you are still unable to resolve the problem, switch off the appliance, do not try to and call

After Sales Service.

Special Declaration

The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions. Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one.

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	60	56	560+4+1	490+4+1	50mini

Simple line drawing of a hand pointing upward and a dotted circle with minus signs (no text or symbols)

Simple line drawing of a 3D rectangular box with a handle, enclosed in a circular border (no text or symbols)

Simple geometric diagram showing a diagonal line with an arrowhead, enclosed in a circle (no text or symbols)

Symbolic illustration of a submerged object with waves, enclosed in a circle (no text or symbols)

Prohibition symbol of a cylindrical object with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object inside a circular frame (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

Prohibition sign with crossed fork and knife on a table, no text or symbols present

Symbol of a hand holding a star over a document, crossed out by a diagonal line (no text or symbols present)

Symbol of a cooking pot with a crossed-out pan, no text or numbers present

Simple line drawing of a hand pressing down on a flat surface within a circular frame (no text or symbols)

Illustration of a child standing at a desk with a laptop (no text or symbols)

Pure diagram of a coiled wire or cable with three terminal connectors, enclosed in a circular border (no text or symbols)

Symbol of a crossed-out electrical device inside a circle (no text or numbers present)

L (mm)	W - ancho (mm)	H - alto (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	60	56	560 + 4 +1	490 + 4 + 1	50 mini

Advertencias

Voltage&frequency	Wire connection
400V 2-N50/60Hz	1L1Brown Black	2L2Black	3NGray&Blue	4NYellow/Green
220-240V50/60Hz	1LBrown&Black	2LBlack	3NGray&Blue	4NYellow/Green

Simple line drawing of a cabinet or rack unit enclosed in a circular frame (no text or symbols)

Symbolic illustration of a submerged object with waves, enclosed in a circular frame (no text or symbols)

Prohibition sign with diagonal slash over a circuit board (no text or symbols)

Prohibition symbol of a cylindrical can crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object, enclosed in a circular border (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle and diagonal line (no text or numbers)

Prohibition symbol of a gas stove with flames inside, crossed out by a diagonal line (no text or numbers present)

Symbol of a hand holding a star over a document, crossed out by a diagonal line (no text or symbols present)

Symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a surface, enclosed in a circular frame (no text or symbols)

Illustration of a child standing at a desk with a book on top (no text or symbols)

Illustration of a coiled cable or wire with multiple connectors, enclosed in a circular frame (no text or symbols)

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	60	56	560+4+1	490+4+1	50mini

Prepričajte se, da je zagotovljeno ustrezno zračenje in da odprtini za vstop in izstop zraka nista zamašeni. Prepričajte se, da je indukcijska kuhalna plošča brezhibna.

Symbolic illustration of a submerged object with waves, enclosed in a circular frame (no text or symbols)

Prohibition sign with a diagonal line crossing over a firecracker silhouette (no text or symbols)

Prohibition symbol of a can crossed out, no text or numbers present

Simple line drawing of a hand pressing down on a square object inside a circular frame (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

Symbolic diagram of crossed and crossed electrical circuit lines without any text or labels

U(m m)	G(m m)	Y(m m)	D(m m)	A(m m)	B(m m)	X(m m)
590	520	60	56	560+ 4+1	490+ 4+1	50mini

Simple line drawing of a 3D rectangular device with a handle, enclosed in a circular frame (no text or symbols)

Simple black arrow symbol pointing right, enclosed in a gray circle (no text or labels)

Symbolic illustration of a submerged object with a diagonal line crossing over waves (no text or symbols)

Prohibition symbol of a can crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object within a circular frame (no text or symbols)

Prohibition symbol with three clover inside a circle and diagonal line crossing through it (no text or numbers)

Prohibition sign with crossed fork and knife on a table, no text or symbols present

Prohibition symbol of a hot pot with flame-like patterns, no text or numbers present

Symbol of a cooking pot with a crossed-out pan, enclosed in a circle (no text or numbers present)

Symbol of a hand holding a book with a starburst graphic, crossed out by a diagonal line (no text or symbols present)

Symbol of a cooking pot with a diagonal line crossed out, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a flat surface within a circular frame (no text or symbols)

Simple line drawing of a person giving a thumbs-up in front of a wall-mounted platform (no text or symbols)

Pure diagram of a coiled wire or cable with three leads, enclosed in a circular border (no text or symbols)

Symbol of a crossed-out trash bin inside a circle (no text or numbers present)

Thank you for purchasing the induction hob. We hope it will give many years. of goc

Please read this instruction manual carefully before using the hob and keep it in a s for future reference.

Product Introduction

The induction hob caters for all kind of cooking, with its electrokriegzines, and its micro-computerised controls and multi-functions, making it the ideal choice family.

Manufactured with specially imported materials, the induction hob is extremely durable and safe.

Working Principle

The induction hob comprises a coil, a hotplate made of ferromagnetic material and a system. Electrical current generates a powerful magnetic field through the coil. This process is a large number of vortices which in turn generate heat which is then transmitted through cookingzone to the cooking vessel.

This hob was specially designed for domestic use.

In its constant search to improve its product reserves the right to modify technical, programme or aesthetic aspects of appliance at any time.

● Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

level, the cooking zone is automatically switched off.

● Detection of small or non-magnetic items

When a pan with a diameter of less than 80 mm,

or some other small item (e.g. knife, fork, key) of a non-magnetic pan (e.g. aluminium) has been left on the hob, a buzzer sounds for approximately one minute, after which the hob goes automatically on to standby.

Residual heat warning

When the hob has been operating for some there will be some residual heat. The letter appears to warn you to keep away from

Auto shutdown

Another safety feature of the induction hob is au shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

When the pan is removed from the cooking zone, it stops heating immediately and switches itself off after the buzzer has sounded for one minute.

Warning: Anyone who has been fitted with a heart pacemaker should consult a doctor before using the induction hotplate.

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation causing by the heat radiation from the hotplate. As shown below:

L(m m)imately590atically	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
	520	60	56	5604+1	+490+4+1	50mini

Under any circumstances, make sure the induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the auto hotplate should be at least 760mm.

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob
• the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Adjusting the bracket position

Fix the hob on the work surface by screw 4 brackets on the bottom of hob(see picture) after installation.

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics
3. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

1: the domestic wiring system is suitable for the power drawn by the hob.

1. the voltage corresponds to the value given in the rating plate

2. the power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching

devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made a qualified electrician.

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. the method of connection is shown below.

Voltage&frequency	Wire connection
400V 2-N50/60Hz	1L1Brown	2L2Black	3NGray&Blue	4NYellow/Green
220-240V50/60Hz	1Brown&Black		3NGray&Blue	4NYellow/Green

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.

Diagram of induction hob:

Control panel

Schematic diagram of the control panel

1. Power regular key
2. Timer regular key
3. WIFI key
4. Booster key
5. Keep warm key
6. Lock/Inlock key
7. On/Off key

Instructions for Use

When the power is switched on, the buzz and windance and all the indicators will come one second and then go out. The hob is now standby mode place the pan in the centre of the cooking zone.

Operating instructions

1. Press the "①" key, all the indicators show "--".

Select the power level by pressing the "+" or "-" key for the relevant hotplate. To begin with the indicator shows "8" or "1" by pressing the "+" or "-" key. Adjust up or down by pressing the "+" or "-" key.

If you press the "+" and "-" keys simultaneously, the power setting returns to "0" and the cooking zone switches off.

NB : When the "①" key is pressed, the induction hob returns to standby mode if no other operation is carried out within one minute.

Boost function

Press the "b" key, the power level indicator showing "b"

Warning:

1. The boost function only operates for 5 minutes, after which the cooking zone will revert to its original setting.
2. The boost function works on the all cooking zone.
3. As the boost function of 1st or 3rd cooking zone is activated, the PRO zone is limited at level 2 automatically.

Vice versa if the boost function of PRO cooking zone is activated, both the 1st and 3rd cooking zone are limited at level 2 automatically.

Cancelling the "BOOST" mode

Cancel the "Boost" mode by pressing the "+" or "-" key of the corresponding zone.

Using the Timer

You can use the timer in two different ways:

- You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

Instructions for Use

• You can set it to turn cooking zones off after the set time is up.
• You can set the timer for up to 9 hour and 59 minutes.

Using the Timer as a Minute Minder If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting any cooking zone.

1. Set the time by touching the “-” or “+” control of the timer

Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute.

Hold the “-” r “+” control of the timer to decrease or increase by 10 minutes.

1. Touching the “-” and “+” together, the timer is cancelled, and the "0:00" will show in the minute display.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

1. Buzzer will beep for 30 seconds and the timer indicator shows “- -” when the setting time finished.

Setting the timer to turn cooking zones off If the timer is set on one zone:

1. Touching the heating zone selection control that you want to set the timer for.

1. Touch " - " or " + " control, The minder indicator will start flashing and "0:10" will show in the timer display.

1. Set the time by touching the “-” or “+” control of the timer

Hint: Touch the “-” or “+” control of the timer once will decrease or increase by 1 minute. Touch and hold the “-” or “+” control of the timer will decrease or increase by 10 minutes.

1. Touching the “-” and “+” together, the timer is cancelled, and the "00" will show in the minute display.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will be switch off automatically.

Other cooking zone will keep operating if they are turned on previously.

Instructions for Use

If the timer is set on more than one zone:

1. When you set the time for several cooking zones simultaneously, decimal dots of the relevant cooking zones are on. The minute display shows the min. timer. The dot of the corresponding zone flashes.

1. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

Using the Keep Warm function Activated the Keep warm function

1. Touching the heating zone selection control

1. Touching the keep warm control 🙏, the zone indicator show “/”

Cancel the keep warm function

Touch "-" or "+" control of the corresponding zone, then the cooking zone will revert to the level you select.

Safety mode

To ensure the safety of children, the induction hob is fitted with an interlock device.

○ Lock:

In working mode, press the " 🔒" key, the hob then goes into the lock mode, timer will display "LOC" and the rest of the keys are disabled except the "①" key.

In standby mode, press the "lock" key, the hob then goes into the lock mode, the timer shows "Loc" and the rest of the keys are disabled. The timer shows "Loc" for a while and then goes out.

If you press the ① key, "I_loc" will be displayed for a while.

○ Unlock:

Hold down the "Lock" key for 3 second, and the lock function will be deactivate.

WIFI FUNCTION

First of all, you should download Simply-Fy and install to your portable device. Then enroll your induction hob. Refer to annex for details.

To use the WIFI function, switch the hob on and press the WIFI key. The wifi LED flash fast for 5 seconds which means the WIFI module is booting. If the WIFI module connects the router, the wifi LED will remain on all the time. Otherwise, the WIFI LED will be flashing in cycles of 1 second on 1second off.

If connect correctly, you can find many hob information from Simply-Fy, e.g. Zone power, remaining heat time.

Instructions for Use

FLEXIBLE AREA

This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.

Flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, the part that is not covered by cookware is automatically switched off after one minute.

To grant a correct pan detection and a even heat distribution, the cookware should be correctly placed:

• In the front or rear side of the flexible zone when the cookware is smaller than 22 cm
• Anywhere with bigger cookware

As big zone

To activate the flexible area as a single big zone, simply press the dedicated keys.

The power setting works as any other normal area.

If the pot is moved from the front to the rear part (or viceversa), the flexible area detects automatically the new position, keeping the same power.

Deactivation of the continuum zone

Resetting the power of the continuum zone or pressing the continuum key again

As two independent zones

To use the flexible area as two different zones with different power settings, press the dedicated keys.

The maximum power of cooking zones is as follows:

Heating Zone	Normal	Boost
1	1800	3000
2	1800	3000
Flexible Area	3000	4000
3	1800	3000
4	1800	3000

The above may vary according to size the material it is made from

of the pan and

Selection of cooking vessels

Iron oil frying pan

Stainless steel pot Iron

pan

Iron kettle

Enamel stainless steel kettle

Enamel cooking utensil

Iron plate

You may have a number of different cooking vessels

1 This induction hob can identify a variety of cooking vessels, which you can test one of the following methods:

Place the vessel on the cooking zone. If the corresponding cooking zone display a power level, then the vessel is suitable, then the vessel is not suitable for use with the induction hob.

2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is suitable for use with the induction hob.

NB: The base of the vessel must contain magnetic material.

It must have a flat bottom with a diameter of 14 more than cm.

3 Use pans whose diameter is as large as the graphic of the zone selected.

Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob.

Safety Reminding and Maintenance:

Simple line drawing of a cabinet or rack inside a circular frame (no text or symbols)

A dedicated power protection air switch must be used.

Simple black arrow pointing right inside a gray circle (no text or symbols)

For indoor use only.

Symbolic illustration of a submerged object with waves, enclosed in a circular frame (no text or symbols)

Never wash the induction directly with water.

Prohibition sign with a diagonal line crossing over a fire symbol (no text or numbers present)

do not store detergents or flammable materials beneath the hob.

Prohibition symbol of a cylindrical can crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object, enclosed in a circular border (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

Prohibition sign with crossed fork and knife on a table, no text or symbols present

Always open sealed containers. When a cooking zone has been time to time check that not leave metallic objects, such as cans, before heating for a long time the surface (e.g. glass, paper, such as knives, forks, spoons them, otherwise they may remain hot for some time is obstructing the air intake and lids on the hobast they may explode. afterwards - so do not touch beneath the induction hob. get hot. the ceramic surface.

Prohibition sign with a circular outline and diagonal line crossing through a stylized flame or bubble (no text or symbols)

Symbol of a cooking pot with a crossed-out diagonal line, enclosed in a circle (no text or numbers present)

Symbol of prohibition with a hand holding a star over a document, enclosed in a circle (no text or symbols)

Symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

iDo not place rough or uneven vessels on the hob, as they may damage the ceramic

Never use the induction hob Never have the induction If the surface of the hob near another appliance which hot plate to work without food cracked, switch off the generates a high temperature, inside, otherwise its operational appliance to avoid any such as a gas cooker or performance may be affected possibility of electric shock paraffin heater. and danger may happen.

Illustration of a hand pressing down on a surface with a circular frame (no text or symbols)

Illustration of a person standing at a desk with a book on top, enclosed in a circular frame (no text or symbols)

Simple line drawing of a coiled cable or wire with three leads, enclosed in a circular border (no text or symbols)

Clean the induction hob Keep children or infirm persfinshe power cable is damaged regularly to stop foreign objectaway from the appliance. it should be replaced by our from getting into the fan Nender let them use it service agent or by another preventing the appliance fromunsupervised. suitably qualified person. working properly.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleanness and Maintenance

The surface of the induction hob may be easily cleaned in the following way:

Type of contamination	Method of cleaning	Cleaning materials
Light Immerse	in hot water and wipe dry Cleaning sponge
Rings and lime scale	Apply white vinegar to the area, wipe a soft cloth or use a commercially available product	Special adhesive for ceramic glass
Sweetmeat, melted aluminium or plastics	Use a special scraper for ceramic glass to remove residue (a silicon product best)	Special adhesive for ceramic glass

NB: Disconnect the power supply before cleaning.

Failure Display and Inspection

If any abnormality occurs, the induction hob will automatically go into protective mode an one of the following codes:

Problem	Possible causes	What to do
F1-F6	Temperature sensor failure	Please contact the supplier.
F9-FA	Temperature sensor of the IGBT failure.	Please contact the supplier.
FC	The connection between the display board and the main board is fail	Please contact the supplier.
E1/E2	Abnormal supply voltage Please	inspect whether power supply is normal.Power on after the power supply is normal.
E3/E4	Temperature sensor of the ceramic glass plate Is high	Please restart after the induction hob cools down.
E5	Temperature sensor of the IGBT Is high	Please restart after the induction hob cools down.

The above table shows how to assess and check common faults.
Do not dismantle the appliance yourself, otherwise you may damage the induction hob.

Customer Care Service

If a fault should occur, before calling After Sales Service, please do the following:

-Check that the appliance is correctly plugged in

-Read the failure and display table above

If you are still unable to resolve the problem, switch off the appliance, do not try to and call

After Sales Service.

Special Declaration

The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions. Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one.

Шановні покупці:

Diagram of a machine with heat dissipation and control panel, no text or symbols present

чавунна каструля

L(MM)	W(MM)	H(MM)	D(MM)	A(MM)	B(MM)	X(MM)
590	520	60	56	560+490+4+1	+490+4+1	50MiH.

Simple line drawing of a 3D printer or scanner device with no text or symbols

Symbolic illustration of a submerged object with waves, enclosed in a circular frame (no text or symbols)

Prohibition sign with a diagonal line crossing over a battery icon, indicating no fire or smoke hazard (no text present)

Prohibition symbol of a cylindrical can with a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object within a circular frame (no text or symbols)

Prohibition symbol of a hot water vortex with no text or numbers

Symbol of a cooking pot with a crossed-out triangle, commonly used to indicate prohibition or no use.

Symbol of a hand holding a star over a document, crossed out by a diagonal line (no text or symbols present)

Symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Illustration of a person giving a thumbs-up in front of a school building (no text or symbols)

Pure diagram of a coiled wire or cable with three terminals, enclosed in a circular border (no text or symbols)

Symbol of a waste bin crossing over a trash can, enclosed in a circular border (no text or numbers present)

L(mm)	H (mm)	W (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	60	56	560+4+1	490+4+1	50 min.

Simple line drawing of a cabinet or enclosure with no text or symbols

Simple geometric diagram of a right-angled line within a circle (no text or symbols)

Symbolic illustration of a submerged object with waves, enclosed in a circular frame (no text or symbols)

Prohibition symbol of a cylindrical object with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object inside a circular frame (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

Prohibition sign with crossed fork and knife on a table, no text or symbols present

Prohibition symbol of a hot water contact with flames, no text or numbers present

Symbol of a cooking pot with a crossed-out pan, enclosed in a circle (no text or numbers present)

Symbol of a hand holding a document with a starburst arrow, enclosed in a circle (no text or numbers present)

Symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Illustration of a child giving a thumbs-up in front of a chalkboard (no text or symbols)

Pure diagram of a coiled wire or cable with three connectors, enclosed in a circular border (no text or symbols)

Symbol of a waste bin crossing over a surface, enclosed in a circular border (no text or numbers present)

L (mm)	I (mm)	1 (mm)	A (mm)	A (mm)	B (mm)	X (mm)
590	520	60	56	560+4+1	490+4+1	50 min

Prohibition sign showing a bench with flame icons and diagonal line (no text)

Prohibition symbol of a can crossed out, no text or numbers present

Simple line drawing of a hand pressing down on a square object inside a circular frame (no text or symbols)

Prohibition symbol with three clover and crossed lines, no text or numbers present

Prohibition sign with crossed fork and knife on a table (no text or symbols)

Prohibition symbol of a vortex with flame-like patterns inside a circle (no text or numbers)

Symbol of crossed-out documents with a hand holding a pen, enclosed in a circle (no text or symbols present)

Prohibition symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a surface, enclosed in a circular frame (no text or symbols)

Illustration of a child giving a thumbs-up in front of a school building (no text or symbols)

Pure diagram of a coiled wire or cable with three terminal connectors, enclosed in a circular border (no text or symbols)

Diagram of a steam machine with cooling unit and two control panels, no text or symbols present
