Product type	LED alarm clock radio
Brand	KOMPERNASS
Model	EBENCH KH 2287
Power supply	220-230 V ~ 50 Hz
Backup battery	9 V (not included)
Radio bands	FM and AM
FM antenna	Foldable floating antenna
AM antenna	Built-in ferrite antenna
Alarm functions	Buzzer (BUZZ) or radio
Alarm repeat (Snooze)	Approximately 9 minutes, repeatable up to 1 h 59
Automatic alarm stop	After 1 h 59
Sleep function	Timer from 0:00 to 1:59 hours
Display	LED (digital screen)
Time setting	HOUR, MINUTE and TIME SET buttons
Volume control	Rotary knob
Fine tuning	Fine tuning knob
Dimensions	Approximately 20 × 12 × 8 cm (estimated)
Weight	Approximately 400 g (estimated)
Care and cleaning	Soft cloth, device unplugged
Safety	Do not expose to moisture, do not open the casing
Spare parts and repairability	Kompernaß after-sales service (see warranty)
General information	Compliant with EU directives (low voltage, EMC)

Frequently Asked Questions - EBENCH KH 2287 RADIO-REVEIL KOMPERNASS

How to set the time on the EBENCH KH 2287 alarm clock radio?

Press and hold the TIME SET button (9) and simultaneously press the HOUR (7) and MINUTE (8) buttons until the correct time appears on the display.

How to set the alarm?

Press the ALARM button (5) while using the HOUR (7) and MINUTE (8) buttons to set the alarm time. Then set the function switch (1) to BUZZ for a buzzer alarm or to AUTO for a radio alarm.

How to use the 'sleep' function to fall asleep to music?

Press the SLEEP button (4). The default duration is 0:59. To change it, press and hold the SLEEP button and press MINUTE (8) to decrease or HOUR (7) to increase (max 1:59). The radio turns off automatically after the set duration.

What to do in case of a power outage?

The device has a battery compartment (13) for a 9V battery. Install the battery so that the time and alarm are saved. In case of a power cut, the display turns off but the internal clock continues. When power returns, the time is displayed automatically.

How to clean the alarm clock radio?

Always unplug the device before cleaning. Use a soft, dry cloth. Never use liquid or abrasive cleaning products to avoid damaging the casing.

Why does the alarm not go off?

Check that the function switch (1) is set to AUTO or BUZZ and that the alarm time is set correctly. Make sure the volume is not at minimum if using the radio. If the backup battery is discharged, replace it.

How to improve FM reception?

Fully unfold the floating antenna at the back of the device and orient it for better reception. Avoid placing the device near metal obstacles.

Does the display stay on in standby?

Yes, the LED display shows the time continuously when the device is plugged into the mains. In case of a power outage with backup battery, the display turns off to save battery.

What are the important safety precautions?

Use only on 230V. Never expose to water or excessive humidity. Do not open the casing. If the device falls into water, unplug immediately. For any repairs, contact Kompernaß after-sales service.

How to replace the backup battery?

Open the battery compartment (13) located at the back or underside of the device. Replace the 9V battery with a new one once a year. The battery only powers the clock and settings, not the radio or display.

USER MANUAL EBENCH KH 2287 RADIO-REVEIL KOMPERNASS

Digital alarm clock with red display showing 12:00 (no visible text or symbols beyond clock face)

KH 2284

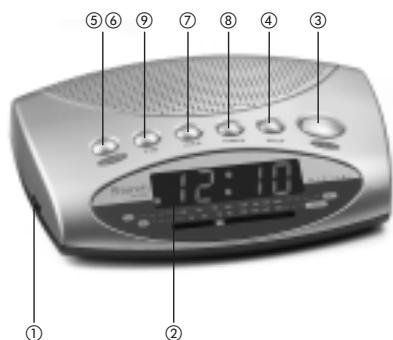

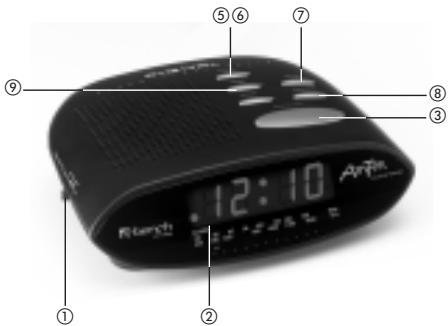

Digital alarm clock with green display showing 12:10 (no visible text or symbols beyond clock and buttons)

KH 2285

KH 2286

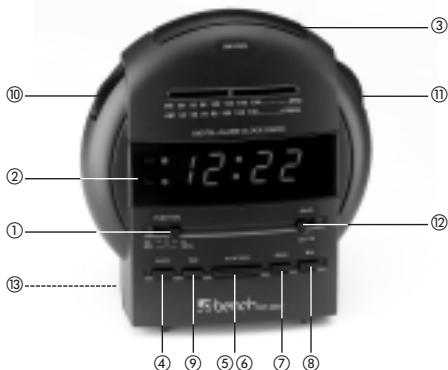

Digital alarm clock with digital display showing 12:22 (no visible text or symbols beyond clock face)

KH 2287

GB Operating instructions and safety advices Page 11

KH 2285

Bedienungsanleitung

Operating instructions

① Function switch (BUZZ (ALARM)/AUTO/ON/OFF)
② LED display
③ Snooze button
④ Sleep button
⑤ Alarm
⑥ Alarm off button
⑦ Hours
⑧ Minutes
⑨ Time setting button (TIME SET)
⑩ Volume control
⑪ Tuner
⑫ Band selector MW / VHF (AM/FM)
⑬ Battery compartment (in event of mains power failure)

Controls

• Operate the device at the correct mains voltage only (220 / 230 Volt \~ 50 Hz).
• Exposing this type of electrical equipment to high temperatures or moisture could lead to fires or electric shock.

To prolong the service life of your radio do not position it near water or heating radiators. Always find a place with good air circulation.

• Never use damaged electrical equipment (the device itself or its mains lead).
• Do not try to reach the appliance if it falls into water. Pull out the plug from the mains socket immediately.
• The electrical components in this device are at high voltage. Never remove any parts of the housing.
• If repairs are required please take or send the device to our customer services centre (See the guarantee card for the address and telephone number).
• When required, the housing can be cleaned with a soft cleaning cloth (after ensuring that the plug is out of the mains

Safety advice

socket). Never use cleaning agents as they could damage the housing.

Connecting to mains Insert the plug into a mains socket (make sure the mains voltage matches that of the device).

Radio reception Switch on the radio by moving the function switch ⑨ into the ON position.

Set the band selector switch to the required position (VHF or MW) ⑫. Set the volume using the volume control ⑩.

Set the radio to the VHF or medium wave frequency of your choice using the tuner ⑪.

Aerials FM (VHF): Unwind and position the wire aerial for best reception of VHF.

AM /MW: The radio has a sensitive ferrite aerial.

Setting the time Press and hold down the TIME button ⑨ (TIME / TIME-SET) whilst pressing the HOURS ⑦ or MINUTES ⑧ button until you see the correct time in the display.

Setting the alarm time Press the ALARM ⑤ and HOURS ⑦ or MINUTES ⑧ button until the required alarm time appears in the display.

Setting the alarm mode 1 First set the required alarm time as explained above. 2 If you wish to be woken by the buzzer set the FUNCTION SWITCH ① to BUZZ (ALARM). The activated alarm mode is then shown in the display.

• If you wish to be woken by the radio, set the FUNCTION

SWITCH to ON and select the desired station/frequency and the volume ⑩.

3 Then set the FUNCTION SWITCH ① to AUTO. The activated alarm mode is then shown in the display.
4 Then set the FUNCTION SWITCH ① to RADIO. The activated alarm mode is then shown in the display.

The appropriate alarm sounds when the alarm time is reached.

The alarm sound switches off automatically after 1 hour 59 minutes.

The alarm sound can be temporarily interrupted by pressing the SNOOZE button ③. After approximately 9 minutes the alarm sound automatically switches itself on again. This process can be repeated for a maximum of 1 hour 59 minutes.

You can cut short the alarm period by setting the FUNCTION SWITCH ① to OFF.

After the alarm is switched off, if you set the FUNCTION SWITCH ① to AUTO again the alarm will sound on the next day at the same time.

Automatic 24 hour alarm

This setting allows you to go to sleep whilst listening to the radio. With the FUNCTION SWITCH ① in the AUTO or OFF position the radio plays for a maximum of 1 hour 59 minutes.

Going to sleep with the sleep function

1 Press the Sleep button ④ to set the time for which the radio will play. The display shows 0:59.
2 If you wish the radio to stop playing earlier just press and hold down the Sleep button ④ whilst pressing the MINUTES ⑧ button until the desired playing time is displayed.

3 If you wish the playing time to be extended to 1:59, press and hold down the Sleep button ④ whilst pressing the HOURS ⑦ button.
4 To switch off the Sleep function ① or to set the sleep time to 0:00 press the SNOOZE button ③.

NOTE: Pressing the Sleep button ① again after setting the sleep time will automatically reset the sleep time to 0:59. Press the SNOOZE ③ button to switch off the Sleep function.

Mains power failure

To guard against losing your settings in the event of a mains power failure insert a 9-volt battery into the battery compartment. The battery ensures that the radio alarm clock will function in emergency mode even during a mains power failure. In these circumstances the LED display ② will not be illuminated. Once mains power is restored the correct time will be automatically displayed again.

Note: The alarm, radio and LED ② display do not function during battery operation.

• Insert the battery into the battery compartment (see Fig. 13).
  – Replace the battery annually.

We, Kompernaß Handelsgesellschaft mbH, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product conforms with the following EC regulations:

Statement of conformity

EC low voltage regulations, Electromagnetic compatibility, Applicable harmonised standards.

Type/Description:

Radio alarm clock KH 2284, KH 2285, KH 2286, KH 2287

Bochum, 31.05.2003

Hans Kompernaß

- Managing Director -
