EBENCH KH 2274 RADIO-REVEIL - Alarm clock radio KOMPERNASS - Free user manual and instructions

Brand	KOMPERNASS
Model	EBENCH KH 2274
Product Type	Clock Radio
Power Supply	230 V / 50 Hz
Backup Battery	1 x 9 V (type 6LR61, not included)
Radio Reception	FM and AM
Alarm Function	Radio or audible alarm (buzzer)
Display	Digital (hours and minutes)
Buttons	TIME, ALARM, HOUR, MINUTE, SNOOZE, SLEEP
Switches	ON/OFF/AUTO, AM/FM
Sleep Timer	Up to 59 minutes, adjustable
Snooze	9 minutes
Time Backup	Via 9 V battery
Volume Control	Rotary VOL (cutoff for alarm)
Alarm Active Indicator	Light point on the display
Cleaning	Soft dry cloth
Use	Household only
Safety	Do not open, avoid liquids, replace damaged cord
Disposal	Recycle electronics and batteries separately

Frequently Asked Questions - EBENCH KH 2274 RADIO-REVEIL KOMPERNASS

How to set the time?

Press and hold the TIME button, then press HOUR for hours and MINUTE for minutes.

How to set the alarm?

Press and hold the ALARM button, then press HOUR and MINUTE to set the wake-up time.

How to choose the alarm mode (radio or buzzer)?

Turn the VOL knob until it clicks to select the buzzer. For a radio alarm, set the volume to an audible level.

How to use the snooze function?

Press the SNOOZE button during the alarm; it will repeat after 9 minutes.

How to set the sleep timer?

Set the switch to AUTO, then press SLEEP. The radio will turn off after 59 minutes. To reduce the duration, hold SLEEP and press MINUTE.

Why is the time not displayed after a power outage?

The 9 V backup battery may be discharged or missing. Insert a new battery to preserve the time.

How to clean the device?

Unplug the device, then clean it with a soft dry cloth. Never use liquid products or solvents.

What to do if the radio does not work?

Check the band selection (AM/FM), the TUNING adjustment, and the volume. If the problem persists, contact customer service.

How to replace the backup battery?

Open the battery compartment located on the back or bottom of the device. Replace the used 9 V battery with a new one, observing polarity.

How to permanently turn off the alarm?

Set the switch to the OFF position to deactivate the alarm function.

USER MANUAL EBENCH KH 2274 RADIO-REVEIL KOMPERNASS

Operating Instructions

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage : 230 V / 50 Hz

Time memory ....: 9 V block battery

Frequency bands ....: VHF / MW

Alarm functions: Radio, alarm signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
• If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:

• Set up the appliance in an open and well-ventilated area, so that there are no heat pockets. Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.

• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

• You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket.

Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

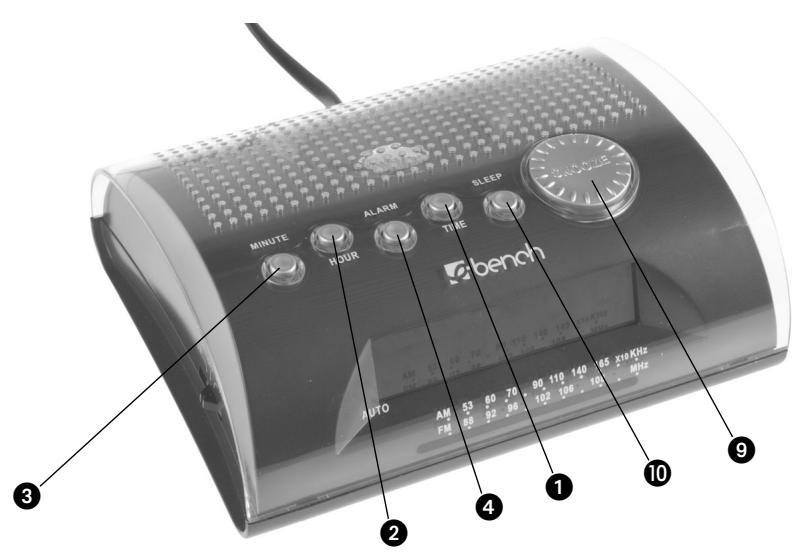

Press and hold the TIME button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

Press and hold the ALARM button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

7. Radio reception

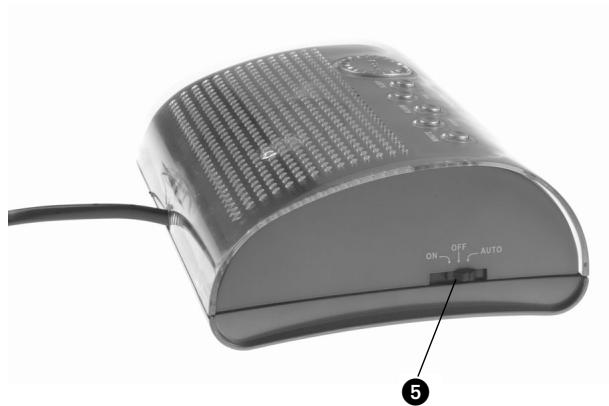

Move the sliding switch to the ON position.

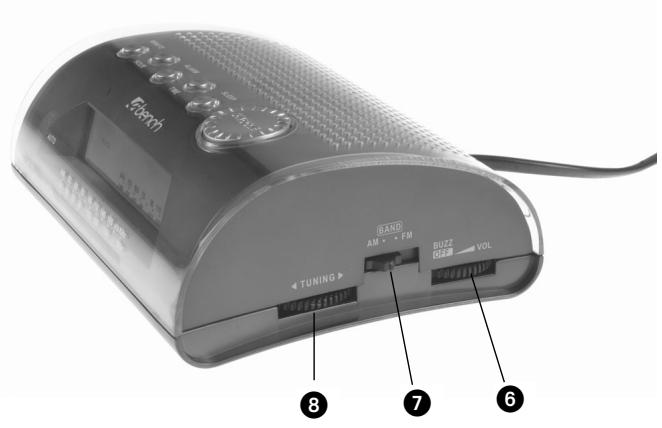

⑥ Turn the volume control VOL to the centre position.
Select the frequency band with the AM / FM sliding switch.
Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.
You will be awakened by the radio if ...
the volume control VOL is set to a level high enough to awaken you.

You will be awakened by the alarm signal if ...

the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

Press the SNOOZE button and the alarm will sound again after 9 minutes.
Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
3 then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

Disconnect the power plug from the power socket.
Never open the casing. There are no operating controls inside.

Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
