Product Type	Freestanding Electric Cooker
Brand	AEG
Model	HC412000GB
Energy Source	Electric
Height	90 cm
Width	60 cm
Depth	60 cm
Weight	Approx. 50 kg
Power Supply	230 V ~ 50 Hz
Oven Type	Multifunction
Oven Functions	Conventional, Grill, Fan, Bottom Heat, Defrost
Hob Type	Ceramic
Number of Cooking Zones	4
Oven Capacity	65 L
Cleaning Type	Enamel Interior, Removable Door Glass
Safety Features	Child Lock, Residual Heat Indicators, Automatic Shut-off
Spare Parts Availability	Via AEG Service Centres
Repairability Index	8.5/10 (based on AEG standards)
Energy Class	A

Frequently Asked Questions - HC412000GB AEG

How do I install the AEG HC412000GB cooker?

Installation should be carried out by a qualified electrician. Ensure the appliance is connected to a suitable power supply (230V). Leave sufficient ventilation gaps and level the cooker using the adjustable feet.

What type of cookware can I use on the ceramic hob?

Use flat-bottomed cookware made of stainless steel, enamel, or glass-ceramic. Avoid aluminium or copper as they may leave marks.

How do I set the oven timer?

Press the timer button, set the desired time using the +/- buttons, then confirm. The oven will turn off automatically when the time elapses.

How do I clean the oven interior?

Use a damp cloth with mild detergent. For stubborn stains, use a ceramic hob scraper or enamel cleaner. Avoid abrasive pads.

The hob is not heating up. What should I check?

Ensure the appliance is plugged in and the circuit breaker is on. Check if the child lock is activated. If the problem persists, contact AEG support.

Can I use the grill and fan together?

Yes, the Fan Grill function combines the grill with the fan for even browning and crisp results.

How do I replace the oven light bulb?

Disconnect the power. Remove the glass cover, unscrew the old bulb (G9, 25W), and replace with a heat-resistant bulb. Reattach the cover.

What does the residual heat indicator mean?

The H symbol shows that the cooking zone is still hot. Do not touch until it disappears.

How do I activate the child lock?

Press and hold the lock button for 3 seconds until the indicator light turns on. Repeat to deactivate.

Where can I find spare parts for my AEG HC412000GB?

Spare parts are available through AEG authorized service centers or online spare parts retailers. Quote the model number for correct parts.

USER MANUAL HC412000GB AEG

CONTENTS

1. SAFETY INFORMATION......3
2. SAFETY INSTRUCTIONS......4
3. PRODUCT DESCRIPTION....7
4. DAILY USE....7
5. HINTS AND TIPS....8
6. CARE AND CLEANING....9
7. TROUBLESHOOTING....10
8. INSTALLATION.... 11
9. TECHNICAL INFORMATION......16
10. ENERGY EFFICIENCY.... 17

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision. • Children of less than 3 years should be kept away unless continuously supervised.

1.2 General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

- Do not use a steam cleaner to clean the appliance.

- If the glass ceramic surface / glass surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• In case of hotplate glass breakage:

- shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply,

- do not touch the appliance surface,

- do not use the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.

- Where the appliance is directly connected to the power supply, an all-pole isolating switch with a contact gap is required. Complete disconnection in compliance with the conditions specified in overvoltage category III must be guaranteed. The earth cable is excluded from this.

- When you route the mains cable, make sure that the cable doesn't come into direct contact (for example using insulating sleeving) with parts that can reach temperatures of more than 50°C above room temperature.

2. SAFETY INSTRUCTIONS

This appliance is suitable for the

following markets: LT NO GB

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

- Remove all the packaging.

• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.

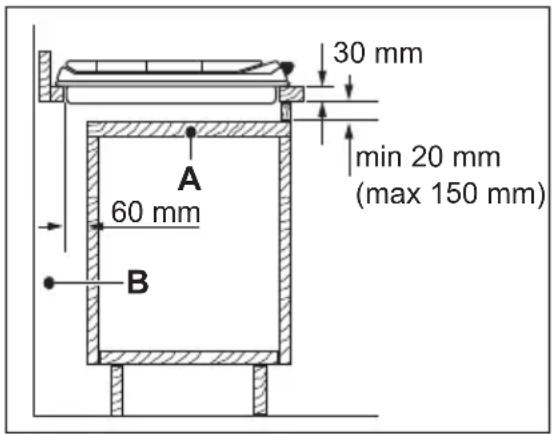

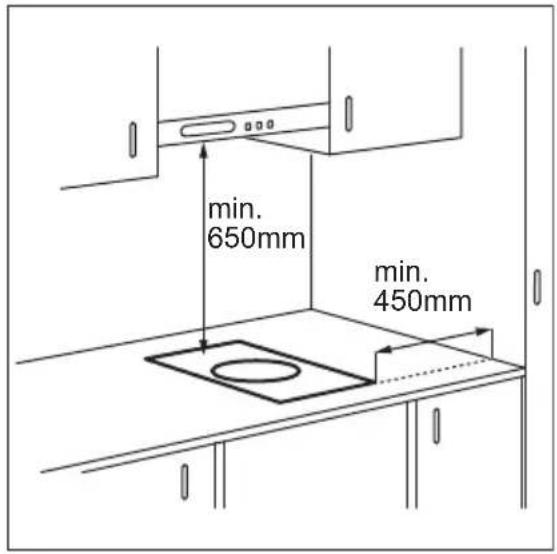

• Keep the minimum distance from the other appliances and units. • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture from causing swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.
• If the appliance is installed above drawers, make sure that the space between the bottom of the appliance and the upper drawer is sufficient for air circulation.
• The bottom of the appliance can get hot. Make sure to install a non-combustible separation panel under the appliance to prevent access to the bottom.

2.2 Electrical Connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the

mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

- The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

- If the mains socket is loose, do not connect the mains plug.

- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

- Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

- The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

2.3 Gas connection

• All gas connections should be made by a qualified person.
• Before installation, make sure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
• Make sure that there is air circulation around the appliance.
• The information about the gas supply is on the rating plate.
• This appliance is not connected to a device, which evacuates the products of combustion. Make sure to connect the appliance according to current installation regulations. Pay attention to requirements regarding adequate ventilation.

2.4 Use

WARNING!

Risk of injury, burns and electrical shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• When you place food into hot oil, it may splash.

WARNING!

Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• Use only stable cookware with the correct shape and diameter larger than the dimensions of the burners.
• Make sure cookware is centrally positioned on the burners.
• Make sure the flame does not go out when you quickly turn the knob from the maximum to the minimum position.
• Use only the accessories supplied with the appliance.
• Do not install a flame diffuser on the burner.
• The use of a gas cooking appliance results in the production of heat and moisture. Provide good ventilation in the room where the appliance is installed.
• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
• Do not let acid liquids, for example vinegar, lemon juice or limescale remover, touch the hob. This can cause matt patches.

2.5 Care and cleaning

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Deactivate the appliance and let it cool down before you clean it.
• Disconnect the appliance from the electrical supply before maintenance.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

- Do not clean the burners in the dishwasher.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

- Contact your municipal authority for information on how to discard the appliance correctly.

3. PRODUCT DESCRIPTION

3.1 Cooking surface layout

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Flatten the external gas pipes.

2.7 Service

• To repair the appliance contact an Authorised Service Centre. - Use original spare parts only.

1 Rapid burner 2 Semi-rapid burner 3 Control knobs

3.2 Control knob

Symbol Description

no gas supply / off position

Symbol Description

ignition position / maximum gas supply

minimum gas supply

4. DAILY USE

WARNING!

Refer to Safety chapters.

4.1 Burner overview

A) Burner cap and crown B) Thermocouple C) Ignition candle

4.2 Ignition of the burner

Always light the burner before you put on the cookware.

WARNING!

Be very careful when you use open fire in the kitchen environment. The manufacturer declines any responsibility in case of the flame misuse.

1. Push the control knob down and turn it counterclockwise to the maximum gas supply position (穿)
2. Keep the control knob pushed for equal or less than 10 seconds. This lets the thermocouple warm up. If not, the gas supply is interrupted.
3. Adjust the flame after it is regular.

If after some tries the burner does not light, check if the crown and its cap are in correct positions.

5. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

WARNING!

Do not keep the control knob pushed for more than 15 seconds. If the burner does not light after 15 seconds, release the control knob, turn it into off position and try to light the burner again after minimum 1 minute.

CAUTION!

In the absence of electricity you can ignite the burner without electrical device; in this case approach the burner with a flame, turn the control knob counterclockwise to maximum gas supply position and push it down. Keep the control knob pushed for equal or less than 10 seconds to let the thermocouple warm up.

If the burner accidentally goes out, turn the control knob to the off position and try to light the burner again after minimum 1 minute.

The spark generator can start automatically when you switch on the mains, after installation or a power cut. It is normal.

4.3 Turning the burner off

To put the flame out, turn the knob to the off position.

WARNING!

Always turn the flame down or switch it off before you remove the pans from the burner.

5.1 Cookware

CAUTION!

Do not use cast iron pans, potstones, earthenware, grill or toaster plates.

WARNING!

Do not put the same pan on two burners.

WARNING!

Do not put unstable or damaged pots on the burner to prevent spill and injury.

CAUTION!

Make sure that the bottoms of pots do not stand above the control knob, otherwise the flame heats the control knob up.

CAUTION!

Make sure that pot handles are not above the front edge of the cooktop.

6. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

6.1 General information

• Clean the hob after each use. • Always use cookware with clean bottom. • Scratches or dark stains on the surface have no effect on how the hob operates.
• Use a special cleaner applicable for the surface of the hob.

WARNING!

Do not use knives, scrapers or similar instruments to clean the surface of the glass or between the rims of the burners and the frame (if applicable).

Wash stainless steel parts with water, and then dry them with a soft cloth.

CAUTION!

Make sure that the pots are placed centrally on the burner in order to get maximum stability and to get lower gas consumption.

CAUTION!

Liquids spilt during cooking can cause the glass to break.

5.2 Diameters of cookware

Use cookware with diameters applicable to the size of burners.

Burner Diameter of cookware (mm)
Rapid 160 - 240
Semi-rapid 140 - 240

6.2 Pan supports

The pan supports are not resistant to washing in a dishwasher. They must be washed by hand.

1. Remove the pan supports to easily clean the hob.

Be very careful when you replace the pan supports to prevent the hob top from damage.

1. The enamel coating occasionally can have rough edges, so be careful when you wash the pan supports by hand and dry them. If necessary,

remove stubborn stains with a paste cleaner.

1. After you clean the pan supports, make sure that they are in correct positions.
2. For the burner to operate correctly, make sure that the arms of the pan supports are aligned with the centre of the burner.

6.3 Cleaning the hob

• Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the hob.
• Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and some detergent. After cleaning, rub the hob dry with a soft cloth.
• To clean the enamelled parts, cap and crown, wash them with warm soapy water and dry them carefully before you put them back.

6.4 Cleaning the spark plug

This feature is obtained through a ceramic ignition candle with a metal electrode. Keep these components well clean to prevent difficult lighting and check that the burner crown holes are not obstructed.

6.5 Periodic maintenance

Speak to your local Authorised Service Centre periodically to check the conditions of the gas supply pipe and the pressure adjuster, if fitted.

6.6 Glass bar

• Do not use the scraper or sharp objects to clean the glass bar and the space between it and glass ceramic. Glass bar is attached to the ceramic plate.
• Do not put the pots on the glass bar.
• Make sure that the pans and pots do not touch the glass bar.

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy
There is no spark when you try to activate the spark generator.	The hob is not connected to an electrical supply or it is connected incorrectly.	Check if the hob is correctly connected to the electrical supply.
The fuse is released. Make sure that the fuse is		the cause of the malfunction.If the fuse releases again and again, contact a qualified electrician.
Burner cap and crown are placed incorrectly.		Place the burner cap and crown correctly.
The flame extinguishes immediately after ignition.	Thermocouple is not heated up sufficiently.	After lightning the flame, keep the knob pushed for equal or less than 10 seconds.
The flame ring is uneven. Burner crown is blocked with food residues.		Make sure that the injector is not blocked and the burner crown is clean.

7.2 If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Make sure you operated the hob correctly. If not, the

servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

8. INSTALLATION

WARNING!

Refer to Safety chapters.

8.1 Before the installation

Before you install the hob, write down the serial number (Ser. Nr) from the rating plate. The rating plate is on the bottom of the hob.

AEG
HC412000GB
Typ 55 FED 04 GA 220 - 240 V
Gas type: G20 2H
2E 2E+ 2L 20 mbar
Butan: 350 g/h Qn (Hs): 4.9 kW
Ser.Nr. ......

8.2 Gas Connection

WARNING!

The following instructions about installation, connection and maintenance must be carried out by qualified personnel in compliance with standards and local regulations in force.

Make sure that during the installation the appliance is not connected to electrical supply. Disconnect the mains plug or deactivate the fuses. Disconnect the mains gas supply.

Make sure that there is a stop tap assembled between the gas supply of house and the appliance.

The settings for this appliance are located on the rating plate. The present settings for the type of gas and gas pressure are on a sticker.

Choose fixed connections or use a flexible pipe in stainless steel in compliance with the regulation in force. If you use flexible metallic pipes, be careful they do not come in touch with

mobile parts or they are not squeezed. Also be careful when the hob is put together with an oven.

This appliance is not connected to an exhaust gas outlet. It must be connected in accordance with the installation conditions that apply. Pay special attention to correct airflow.

Make sure that the gas supply pressure of the appliance obeys the recommended values. The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut. G 1/2". Screw the parts without force, adjust the connection in the necessary direction and tighten everything.

A) End of shaft B) Washer C) Elbow (if needed)

Flexible nonmetal pipes connection:

If it is possible to easily control the connection in its full area, you can use a flexible pipe. Tightly attach the flexible pipe by clamps.

Liquid gas

Use the rubber pipe holder for liquid gas. Always engage the gasket. Then continue with the gas connection.

The flexible pipe is prepared for apply when:

• it can not get hot more than room temperature, higher than 30°C;
• it is no longer than 1500 mm;
• it shows no throttles;
• it is not subject to traction or torsion;
• it does not get in touch with cutting edges or corners;
• it can be easily examined in order to make sure its condition.

The control of preservation of the flexible pipe consists in checking that:

• it does not show cracks, cuts, marks of burnings on the two ends and on its full length;
• the material is not hardened, but shows its correct elasticity; • the fastening clamps are not rusted; • expired term is not due. If one or more defects are visible, do not repair the pipe, but replace it.

WARNING!

When installation is complete, make sure that the seal of each pipe fitting is correct. Use a soapy solution, not a flame!

8.3 Injectors replacement

1. Remove the pan supports.
2. Remove the caps and crowns of the burner.
3. With a socket spanner 7 remove the injectors and replace them with the ones which are necessary for the type of gas you use (see table in "Technical Information" chapter).

1. Assemble the parts, follow the same procedure backwards.
2. Replace the rating plate (it is near the gas supply pipe) with the one for the new type of gas supply. You can find this plate in the package supplied with the appliance.

If the supply gas pressure is changeable or different from the necessary pressure, you must fit an applicable pressure adjuster on the gas supply pipe.

8.4 Adjustment of minimum level

To adjust the minimum level of the burners:

1. Light the burner.
2. Turn the knob to the minimum position.
3. Remove the knob.
4. With a thin screwdriver, adjust the bypass screw position (A).

1. If you change:

• from natural gas G20 20 mbar to liquid gas, fully tighten the bypass screw in. • from liquid gas to natural gas G20 20 mbar, undo the bypass screw approximately 1/4 of a turn.

WARNING!

Make sure the flame does not go out when you quickly turn the knob from the maximum position to the minimum position.

8.5 Electrical connection

- Make sure that the rated voltage and type of power on the rating plate

agree with the voltage and the power of the local power supply.

• This appliance is supplied with a mains cable and a plug.
• Always use a correctly installed shockproof socket.
• Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• There is a risk of fire when the appliance is in connection with an extension cable, an adapter, or a multiple connection. Make sure that the ground connection agrees with the standards and regulations.
• Do not let the power cable heat up to a temperature higher than 90° C.

Make sure that you connect the blue neutral cable to the terminal with a letter "N" on it. Connect the brown (or black) phase cable to the terminal which has a letter "L". Keep the phase cable connected at all times.

8.6 Connection cable

To replace the connection cable, use only the special cable or its equivalent. The cable type is: H05V2V2-FT90.

Make sure that the cable section is applicable to the voltage and the working temperature. The yellow/green earth wire must be approximately 2 cm longer than the brown (or black) phase wire.

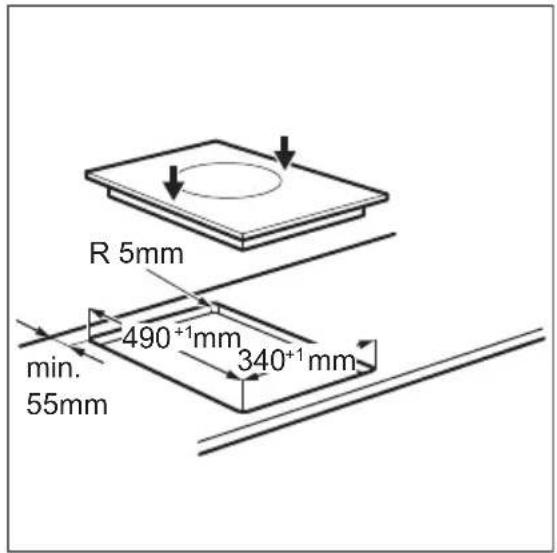

8.7 Assembly

ON-TOP INSTALLATION

8.8 Installation of more than one hob

Supplied accessories: connection bar, heat-resistant silicone, rubber shape, sealing stripe.

Use only a special heat-resistant silicone.

The worktop cutout

Distance from the wall minimum 50 mm

Depth 490 mm

Width sum of all widths of hobs that you install minus 20 mm

Example:

Assembly

1. Calculate correct cutout dimensions.
2. Prepare cutout in the worktop.
3. One by one place the hobs on a soft surface (for example on a blanket) with the bottom side up.
4. Attach the supplied seal stripe to the lower edge of the hob along the outer edge of the glass ceramic.
5. Loosely screw the fixing plates into the correct holes in the protective casing.
6. Insert first hob into the worktop cutout. Then insert the connection bar into the worktop cutout. Push it half of its width under the hob.

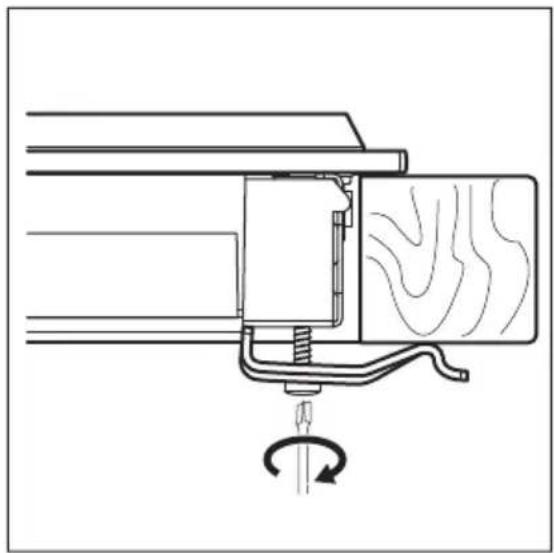

1. Loosely screw in the fixing plates from below to the worktop and to the connection bar.

1. Insert next hob into the worktop cutout. Make sure that the front edges of the hobs are on the same level.

1. Tighten the fixing plates / retaining grip screws.
2. Use silicone to seal the gaps between the hobs and between the hobs and the worktop.
3. Put some soapy water on the silicone.
4. Press the rubber shape with some strength against the glass ceramic and move it slowly along the space.

1. Do not touch the silicone until it becomes hard; this can take about a day.
2. Carefully remove the excess silicone with a razor blade.
3. Clean the glass surface.

8.9 Insertion possibilities

The panel installed below the hob must be easy to remove and allow easy access in case a technical assistance intervention is necessary.

Kitchen unit with door

A) Removable panel B) Space for connections

Kitchen unit with oven

The electrical connection of the hob and the oven must be installed separately for safety reasons and to allow easy removal of the oven from the unit.

9. TECHNICAL INFORMATION

9.1 Hob dimensions

Width: 360 mm

Depth: 520 mm

9.2 Bypass diameters

BURNER ∅ BYPASS 1/100 mm

Rapid 42

Semi-rapid 32

9.3 Gas burners power and injectors

Gas burners power

Burner Natural Gas	Town gas	Liquid gas
Rapid burner	3,0 kW 2,8 kW 2,8 kW / 204 g/h
Semi Rapid burner	1,9 kW 2,0 kW 1,9 kW / 138 g/h
Total power	4,9 kW 4,8 kW 4,7 kW / 342 g/h

Gas burners injectors

Burner Natural Gas G20/20 mbar	LPG G30/30 mbar
Injectors Injectors
Rapid burner 119 88
Semi Rapid burner	96 71

10. ENERGY EFFICIENCY

10.1 Product information according to EU 66/2014

Model identification HC412000GB
Type of hob Built-in hob
Number of gas burners 2
Energy efficiency per gas burner (EE gas burner)	Centre rear - Rapid 58.4%
	Centre front - Semi-rapid 60.6%
Energy efficiency for the gas hob (EE gas hob)	59.5%

EN 30-2-1: Domestic cooking appliances burning gas - Part 2-1: Rational use of energy - General

10.2 Energy saving

• Before use, make sure that the burners and pan supports are assembled correctly.
• Use cookware with diameters applicable to the size of burners.
• Center the pot on the burner.
• When you heat up water, use only the amount you need.
• If it is possible, always put the lids on the cookware.
• When the liquid starts to boil, turn down the flame to barely simmer the liquid.
• If it is possible, use a pressure cooker. Refer to its user manual.

11. ENVIRONMENT CONCERNS

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances

marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CONTENTS

1. SAFETY INFORMATION.... 19
2. SAFETY INSTRUCTIONS....20
3. PRODUCT DESCRIPTION....23
4. DAILY USE....23
5. TIPS....25
6. CLEANING AND CARE....25
7. TROUBLESHOOTING....26
8. INSTALLATION....27
9. TECHNICAL INFORMATION....32
10. ENERGY EFFICIENCY.... 33

FOR BEST RESULTS

1. If you change:
2. 20 mbar natural gas G20 to liquefied gas, fully tighten the bypass screw;
3. from liquefied gas to G20 20 mbar natural gas, unscrew the bypass screw about 1/4 turn.

WARNING!

7. FAILURE

WARNING!

Look at

5. If you change:

• tighten the adjustment screw if you change from natural gas G20 20 mbar to liquefied gas.
• unscrew the bypass screw about 1/4 turn if you change from liquefied gas to natural gas G20 20 mbar.

WARNING!

1. Do not touch the silicone until it has hardened, which can take up to a day.
2. Use a razor blade and carefully remove excess silicone.
3. Clean the glass surface.
