DU 8133 GA0W - Tumble dryer BEKO - Free user manual and instructions

Product Type	Condenser Tumble Dryer
Capacity (kg)	8
Dimensions (W x D x H)	595 x 540 x 850 mm
Weight	33 kg
Energy Efficiency Class	A+
Annual Energy Consumption	560 kWh
Noise Level	65 dB(A)
Drum Volume	112 L
Drying Programs	15 programs including Cotton, Synthetics, Delicates, Time, Iron Aid, etc.
Display Type	LED
Control Type	Rotary Dial + Touch
Condensation Efficiency Class	A
Reversible Door	Yes
Filter Type	Lint filter
Water Tank Capacity	4.5 L
Anti-Crease Function	Yes, 30 min anti-crease
Delay Start	Up to 24 hours
Child Lock	Yes
Power Consumption (off-mode)	0.5 W
Power Voltage / Frequency	220-240 V / 50 Hz
Warranty	2 years

Frequently Asked Questions - DU 8133 GA0W BEKO

How do I clean the lint filter?

Open the door, pull the lint filter out from the door area, remove the lint by hand or a soft brush, rinse under running water if needed, dry completely, and reinsert. Clean after every cycle to maintain performance.

What should I do if the dryer does not start?

Check that the door is fully closed, the power cord is plugged in, the circuit breaker is not tripped, and the program is set correctly. Also ensure the water tank is not full and the filters are clean.

Can I install the dryer under a countertop?

Yes, the dryer is freestanding and can be placed under a countertop as long as there is adequate ventilation. Leave at least 2 cm clearance on sides and 10 cm at the back.

How do I empty the water tank?

Pull out the water tank usually located at the top or bottom front (depending on model), pour out the water, and reinsert. The machine will stop if the tank is full.

What does the 'Filter Cleaning' warning mean?

It indicates that the lint filter needs cleaning. Press the start/pause button after cleaning to reset the warning. If it persists, check the condenser filter as well.

Why is my laundry still wet after a cycle?

Possible reasons: overloaded drum, incorrect program selected, clogged filters, or the room temperature is too high. Ensure the load is appropriate for the program.

How do I change the door opening direction?

The door is reversible. Remove the door hinge screws, swap the door catch, and reattach the door on the opposite side. Refer to the manual for step-by-step instructions.

What is the maximum load for cotton programs?

For cotton programs, the maximum dry load is 8 kg. Overloading may result in poor drying performance and increased wrinkles.

How often should the condenser be cleaned?

The condenser should be cleaned every 3-6 months depending on usage. Remove the condenser unit by the access panel, rinse with water, dry, and reinstall.

What error code E01 means?

Error code E01 indicates a problem with the door lock. Check that the door is properly closed and the latch is not obstructed. If the error persists, contact a service technician.

USER MANUAL DU 8133 GA0W BEKO

Type E plug

Type E socket

Type F plug

Type F socket

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that your product, which has been manufactured with high quality and technology, will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

- Read the instructions.

Explanation of symbols

Throughout this user manual the following symbols are used:

DANGER!

- Warning against electric shock.

DANGER!

- Warning against fire hazard.

WARNING!

- Warning for hazardous situations with regard to life and property.

WARNING!

- Warning against hot surfaces.

WARNING!

- Warning against scalding hazard.

NOTE

- Important information or useful hints about usage.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important instructions for safety and environment

NOTE

- This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

WARNING!

The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone. Children of less than 3 years should be kept away unless continuously supervised.

- Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.

WARNING!

Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

- Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

For the products with a steam function:

WARNING!

• Use only distilled water or water condensed in the water tank of the machine in steam programs. Do not use mains water or additives. When using condensed water in the water tank, it should be filtered and cleared of fibres.
• Do not open the door when steam programs are running. Hot water may be expelled.
• Before putting laundry in a steam program, stains on it should be removed.
• You may only put laundry that is not dirty or stained but permeated with unpleasant odour in steam (odour removal) program.
• Do not use any dry cleaning sets or additional materials in a steam program or in any program.

1.1.1 Electrical safety

DANGER!

• Electrical safety instructions should be followed while electrical connection is made during the installation.
• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.
• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.

DANGER!

• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.
• Damaged mains cable should be changed notifying the Authorized Service.
• If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

1.1.2 Product safety

DANGER!

• Superheating of the clothes inside the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running. This concentration of heat can cause self-combustion and fire, so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.

DANGER!

Points to be taken into consideration for fire hazard:

The following laundry or items must not be dried in the dryer due to fire hazard.

• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

For this reason, especially the items containing the above specified stains must be washed very well. To do this, use adequate detergent and choose a high washing temperature.

The following laundry or items must not be dried in the dryer due to fire hazard:

- Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.

Clothing cleaned with industrial chemicals.

Items such as lighters, matches, coins, metal parts, needles, etc. may damage the drum set or may lead to functional problems. Therefore, check all the laundry that you will load into your dryer.

DANGER!

• Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.
• Clothes that are washed inadequately may ignite on their own and may even ignite after drying ends.
• You must provide enough ventilation to prevent gases from devices operating with other types of fuels, including the naked flame, from accumulating in the room due to the backfire effect.

WARNING!

- Underwear that contains metal reinforcements should not be dried in the dryer. The dryer may be damaged if metal reinforcements come loose and break off during drying.

NOTE

- Use softeners and similar products in accordance with the instructions of their manufacturers.

Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

WARNING!

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding, or hinged door that may block the opening of the loading door in the place where your dryer is to be installed. • Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage, etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Exhaust air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• The total weight of the washing machine and the dryer - with full load - when they are placed on top of each other reaches approximately 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

WARNING!

- The washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62 cm	60 cm	54 cm	50 cm v
54 cm	Can be installed			Cannot be installed
60 cm	Can be installed		Cannot be installed

1.3 Intended use

• The dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that is marked accordingly.
• The manufacturer waives any responsibility arising from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

- Packaging materials are dangerous for children. Keep packaging materials away from children.

- Electrical products are dangerous for children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent children from tampering with the dryer.

NOTE

Child-proof lock is on the control panel.

(See Child lock)

- Keep loading door closed even when the dryer is not in use.

1.5 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this

product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.6 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.8 Technical Specifications

EN

Height (Min. / Max.) 84,6	cm / 86,6 cm*
Width 59,7 cm
Depth 56,8 cm
Capacity (max.) 8 kg**
Net weight (± %10) 34,5 kg
Voltage	See type label***Rated pc
Model code

* Min. height: Height with adjustable feet are closed. Max. height: Height with adjustable feet are opened maximum. ** Dry laundry weight before washing. *** Type label is located behind the loading door.

NOTE

• Technical specifications of the dryer are subject to change without notice to improve the quality of the product.
• Figures in this manual are schematic and may not match the product exactly.
• Values stated on markers on the dryer or in other published documentation accompanying the dryer are obtained in laboratory conditions in accordance with relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

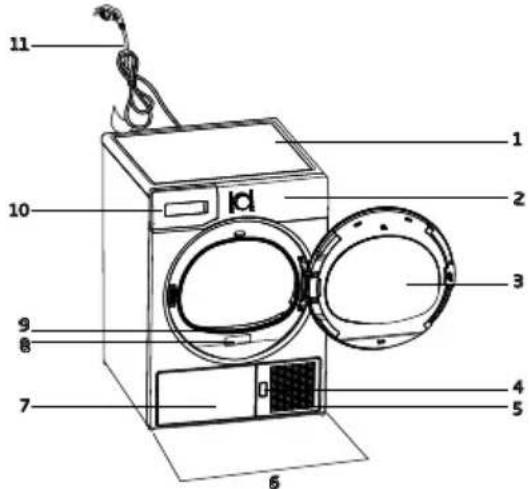

2.1 Overview

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. In models where the tank is placed below, the water tank is inside the toe board
8. Type label
9. Lint filter
10. Water tank drawer (in models where the tank is placed above)
11. Power cord

2.2 Package Contents

	1. Water drain hose*		5. Drying basket user manual*
	2. Filter drawer spare sponge*		6. Water Filling Container*
	3. User Manual		7. Pure Water*
	4. Drying basket*		8. Fragrance Capsules Group*

*It can be supplied with your machine depending on its model.

3 Installation

Before calling the nearest Authorized Service for the installation of the dryer, ensure that the electrical installation and water drain are appropriate, referring to the user's manual. If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

NOTE

- Preparation of the dryer's location as well as the electrical and waste water installations is under the customer's responsibility.

WARNING!

- Prior to installation, visually check if the dryer has any defects. If the dryer is damaged, do not have it installed. Damaged products cause risks for your safety.

3.1 Appropriate installation location

Install the dryer on a stable and level surface. The dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well-ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by materials such as carpet, wood, and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding, or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from the edges of other furniture.
• Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.

- The rear surface of the tumble dryer shall be placed against a wall.

DANGER!

- Do not place the dryer on the power cable.

3.2 Removing the transportation safety assembly

WARNING!

- Remove the transportation safety assembly before using the dryer for the first time. - If the door swing side of your appliance can be modified, see the reversible door mounting instructions.

3.3 Adjusting the feet

Turn the feet to left or right until the dryer stands level and firmly.

3.4 Transportation of the dryer

Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

WARNING!

- We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front.

3.5 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer. To change the bulb/LED used for illumination of your tumble dryer, call your Authorized Service. The lamp(s) used in this appliance are not suitable for household room illumination. The intended purpose of this lamp is to assist the user in placing laundry in the tumble dryer in a comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as vibrations and temperatures above 50 °C.

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer.

4.2 Laundry not suitable for drying in the dryer

Items with this symbol should not be dried in the dryer.

NOTE

- Delicate embroidered fabrics, woollen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

• Spin your laundry at the highest speed possible when washing them. This shortens drying time and reduces energy consumption.
• Sort laundry by type and thickness. Dry the same type of laundry together. For example, thin kitchen towels and tablecloths dry earlier than thick bathroom towels.
• Follow the instructions in the user manual for programme selection.
• Do not open the loading door of the machine during drying unless necessary. If you must open the loading door, do not keep it open for a long time.
• Do not add wet laundry while the dryer is in operation.

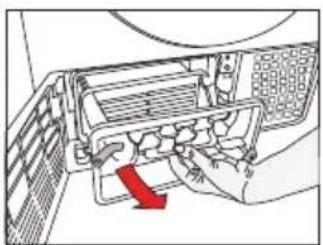

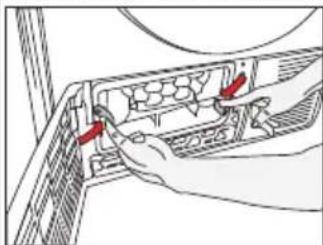

• For models with a condenser unit: clean the condenser once a month or after every 30 operations regularly.
• Clean the filter periodically. Read the Maintenance and cleaning of filters for detailed information.
• For models with flue unit: comply with the flue connection instructions and clean the flue.
• During the drying process, air the room well where your tumble dryer is operating.

4.5 Correct load capacity

Follow the instructions in the “Programme selection and consumption table”. Do not load more than the capacity values stated in the table.

The following weights are given as examples.

Laundry	Approximate weights (g)*	Laundry	Approximate weights (g)*
Cotton quilt covers (double)	1500 Blouses	150
Cotton quilt covers (single)	1000 Cotton shirts	300
Bed sheets (double)	500 Shirts	250
Bed sheets (single)	350	Cotton dresses	500
Large tablecloths	700 Dresses	850
Small tablecloths	250 Jeans	700
Tea napkins	100	Handkerchiefs (10 pieces)	100
Bath towels	700 T-Shirts	125
Hand towels	350

*Dry laundry weight before washing.

5 Operating the product

5.1 Control Panel

1. On/Off/Program selection button
2. Start/Stand-by button
3. End Time button
4. Drying Level Button
5. Buzzer volume/Time programs selection button

5.2 Symbols

5.3. Preparation of drying machine

• Plug the drying machine.
• Open the loading door.
• Place the laundry to the drying machine without jamming them.
• Push and close the loading door.

Select the desired program using the On/Off/Program selection knob, the machine will turn on.

NOTE

- Selecting a program using the On/Off/Program selection button does not mean that the program started. Press the Start / Stand-by button to start the program.

5.4 Program selection and consumption chart

EN
Programmes Programme Description		Capacity (kg)	Spin speed in washing machine (rpm)	Drying Time (minutes)
Cottons Iron Dry	You may dry your cotton laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	8 1000	107
Cottons Eco	You may dry all your cotton laundry in this program. (T-shirt, pants, pyjamas, baby clothes, underwear, linen, etc.) You can put your laundry in the wardrobe without ironing.	8 1000	142
Cottons Cupboard Dry	You may use this program for extra dryness in thick laundry such as pants, tracksuit. You can put your laundry in the wardrobe without ironing.	8 1000	147
Cottons Extra Dry	You may dry your thick cotton laundry in this program such as towels, bathrobe, etc. You can put your laundry in the wardrobe without ironing.	8 1000	152
Synthetics Iron Dry	You may dry your synthetic laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	3,5 800	40
Synthetics Cupboard Dry	You may dry all your synthetic laundry in this program. (Shirt, T-shirt, underwear, tablecloth, etc.) You can put your laundry in the wardrobe without ironing.	3,5 800	50
Time Programmes	You may select from time programmes between 10 and 160 minutes to achieve the desired drying level at low temperature. In this programme, tumble drier's operation lasts for the set time independently from the dryness of laundry. This product is available to be used with a drying basket as option. For products that are sold without a basket, you can obtain a basket from an authorized service and use the drying programs specified above. For details of use, see the drying basket user guide.	---
Freshen Up	Ventilates for 10 minutes without blowing hot air. You can ventilate the cotton and linen clothes that have been enclosed for a long time with this program to remove their odour. You can use this program to ventilate and soften wool laundry that can be washed in a washing machine. Do not use for full drying.	-- 10
GentleCare/Shirts	It dries the shirts in a more sensitive manner, and causes less creasing and easier ironing.	1,5 1200	40
Jeans	You may dry denim pants, skirts, shirts or jackets in this program.	4 1200	80
Outdoor/Sports	Use it to dry your clothes made of synthetics, cotton or mixed fabrics or waterproof products such as functional jacket, raincoat etc. Turn them inside out prior to drying.	2 1000	70
Mix / Daily	You can dry both cotton and synthetic laundry with this programme.Sports and fitness clothes may be dried with this program.	4 1000	83
Hygiene	It is a long-term program that you can use for the clothes (baby clothes, towels, underwear, etc. cotton) you require hygeine. Hygiene is provided with high temperature. It is especially suitable for durable fabrics. ((This program is identified and approved by England's “The British Foundation” (Allergy UK).))	5 800	110
Delicates	You may dry your delicate laundry or laundry with hand wash symbol (silk blouses, thin underwear, etc.) at low temperature in this program.	2 600	50
Express Super Short	You can use this program to dry your cotton laundry that you have spun at high speeds in your washing machine.	0,5 1200	14
Energy consumption values
Programmes Capacity (kg)		Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons Eco *	8	1000	60%	4,49
Cottons Iron dry	8	1000	60%	3,80
Synthetics cupboard dry 3,5 800 40% 1,80
	“Cottons Eco programme” used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet Cottons laundry and that it is the most efficient programme in terms of energy consumption for Cottons.

* : Energy Label standard program (EN 61121:2012) All values in the table are determined according to EN 61121:2012 standard. Consumption values may vary from the values in the chart depending on laundry type, wringing speed, ambient conditions and voltage levels.

Allergy UK is the brand of the British Allergy Association. Seal of Approval is created to guide people that require recommendation about a product that the related

product restricts / reduces / eliminates the allergens or reduces the allergen content significantly in the ambient where allergy patients exist. It aims to provide assurance that the products are tested scientifically or examined in a way to provide measurable results.

5.5 Auxiliary functions

Buzzer / time

Drying machine makes an audible warning when the program is completed. If you don't want the machine to make an audible warning, press the "Buzzer / Time" button. When you press the Buzzer/Time button, a light will illuminate and no audible warning will be made when the program ends.

NOTE

- You can select this function before or after the program starts.

Buzzer/Time button is used to adjust program duration while the Rack/Time programs are selected.

Drying Level

Drying Level button is used for adjusting to desired dryness level. Program duration may change depending on the selection.

NOTE

- You can activate this function only prior to start of program.

End time

You can delay the end time of the program up to 24 hours with the End time function.

1. Open the loading door and place the laundry.
2. Select the drying program.
3. Press the End Time selection button and set the delay time you wish. The End Time LED will illuminate. (When the button is pressed and held, the End Time proceeds non-stop).
4. Press the Start / Stand-by button. The End Time countdown starts. The ":" separator in the middle of the displayed delay time flashes.

NOTE

- You can add or remove laundry within the end time. The displayed time is the sum of the normal drying time and the end time. The End Time LED will turn off at the end of the countdown, drying starts, and the drying LED will illuminate.

Changing the end time

If you want to change the duration during the countdown:

Cancel the program by turning the On/Off/Program selection knob. Select the program you want and repeat the End Time selection process.

Cancelling the end time function If you want to cancel the end time countdown and start the program immediately:

Cancel the program by turning the On/Off/Program selection knob. Select the program you want and press the Start/Stand-by button.

5.6 Warning indicators

NOTE

- Warning indicators may vary depending on the model of your dryer.

Filter cleaning

When the program is completed, the warning indicator for filter cleaning turns on.

Water tank

When the program is completed, the warning indicator to empty the water tank turns on. If the water tank fills up while the program continues, the warning indicator starts flashing and the machine goes into stand-by. In this case, empty the water tank and start the program by pressing the Start / Stand-by button. Warning indicator turns off and program resumes.

Filter drawer / Heat exchanger cleaning

When the programme is finished, the cleaning symbol of the heat exchanger or filter drawer may light up.

5.7 Starting the program

Press the Start/Stand-by button to start the program.

Start/Stand-by and Drying indicators will illuminate to indicate that program started.

5.8 Child Lock

The drying machine has a child lock which prevents the program flow from being interrupted when the buttons are pressed during a program. When the child lock is activated, all buttons on the panel except the On/Off/Program selection knob are deactivated.

Press the Drying Level and Buzzer buttons simultaneously for 3 seconds to activate the child lock.

The child lock has to be deactivated to be able to start a new program after the current program is finished or to be able to interfere with the program. To deactivate the child lock, keep the same buttons pressed for 3 seconds.

NOTE

• When the child lock is activated, the child lock warning indicator on the screen turns on.
• Child lock deactivates when the drying machine is turned off and on by the On/Off/Cancel knob.

NOTE

- When the drying machine runs and the child lock is active, it beeps twice when the program selection knob is turned. If the child lock is deactivated without returning the program selection knob to its previous position, program will terminate due to the change in the program selection knob position.

5.9 Changing the program after it is started

You can change the program you selected to dry your laundry with a different program after the drying machine starts running.

• For instance, select Extra Dry program by turning the On/Off/Program selection knob to select Extra Dry instead of Iron Dry.
• Press the Start/Stand-by button to start the program.

Adding and removing clothes during stand-by

If you want to add or remove clothes to/from the drying machine after the drying program starts:

• Press the Start/Stand-by button to put the drying machine in Stand-by state. The drying operation stops.
• Open the loading door while in Stand-by state, and close the door after you remove or add laundry.
• Press the Start/Stand-by button to start the program.

NOTE

• Adding laundry after the drying operation starts may cause the dried laundry inside the machine to mix with wet laundry and leave the laundry damp at the end of operation.
• Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases program duration and energy consumption. So, it is recommended to add laundry before the program starts.
• If a new program is selected by turning the program selection knob while the drying machine is in stand-by, the running program terminates.

WARNING!

• Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot.

5.10 Cancelling the program

If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, turn the On/Off/Cancel knob, the program will be cancelled.

WARNING!

• The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refresh program to allow it to cool down.

5.11 End of program

When the program ends, the Fibre Filter Cleaning and Water Tank warning symbols on the program observation indicator turn on. Loading door may be opened and the dryer machine becomes ready for another run. Bring the On/Off/Program selection knob to On/Off position to turn the drying machine off.

NOTE

• If the laundry is not removed after the program is completed, the wrinkle prevention function activates for 2 hours to prevent the laundry inside the machine from getting wrinkled. The program tumbles the laundry at 10-minute intervals to prevent them from wrinkling.

6 Maintenance and cleaning

Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

6.1 Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter.

WARNING!

- Always clean the lint filter and the inner surfaces of the loading door after each drying process.

NOTE

- You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

• Open the loading door.
• Remove the lint filter by pulling it up and open the lint filter.
• Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
• Close the lint filter and place it back into its housing.

A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

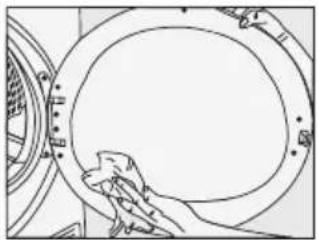

Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth.

6.2 Cleaning the sensors

There are temperature sensors in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

• Open the loading door of the dryer.
• Remove the lint filter by pulling it up.
• Clean the sensor with your hand if any fluff accumulation is on it.

NOTE

• Clean the sensor 4 times a year.
• Do not use metal tools when cleaning the sensor.
• Allow the machine to cool down if it is still hot due to the drying process.

WARNING!

Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arises accumulates in the water tank. Drain the water tank after each drying cycle.

WARNING!

• Condensed water is not drinkable! - Never remove the water tank when the programme is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle.

To drain the water tank:

1. Remove the water tank in the drawer or container carefully.

1. Drain the water in the tank.

• If there is lint accumulation in the funnel of the water tank, clean it under running water.
• Place the water tank into its seat.

NOTE

- If the direct water draining is used as an option, there is no need to empty the water tank.

6.4 For the condenser;

NOTE

- Clean the condenser after every 30 drying cycles or once a month.

To clean the condenser:

- If a drying process has been carried out, open the door of the machine and wait until it cools down.

• Unlock the 2 condenser locks after opening the kick plate.
• Pull out the condenser.

Clean the condenser by applying pressurized water with a shower armature and wait until the water drains.

Place the condenser in its housing. Fasten the 2 locks and make sure that they are seated securely.

Close the kick plate cover.

To avoid risk of electrical shock, please ensure that the appliance is plugged into a suitable socket (Type E or Type F) with an earthed connection.

Type E Plug

Type E Socket

Type F Plug

Type F Socket

7 Troubleshooting

Drying operation takes too long.

Fibre filter pores might be clogged. >>> Wash the filter with warm water.

Filter drawer might be clogged. >>> Clean the sponge and filter cloth (if any) in the filter drawer. (For products with a heat pump). The condenser might be blocked. >>> Wash the condenser. (For products with a condenser.)

The ventilation grills in front of the machine may be closed. >>> Remove any objects in front of the ventilation grills that block air. Ventilation may be inadequate because the area the machine is installed in is too small. >>> Open the door or windows to prevent the room temperature from rising very high.

A lime layer may have accumulated on the humidity or temperature sensors. >>> Clean the humidity or temperature sensors.

Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.

Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine.

Clothes come out damp after drying.

A program not suitable for the laundry type may have been used. >>> Check the maintenance labels on the clothes and select a program suitable for the clothes' type or use time programs as extra.

Fibre filter pores might be clogged. >>> Wash the filter with warm water.

The condenser might be blocked. >>> Wash the condenser. (For products with a condenser)

Filter drawer might be clogged. >>> Clean the sponge and filter cloth (if any) in the filter drawer. (For products with a heat pump) Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.

Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine.

Drying machine does not turn on or program cannot be started. Drying machine does not run after it is configured.

Power plug might be unplugged. >>> Make sure the power cord is plugged in.

Loading door might be open. >>> Ensure that the loading door is properly closed.

A program might not be set or Start/Stand-by button might not be pressed. >>> Check that the program is set and it is not in Stand-by position.

Child lock may be activated. >>> Turn off the child lock.

Program terminated prematurely for no reason.

Loading door might not be closed completely. >>> Ensure that the loading door is properly closed.

There might be a power outage. >>> Press the Start/Stand-by button to start the program.

Water tank may be full. >>> Empty the water tank.

Clothes have shrunk, hardened or spoiled.

A program not suitable with the laundry type might have been used. >>> Check the maintenance labels on the clothes and select a program suitable for the clothes.

The lighting inside the drying machine does not turn on. (For models with a lamp)

Drying machine might not be turned on with the On/Off button or program might not be selected for machines without an On/Off button. >>> Make sure that the drying machine is turned on. Lamp might be malfunctioning. >>> Contact Authorized Service to replace the lamp.

Filter cleaning warning symbol/LED is on/flashing.

Fibre filter might not be cleaned. >>> Clean the filter.

The filter slot might be clogged with lints. >>> Clean the filter slot.

A layer of fluff might have accumulated clogging up the lint filter pores. >>> Wash the filter with warm water.

The condenser might be blocked. >>> Wash the condenser.

Water drips from the loading door.

Fibres might have gathered on the inner sides of the loading door and the loading door gasket. >>> Clean the inner surfaces of the loading door and the loading door gasket surfaces.

Loading door opens by itself.

Loading door might not be closed completely. >>> Push the loading door until the closing sound is heard.

Water tank warning symbol / LED is on/flashing.

Water tank may be full. >>> Empty the water tank.

Water discharge hose might have collapsed. >>> If the product is connected directly to the water drain, check the water discharge hose.

Steam symbol is flashing. (For the products with a steam function)

Steam tank may be empty. >>> Fill the steam tank with distilled or condensed water.

Steam programs do not start. (For the products with a steam function)

Steam tank may be empty, steam tank warning icon may light up on the screen. >>> Fill the steam tank until the steam icon goes off.

Wrinkles are not removed with wrinkle removing program. (For the products with a steam function)

Excess amount of laundry may have been placed. >>> Place specified amount of laundry.

Steam application time may be selected in low level. >>> Choose a program with high amount of steam.

After completion of the program, the laundry may have stayed in the machine for a long time. >>> Take the laundry out as soon as the program finishes, and hang it out.

Laundry odour not lessened with the odour removal program. (For the products with an odour removal program)

Excess amount of laundry may have been placed => Place specified amount of laundry.

Steam application time may be selected in low level => Choose a program with high amount of steam.

WARNING!

- If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

NOTE

• In an event that you encounter an issue on any part on your appliance, you can ask for a replacement by contacting the authorized service with the appliance model number.
• Operating the appliance with non-authentic parts may lead the appliance to malfunction.
• Manufacturer and distributor are not liable for malfunctions resulting from using non-authentic parts.
