Product Type	Freestanding Washing Machine
Model	WMB 61242 PL PTM
Brand	Beko
Capacity	6 kg
Maximum Spin Speed	1200 rpm
Energy Efficiency Class	A+++
Washing Efficiency Class	A
Spin Drying Efficiency Class	B
Annual Energy Consumption	175 kWh
Annual Water Consumption	9900 L
Noise Level (Wash)	58 dB(A)
Noise Level (Spin)	76 dB(A)
Dimensions (H x W x D)	84 x 60 x 50 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Number of Programs	15
Key Functions	Quick Wash, Delicate, Cotton, Synthetics, Eco, Hand Wash, Rinse & Spin, Drain & Spin
Additional Features	Child Lock, Delay Timer, Adjustable Temperature, Spin Speed Selection
Drum Material	Stainless Steel
Door Opening	Left hinge, 180° opening
Maintenance	Clean detergent drawer, filter, drain pump; descale periodically
Safety Features	Overflow protection, unbalanced load detection, child lock
Spare Parts Availability	Genuine Beko spare parts available online

Frequently Asked Questions - WMB 61242 PL PTM BEKO

How do I start a wash cycle on my Beko WMB 61242 PL PTM?

Load the laundry, add detergent, select the desired program using the program dial, adjust options if needed, and press the Start/Pause button.

What does the 'Child Lock' feature do?

The Child Lock prevents accidental button presses by disabling the control panel. Activate it by pressing and holding the relevant button for 3 seconds.

Why is my washing machine not draining?

Check the drain hose for kinks, clean the drain pump filter located at the bottom front, and ensure the drain hose is not blocked.

How do I clean the detergent drawer?

Remove the drawer by pressing the release catch, rinse it under warm water, and use a brush to clean the compartments. Wipe dry before reinserting.

What is the maximum spin speed?

The maximum spin speed is 1200 rpm. You can adjust it lower for delicate fabrics.

Can I use liquid detergent?

Yes, use the compartment marked with 'II' or the liquid detergent dispenser if available. For main wash, pour liquid detergent into the main wash compartment.

How do I reset the machine if it's stuck?

Unplug the machine, wait 5 minutes, then plug back in. If the issue persists, consult the manual for error codes.

What does the 'Delay Timer' function do?

The Delay Timer allows you to postpone the start of the wash cycle by up to 24 hours, so the cycle finishes at a convenient time.

How often should I clean the drain pump filter?

Clean the drain pump filter every 2-3 months to prevent blockages and ensure proper drainage.

My machine vibrates excessively during spin. What can I do?

Ensure the machine is level on the floor, adjust the feet if necessary, and check that the transport bolts are removed. Also, avoid overloading.

USER MANUAL WMB 61242 PL PTM BEKO

Installation

Preparation

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning for electric shock.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

TABLE OF CONTENTS

1 Important instructions for safety and environment 42

1.1 General safety 42 1.2 Intended use 42 1.3 Children's safety 43 1.4 Package information 43 1.5 Disposing of the waste product 43 1.6 Compliance with WEEE Directive 43

2 Your washing machine 44

2.1 Overview 44 2.2 Package Contents 45 2.3 Technical specifications 46

3 Installation 47

3.1 Appropriate installation location 47 3.2 Removing packaging reinforcement 47 3.3 Removing the transportation locks 47 3.4 Connecting water supply 48 3.5 Connecting to the drain 49 3.6 Adjusting the feet 49 3.7 Electrical connection 50

4 Preparation 51

4.1 Sorting the laundry 51 4.2 Preparing laundry for washing 52 4.3 Things to be done for energy saving 52 4.4 Initial use 52 4.5 Correct load capacity 53 4.6 Loading the laundry 53 4.7 Using detergent and softener 53 4.8 Tips for efficient washing 56

5 Operating the product 57

5.1 Control panel 57 5.2 Display symbols 57 5.3 Preparing the machine 57 5.4 Programme selection 57 5.5 Main programmes 58 5.6 Additional programmes 58 5.7 Special programmes 59 5.8 Temperature selection 59

5.9 Spin speed selection 60 5.10 Programme and consumption table 61 5.11 Auxiliary function selection 63 5.12 Time display 64 5.13 Starting the programme 64 5.14 Progress of programme 65 5.15 Loading door lock 65 5.16 Changing the selections after programme has started 65 5.17 Child Lock 66 5.18 Cancelling the programme 66 5.19 Machine is in Rinse Hold mode 66 5.20 End of programme 66 5.21 Your machine is equipped with a "Standby Mode" 66

6 Quick User Guide 67

6.1 Preparing the machine 67 6.2 Programme selection 67 6.3 Auxiliary function selection 67 6.4 Starting the programme 67 6.5 End of programme 67 6.6 Cancelling the programme 67 6.7 Child Lock 67

7 Maintenance and cleaning 68

7.1 Cleaning the detergent drawer 68 7.2 Cleaning the loading door and the drum 68 7.3 Cleaning the body and control panel 69 7.4 Cleaning the water intake filters 69 7.5 Draining remaining water and cleaning the pump filter 69

8 Troubleshooting 71

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

• This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children must not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. This will cause problems with your product.
• If the product has a failure, it should not be operated unless it is repaired by the Authorized Service Agent. There is the risk of electric shock!
• This product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel the programme, see "Cancelling the programme" section.
• Connect the product to a grounded outlet protected by a 16 A fuse. Do not neglect to have the grounding installation made by a qualified electrician. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.
• The water supply and draining hoses must be securely fastened and remain undamaged. Otherwise, there is the risk of water leakage.
• Never open the loading door or remove the filter while there is still water in the drum. Otherwise, risk of flooding and injury from hot water will occur.
• Do not force open the locked loading door. The loading door will be ready to open just a few minutes after the washing cycle comes to an end. In case of forcing the loading door to open, the door and the lock mechanism may get

damaged.

• Unplug the product when not in use.
• Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!
• Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Use detergents, softeners and supplements suitable for automatic washing machines only.
• Follow the instructions on the textile tags and on the detergent package.
• The product must be unplugged during installation, maintenance, cleaning and repairing procedures.
• Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• If the power cable is damaged, it must be replaced by the manufacturer, after sales service or a similarly qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible risks.

1.2 Intended use

• This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• The product must only be used for washing and rinsing of laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of your product is 10 years. During this period, original spare parts will be available to operate the appliance properly.

Important instructions for safety and environment

1.3 Children's safety

• Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children.
• Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product.
• Do not forget to close the loading door when leaving the room where the product is located.
• Store all detergents and additives in a safe place away from the reach of children by closing the cover of the detergent container or sealing the detergent package.

1.4 Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Disposing of the waste product

- This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be non-functional before disposing of the product.

1.6 Compliance with WEEE Directive

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

2 Your washing machine

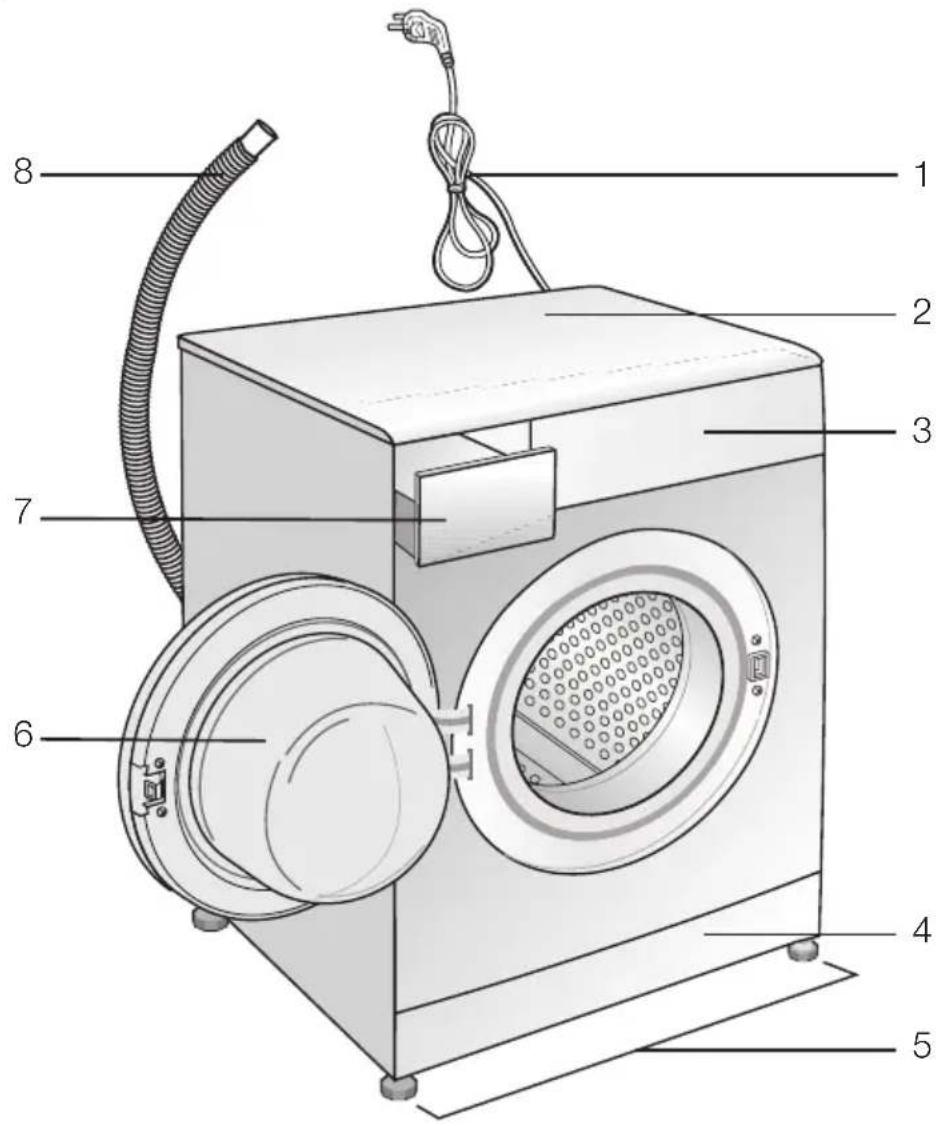

2.1 Overview

1 - Power cable 2- Top panel 3- Control panel 4- Filter cap

5- Adjustable feet 6- Loading door 7- Detergent drawer 8- Drain hose

2.2 Package Contents

1 - Power cable 2- Drain hose 3- Transportation safety bolts * 4- Mains water inlet hose (One of the following filter types is used for the mains hose connection.)

a- Electronic water shut-off a- Mechanical water shut-off c- Standard

5- Liquid detergent container** 6- User Manual 7- Blind plug*** 8- Plastic plug group

* Number of transportation safety bolts may change depending on the model of your machine. ** This may be supplied with the machine depending on the model of your machine. *** This is supplied if your machine is equipped with double water inlet.

2.3 Technical specifications

Models (EN)	WMB 61042 PL PTM	WMB 61242 PL PTM
Maximum dry laundry capacity (kg)	6	6
Height (cm)	84 84
Width (cm)	60 60
Depth (cm)	45 45
Net weight (±4 kg.)	59 59
Electrical input (V/Hz)	230 V / 50Hz 230	V / 50Hz
Total current (A)	10 10
Total power (W)	2200 2200
Spin speed (rpm/ min., max.)	1000 1200
Stand-by mode power (W)	1.00 1.00
Off-mode power (W)	0.20 0.20
Main model code	889 889
Single Water inlet / Double Water inlet	● / - ● / -

• Available

i	Technical specifications may be changed without prior notice to improve the quality of the product.
i	Figures in this manual are schematic and may not match the product exactly.
i	Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with the relevant standards. Depending on operational and environmental conditions of the product, these values may vary.

3 Installation

Refer to the nearest Authorised Service Agent for installation of the product. To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate before calling the Authorized Service Agent. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.

	Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility.
	WARNING: Installation and electrical connections of the product must be carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
	WARNING: Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.
	Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.

3.1 Appropriate installation location

• Place the machine on a rigid floor. Do not place it on a long pile rug or similar surfaces.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the product on a solid and flat floor that has sufficient load carrying capacity!
• Do not place the product on the power cable.
• Do not install the product at places where temperature may fall below 0°C.
• Place the product at least 1 cm away from the edges of other furniture.

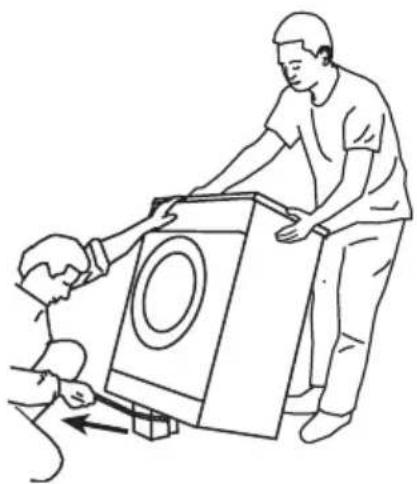

3.2 Removing packaging reinforcement

Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon.

3.3 Removing the transportation locks

	WARNING: Do not remove the transportation locks before taking out the packaging reinforcement.
	WARNING: Remove the transportation safety bolts before operating the washing machine! Otherwise, the product will be damaged.

1. Loosen all the bolts with a suitable spanner until they rotate freely (C).

1. Remove transportation safety bolts by turning them gently.

Installation

1. Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel. (P)

Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future.

Never move the product without the transportation safety bolts properly fixed in place!

3.4 Connecting water supply

	The water supply pressure required to run the product is between 1 to 10 bars (0.1 - 1 MPa). It is necessary to have 10 - 80 liters of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher.
	If you are going to use the double water-inlet product as a single (cold) water-inlet unit, you must install the supplied stopper to the hot water valve before operating the product. (Applies for the products supplied with a blind stopper group.)
	WARNING: Models with a single water inlet should not be connected to the hot water tap. In such a case the laundry will get damaged or the product will switch to protection mode and will not operate.
	WARNING: Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry.

1. Connect the special hoses supplied with the product to the water inlets on the product. Red hose (left) (max. 90 °C) is for hot water inlet, blue hose (right) (max. 25 °C) is for cold water inlet.

WARNING: Ensure that the cold and hot water connections are made correctly when installing the product. Otherwise, your laundry will come out hot at the end of the washing process and wear out.

1. Tighten all hose nuts by hand. Never use a tool when tightening the nuts.

1. Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leaks occur, turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent water leakages and damages caused by them, keep the taps closed when the machine is not in use.

Installation

3.5 Connecting to the drain

- The end of the drain hose must be directly connected to the wastewater drain or to the washbasin.

WARNING: Your house will be flooded if the hose comes out of its housing during water discharge. Moreover, there is a risk of scalding due to high washing temperatures! To prevent such situations and to ensure smooth water intake and discharge of the machine, fix the end of the discharge hose tightly so that it cannot come out.

• The hose should be attached to a height of at least 40 cm, and at most 100 cm.
• In case the hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure.

• To prevent dirty water from flowing back into the machine and to allow for easy discharge, do not immerse the hose end into the dirty water or do not drive it into the drain more than 15 cm. If it is too long, cut it short.
• The end of the hose should not be bent, it should not be stepped on, and the hose must not be pinched between the drain and the machine.
• If the length of the hose is too short, use it by adding an original extension hose. The length of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak.

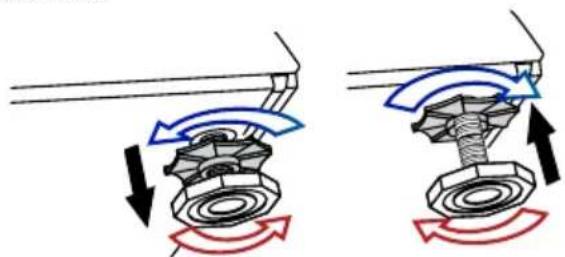

3.6 Adjusting the feet

WARNING: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems.

Installation

1. Loosen the lock nuts on the feet by hand.

1. Adjust the feet until the product stands level and balanced.

1. Tighten all lock nuts again by hand.

WARNING: Do not use any tools to loosen the lock nuts. Otherwise, they will get damaged.

3.7 Electrical connection

Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connection must comply with national regulations.
• Power cable plug must be within easy reach after installation.
• If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse.
• The voltage specified in the "Technical specifications" section must be equal to your mains voltage.
• Do not make connections via extension cables or multi-plugs.

WARNING: Damaged power cables must be replaced by the Authorized Service Agents.

Transportation of the product

1. Unplug the product before transporting it.
2. Remove water drain and water supply connections.

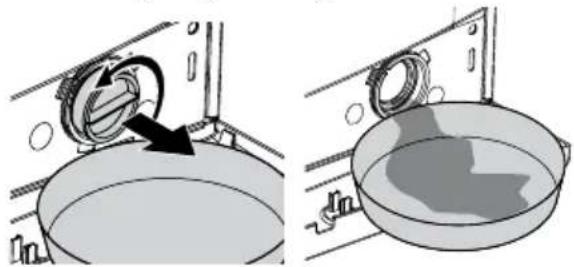

3. Drain all water that has remained in the product. See 7.5
4. Install transportation safety bolts in the reverse order of removal procedure; see 3.3.

Never move the product without the transportation safety bolts properly fixed in place!

WARNING: Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children.

4 Preparation

4.1 Sorting the laundry

• Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. Always obey the instructions given on the garment tags.

LAUNDRY WASH SYMBOLS
WASH	Machine Wash Symbols	Normal wash		No Iron		Sensitive-Delicate wash		Hand wash		Not washable	No Spin
	Water Temperatures	Maximum		95°C 70	°C 60	°C 50	°C 40	°C 30	°C
		Symbol(s)		...	...	...	...	...	...
DRYING	Drying Symbols	Suitable for dryer		No Iron		Sensitive /Delicate dry		Do not dry with dryer		Do not dry	[WAZ2]Do not dry-clean
	Drying Settings	At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable
IRON	Iron -
	Dry or Steam			Iron at high temperature		Iron at medium temperature		Iron at low temperature		Do not iron	Iron without steam
	Maximum temperature			200°C		150°C		110°C
BLEACH	All bleaches are allowed					Bleach (sodium hypochlorite) can be used		Bleach is not allowed		Only bleaches without chlorine are allowed

4.2 Preparing laundry for washing

• Laundry items with metal attachments such as underwired bras, belt buckles, or metal buttons will damage the machine. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillowcase.
• Take out all substances in the pockets such as coins, pens, and paper clips, and turn pockets inside out and brush. Such objects may damage the product or cause noise problems.
• Put small size clothes such as infant's socks and nylon stockings in a laundry bag or pillowcase.
• Place curtains in without compressing them. Remove curtain attachment items.
• Fasten zippers, sew loose buttons, and mend rips and tears.
• Wash “machine washable” or “hand washable” labeled products only with an appropriate programme.
• Do not wash colours and whites together. New, dark coloured cottons release a lot of dye. Wash them separately.
• Tough stains must be treated properly before washing. If unsure, check with a dry cleaner.
• Use only dyes/colour changers and limescale removers suitable for machine wash. Always follow the instructions on the package.
• Wash trousers and delicate laundry turned inside out.
• Keep laundry items made of Angora wool in the freezer for a few hours before washing. This will reduce pilling.
• Laundry that are subjected to materials such as flour, lime dust, milk powder, etc. intensely must be shaken off before placing into the machine. Such dusts and powders on the laundry may build up on the inner parts of the machine in time and can cause damage.

4.3 Things to be done for energy saving

The following information will help you use the product in an ecological and energy-efficient manner.

• Operate the product at the highest capacity allowed by the programme you have selected, but do not overload; see "Programme and consumption table".
• Always follow the instructions on the detergent packaging.
• Wash slightly soiled laundry at low temperatures.
• Use faster programmes for small quantities of lightly soiled laundry.
• Do not use prewash and high temperatures for laundry that is not heavily soiled or stained.
• If you plan to dry your laundry in a dryer, select the highest spin speed recommended during the washing process.
• Do not use detergent in excess of the amount recommended on the detergent package.

4.4 Initial use

Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections "Important safety instructions" and "Installation".

To prepare the product for washing laundry, perform the first operation in the Drum Cleaning programme. If your product is not equipped with the Drum Cleaning programme, perform the Initial Use procedure in accordance with the methods described under "7.2 Cleaning the loading door and the drum" section of the user manual.

Use an anti-limescale suitable for washing machines.

Preparation

Some water might have remained in the product due to the quality control processes in production. It is not harmful to the product.

4.5 Correct load capacity

The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired.

The machine automatically adjusts the amount of water according to the weight of the loaded laundry.

WARNING: Follow the information in the "Programme and consumption table". When overloaded, machine's washing performance will drop. Moreover, noise and vibration problems may occur.

Laundry type Weight (g)
Bathrobe	1200
Napkin	100
Duvet cover	700
Bed Sheet	500
Pillowcase	200
Tablecloth	250
Towel	200
Hand towel	100
Evening gown	200
Underclothing	100
Men's overalls	600
Men's shirt	200
Men's pajamas	500
Blouses	100

4.6 Loading the laundry

1. Open the loading door.
2. Place laundry items loosely into the machine.
3. Push the loading door to close until you hear a locking sound. Ensure that no items are caught in the door.

The loading door is locked while a programme is running. The door can only be opened a while after the programme comes to an end.

WARNING: In case of misplacing the laundry, noise and vibration problems may occur in the machine.

4.7 Using detergent and softener

When using detergent, softener, starch, fabric dye, bleach or limescale remover read the manufacturer's instructions on the package carefully and follow the suggested dosage values. Use measuring cup if available.

Detergent Drawer

The detergent drawer is composed of three compartments:

• (1) for prewash
• (2) for main wash
• (3) for softener
• (*) in addition, there is siphon piece in the softener compartment.

Detergent, softener and other cleaning agents

• Add detergent and softener before starting the washing programme.
• Never leave the detergent drawer open while the washing programme is running!
• When using a programme without prewash, do not put any detergent into the prewash compartment (compartment nr. "1").
• In a programme with prewash, do not put liquid detergent into the prewash compartment (compartment nr. "1").
• Do not select a programme with prewash if you are using a detergent bag or dispensing ball. Place the detergent bag or the dispensing ball directly among the laundry in the machine.
• If you are using liquid detergent, do not forget to place the liquid detergent cup into the main wash compartment (compartment nr. "2").

Preparation

Choosing the detergent type

The type of detergent to be used depends on the type and colour of the fabric.

• Use different detergents for coloured and white laundry.
• Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.) used solely for delicate clothes.
• When washing dark coloured clothes and quilts, it is recommended to use liquid detergent.
• Wash woolens with special detergent made specifically for woolens.

WARNING: Use only detergents manufactured specifically for washing machines.

WARNING: Do not use soap powder.

Adjusting detergent amount

The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness.

• Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid problems of excessive foam, poor rinsing, financial savings and finally, environmental protection.
• Use lesser detergent for small amounts or lightly soiled clothes.

Using softeners

Pour the softener into the softener compartment of the detergent drawer.

• Do not exceed the (>max<) level marking in the softener compartment.
• If the softener has lost its fluidity, dilute it with water before putting it in the detergent drawer.

Using liquid detergents

If the product contains a liquid detergent cup:

- Make sure that you have placed the liquid detergent cup in compartment nr. "2".

- If the liquid detergent has lost its fluidity, dilute it with water before putting in the detergent cup.

If the product does not contain a liquid detergent cup:

• Do not use liquid detergent for the prewash in a programme with prewash.
• Liquid detergent stains your clothes when used with Delayed Start function. If you are going to use the Delayed Start function, do not use liquid detergent.

Using gel and tablet detergent

Apply the following instructions when using tablet, gel and similar detergents.

- If the gel detergent thickness is fluidal and your machine does not contain a special liquid detergent cup, put the gel detergent into the main wash detergent compartment during first water intake. If your machine contains a liquid detergent cup, fill the detergent into this cup before starting the programme.

- If the gel detergent thickness is not fluidal or in the shape of capsule liquid tablet, put it directly into the drum before washing.

- Put tablet detergents into the main wash compartment (compartment nr. "2") or directly into the drum before washing.

Tablet detergents may leave residues in the detergent compartment. If you encounter such a case, place the tablet detergent between the laundry, close to the lower part of the drum in future washings.

Use the tablet or gel detergent without selecting the prewash function.

Preparation

Using starch

• Add liquid starch, powder starch or the fabric dye into the softener compartment.
• Do not use softener and starch together in a washing cycle.
• Wipe the inside of the machine with a damp and clean cloth after using starch.

Using bleaches

- Select a programme with prewash and add the bleaching agent at the beginning of the prewash. Do not put detergent in the prewash compartment. As an alternative application, select a programme with extra rinse and add the bleaching agent while the machine is taking water from the detergent compartment during the first rinsing step.

- Do not mix bleaching agent and detergent.

- Use just a little amount (approx. 50 ml) of bleaching agent and rinse the clothes very well as it causes skin irritation. Do not pour the bleaching agent onto the clothes and do not use it for coloured clothes.

- When using oxygen-based bleaches, select a programme that washes at a lower temperature.

- Oxygen-based bleaches can be used together with detergents; however, if its thickness is not the same as the detergent, put the detergent first into compartment "2" in the detergent drawer and wait until the detergent flows while the machine is taking in water. Add the bleaching agent from the same compartment while the machine is still taking in water.

Using limescale remover

- When required, use limescale removers manufactured specifically for washing machines only.

4.8 Tips for efficient washing

		Clothes
		Light colours and whites	Colours Dark colours	Delicates/Woolens/Silks
		(Recommended temperature range based on soiling level: 40-90°C)	(Recommended temperature range based on soiling level: cold-40°C)	(Recommended temperature range based on soiling level: cold-40°C)	(Recommended temperature range based on soiling level: cold-30°C)
Soiling Level	Heavily Soiled (difficult stains such as grass, coffee, fruits and blood.)	It may be necessary to pre-treat the stains or perform prewash. Powder and liquid detergents recommended for whites can be used at dosages recommended for heavily soiled clothes. It is recommended to use powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches.	Powder and liquid detergents recommended for colours can be used at dosages recommended for heavily soiled clothes. It is recommended to use powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches. Use detergents without bleach.	Liquid detergents suitable for colours and dark colours can be used at dosages recommended for heavily soiled clothes.	Prefer liquid detergents produced for delicate clothes. Woolen and silk clothes must be washed with special woolen detergents.
	Normally Soiled (For example, stains caused by body on collars and cuffs)	Powder and liquid detergents recommended for whites can be used at dosages recommended for normally soiled clothes.	Powder and liquid detergents recommended for colours can be used at dosages recommended for normally soiled clothes. Use detergents without bleach.	Liquid detergents suitable for colours and dark colours can be used at dosages recommended for normally soiled clothes.	Prefer liquid detergents produced for delicate clothes. Woolen and silk clothes must be washed with special woolen detergents.
	Lightly Soiled (No visible stains exist.)	Powder and liquid detergents recommended for whites can be used at dosages recommended for lightly soiled clothes.	Powder and liquid detergents recommended for colours can be used at dosages recommended for lightly soiled clothes. Use detergents without bleach.	Liquid detergents suitable for colours and dark colours can be used at dosages recommended for lightly soiled clothes.	Prefer liquid detergents produced for delicate clothes. Woolen and silk clothes must be washed with special woolen detergents.

5 Operating the product

5.1 Control panel

1 - Spin Speed Adjustment button 2 - Display 3 - Temperature Adjustment button 4 - Programme Selection knob

5 - On / Off button 6 - Delayed Start buttons (+ / -) 7 - Auxiliary Function buttons 8 - Start / Pause / Cancel button

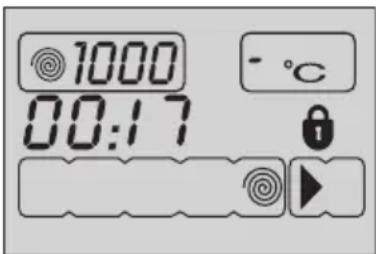

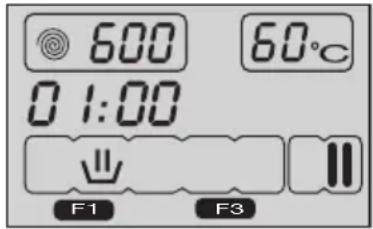

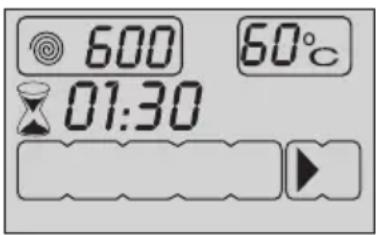

5.2 Display symbols

a - Spin Speed indicator b - Temperature indicator c - Spin symbol d - Temperature symbol e - Remaining Time and Delayed Start indicator f - Programme Indicator symbols (Prewash / Main Wash / Rinse / Softener / Spin) g - Economy symbol h - Delayed Start symbol i - Door Locked symbol j - Start symbol

k - Pause symbol

I - Auxiliary Function symbols

m - No Water symbol

5.3 Preparing the machine

1. Make sure that the hoses are connected tightly.
2. Plug in your machine.
3. Turn the tap on completely.
4. Place the laundry in the machine.
5. Add detergent and fabric softener.

5.4 Programme selection

1. Select the programme suitable for the type, quantity and soiling degree of the laundry in accordance with the "Programme and consumption table" and the temperature table below.

90°C	Heavily soiled white cottons and linens. (coffee table covers, tableclothes, towels, bed sheets, etc.)
60°C	Normally soiled, coloured, fade proof linens, cottons or synthetic clothes (shirt, nightgown, pajamas, etc.) and lightly soiled white linens (underwear, etc.)
40°C-30°C-Cold	Blended laundry including delicate textile (veil curtains, etc.), synthetics and woolens.

Operating the product

2. Select the desired programme with the Programme Selection button.

Programmes are limited with the highest spin speed appropriate for that particular type of fabric.

When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water temperature.

Always select the lowest required temperature. Higher temperature means higher power consumption.

For further programme details, see "Programme and consumption table".

5.5 Main programmes

Depending on the type of fabric, use the following main programmes.

- Cottons

Use this programme for your cotton laundry (such as bed sheets, duvet and pillowcase sets, towels, bathrobes, underwear, etc.). Your laundry will be washed with vigorous washing action for a longer washing cycle.

Use this programme to wash your synthetic clothes (shirts, blouses, synthetic/cotton blends, etc.). It washes with a gentle action and has a shorter washing cycle compared to the Cottons programme.

For curtains and tulle, use the Synthetic 40°C programme with prewash and anti-creasing functions selected. As their meshed texture causes excessive foaming, wash the veils/tulle by putting little amount of detergent into the main wash compartment. Do not put detergent in the prewash compartment.

- Woollens

Use this programme to wash your woolen clothes. Select the appropriate temperature complying with the tags of your clothes. Use appropriate detergents for woolens.

5.6 Additional programmes

For special cases, additional programmes are available in the machine.

Additional programmes may differ according to the model of the machine.

• Cotton Economic

You may wash your normally soiled durable cotton and linen laundry in this programme with the highest energy and water saving compared to all other wash programmes suitable for cottons. Actual water temperature may differ from the declared cycle temperature. Programme duration may automatically be shortened during later stages of the programme if you wash less amount (e.g. 1/2 capacity or less) of laundry. In this case energy and water consumption will be further decreased giving you the opportunity for a more economical wash. This feature is available for certain models having remaining time display.

- BabyProtect

Use this programme to wash baby laundry, and the laundry that belongs to allergic persons. Longer heating time and an additional rinsing step provide a higher level of hygiene.

Use this programme to wash your woolen/delicate clothes that bear “not machine-washable” tags and for which hand wash is recommended. It washes laundry with a very gentle washing action to not damage clothes.

Use this programme to wash your lightly soiled cotton clothes in a short time.

- Xpress Super Short

Use this programme to wash your little amount of lightly soiled cotton clothes in a short time.

- Darkcare

Use this programme to wash your dark coloured laundry, or the coloured laundry that you do not want them to get faded. Washing is performed with less mechanical movements at low temperature. It is recommended to use liquid detergent or wool shampoo for dark coloured laundry.

- Mix 40

Use this programme to wash your cotton and synthetic clothes together without sorting them.

Operating the product

- Shirts

Use this programme to wash the shirts made of cotton, synthetic and synthetic blended fabrics together.

- Freshen up

Use this programme to remove the odour on the laundry that are worn only for once and do not contain any stains or dirt.

- Eco Clean

Use this programme, which is much more sensitive to environment and natural resources, to wash your lightly soiled and unstained cotton laundry (max. 3.5 kg) in a short time and economically.

It is recommended to use liquid detergent or gel washing detergent.

- Self Clean

Use this programme regularly (once in every 1-2 months) to clean the drum and provide the required hygiene. Run the programme without any laundry in the machine. To obtain better results, put powder limescale remover for washing machines into the detergent compartment II. When the programme is over, leave the loading door ajar so that the inside of the machine gets dry.

This is not a washing programme. It is a maintenance programme.

Do not run the programme when there is something in the machine. If you try to do so, the machine detects that there is a load inside and aborts the programme.

5.7 Special programmes

For specific applications, select any of the following programmes.

- Rinse

Use this programme when you want to rinse or starch separately.

Use this programme to apply an additional spin cycle for your laundry or to drain the water in the machine.

Before selecting this programme, select the desired spin speed and press Start / Pause / Cancel button. The machine will spin the laundry with the set spin speed and drain the water coming out of them.

If you wish to drain only the water without spinning your laundry, select the Pump+Spin programme and then select the No Spin function with the help of Spin Speed Adjustment button. Press Start / Pause / Cancel button.

Use a lower spin speed for delicate laundries.

5.8 Temperature selection

Whenever a new programme is selected, the maximum temperature for the selected programme appears on the temperature indicator. To decrease the temperature, press the Temperature Adjustment button. Temperature decreases with increments of 10° and finally, “-” symbol indicating the cold wash option appears on the display.

If you scroll to cold wash option and press Temperature Adjustment button again, the recommended temperature for the selected programme appears on the display. Press the Temperature Adjustment button again to decrease the temperature.

Economy symbol

Indicates the programmes and temperatures that provide energy savings.

Economy symbol can not be selected in Intensive and Hygiene programmes since washing is performed in long times and at high temperatures in order to provide hygiene. Similarly, Economy symbol can not be selected in Baby, Refresh, Drum Cleaning, Spin and Rinse programmes as well.

5.9 Spin speed selection

Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the spin speed indicator.

To decrease the spin speed, press the Spin Speed Adjustment button. Spin speed decreases gradually. Then, depending on the model of the product, "Rinse Hold" and "No Spin" options appear on the display. See "Auxiliary function selection" section for explanations of these options.

Rinse Hold option is indicated with “_” symbol and No Spin option is indicated with “_” symbol.

5.10 Programme and consumption table

EN							Auxiliary functions
Programme (°C)		Max. Load (kg)	Water Consumption (l)	Energy Consumption (kWh)	Max. Speed***	Pranie Wstępne	Szybkie Pranie	Płukanie Plus	Bez Zagnieceń	Zatrzymanie płukania	Funkcja Pupil	Wybór zakresu temperatur °C
Bawełna 90 6 65 1.90 1600 •	• •	• •	• 90-Cold
Bawełna 60 6 63 1.30 1600 •	• •	• •	• 90-Cold
Bawełna 40 6 63 0.70 1600 •	• •	• •	• 90-Cold
BabyProtect 90 6 60 2.00 1600 * • 90-30
Bawełna Eco 60** 6 44 0.88 1600 •	60-Cold
Bawełna Eco 60** 3 37 0.70 1600 •	60-Cold
Bawełna Eco 40** 3 37 0.58 1600 •	60-Cold
Bawełna Eco	40 6 65 0.66	1600 •	60-Cold
Syntetyki	60	2.5	40	0.90	1200	•	•	•	•	•	•	60-Cold
Syntetyki	40	2.5	40	0.40	1200	•	•	•	•	•	•	60-Cold
Eco Clean	20	3.5	35	0.16	1600					•		20
Koszule	40	3	45	0.50	800	•	•	•	*	•		60-Cold
Mix 40	40 3 45 0.50	1200 •	• •	• •	40-Cold
Xpress Super Short	30	2	35	0.10	1400			•		•		30-Cold
Codzienne szybkie	90	6	60	1.70	1400			•		•		90-Cold
Codzienne szybkie	60	6	60	1.00	1400			•		•		90-Cold
Codzienne szybkie	30	6	70	0.20	1400			•		•		90-Cold
Wełna	40	1.5	40	0.20	1200			•		•		40-Cold
Pranie Ręczne	30 1 30 0.15	1200						30-Cold
Ciemne Ubrania	40	2.5	30	0.40	1200			*		•		40-Cold
Self Clean	70	-	90	2.20	800			*				70
Odświeżanie	-	2	20	0.03	1200					•		-

Operating the product

• : Selectable * : Automatically selected, no cancelling. ** : Energy Label programme (EN 60456 Ed.3) *** If maximum spin speed of the machine is lower then this value, you can only select up to the maximum spin speed.
• : See the programme description for maximum load.

	** “Cotton eco 40°C and Cotton eco 60°C are standard cycles.” These cycles are known as ‘40°C cotton standard cycle’ and ‘60°C cotton standard cycle’ and indicated with the 40° 60' symbols on the panel.
	The auxiliary functions in the table may vary according to the model of your machine.
	Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.
	You can see the washing time of the programme you have selected on the display of the machine. It is normal that small differences may occur between the time shown on the display and the real washing time.“Selectability of auxiliary functions might be changed by the manufacturer. New selectabilities might be added or existing ones might be removed.”“The spin speed of your machine may vary among the programmes, however this speed cannot exceed the max. spin speed of your machine.”

Operating the product

5.11 Auxiliary function selection

Select the desired auxiliary functions before starting the programme. Furthermore, you may also select or cancel auxiliary functions that are suitable to the running programme by pressing the Start / Pause / Cancel button when the machine is operating. For this, the machine must be in a step before the auxiliary function you are going to select or cancel.

Depending on the programme, press a, b, c or d buttons to select the desired auxiliary function. Symbol of the selected auxiliary function appears on the display.

Some functions cannot be selected together. If a second auxiliary function conflicting with the first one is selected before starting the machine, the function selected first will be canceled and the second auxiliary function selection will remain active. For example, if you want to select Quick Wash after you have selected the Prewash, Prewash will be canceled and Quick Wash will remain active.

An auxiliary function that is not compatible with the programme cannot be selected. (See “Programme and consumption table”)

Auxiliary Function buttons may vary according to the model of the machine.

A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time.

F1 appears on the display when you select this function (a).

This function can be used in Cottons and Synthetics programmes. It decreases the washing times and also the number of rinsing steps for lightly soiled laundry.

F2 appears on the display when you select this function (b).

When you select this function, load your machine with half of the maximum laundry specified in the programme table.

Rinse Plus

This function enables the machine to make another rinsing in addition to the one already made after the main wash. Thus, the risk for sensitive skins (babies, allergic skins, etc.) to be effected by the minimal detergent remnants on the laundry can be reduced.

F3 appears on the display when you select this function (c).

Anti-Creasing

This function reduces creasing in clothes during washing. Drum movement is reduced and spinning speed is limited to prevent creasing. In addition, washing is done with a higher water level. F4 appears on the display when you select this function (d).

If you are not going to unload your clothes immediately after the programme completes, you may use the rinse hold function to keep your laundry in the final rinsing water to prevent them from getting wrinkled when there is no water in the machine. Press the Start / Pause / Cancel button after this process if you want to drain the water without spinning your laundry. The programme will resume and complete after draining the water.

If you want to spin the laundry held in water, adjust the Spin Speed and press the Start / Pause / Cancel button.

The programme resumes. Water is drained, laundry is spun, and the programme is completed.

Operating the product

This function helps to remove pet hair that remains on your garments more effectively.

When you select this function, Prewash and Extra Rinse steps are added to the normal programme.

Thus, washing is performed with more water (30%) and the pet hair is removed more effectively.

WARNING: Never wash your pets in the washing machine.

5.12 Time display

The remaining time to complete the programme appears on the display while the programme is running. Time is displayed as "01:30" in hours and minutes format.

Programme time may differ from the values in the "Programme and consumption table" depending on water pressure, water hardness and temperature, ambient temperature, amount and type of laundry, auxiliary functions selected, and changes in mains voltage.

Delayed start

With the Delayed Start function, the startup of the programme may be delayed up to 24 hours. Delayed start time can be increased in increments of 30 minutes.

Do not use liquid detergents when you set Delayed Start! There is a risk of staining the clothes.

1. Open the loading door, place the laundry and put detergent, etc.
2. Select the washing programme, temperature, spin speed and, if required, the auxiliary functions.
3. Set the desired delayed start time by pressing the Delayed Start + or - buttons. Delayed Start symbol flashes.
4. Press Start / Pause / Cancel button. Delayed start countdown starts. Delayed Start symbol illuminates steadily. Start symbol appears. “:” sign in the middle of the delayed start time on the display starts flashing.

Additional laundry may be loaded during the delayed start period. At the end of the countdown, Delayed Start symbol disappears, washing cycle starts and the time of the selected programme appears on the display.

Changing the delayed start period

If you want to change the time during countdown:

1. Press Start / Pause / Cancel button. “:” sign in the middle of the delayed start time on the display stops flashing. Pause symbol appears. Delayed Start symbol flashes. Start symbol disappears.
2. Set the desired delayed start time by pressing the Delayed Start + or - buttons.
3. Press Start / Pause / Cancel button. Delayed Start symbol illuminates steadily. Pause symbol disappears. Start symbol appears.
4. “:” sign in the middle of the delayed start time on the display starts flashing.

Cancelling the Delayed Start function

If you want to cancel the delayed start countdown and start the programme immediately:

1. Press Start / Pause / Cancel button. The ":" sign in the middle of the delayed start time on the display stops flashing.
2. Start symbol disappears. Pause symbol and Delayed Start symbol flash.
3. Decrease the delayed start time by pressing the Delayed Start - button. Programme duration appears after 30 minutes.
4. Press Start / Pause / Cancel button to start the programme.

5.13 Starting the programme

1. Press Start / Pause / Cancel button to start the programme.
2. Start symbol showing the startup of the programme will turn on.
3. Loading door is locked and Door Locked symbol appears on the display.
4. The symbol of the step from which the programme has started appears on the display (Prewash, Main Wash, Rinse, Softener and Spin).

Operating the product

5.14 Progress of programme

Progress of a running programme is indicated on the display with a set of symbols.

Relevant symbol appears on the display at the beginning of each programme step and all symbols remain lit at the end of the programme.

The farthest right symbol indicates the current programme step.

Prewash

If the Prewash auxiliary function is selected, the Prewash symbol appears on the display, indicating that the prewash step has started.

Main Wash

The Main Wash symbol appears on the display, indicating that the main wash step has started.

Rinse

The Rinse symbol appears on the display, indicating that the rinsing step has started.

Softener

The Softener symbol appears on the display, indicating that the softener step has started.

Spin

This appears at the beginning of the final spin step and remains lit during the Spin and Pump special programmes.

If the machine does not proceed to the spinning step, the Rinse Hold function might be active, or the automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the machine.

5.15 Loading door lock

There is a locking system on the loading door of the machine that prevents the door from opening when the water level is unsuitable. The Door Locked symbol appears when the loading door is locked. This symbol will flash until the loading door becomes ready to open when the programme completes or the machine is paused. Do not force the loading door open during this step. The symbol disappears when the door is ready to open. You can open the door when the symbol disappears.

5.16 Changing the selections after the programme has started - Switching the machine to pause mode

Press the Start / Pause / Cancel button to switch the machine to pause mode. The Pause symbol appears on the display, indicating that the machine is paused. The Start symbol disappears.

Changing the speed and temperature settings for auxiliary functions

Depending on the step the programme has reached, you may cancel or activate the auxiliary functions; see "Auxiliary function selection".

You may also change the speed and temperature settings; see "Spin speed selection" and "Temperature selection".

Adding or taking out laundry

1. Press the Start / Pause / Cancel button to switch the machine to pause mode. The programme follow-up light of the relevant step during which the machine was switched into the pause mode will flash.
2. Wait until the Loading Door can be opened.
3. Open the Loading Door and add or take out the laundry.
4. Close the Loading Door.
5. Make changes in auxiliary functions, temperature and speed settings if necessary.
6. Press Start / Pause / Cancel button to start the machine.

The loading door will not open if the water temperature in the machine is high or the water level is above the door opening.

Operating the product

5.17 Child Lock

Use Child Lock function to prevent children from tampering with the machine. Thus you can avoid any changes in a running programme.

You can switch on and off the machine with On / Off button when the Child Lock is active. When you switch on the machine again, programme will resume from where it has stopped.

To activate the Child Lock:

Press and hold the 2nd and 4th Auxiliary Function buttons for 3 seconds. "Con" appears on the display.

The same phrase will appear on the display if you press any button when Child Lock is enabled.

To deactivate the Child Lock:

Press and hold the 2nd and 4th Auxiliary Function buttons for 3 seconds. "COFF" appears on the display.

Do not forget to disable the child lock at the end of the programme if it was enabled before. Otherwise, the machine will not allow you to select a new programme.

5.18 Cancelling the programme

Press and hold the Start / Pause / Cancel button for 3 seconds. The Start symbol flashes. The symbol of the step at which the programme was cancelled remains lit. "END" appears on the display and the programme is cancelled.

If you want to open the loading door after you have cancelled the programme but it is not possible to open the loading door since the water level in the machine is above the loading door opening, then turn the Programme Selection knob to the Pump+Spin programme and discharge the water in the machine.

5.19 Machine is in Rinse Hold mode

The Spin symbol flashes and the Pause symbol illuminates when the machine is in Rinse Hold mode.

If you want to spin your laundry when the machine is in this mode:

Adjust the spin speed and press the Start / Pause / Cancel button. The Pause symbol disappears and the Start symbol appears. The programme resumes, discharges the water, and spins the laundry.

If you only want to drain the water without spinning:

Just press the Start / Pause / Cancel button. The Pause symbol disappears. The Start symbol appears.

The programme resumes and discharges the water only.

5.20 End of programme

"End" appears on the display at the end of the programme. Symbols of the programme steps remain lit. Auxiliary function, spin speed and temperature that were selected at the beginning of the programme remain selected.

5.21 Your machine is equipped with a "Standby Mode"

In case of not starting any programme or waiting without making any other operation when the machine is turned on by On/Off button and while it is in selection step or if no other operation is performed approximately 2 minutes after the programme you selected has come to an end, your machine will automatically switch to energy saving mode. Display brightness will decrease. In case of rotating the Programme Selection knob or pressing any button, lights will restore to their previous condition. This is not a fault.

6 Quick User Guide

6.1 Preparing the machine

1. Make sure that the hoses are connected tightly.
2. Plug in your machine.
3. Turn the tap on completely.
4. Place the laundry in the machine.
5. Add detergent and fabric softener.

6.2 Programme selection

Select the programme suitable for the type, quantity and soiling degree of the laundry in accordance with the "Programme and consumption table" and the temperature table below.

6.3 Auxiliary function selection

Select the desired auxiliary functions before starting the programme. Furthermore, you may also select or cancel auxiliary functions that are suitable to the running programme by pressing the Start / Pause / Cancel button when the machine is operating. For this, the machine must be in a step before the auxiliary function you are going to select or cancel.

6.4 Starting the programme

1. Press Start / Pause / Cancel button to start the programme.
2. Start symbol showing the startup of the programme will turn on.
3. Loading door is locked and Door Locked symbol appears on the display.
4. The symbol of the step from which the programme has started appears on the display (Prewash, Main Wash, Rinse, Softener and Spin).

6.5 End of programme

"End" appears on the display at the end of the programme. Symbols of the programme steps remain lit. Auxiliary function, spin speed and temperature that were selected at the beginning of the programme remain selected.

6.6 Cancelling the programme

Press and hold Start / Pause / Cancel button for 3 seconds. Start symbol flashes. Symbol of the step at which the programme was cancelled remains lit. "End" appears on the display and the programme is cancelled.

6.7 Child Lock

Use Child Lock function to prevent children from tampering with the machine. Thus you can avoid any changes in a running programme.

You can switch on and off the machine with On / Off button when the Child Lock is active. When you switch on the machine again, programme will resume from where it has stopped.

To activate the Child Lock:

Press and hold 2nd and 4th Auxiliary Function buttons for 3 seconds. "Con" appears on the display.

Same phrase will appear on the display if you press any button when Child Lock is enabled.

To deactivate the Child Lock:

Press and hold the 2nd and 4th Auxiliary Function buttons for 3 seconds. "COFF" appears on the display.

Do not forget to disable the child lock at the end of the programme if it was enabled before. Otherwise, the machine will not allow you to select a new programme.

7 Maintenance and cleaning

The service life of the product extends and frequently faced problems decrease if it is cleaned at regular intervals.

7.1 Cleaning the detergent drawer

Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent the accumulation of powder detergent over time.

1. Press the dotted point on the siphon in the softener compartment and pull it towards you until the compartment is removed from the machine.

If more than the normal amount of water and softener mixture starts to gather in the softener compartment, the siphon must be cleaned.

1. Wash the detergent drawer and the siphon with plenty of lukewarm water in a washbasin. Wear protective gloves or use an appropriate brush to avoid touching the residues in the drawer with your skin when cleaning.
2. Insert the drawer back into its place after cleaning and make sure that it is seated well. If your detergent drawer is the one indicated in the following figure:

Lift the rear part of the siphon to remove it as illustrated. After performing the above mentioned cleaning procedures, replace the siphon back into its seating and push its front section downwards to make sure that the locking tab engages.

7.2 Cleaning the loading door and the drum

Residues of softener, detergent and dirt may accumulate in your machine over time and may cause unpleasant odours and washing complaints. To avoid this, use the Drum Cleaning programme. If your machine is not featured with the Drum

Cleaning programme, use the Cottons-90 programme and select Additional Water or Extra Rinse auxiliary functions as well. Run the programme. Before starting the programme, put max. 100 g of powder anti-limescale into the main wash detergent compartment (compartment nr. 2). If the anti-limescale is in tablet form, put only one tablet into compartment nr. 2. Dry the inside of the bellow with a clean piece of cloth after the programme has come to an end.

Repeat Drum Cleaning process every 2 months.

Use an anti-limescale suitable for washing machines.

After every wash, make sure no foreign substances are left in the drum.

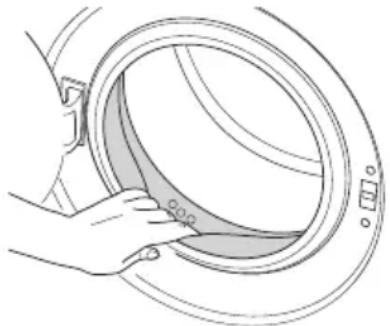

If the holes on the bellow shown in the figure are blocked, open them using a toothpick.

Foreign metal substances will cause rust stains in the drum. Clean the stains on the drum surface using cleaning agents for stainless steel. Never use steel wool or wire wool.

WARNING: Never use sponges or scrub materials. These will damage painted and plastic surfaces.

Maintenance and cleaning

7.3 Cleaning the body and control panel

Wipe the body of the machine with soapy water or non-corrosive mild gel detergents as necessary, and dry with a soft cloth.

Use only a soft and damp cloth to clean the control panel.

7.4 Cleaning the water intake filters

There is a filter at the end of each water intake valve at the rear of the machine and also at the end of each water intake hose where they connect to the tap. These filters prevent foreign substances and dirt in the water from entering the washing machine. Filters should be cleaned as they do get dirty.

1. Close the taps.
2. Remove the nuts of the water intake hoses to access the filters on the water intake valves. Clean them with an appropriate brush. If the filters are too dirty, take them out with pliers and clean them.
3. Take out the filters on the flat ends of the water intake hoses together with the gaskets and clean thoroughly under running water.
4. Replace the gaskets and filters carefully in their places and tighten the hose nuts by hand.

7.5 Draining remaining water and cleaning the pump filter

The filter system in your machine prevents solid items such as buttons, coins and fabric fibers from clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend.

If the machine fails to drain water, the pump filter is clogged. The filter must be cleaned whenever it is clogged or every 3 months. Water must be drained off first to clean the pump filter.

In addition, prior to transporting the machine (e.g., when moving to another house) and in case of freezing of the water, water may have to be drained completely.

WARNING: Foreign substances left in the pump filter may damage your machine or may cause noise problems.

In order to clean the dirty filter and discharge the water:

1. Unplug the machine to cut off the power supply.

WARNING: The temperature of the water inside the machine may rise up to 90 °C. To avoid the risk of burns, the filter must be cleaned after the water in the machine cools down.

1. Open the filter cap.

If the filter cap is composed of two pieces, press the tab on the filter cap downwards and pull the piece out towards yourself.

If the filter cap is one piece, pull the cap from both sides at the top to open.

You can remove the filter cover by slightly pushing downwards with a thin plastic-tipped tool, through the gap above the filter cover. Do not use metal-tipped tools to remove the cover.

Maintenance and cleaning

1. Some of our products have an emergency draining hose and some do not. Follow the steps below to discharge the water.

Discharging the water when the product has an emergency draining hose:

a. Pull the emergency draining hose out from its seat.

b. Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose. When the container is full, block the inlet of the hose by replacing the plug. After the container is emptied, repeat the above procedure to drain the water in the machine completely.

c. When draining of water is finished, close the end by the plug again and fix the hose in its place.

d. Turn the pump filter to take it out.

Discharging the water when the product does not have an emergency draining hose:

a. Place a large container in front of the filter to catch water from the filter.

b. Loosen pump filter (anticlockwise) until water starts to flow. Fill the flowing water into the container you have placed in front of the filter. Always keep a piece of cloth handy to absorb any spilled water.

c. When the water inside the machine is finished, take out the filter completely by turning it.

1. Clean any residues inside the filter as well as fibers, if any, around the pump impeller region.
2. Install the filter.
3. If the filter cap is composed of two pieces, close the filter cap by pressing on the tab. If it is one piece, seat the tabs in the lower part into their places first, and then press the upper part to close.

8 Troubleshooting

Programme cannot be started or selected.

- Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> Press and hold Start / Pause / Cancel button for 3 seconds to reset the machine to factory settings.

Water in the machine.

- Some water might have remained in the product due to the quality control processes in the production. >>> This is not a failure; water is not harmful to the machine.

There is water leaking from the bottom of the washing machine.

• Likely problems with hoses or the pump filter. >>> Be sure the seals of the water inlet hoses are securely fitted. Attach the hose to the tap tightly.
• Pump filter might not be closed fully. >>> Make sure that the pump filter is completely closed.

Machine does not fill with water.

• Tap is turned off. >>> Open the inlet water taps fully. • Water inlet hose is bent. >>> Flatten the water inlet hose. • Water inlet filter is clogged. >>> Clean the water inlet filter. • The loading door is ajar. >>> Close the Loading Door.

Machine does not drain water.

• Water drain hose might be clogged or twisted. >>> Clean or flatten the hose. - Pump filter is clogged. >>> Clean the pump filter.

Machine vibrates or makes noise.

• Machine might be standing unbalanced. >>> Adjust the feet to level the machine. - A hard substance might have entered into the pump filter. >>> Clean the pump filter. - Transportation safety bolts are not removed. >>> Remove the transportation safety bolts. - Laundry quantity in the machine might be too little. >>> Add more laundry to the machine. - Machine might be overloaded with laundry. >>> Take out some of the laundry from the machine or distribute the load by hand to balance it homogenously in the machine. - Machine might be leaning on a rigid item. >>> Make sure that the machine is not leaning on anything.

Machine stopped shortly after the programme started.

- Machine might have stopped temporarily due to low voltage. >>> It will resume running when the voltage restores to the normal level.

Machine directly discharges the water it takes in.

- Draining hose might not be at adequate height. >>> Connect the water draining hose as described in the operation manual.

No water can be seen in the machine during washing.

- The water level is not visible from outside of the washing machine. This is not a failure.

Loading door cannot be opened.

• Door lock is activated because of the water level in the machine. >>> Drain the water by running the Pump or Spin programme.
• Machine is heating up the water or it is at the spinning cycle. >>> Wait until the programme completes.
• Child lock is engaged. Door lock will be deactivated a couple of minutes after the programme has come to an end. >>> Wait for a couple of minutes for deactivation of the door lock.

Troubleshooting

Washing takes longer time than specified in the manual.(*)

• Water pressure is low. >>> Machine waits until taking in adequate amount of water to prevent poor washing quality due to the decreased amount of water. Therefore, the washing time extends.
• Voltage might be low. >>> Washing time is prolonged to avoid poor washing results when the supply voltage is low.
• Input temperature of water might be low. >>> Required time to heat up the water extends in cold seasons. Also, washing time can be lengthened to avoid poor washing results.
• Number of rinses and/or amount of rinse water might have increased. >>> Machine increases the amount of rinse water when good rinsing is needed and adds an extra rinsing step if necessary.
• Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>> Use recommended amount of detergent.

Programme time does not countdown. (On models with display)(*)

• Timer may stop during water intake. >>> Timer indicator will not countdown until the machine takes in adequate amount of water. The machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water. Timer indicator will resume countdown after this.
• Timer may stop during heating step. >>> Timer indicator will not countdown until the machine reaches the selected temperature.
• Timer may stop during spinning step. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.

Programme time does not countdown.(*)

- There might be an imbalance of laundry in the machine. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.

Machine does not switch to spinning step.(*)

• There might be an imbalance of laundry in the machine. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.
• The machine will not spin if water is not drained completely. >>> Check the filter and the draining hose.
• Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>> Use recommended amount of detergent.

Washing performance is poor: Laundry turns gray.(**)

• Insufficient amount of detergent was used over a long period of time. >>> Use the recommended amount of detergent appropriate for water hardness and the laundry.
• Washing was made at low temperatures for a long time over a long period of time. >>> Select the proper temperature for the laundry to be washed.
• Insufficient amount of detergent is used with hard waters. >>> Using insufficient amount of detergent with hard water causes the soil to stick on the cloth and this turns the cloth into gray in time. It is difficult to eliminate graying once it happens. Use the recommended amount of detergent appropriate for water hardness and the laundry.
• Too much detergent is used. >>> Use the recommended amount of detergent appropriate for water hardness and the laundry.

Washing performance is poor: Stains persist or the laundry is not whitened. (**)

• Insufficient amount of detergent is used. >>> Use recommended amount of detergent appropriate for the laundry.
• Excessive laundry was loaded in. >>> Do not load the machine in excess. Load with amounts recommended in the "Programme and consumption table".
• Wrong programme and temperature were selected. >>> Select the proper programme and temperature for the laundry to be washed.
• Wrong type of detergent is used. >>> Use original detergent appropriate for the machine.
• Detergent is put in the wrong compartment. >>> Put the detergent in the correct compartment. Do not mix the bleaching agent and the detergent with each other.

Troubleshooting

Washing performance is poor: Oily stains appeared on the laundry.

- Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see 7.2.

Washing performance is poor: Clothes smell unpleasantly. (**)

- Odours and bacteria layers are formed on the drum as a result of continuous washing at lower temperatures and/or in short programmes. >>> Leave the detergent drawer as well as the loading door of the machine ajar after each washing. Thus, a humid environment favorable for bacteria cannot occur in the machine.

Colour of the clothes faded. (**)

• Excessive laundry was loaded in. >>> Do not load the machine in excess.
• Detergent in use is damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
• A higher temperature is selected. >>> Select the proper programme and temperature according to the type and soiling degree of the laundry.

It does not rinse well.

• The amount, brand and storage conditions of the detergent used are inappropriate. >>> Use a detergent appropriate for the washing machine and your laundry. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
• Detergent is put in the wrong compartment. >>> If detergent is put in the prewash compartment although prewash cycle is not selected, machine can take this detergent during rinsing or softener step. Put the detergent in the correct compartment.
• Pump filter is clogged. >>> Check the filter.
• Drain hose is folded. >>> Check the drain hose.

Laundry became stiff after washing.(**)

• Insufficient amount of detergent is used. >>> Using insufficient amount of detergent for the water hardness can cause the laundry to become stiff in time. Use appropriate amount of detergent according to the water hardness.
• Detergent is put in the wrong compartment. >>> If detergent is put in the prewash compartment although prewash cycle is not selected, machine can take this detergent during rinsing or softener step. Put the detergent in the correct compartment.
• Detergent might be mixed with the softener. >>> Do not mix the softener with detergent. Wash and clean the dispenser with hot water.

Laundry does not smell like the softener.(**)

• Detergent is put in the wrong compartment. >>> If detergent is put in the prewash compartment although prewash cycle is not selected, machine can take this detergent during rinsing or softener step. Wash and clean the dispenser with hot water. Put the detergent in the correct compartment.
• Detergent might be mixed with the softener. >>> Do not mix the softener with detergent. Wash and clean the dispenser with hot water.

Detergent residue in the detergent drawer.(**)

• Detergent is put in wet drawer. >>> Dry the detergent drawer before putting in detergent.
• Detergent has gotten damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures. • Water pressure is low. >>> Check the water pressure.
• The detergent in the main wash compartment got wet while taking in the prewash water. Holes of the detergent compartment are blocked. >>> Check the holes and clean if they are clogged.
• There is a problem with the detergent drawer valves. >>> Call the Authorized Service Agent.
• Detergent might be mixed with the softener. >>> Do not mix the softener with detergent. Wash and clean the dispenser with hot water.

Troubleshooting

There is detergent left on the laundry. (**)

• Excessive laundry was loaded in. >>> Do not load the machine in excess.
• Wrong programme and temperature were selected. >>> Select the proper programme and temperature for the laundry to be washed.
• Wrong detergent was used. >>> Select the proper detergent for the laundry to be washed.

Too much foam forms in the machine.(**)

• Improper detergents for the washing machine are being used. >>> Use detergents appropriate for the washing machine.
• Excessive amount of detergent is used. >>> Use only sufficient amount of detergent.
• Detergent was stored under improper conditions. >>> Store detergent in a closed and dry location. Do not store in excessively hot places.
• Some meshed laundry such as tulle may foam too much because of their texture. >>> Use smaller amounts of detergent for this type of item.
• Detergent is put in the wrong compartment. >>> Put the detergent in the correct compartment.
• Softener is being taken early. >>> There may be a problem in the valves or in the detergent dispenser. Call the Authorized Service Agent.

Foam is overflowing from the detergent drawer.

• Too much detergent is used. >>> Mix 1 tablespoonful of softener and 1/2 liter of water and pour into the main wash compartment of the detergent drawer.
• Put detergent into the machine suitable for the programmes and maximum loads indicated in the “Programme and consumption table”. When you use additional chemicals (stain removers, bleaches, etc.), reduce the amount of detergent.

Laundry remains wet at the end of the programme (*)

• Excessive foam might have occurred and the automatic foam absorption system might have been activated due to too much detergent usage. >>> Use the recommended amount of detergent. * The machine does not switch to the spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun. ** Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see 7.2.

WARNING: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.

PRODUCT FICHEComplying Commission Delegated Regulation (EU) No 1061/201
Supplier name or trademark Beko Beko
Model name WMB 61042 PL PTM WMB 61242 PL PTM
Rated capacity (kg) 6 6
Energy efficiency class (1)	A++ A++
Annual Energy Consumption (kWh) (2)	170 170
Energy consumption of the standard 60°C cotton programme at full load (kWh)	0.880 0.880
Energy consumption of the standard 60°C cotton programme at partial load (kWh)	0.700 0.700
Energy consumption of the standard 40°C cotton programme at partial load (kWh)	0.580 0.580
Power consumption in 'off-mode' (W) 0.200 0.200
Power consumption in 'left-on mode' (W) 1.00 1.00
Annual Water Consumption (I) (3)	8800 8800
Spin-drying efficiency class (4)	C	B
Maximum spin speed (rpm) 1000 1200
Remaining moisture Content (%) 62 53
Standard cotton programme (5)	Cotton Eco 60°C and 40°C
Programme time of the standard 60°C cotton programme at full load (min)	185 185
Programme time of the standard 60°C cotton programme at partial load (min)	148 148
Programme time of the standard 40°C cotton programme at partial load (min)	138 138
Duration of the left-on mode (min)	N/A	N/A
Built-in	No	No
(1) Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency)
(2) Energy Consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
(3) Water consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
(4) Scale from A (Highest Efficiency) to G (Lowest Efficiency)
(5) "Standard 60°C cotton programme" and the "standard 40°C cotton programme" are the standard washing programmes to which the information in the label and the fiche relates and these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
