DUL62FA50 - Range hood BOSCH - Free user manual and instructions

Type of product	Cooker hood, telescopic (extractable) for built-in installation
Installation type	Built-under or wall-mounted, telescopic
Width	60 cm
Depth (retracted)	290 mm
Depth (extended)	475 mm
Height (without chimney)	169 mm
Net weight	Approx. 9 kg
Power supply	220-240 V ~ 50 Hz
Total connected load	263 W
Motor power	220 W
Maximum extraction rate (ducting)	580 m³/h
Maximum extraction rate (recirculation)	490 m³/h (with activated carbon filter)
Noise level (max speed, ducting)	67 dB(A)
Number of speed settings	3 speeds + intensive mode
Lighting type	LED, warm white, 2 x 3 W
Lighting, dimmable	No (on/off only)
Filter type	Metal grease filter, washable
Number of filters	2 pieces
Activated carbon filter available	Yes, optional (type: DUL62FA50 ZP)
Controls	Mechanical push buttons (slider or buttons)
Cleaning	Grease filter dishwasher-safe; surface wipe with damp cloth
Safety features	Overheat protection, motor thermal fuse
Spare parts availability	Grease filter: part no. 00624656; Activated carbon filter: part no. 00624657; LED lamp: part no. 00624658
Repairability index	8.0/10 (based on European rating)
General information	Brand: Bosch; Model: DUL62FA50; Suitable for ducted or recirculation mode; Energy class: B (EU)

Frequently Asked Questions - DUL62FA50 BOSCH

Can the Bosch DUL62FA50 hood be used in recirculation mode?

Yes, it can be used in recirculation mode with an optional activated carbon filter (model DUL62FA50 ZP). The extraction rate is slightly lower in recirculation mode.

How do I clean the metal grease filter?

The metal grease filter is washable and can be cleaned in the dishwasher. Remove it carefully, wash it with mild detergent, and let it dry completely before reinstalling.

What is the noise level of this cooker hood?

The noise level varies by speed. At maximum speed with ducting, it reaches 67 dB(A). At lower speeds, it is quieter, typically around 50-60 dB(A).

Does the hood have a remote control?

No, the DUL62FA50 does not include a remote control. It is operated via mechanical push buttons on the front panel.

What are the dimensions of the telescopic extension?

When fully retracted, the hood depth is 290 mm. When extended for use, it extends to 475 mm. The width is 60 cm.

Is the LED lighting replaceable?

Yes, the LED lamps (2 x 3 W) are replaceable. The spare part number is 00624658. Always disconnect power before replacing.

Can I install this hood above an induction cooktop?

Yes, it is suitable for installation above electric and induction cooktops. For gas cooktops, follow the minimum distance requirements (usually 650 mm).

How do I activate the intensive mode?

The intensive mode can be activated by pressing the dedicated button on the control panel. It runs at maximum speed for a few minutes and then automatically returns to the previous setting.

Where can I find the installation manual?

The installation manual is included in the product package. You can also download a PDF version from the Bosch website or from user manual databases like notice-facile.com.

What is the energy efficiency class of this hood?

The Bosch DUL62FA50 has an energy efficiency class of B according to EU regulations. It consumes about 263 W of power at full load.

USER MANUAL DUL62FA50 BOSCH

Close-up of a modern kitchen ventilation duct with metallic panels and ventilation grilles (no text or symbols visible)

Close-up of a kitchen interior with a textured mesh grille and a rectangular recessed light fixture (no text or symbols visible)

Extractor hood

Exaustor

DUL62FA60; DUL62FA20; DUL62FA50

BOSCH

[en] Instruction manual .... 3

Important safety information....3

Environmental protection....5

Saving energy....5

Environmentally-friendly disposal....5

Operating modes....5

Exhaust air mode....5

Circulating-air mode 5

Operating the appliance ....6

Setting the fan ....6

Lighting 6

Cleaning and maintenance....6

Trouble shooting 8

Fault table....8

After-sales service 8

Accessories 9

Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com

⚠️ Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.

This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

This appliance is not intended for operation with an external clock timer or a remote control.

Danger of suffocation!

Packaging material is dangerous to children. Never allow children to play with packaging material.

Danger of death!

Risk of poisoning from flue gases that are drawn back in.

Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.

Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney).

In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space.

■ Adequate incoming air must therefore always be ensured.
■ An incoming/exhaust air wall box alone will not ensure compliance with the limit. Safe operation is possible only when the partial vacuum in the place where the heat-producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means.

Simple line drawing of a checkmark and a schematic diagram of a house with pipes and fire (no text or symbols)

In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.

Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.

Risk of fire!

■ Grease deposits in the grease filter may catch fire.

Replace the grease filter at least every two months.

Never operate the appliance without the grease filter.

• Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is available. There must be no flying sparks.

• Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.

• When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.

• Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer than 15 minutes. One large burner of more than 5 kW (wok) is equivalent to the power of two gas burners.

Risk of burns!

The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.

Risk of injury!

■ Components inside the appliance may have sharp edges. Wear protective gloves.
■ Items placed on the appliance may fall down. Do not place any objects on the appliance.
■ The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.

Risk of electric shock!

• A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
• Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
• Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Causes of damage

Caution!

Risk of damage due to corrosion. Always switch on the appliance while cooking to avoid condensation. Condensate can produce corrosion damage.

Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.

Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.

Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.

Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).

Environmental protection

Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.

Saving energy

During cooking, ensure that there is a sufficient supply of air so that the extractor hood can work efficiently and with a low level of operating noise.
■ Adjust the fan speed to the intensity of the cooking fumes. Only use intensive mode where this is required. A lower fan speed means that less energy is consumed.
If there are intensive cooking fumes, select a higher fan speed in good time. If cooking fumes have already spread in the kitchen, the extractor hood must be operated for longer.
■ Switch off the extractor hood if you no longer require it.
■ Switch off the lighting if you no longer require it.
■ Clean and, if required, replace the filter at regular intervals in order to increase the effectiveness of the ventilation system and to prevent the risk of fire.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Operating modes

This appliance can be used in exhaust-air mode or circulating-air mode.

Exhaust air mode

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

Note: The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

■ Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.

Circulating-air mode

The air which is drawn in is cleaned by the grease filters and an activated carbon filter and conveyed back into the kitchen.

Note: To bind odours in circulating-air mode, you must install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist outlets, from customer service or from the Online Shop. The accessory numbers can be found at the end of the instructions for use.

Operating the appliance

These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.

Note: Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.

Note: Fold the glass cover forwards. This increases the extraction area.

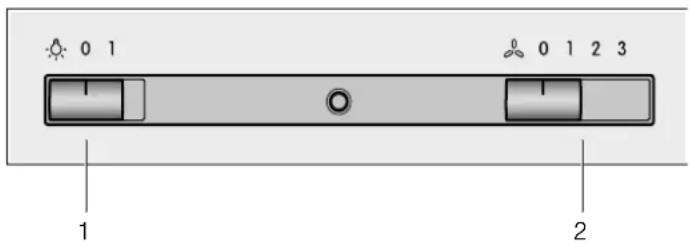

Control panel

1 Lighting

0 Switches off the lighting

1 Switches on the lighting

2 Fan

0 Switches off the fan

1 Switches on fan speed 1

2 Switches on fan speed 2

3 Switches on fan speed 3

Setting the fan

Note: Always adjust the fan strength to meet current conditions. If there is a large build-up of steam or fumes, select a high fan setting.

Switching on

Set the slide control to position 1, 2 or 3.

Note: If the fan is switched on, an LED lights up.

Switching off the appliance

Set the slide control to position 0.

Lighting

The lighting can be switched on and off independently of the ventilation.

Set the slide control to position 1.

Cleaning and maintenance

Risk of burns!

The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

Risk of electric shock!

Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.

Risk of electric shock!

Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Risk of injury!

Components inside the appliance may have sharp edges. Wear protective gloves.

Cleaning agents

To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Do not use any of the following:

■ Harsh or abrasive cleaning agents,
■ Cleaning agents with a high alcohol content,
■ Hard scouring pads or cleaning sponges,
■ High-pressure cleaners or steam cleaners.

Wash new sponge cloths thoroughly before use.

Follow all instructions and warnings included with the cleaning agents.

Area Cleaning agent

Stainless steel Hot soapy water:
	Clean with a dish cloth and then dry with a soft cloth.
	Clean stainless steel surfaces in the grind direction only.
	Special stainless steel cleaning products are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
	Clean using a damp dish cloth and dry with a soft cloth/towel.
	Do not use any stainless steel cleaners.
Aluminium and plastic	Glass cleaner:
	Clean with a soft cloth.
Glass Glass cleaner:
	Clean with a soft cloth. Do not use a glass scraper.
Controls Hot soapy water:
	Clean using a damp dish cloth and dry with a soft cloth/towel.
	Risk of electric shock caused by penetrating moisture.
	Risk of damage to the electronics from penetrating moisture. Never clean operating controls with a wet cloth.
	Do not use any stainless steel cleaners.

Removing the fleece grease filter

Risk of fire!

Grease deposits in the grease filter may catch fire. Replace the grease filter at least every two months.

Never operate the appliance without the grease filter.

Note: Only use genuine replacement filters. This ensures compliance with safety regulations and optimal performance of the appliance.

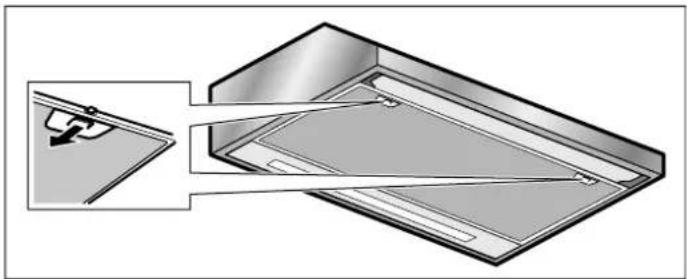

1. Press the locks on the left and right of the filter grid.

Diagram of a mechanical assembly with a component inserted into a housing, showing internal components and alignment (no text or symbols)

1. Swing the filter grid down.

Technical diagram of a metal enclosure with a curved arrow indicating rotation or movement (no text or symbols)

1. Position the filter grid at an angle and remove it.

3D diagram of a rectangular metal enclosure with internal compartments and mounting holes (no text or symbols)

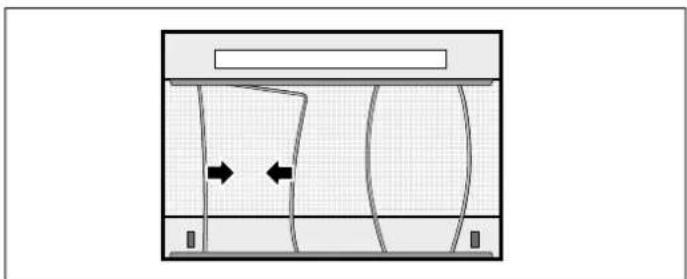

1. Remove the wires and then remove the fleece grease filter.

Diagram of a device with two arrows indicating directional movement, no text or symbols present

1. After removing the fleece grease filter, clean the inside of the appliance.

2. Clean the filter grid.

Fitting the fleece grease filter

1. Trim the new fleece grease filter to the required size and place it in the filter grid.

2. Clamp the fleece grease filter in place with the wires.

3. Insert the filter grid.

Note: Make sure that the locks on the left and right of the filter grid engage.

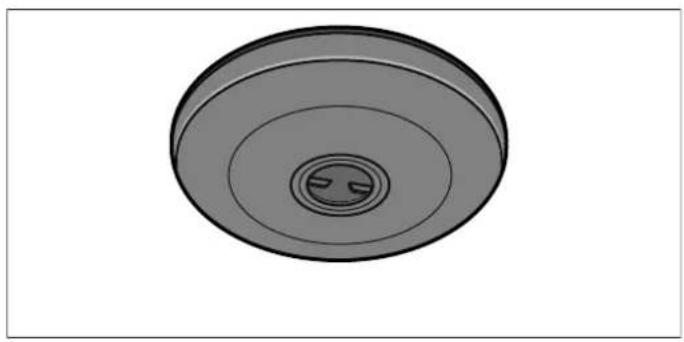

Changing the activated charcoal filter (only in circulating-air mode)

In order to guarantee efficient odour filtration, the filter must be serviced regularly.

The activated charcoal filters must be replaced at least every 4 months.

Notes

- The activated charcoal filters are not included in the delivery. The activated charcoal filters can be obtained from specialist retailers, from our after-sales service or from the Online Shop. - The activated charcoal filters cannot be cleaned or reactivated.

Note: Only use genuine replacement filters. This ensures optimal performance of the appliance.

1. Remove the fleece grease filter; see the Removing the fleece grease filter section.

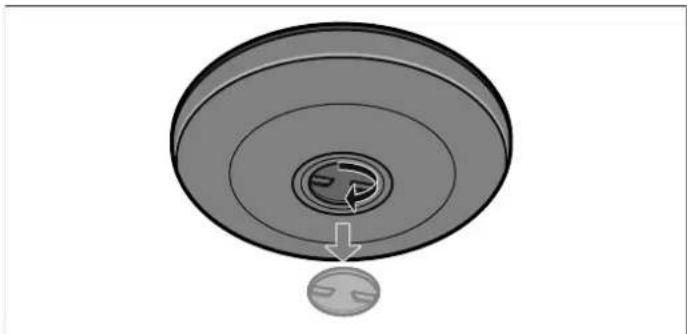

2. Undo the threaded joints on the activated charcoal filter cover.

Diagram of a mechanical component with concentric rings and a circular base, showing internal structure and an arrow indicating direction (no text or symbols)

1. Remove the activated charcoal filter.

2. Insert the new activated charcoal filter.

3. Screw the covers into place.

4. Fit the fleece grease filter; see the Fitting the fleece grease filter section.

Trouble shooting

Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.

Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Fault table

Problem Possible cause Solution
The appliance does not work	The plug is not plugged into the mains	Connect the appliance to the power supply
	Power cut Check whether other kitchen appliances are working
	The fuse is faulty	Check in the fuse box to make sure that the fuse for the appliance is in working order
The lighting does not work.	The LED lights are defective.	You can read about this in the section entitled "Replacing the LED lights".

Replacing the LED lights

Risk of electric shock!

When changing the bulbs, the bulb socket contacts are live. Before changing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

Risk of injury!

The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.

Important! Only use bulbs of the same type and wattage.

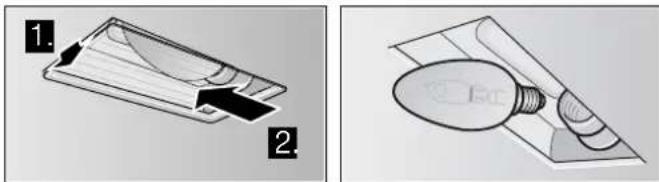

1. Lift the bulb cover slightly and move it towards the outside of the appliance.
2. Unscrew the bulb and replace it with a bulb of the same type.

1. Fit the bulb cover.
2. Plug in the mains plug and switch the fuse back on.

After-sales service

Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician.

When calling us, please quote the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the filter grid to gain access).

You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.

E no. FD no.

After-sales service

Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0344 892 8979 Calls charged at local or mobile rate.

IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

Accessories

(not included in the scope of delivery)

Activated charcoal filter

DHZ2701

3D rendering of a circular mechanical component with concentric rings and a central slot (no text or symbols)

Fleece grease filter

DHZ2140

Simple line drawing of three overlapping sheets of paper (no text or symbols)

pt Índice

Simple line drawing of a house with a checkmark and airflow indicators (no text or symbols)

Diagram of a device interior with a magnified view showing internal components and a curved arrow indicating rotation (no text or symbols present)

Technical diagram of a metal enclosure with a curved arrow indicating rotation or movement (no text or symbols)

Isometric diagram of a metal enclosure with internal compartments and mounting holes (no text or symbols)

Diagram of a room with two curved windows and directional arrows, no text or symbols present

Diagram of a mechanical component with concentric layers and a circular base, showing internal structure and directional arrow (no text or symbols)

1. Retire os filtros de carvão ativo.

2. Monte os filtros de carvão ativo novos.

3. Aparafuse as tampas.

4. Monte o filtro de gorduras de feltro, consulte o capítulo Montar o filtro de gorduras de feltro.

Two technical diagrams showing a device with a curved component and a magnified view of its internal structure (no text or symbols present)

3D rendering of a circular mechanical component with concentric rings and a central slot (no text or symbols)

Filtro de gorduras de feltro

DHZ2140

Simple line drawing of three overlapping sheets of paper (no text or symbols)
