USER MANUAL 40961 Gastroback

IHREN DESIGN MINI CHOPPER PLUS KENNEN LERNEN

1 Ein/Aus-Taste

2 Motor

Kupplung

3 Deckel

Deckeldichtung

SICHERHEITSHINWEISE

Art.-No. 40961 »Design Mini Chopper Plus«

Read all provided instructions before first use!

Model and attachments are subject to change!

For household use only!

Carefully read all provided instructions before you start running the appliance and pay attention to the warnings mentioned in these instructions.

TABLE OF CONTENTS

KNOWING YOUR NEW DESIGN MINI CHOPPER PLUS....26

IMPORTANT SAFEGUARDS....27

General Safety Instructions....27

Important Safeguards for Electrical Appliances....29

Moving Parts—Risk of Injuries 30

TECHNICAL SPECIFICATIONS ....30

PROPERTIES OF YOUR NEW DESIGN MINI CHOPPER PLUS .... 31

TIPS FOR BEST RESULTS ....31

BEFORE FIRST USE 34

OPERATION 34

SOLVING PROBLEMS....37

CARE AND CLEANING....38

STORAGE 40

NOTES FOR DISPOSAL 41

INFORMATION AND SERVICE 41

WARRANTY 41

DEAR CUSTOMER!

We are grateful that you decided in favour the new Gastroback Design Mini Chopper Plus.

The Gastroback Design Mini Chopper Plus is intended for blending and mixing, puréeing fruit and vegetables, chopping meat and herbs, as well as grinding nuts and almonds. The Design Mini Chopper Plus is perfectly suited for processing raw ingredients for salads and time-saving preparation of the ingredients for your meals. By operating the Design Mini Chopper Plus with two different speeds, and using one, two or three pairs of blades, it is effortless to adjust the results to your liking.

Please read all the advice and instructions in this booklet with care. Only use the appliance to process fresh, edible food in domestic use.

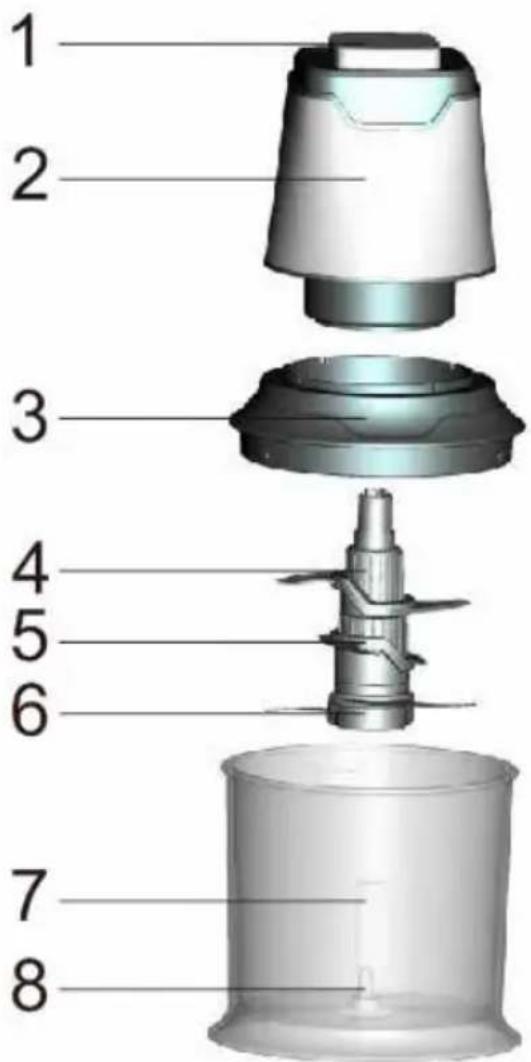

KNOWING YOUR NEW DESIGN MINI CHOPPER PLUS

1 ON/OFF button
2 Motor unit Coupling
3 Lid Lid seal

Cutting assembly holding up to 6 stainless-steel blades:

blade shaft

4 upper pair of blades (removable)
5 middle pair of blades (removable)
6 lower pair of blades (integrated non-removable in the blade shaft)
7 Fixed shaft

Non-slip silicone ring

8 Glass container

Disassembling Tool for removing the upper and middle pair of blades

IMPORTANT SAFEGUARDS

Carefully read all instructions before operating this appliance and save for further reference. Do not attempt to use this appliance for any other than the intended use, described in these instructions. Any other use, especially misuse, can cause severe injuries or damage by electric shock, moving parts, or fire.

These instructions are an essential part of the appliance. Do not pass the appliance without this booklet to third parties.

Any operation, repair and technical maintenance of the appliance or any part of it other than described in these instructions may only be performed at an authorised service centre. Please contact your vendor.

GENERAL SAFETY INSTRUCTIONS

• This appliance is for household use only and NOT intended for use in moving vehicles. Do not operate or store the appliance in humid or wet areas or outdoors. Any use of accessories, attachments or spare parts that are not recommended by the manufacturer or damaged in any way may result in injuries to persons and/or damage.
• Check the entire appliance regularly for proper operation (e.g. check for distortion, cracks, leaks, corroded pins of the power plug). Do not operate the appliance, when liquids run out or foam escapes between motor unit and lid. Do not operate the appliance, when the appliance or any part of it is likely to be damaged, to avoid risk of fire, electric shock or any other injuries to persons and/or damage. The appliance or its parts are likely to be damaged, if the appliance has been subject to inadmissible strain (e.g. over heating, mechanical or electric shock), or if there are any cracks or leaks, excessively frayed or melted parts, or distortions, or if the appliance is not working properly. DO NOT use the appliance, if the glass container is broken or cracked in any way to avoid severe injuries due to splinters in your food. If one of these cases occur during operation, immediately unplug the appliance, and get in contact with an authorized service centre for examination and/or repair. Do not attempt to use the appliance when the appliance or any part of it is damaged. Do not attempt to open the motor base.

- Operate the appliance on a well accessible, stable, level, dry, and suitable large table or counter that is resistant against water and fat. The power outlet must always be easily accessible so that it would be possible to unplug the appliance immediately in case of any malfunction or danger.

- Always keep the appliance and the table or counter clean and dry, and wipe off spilled liquids immediately. Do not place any clothes or tissue or other foreign objects under or on the appliance during operation, to avoid risk of fire, electric shock and overheating. Do not place the appliance over a power cord or on wet or inclined surfaces (e.g. sink or drain board).

• This appliance is NOT intended for use or handling by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must always be supervised to ensure that they do not play with the appliance or any parts of the appliance or the packaging. Always keep the appliance where it is dry, frost-free, and clean, and where young children cannot reach it. Do not leave the appliance or any part of it unattended, when in reach of young children.
• Do not place the appliance or any part of it on or near hot surfaces (e.g. burner, heater, or oven). Do not use any parts of the appliance with any other device or for any purpose not described in this booklet. Before plugging in, always ensure that the appliance is assembled completely and correctly according to the instructions in this booklet. Do not handle the appliance or any part of it with violence.
• The blades are extremely sharp. Always use special care when handling the cutting assembly in any way. DO NOT touch the blades with unprotected hands or sensitive objects to avoid severe injuries and damage. For removing the upper and middle pair of blades of the cutting assembly, always use the disassembling tool according to the instructions given in this booklet. Do not place the cutting assembly on delicate surfaces.
• Do not use any hard, sharp or edged objects (e.g. knives, forks) with the appliance.
• To avoid overheating, do not operate the motor continuously for more than 10 seconds at a time. Allow the motor to rest for 10 seconds before continuing. If the motor gets stuck, immediately switch OFF (releasing the ON/OFF button). Then remove the obstacle (see also: 'Care and Cleaning'). Only use the appliance for processing edible food and remove inedible parts and all packages before processing.
• After grinding sugar, cereals, or other dry ingredients, always wait at least 1 minute before opening the lid. Always keep any sources of ignition (e.g. fire, cigarettes and other electrical appliances) away from your working space to avoid risk of dust explosion.

• Do not operate the appliance with the glass container empty. However, always observe the MAX filling level on the glass container (600 ml). When processing liquids, do not fill in more than 400 ml to avoid overflow. When processing frothy ingredients (e.g. cream, egg white), do not fill in more than 200 ml. Immediately switch OFF (release the ON/OFF button) and unplug the appliance, when froth is escaping between motor unit and lid. Then remove the motor unit and clean the motor unit and lid (see: 'Care and Cleaning').

• Do not process hot food. Always leave your food reach room temperature, before filling it into the glass container. Otherwise, the glass container could crack.

• If liquids run out or are spilled onto the motor unit, immediately stop operation (releasing the ON/OFF button) and unplug the appliance. Always wipe off spilled liquids immediately.
• Do not leave the appliance unattended, when it is connected to the power supply. Always unplug the appliance, before assembling, disassembling, moving, or cleaning the appliance, or when the appliance is not in use. Do not place any hard and/or heavy objects on the appliance or any part or accessory of it.
• Do not use any abrasive cleaners, cleaning pads (e.g. metal scouring pads), or any corrosive chemicals (e.g. bleach) for cleaning. However, do not leave any food dry on the appliance or any part of it. Always clean the appliance and its parts after each use to prevent an accumulation of baked-on foods (see: 'Care and Cleaning'). Always keep the appliance and its parts, where it is clean.

IMPORTANT SAFEGUARDS FOR ELECTRICAL APPLIANCES

The appliance is driven electrically. Place the appliance near a suitable wall power socket to connect the appliance directly to a protected mains power supply with protective conductor (earth/ground) connected properly. Ensure that the voltage rating of your mains power supply corresponds to the voltage requirements of the appliance (220/240 V AC, 50/60 Hz, rated for at least 10 A).

The installation of a residual current operated circuit breaker (r.c.c.b.) with a maximum rated residual operating current of 30 mA in the supplying electrical circuit is strongly recommended. If in doubt, contact your electrician for further information.

• In various foreign countries, the specifications for power supplies are subject to incompatible norms. Therefore it is possible that power supplies in foreign countries do not meet the requirements for safe operation of the appliance. Thus, before operating the appliance abroad, ensure that safe operation is possible.
• Do not to use any desk top multi socket outlet, external timer, remote control systems or extension cord.
• Always handle power cords with care. The pins of the power plug must be smooth and clean without discolourations. Always completely unwind the power cord before use. Do not place the appliance on a power cord. Power cords may never be knotted, twisted, pulled, strained or squeezed. Do not let the plug or power cord hang over the edge of the table or counter. The power cord may not touch hot surfaces, sharp edges, or any moving parts. Ensure that no one will pull the appliance by the power cord. Take care not to entangle in the power cord. Always grasp the plug to disconnect the power cord. Do not touch the appliance or power plug with wet hands with the appliance connected to the power supply.

- Do not place or immerse the motor unit or power cord in water or any other liquid. DO NOT spill or drip any liquids on the motor unit or on the power cord to avoid risk of fire and electric shock. When liquids have come into contact with the motor unit or power cord, immediately unplug the appliance. Thereafter, clean the appliance and let it dry for at least 1 day (see: 'Care and Cleaning'). Do not place the motor unit or the power cord in an automatic dishwasher.

MOVING PARTS—RISK OF INJURIES

⚠ WARNING! The Design Mini Chopper Plus is designed for cutting food. For this purpose, the appliance is equipped with extremely sharp blades rotating on high speed in the glass container. Thus, improper handling could cause severe injuries and damage. Please keep this in mind.

• Do not attempt to operate the appliance using any other than the designated parts. Always unplug the motor unit before cleaning the motor unit. Do not leave the motor unit unattended while connected to the power supply.
• Due to vibrations during operation the appliance may move around on the table or counter. Thus, always ensure to keep the appliance in sufficient distance to the edge of the table or counter and to other objects. Leave at least 20 cm of free space on each side. Use the non-slip silicone ring for a stable stand on the working surface.

TECHNICAL SPECIFICATIONS

Model:	Art.-No.: 40961 Design Mini Chopper Plus
Power supply:	220/240 V AC, 50/60 Hz
Power consumption:	max. 400 W
Length of power cord:	approx. 105 cm
Weight:	approx. 1.68 kg
Dimensions:	approx. 18.5 cm x 16.0 cm x 23.5 cm(width x depth x height)
Capacity:	600 ml (20 oz. or 2 1/2 cups)liquids: 400 mlfrothing food: 200 ml
Certification:

PROPERTIES OF YOUR NEW DESIGN MINI CHOPPER PLUS

Your new Design Mini Chopper Plus comes with 3 pairs of blades that may be used separately or in combination. The lower pair of blades is integrated in the blade shaft. The other 2 pairs of blades can be removed to fit the desired purpose.

According to the variety of processed foodstuff, the motor may be operated in 2 speeds.

1. Pressing only slightly onto the ON/OFF button, the motor agitates with the slow speed 1.
2. When pressing firmly onto the ON/OFF button, the high speed 2 is activated.

After operation, you simply disassemble all parts of the appliance coming in contact with food. This makes emptying and cleaning effortless. Additionally, for your convenience, you may clean the glass container, cutting assembly, and lid in the automatic dishwasher (see: 'Care and Cleaning').

Safety Concept

For your protection, your new Design Mini Chopper Plus is equipped with some safety features. The safety interlocks assure that the motor will not operate unless the appliance is assembled correctly (see: 'Assembling the Appliance').

IMPORTANT: Do not attempt to damage or by-pass the safety interlocks! Do not attempt to operate the appliance using others than the designated parts or using parts that are damaged in any way. Only operate the motor unit with the designated parts completely and correctly assembled.

TIPS FOR BEST RESULTS

You may use your new Design Mini Chopper Plus to cut, grind, and mix several types of food. Please, adhere to the following tips to get best results.

• Do NOT use this appliance to mix glutinous food.
• If you wish to blend or cut bigger amounts, use all three pairs of blades.
• When using all three pairs of blades (with solid food), please ensure that the amount of ingredients covers the middle pair of blades fully and reaches just the upper pair of blades (500-600 ml).
• This appliance is designed to process small amounts. Do not exceed the amounts indicated in these instructions. With liquids, do not fill in more than 400 ml. When processing foaming food (e.g. egg white, cream), do not fill in more than 200 ml. However, at least the food must always cover the lowest blade (approx. 125 ml).
• The processing time depends on the type, quality, and amount of your food and the desired consistency. However, normally the processing time for one filling of

the glass container will reach only several seconds (see table below).

• The maximum time of continuous processing should not exceed 10 seconds. In order to achieve the desired processing times, use the appliance with pulses and intermediate brakes of 10 seconds.
• Cut bigger foods into smaller pieces of approx. 3-4 cm in size.
• Cheese: The appliance grades every kind of cheese perfectly, even soft cheese. Use two or three pairs of blades and run the appliance with pulses.
• Tomatoes, nuts, onions etc.: For fine chopping, use two or three pairs of blades and run the appliance with pulses.
• Caster sugar and Cereals: Only use the lower pair of blades. The ingredients must cover the blades completely. After grinding sugar, cereals, or other dry ingredients, always wait at least 1 minute before opening the lid. Always keep away any sources of ignition (e.g. fire, cigarettes) to avoid the risk of dust explosion.
• Ice: For ice crushing, use all three pairs of blades and run the appliance with pulses. It is good advice to place the glass container into the freezer for some minutes before processing.
• Fruits: Wash your fruits thoroughly. Remove all inedible and extremely hard parts (e.g. peels and shells, stalks, seads). Additionally, remove all hard, thick, bitter, or chemically treated peels (e.g. of citrus fruits).
• Frothing up (cream, milk, egg white, etc.): For frothing up, only fill in 200 ml at the maximum (lowest blade is just covered). Otherwise, the glass container could froth over. If froth is escaping besides the motor, immediately release the ON/OFF button and unplug the appliance.

Processing Cooked Food and Baby Food

• Especially when preparing meals for babies and sick or invalid persons, before feeding/serving you should ensure that no large pieces are still left within the meal.
• To get a complete meal, cut the food into small pieces, add some liquid (e.g. broth, juice, or milk) and first mix the ingredients with pulses in the Design Mini Chopper Plus. To blend the mixed food, press the start button continuously for up to 10 seconds at the maximum until you reach the desired result.
• Do not process hot food. Leave your food cool down to room temperature.
• With liquid foods (e.g baby food crème) use the lower pair of blades to mix the ingredients. Ensure that the food is not hot and the amount does not exceed 400 ml.

- For chopping cooked food (vegetables, meat, fruits etc.), use two or three pairs of blades and run the appliance with pulses. To blend the food or make fruit purées, press the start button continuously for a few seconds until you reach the desired result.

Guidelines for Processing

See the following table for guidelines concerning the processing time, used pairs of blades and processing speed.

IMPORTANT: If you need to process your food for more than 10 seconds, please operate the Design Mini Chopper Plus in short pulses and/or make a brake of 10 seconds after each 10 seconds of continuous operation.

Ingredients Max. Amount of One Filling	Max. Processing Time Pairs of Blades	Speed
Parsley 30 g 10 seconds 1 or 2 1 or 2
Onions 200 g 10 seconds 2 or 3 1
Shallots 200 g 10 seconds 2 or 3 1
Garlic 150 g 5 seconds 1 or 2 1
Rusks 20 g 2 x 7 seconds 1 or 2 1 or 2
Almonds 100 g 2 x 7 seconds 2 or 3 2
Hazelnuts 100 g 2 x 7 seconds 2 or 3 2
Walnuts 100 g 2 x 7 seconds 2 or 3 2
Gruyere cheese 100 g 2 x 7 seconds 2 or 3 2
Boiled ham 200 g 2 x 7 seconds 1 or 2 2
Veal 200 g 2 x 10 seconds 1 or 2 2
Light pastries 400 ml 2 x 7 seconds 2 or 3 1 or 2
Cooked soup 400 ml 2 x 7 seconds 1 or 2 2
Prunes 130 g 9 seconds 1 or 2 2
Fruits 130 g 9 seconds 2 or 3 2

BEFORE FIRST USE

⚠ WARNING: DO NOT let young children play with the appliance, or any part of it, or the packaging! The blades of the cutting assembly are very sharp. Do not touch the blades. Ensure that your power supply is rated as indicated on the model label of the appliance (see: 'Important Safeguards for Electrical Appliances'). Always unplug the motor unit before cleaning it and when it is not in use. Do not place or immerse the motor unit or power cord in water or other liquids or spill any liquids on the motor unit or power cord. Do not use any abrasive cleaners for cleaning to avoid damage to the surfaces. Do not place the motor unit or power cord in an automatic dishwasher.

1. Unpack the appliance and all accessories carefully.
2. Check that no parts are damaged or missing (see: 'Knowing Your New Design Mini Chopper Plus').
3. Carefully remove all shipping materials, stickers, and promotional materials. However, DO NOT remove the model label.
4. Before first use and after a longer period of storage, clean the glass container, lid and cutting assembly in warm dishwater (see: 'Care and Cleaning'). However, do not touch the blades of the cutting assembly.
5. Wipe the exterior of the motor unit and power cord with a damp cloth, and dry the appliance and all parts thoroughly.

OPERATION

⚠ WARNING—Risk of Injuries: Always ensure that the appliance and all its parts and accessories are out of reach of young children. The appliance is intended for cutting and blending food. For this, the appliance is using sharp blades in high speed rotation. Thus, improper use or misuse may cause severe injuries and damage. Do not touch the coupling of the motor unit or poke with any objects in the coupling, with the appliance connected to the power supply. Always unplug the appliance, before cleaning the appliance, and when the appliance is not in use. Do not leave the motor unit unattended while connected to the power supply.

Check the entire appliance for proper operation before connecting it to the power supply. If liquids or foam escape between motor unit and lid, immediately unplug the appliance (see: 'Solving Problems'). DO NOT use the appliance if the glass container is broken or cracked in any way to avoid severe injuries due to splinters getting into your food. Handle the glass container with care to avoid damage to the glass container. Do not fill hot food into the glass container to avoid damage. Always let your food reach room temperature before processing.

Place the appliance on a firm, flat, stable, and dry surface. Do not place the appliance near the edge of the working space.

To avoid overheating, do not operate the motor continuously for more than 10 seconds. Allow the motor to rest for at least 10 seconds before continuing. If the cutting assembly gets stuck or the motor agitates noticeably slow, stop operation immediately (release the ON/OFF button), and remove the obstacle in the glass container (see: 'Care and Cleaning'). Reduce the amount of food in the glass container.

Ensure not to overfill the glass container to avoid overflow. Observe the given maximum filling levels for various types of food. Divide up your food into appropriate portions.

Do not use any hard or edged objects (e.g. knives, metal scrapers) with the appliance to avoid damage to the surfaces and blades. Always remove inedible and extremely hard parts (e.g. kernels, stalks, shells) before processing to avoid damage to the blades.

Assembling the Appliance and Processing Your Food

1. Prepare your food (see: 'Tips for Best Results'). Remove all inedible parts and cut your food in pieces of sufficient size (approx. 3-4 cm).

2. Place the silicone ring on a stable, level surface near an appropriate wall power outlet. Leave a distance of at least 20 cm to the edge of the table or counter and to any other object. Then place the glass container right onto the middle of the silicone ring. The glass container may not tilt or wobble.

⚠ WARNING: The blades are very sharp. Only touch the pairs of blades and the blade shaft by their plastic parts. Do not touch the blades with unprotected hands to avoid severe injuries!

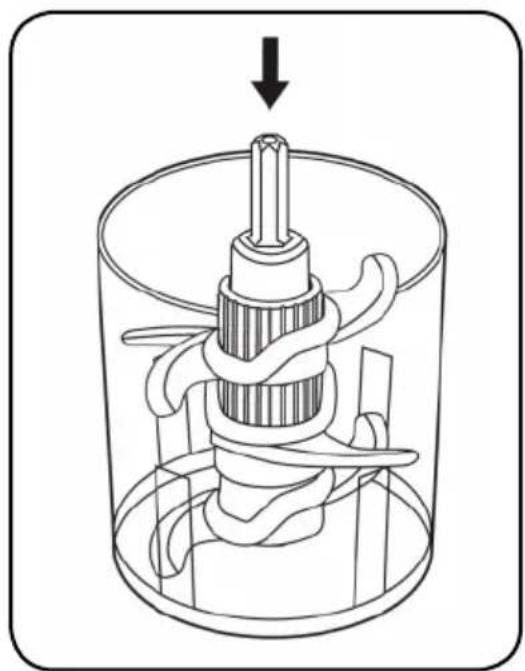

1. Place the blade shaft with the lower pair of blades facing downward onto the fixed shaft in the glass container.

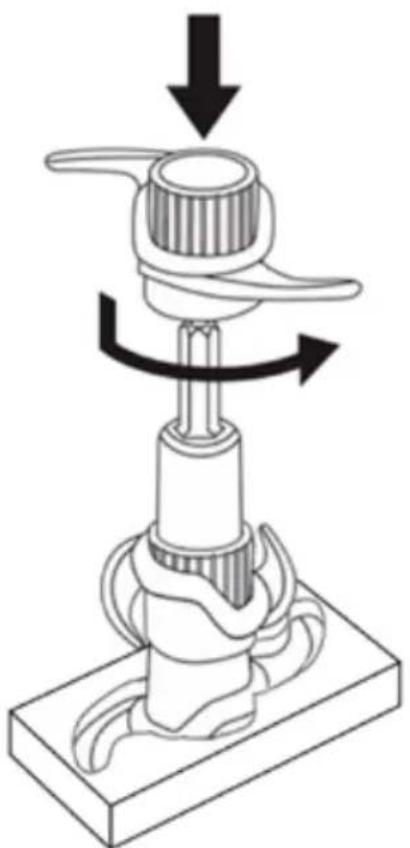

2. According to the type and amount of food and desired consistency, you may install the middle pair of blades and/or upper pair of blades in addition (see: 'Tips for Best Results').

For this grasp the desired pair of blades by the fluted side of the plastic part, and put it onto the blade shaft. If necessary, turn it a little until it slips downward into position. Then, while holding the upper part of the blade shaft, turn the pair of blades counter-clockwise to lock it onto the blade shaft.

Tip: Depending on the desired results, you may use one or both removable pairs of blades in combination with the fixed pair of blades.

1. Fill your prepared food into the glass container, but do not overfill the glass container. Observe the appropriate filling levels: - wet, solid food: MAX filling level (600 ml / 20 oz. / 2 1/2 cups); - liquids: max. 400 ml; - frothing food: max. 200 ml.

2. Ensure that the lid seal of the lid is correctly in place. Then place the lid onto the

glass container. The handles of the lid must fit onto the handles of the glass container.

1. Place the motor unit onto the lid and turn it slightly until it settles down firmly.
   IMPORTANT: The appliance will not turn on unless it has been assembled completely and correctly according to the following instructions.
2. Insert the power plug of the appliance in the wall power outlet.
3. While holding the motor unit slightly down, press the ON/OFF button to switch ON the appliance.

Note:

You can use two speed levels. For using speed 1, only press the ON/OFF button slightly. When pressing down the ON/OFF button firmly, speed 2 is active. For selecting an appropriate speed for the desired results, see: 'Tips for Best Results'.

IMPORTANT: The appliance will process your food within a few seconds. Do not let the motor operate continuously for more than 10 seconds. If required, make intermediate brakes of 10 seconds and/or operate the appliance in pulses.

1. As soon as your food reached the desired consistency, release the ON/OFF button to stop operation. Then unplug the appliance.

⚠ WARNING: After grinding very dry ingredients (e.g. sugar, cereals), always wait at least 1 minute before opening the lid. Always keep away any sources of ignition (e.g. fire, lit cigarettes) to avoid the risk of dust explosion.
11. Take out your food. For this, remove the motor unit and lid. Then grasp the cutting assembly by the upper end of the blade shaft and pull the cutting assembly out of the glass container. Empty the glass container.
12. Thereafter, if required, you may process the next portion of your food. For this, simply replace the cutting assembly in the glass container, and start operation again by beginning with step 3.
13. After each usage, you should rinse glass container and cutting assembly immediately under running tap water to remove coarse residues of food. Then clean the appliance according to the instructions in chapter 'Care and Cleaning'.

SOLVING PROBLEMS

If any problems occur during operation, you will find solutions in this section.

Problem Reason The	Solution
The motor doesn’t start AND/OR the cutting assembly doesn’t rotate.	The appliance is not live. Ensure that	the appliance is connected to a suitable wall power outlet. Ensure that the wall power outlet is live by connecting a lamp.
	The appliance is not assembled correctly. Safety interlocks prevent the motor from starting.	Ensure that the motor unit is engaged correctly on the lid. Turn the motor unit a little to and fro until it settles on the lid.
	The blades are blocked. Immediately	release the ON/OFF button and unplug the appliance. Then remove the obstacle (see: ‘Care and Cleaning’). Remove all hard parts of your food before processing. Only process food suited to the Design Mini Chopper Plus.
	There is too much food in the glass container.	Immediately release the ON/OFF button. Remove some food from the glass container. Avoid overfilling the appliance (see: ‘Tips for Best Results’).
	There is a severe problem. Immediately	release the ON/OFF button and unplug the appliance. Call your customer service for support. See: ‘Information and Service’.
The motor agitates with unusual noises or gets hot AND/OR the cutting assembly is rotating too slowly.	The motor has been operating continuously for too long.	Immediately release the ON/OFF button to switch off the motor. Ensure to let the motor operate continuously for no more than 10 seconds. Make a break of at least 15 minutes.
	The food in the glass container is too hard or too tough, OR There is too much food in the glass container.	Immediately release the ON/OFF button and unplug the appliance. Remove some food from the glass container. Process your food in smaller portions. Make a break of at least 15 minutes.
Liquid or foam is escaping from under the motor unit.	Too much food in the glass container.	Immediately release the ON/OFF button and unplug the appliance. Observe the maximum filling amounts (liquids: 400 ml; frothing food: 200 ml). Clean the motor unit and leave the motor unit dry for at least 1 day (see: ‘Care and Cleaning’).
Liquid is running out between the lid and glass container.	Too much food in the glass container.	Take some food out of the glass container. When processing liquids or very runny ingredients, the maximum amount is 400 ml.
	The lid seal is missing or not installed correctly.	Ensure to install the lid seal correctly at the brim of the lid.
	The lid seal or lid is damaged. Replace the lid seal or lid. Call the Gastroback Service Center or your vendor.

CARE AND CLEANING

⚠ WARNING: Always unplug the appliance, before cleaning. The blades of the cutting assembly are very sharp! Always handle the cutting assembly with special caution to avoid injuries and damage. Do not touch the blades with your fingers. Ensure that no one will touch the blades unintentionally. Do not hold your hands or any foreign objects into the coupling of the motor unit with the appliance still connected to the power supply. Always ensure that all parts of the appliance are out of reach of young children.

Do not use abrasive cleaning agents or aggressive liquids (e.g. bleach, solving agents) for cleaning the appliance or any part of it, to avoid damage to the surfaces. Do not use any hard or sharp-edged objects for cleaning (e.g. scoring pads, knives, scrapers). Do not place or immerse the motor unit or the power cord in water or any other liquid. Do not spill or drip any liquids on or in the motor unit or power cord to avoid risk of fire and electric shock.

DO NOT clean the motor unit or power cord in an automatic dishwasher! Do not use violence.

Glass container, lid, cutting assembly including the removable pairs of blades, lid seal, and the non-slip silicone ring may be cleaned in an automatic dishwasher. If possible, place these parts onto the top rack for cleaning. Ensure that the glass container will not knock against other utensils during the cleaning cycle to avoid damage.

In general, you should avoid leaving any food dry on the parts of the appliance after processing.

Disassembling the Appliance

1. Always unplug the appliance after processing your food and before cleaning.
2. Remove the motor unit and lid.
3. You may remove the lid seal from the lid for cleaning. For this, carefully pull the lid seal out of its groove.

⚠ WARNING—Risk of Injuries! Do not touch the blades of the cutting assembly with your fingers to avoid injuries. For disassembling the cutting assembly, always use the dedicated disassembling tool. Strictly observe the following instructions.

1. Grasp the upper plastic end of the blade shaft and pull the cutting assembly out of the glass container, ensuring not to touch the blades with your hands. To remove coarse residues of food, shortly rinse the cutting assembly under running tap water.

2. If you had used the middle and/or upper pair of blades, you may remove these pairs of blades for cleaning. Only the lower pair of blades is integrated in the blade shaft. However, use special care, when handling any part of the cutting assembly as the blades are very sharp. Place the disassembling tool onto a stable surface (table or counter). Insert the cutting assembly with the lower pair of blades into the well of the disassembling tool. Hold the blade shaft tightly at the upper plastic end. Then grasp the removable pair of blades at the fluted part of its plastic body and turn it clockwise to unlock it. Pull the pair of blades upwards to remove it from the cutting assembly. If required, repeat this procedure for the other removable pair of blades.

Cleaning the Motor Base

1. Wipe the motor unit and power cord with a slightly damp cloth. Then wipe dry. Thereafter, leave the motor unit and power cord dry naturally for approx. 30 minutes, where they are out of reach of young children.

Cleaning the Glass Container, Cutting Assembly, and Lid

⚠ WARNING: Pay special attention when cleaning the cutting assembly as the blades are very sharp and may cause severe injury. Do not touch the blades with your hands.

TIP: Dried-on residues on glass container, cutting assembly or lid are easily removed after soaking the affected parts in lukewarm dishwater for 10 minutes before cleaning.

TIP: You may clean glass container, cutting assembly, lid, lid seal and silicone ring in an automatic dishwasher. If possible, use the upper rack.

1. Clean the glass container, non-slip silicone ring, lid, and lid seal in warm dish-water using a soft nylon brush or dishcloth.

2. Hold the blade shaft and pairs of blades only by the plastic parts ensuring not to touch the blades with your hands. Clean the parts of the cutting assembly via a soft nylon brush.

3. After cleaning, rinse all parts thoroughly with clear tap water.

4. Dry all parts and leave the parts dry naturally for at least half an hour where

they are out of reach of young children.

Note:

It is good advice to assemble the appliance after cleaning (see: 'Assembling the Appliance'). This way you avoid injuries due to the blades of the cutting assembly, and the parts cannot get lost.

STORAGE

⚠ WARNING: Young children must be supervised that they do not play with the appliance or any part of it. Always unplug the appliance, when the appliance is not in use, and before cleaning or moving the appliance. Do not leave the appliance unattended while connected to the power supply to avoid hazards due to electric shock, moving parts, or fire. The blades are very sharp. Always ensure that nobody will touch the blades unintentionally.

CAUTION: To avoid damage, do not grasp the appliance at the motor unit, lid or power cord for moving the appliance. Otherwise, parts of the appliance could fall and get damaged. Always handle the power cord with care. Power cords may never be knotted, twisted, pulled, strained, or squeezed.

1. Always clean the appliance and all its parts before storing to avoid accumulation of dried-on food (see: 'Care and Cleaning').
2. For storage, place the cutting assembly into the glass container and close the glass container with the lid (see: 'Assembling the Appliance'). This way, you avoid that anyone will touch the blades unintentionally.
3. Place the appliance where it is clean, dry and safe from frost, direct sunlight and inadmissible strain (mechanical or electric shock, heat, moisture) and where it can not fall. Always keep the appliance out of reach of young children. Do not place any hard or heavy objects on or in the appliance or any part of it. Do not use any parts or accessories of the appliance for any other appliance or any other purpose than described in this booklet.
4. When storing the appliance for a longer period of time: to avoid the build-up of unpleasant odours within the glass container you should place the motor unit beside the glass container. Lay the power cord loosely around the motor unit.

NOTES FOR DISPOSAL

Dispose of the appliance and packaging must be effected in accordance with the corresponding local regulations and requirements for electrical appliances and packaging. Please contact your local disposal company. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills, dumps, or refuse incineration, hazardous substances can leak into the groundwater or can be emitted into air, thus getting into the food chain, and damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

INFORMATION AND SERVICE

Please check www.gastroback.de for further information. For technical support, please contact Gastroback Customer Care Center by phone: [phone] or e-mail [e-mail].

WARRANTY

We guarantee that all our products are free of defects at the time of purchase. Any demonstrable manufacturing or material defects will be to the exclusion of any further claim and within 2 years after purchasing the appliance free of charge repaired or substituted. There is no Warranty claim of the purchaser if the damage or defect of the appliance is caused by inappropriate treatment, over loading or installation mistakes. The Warranty claim expires if there is any technical interference of a third party without a written agreement. The purchaser has to present the sales slip in assertion-of-claim and has to bear all charges of costs and risk of the transport.

The appliance is intended for household and occasional commercial use. Do not attempt to use this appliance in any other way or for any other purpose than the intended use, described in these instructions. Any other use is regarded as unintended use or misuse, and can cause severe injuries or damage. There is no warranty claim of the purchaser if any injuries or damages are caused by unintended use.

The warranty period will be reduced to 1 year, if the appliance is used commercially.

Note:

Customers from Germany and Austria: For repair and service, please send Gastroback products to the following address: Gastroback GmbH, Gewerbestr. 20, D-21279 Hollenstedt, Germany.

Customers from other countries: Please contact your dealer.

Please agree that we cannot bear the charge of receipt. Submission of appliances: Please ensure packing the appliance ready for shipment without accessories. Add the sales slip and a short fault description. The processing time after receipt of the defective appliance will be approx. 2 weeks; we will inform you automatically. After the warranty period, please send defective appliances to the given address. You will get a free quotation and, thereafter, can decide, whether we shall repair the appliance to the costs possibly accrued, send back the defective appliance for free of charge, or dispose of the appliance for free of charge.

GASTROBACK GmbH
