USER MANUAL SRN-873S SAMSUNG

©2015 Samsung Techwin Co., Ltd. All rights reserved.

Trademark

SAMSUNG SRN-873S - Trademark - 1

SAMSUNG TECHWIN is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

◆ Design and specifications are subject to change without prior notice.

The initial administrator ID is "admin" and the password should be set when logging in for the first time.

Set password for your wireless network if you use the product with a wireless router. Being not protected with password or using the default wireless router password may expose your video data to potential threat.

Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.

Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit.

Follow all the safety instructions listed below.

Keep these operating instructions handy for future reference.

1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Symbolic icon of a person climbing a ladder inside a circle with no text or symbols.

Standards Approvals

SAMSUNG SRN-873S - Standards Approvals - 1

SAMSUNG SRN-873S - Standards Approvals - 2

SAMSUNG SRN-873S - Standards Approvals - 3

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

BEFORE START

This manual provides operational information necessary for using the product and contains a description about each component part and its function as well as menu or network settings.

You have to keep in mind the following notices:

• SAMSUNG retains the copyright on this manual. - This manual cannot be copied without SAMSUNG's prior written approval. - We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual. - Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be removed from the unit. - Before adding a hard disk drive or external storage (USB memory, USB HDD, etc), check if it is compliant with this product. For the compatibility list, contact the retailer.

Warning

Battery

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an explosion.

The following are the specifications of the battery you are using now.

  • Normal voltage: 3V • Normal capacity: 65mAh • Continuous standard load: 0.2mA

- Operating temperature: -20°C to +60°C

(-4°F to +140°F)

• A secondary battery (Rechargeable)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA. "Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate."

Caution

  • Connect the power cord into a grounded outlet.
  • The Mains plug is used as a disconnect device and shall stay readily operable at any time.
  • Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
  • Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.

System Shutdown

Turning off the power while the product is in operation, or undertaking improper actions may cause damage or malfunction to the hard drive or the product.

To safely turn off the power, check in the system termination pop up window and then remove the power chord.

You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

SAMSUNG SRN-873S - System Shutdown - 1

If powered off abnormally, restarting may take more time for restoring data from hard disk drive for proper operation.

Operating Temperature

The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F).

This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one.

Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period.

Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F).

Likewise, the hard drive may not work at a temperature below the guaranteed one.

Ethernet Port

This equipment is for indoor use, and all communication wiring is limited to inside the building.

Security Precautions

The initial administrator ID is "admin", and the password should be set when logging in for the first time. Set a password for your wireless network if you use the product with a wireless router. Being not protected with a password or using the default wireless router password may expose your video data to potential threat. Please change your password every three months to safely protect personal information and to prevent damage from information theft.

Please note that it is the user's responsibility for the security and any other problems caused by mismanaging a password.

Contents

Overview

3

3 Important Safety Instructions

4 Before Start

6 Contents

8 Features

12 Part Names and Functions (Front)

13 Part Names and Functions (Rear)

15 Remote Control

INSTALLATION

17

17 Checking the Installation Environment

18 Rack Installation

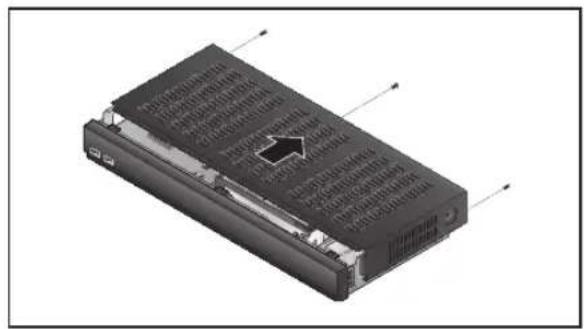

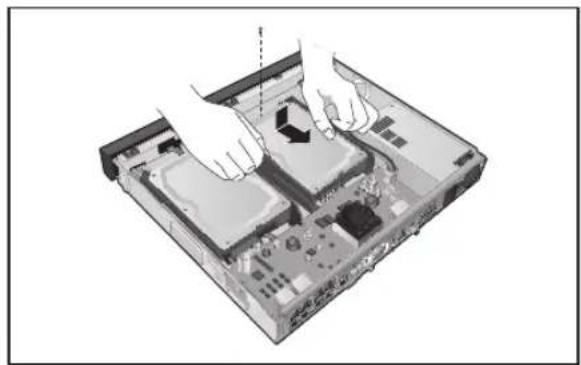

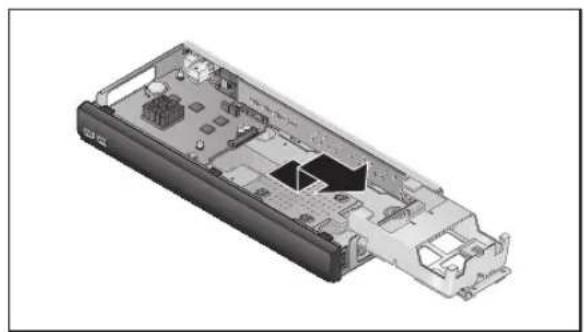

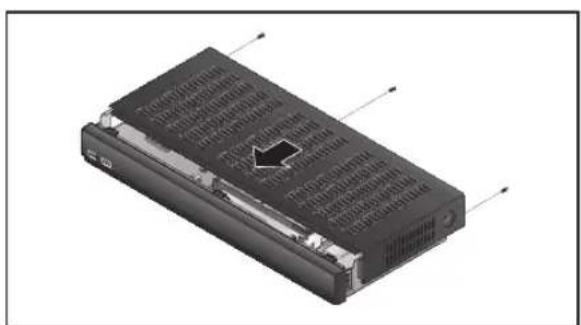

19 HDD Addition

Connecting with Other Device

26

26 Connecting to an External Device

27 Connecting the USB

28 Connecting the Alarm Input/Output

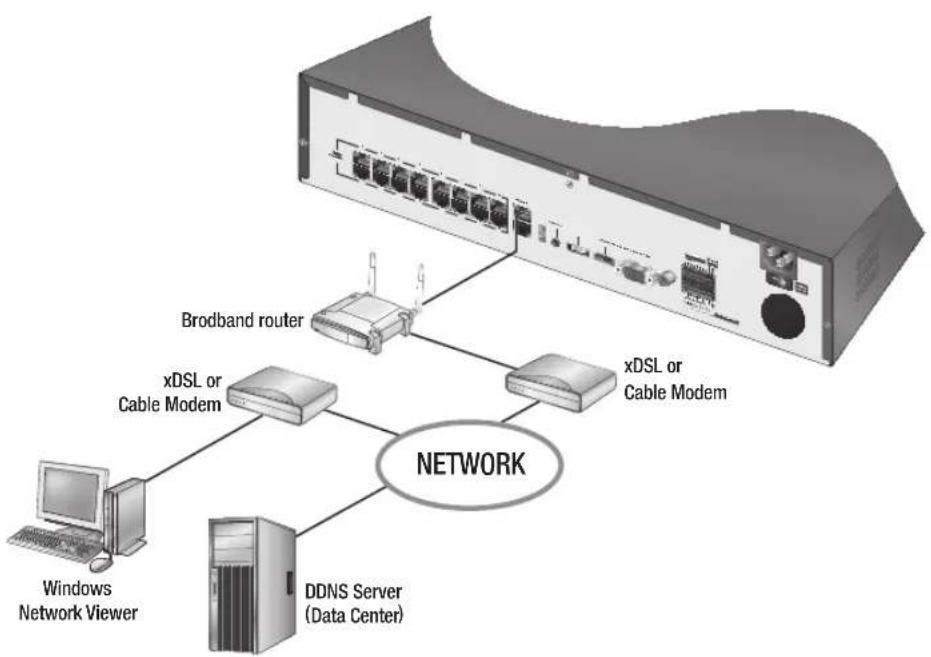

31 Connecting the Network

Live

34

34 Getting Started

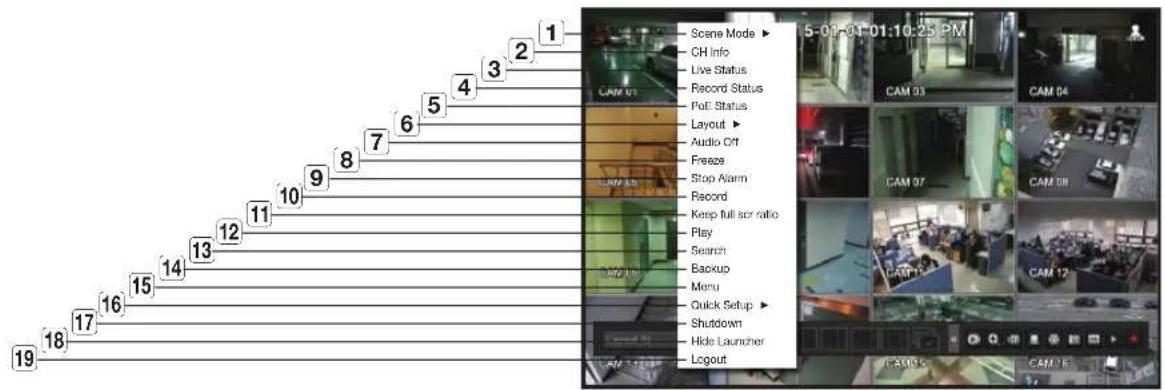

38 Live Screen Configuration

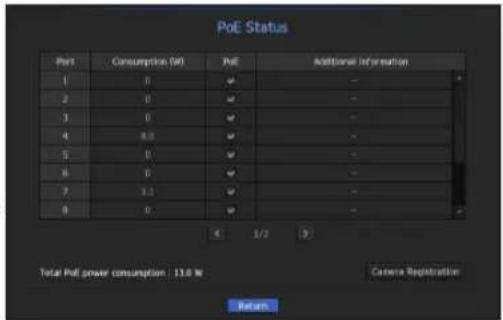

45 Live Screen Mode

49 Zoom

50 PoE Status

51 Layout

52 Audio ON/OFF

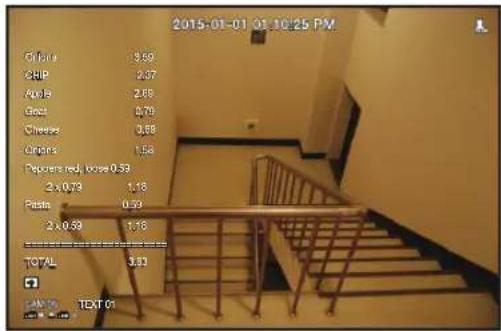

52 Freeze

53 Event Monitoring

54 Maintain the Screen Ratio

55 Display Text

56 PTZ Control

59

59 System Setup

70 Setting the Device

89 Setting the Recording

93 Setting the Event

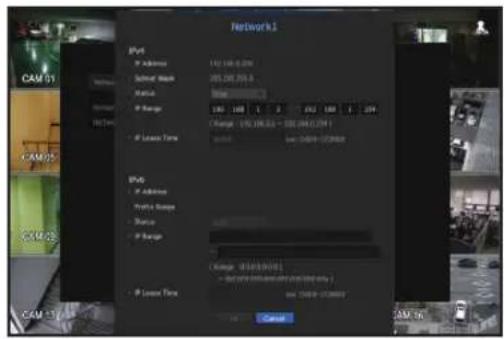

97 Network Configuration

Search & Play

109

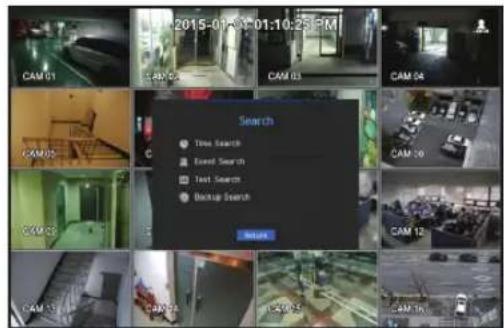

109 Search

113 Playback

Starting Web Viewer

115

115 What is Web Viewer?

116 Connecting Web Viewer

Live Viewer

118

118 Live Viewer

120 Live Screen Configuration

126 Controlling a Connected Network Camera

Search Viewer

128

128 Search Viewer

Setup Viewer

133

133 Setup Viewer

Backup Viewer

151

151 SEC Backup Viewer

Appendix

153

153 Product Specification

159 Product Overview

162 Default Setting

166 Troubleshooting

170 Open Source License Report on the Product

Features

The product records video and audio from network cameras to a hard disk, and enables playback from the hard disk. It also provides remote monitoring environment for video and audio over the network using a remote computer.

- User-friendly UI

• VGA, 4CIF, record in a max of 4096x2160 (8M pixel) supported

• Record and play video

• Record and play audio

• Supports ONVIF Profile S standard and RTP / RTSP protocols

• Full HD video output via HDMI

• Display the HDD operation status by HDD SMART

• HDD overwrite enabled

• Backup using USB 2.0 protocols and external HDD

• Simultaneous playback of 4, 8, or 16 channels

- Various Search Modes (Search by Time, Event, Text, Backup)

• Various Recording Modes (Normal, Event, Scheduled Recording)

- Alarm Input / Output

• Remote Monitoring function by Windows Network Viewer

• Live monitoring of the network camera

• Installation Wizard Function (Quick Setup)

Package Contents

Please unwrap the product, and place the product on a flat place or in the place to be installed. Please check the following contents are included in addition to the main unit.

SRN-473S

SAMSUNG SRN-873S - SRN-473S - 1

SAMSUNG SRN-873S - SRN-473S - 2

■ Two additional screws are provided to install an HDD for models that come without an HDD installed.

SRN-873SNVR Mouse, Power Cable, User Manual or Quick Manual, Bracket rack, Bracket mounting screws, Terminal block.

SRN-1673SNVR Mouse, Power Cable, Network Viewer Software / User Manual CD, Remote Control / Remote Control Battery (AAA), User Manual or Quick Manual, Bracket rack, Bracket mounting screws, Terminal block.

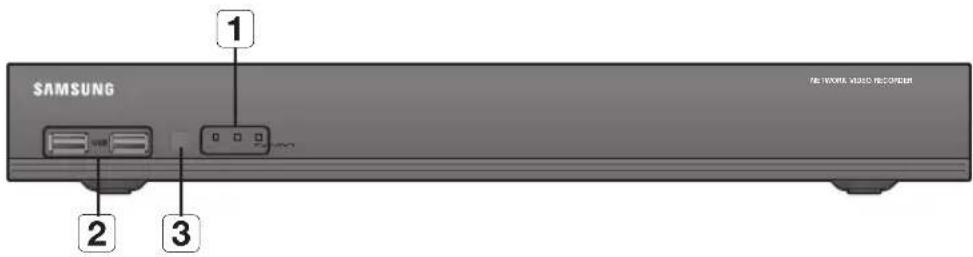

Part Names and Functions (Front)

SRN-473S

SAMSUNG 1 2 3 NETWORK VIDEO RECOPPER

SRN-873S

SAMSUNG DV25 RED HDD ALARM NETWORK BACKUP POWER 1 3 2

SRN-1673S

SAMSUNG REC 100 LUMI KONOS GROUP PUSH NETWORK INDEX REORDER USB 1 2

Part Names Functions
1LED IndicatorREC: Lights on when recording is in progress.
HDD: Displays the normal access to HDD.LED turns on when accessing the hard disk.
ALARM: Lights on when an event occurs.
NETWORK: Displays both network connection and data transfer status.
BACKUP: Displays when Backup is in progress.
POWER: Shows the power ON/OFF status.
2USBConnects the USB devices.
3Remote Reception SystemReceive the signal from the remote control.

SRN-473S

1 2 8 7 6 USB OUT USB OUT USB OUT 5 4 3

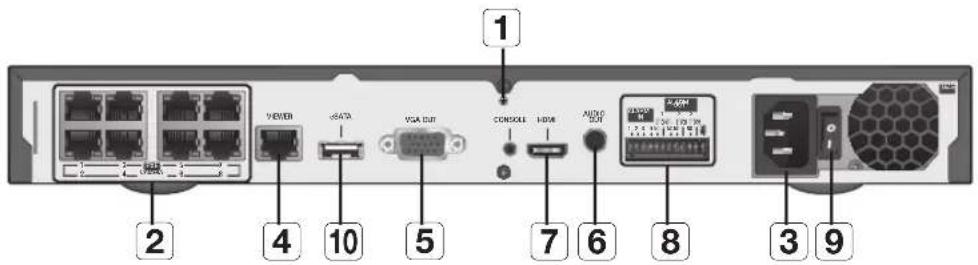

SRN-873S

1 2 3 4 5 6 7 8 9 10 NEVER eDATA VGA DUT CONSOLE HDA AUDIO AVOC 1 2 3 4 5 6 7 8 9

SRN-1673S

1 2 4 11 10 7 5 6 8 3 9

Part Names Functions
1Ground connectionA terminal to connect a separate ground cable.■ Make sure to add a ground cable in order to use the equipment safely.
2PoE (CAMERA)Power supply port to connect to a camera.
3PowerTerminal to connect power to.
4VIEWERPort used to send video to the web viewer.
SWITCHPort connected to a camera, and you can access the camera's web viewer to setup detailed camera settings.
5VGA OUTVGA Video Signal Output Port.
6AUDIO OUTAudio Signal Output Port (RCA jack).
7HDMIHDMI connector port.
8ALARM- ALARM IN : Alarm input ports.SRN-473S : 1~2 CHSRN-873S : 1~4 CHSRN-1673S : 1~8 CH- ALARM OUT : Alarm output ports.SRN-473S : 1CHSRN-873S : 1~3 CHSRN-1673S : 1~4 CH- ALARM RESET : Alarm Reset port.■ Applicable only to the SRN-1673S model.
9Power SwitchPower on/off switch.
10eSATAPorts used for external storage device connections.
11USBConnects the USB devices.

SAMSUNG SRN-873S - Part Names and Functions (Front) - 7

■ [CONSOLE] is designed for service repair purposes only.

POWER: Displays the Exit pop up screen. NUMBER [0~+10]: Used as the numeric input keys, or displays a single channel. PTZ: Displays or ends PTZ. T/W: Zooms in or out. SEARCH: Displays the search menu. MODE: Changes the screen mode. MENU: Display the live screen menu. PRESET: Displays the Preset Setu…

Using the Numeric Buttons

CHANNEL 1–9 Press each button between 1 to 9.
CHANNEL 10Press the [+10] button first, then press the 0 button again within 3 seconds.
CHANNEL 11–16Press the [+10] button first, then press any number between 1 to 6 within 3 seconds.

Changing the Remote Control ID

The remote control's ID and the NVR's ID should match for proper operation.

  1. Press the [ID] button on the remote control and check the ID displayed on the NVR screen. The factory default ID of the remote control is 00.
  2. Enter the 2 digits of your selection in order while pressing the [ID] button on the remote control.
  3. When ID input is complete, press the [ID] button on the remote control again to check the setting.

SAMSUNG SRN-873S - Changing the Remote Control ID - 1

To change the remote control ID to 08: Press 0 and 8 in order while the [ID] button on the remote control is pressed.

For changing the ID of a remote device, refer to "Remote Devices" (page 85).

Please take note of the following before using this product.

  • Do not use the product outdoors.
  • Do not spill water or liquid on the connection part of the product.
  • Do not subject the system to excessive shock or force.
  • Do not pull out the power plug forcefully.
  • Do not disassemble the product on your own.
  • Do not exceed the rated input/output range. • Use a certified power cord only.
  • For the product with an input ground, use a grounded power plug.

Checking the installation environment

This product is a top-notch security device that is equipped with a high-capacity HDD and other key circuit boards.

Note that an excessive internal temperature of the product may cause a system failure or a shortened product life (see the right figure). Keep in mind the following instructions before installing the product.

Temperature Unit: °C| Life (Unit: HOURS) | Value | |---|---| | 2,000 | 105 | | 5,000 | 90 | | 10,000 | 80 | | 20,000 | 70 | | 50,000 | 60 | | 100,000 | 50 | | 200,000 | 30 | One Year: 24HR X 365 DAY = 8,760 HR

[Figure 1]

When mounting the product on a rack, comply with the following instructions.

  1. Please ensure that the rack inside is not sealed.
  2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.
  3. If you pile up the products or other rack-mount devices as shown in figure 2, secure room for ventilation or install a vent.
  4. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.
  5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)
  6. Please maintain the temperature inside the rack or surrounding areas between 0°C ~ 40°C (32°F ~ 104°F) as shown in Figure 1.

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions:

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

Illustration of a server rack with heat exchangers and ventilation fans (no text or symbols).

[Figure 2]SAMSUNG SRN-873S - Checking the installation environment - 3

B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised. C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading. D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern. E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

RACK INSTALLATION

Install the Bracket-Rack as shown in the figure, and then fasten the screws on both sides (2 screws on each side).

- Fix the screws not to be loosened by vibrations.

3D rendering of a black rectangular electronic device with mounting brackets and connectors (no visible text or symbols).

Cautions when Installing in the Rack

To install multiple NVRs in the rack, make sure to separate the FOOT at the bottom of each NVR.

  1. There are four FOOTs at the bottom of a NVR. Press the projected parts at both-ends of each "FOOT" and turn it counterclockwise.

3D diagram of a cylindrical mechanical component with two directional arrows indicating flow or movement (no text or symbols).

  1. "FOOT" is separated from the main body when it is turned to the end of fastening groove.

SAMSUNG SRN-873S - Cautions when Installing in the Rack - 2

Make sure to unplug the power cord from the wall outlet to prevent possible electric shock, injury or product damage. Please consult your provider for further information on HDD installation since improper installation or settings may damage the product.

■ Number of HDDs supported : SRN-473S : max 1

SRN-873S : max 2

SRN-1673S: max 4 can be added.

■ Make sure to unplug the power cord from the wall outlet before proceeding with the installation.

■ Cautions for data loss (HDD care)

Please pay attention so that the data inside the HDD is not damaged.

Before adding a HDD, please check the compatibility with this product.

HDD is vulnerable to malfunction due to its sensitive nature especially against shock when operating.

Please ensure that the HDD is free from such shock.

We are not liable for any damage to the HDD incurred by user's carelessness or miss use.

■ Cases might cause damage to HDD or recorded data

To minimize the risk of data loss from a damaged HDD, please backup data as often as possible.

If exposed to shock when disassembling or installing, data stored in the hard disk may be damaged.

A sudden power failure or turning off the product while in HDD operation may damage the hard disk drive.

HDD or files stored inside may be damaged if the main body is moved or impacted during the HDD operation.

Cautions when installing a HDD

  1. Do not apply excessive force to the HDD.
  2. Pay attention so as not to lose the disassembly screws or accessories.

If the screws or accessories are not put together correctly, the product may break down or not operate properly.

  1. Please check the HDD compatibility before adding a HDD.

- Please contact your nearest dealer to obtain the list of compatible devices.

Installing the HDD

SAMSUNG SRN-873S - Installing the HDD - 1

If the installed HDD had been used with other devices, it will be automatically formatted.

How to install an HDD in SRN-473S

  1. After unscrewing, push back and remove the cover.

3D rendering of a black rectangular electronic device with ventilation grilles and an arrow pointing to a component (no text or symbols visible).

  1. Loosen a setscrew of the bracket.

Isometric view of a device chassis with internal components and an upward arrow indicating orientation (no text or symbols).

  1. Push the bracket in the direction of the arrow on the board and remove it.

Exploded view diagram of a computer chassis showing internal components and casing.

  1. After inserting the HDD into the bracket, tighten the left and right screws to fix it.

Exploded view diagram of an electronic device showing internal components and casing.

  1. Locate the bracket with the HDD installed in a groove of the case, push it in the arrow direction and connect a power data port on the board.

3D rendering of an open Raspberry Pi with visible internal circuitry and components.

  1. Tighten a setscrew of the bracket.

Isometric view of a device chassis with internal components and an arrow indicating direction.

  1. Close the cover, and tighten a setscrew in the back.

3D rendering of a black electronic device with ventilation slots and an arrow indicating a component.

How to install an HDD in SRN-873S

  1. First, loosen the screws on the left, right, and back of the case, and remove the cover.

3D rendering of a black electronic device with an arrow pointing to its top panel.

  1. Loosen a screw from the HDD bracket and remove the bracket.

While applying pressure to both side end grips of the bracket, pull them forward to remove the HDD bracket from the main body.

Illustration of hands operating a computer motherboard with a highlighted component.

  1. After aligning and inserting one side of the HDD into the bracket, open the other side bracket wide and insert the HDD between them.

Align a hole in the bracket with a screw hole in the HDD to fix them.

Illustration of hands installing or adjusting a device component.

  1. Push the bracket with the HDD installed and tighten the screws to fix it.

Illustration of hands operating a computer motherboard with two monitors and a keyboard.

  1. Close the cover and tighten the screws to fix it.

3D rendering of a black electronic device with an arrow indicating a directional change or movement.

How to install an HDD in SRN-1673S

• How to open the front cover and install an HDD

  1. Pull open the front cover.

Illustration of a black rectangular electronic device with a hand touching its side, showing internal components and wiring.

  1. Open the front cover and check the HDD installation bracket.

SAMSUNG SRN-873S - How to install an HDD in SRN-1673S - 2

Release the USB connection before opening the front cover to prevent damage to the USB port.

3D rendering of a rectangular electronic device with mounting brackets and internal compartments.

  1. Push the latch to the right and remove the HDD bracket.

SAMSUNG SRN-873S - How to install an HDD in SRN-1673S - 4

Take care not to scratch your hands when removing the HDD bracket.

3D rendering of a rectangular electronic device with internal components and a hand interacting with it.

  1. Align and insert the HDD into the bracket home. After inserting one side, push and insert the other side slightly.

3D technical illustration of a mechanical housing assembly with mounting brackets.

  1. Align the bracket with the HDD installed with the enclosure latch, and push the bracket in the direction of the board.

SAMSUNG SRN-873S - How to install an HDD in SRN-1673S - 7

Push it until you hear the latch lock sound. If the HDD is not completely connected, it may not be detected.

3D rendering of a rectangular electronic device with internal components and a handle.

  1. Push the front cover upwards and close it.

3D rendering of a rectangular electronic device with internal components and mounting base (no text or symbols visible)

How to exchange an installed HDD

  1. Open a bracket wide in the direction of the arrow and remove the holder from the HDD.
  2. Open the other bracket wide and remove it from the holder.

SAMSUNG SRN-873S - How to exchange an installed HDD - 1

The procedure after HDD exchange is the same as the procedure for "Installing the HDD".

3D rendering of a computer hard drive housing with mounting holes and mounting points (no text or symbols)

Connecting with other device

Connecting to an external device

SAMSUNG SRN-873S - Connecting to an external device - 1

The following figures are based on Model SRN-1673S.

HDMI OUT VIDEO OUT (VGA) AUDIO OUT

SAMSUNG SRN-873S - Connecting to an external device - 3

Unrated or improper power source may cause damage to the system. Ensure that you use only the rated power source before pressing the POWER button.

CONNECTING THE USB

  1. On the front of the product, there is a USB port.
  2. USB HDD, memory, or a mouse can be connected to USB ports.
  3. If a USB HDD is connected to the system, recognition and settings are available in "Setup > Device > Storage Device". (Page 83)
  4. The product supports hot plugging function that enables connecting/disconnecting USB devices while in operating the system.

SAMSUNG SRN-873S - CONNECTING THE USB - 1

If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the NVR.

■ Some USB devices may fail to function properly due to compatibility issue, please check the device before using.

- Only USB storage devices that comply with the standards (having a metal cover) are guaranteed for data transfer. In case if the USB device's electric contacts have been worn out, data transfer between the devices may not properly function.

Illustration of a USB connector with metallic port and black buttons (no text or symbols)

3D illustration of a mechanical component with internal cavities (no text or symbols)

Connecting with other device

Connecting the Alarm Input/Output

The Alarm In/Out port at the back is composed of the following.

SRN-473S

Sensors Alarm

• ALARM IN 1 ~ 2 : Alarm Input Port • ALARM OUT 1 : Alarm Output Port

ALARM IN (5mA sink) N.OCN.C12G 1 ALARM OUT (30VDC 2A, 125VAC 0.5A MAX)

SRN-873S

Sensors Alarm

• ALARM IN 1 ~ 4 : Alarm Input Port • ALARM OUT 1 ~ 3 : Alarm Output Port

Pure electrical circuit lines without any symbols

ALARM IN (5mA sink)

N.OCN.CN OCN.OCG1234G 1 2 3

ALARM OUT (30VDC 2A, 125VAC 0.5A MAX)

Connecting with other device

SRN-1673S

Sensors Alarm

• ALARM IN 1~8: Alarm Input Port - ALARM RESET: On receiving an Alarm Reset signal, the system cancels the current Alarm Input and resumes sensing. • ALARM OUT 1~4: Alarm Output Port

1 2 3 4 5 6 7 8 A.R G N.O C N.C N.O C N.O C N.O C G

ALARM IN (5mA sink) ALARM OUT (30VDC 2A, 125VAC 0.5A MAX)

SAMSUNG SRN-873S - Connecting with other device - 3

- For more information about network connection, refer to "Network Configuration" (Page 97). - The following figures are based on Model SRN-1673S.

Network connection via Ethernet (10/100/1000BaseT)Switch Windows Network Viewer

Network connection via router

Connecting with other device

Connecting to Internet through PPPoEgraph TD A["Windows Network Viewer"] -->|Switch| B["PPPoE MODEM"] B -->|Phone(PPPoE) Line| C["Network Camera"] B -->|Switch| D["Network Camera"]

Connecting the network camera

PnP modeex) IP: 192.168.231.100 Network Camera ex) IP: 192.168.231.10

Manual mode

GETTING STARTED

Starting the system

  1. Connect the power cable of the NVR to the wall outlet.

SAMSUNG

  1. You will see the initialization screen. The initialization process will last about 2 minutes. If a new HDD is installed, the initialization process may take longer.

SAMSUNG

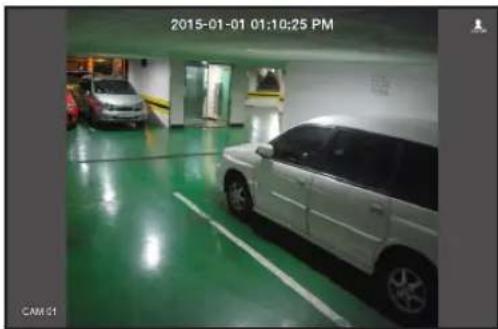

  1. The live screen appears with a beep.

2015-01-01 01:10:25 CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM 09 CAM 10 CAM 11 CAM 12 CAM 13 CAM 14 CAM 15 CAM 16

As shown below, proceed through each step of the setup.

  1. In the screen, select the language and press the button.
  2. In the screen, set the password and press the button.

SAMSUNG SRN-873S - Starting the system - 4

If you click < ☐ >, a basic guide for password setup is displayed.

  1. In the screen, set the network access method and the access environment. To use a simple intranet, click the button.

Install Wizard 1. (Language) 2. (ID/PW) 3. (Network) 4. (Date/Time) Select a language to use. English Français Deutsch Español Italiano 中文 Pyromail 한국어 polaki 이름 Modernis Portuguese Türkçe Cettica Dansk Everska Dan Arensk

• Network 1 (Camera) : Connects to the camera and receives the video feed from the camera - Network 2 (Viewer) : This is a port for transmitting an image to the webviewer. • Network 1 / Network 2 Setup

- IP Type : Choose the network connection method.

- IP Address, Subnet Mask, Gateway, DNS

SAMSUNG SRN-873S - Starting the system - 6

If the LAN cable is not connected to the port, the setting button will not be activated for use. Check the LAN cable connection. The built-in DHCP Server in NVR will turn on automatically at stage 3. At this stage, using the existing DHCP server in the same network may cause a problem, as two DHCP servers would be simultaneously operating. ■ For more details on network settings, refer to the user manual.

  1. After setting the date/time settings in the screen, click on the button to launch the setting completion window.
  2. In the setting completion window, click on the button to finish camera setting and launch the camera registration screen.

Install Wizard 1. (Language) 2. (ID/PW) 3. (Network) 4. (Date/Time) Set the time information. Finish Will you finish Install Wizard? Cannot return to Install Wizard again. OK Cancel Play Finish

  1. If there are 16 or fewer cameras searched, it will be automatically registered and the camera information (fps, days of recording) will be displayed.

- If there are 16 or fewer cameras searched

Camera Register The status of every camera is 0.5, but the person has been replaced in a device, other than all being done. Please check your device to get the right.

  1. The searched camera will be automatically registered and the initial recording value will be displayed.

Record Profile Setup Show accurately adjusted scaling to the hardware Load 100 400 800 200 500 400 800 200 500 Display scaling rate: 16.0

  1. In the camera registration window, click the button to modify the recording settings that were automatically set.

- If there are more than 16 cameras searched

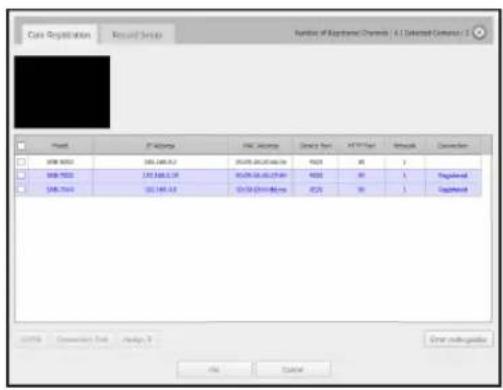

Camera Register After selecting a camera frame for reg and button. R: 16 Current selected Refresh SET: SET01 SET: SET02 SET: SET03 SET: SET04 SET: SET05 SET: SET06 SET: SET07 SET: SET08 SET: SET09 SET: SET10 SET: SET11 SET: SET12 SET: SET13 SET: SET14 SET: SET15 SET: SET16 SET: SET17 SET: SET18 SET:…

Select a camera to register and click the button. Once camera registration is finished, proceed with the same steps as after auto registration.

Shutting Down the System

  1. Press the [POWER] button on your remote controller or select it in the live screen menu.
  2. The "Shutdown" confirmation pop-up window will appear.
  3. Using the directional button on your remote control, select and press the [ENTER] button or click on it. The system will shut down.

SAMSUNG SRN-873S - Shutting Down the System - 1

  • Only the user with the "shutdown" permission can shut down the system. For permission management, refer to "User > Setting Permissions" (Page 63).

SAMSUNG SRN-873S - Shutting Down the System - 2

If you want to use the NVR menu, you need to log in as a user with the privileges to access it.

  1. In the live mode screen, right-click the mouse button or press the [MENU] button on your remote control. You will see the context menu on the screen as shown.

2015-01-04 01:10:3 CAM ST CAM DS CAM DS CAM DS CAM DS Scene Mode ▶ Ch Info Live Stush Audio Off Freeze Stop Arm Record Keep All or Inf Play Search Backup Menu Quick Setup ▶ Shutdown Hide Launcher Login

  1. Select it.

The login dialog appears.

SAMSUNG SRN-873S - Shutting Down the System - 4

Even if you press the menu button that requires a login with the remote control, the login screen will appear. - The first administrator ID is "admin" and the password must be set in the Installation Wizard. - Set a password for your wireless network if you use the product with a wireless router. Being not protected with a password or using the default wireless router password may expose your video data to potential risks. Please change your password every three months to safely protect personal information and to prevent the damage of information theft. Please note that it is the user's responsibility for the security and any other problems caused by mismanaging a password.

2015-01-01 01:10:75 PM CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM 09 CAM 10 CAM 11 CAM 12 CAM 13 CAM 14 Login ID Password OK Cancel

SAMSUNG SRN-873S - Shutting Down the System - 6

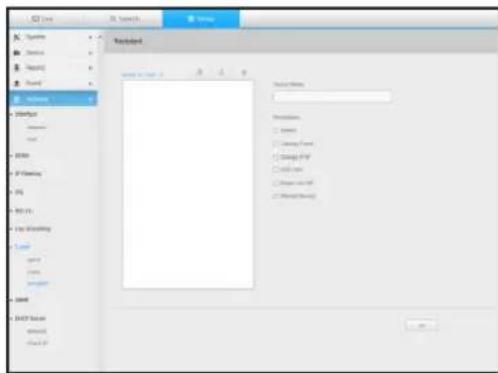

■ To change access privileges, refer to "User > Setting Permissions" (Page 63).

Icons on the Live Screen

You can check the status or operation of the NVR with the icons on the live screen.

1 2 3 4 2015-01-01 00:00:01 5 6 CAM 01 7

Name Description
1Current Date, TimeDisplays the current time and date.
2Login InformationWhen you are logged in, the "LOG ON" icon will be displayed.
3Screen ModeSAMSUNG SRN-873S - Icons on the Live Screen - 2It is displayed when there is ongoing backup in the live condition.
SAMSUNG SRN-873S - Icons on the Live Screen - 3If access to the recording canceling menu is restricted, then it is only displayed when there is ongoing manual recording.■ Only a user with the right to cancel recording can do so.
SAMSUNG SRN-873S - Icons on the Live Screen - 4It is displayed when the magnifying function is in operation.
[304D]This icon is displayed when you press the Freeze button.
SAMSUNG SRN-873S - Icons on the Live Screen - 5It is displayed when all the channels are switched at the set time interval.
4System Operation[2T7Z]It is displayed when there is a problem with the fan.
SAMSUNG SRN-873S - Icons on the Live Screen - 6It is displayed when the recording data cannot be received properly due to a device problem.
SAMSUNG SRN-873S - Icons on the Live Screen - 7Displayed if the HDD is full and the NVR has an insufficient space to record.
SAMSUNG SRN-873S - Icons on the Live Screen - 8Displayed if no HDD is installed or the existing HDD should be replaced.
[TOTT]Displayed if the HDD needs a technical examination.
4System OperationSAMSUNG SRN-873S - Icons on the Live Screen - 9It is displayed when the max permitted amount of data for each channel is exceeded.
[WXXS]It is displayed when the network is overloaded.■ It occurs when the max receiving allowance is exceeded, causing an overload to the CPU. It will disappear if you modify the camera settings or delete a camera to reduce the performance burden.
SAMSUNG SRN-873S - Icons on the Live Screen - 10It is displayed when there is firmware to update the server.
5Video Input StatusSAMSUNG SRN-873S - Icons on the Live Screen - 11Displayed if no input is entered in the condition that the camera is set to.
SAMSUNG SRN-873S - Icons on the Live Screen - 12Displayed if no permission to live view is granted.
If a camera is, or if no camera is registered, or it is inmode, nothing will be displayed on the screen.If the camera is set to, the video will be displayed but the OSD menus will not be displayed.
6Camera Title / ChannelDisplay the camera title and channel number.
7Camera Operation[YBDS]This icon is displayed for a channel that a PTZ-featuring camera is connected to.
SAMSUNG SRN-873S - Icons on the Live Screen - 13Displays AUDIO ON/MUTE. Not displayed in video mode if deactivated.

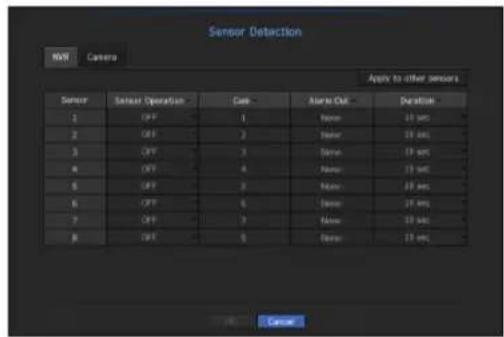

[service]If the sensor is set to, the input signal will be displayed on the screen of the connected channel.
[service]This icon is displayed when Motion Detection is set toand a camera motion or camera event occurs.
[service]It displays the status of general/event/scheduled recording.
[service]It is displayed when it fails to decode all the frames due to limited decoding performance and in this case only the I-Frame is decoded.

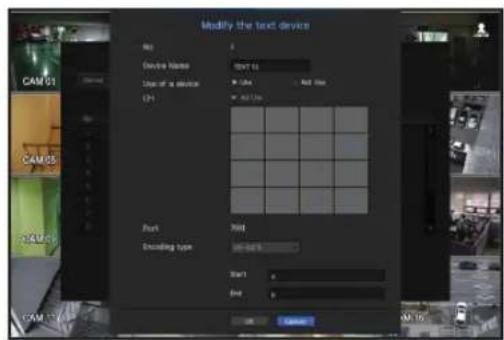

[service]This is displayed when a POS (text) event occurs.

Error Information

  • If the built-in HDD is not connected, the "NO HDD" icon (☐) will be displayed in the top left corner. In this case, make sure you contact the service center for assistance as this may cause a failure of recording, playback, or backup.
  • If the cooling fan does not work properly or has a problem, the window will appear and the fan error icon ( ) will be displayed on the top left corner.

In this case, check to see if the internal fan works.

As a fan error can shorten the product life, make sure you contact the service center for assistance.

SAMSUNG SRN-873S - Error Information - 1

If you see the fan error icon or NO HDD, HDD FAIL icons on the screen, contact the service center for more details.

Live Screen Menu

Beside the functional buttons for your remote control, in the live screen mode, you can right-click with the mouse button or press the [MENU] button on your remote control to launch the live screen menu from where you can access each menu.

The context menu differs depending on the state of Log in/out, split mode, and NVR operation status.

SAMSUNG SRN-873S - Live Screen Menu - 1

Live view, backup, recording, stopping recording, search, PTZ, remote alarm output, and termination menus can be restricted in use depending on user privilege settings.

2015-01-01 01:16 Scene Mode ▶ CH Info Live Status Record Status PVC Status Layout ▶ PTZ Control ZOOM Audio ▶ Freeze Stop Alarm Capture Record Keep ch. set ratio Play Scatch Backup Menu Quick Setup ▶ Shutdown Hide Launcher Logout

< Single Mode Menu >

Scene Mode ▶ CH Info Live Status Record Status PoE Status Layout ▶ Audio Off Freeze Stop Alarm Record Keep full scan ratio Play Scorch Backup Menu Quick Setup ▶ Shutdown Hide Launcher Logout

< Split Mode Menu >

Single Mode Menu

The single mode menu is available only in Single Mode.

If the menu is displayed as in the single screen, it is displayed as a menu where only one channel is selected in the split screen.

2015-01-01 01:18 Score Mode ▶ CH Info Live Status Record Status PoE Status Layout ▶ PTZ Control ZOOM Audio ▶ Freeze Stop Alarm Capture Record Keep aspect ratio Play Search Backup Menu Quick Setup ▶ Shutdown Hide Launcher Legend

< Single Mode Menu >

1 CAM 01 Full Screen CH Info Live Status Record Status PoE Status Layout PTZ Control ZOOM Audio Freeze Stop Alarm Capture Recorded Keep aspect ratio Play Search Backup Monitor Quick Snap Shutdown Hide Launcher Largest 2 CAM 02 CAM 03 CAM 04 CAM 07 CAM 08 CAM 12 CAM 13 CAM 14 CAM 15

< One channel selection menu in the split screen >

Menu Description
1Full ScreenSelect and click a desired channel in Split mode to switch to the full screen of the selected channel.
2PTZ ControlAccesses the PTZ Control menu. The PTZ menu will be active on the Live screen after you select a single channel. (Page 56)
3ZOOMYou can enlarge the selected screen. (Page 49)
4Capture Captures the screen of the selected channel.

Split mode menu

In Live split mode, right-click to display this context menu as shown.

The context sensitive menu in split mode differs, depending on the login/logout status.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Scene Mode ▶ CH Info Live Status Record Status PoE Status Layout ▶ Audio Off Freeze Stop Alarm Record Keep full screen ratio Play Search Backup Menu Quick Setup ▶ Shutdown Hide Launcher Logout

Menu Description
1Screen ModeSelect a screen mode for the Live screen.Refer to “Live screen mode”. (Page 45)
2CH InfoIt displays the camera connection information for each channel.Refer to the “Channel Information”. (Page 47)
3Live StatusShows the live status of connected camera to each channel.Refer to “Live Status”. (Page 48)
4Record StatusShows the record status of each channel.Refer to “Record Status”. (Page 48)
5PoE StatusSet the PoE status in each channel.Refer to the “PoE Status”. (Page 50)
6LayoutSet the layout of each channel.Refer to “Layout”. (Page 51)
7Audio On/OffTurns ON/MUTE the sound of the selected channel.Refer to “Audio ON/OFF”. (Page 52)
8FreezeStop playing the video temporarily. Refer to “Freeze”. (Page 52)
9Stop AlarmStop the alarm output, deactivate the event icon and release the auto sequencing.Refer to “Event Monitoring”. (Page 53)
10Record/Stop Starts/stops the standard recording.
11Keep full scr ratio/Keep ch. scr ratioChannel screen ratio is changed.Refer to "Maintain the Screen Ratio". (Page 54)
12PlayRefer to "Search & Play > Play". (Page 113)
13SearchRefer to "Search & Play > Search". (Page 109)
14BackupSearches for a backup device and runs backup for each channel or schedule backup later at a more preferable time.
15MenuEnter the main menu. Refer to the menu settings. (Page 59)
16Quick SetupThe "Camera Register" & "Recording Setup" screen will immediately appear.
17ShutdownThe system shutdown dialog will appear.
18Show/Hide LauncherShows or hides the launcher. Refer to "View the Launcher Menu". (Page 44)
19Login/Logout You can log in or out.

View the Launcher menu

The Launcher menu appears on the bottom of the live screen.

  1. Select in the context menu of the Live screen.
  2. Move the cursor to the bottom and click a desired item in the Launcher menu.

SAMSUNG SRN-873S - View the Launcher menu - 1

■If no input is entered for 10 seconds, the menu will disappear. ■The Launcher menu can be accessed only by using the mouse. ■SRN-473S only supports full screen, 4-split screen, and automatic switchover screen. ■SRN-873S does not support 13/16-split screen.

2015-03-01 01:10:25 PM CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM 09 CAM 10 CAM 11 CAM 12 CAM 13 CAM 14

Layout 01 1 2 3 4 5 6 7 8 9 10 11 12 13

Menu Description
1Layout Select the layout to be displayed on the screen.
2Layout Setup You can set, change or delete the new layout of each channel.
3Screen ModeDisplays a list of split modes available in a bar type.The current screen mode will be displayed grey.
4Menu Expansion ButtonClick to display the hidden menu to the right.
5BackupSearches for a backup device and runs backup of each channel or schedule it for later at a more desirable time.
6Zoom Enlarges the selected area. This is available only in Single Live mode.
7PTZIf the network camera connected to the selected channel supports the PTZ operations, this will run the PTZ control launcher. This is active only in Live single mode.
8Alarm Stops the alarm if it's activated.
9Freeze Freezes the Live screen temporarily.
10Capture Captures the screen of the selected channel.
11Text Text output is ON or OFF.
12Play Enters Play mode if a file to play exist, and if not, enters Search mode.
13RecordStart/End recording the Live screen.

16 live videos are displayed in a single screen, 6 kinds of split screens, and an automatic switchover screen.

Method for displaying screen mode

If you want to change the split mode, select a screen mode suggested in the launcher menu or right click with the mouse button and select a split mode in the screen mode menu.

Press the [MODE] button on your remote controller to change it in the order suggested in the launcher menu.

SAMSUNG SRN-873S - Method for displaying screen mode - 1

■ SRN-473S only supports full screen, 4-split screen, and automatic switchover screen.

■ SRN-873S does not support 13/16-split screens.

CH1CH2CH3CH4
CH5CH6CH7CH8
CH9CH10CH11CH12
CH13CH14CH15CH16
CH1Cl3CH2
CH4Cl5CH6
CH7CH8Cl9
CH1CH2
CH3CH4
CH1CH3CH2
CH4CH5CH6

16-split mode 9-split mode 4-split mode 6-split mode

CH1CH2
CH3
CH4
CH5CH6CH1CH7CH2
CH2CH3CH4CH5
CH6CH1CH7
CH8CH10
CH10CH11CH12CH13
CH1

8-split mode 13-split mode Auto Sequence Single mode

Auto screen switching

SRN-1673S can display 16 live videos sequentially in full screen, 4-split screen, and 9-split screen.

1 16

Single mode

4-split mode

CH1 CH2 CH3 CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 10-16 1-9

9-split mode

SAMSUNG SRN-873S - Auto screen switching - 4

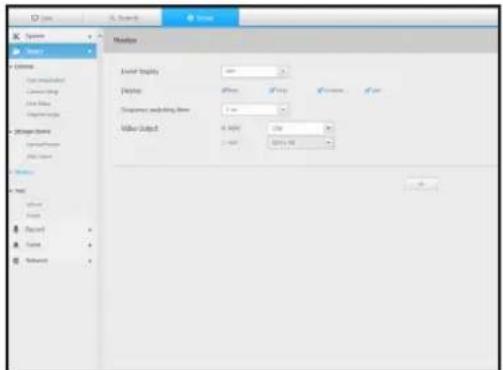

In a split mode, if you have set in "Device > Monitor", Auto Sequence will be conducted at the set interval. (Page 85) - When a channel is changed, a video may be displayed delayed due to the network environment.

Manually change the screen

Press the left/right button on the front panel or the remote control, or click the arrow <◀/▶> key to move to the next split mode.

- If pressing the right▶[] button in 9-split mode: 9-split (CH 1~9) mode → 9-split (CH 10~16) mode → Auto Sequence

- If pressing the right▶[] button in 4-split mode: Channel (CH 1~4) → Channel (CH 5~8) → Channel (CH 9~12) → Channel (CH 13~16) → Auto Sequence

Channel Setting

You can display the channel in a desired area of a split screen.

  1. Place the cursor over the camera name of each channel to display the <▼> key to the right on the screen.
  2. Click a camera name to display a channel list where you can select a different channel.
  3. Select a desired channel and click it.

The selected channel is displayed in the screen. If you want to change the channel location, you can place your mouse cursor over the desired location.

Ex: If you want to change channel 1 area to channel 7 area.

CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16 → CH7 CH2 CH3 CH4 CH5 CH6 CH1 CH5 CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16

Switching to Single Mode

Double click with the mouse button on the desired channel in the split screen to switch the screen to the single screen.

Press the channel number button on the remote control to switch to single screen.

Refer to "Remote Controller > Using the Number Button". (Page 16)

Example: With your mouse, double click on channel 3 or press the number 3 on the remote control.

CH1 C-2 CH3 CH4 CH5 C-6 CH7 CH8 CH6 C-10 CH11 CH12 CH13 C-14 CH15 CH16 → CH13

Channel Information

Select this option in the live screen menu to check the status of camera connection to each channel.

Ch. Table 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Not used Connected Recording Connection Error Close

Live Status

Select this option from the live screen menu to display status and transfer information of connected camera to each channel.

- Model: Displays the camera model name connected to each channel.

- Status: Displays the status of camera connection set to each channel.

- IP Address: Displays the IP address of a camera set to each channel.

- Codec: Displays the live profile codec information for a camera set to each channel.

Live Status CH Model Status IP Address Codes Resolution Frames Rate Quantity 1 SMB-7026 Codedirect 192.148.0.8 +3.264 8000000 15fps 1(Read) 2 SAMK2NG C... Disconnected 192.148.0.8 - - - - - 3 SMB-7026 Codedirect 192.148.0.8 +3.264 20400000 15fps 11 4 SMB-7026 Codedirect 192.148.0.8 +3.264 8000000 15…

  • - Resolution: Displays the live profile resolution of a camera set to each channel. • Frame Rate: Displays the live profile transmission rate for a camera set to each channel. • Quality: Displays the live profile transmission quality of a camera set to each channel.

Record Status

Select this option from the live screen menu to display camera profile, input/recording frame rates, input/limit/recording bps of each channel.

  • - Total Bitrate (Record/Max): Record bitrate shows the amount of actual data recording while Total bitrate shows the maximum data transfer allowed by the NVR. • Profile: Shows the video profile configured to each channel.
  • - Frame (fps): Shows the input/record frames per second for each channel.
  • - Bitrate (bps)

- Limit / Input / Record : Shows the amount of limit/input/recording data for each channel.

- Input / Limit : Shows the data ratio of actual data transferred from the camera and allowed maximum defined by user.

  • current : Shows the recording status information of currently transferred data.
  • MAX : Shows recording information of the most biggest recording data out of configured standard and event recordings.

: Reloads the recording information.

- Record Setup : The menu screen will switch to the record setting screen.

SAMSUNG SRN-873S - Record Status - 1

  • The warning message on the list's bottom means the NVR replaced the selected recording profile with other available profile, since the selected one does not produce video data which prohibits screen saving. If the screen displays video, it automatically resets to the selected profile and its name turns to yellow in the list. If Key Frame recording exceeds the allowed data amount specified by limit bitrate, a popup alert and icon appear on the screen.

The limited recording alert popup does not repeat after displaying once unless camera or recording settings are changed; it may appear again if settings were changed to notify such status.

If you want to set the alert popup not to appear, change your setting of not to display a message popup.

For further information on bitrate limit of recording data, refer to "Record Setting". (Page 90)

ZOOM

This is activated only in Live Single mode.

After selecting a single screen, if you use the Magnify function, the selected area will be magnified by 2.

  1. In the live screen menu, select .

Press the [ZOOM] button on your remote control or click < + > on the launcher menu.

The Magnify icon in the middle of the screen will be displayed.

  1. You can use the remote control's directional key (▲▼◀▶) or drag with the mouse to set the area of magnification.
  2. Press the [ENTER] button or double click with the mouse to magnify the selected area by two times.

In the magnified screen, you can drag with the mouse or use the remote control's navigational key (▲▼◀▶) to move the magnified area.

  1. In the live screen menu, select .

Press the [ZOOM] button on your remote control or click <⊖> on the launcher menu to cancel the magnification function.

Side-by-side comparison of a white car parked in a parking garage, showing exterior and interior views (no visible text or symbols)

POE STATUS

In the live screen, you can see the PoE status of each port.

1. Select the .

PoE status view window is displayed.

• Consumption(W) : Displays the power consumption in PoE.

- 0 : No device is connected to the port or a device is using its own power supply.

-- : Trouble in the port (More detailed trouble information can be displayed in additional information.)

PoE Status Port Consumption (in) Pull Additional Information 1 0 ✓ - 2 0 ✓ - 3 0 ✓ - 4 8.3 ✓ - 5 0 ✓ - 6 0 ✓ - 7 6.1 ✓ - 8 0 ✓ - Total Pull power consumption: 11.6 W Camera Registration Return

SAMSUNG SRN-873S - Select the . - 2

Overall PoE power specifications are as follows: SRN-1673S (16 ports) is 200W, SRN-873S (8 ports) is 100W, and SRN-473S (4 ports) is 50W.

If a single port exceeds 36W, or the power to all ports exceeds the overall PoE power specifications, the power to ports will be shut off sequentially.

- PoE: Turns on/off the power supply to the camera.

If checked, it means the power supply is On; if not checked, it means it is Off.

• Additional information: If there is a problem in the power supply, it is explained here.

Power supply problems include excessive power (class 1 to 4) and voltage errors.

- Total PoE power consumption: Display the sum of power consumption for all the ports.

  1. Press to move to the previous screen.

Noise level according to PoE power consumption

Model Noise Level [dB] PoE Power
SRN-1673S50 196W
48 154W
47 138W

In the live screen, you can set the layout for each channel.

Setting Up the Live Layout

This section outlines how to select a series of channels based on their purpose/accessibility and monitor them in a single layout.

Example) Layout "Lobby" - Lobby camera 1, Lobby camera 2, Front entrance camera 2

Layout "VIP" - Directors' meeting room 1, Directors' meeting room 2, Directors' lounge 1, Corridor camera on the 7th floor

CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM 09 CAM 10 CAM 11 CAM 12 CAM 13 CAM 14 CAM 15 CAM 16 CAM 17 CAM 18 CAM 19 CAM 20 CAM 21 CAM 22 CAM 23 CAM 24 CAM 25 CAM 26 CAM 27 CAM 28 CAM 29 CAM 30 CAM 31 CAM 32 CAM 33 CAM 34 CAM 35 CAM 36 CAM 37 CAM 38 CAM 39 CAM 40 CAM 41 CAM 42 CAM 43…

Layout Setup 3 BETA/10 Size Rename Delete Channel List 2 6 5 4

2015-01-01 CAM 01 ELEVATOR Lobby VIP CAM 03 7

Interior view of a building hallway with glass doors and windows, no visible text or symbols

To create a new layout, follow these steps:

① Open the channel layout setup menu. ② Click . ③ Enter a name for the selected channels (e.g., ELEVATOR). ④ Select the channels that you want to add to the layout (e.g., 2, 7, 10, 15). ⑤ Choose a split mode to apply (e.g., 4-way split). ⑥ Click . ⑦ Choose a layout to view it on the screen (e.g., change to ELEVATOR).

  1. Select the < 16>.

The layout setting screen will appear.

- New: You can set the new layout.

- Rename: You can make changes to the selected layout.

When the layout is changed, the channel order is initialized.

- Delete: You can delete the selected layout.

  • Ch. Table: You can select channels in the table to be registered in, or removed from the layout.
  • Channel List: You can select channels in the list to be registered in, or removed from the layout.
  • Press the button and enter the name of layout to add.
  • In the or , click and select the channel to be displayed on the layout screen.
  • Click on to save the selected layout.

SAMSUNG SRN-873S - Setting Up the Live Layout - 5

The layout for each user is saved separately.

AUDIO ON/OFF

You can turn the sound on/off corresponding to the channel in Live mode.

AUDIO ON/OFF in Single mode

In the screen, click on the audio icon (播放) or in the remote control, press the [AUDIO] button to turn it on/off.

SAMSUNG SRN-873S - AUDIO ON/OFF in Single mode - 1

If there is no audio output even if output is activated, check whether the connected network camera supports audio and audio settings. The sound icon can be displayed if the sound signal fails to output from noise. - Only the channel where is set to in "Setting the Device > Camera" displays the audio icon (☐) in Live mode that you can use to turn the sound on/off.

FREEZE

This is available only in Live mode, this pauses playing the Live image temporarily.

  1. Press the [FREEZE] button on your remote control or click < 📄> in launcher mode. Video playing is paused.
  2. Press the [FREEZE] button on your remote control or click < 📄> in launcher mode. Pause is canceled. Playing is resumed.

This will display the channel in sync with a specific event (Sensor/Motion/Video Loss) if it occurs.

In "Monitor > Event Display", set the event monitoring to ON/OFF and specify the event display time. (Page 85)

- If multiple events occur simultaneously, the screen will switch to a split mode.

  • 2\~4 events : 4-split mode
  • 5\~9 events : 9-split mode
  • 10~16 events: 16-split mode

If the second event occurs within the set time of the first event, the first event will last until the second one is terminated.

Example: If you set the time to 5 seconds, and only one event occurs in CH 1.


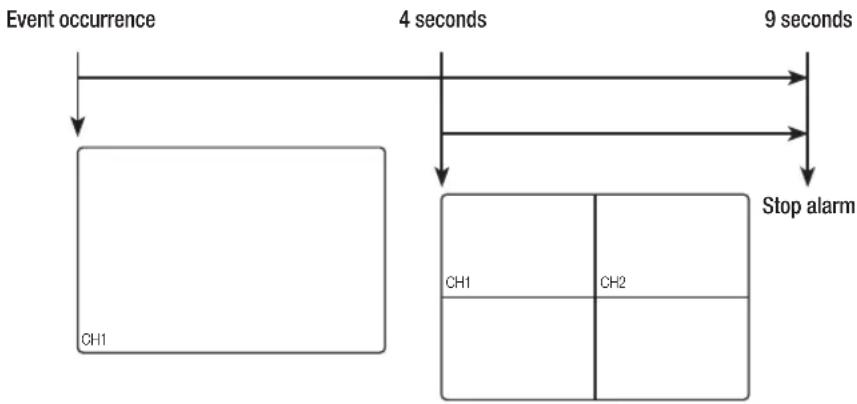

Example: If you set the time to 5 seconds, and the second event occurs in CH 2 within the set time after the first event occurred in CH 1.

SAMSUNG SRN-873S - FREEZE - 3

  • Press the [ALARM] button or select to initialize the alarm output status and cancel the event function. If an alarm is output with the pre-event and post-event times specified together with the event recording settings, the event recording will perform according to the specified recording type (pre event or post event).

SAMSUNG SRN-873S - FREEZE - 4

In case of continuous events such as motion detection, switching to another split mode display may not be immediate if concatenating events follow, even when you stopped alarm of the event.

■ The video may be delayed depending on the network condition. The event output can be delayed as the transfer of the alarm event from the network camera takes time.

The screen ratio for a live video can be changed.

Maintain a screen ratio for all channels

Video screen ratio for all channels can be changed in live split screen mode.

  1. Select from the live screen menu. The screen ratio for all channels will be changed.
  2. If you want to go back to the previous screen ratio, check the menu option for .

Scene Media ▶ CH Info Live Status Record Status Park Status Layout ▶ Audio Oil Knock Stop Alarm Record Keep 100% ratio Play Search Backup Menu Quick Setup ▶ Shutdown Hide Launcher Layout

SAMSUNG SRN-873S - Maintain a screen ratio for all channels - 2

2015-01-01 01:16:23 PM CAM 7 CAM 8 CAM 9 CAM 10 CAM 11 CAM 12 CAM 13 CAM 14 CAM 15 CAM 16 CAM 17 CAM 18 CAM 19 CAM 20 CAM 21 CAM 22 CAM 23 CAM 24 CAM 25

Maintain a channel screen ratio

If you select a channel from a live single screen or split screen, you can change its video screen ratio.

  1. Select from the live screen menu. The screen ratio of a specified channel will be changed.
  2. If you want to go back to a previous screen ratio, select again.

Store Media ▶ CHInfo Live Status Record Status PoE Status Layout ▶ PITZ Control JCOM Audio ▶ Freeze Stop Alarm Capture Record Play Search Backup Menu Quick Ratio ▶ Shutdown Hide Launcher Layout CAM 01 5-01-01 01:10:25 PM

SAMSUNG SRN-873S - Maintain a channel screen ratio - 2

Interior view of a parking garage with two cars parked in the background (no visible text or symbols)

Change text output

The NVR can display text on a live screen when a text device is set.

2015-01-01 01:10:25 PM Officer 3.59 CHIP 2.37 Apple 2.68 Beef 0.79 Cheese 3.68 Cignes 1.58 Pepora red, rose 0.53 2 x 0.79 1.18 Pastn 0.59 2 x 0.59 1.18 TOTAL 3.51 API TEXT 01

Select text output

This is executable when a text device is connected.

- How to turn the text output off: Select "OFF" from the text list.

How to display on other devices differently from the preset device: Select a device to display from the text list.

2015-01-01 01:10:25 PM CAM 01 OFF CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM 09 CAM 10 CAM 11 CAM 12 CAM 13 CAM 14 CAM 15 CAM 16

2015-01-01 01:10:25 PM Options 3.59 ChIP 2.67 Apple Goo Cheese Options Propane red, lopes 0 2 x 0.79 Pots 2 x 0.59 TOTAL 3.63 Text 01 TEXT 01 Orange 1.75 GoP 2.47 Apple 2.83 Goil 0.97 Circuits 2.45 Orange 1.82 Propane red, lopes 0.59 2 x 0.79 1.16 OK

PTZ CONTROL

With this NVR, you can configure the settings of a PTZ camera as well as commercial cameras in the market to your preference.

PTZ device

This is active only if a channel that a PTZ camera is connected to is selected.

Getting started with PTZ operations

The PTZ camera will be activated only if the channel of the PTZ camera is selected, which can be performed in the following way:

2015-01-01 01:1 Scan Mode ▶ CH Info Live Status Record Status Pick Status Layout ▶ PTZ Control ZOOM Audio ▶ Freeze Stop Alerta Capture Record Keep ch. act ratio Play Search Backup Menu Quick Setup ▶ Shutdown High Launcher Logout

Interior view of a parking garage with several cars parked, no visible text or signage

  • Using the remote control : Press the [PTZ] button on your remote control. • Using the launcher menu : Click > from the launcher menu of the Live screen.
  • Using the Live screen menu: Select in the context menu of the Live screen. • Using the icons on the Live screen : Simply click the icon on the Live screen.

SAMSUNG SRN-873S - Getting started with PTZ operations - 3

This is available only if a PTZ camera is connected and the icon is displayed on the screen. Even if the connected network camera does not support PTZ operations, you can configure the PTZ control settings (if possible) by installing the PTZ driver (physical device). It only supports a network camera with Samsung Techwin's PTZ function and a camera registered in ONVIF.

Using the PTZ camera

You can use a single PTZ camera to perform Pan, Tilt, and Zoom operations to monitor multiple places, and configure the custom settings of the presets in a desired mode.

2015-01-01 01:10:25 PM FIE NAME: (2019) CAM 01 Reset Status OK

  1. Open the menu.

The icon in the left bottom of the screen will turn yellow, indicating that the system accesses "PTZ Control" mode. You will see the "PTZ Control" launcher menu.

SAMSUNG SRN-873S - Using the PTZ camera - 2

The PTZ working (active) mark can be active even if the PTZ operation is not available in normal mode. So ensure that you have completed the PTZ settings before proceeding.

  1. Adjust the camera recording location by using the PTZ ball in the launcher menu or press the left/right (▲▼◀▶) button on your remote control to move the camera recording location.

- Sensitivity: Adjust sensitivity for Pan, Tilt controls.

- PTZ Wheel: Click a near area from the center to move the camera lens slowly; clicking a far area will move it fast.

If clicking and holding the mouse on the left will turn the camera counterclockwise; if clicking and holding the mouse on the right will move the camera lens clockwise.

- Zoom: Activate the Zoom operation of the PTZ camera.

- Iris: Adjust the amount of light incoming to the camera.

• Focus: You can adjust the focus manually.

- Swing: Swing is a monitoring function that moves between two preset points and enables you to trace the motion.

- Group: The group function enables you to group various presets before calling them in sequence.

- Trace: Tracking remembers the trace of movements that you instructed and reproduces it for your reference.

• Tour: Monitor all the groups created by a user in turn.

■ Some cameras may differ in the menu title and operation with regard to Swing, Group, Tour and Trace.

SAMSUNG SRN-873S - Using the PTZ camera - 3

Even if the network camera supports the PTZ operations by default, the PTZ control can be enabled only if the applicable menu is active in the launcher menu.

Preset

Preset is a specific position remembered by the PTZ camera. You can use the Preset function to define up to 255 presets for a single PTZ camera.

2015-01-01 01:10:25 PM CAM 01

To add a preset

  1. Check the preset checkbox.
  2. Select < □ >.

The virtual keyboard will appear on the screen. Use it to provide the preset name.

■ Refer to "Using Virtual Keyboard". (Page 61)

: You can change the preset settings to your preference.

: Delete a selected preset.

Delete all the existing preset settings.

SAMSUNG SRN-873S - To add a preset - 1

You can add up to 255 presets, which is the maximum count supported by the NVR.

If you replace a camera that saves your preset settings with a different one, you must configure the preset settings again.

  1. Select .

The preset setting will be saved under the provided name.

If you want to change or delete the preset name

2015-01-01 01:10:25 PM Prest Deliner Prest Deliner CAM 01

  1. Check the preset checkbox and select a preset to change or delete.
  2. If you selected < >, enter the desired name and press OK. If you selected < press OK to delete it.

SAMSUNG SRN-873S - If you want to change or delete the preset name - 2

Delete all the existing preset settings.

SAMSUNG SRN-873S - If you want to change or delete the preset name - 3

If you delete all presets, the default presets specified in the network camera may be deleted accordingly.

You can set up the system, devices, and options for recording, event, and network.

SYSTEM SETUP

You can set up Date/Time/Language, User, System Properties, and Log.

Date/Time/Language

Setting the Date/Time/Language

You can check and set up the current date/time and time-related properties, as well as the language used for the interface on the screen.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ⇒ ▶ ⇒ ⇒ [ENTER] ⇒ ▲▼◀▶ ⇒ [ENTER]

Setup System > Date/Time/Language Device User Record System Management Event Log Information Network Logout Return

Date/Time/Language System Time • Date 2015-01-01 YYYY-MM-DD • Time 07:11:10 24 Hours • Time Zone Start • Time Sync Setup • DST • Language English • Holiday Setup Cancel

  • Date: Sets the date and its format that will appear on the screen.
  • Time: Sets the time and its format that will appear on the screen.
  • Time Zone: Sets the time zone of your area based on Greenwich Mean Time (GMT).

■ GMT (Greenwich Mean Time) is the standard world time and the basis of world time zones.

- Time Sync.: Specify whether to use synchronization with the time server.

Click the button to display the time synchronization setup screen.

If you select to use synchronization, the current time will be synchronized on a regular basis by the server defined as the time server.

If this is the case, you cannot change the time setting manually.

  • Synchronization: Specify whether to use synchronization with the time server.
  • Time Server: Enter an IP or URL address of the time server.
  • Last Sync Time: Displays the most recent synchronization time from the selected time server.
  • Activate as Server: Set to allow the NVR to act as a Time Server for other NVRs.
  • DST: Set up Daylight Saving Time with its period to make the time earlier than the GMT of its time zone by 1 hour during the set period.
  • Language: Select your language. Sets the language for the interface.

English, French, German, Spanish, Italian, Chinese, Russian, Korean, Polish, Japanese, Dutch, Portuguese, Turkish, Czech, Danish, Swedish, Thai, Romanian, Serbian, Croatian, Hungarian, Greek, Finnish, and Norwegian are supported.

- Holiday: A user can select specific dates as holidays according to their own preferences. Holidays are applied in the or setting too.

Date/Time/Language Holiday Setup Start End-May Jul Feb May 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Cancel

Date/Time/Language Holiday Setup Setting Holiday 0 3 / 7 Jan First Mod Cancel

e.g.) The day of January 7th is selected and <1/7> is checked only, January 7th is set to be a holiday every year. If both <1/7> and are checked, both January 7th and the first Wednesday of January are set to be holidays every year.

To use the calendar

Use the mouse to select items more easily.

2015 Jan: May Jan Feb Mar Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat Sun Wed Thu Fri Sat

  1. Select year and month.

After selecting the <◀▶> keys in the screen on the left/right of the wheel, press the [ENTER] button to move back/forward in increments of three months.

  1. Select a date by using the directional button and press the [ENTER] button.

A date is marked in gray if there exist data for search for system log, event log, time search and event search.

You can set permissions of each user over the NVR's specific function and settings.

Setting the Administrator

You can set and change Administrator's ID and password.

The administrator can use and set all menu items and functions.

[MENU] => [ENTER] => ▼ =>

⇒ [ENTER] ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

User Administrator User Permission Setup For security, please set at least 8 characters in combination of alphabet and numbers. If less than 10 digits, it must include special characters. ID admin The ID is available. Password New P/W Confirm P/W - New password OK Cancel

• ID : Change the admin ID. - New P/W : Enter new password.

SAMSUNG SRN-873S - Setting the Administrator - 2

The first administrator ID is "admin" and the password must be set in the Installation Wizard. Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.

Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

If you click < ☐ >, a basic guide for password setup is displayed.

Using Virtual Keyboard

Screenshot of a keyboard interface with labeled keys and buttons, showing status indicators for 'Close', 'Close Left', and 'Close Right'.

SAMSUNG SRN-873S - Using Virtual Keyboard - 2

  1. For alphanumeric inputs, the virtual keyboard window appears.
  2. Using the directional key(▲▼◀▶), move to the desired text tab and press the [ENTER] button.
  3. In the upper text input box of the virtual keyboard, there displays a list of candidate words containing the selected character.
  4. Select a word from the list, or use the keyboard to enter the whole word.

If there are many candidate words, use the < > buttons to move between them forward and backward.

  1. Select.

The entered word is applied.

  • For uppercase letters, use the button. For special characters, use the button. Using the virtual keyboard is the same as using a normal keyboard in your region. ID allows alphanumeric characters only.

User settings

You can create a group or set permissions for each group. You can add a user and edit registered user information.

[MENU] => [ENTER] => ▼ =>

⇒ [ENTER] ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ▶ ⇒ ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

User Administrator User Permission Setup Group Information Group Name Permission Live View Setup Speech Setup Backup Setup Menu Setup Record Record Stop JF2 Remove Alert Task Lockpath Cancel

User Administrator User Permission Setup Group 1 Group Information Group Name Permission Group 1 Live View Setup Search Setup Backup Setup Menu Setup Record Recent Site PIS Retrode Base Out Shutdown OK Cancel

If you want to add a group

  1. Click the [ ] button to launch the Group Addition popup window. If you want to add a group, click on it.
  2. Press the group name item to launch the virtual keyboard used to enter group names. Enter the group name to register. You can add a maximum of 10 groups.

If you want to set group permissions

Set permission to access each group. Each group's users can only access items with a check mark beside them.

Live View Setup 100 Dls 4 7 3 4 3 6 7 8 9 10 11 12 13 14 15 16 OK Cancel

  1. Select the menu to set group permissions.

The menu with access permissions will appear when a user of the group logs in.

• Live View: You can set permissions to access the live screen for each channel. - Search: You can set permissions to access the search menu for each channel. - Backup: You can set permissions to access the backup menu for each channel. - Menu: You can select and set the setting menu that can be accessed. A group user can only access the menu selected. If you select the menu, the menu permission setting screen will be displayed. - Record, Record Stop, PTZ, Remote Alarm Out, Shutdown: You can select these functions to add to a group's permissions.

  1. Click . Check a group user to give them the permission to access the selected item.

If you want to register a user

User Administrator User Permission Setup Group 1 User3 User Information Group Group 1 Name ID User1 P/W Confirm P/W View password Viewer Not Use OK Cancel

  1. Click on the [ ] button to launch the user addition popup window. To add a user, click on .
  2. Select a group. When registering a user, the selected group will be automatically registered. ■ A group can be changed after inputting all required information.
  3. Enter name, ID, password and select whether to use the viewer. If you activate use of , you will have the right to use the web viewer and the network viewer.
  4. Click . Registered user information will be saved.

When you want to delete the group and user information

  1. To delete, click on the [ ] button.
  2. The deletion confirmation window will appear and you can select an item to delete and click on .

Setting Permissions

You can set restricted access for all general users. Items with restrictions will require logging in for use.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼▶ ⇒ ⇒ [ENTER] ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

User Administrator User Permission Setup Restricted Access • AP • Line View • Remote Alert Out • PTZ • Search • Record • Record Shop • Calendar • Shutdown Restriction on Network Access • AP networks • Web Open Auto Log out OFF Manual Input of ID • ON • OFF OK Cancel

- Restricted Access: All menu items allowed for a user can be set with restricted access.

- Checked ( ) Restricted

- Not checked ( ) : Accessible

If it is not checked ( □ ) in , any user can access the item no matter what the setting.

If it is checked (☑) in , a user can access the item only if the user has permission in setting.

  • Restriction on Network Access: Restricts remote access from a network.
  • All Network : Restricts all access instances via Network Viewer and Web Viewer.
  • Web Viewer : Restricts access via the Web Viewer, Smart Viewer.
  • Auto Log out : A user will be automatically logged out if there is no operation on NVR for over set period of time.
  • Manual Input of ID : In the login window, select whether to enter ID.

If the user has restricted access

If a new group is restricted to access the entire menus, the users belonging to the group can access only the basic menus and can change only their respective password.

If all permissions are restricted, you will see only some menu items accessible in the Live screen menu.

SAMSUNG

2015-01-01 01:10:25 PM CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM 09 CAM 10 CAM 11 CAM 12 Screen Mode On Audio Live Status Layout Audio Off Photo Stop Alarm Record Audio Call on noise User Menu Quick Terap Video Launcher Layout 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM…

To change the user password

If you log in with the user account of a group with restricted access, you just can change your own password.

Setup System > User Layout Return

  1. Provide the login information.
  2. Select .

The Permission Management screen appears.

  1. Select .

The Password dialog shall appear.

  1. Provide a new password.
  2. Select .

The old password will be changed to a new one.

You can check the system version, update to a newer version, as well as data backup and initialization.

Checking the System Information

You can check the current software version and MAC address before proceeding with the upgrade.

[MENU] => [ENTER] => ▼ =>

⇒ [ENTER] ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

System Management System Information Settings System Information - Software Version v1.00.250094172828 - MAC Address 1 00:09:18:30 A3:25 - MAC Address 2 00:09:18:30 A3:25 S/W Upgrade - Device Power growth D Upgrade - Version No S/W Data Device Name N/A Apply Return

  • System Information: Shows the current system's information. The values cannot be changed by a user.
  • S/W Upgrade: Updates the NVR's software up to date.
  • Device Name: Displayed if the network viewer is connected to NVR.

To upgrade the current software versiongraph TD A["System Information"] --> B["System Information"] B --> C["Software Version"] C --> D["MAC Address 1"] D --> E["5/W Upgrade"] E --> F["Device Name"] F --> G["Current Version"] G --> H["New Version"] H --> I["OK"] I --> J["Cancel"] K["System Information"] --> L["System Information"] L -->…

  1. Connect a device storing the software to be updated.

■ It may take about 10 seconds to recognize the device. ■ Upgradeable devices include USB memory, and network device. - To update the network, the current NVR should have been connected to the network. Upgrade via the proxy server may not be enabled due to the restricted access.

  1. Select from window.
  2. Select.
  3. When the recognized device appears, select.

If you connect a device in the upgrade menu window, you can press the < > button to search for available software. If there is an upgrade image on the network, the popup window will appear. The button will be activated only if the current of the is same to or older than that of.

  1. Press in the "S/W Upgrade" window.

While updating, it shows the progress.

  1. When the updating is done, it automatically restarts.

Do not turn the power off until it finishes restarting.

SAMSUNG SRN-873S - Checking the System Information - 3

If "Upgrade Failed" appears, retry from step 4.

If you experience continued failure, consult the service center for assistance.

Settings

You can copy and import the NVR settings by using a storage media.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ▶ ⇒ ⇒ [ENTER] ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

System Management System Information Settings Storage Device NR-USB USB-NVR Inclusion Setting User Camera Network Load Factory Default PrP Mode Manual Setup Mode Exclusion Setting User Camera Network Initiation Power Off No. 1 alarm output used when the power is off Graph Return

System Management System Information Settings Storage Device NVR—USB USB—NVR Exclusive Setting Load Factory Def Exchange Setting Power Off Install Run 150 (2100) Export Load Factory Default Save to Default Setting? After initialization, NVR will be restarted OK Cancel Default

  • Storage Device: Shows the connected storage device.
  • Export: Exports NVR settings to the connected storage device.
  • Import: Imports NVR settings from the storage device and applies to the NVR.

- Uncheck the checkbox of the item(s) that you want to import.

Only the other items than the selected one will be applied to the NVR.

- You cannot retrieve the configuration file from another mode. In other words, in PnP mode, you cannot retrieve the manual setting information. In manual setting mode, you cannot retrieve the PnP setting information.

- Load Factory Default: Restore the factory default settings of the NVR.

Uncheck the checkbox of the item(s) you want to reset. Then, only the other items will return to the factory default.

If selected, a confirmation dialog for "Load Factory Default" prompts. Press to initialize the system to the factory default.

■ After changing the mode, reboot to initialize. (PnP mode <-> Manual Setup Mode) - Power off: If the power is off, the first alarm is generated. After checking the checkbox, if the button is pressed, all event alarms that are set to the first alarm output are released, and then the first alarm cannot be selected by other alarm output. If that function is set, the first alarm-out checkbox and all alarms in the alarm setup screen are deactivated, to Off.

SAMSUNG SRN-873S - Settings - 3

If you want to initialize the system, you need to reset the password. In case you reboot, reset it via the Installation Wizard; if not, use the guide screen to reset it.

Log Information

You can browse logs on the system and events.

Checking the system log

System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

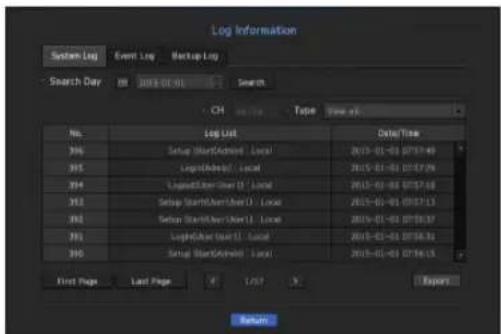

Log Information System Log Event Log Backup Log Search Day 01 2013-01-01 Search CH Type New No. Log List Date/Time 396 Setup StartChannel Local 2013-01-01 07:57:49 395 LegendChannel Local 2013-01-01 07:57:28 394 LegendChannel Local 2013-01-01 07:57:48 393 Setup StartChannel Local 2013-01-01 07:57:13…

  • Search Day: Click the Calendar icon to display the calendar window, or use the direction buttons to specify the search period of the system log. ■ For using the calendar, refer to "To use the calendar". (Page 60)
  • Search: Specify the date and press this button to display the search result in the log list.
  • Type: When there are too many logs, you can display logs of the desired format by selecting the type.
  • Export: Save all the logged information recorded in the NVR into the storage media.

Checking the event log

You can search recorded events including alarms, camera events and video loss. It also shows the log and its timestamp.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ▶ ⇒ ⇒ [ENTER] ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

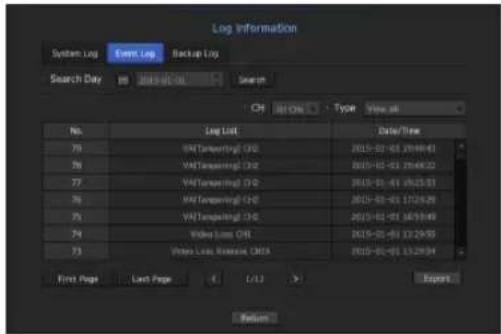

Log Information System Log Form Log Backup Log Search Day 2013-01-01 Search CH Bt CH# Type View all No. Log List Date/Time 79 WATamenggl Ch2 2013-01-01 20:48:40 78 WATamenggl Ch2 2013-01-01 20:48:22 77 WATamenggl Ch2 2013-01-01 19:25:31 76 WATamenggl Ch2 2013-01-01 17:25:29 75 WATamenggl Ch2 2013-01…

  • Search Day: Click the Calendar icon to display the calendar window, or use the direction buttons to specify the search period of the system log. ■ For using the calendar, refer to "To use the calendar". (Page 60)
  • Search: Specify the date and press this button to display the search result in the log list.
  • Type: When there are too many logs, you can display logs of the desired format by selecting the type.
  • Export: Save all the logged information recorded in the NVR into the storage media.

Checking the backup log

You can find out who backed up and the details (backup time, channel, device to use, file format, etc.).

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ▶ ⇒ ⇒ [ENTER] ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Log Information System Log Event Log Backup Log Search Day 2015-01-06 2015-02-03 Search No. User Date/Time 4 Admin 2015-01-01 09:47:14 3 Admin 2015-02-01 17:23:04 2 Admin 2015-02-01 17:00:04 3 Admin 2015-02-01 19:22:04 2015-01-01 09:50:14 - 2015-01-01 09:50:03 USD Device ESC First Page Last Page Ret…

  • Search Day: Click the Calendar icon to display the calendar window, or use the direction buttons to specify the search period of the system log. ■ For using the calendar, refer to "To use the calendar". (Page 60)
  • Search: Specify the date and press this button to display the search result in the log list.

SETTING THE DEVICE

You can setup Camera, Storage Device and Monitor.

Camera

To register a camera

You can register a network camera for each channel and make connection between.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲ ▼ ▶ ▶ ⇒ [ENTER]

Setup System Device Record Event Network Camera Storage Device Remote Device Monitor Text Layout Return

Camera Case Registration Camera Setup Live Setup Chancet Setup Total 1.5 Mbps /0.7% Auto Manual Delete CH Preview Protocol Model IP Address Connection Data Rate 1 Preview SAMSUNG SMB-7004 192.168 0.8 Connected 0.38bps (0.1%) 2 Preview SAMSUNG SAMSUNG CAN 192.168 0.8 Error: 0% 0.38bps (0.0%) 3 Previe…

  • Preview: View the video of the channel as a current image.
  • Protocol: Show the protocol information of a registered network camera.
  • Model: Show the camera model name.
  • IP Address: Display the IP address of a network camera.
  • Connection: Display the connection status.
  • Data Rate: Displays the total amount of data received by the channel.
  • PoE Status: Displays connected PoE status information.
  • ONVIF Setup: You can additionally set up ONVIF protocol camera.
  • Error code guides: You can check the details of generated error codes.

SAMSUNG SRN-873S - To register a camera - 3

If the NVR has been initialized, it may not connect to cameras. Configure the network settings first and add cameras. For more information on network settings, refer to "Network Configuration". (Page 97)

If you want to register a camera in PnP mode

Camera Cell Registration Camera Setup Live Setup Channel Setup Total: 0.0Mbps / 10.0% CT Protective Protocol Model IP Address Connection Data Rate 1 - - - - - - - - 2 - - - - - - - - - 3 - - - - - - - - - 4 - - - - - - - - - 5 - - - - - - - - - 6 - - - - - - - - - 7 Protective SAMKUNG SAMKUNG CAM 18…

SAMSUNG SRN-873S - If you want to register a camera in PnP mode - 2

  • When you connect a camera in PnP mode, the initial ID, password and DHCP mode should be set in advance. Samsung cameras are registered for Samsung protocols and other cameras are registered by using the Onvif protocol. In PnP mode, you cannot connect a device that runs the DHCP server in PoE port or camera setting port. (Ex: hub)

To auto-search for and register a network camera

Camera-Register Number of Registered Channels 15 / Number of Geacoded Camera 3 Mood IP Address MAC Port Network Correction SNP-7001 186.248.24 98.09.28.31 4:24 420 1 - SNP-7002 186.248.24 98.09.28.31 4:24 420 1 Registered SNP-7003 186.248.24 98.09.28.31 4:24 420 1 Registered SNP-7004 186.248.24 98.0…

  1. In the field, click on the button.
  2. Search for a network camera connected.

An already registered camera will be marked in blue in the list. If you search for the camera again or if the IP is an old IP that was not assigned by the DHCP server (such as -192.168.1.100), then press the < ☐ > button to check if a new IP has been assigned. If the IP is still the same, then select Assign IP to assign the IP manually.

  1. Select a camera from the camera list to see a preview of its current video feed.

Cameras searched with ONVIF do not provide previews.

  1. Check the checkbox next to a network camera that you want to connect to.
  2. You can select all of the network cameras in the list and provide them all at once.
  3. Click a header at the top of the list to sort the list according to that header.

SAMSUNG SRN-873S - To auto-search for and register a network camera - 2

  • Registering a camera with a user account other than admin may restrict camera function.
  • When you change the camera ID/password in the camera web viewer, if the camera is already registered in NVR, you also have to change the camera ID/password information registered in NVR.
  • Click on the button to enter the selected network camera's settings and information.
  • Press the button to make a connection to a camera.
  • Press to register the selected camera.

To manually search for and register a network camera

Add Manually CH 7 Protocol SAMSUNG ONVIF RTSP Model Unknown Address Type Unknown IP Address Max SS530 Device Port Max SS530 HTTP Port ID Password OK Cancel

Add Manually CH Protocol SAMSUNG ONVIF RTSP Address Type Selected IP Address ONVIF Port ID Password More detail > Authentication User Token Digest Certificates Based Streaming Mode TCP UDP HTTP OK Cancel

Add Manually CH SAMSUNG ONVIF RTSP Protocol URL rtsp:// ID Password More Data > Mode TCP UDP HTTP HTTPS OK Cancel

  1. In the menu, click on the button.
  2. The manual search window will appear.
  3. Select a channel and protocol used to connect to a camera. The input items may differ depending on the selected protocol.
  4. SAMSUNG : Comply with the internal network protocols adopted by Samsung Techwin.
  5. ONVIF : Means the camera supports ONVIF protocols. When connecting a camera that its name cannot be found from the list, select .
  6. RTSP : Comply with RFC 2326, one of "Real Time Streaming Protocol (RTSP)" for real-time streaming.
  7. If you select the protocol, check options as necessary.

- Model: Select a camera model.

- Samsung Network Camera/Encoder: Means the camera/encoder supports Samsung Techwin's SVNP protocol. When connecting a camera that does not appear in the camera list, select Samsung Network Camera/Encoder.

However, you must select the correct model name of the camera, if it's in the list. Some obsolete camera models may not be supported. The below models are discontinued. If you register them with ONVIF, some camera functions will be restricted or cause errors. It is recommended you register the Samsung protocol.

- SNB-2000, SNB-3000, SNC-B2315, SNC-B2331, SNC-B2335, SNC-B5368, SNC-B5395, SNC-B5399, SNC-570, SNC-1300, SND-460V, SND-560, SND-3080, SND-3080C, SND-3080CF, SND-3080F, SND-3081, SNP-3301, SNP-3301H, SNP-3350, SNP-3370, SNP-3370TH, SNP-3750, SNV-3080, SNP-3430

- Address type: Select an address type of the camera.

- Address type can be different depending on connected product model.

  • Static(IPv4)/Static(IPv6): Used to provide the IP address of the camera manually.
  • iPOLiS DDNS: This is available only if the camera is registered with the iPOLiS DDNS(www.samsungipolis.com) server. Provide the registered domain for DDNS ID.

Ex) http://www.samsungipolis.com/snb5000 → provide "snb5000" for iPOLiS DDNS

- URL: Used for URL address input.

SAMSUNG SRN-873S - To manually search for and register a network camera - 4

■ Refer to the user manual of the connected camera and check the DDNS specification that is supported by the camera.

  • IP Address: Provide the IP address of the camera.
  • Device Port: Provide the device port of the camera.
  • HTTP Port: Provide the HTTP port of the camera.
  • ID: Provide the ID of the camera that you want to register.
  • Password: Enter the password of the camera to be registered.
  • Select the protocol and enter your input for each field that appears.
  • ONVIF Address / RTSP URL: Enter the camera's RTSP access address that supports ONVIF or RTSP. For more information about the RTSP address, refer to the manual of each applicable network camera.
  • ID: Enter the ID for accessing via ONVIF/RTSP protocol.
  • Password: Enter the password for accessing via ONVIF/RTSP protocol.
  • Mode: If the button is clicked, a setup window will appear. Select a mode that is supported by the network camera in RTSP connection mode.
  • TCP: The connection type with the network camera will switch to "RTP over TCP".
  • UDP: The connection type with the network camera will switch to "RTP over UDP".
  • HTTP: The connection type with the network camera will switch to "RTP over TCP (HTTP)".
  • HTTPS: The connection type with the network camera will switch to "RTP over TCP (HTTPS)".

If you want to check the error details of camera registration

If you failed to register a camera, the reason for the failure will be displayed.

  • Connection failed due to unknown error. : This message appears if the camera has failed to be registered due to unknown connection status.
  • Due to the camera account locking, access has failed. : When you enter a wrong ID/password 5 times to login to the camera account, this message is displayed. Try to log in again after 30 seconds. If the same message appears, you may need to check whether someone has tried to access your camera account from the outside.

- Connected successfully. : This message appears if the camera is connected successfully.

- Incorrect model information. Provide the correct model information.: This message appears if the model information provided for registering the camera is incorrect.

- Authentication has failed : This message appears if the ID or password provided for registering the camera is incorrect.

- Connection has failed due to excessive concurrent users. : This message appears if the concurrent user count exceeds the upper limit.

- Connection has failed due to incorrect HTTP port information. : This message appears if the HTTP port number of the camera is invalid.

- Connection has failed. Unknown connection status.: This message appears if the camera has failed to be connected due to a unknown error.

- User Model Modification : When registering a new camera, it is named according to the device's default if user set the model to . In case if automatic registration fails, user can change the model name of camera to be registered.

To edit camera profile

When a camera is added for the first time, it is added as the default profile of H.264, MJPEG in order temporarily.

To change its profile, refer to "Setting the camera recording profile" (Page 91) or "Live Setting" (Page 81).

SAMSUNG SRN-873S - To edit camera profile - 1

In case of NVR, if you set 3 different profiles for live, recording and network profile, one camera will produce video streams accordingly, having different stream formats. Especially, note that the live profile may vary depending on the used screen split mode.

For cameras, if applied with one profile only, the produced frame rate is fixed as the profile specifies; if applied with multiple profiles, produced video stream's frame rate is not guaranteed. For example, if applied with 2 profiles of 30fps, the camera may transmit streams at 20fps.

ONVIF Setup

In the bottom of the camera addition screen, click on the button to set additional settings for cameras with the ONVIF protocol.

- You can change the information only if the user account (camera account used for camera registration) is used to read the user information and a connection is made with the admin privilege.

Profile

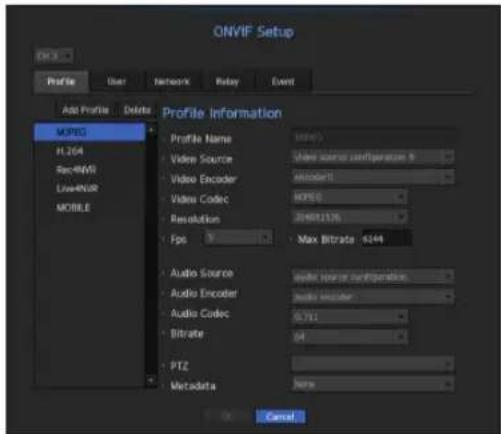

ONVIF Setup Profile User Network Relay Event Add Profile Delete Profile Information MPEG H.264 Rev4MVI Live4NVR MOBILE Profile Name Video Source Video Encoder Video Codec Resolution Fps Audio Source Audio Encoder Audio Codec Bitrate PTZ Metadata 0 Max Bitrate 4244 Audio source configuration Audio en…

  • CH : It shows the list of registered camera with the ONVIF setting.
  • Add Profile: You can add camera profile. After adding a profile, click on the button to add it to the list.
  • Delete : After selecting the profile to delete, click on the button to delete the selected profile. • Profile information : You can set the details of the selected profile.

After finishing setting each item, click on the button to save changes.

User

ONVIF Setup Profile User Network Relay Event Add User Delete admin User Information User Name Password Confirm P/W Authorization Viewer Operator Administrator Cancel

  • Add User: You can add a camera user. After adding a user, click on the button to add them to the list.
  • Delete : After selecting the user to delete, click on the button to delete the selected user.
  • User Information: You can set the details of the selected user.

Network

You can set the details of the network.

ONVIF Setup Profile User Network Relay Event IP Type IPv4 IPv6 DHCP ON OFF IP Address 192 168 0 8 Subnet Mask 255 255 255 0 Default Gateway 192 168 0 3 Host Name SNB-7004 DNS 1 168 226 62 1 DHCP DNS 2 168 326 62 2 NTP Server 1 192 168 0 250 DHCP NTP Server 2 0 0 0 3 Zero Conf ON OFF Cancel

• IP Type: Select from either the IPv4/IPv6 IP types. • DHCP: Select whether to use the DHCP. - DNS / NTP Server: Only if the DHCP setting is enabled, the DHCP checkbox will be activated.

■ If the DHCP is checked, you cannot manually enter the IP address.

Relay

You can set details of the relay.

ONVIF Setup Profile User Network Relay Event Digital Output 1 Relay Mode Retain Relay Idle State Open Delay Time Select 15 Cancel

• Digital Output: You can select a digital output channel. • Relay Mode: Select either bi-stable or mono-stable modes. - Relay Idle State: Select either open or closed relay standby modes. - Delay Time: Select the relay operation waiting time.

Event

You can set details of the event.

ONVIF Setup Profile User Network Relay Event 5.00 Available events (General) NIR supported events 1 /VideoAnalysis/VideoDetection Motion 2 /VideoAnalysis/VideoDetection Video Analytics 3 /Device/Traper/DigitalBoost Audio 4 /Device/Traper/Reay None 5 /VideoSource/TensoringDetection Tempuning 6 /Video…

• Available events (camera): It shows the list of all the events supported by a camera by using the ONVIF protocol. - NVR supported events: You can map the list of events supported by a camera to events that the NVR can detect. There is no default value. It only shows the value sent by a camera.

Camera Setting

You can change the video settings of a registered network camera for each channel.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ⇒ ⇒ [ENTER] ⇒ ▼ ▶ ⇒ ⇒ [ENTER] ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Camera Case Repatriation Camera Setup Live Setup Channel Setup Add Decrease Profile Grid Resolution Frame Rate Quality Filter Control Type Bricette MJPEG MPEG 219801536 9 20 - 0.144 RJ294 RJ264 204801536 19 20 - 2.150 BMCWBI N J294 219801536 25 18.8x50 - 2.150 LVMWBI N J294 20480160 24 18.8x50 - 1.9…

  • Add: You can add camera profile. Click on the Add button to launch the addition window. Enter the information and click on the button to add it to the list.
  • Delete: You can delete the selected profile from the list.
  • Select Camera: Select the camera channel to change the video transmission settings.
  • Profile: Show a video profile for the connected camera.
  • Codec: Shows the codec information for the selected profile.
  • Resolution: You can change the resolution of the selected profile. • Frame Rate: You can change the frame rate of the selected profile. • Quality: You can change the video quality of the selected profile.
  • Bitrate Control: You can change the bit rate for video transmission of the selected profile.

SAMSUNG SRN-873S - Camera Setting - 2

If you change the settings of a specific profile for each model, the effective range of the baud rate may be changed accordingly.

Ex) If you set the frame rate of the first profile to 30fps, the send rate of the second profile will be changed to 15fps.

- Menu items except Codec, Resolution, Transfer Rate, and Transfer Quality can be configured in the network camera's settings menu.

If you change the current profile settings, you may encounter an interrupted playback on the recording or live screen for a certain time.

■ Changes made in Camera Setup page are applied immediately, while changes made through the camera's web page may require up to 3 minutes.

Setup

In the bottom of the camera setting screen, press the button to set your camera while watching the live video of the selected camera.

SAMSUNG SRN-873S - Setup - 1

■ SUNAPI (Samsung Unified Network API): Camera that supports the communication protocols provided by Samsung 1. Camera supporting SUNAPI.

  1. A camera connected with admin privileges.
  2. A camera connected to Samsung protocols.

In the above cases, you can use the function.

For more details on camera settings, refer to the camera user manual.

Settings and operational specifications vary depending on each camera.

If there is a significant difference between the dark and the bright areas, increase the brightness of the dark areas to maintain the level of brightness of the entire area.

Mode, level, and D-Range can be set.

2015-01-01 01:10:25 PM Camera Temp Auto Speed Position Spool Home Fly CAM 01

Backlight

You can view both bright and dark areas.

Mode, WDR level, and WDR black/white levels can be set.

2015-01-01 01:10:25 PM Camera Temp 400 rpm 600 rpm 800 rpm 900 rpm CAM 01

Exposure

You can adjust the exposure of your camera.

Brightness control, shutter, SSNR, Sens-up, shutter/lens, and gains can be set.

2015-01-01 01:10:25 PM Camera Screw Control Balance Day Night Balance Time PM CAM 01

Day/Night

You can change the mode to adjust the color and contrast.

Mode, switching time, brightness change, alarm time, alarm input/output, negative color, daytime/nighttime switching and simple focus, and activation time can be set.

2015-01-01 01:10:25 PM Camera Control Current Time Switching Impedance Balance On/Off On/Off On/Off Control Control Control Control Control CAM 01

Special

DIS (shaking compensation), use of Defog levels can be set.

2015-01-01 01:10:25 PM Camera OK Rearlight Eggoon Day Right Smart Cass Pis CAM 01

Focus

You can adjust the focus of your camera's video.

Items of Simple Focus and Focus-Initialize Setting can be set.

2015-01-01 01:10:25 PM CAM 01 2015-01-01 01:10:25 PM

Flip

You can set the mirror mode (horizontal flipping) and the flip mode (vertical flipping).

2015-01-01 01:10:25 PM Camera ISO Auto mode: -96 Cycle mode: -98

After finishing with setting camera, click on the button to move back to the previous screen.

Live Setting

You can change the live transfer settings of the network camera.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ⇒ ⇒ [ENTER] ⇒ ▼▶ ⇒ ⇒ [ENTER] ⇒ ▲▼◀▶ ⇒ [ENTER]

Camera Can Registration Camera Setup Live Setup Channel Setup OH Live Replacement 1 Auto 2 3 Auto 4 Auto 5 Auto 6 Auto 7 - 8 - 9 - 10 OK Cancel

Camera Can Registration Camera Setup Live Setup Channel Setup OH Live Replacement 1 Auto 2 3 Manual Live/4x8 0.264 1000000 15 fps 20 4 Recording 5 Auto 6 Auto 7 8 9 10 OK Cancel

• Live Replacement : You can select the live profile setup mode.

If you select , the profile setup items are enabled, and you can change settings manually.

- Auto : For live monitoring, the profile which is approximate to the output resolution of each channel must be selected automatically.

e.g., Camera profile : Three profiles (1280x720, 800x600 and 640x480) are supported.

If the resolution of the output screen is 1920x1080:

1280x720 is selected automatically if the channel resolution of the single channel is 1920x1080.

640x480 is selected automatically if the channel resolution of 16-split channel is 480x270.

- Manual : Live monitoring is performed with the profile selected by the user from the registered camera profiles.

- Record : Live monitoring is performed with the profile set for recording.

  • Profile: You can select the video profile of the connected camera setting.
  • Codec : Show the codec of the selected recording profile.
  • Resolution : Show the resolution of the selected profile. • Frame Rate : Show the frame rate of the selected profile. • Quality : Show the quality of transfer video of the selected profile.

Channel Setting

You can configure the video settings for each channel.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ⇒ ⇒ [ENTER] ⇒ ▼ ▶ ⇒ ⇒ [ENTER] ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Camera Can Registration Camera Setup Live Setup Channel Setup Apply to On ON Video Audio Camera Name 1 ON OFF CAM 01 2 ON OFF CAM 02 3 ON OFF CAM 03 4 ON OFF CAM 04 5 ON OFF CAM 05 6 ON OFF CAM 06 7 ON OFF CAM 07 8 ON OFF CAM 08 If you cannot receive events from MRL, please check the network camera…

  • Apply to CH: If you select , the "Apply to CH" confirmation window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.
  • Video
  • : You can turn ON/OFF the selected channel's camera.
  • Shows information other than the video of the selected channel. For privacy protection, it does not display the video while the recording continues.
  • Shows nothing but an empty screen while the recording continues.

SAMSUNG SRN-873S - Channel Setting - 2

If the channel is set to or mode, the channel's sound is not hearable. However, the channel's sound is recorded if its Audio setting is set to , even if the sound is not heard in Live mode.

- Audio

- If set to , you can turn the audio of the channel ON/OFF on the Live screen. - If set to , the channel's audio is off on the Live screen and not recorded.

- Camera Name: Provide a camera name.

■ You can enter up to 15 characters including spaces.

You can check information on storage devices.

Device/Format

You can check storage devices and their capacity, usage as well as status. Devices available are HDD, and USB devices (Memory, HDD).

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ ▼ ⇒ <Device> ⇒ ▶ ⇒ <Storage Device> ⇒
[ENTER] ⇒ ▼ ⇒ <Device/Format> ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Storage Device Device/Format HDD Alarm Storage Status Status Device No Model Capacity Usage Status Temperature HDD 1 ST1000/MDD1-1CTI 100.0GB/0.997 Normal 32 C/877 FLASH mRS 578.43MB/5GB Normal Normal - Format HDD Map Cancel

Storage Device HDD Map Device1 Device2 HDD PLA Value performance CNCY Current OK Cancel

• Storage Status: Displays the working status of a storage device.

  • Red: Displays the situation of video loss.
  • Green: Displays the normal situation without video recording losses.
  • Status

■ Full BPS: Displays the current rate of recording.

■ Current Loss Rate: Displays the current recording loss rate. ■ Max Loss Amount: Displays the maximum amount of losses up until now.

• No.: You can check the designated number for the built-in HDD.

If you want to find out about the location corresponding to the HDD number, refer to the .

• Capacity: Displays the amount of storage device use and the full capacity. • Usage: Designate the purpose of use for a storage device. - Status: Displays the current working condition of a storage device.

For inspection or replacement of HDD alarms, please refer to "HDD Alarm Setting." (Page 84)

  • Normal: It is displayed during normal operation.
  • Inspection: Operating with partial problems.
  • Replacement: It is displayed when you can no longer use it. • Temperature: You can check the temperature of the HDD mounted in the NVR.

- Format: Select a device and click on format after which a format confirmation window appears. Click on the button to format the selected storage device.

SAMSUNG SRN-873S - Device/Format - 3

- Formatting will delete all the recording data that has been saved. Be careful.

■ While formatting is ongoing, you cannot record video. - Do not remove a formatting device until it is finished.

- HDD Map: You can check the location according to the assigned number for the HDDs installed inside. - Refer to this when servicing or installing an additional HDD.

HDD Alarm Setting

You can set the inspection alarm output terminal, the replacement alarm output terminal and the alarm time for HDD defects.

[MENU] => [ENTER] => ▼ =>

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ▶ ⇒ ⇒ [ENTER] ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Storage Device Device/Format HDD Alarm Check Alarm Output Port AB BEEP 1 2 3 4 Duration Continuous - Replace Alarm Output Port AB BEEP 1 2 3 4 Duration Continuous - OK Cancel

- Alarm

  • If was selected, both beep sound and alarm signal through rear side ports will output.
  • If was selected, a beep will sound.
  • Alarm signal will output through the alarm out port on the rear side when selected <1>, <2>, <3> and <4>.

■ SRN-473S only supports <1> alarm, and SRN-873S only supports <1>, <2>, and <3> alarms.

  • Check Alarm Output Port : If HDD generates check alarm, the alarm signal will output to the specified alarm output port.
  • Replace Alarm Output Port : If HDD generates replace alarm, the alarm signal will output to the specified alarm output port.
  • Duration: Sets the alarm duration for the alarm signal and beep sound.

SAMSUNG SRN-873S - HDD Alarm Setting - 2

status means that the HDD is operating but it has problems that require technical examination. (F appears on the Live screen. status means that the HDD has defect and requires immediate replacement. ( ) appears on the Live screen.

Remote Devices

You can adjust the ID for a remote control to be used in connection with NVR.

[MENU] => [ENTER] => ▼ =>

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Remote Device Remote Control OK 0.0 OK Cancel

  • Remote control: Select whether to use a remote control.
  • ID: Select an ID number linked to a camera. If the remote control ID does not match, it will not operate properly.

SAMSUNG SRN-873S - Remote Devices - 2

■ To change the remote control ID, refer to "Changing the Remote Control ID". (Page 16)

Monitor

You can set the information displayed on the monitor as well as the output system.

Monitor settings

You can configure the monitor output-related settings including the displayed information, dwell time and output system.

[MENU] => [ENTER] => ▼ =>

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ▼ ⇒ ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Monitor Monitor Event Display OFF Display Date Time Off Name icon Sequence switching time 5 sec Video Output HDMI 72fps VGA $245/785 Display Position Setup OK Cancel

  • Event Display: Sets the dwell time of the event channel display on the monitor when an event occurs. If you set it to , it will continue to display until you press the [ALARM] button to cancel it.
  • Display: Displays only checked items on the monitor screen.
  • Sequence switching time: Set the automatic switching time for the segmented screen in live mode.

- Video Output: Select a video output type from and .

If your selection of or does not match with the monitor setting, the video may not be output. If you press the [STOP (■)] → [ZOOM] → [STOP (■)] → [ZOOM] → [MENU] button on your remote control, the basic resolution pop up will appear. You can adjust the desired resolution in it.

If the changed resolution is not supported by the monitor, the video may not be displayed properly. If this is the case, the screen will restore the default resolution after a certain time. Then, you can change it to a different resolution.

SAMSUNG SRN-873S - Menu setup - 1

- Specify the event display time and dwell time in consideration of the video delay depending on the network environment.

To adjust the display position

Some monitors may not display information (camera name, icon, time information, etc.) about the NVR, depending on the condition. Then, you can change the display position of the data.

Cam 0 CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM 09 CAM 10 CAM 11 CAM 12 CAM 13 CAM 14 CAM 15 CAM 16 Display Position Setup

  1. From the monitor setup menu, select .
  2. Using the directional key or number button on the remote control, you can adjust the screen.
  3. Press .

Text

Device and events can be set up.

Device Settings

Relevant values of a device connected to NVR can be set.

[MENU] => [ENTER] => ▼ =>

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Text Device Event No Device Use DH Part Encoding type 1 TEXT 38 Use OILCHD OILC... 7001 US-ASCB 2 TEXT 52 Net Use None 7502 US-ASCB 3 TEXT 68 Net Use None 7503 US-ASCB 4 TEXT 94 Net Use None 7504 US-ASCB 5 TEXT 95 Net Use None 7505 US-ASCB 6 TEXT 96 Net Use None 7506 US-ASCB 7 TEXT 97 Net Use None 7…

Modify the text device No: Device Name: TXT-01 Use of a device CH: Port Encoding type Start End CAM 01 CAM 02 CAM 03 CAM 04 CAM 05 CAM 06 CAM 07 CAM 08 CAM 09 CAM 10 CAM 11 CAM 12 CAM 13 CAM 14 CAM 15 CAM 16 CAM 17 CAM 18 CAM 19 CAM 20 CAM 21 CAM 22 CAM 23 CAM 24 CAM 25 CAM 26 CAM 27 CAM 28 CAM 29 C…

• Device : Enter the user's desired name • Use : Select whether or not to use - CH: Select a channel to add a device from a channel table. • Port : Display a port number that is set • Encoding type : Select an encoding type to use from a list.

- You can select starting and ending character strings.

SAMSUNG SRN-873S - Device Settings - 3

- General characters, special characters, and Hex codes (e.g. 0x12, 0x34) can be used for character strings.

SAMSUNG SRN-873S - Device Settings - 4

Equipment connected to NVR uses TCP/IP communication protocol.

Event Settings

You can set up event keywords.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ ▼ ⇒ <Device> ⇒ ▶▼ ⇒ <Text> ⇒ [ENTER] ⇒ ▼ ► ⇒ <Event> ⇒ [ENTER] ⇒ ▲▼ ◀► ⇒ [ENTER]

Text Device Event Total amount Keyword Add OK Cancel

Keyword addition OK Cancel

• Total amount: Set a total amount condition to receive alarms. - Keyword: If the button is clicked, a screen to add keywords pops up. If you select one of the added keywords to delete and click the button, the selected keyword will be deleted.

You can set up scheduled recording, event recording, and other recording-related settings.

Recording Schedule

Make a reservation on a date and time to schedule the recording at a specified time.

[MENU] ⇔ [ENTER] ⇔ ▼ ⇔ <Menu> ⇔ [ENTER] ⇔ ▼ ⇔ <Record> ⇔ ▶ ⇔ <Recording Schedule> ⇔ [ENTER] ⇔ ▲▼◀▶ ⇔ [ENTER]

Setup System > Recording Schedule Device > Record Setup Record Option Record > Event Network Legend Return

Recording Schedule OK 1 Apply to Off Jul Sun Mon Tue Wed Thu Fri Sat Wed No Reordering Continuous Cass Best/Condelland Cancel

  • All: The entire time range (Monday through Sunday, including holidays, AM 0~PM 23) will be reserved with the same recording schedule.
  • Apply to CH: If you select, the "Apply to CH" confirmation pop-up window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.

Record setting by color

Color Function Description
No Color No Recording No schedule / event recording
Green Continuous Scheduled recording only
Orange Event Event recording only
White Both(Cont&Evnt) Both scheduled / event recordings

Each press of a selected cell will cycle through - - -

Record Setting

You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard/event.

You can check frame rates and data transfer amounts of Full Frame and Key Frame recordings for each channel, and set the transfer limit for recordings.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ ▼ ⇒ <Record> ⇒ ▶▼ ⇒ <Record Setup> ⇒
[ENTER] ⇒ ▼ ⇒ <NVR> ⇒ ▲▼◀▶ ⇒ [ENTER]

Records Setup MVR Camera Total Intrate S.Lint/Max / 75 dB/80 Mbps Apply to CH CH Standard Event Frame Limit Event Audio FULL KEY Pre- Post- 1 FULL FULL 0.1M(15) 0.1M(20) 0.1M(30) 5.0M OFF 1 min OFF 2 FULL FULL - - - - 5.0M OFF 1 min OFF 3 FULL FULL 0.1M(15) 0.1M(20) 5.0M OFF 1 min OFF 4 OFF OFF 5 FU…

  • Apply to CH: If you select, the "Apply to CH" confirmation window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.
  • Standard, Event : Configures Standard recording and Event recording.

- FULL : Records all frames fed by the camera.

- KEY : Records only key frames fed by the camera.

Actual recording rate may differ from camera settings. In general, 1 to 2 frames per second are recorded.

- OFF : No recording is made.

Frame

  • FULL : Shows the data amount (frames) of 'Record all scenes'.
  • KEY : Shows the data amount (frames) of 'Record important scenes'.

- Limit : Set the amount of data allowed for input for each channel.

• Event : When an event occurs, you can set which point you will start or stop recording.

- Pre : When an event occurs, recording will be started regardless of the time set.

If you set it to five seconds, recording will start at five seconds before an event occurs.

- Post: When an event occurs, recording will continue after the time set.

If you set it to five seconds, recording will continue for a further five seconds after an event is finished.

• Audio : Specify whether to record the sound received from the camera or not.

SAMSUNG SRN-873S - Record Setting - 2

If a channel's data transfer exceeds the defined allowed limit, it may affect other channels and may force switching to recording even when the channel is configured to recording mode. For Key Frame recording channels, the icon for limited recording appears on the top side of the live screen.

A channel displayed in yellow indicates that the recorded data is not being transferred from the camera and that the recording is being performed temporarily using another profile on the camera.

Check the channel information to see the applied profile to the channel listed in yellow.

A channel displayed in orange indicates that the amount of inputted data is greater than the permitted data amount.

In this case, it is impossible to record all of the incoming frames.

Instead, only part of the frames (1 or 2 frames per second) can be recorded. To resolve this issue, you must set the permitted data amount to be greater than the amount of inputted data.

Refer to notes on "Record status". (Page 48)

Setting the camera recording profile

You can set the video profile to perform recording on your camera connected to each channel.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ ▼ ⇒ <Record> ⇒ ▶▼ ⇒ <Record Setup> ⇒ [ENTER] ⇒ ▼▶ ⇒ <Camera> ⇒ [ENTER] ⇒ ▲▼◀▶ ⇒ [ENTER]

Record Setup MVR Camera CH Profile Codes Resolution Freeze Rate Guality 1 H.264 H.264 2048X1336 15fps 12 2 -

SAMSUNG SRN-873S - Setting the camera recording profile - 2

  • You can configure the settings only for the profiles that are supported by the camera. If the profiles used for recording and network are different, the camera's video feed may not comply with the frame rate as specified in the camera.
  • Profile: Select a record profile for the connected camera.
  • Codec: Show the codec information for the selected record profile.
  • Resolution: Display the resolution for the selected record profile. • Frame Rate: Display the frame rate for the selected record profile. • Quality: Display the video quality for the selected record profile.

Record Option

When the HDD capacity is full, you can set whether to stop recording or start overwriting.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ ▼ ⇒ <Record> ⇒ ▶▼ ⇒ <Record Option> ⇒ [ENTER] ⇒ ▲▼◀▶ ⇒ [ENTER]

Record Option Disk End Mode Overwrite Stop Low and less Auto Delete Dry OK Cancel

  • Disk End Mode: Select a HDD repetitive recording type.
  • Overwrite: If the HDD is full, this will overwrite the existing data and keep recording.
  • Stop: If the HDD is full, this will stop recording automatically.
  • Disk End Beep: If you select for the disk end mode, this button will be active. Specify the use of beep when the HDD recording ends. If you check it, the beep will sound on the disk full and the recording stops.
  • Auto Delete: If you check this option, the period list box is active. Specify the deletion period to delete any earlier data than the specified date. However, you can search for data from the current time to the selected date.

SAMSUNG SRN-873S - Record Option - 2

If you press when you have completed your settings, all the existing data earlier than the specified period will be deleted automatically. So it is recommended to backup the previous data if necessary for later use.

You can make the setup for record in case of sensor detection, camera event or video loss detection.

Sensor Detection

You can set the sensor's operating condition and connected camera, as well as alarm output and its duration.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ ▼ ⇒ <Event> ⇒ ▶ ⇒ <Sensor Detection> ⇒ [ENTER] ⇒ ▼ ⇒ <NVR> ⇒ ▲▼◀▶ ⇒ [ENTER]

Setup System Device Record Event Network Sensor Detection Camera Event Video Loss Detection Alert Out Schedule Legend Return

Sensor Detraction NVR Camera Apply to other sensors Sequence Sequence Operation - Case - Alert Out - Duration 1 OFF 1 Name 25 sec 2 OFF 2 Name 20 sec 3 OFF 3 Name 19 sec 4 OFF 4 Name 23 sec 5 OFF 5 Name 27 sec 6 OFF 6 Name 27 sec 7 OFF 7 Name 20 sec 8 OFF 8 Name 23 sec Cancel

- Apply to other sensors: If you select, the "Apply to other sensors" confirmation window will appear.

After selecting channels that the settings will be applied to, click on to apply them to the selected channels.

- Sensor Operation: Sets the operation mode of sensors.

In the tab, you can set whether or not to use a sensor.

- : Sensor is opened. If the sensor is closed, it generates alarm.

- : Sensor is closed. If the sensor is open, it generates alarm.

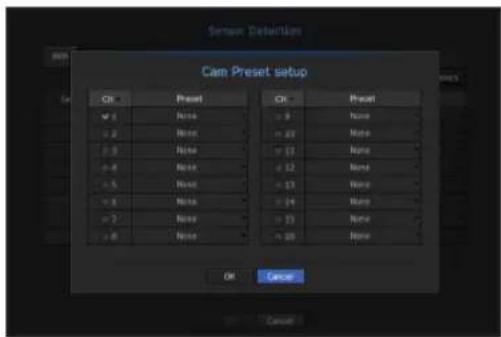

Cam Preset setup Ch Preset CI Preset 1 None = 9 None 2 None = 10 None 3 None = 11 None 4 None = 12 None 5 None = 13 None 6 None = 14 None 7 None = 15 None 8 None = 16 None OK Cancel

Alarm Out Setup OK Cancel Apply to other seconds Server Gesent Desetion... Case Alarm Out Duration 10 sec 20 sec 30 sec 40 sec 50 sec 60 sec 70 sec 80 sec 90 sec Cancel

- Cam : Select a channel to be connected to the sensor. If selected camera, "Cam Preset setup" window appears. Select a channel and setup the preset.

■ Preset setup can be done in PTZ mode.

- Alarm out: Sets the alarm output method.

■ For further information on alarm output, refer to "HDD Alarm > Alarm". (Page 84)

■ SRN-473S only supports <1> alarm, and SRN-873S only supports <1>, <2>, and <3> alarms.

• Duration: Sets the duration of the alarm signal and alarm sound.

SAMSUNG SRN-873S - Sensor Detection - 5

If you select the tab, you can configure the sensor operation settings of the network camera connected to each channel.

If the connected network camera that has configured the alarm in/out settings triggers an alarm, the NVR will perform the alarm out.

Camera Event

You can specify the operation of events sent from your camera (motion detection, video analysis events, audio events), alarm display methods, and alarm time.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ ▼ ⇒ <Event> ⇒ ▶ ▼ ⇒ <Camera Event> ⇒ [ENTER]
⇒ ▲ ▼ ◀ ▶ ⇒ [ENTER]

Camera Event Camera Apply to On Off Camera Event MD Cap Alarm Ams Duration 1 OFF OFF 1 None 10 sec 2 OFF OFF 2 None 10 sec 3 OFF OFF 3 None 10 sec 4 OFF OFF 4 None 10 sec 5 OFF OFF 5 None 10 sec 6 OFF OFF 6 None 10 sec 7 OFF OFF 7 None 10 sec 8 OFF OFF 8 None 10 sec If you cannot receive events from…

  • Apply to CH: If you select, the "Apply to CH" confirmation window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.
  • Camera Event: Select whether or not to use a camera event. • MD: Select whether or not to use motion detection from the camera. • Cam: Select an event detection channel.

If you select a camera item, the "Camera preset" screen will appear. Select a channel to connect and set the preset.

■ You can set the preset in PTZ mode.

• Alarm: Select the method for alarm output. ■ For more details, refer to "HDD alarm > Alarm" (Page 84). • Alarm Duration: Set the duration of the alarm. - Camera MD: You can set the detailed setting of motion detection for a network camera connected.

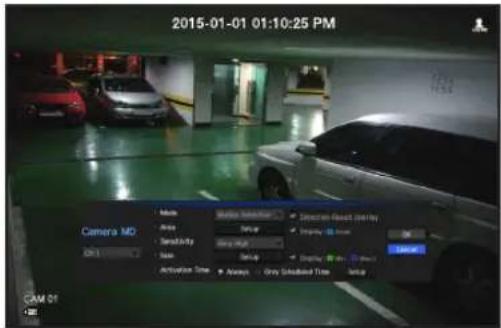

2015-01-01 01:10:25 PM Camera MD Mode Audio Sensitivity Noise Activation Time Always Grey Sensitive Time Setup Connection Reset (Play) Display Gray OK Cancel

  • Mode: Set the motion detection mode.
  • Area: Click on and when the detailed setup menu appears, set the motion detection area.
  • Sensitivity: Set the sensitivity for motion detection (very low/low/medium/high/very high).
  • Size: Click on. When the detailed setup menu appears, set the max/min size of the object to be detected.
  • Activation Time: Select the operation time of motion detection.

After finishing with setup, click the button to move back to the previous screen after saving the setup.

You can set the camera so that it can trigger an alarm if it is disconnected or the video is lost due to an unstable network connection.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ▼ ⇒
Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SAMSUNG

Model : SRN-873S

Category : VCR
