Product Type	Freestanding Cooker
Brand	Neff
Model	T44T90N0
Width	90 cm
Depth	60 cm
Height	85-90 cm (adjustable)
Weight	Approximately 75 kg
Power Supply	220-240 V ~ 50/60 Hz
Hob Type	Induction
Number of Hob Zones	5
Oven Type	Electric multifunction oven
Oven Capacity	77 L
Oven Functions	Fan heating, top/bottom heat, grill, pizza mode, etc.
Cleaning	Pyrolytic self-cleaning
Safety Features	Child lock, automatic shut-off, residual heat indicators, coolTouch door
Connectivity	None (manual controls)
Spare Parts Availability	Yes, through Neff service centers or authorized dealers
Repairability	Modular design; many components replaceable
Manual Languages	EN, ES, EL, and others available online

Frequently Asked Questions - T44T90N0 NEFF

How do I install the Neff T44T90N0 cooker?

Installation must be carried out by a qualified electrician. Ensure the appliance is connected to a 220-240 V power supply with appropriate circuit breaker. Refer to the installation manual for precise measurements and ventilation requirements.

How do I use the induction hob?

Place compatible cookware on the desired zone. The hob automatically detects the pan. Use the touch controls to select power levels from 1 to 9. For boosting, press the + button until 'P' appears. The hob has a timer and child lock function.

What oven functions are available?

The oven offers multiple modes: fan heating for even cooking, top/bottom heat for traditional baking, grill for browning, and pizza mode. You can also use the pyrolytic cleaning function to clean the oven interior.

How do I clean the cooker?

For the hob, wipe with a damp cloth after each use. For the oven, use the pyrolytic cleaning cycle: remove shelves, close door, select Pyrolytic mode, and let it run. After cooling, wipe off ash. Do not use abrasive cleaners.

What should I do if the hob does not heat?

Check if the pan is compatible (magnetic base). Ensure the zone is turned on and the child lock is disabled. If the issue persists, reset the circuit breaker. If the problem continues, contact Neff customer service.

How do I replace the oven light bulb?

Disconnect the cooker from power. The bulb is located at the back of the oven cavity. Remove the glass cover by turning counter-clockwise (if applicable). Replace with a compatible 25W, 300°C resistant halogen bulb. Reassemble and restore power.

Can I use aluminium foil in the oven?

You can use foil to cover dishes, but avoid covering the bottom of the oven or the heating elements. Improper use can cause poor heat circulation or fire risk. Always leave gaps for air flow.

What does the error display mean?

Refer to the manual for specific error codes. Common codes: E011 indicates a communication fault; E310 means overheating. If the error persists, contact a qualified technician.

How do I adjust the oven temperature?

Turn the function selector to the desired mode, then rotate the temperature knob to the required setting. The oven will preheat and indicate when ready. Use a oven thermometer to verify accuracy.

Where can I download the user manual?

The manual is available for free on notice-facile.com or the official Neff website. Search for model T44T90N0. You can view it online or download PDF in multiple languages.

USER MANUAL T44T90N0 NEFF

Instructions for use .....2 [en] Instruction manual ..... 16 [el] Οδηγίες χρήσεως ...... 29

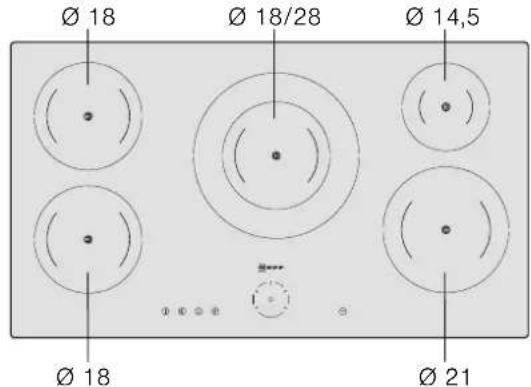

T4..3., T4..9..

Hob

Hob

Hob base

EFF

T4..3..

T4..9..

es Index

Elements that may damage the appliance 18

Protecting the environment 19

Environmentally-friendly disposal of waste products.... 19

Energy-saving advice 19

Induction cooking.... 19

Advantages of induction cooking.... 19

Suitable pans.... 19

Familiarise yourself with the appliance 20

The control panel.... 20

Hotplates 20

Residual heat indicator 20

Tipp-Pad and Tipp control 21

Removing the Tipp control.... 21

Protecting the Tipp control.... 21

Emergency mode.... 21

Programming the hob.... 21

Switching the hotplate on and off.... 21

Setting the hotplate 21

Cooking guidelines table.... 22

Childproof lock.... 23

Turning on and off the childproof lock. 23

Activating and deactivating the childproof lock 23

Powerboost function 24

Use limitations 24

To activate.... 24

To turn off.... 24

Time programming function 24

Turning off a hotplate automatically.... 24

Automatic timer 24

The timer 24

Keep warm function ....25

To activate.... 25

To turn off.... 25

Automatic time limitation....25

Cleaning lock function 25

Basic settings 25

To access the basic settings.... 26

Care and cleaning....27

Hob....27

Hob frame 27

The Tipp control 27

Fixing malfunctions....27

Normal noise while the appliance is working 28

After-sales service....28

Additional information on products, accessories, replacement parts and services can be found at www.neff-international.com and in the online shop www.neff-eshop.com

⚠ Safety precautions

Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners.

Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not connect the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will lose your right to any type of compensation.

This appliance must be installed according to the installation instructions included.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is not intended for operation with an external clock timer or a remote control.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their

safety how to use the appliance safely and have understood the associated hazards.

Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of fire!

• Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar. ■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob. ■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.
• The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Risk of burning!

■ The hotplates and the area around them get very hot. Never touch the hot surfaces. Keep children away. ■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service. ■ Metal objects on the hob quickly become very hot. Never place metal objects (such as knives, forks, spoons and lids) on the hob. ■ After each use, always turn off the hob at the main switch. Do not wait until the hob turns off automatically after the pan is removed.

Risk of electric shock!

• Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. ■ Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.
• A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

- Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Electromagnetic hazards!

This appliance complies with safety and electromagnetic compatibility standards. However, people with pacemakers or insulin pumps must refrain from using this appliance. It is impossible to ensure that all of these devices available on the market comply with current electromagnetic compatibility standards, and that interference which may prevent the device from working correctly will not occur. It is also possible that people with other types of devices, such as hearing aids, could experience some discomfort.

The removable control element is magnetic and may affect electronic implants, e.g. heart pacemakers or insulin pumps. For people with electronic implants: never carry the control element in clothing pockets. The minimum distance to heart pacemaker should be 10 cm.

Malfunction risk!

The hob is equipped with a fan in the lower section. If there is a drawer under the hob it should not be used to store small objects or paper, since they could damage the fan or interfere with the cooling if they are sucked into it.

There should be a minimum of 2 cm between the contents of the drawer and fan intake.

Risk of injury!

• When cooking in a bain marie, the hob and cooking container could shatter due to overheating. The cooking container in the bain marie must not directly touch the bottom of the water-filled pot. Only use heat-resistant cookware. Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.

Elements that may damage the appliance

Caution!

Rough pan bases may scratch the hob. Avoid leaving empty pots and pans on the hotplate. Doing so may cause damage. Do not place hot pans on the control panel, the indicator area, or the hob frame. Doing so may cause damage. Hard or pointed objects dropped on the hob may damage it. Aluminium foil and plastic containers will melt if placed on the hotplate while it is hot. The use of laminated sheeting is not recommended on the hob.

Overview

The following table presents the most common damage caused:

Damage Cause Measure

Stains Food spillage Immediately remove spilt food using a glass scraper.
	Unsuitable cleaning products Only use cleaning products specifically designed for glass-ceramic hobs.
Scratches Salt, sugar and sand Do not use the hob as a tray or working surface.
	Pans with rough bottoms may scratch Check pans.the glass ceramic
Fading Unsuitable cleaning products Only use cleaning products specifically produced for glass-ceramic hobs.
	Contact with pans Lift pots and pans before moving them around.
Chips	Sugar, substances with a high sugar Immediately remove spilt food using a glass scraper.content

Protecting the environment

Unpack the appliance and dispose of its packaging in such a way that no damage is caused to the environment.

Environmentally-friendly disposal of waste products

This appliance conforms to the Waste Electrical and Electronic Equipment Directive WEEE 2002/96/EC. This directive defines the framework for recycling used appliances within European territory.

Energy-saving advice

■ Always place the correct lid on cookware. Cooking with an uncovered pan will result in a four-fold increase in energy use.

Use a glass lid to provide visibility and avoid having to lift the lid.

■ Use cookware equipped with a solid, flat bottom. Curved pan bases increase energy consumption. ■ The diameter of the pan base must match the size of the hotplate. If not, energy may be wasted. Note: The manufacturer normally indicates the pan's upper diameter. This is normally greater than the diameter of the pan's base. - Choose cookware of a size suited to the amount of food you are going to cook. A large pan that is only half full will use a lot of energy. ■ Use a small amount of water when cooking. This saves energy, and vegetables retain their vitamins and minerals. ■ Select a lower power level.

Induction cooking

Advantages of induction cooking

Induction cooking represents a radical change from the traditional method of heating; the heat is generated directly in the pan. It therefore offers a number of advantages:

■ Time savings for cooking and frying; since the pan is heated directly. ■ Energy is saved. ■ Care and cleaning are simpler. Foods that have spilt do not burn as quickly. ■ Heat and safety control; the hob supplies or cuts off power immediately when the control knob is turned on. The induction hotplate stops supplying heat if the pan is removed without having previously switched it off.

Suitable pans

Ferromagnetic pans

Only ferromagnetic pans are suitable for induction cooking, these may be made from:

■ enamelled steel ■ cast iron ■ special cutlery for stainless steel induction pan

To determine whether a pan is suitable, check to see if a magnet will stick to it.

Other suitable cookware for induction

There are other types of cookware especially made for induction whose base is not entirely ferromagnetic.

When using large cookware on a smaller ferromagnetic zone, only the ferromagnetic zone heats up, so heat might not be uniformly distributed.

Cookware with aluminium on the base reduce the ferromagnetic zone, so less heat may be supplied or be difficult to detect.

For good cooking results, the diameter of the cookware's ferromagnetic area should match the size of the hotplate. If cookware is not detected on a hotplate, try it on the next smaller hotplate down.

Unsuitable pans

Never use pans made from:

■ common thin steel glass - earthenware copper aluminium

Characteristics of the pan base

The characteristics of the pan base may affect the uniformity of the cooking results. Pans made from materials which help diffuse heat, such as stainless steel sandwich pans, distribute heat uniformly, saving time and energy.

Absence of pan or unsuitable size

If no pan is placed on the selected hotplate, or if it is made of unsuitable material or is not the correct size, the power level displayed on the hotplate indicator will flash. Place a suitable pan on the hotplate to stop the flashing. If this takes more than 90 seconds, the hotplate will switch off automatically.

Empty pans or those with a thin base

Do not heat empty pans, nor use pans with a thin base. The hob is equipped with an internal safety system. However, an empty pan may heat up so quickly that the "automatic switch off" function may not have time to react and the pan may reach very high temperatures. The base of the pan could melt and damage the glass on the hob. In this case, do not touch the pan and switch the hotplate off. If it fails to work after it has cooled down, please contact the Technical Assistance Service.

Pan detection

Each hotplate has a minimum limit for detecting pans, which varies depending on the material of the pan being used. You should therefore use the hotplate that is most suitable for the diameter of your pan.

Automatic detection on double or triple hotplates

These hotplates can detect cookware of different sizes. Depending on the material and properties of the cookware, the hotplate will adapt automatically, switching on part or all of the hotplate and supplying sufficient power to obtain good cooking results.

Familiarise yourself with the appliance

These instructions for use are applicable to other hobs. On page 2 an overview of the models is provided, along with information on measurements.

The control panel

Control surfaces

Pressing a symbol activates its corresponding function.

Notes

■ The settings will not change if several symbols are pressed at the same time. This enables the programming zone to be cleaned when food is spilt. ■ Always keep the control surfaces dry. Moisture can affect proper functioning.

Hotplates

Hotplate Turning on and off

○ Single hotplate Always use cookware of a suitable size.

◎ Double hotplate This zone is switched on automatically when using cookware with a base the same size as the outer zone.

◎ Triple hotplate The hotplate is switched on automatically by using a pan with a base that matches the size of the outer area ( ◎ or ◎ ) selected for use.

Use only cookware suitable for induction cooking; see the section on suitable cookware.

Residual heat indicator

The hob has a residual heat indicator for each hotplate to show those which are still hot. Avoid touching a hotplate that displays this.

Even when switched off, the h/H light will remain on as long as the hotplate remains hot.

If the pan is removed before the hotplate is turned off, the h/H indicators and the selected power level will appear alternately.

Tipp-Pad and Tipp control

The Tipp-Pad is the programming panel in which the Tipp control can be used to select the hotplates and power settings. In the Tipp-Pad area, the Tipp control is centred automatically.

The Tipp control is magnetic and sticks to the Tipp-Pad. When the Tipp control is tilted, the corresponding hotplate is switched on. When the Tipp control is rotated, the power level is selected.

Once the Tipp control is positioned, it is possible that it might not be perfectly centred in relation to the printed markings outlining the Tipp-Pad panel. The Tipp control knob can be centred by moving it slightly around its resting position.

Note: even if the control knob is not centred, this does not affect the proper functioning of the Tipp control knob in any way.

Removing the Tipp control

The Tipp control can be removed to make cleaning easier. Similarly, the knob can be removed while the hotplate is on. All the hotplates switch off after 3 seconds.

Risk of fire!!

If a metal object is placed on the Tipp-Pad during these 3 seconds, the range may continue to heat. Therefore, always switch off the range using the main switch.

Protecting the Tipp control

The Tipp control has a powerful magnet inside. Do not place the Tipp control near magnetic media which contain data such as video tapes, diskettes, credit cards and cards with magnetic strips. They could be damaged.

Additionally, it could cause interference with monitors and television sets.

⚠ For people with electronic implants, such as pacemakers and insulin pumps:!

Implants are likely to be affected by the magnetic fields.

Therefore, never put the Tipp control in your pocket. It should be kept at least 10 cm away from a pacemaker.

Note: The Tipp control is magnetic. Metal particles sticking to the lower part could scratch the range's surface. Always clean the Tipp control thoroughly.

Emergency mode

The range can also operate without the Tipp control:

1. Turn on the range with the main switch.
2. Within the following five seconds, press both the L and √ symbols at the same time. A beep signal sounds.
3. Press the Ⓧ symbol several times until the indicator of the required hotplate lights up.
4. Then, press the symbol L several times to choose the required power level.

The hotplate is on.

Notes

■ The time program function can be turned on normally. To select the required cooking time, press the symbol L. ■ Turning on the hotplates is as usual. ■ The Tipp control can be fitted back into place on the range at any time.

Programming the hob

This section will show you how to program the hotplates. The table contains power levels and cooking times for several dishes.

Switching the hotplate on and off

The range is turned on and off using the main switch.

To turn on: press the ① symbol. The indicator above the main switch lights up. The range is ready for use.

To turn off: press the ① symbol until the indicator above the main switch disappears. All hotplates are turned off. The residual heat indicator stays lit until the hotplates have cooled off sufficiently.

Notes

■ The range switches off automatically when all the hotplates are switched off for more than 15 seconds. The settings are memorised for 4 seconds after the range has been turned off. If the hotplate is switched back on within this time then the previous settings will be applied.

Setting the hotplate

Select the required cooking power using the Tipp control.

Power level 1 = minimum power.

Power level 9 = maximum power.

Each power level has an intermediate setting. This is marked with a dot.

Selecting the power level

The range should be switched on.

1. Select the hotplate. To do this, turn the Tipp control to the required hotplate.
2. Within the next 5 seconds, rotate the Tipp control until the required power level lights up on the display.

The hotplate is on.

Changing the power level

Select the hotplate and heat level desired using the Tipp control.

Switch off the hotplate

Select the hotplate and turn the Tipp control until is displayed. The hotplate turns off and the residual heat indicator appears.

Note: If no pan has been placed on the induction hotplate, the selected power level flashes. After a certain time, the hotplate switches off.

Cooking guidelines table

The table below contains some examples.

Cooking times depend on the power level, type, weight and quality of the food. As such they are approximate.

Power levels affect cooking results.

When heating purées, creams and thick sauces, stir occasionally.

Use power level 9 to begin cooking.

	Power level Cooking time (min-utes)
Melt
Chocolate, chocolate coating, butter, honey 1-1. - Gelatine 1-1. -
Heating and keeping warm
Stew (e.g., lentils) 1-2 - Milk** 1.-2. - Sausages heated in water** 3-4 -
Defrosting and heating
Frozen spinach 2.-3. 5-15 min
Frozen goulash 2.-3. 20-30 min
Slow cooking, simmering
Potato dumplings 4.-5.* 20-30 min
Fish	4-5*	10-15 min
White sauces (e.g., bechamel)	1-2 3-6 min
Whipped sauces (e.g., Bearnaise, Hollandaise)	3-4 8-12 min
Boiling, steaming, sautéing
Rice (with a double amount of water)	2-3 15-30 min
Rice pudding	2-3 25-35 min
Unpeeled potatoes	4-5 25-30 min
Peeled potatoes with salt	4-5 15-25 min
Pasta	6-7*	6-10 min
Soups	3.-4. 15-60 min
Vegetables	2.-3. 10-20 min
Greens, frozen foods	3.-4. 7-20 min
Cooked in a pressure cooker	4.-5. -
Stewing
Meat roll	4-5 50-60 min
Stew	4-5 60-100 min
Goulash	3.-4. 50-60 min

* Uncovered cooking ** Uncovered

	Power level	Cooking time (minutes)
Bake / Fry with a little oil**
Steaks, plain or breaded 6-7 6-10 min
Frozen steaks 6-7 8-12 min
Chops, plain or breaded 6-7 8-12 min
Beefsteak (3 cm thick) 7-8 8-12 min
Chicken breast (2 cm thick) 5-6 10-20 min
Frozen chicken breast 5-6 10-30 min
Plain fish and fish fillet 5-6 8-20 min
Breaded fish and fish fillet 6-7 8-20 min
Frozen breaded fish (e.g., fish fingers) 6-7 8-12 min
Prawns and shrimps 7-8 4-10 min
Frozen meals (e.g., stir-fries) 6-7 6-10 min
Pancakes	6-7 fry individually
Omelette	3.-4.	fry individually
Fried eggs	5-6 3-6 min
Frying** (150-200 g per serving with 1-2 l. of oil)
Frozen foods (e.g., French fries, chicken nuggets)	8-9 fry one portion at a time
Frozen croquettes	7-8
Meatballs	7-8
Meat (e.g., chicken pieces)	6-7
Fish, in breadcrumbs or batter	6-7
Greens, mushrooms, in breadcrumbs or batter (e.g., baby mushrooms)	6-7
Confectionary products (e.g., fritters, fruit in batter)	4-5

* Uncovered cooking ** Uncovered

Childproof lock

The hob can be protected against being accidentally turned on, to ensure that children do not switch on the hotplates.

Turning on and off the childproof lock.

The range should be turned off.

To turn on: press and hold the L symbol for approx. 3 seconds. The ⇔ indicator lights up for 10 seconds. The range is locked.

To turn off: press and hold the L symbol for approx. 3 seconds. The lock is now deactivated.

Activating and deactivating the childproof lock

With this function, the childproof lock automatically activates when a hob is switched off.

Activating and deactivating

See the "Basic Settings" section.

Powerboost function

The Powerboost function can be used to heat large amounts of water more quickly than the power level 9.

Use limitations

This function is available on all hotplates, provided that no other hotplate in the same group is operating (see picture). Otherwise, the display of the selected hotplate will flash P and 9; then it will automatically set the power level 9.

In group 2, the powerboost function may be activated at the same time for all hotplates (see picture).

Time programming function

This function may be used in two different ways:

■ to automatically switch off a hotplate.

■ as a timer.

Turning off a hotplate automatically

Enter the cooking time for the required hotplate. The hotplate turns off automatically once the time has elapsed.

How to program

The range should be switched on.

1. Select the hotplate using the Tipp control.
2. Press the ⬤ symbol. ☐ is displayed in the time program function display. Select the required cooking time using the Tipp control.

After a few seconds the cooking time begins to count down.

Once the time has elapsed

The plate is turned off. The warning signal sounds, the hotplate displays and the time program function screen displays for one minute. The I→I indicator of the hotplate flashes. Pressing any symbol turns off the indicators and stops the beep.

To activate

1. Select the hotplate using the Tipp control.
2. Press the P symbol.

The function has been turned on.

To turn off

1. Select the hotplate using the Tipp control.
2. Press the P symbol.

The Powerboost function has been deactivated.

Note: In certain circumstances, the Powerboost function may turn off automatically in order to protect the electronic components inside the hob.

Changing or cancelling the time

Select the hotplate using the Tipp control. Press the ⏻ symbol and change the cooking time using the Tipp control, or set to 00.

Notes

If cooking times have been programmed for various plates, the time program function displays the shortest cooking time. The I→I indicator of the hotplate lights up. ■ To check the remaining cooking time of a hotplate: select the hotplate using the Tipp control. The cooking time will be displayed for five seconds. ■ Cooking time can be programmed for up to 99 minutes.

Automatic timer

With this function you may select a cooking time for all hotplates. Once a hotplate is switched on, the selected time will begin to count down. The hotplate will automatically switch off when the cooking time has elapsed.

Instructions on activating the timer are found in the chapter entitled "Basic settings".

Note: The cooking time of a plate may be cancelled or changed:

Select the hotplate using the Tipp control. Press the √ symbol and change the cooking time using the Tipp control, or set to 00.

The timer

The timer can be set for periods of up to 99 minutes. It is independent of the other settings. This function does not automatically switch off a hotplate.

How to program

No hotplate should be selected.

1. Press on the ⬤ symbol, and the time program function display shows 00.
2. Select the required time using the Tipp control. The timer starts to count down after a few seconds.

Once the time has elapsed

A warning beep sounds. The time program function displays 🐎 and the indicator 🔒 comes on. Pressing any symbol turns off the indicators and stops the beeping.

Changing or cancelling the time

Press the ⬤ symbol and change the time using the Tipp control, or set to ☐.

Keep warm function

The plate-warming plate is used for melting chocolate or butter, and for keeping food warm.

To activate

1. Select the required hotplate using the Tipp control.
2. Within the next 5 seconds, press the L symbol. The L indicator lights up.

The "keep warm" function has been turned on.

To turn off

1. Select the required hotplate using the Tipp control.
2. Press the L symbol.

The L display turns off.

After five seconds, the hotplate turns off and the residual heat indicator appears.

Automatic time limitation

If the hotplate remains in use for a long time and no changes are made in the settings, the automatic time limitation function is triggered.

The hotplate stops heating. On the hotplate display, and 8 flash alternately.

The indicator goes out when any symbol is pressed. The hotplate can now be reset.

When the automatic time function is used, it is governed by the selected power level (from 1 to 10 hours).

Cleaning lock function

Cleaning the control panel while the hob is on may change the settings.

In order to avoid this, the hob has a cleaning lock function. Press the Ⓧ symbol. A signal sounds. The control panel is locked for 35 seconds. The surface of the control panel can now be cleaned without risk of changing the settings.

Note: The lock does not affect the main switch. The hob may be switched off when desired.

Basic settings

The device has several basic settings. These settings may be adapted to the user's individual needs.

Indicator Function

c1	Childproof lock
	Deactivated.*
	Activated.
c2	Sound signals
	Confirmation beep and error signal deactivated.
	Only confirmation beep deactivated.
	All signals activated.*

*Factory settings

Indicator Function
c5	Automatic timer0 Switched off.*1-99 Automatic shut-off time
c6	Duration of the time program function warning signal1 10 seconds.2 30 seconds.3 1 minute.*
c7	Power-Management function0 = Deactivated.*1 = 1,000 W. minimum power.1 = 1,500 W.2 = 2,000 W.etc.9 or 9. = maximum power of the hob.
c8	Working without the Tipp-Pad0 Off.1 On.*
c9	Return to basic settings0 Personal settings.*1 Return to factory settings.

*Factory settings

To access the basic settings

The range should be turned off.

1. Turn on the range with the main switch.
2. Within the next 10 seconds, press the ⏻ symbol and hold for 3 seconds.

The display of the time program function shows c / and the cooking area display shows 0.

1. Press the ⏻ symbol several times until the time program function screen displays the symbol for the desired function.
2. Then select the required setting using the Tipp control.

1. Press the ⬤ symbol again and hold for more than 3 seconds.

The settings will have been properly saved.

Quit

To leave the basic settings, turn off the hob at the main switch.

Care and cleaning

The advice and warnings contained in this section aim to guide you in cleaning and maintaining the hob, so that it is kept in the best possible condition.

Hob

Cleaning

Clean the hob after each use. This prevents food remains left on the surface from burning. Wait until the hob is cold enough before attempting to clean it.

Only use cleaning products specifically designed for glass-ceramic hobs. Follow the instructions provided on the packaging.

Do not use:

■ Abrasive products ■ heavy-duty cleaners, like oven sprays and stain removers ■ Pads that may scratch ■ High-pressure or steam cleaners

Glass scraper

Remove dried-on food remains using a glass scraper.

1. Release the scraper safety catch
2. Use the blade to clean the hob surface.

Do not attempt to clean the hob surface with the base of the scraper. This could result in scratching.

Risk of injury!!

The blade is extremely sharp. Risk of cuts. Protect the blade when not in use. Replace the blade immediately when any imperfections are found.

Care of the appliance

Apply an additive to protect and preserve the hob. Follow the advice and warnings provided with the product.

Hob frame

In order to avoid damage to the hob frame, follow the indications below:

■ Use only slightly soapy hot water ■ Do not use sharp or abrasive products ■ Do not use a glass scraper

The Tipp control

For cleaning the Tipp control, warm water and a little soap is recommended. Do not use abrasive or corrosive cleaning products. Do not clean the Tipp control in a dishwasher or in washing up water. Otherwise, it could be damaged.

Fixing malfunctions

Malfunctions are generally caused by minor faults. Before contacting the Technical Assistance Service, ensure you have read the following recommendations and warnings.

Indicator Malfunction Measure

none The electric power supply has been cut off. Check other electrical appliances to check whether there has been a power cut.The appliance has not been properly connected following the connection diagram. Electronic system malfunction. If the malfunction is not resolved by the above checks, contact the Technical Assistance Service.
E flashing	The control panel is wet or an object is resting on it.	Dry the control panel area or remove the object.
Er + number /d + number /E + number	Electronic system malfunction. Disconnect the range from the mains. Wait about 30 seconds, then connect it again.*
Er38	The Tipp control was dragged instead of slanting it towards the required hotplate	Wait a few seconds, then switch on the range and hotplate properly once again.
F0/F9	There is an internal error in the system. Disconnect the range from the mains. Wait about 30 seconds, then connect it again.*
F2	The electronic system has overheated and the related hotplate has been switched off.	Wait for the electronic system to cool down. Then push any symbol on the range.*
F4	The electronic system has overheated and all of the hotplates have been turned off.
U1	Incorrect voltage supply, outside the normal operating limits.	Please contact your local electricity company.
U2/U3	The hotplate has overheated and switched off to protect its working surface.	Wait until the electronic system has cooled down sufficiently before switching the hotplate back on.

* If the indicator persists, call the Technical Assistance Service. Do not rest hot pans on the control panel.

Normal noise while the appliance is working

Induction heating technology is based on the creation of electromagnetic fields that generate heat directly at the base of the pan. Depending on how the pan has been manufactured, these may produce certain noises or vibrations such as those described below:

A deep humming sound as in a transformer

This noise is produced when cooking on a high power level. It is caused by the amount of energy transferred from the hob to the pan. The noise disappears or becomes faint when the power level is lowered.

A low whistling sound

This noise is produced when the pan is empty. It disappears when water or food is added to the pan.

A crackling sound

This noise occurs in pans which are made from different materials superimposed on one another. It is caused by the vibrations that occur adjoining surfaces of the different superimposed materials. The noise comes from the pan. The amount of food and cooking method can vary.

A high-pitched whistling sound

This noise is produced mainly in pans made from different materials superimposed on one another, and it occurs when such pans are heated at maximum power on two hotplates at the same time. The whistling disappears or becomes fainter as soon as the power level is lowered.

Noise from the fan

For proper use of the electronic system, the temperature of the hob must be controlled. For this purpose, the hob has a fan that starts working after detecting excess temperatures at different power levels. The fan may also work due to inertia after the hob has been switched off, if the temperature detected is still too high.

The noises described are normal, they are part of induction heating technology and not a sign of malfunction.

After-sales service

Our after-sales service is there for you if your appliance should need to be repaired. We are committed to find the best solution also in order to avoid an unnecessary call-out.

E number and FD number:

Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.

Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0844 8928989

Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

IE 01450 2655

Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.
