Brand	Beko
Model	DS 7333 PX0
Product Type	Tumble Dryer
Energy Class	B
Drying Capacity	7 kg
Drum Volume	118 L
Dimensions (H x W x D)	84.8 x 59.7 x 59.5 cm
Weight	45 kg
Power Supply	220-240 V, 50 Hz
Total Power Consumption	2500 W
Annual Energy Consumption	560 kWh
Condenser Type	Self-cleaning condenser
Drying Programs	Cotton, Synthetics, Delicates, Mixed, Wool, Sport, Shirts, Jeans, Time Dry, Quick Dry
Special Features	Anti-crease, Child Lock, Delay Timer, Drum Cleaning Warning, Filter Cleaning Indicator
Condensate Tank	3.5 L
Door Reversible	Yes
Noise Level	65 dB(A)
Installation Type	Freestanding
Maintenance	Clean lint filter after each use, empty condensate tank regularly, clean condenser periodically
Safety Features	Child lock, overheat protection, door lock during operation
Spare Parts Availability	Filters, drums, belts, heating elements, control boards available via Beko service
Repairability Index	7.6 / 10
Warranty	2 years (extendable)

Frequently Asked Questions - DS 7333 PX0 BEKO

How do I clean the lint filter on my Beko DS 7333 PX0?

Open the door, pull the lint filter out from the lower part of the door opening. Remove lint by hand or with a soft brush. Rinse under running water if necessary, dry thoroughly, and slide back in place.

What is the maximum load capacity for the cotton program?

The cotton program can handle up to 7 kg of dry laundry. Overloading may reduce drying efficiency and increase energy consumption.

Why is my dryer not starting?

Check that the door is fully closed, the child lock is disengaged, and the power cord is plugged in. Also ensure the condensate tank is not full and the lint filter is clean. If problems persist, consult the manual.

How often should I clean the condenser?

Beko recommends cleaning the self-cleaning condenser after every 30 drying cycles or when the 'Clean Condenser' indicator lights up. Remove the lower front cover, pull out the condenser, rinse with water, and reinstall.

Can I install the dryer under a countertop?

Yes, the Beko DS 7333 PX0 is freestanding but can be placed under a countertop as long as there is adequate ventilation. Leave at least 10 cm clearance on all sides and 1 cm from the back wall.

How do I reverse the door?

The door is reversible. Refer to the manual's step-by-step instructions: remove hinge screws, lift the door, rotate it 180°, and reattach on the opposite side using the provided cover caps.

What does the 'Anti-crease' function do?

The anti-crease function periodically rotates the drum for up to 2 hours after the cycle ends to prevent wrinkles if you don't remove laundry immediately.

How much water does the condensate tank hold?

The condensate tank capacity is 3.5 liters. Empty it after each drying cycle to avoid overflow and ensure optimal performance.

Is the dryer vented or condenser?

This model is a condenser dryer. It collects moisture in the built-in tank, so no external ventilation is required. You can also connect a drain hose for continuous drainage.

What should I do if the 'Drum Cleaning' warning appears?

This appears after approximately 100 cycles. Run a dedicated drum cleaning program (if available) or empty the drum, remove lint, and use a damp cloth to wipe the interior. Reset the warning via the user menu.

USER MANUAL DS 7333 PX0 BEKO

transport safety.

5.6 Extra programs

Door open

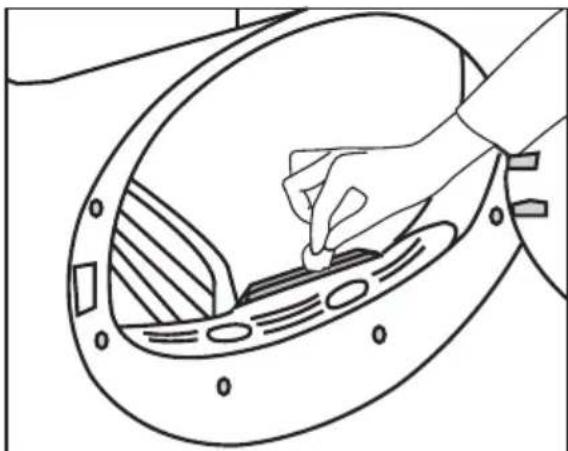

6.2 Cleaning the sensors

press.

care labels on clothes, select appropriate programme for the laundry type or use timer programmes in addition.

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Explanation of symbols

Throughout this user manual the following symbols are used:

	Important information or useful hints about usage.
	Warning for hazardous situations with regard to life and property.
	Warning against electric shock.
	Warning against hot surfaces.
	Warning against fire hazard.
	Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

Persons whose physical, sensory, or mental capabilities were not fully developed or who lack experience and knowledge, provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.

supervised.

The floor should not be reduced with materials such as carpet, wood, and tape. This will cause problems with the dryer.

Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

Risk of electric shock!

Important instructions for safety and environment

1.1.1 Electrical safety

Electrical safety instructions should be followed while electrical connection is made during the installation.

Specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.

Voltage.

Cleaning and repair works.

Cable, always pull out by grabbing the plug.

to power supply in order to decrease the risk of fire and electric shock.

Damaged mains cable should be changed notifying the Authorized Service.

If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

Important instructions for safety and environment

1.1.2 Product safety

	Points to be taken into consideration for fire hazard:Below specified laundry or items must not be dried in the dryer considering fire hazard.removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.For this reason especially the items containing the above specifiedstains must be washed very well, to do thisuse adequate detergent and choose a high washing temperature.
	Below specified laundry or items must not be dried in the dryer due to the fire hazard:shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.Items such as lighter, match, coins, metal parts, needle etc.may damage the drum set or may lead to functional problems.Therefore check all the laundry that you will load into your dryer.Never stop your dryer beforethe programme completes. If you must do this, remove all laundryquickly and lay them out to dissipate the heat.
	Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

Important instructions for safety and environment

devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

	Underwear that contains metal reinforcements should not be driedin the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.
	Use softeners and similar products in accordance with the instructions of their manufacturers.
	Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.

the opening of the loading door in the place where your dryer is to be installed.

balcony, garage etc.)

before operating it.

may fall over.

Important instructions for safety and environment

1.2 Mounting over a washing machine

the dryer above a washing machine. The fitting device must be installed by the authorized service agent.

When stacked, they reach approximately 180 kilograms. Place the products on a solid floor with sufficient load-bearing capacity!

The washing machine cannot be placed on the dryer. Pay attention to the above warnings during installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62cm	60 cm 54	cm 50	cm 49	cm 45	cm 40 cm
54 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed
60 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed	Cannot be installed

Important safety and environmental instructions

1.3 Intended use

It is not intended for commercial use and must not be used outside its intended purpose.

transportation.

period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

Keep materials away from children.

Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock to prevent children from tampering with the dryer.

The child-proof lock is on the control panel. (See 5.12 Child lock)

Important safety and environmental instructions

1.5 Compliance with the WEEE regulation and disposal of the waste product

This product complies with the EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high-quality parts and materials that can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other

wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Please visit the following website to get more information on the product. http://www.beko.com

Important instructions for safety and environment

1.7 Technical Specifications

EN

Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 54 cm
Capacity (max.) 7 kg**
Net weight (plastic front door usage) 46,5 kg
Net weight (glass front door usage) 48,5 kg
Voltage	See type label***Rated power
Model code

* Min. height: Height with adjustable feet are closed.

Max. height: Height with adjustable feet are opened maximum.

** Dry laundry weight before washing.

*** Type label is located behind the loading door.

	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
	Figures in this manual are schematic and may not match the product exactly.
	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

2.1 Package Contents

1. Water drain hose *

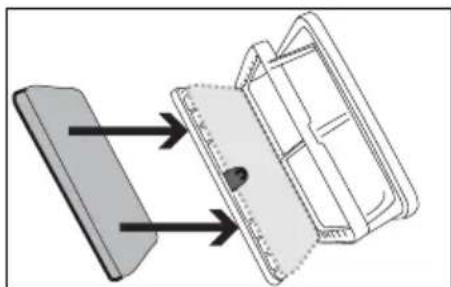

2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*

*It can be supplied with your machine depending on its model.

3 Installation

Before calling the nearest Authorized Service for the installation of the dryer, ensure that the electrical installation and water drain are appropriate, referring to the user's manual. (See 3.3 Connecting to the drain and 3.5 Electrical connection) If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

Preparation of the dryer's location as well as the electrical and waste water installations is under the customer's responsibility.

Prior to installation, visually check if the dryer has any defects. If the dryer is damaged, do not have it installed. Damaged products cause risks for your safety.

Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface.

The dryer is heavy. Do not move it by yourself.

environment.

not be reduced by the materials such as carpet, wood and tape.

door that may block the opening of the loading door in the place where your dryer is to be installed.

same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).

of other furniture.

between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.

placed against a wall.

Do not place the dryer on the power cable.

3.2 Removing the transportation safety assembly

Remove the transportation safety assembly before using the dryer for the first time.

a piece of styrofoam. Hold it from its section marked with XX XX.

transportation safety assembly.

Check that no part of the transportation safety assembly remains inside the drum.

3.3 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

1-2 Pull the hose at the back of the dryer by hand to disconnect it from where it is connected. Do not use any tools to remove the hose.

3 Connect one end of the drain hose supplied with the dryer to the connection point from which you removed the hose of the product in the previous step.

4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

Installation

	Hose connection should be made in a safe manner. Your drain house will be flooded if the hose comes out of its housing during water discharge.
	Water drain hose should be attached to a height of maximum 80 cm.
	Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

3.4 Adjusting the feet

To operate silently and vibration-free, the dryer must stand level and balanced on its feet. Balance the machine by adjusting the feet.

Make sure the dryer is level and firmly positioned.

Never unscrew the adjustable feet from their housings.

3.5 Electrical connection

For specific instructions for electrical connection required during installation, see section 1.1.1 Electrical Safety.

3.6 Transportation of the dryer

Unplug the dryer before transporting it. Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

We recommend carrying the dryer in an upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting it towards the right side when looked at from the front.

3.7 Warnings about sounds

It is normal to hear a metallic noise from the compressor sometimes during operation.

Water collected during operation is pumped to the water tank. It is normal to hear pumping noise during this process.

3.8 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer

To change the bulb/LED used for illumination of your tumble dryer, call your Authorized Service.

The lamp(s) used in this appliance are not suitable for household room illumination. The intended purpose of this lamp is to assist the user in placing laundry in the tumble dryer in a comfortable way.

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that it is suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS
	Drying Symbols	Suitable for dryer		No Iron		Sensitive / Delicate dry		Do not dry with dryer		Do not dry
	Drying Settings	At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable
IRON	Iron -
	Dry or Steam			Iron at high temperature		Iron at medium temperature		Iron at low temperature		Do not iron	Iron without steam
	Maximum temperature			200 °C 150		°C 110		°C

	Drying Settings
		At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable

	Iron -
IRON	Dry or Steam	Iron at high temperature	Iron at medium temperature	Iron at low temperature	Do not iron	Iron without steam
	Maximum temperature	200 °C 150	°C 110	°C

4.2 Laundry not suitable for drying in the dryer

Delicate embroidered fabrics, woolen, silk garments, delicate and valuable fabrics, airtight items, and tulle curtains are not suitable for machine drying.

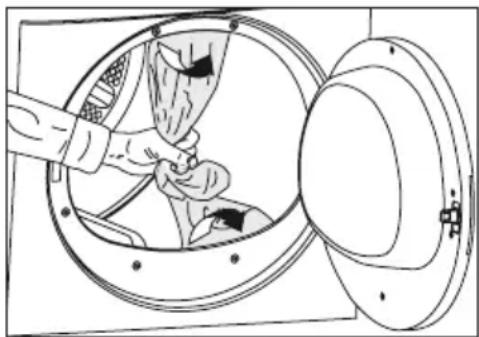

4.3 Preparing laundry for drying

Washing. Separate the laundry items before placing them into the dryer.

Zippers, inside out.

Sheets.

4.4 Things to be done for energy saving

The following information will help you use the dryer in an ecological and energy-efficient manner.

when washing them. Thus, the drying time is shortened and energy consumption is reduced.

thickness. Dry the same type of laundry together. For example, thin kitchen towels and tablecloths dry earlier than thick bathroom towels.

programme selection.

during drying unless necessary. If you must open the loading door, do not keep it open for a long time.

operation

cycle. (See 6. Maintenance and cleaning)

Preparation

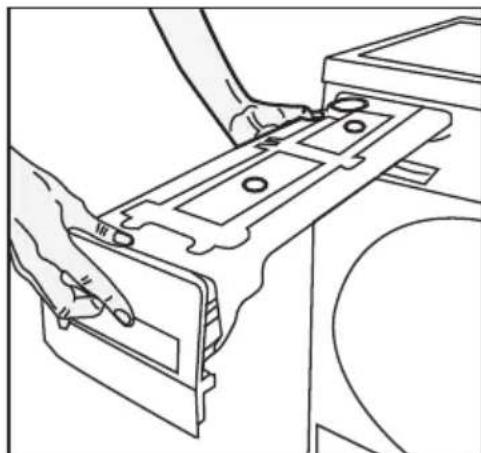

Filter Drawer Cleaning warning symbol appears or after every 5 drying cycles. (See 6. Maintenance and cleaning)

during drying.

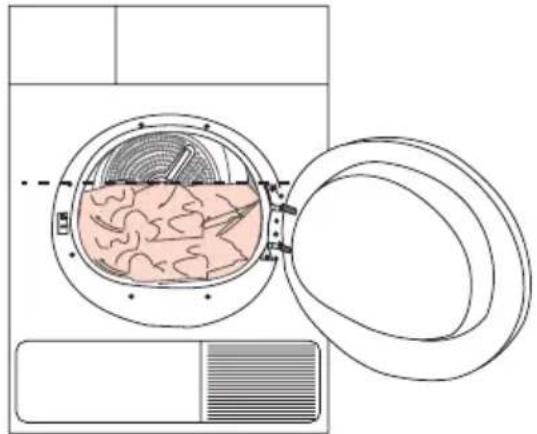

4.5 Correct load capacity

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, the dryer and the laundry can get damaged.

The following weights are given as examples.

Laundry	Approximate weights (g)*
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 200
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

*Dry laundry weight before washing.

5 Operating the product

5.1 Control panel

1. Program selection knob
2. Remaining duration indicator
3. On/Off button
4. Start/pause button
5. End duration button
6. Sound warning button

5.2 Screen symbols

Tank full

Child-proof lock

Filter cleaning

Buzzer/cancel

Audible warning

Anti Creasing

Operating the product

5.3 Preparing the machine

1. Plug in the machine.
2. Place laundry inside the machine.
3. Press the On/Off button.
4. When your machine turns on for the first time, it turns on with the declaration (cotton cabinet dryness) program.

Pressing the On/Off button doesn't mean the program starts. Press the Start / Pause button to start the program.

5.4 Program selection

1. Determine the appropriate program from the chart below containing the drying levels.
2. Select the program you desire using the Program Selection knob.

Extra Dry	Only cotton laundry is dried in normal temperature.Thick and multi-layered laundry (towels, sheets, jeans etc.) are dried so that they can be placed into wardrobe without ironing.
Cupboard dry	Normal laundry (tablecloths, underwear etc.) are dried so that they can be placed into wardrobe without ironing.
Cupboard dry +	Normal laundry (Ex: tablecloths, underwear) are again dried so that they can be placed into the wardrobe but more so than the wardrobe dryness option.
Iron Dry	Normal laundry (shirts, dresses etc) are dried ready for ironing.

For detailed program information see. "Program selection and consumption table".

5.5 Main programs

The main programs are given below based on fabric type.

Dry durable laundry with this program. It dries at normal temperature. Recommended for use with your cotton laundry (sheets, bed covers, towels, bathrobes etc.)

Dry laundry that is not very durable with this program. Recommended for use with your synthetic laundry.

5.6 Extra programs

The following extra programs are available in the machine for special conditions.

Extra programs may vary according to the specifications of your machine.

In order to receive better results from drying machine programs, your laundry should be washed with the appropriate program in your washing machine and wrung with the recommended spin speed.

Use to dry jeans that are wrung with high rpm in washing machine.

Use to dry laundry made from synthetic, cotton or mixed fabrics.

You can use this program to dry cotton laundry that you had wrung at high rpm in your washing machine. It dries 1 kg of your cotton laundry (3 shirts / 3 T-shirts) in 50 minutes.

Program for daily drying of cotton and synthetic laundry and lasts 110 minutes.

Dries shirts more delicately and thus causes less wrinkles for easy ironing.

Program used for baby clothing with can be dried approval on the label.

Very little dampness might remain on the shirts after the program. It is recommended that you do not leave the shirts in the drying machine.

Operating the product

You can dry your delicates suitable for drying or laundry that is recommended to hand wash (silk blouses, thin underwear etc.) at low temperature.

It is recommended to dry your delicates in a laundry bag to prevent wrinkles and damage. When the program ends, take your laundry out of the machine immediately and hang them to prevent wrinkles.

It only performs ventilation for 10 minutes without blowing hot air. You can ventilate the cotton and linen clothing that has remained closed for a long duration and remove their odor.

You can select the 30 mins and 45 mins time programs to achieve the desired final drying level with low temperature.

On this program, the machine dries as long as the set duration, regardless of the drying level.

Operating the product

5.7 Program selection and consumption table

EN 2

Programs Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Drying time (minutes)
Cottons / Coloreds
	Extra dry 7 1000 % 60 185
	Cupboard dry 7 1000 % 60 174
	Iron dry 7 1000 % 60 140
Shirt		1.5 1200 % 60 60
Jeans		4 1200 %50 150
Daily		4 1200 %50 110
Sport		4 1000 %60 135
Xpress		1 1200 %50 50
Delicates		2 600 %40 70
Babyprotect		3 1000 % 60 80
Synthetics
	Cupboard dry 3.5 800	% 40 70
[KBA2]	Iron dry	3.5 800	% 40 60
Energy consumption values
Programs Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons linen Ready to wear*		7 1000 % 60	1,80
Cottons Ready to iron		7 1000 % 60	1,55
Synthetics Ready to wear		3.5 800	% 40 0,7
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)					0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)					1,0
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed. R134a / 0,350kg

The "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates. This programme is suitable for drying normal wet cotton laundry and is the most efficient programme in terms of energy consumption for cotton.

* : Energy Label standard program (EN 61121:2012)

All the values in the table are determined according to EN 61121:2012 standard. Consumption values may vary from the values in the table depending on laundry type, wringing revolution, ambient conditions and changes in voltage.

Operating the product

5.8 Auxiliary functions

Sound warning cancel

The drying machine makes sound warnings when the program is completed. If you don't want sound notifications, press the "Sound Notification" button. When you press the sound notification button it lights up, and the program does not make sound notifications when completed.

You can select this function before or after the program starts.

5.9 Warning symbols

Warning symbols may vary according to the specifications of your machine.

Fiber filter cleaning

When the program is completed, a warning LED lights up, which indicates that the filter has to be cleaned.

If the filter cleaning LED blinks, see the "Troubleshooting" chapter.

Water tank

When the program is completed, a warning LED lights up, which indicates that the water tank must be emptied.

If the water tank fills up while the program is running, the warning LED starts blinking and the machine goes into stand-by. In that case, empty the water in the water tank and start the program by pressing the Start / Pause button. The warning LED turns off and the program resumes.

Loading door open

Start/Pause LED blinks when the loading door of the drying machine is open.

5.10 End duration

You can delay the end duration of the program for up to 24 hours with the end duration function.

1. Open the loading door and place your laundry.
2. Select the drying program.
3. Press the end duration selection button and set the delay duration you want.

End duration LED lights up. (End duration moves continuously when you keep pressing the button).

1. Press the Start / Pause button. The end duration countdown begins. The ":" sign in the middle of the displayed delay duration blinks.

You can add or remove laundry during the end duration. The duration displayed on the screen is the sum of the normal drying duration and the end duration. At the end of the countdown, the end duration LED turns off, drying begins, and the drying LED lights up.

Changing the end duration

If you want to change the duration during the countdown:

1. Cancel the program by pressing the On/Off button. Turn on the drying machine again by pressing the On/Off button. When your drying machine turns on for the first time, it turns on with the declaration (cotton wardrobe dryness) program.
2. Select the program you desire using the Program Selection knob.
3. Repeat the end duration operation for the duration you want.
4. Start the program by pressing the Start / Pause button.

Operating the product

Canceling the end duration function

If you want to cancel the end duration setting countdown and start the program right away:

1. Cancel the program by pressing the On/Off button. Turn on the drying machine again by pressing the On/Off button. When your drying machine turns on for the first time, it turns on with the declaration (cotton wardrobe dryness) program.
2. Select the program you desire using the Program Selection knob.
3. Start the program by pressing the Start / Pause button.

5.11 Starting the program

Start the program by pressing the Start / Pause button. The Start/Pause LED and the Drying LED light up, indicating that the program has started. The ":" sign in the middle of the remaining duration starts to blink.

5.12 Child Lock

The machine features a child lock that prevents the machine's program flow from being affected when buttons are pressed during operation.

When the Child Lock is active, all buttons except for the On/Off button are deactivated.

To activate the child lock, press the Sound Notification button and the End Duration button simultaneously for 3 seconds.

The child lock should be deactivated to be able to start a new program after the current program ends or to be able to interfere with the current program. Keep the same buttons pressed for 3 seconds again to deactivate the child lock.

The lock LED on the screen lights up when the Child Lock is activated.

Child Lock deactivates when the machine is turned off and on again using the On/Off button.

A warning sound is heard when any button is pressed (except for the On/Off button) or the Program Selection knob is turned while the child lock is active.

5.13 Changing the program after it is started

After the machine starts running, you can change the program you selected to dry your laundry with a different program.

1. For example, to select the Extra Dry program instead of the Iron Dryness, stop the program by pressing the Start / Pause button.
2. Turn the Program Selection knob to select the Extra Dry program.
3. Start the program by pressing the Start / Pause button.

Adding and removing laundry in stand-by mode

If you want to add or remove laundry after the drying program starts:

1. Press the Start/Pause button to put the machine into Stand-by mode. Drying operation stops.
2. Open the loading door, add or remove laundry, and close the loading door.
3. Start the program by pressing the Start/Pause button.

Adding laundry after the drying operation has started may cause the dried laundry inside the machine to mix with the wet laundry, and the laundry may remain damp after the operation ends.

Laundry can be added or removed as many times as desired during the drying operation. However, this process will continuously interrupt the drying operation, which will lengthen the program duration and increase energy consumption. Therefore, it is recommended to add laundry before the program starts.

If a new program is selected by changing the position of the program selection knob while the machine is in stand-by mode, the running program ends.

Do not touch the inner surface of the drum when adding or removing laundry during a running program. The drum surface is hot.

Operating the product

5.14 Canceling the program

If you want to cancel the program and end the drying operation for any reason after the machine has started running, press the On/Off button.

Since it will be extremely hot inside the machine when you cancel the program while the machine is in operation, run the ventilation program to cool it down.

5.15 Program end

When the program ends, the Final/Wrinkle Prevention, Fiber Filter Cleaning, and Water Tank Warning LEDs on the program follow-up indicator light up. The loading door can be opened, and the machine becomes ready for a second run.

Press the On/Off button to turn off the machine.

If the laundry is not removed after the program is completed, the wrinkle prevention program that lasts 2 hours starts in order to prevent wrinkling of the laundry that remains inside the machine.

Clean the fiber filter after each drying. (See "Fiber filter and loading door inner surface")

Empty the water tank after each drying. (See "Emptying the water tank")

6 Maintenance and cleaning

The service life of the product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals.

6.1 Cleaning Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the lint filter.

	Such fiber and lint are generally formed during wearing and washing.
	Always clean the lint filter and the inner surfaces of the loading door after each drying process.
	You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

lint filter.

a soft piece of cloth.

housing.

cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

and loading door gasket with a soft damp cloth.

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

to the drying process.

cloth, dampened with vinegar and dry them.

	Clean metal surfaces of the sensors 4 times a year.
	Do not use metal tools when cleaning metal surfaces of the sensors.

Maintenance and cleaning

Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arises accumulates in the water tank. Drain the water tank after each drying cycle.

Condensed water is not drinkable!

Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle. To drain the water tank: Pull the drawer and remove the water tank carefully.

water tank, clean it under running water.

If the direct water draining is used as an option, there is no need to empty the water tank.

6.4 Cleaning the filter drawer

Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 5 drying cycles as a reminder. There is a two-level filter in the filter drawer. The first level is the filter drawer sponge and the second level is the filter cloth. To clean the filter drawer:

direction of arrow.

Maintenance and cleaning

cloth by hand or with a soft piece of cloth.

the filter cloth, please clean the layer by washing in warm water. Let the filter cloth dry thoroughly before installing back the filter drawer.

the fiber and lint on the surface. After washing the sponge, squeeze it by hand and remove the excess water. Well-dry the sponge before storing it.

It is not necessary to clean the sponge if lint and fiber accumulation on it is not significant.

filter drawer cover in the arrow direction and close it securely.

	Drying without the filter drawer sponge in place will damage the machine!
	A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption.

6.5 Cleaning the evaporator

Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner.

You can also clean by hand provided that you wear protective gloves. Do not attempt to clean with bare hands. Evaporator fins can harm your hand.

7 Troubleshooting

Drying process takes too much time.

that block ventilation in front of the ventilation grids.

door and window of the room to avoid the room temperature increase too much.

machine.

Laundry comes out wet at the end of drying.

After drying, the hot clothes feel damper than their actual dampness level.

clothes, select appropriate programme for the laundry type or use timer programmes in addition.

machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

programme is selected and the machine is not in Pause mode.

Programme is interrupted without any cause.

Laundry has shrunk, become felted or deteriorated.

programme suitable for the fabric type.

Drum lighting does not turn on. (On models with lamp)

End/Anti-creasing symbol is on.

Troubleshooting

End symbol is on.

Lint Filter Cleaning symbol is on.

Lint Filter Cleaning symbol is flashing.

warm water.

Water leaks from the loading door

door gasket.

Loading door opens spontaneously.

Water Tank warning symbol is on/flushing.

drain hose.

Filter Drawer Cleaning warning symbol is flashing.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.
