Product type	Canister vacuum
Brand	Cleanmaxx
Model	Z 08938
Maximum power	800 W
Bag capacity	2 L
Filtration type	Washable HEPA filter
Noise level	75 dB (A)
Cable length	5 m
Operating radius	8 m
Weight	5.2 kg
Dimensions (L x W x H)	38 x 28 x 32 cm
Included accessories	Upholstery tool, floor brush, crevice tool
Power adjustment	Electronic speed control
Transport system	Carrying handle and swivel casters
Bag full indicator	Yes, indicator light
Suction type	Bagged
Automatic shut-off	In case of overheating
Filter maintenance	Wash with water every 3 uses
Spare parts available	Bags, filters, accessories

Frequently Asked Questions - Z 08938 Cleanmaxx

How to change the vacuum cleaner bag?

Open the front cover, remove the full bag and insert a new bag following the markers. Close the cover until it clicks.

How often should I clean the filter?

Wash the HEPA filter with lukewarm water every 3 uses. Let it dry for 24 hours before putting it back.

What to do if power decreases?

Check that the bag is not full, the filter is not clogged, and the hose is not blocked. Clean the components if necessary.

How to use the floor brush?

Attach the brush to the telescopic tube. For hard floors, lower the brush selector; for carpet, raise it.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry use. Vacuuming liquids would damage the appliance.

Is the power cord long enough?

The cord is 5 meters long, providing an operating radius of about 8 meters with the hose, sufficient for a medium-sized room.

How to maintain the accessories?

Remove hair and dust from the brushes regularly. The accessories can be cleaned with a damp cloth.

What does the red indicator light mean?

The red light indicates that the bag is full or the air path is blocked. Check and replace the bag or clean the filters.

Where to buy replacement bags?

Replacement bags are available in appliance stores or online. Search for the reference suitable for model Z 08938.

The vacuum overheats quickly, what to do?

Turn off the appliance and let it cool for 30 minutes. Check that the bag is not full and the filter is clean. If the problem persists, contact customer service.

USER MANUAL Z 08938 Cleanmaxx

Black and white photo of a vacuum cleaner with coiled hose and control panel (no visible text or symbols)

Gebrauchsanleitung

ab Seite 3

Instruction manual

starting on page 18

Mode d'emploi

www.service-shopping.de

Close-up of a vacuum cleaner's head and lever, showing no text or symbols on the device itself

Two black plastic cylindrical objects with internal structures, one being shifted to the other (no text or symbols visible)

Black plastic pushpin or clip component (no text or symbols visible)

Close-up of a vacuum cleaner's hose with a black arrow pointing to the connector (no text or symbols visible)

Close-up of a black rubber hose with a downward arrow indicating compression or dislocation (no text or symbols)

Close-up of a black vacuum cleaner's head and lever with an arrow pointing to the lever (no text or symbols visible)

Close-up of a black mechanical component with a black arrow pointing to a feature, no visible text or symbols.

Close-up of a curved mechanical component with a double-headed arrow indicating vertical displacement (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a section (no visible text or symbols)

Hand holding a vacuum cleaner with a handle and control panel, showing internal structure and wheels (no text or symbols visible)

Hand holding a portable vacuum cleaner with a black arrow indicating airflow direction (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a specific part (no visible text or symbols)

Cross-sectional diagram of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

3D rendered mechanical component with internal compartments and a detached blade (no text or symbols visible)

Meaning of symbols in these instructions 19

Proper use 19

Safety instructions 20

Risks of injury 20

Proper connection 20

Proper use 20

Product contents and device overview 22

Complete device overview 22

Rear view 23

Suction nozzles 23

Assembly 24

Unpacking the product contents 24

Inserting/removing the hose 24

Inserting/removing the telescoping tube 24

Adjusting the length of the telescoping tube 24

Mounting/removing suction nozzles 25

Removing/inserting the dust bin 25

Operation 25

Cleaning the device 26

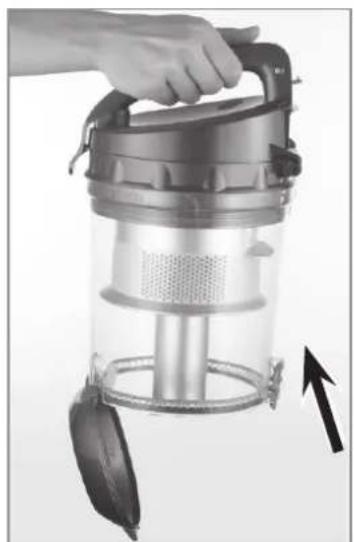

Emptying the dust bin 27

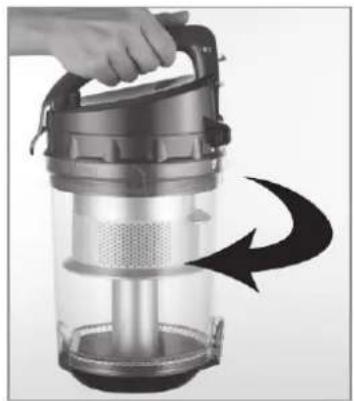

Cleaning the dust filter 27

Cleaning the exhaust filter 28

Storage 29

Troubleshooting 29

Technical data 30

Disposal 30

Dear customer,

We are delighted that you have decided on this vacuum cleaner.

Prior to using the device for the first time, please carefully read through the operating instructions and store them in a safe place. These instructions are to accompany the device when it is passed on to others. The manufacturer and importer assume no liability in the event the data in these instructions have not been observed!

As part of ongoing development, we reserve the right to alter the device, packaging or enclosed documentation at any time.

If you have any questions, please contact customer service via our website:

www.service-shopping.de

Please note: The illustrations in these operating instructions may vary slightly from the real appliance.

Meaning of symbols in these instructions

All safety notices are marked with this symbol. Please carefully read through and obey the safety notices in order to avoid injury to persons and damage to property.

Tips and recommendations are marked with this symbol.

Proper use

☐ This device is designed for vacuuming up normal household dust.

☐ Do not in any case vacuum up the following:
–Liquids or wet materials (such as wet carpet shampoo)
–smouldering ashes, cigarette butts, matches etc.
-fl ammable or ignitable materials
– very fine dust (e.g. cement dust), ash or toner
-hard, pointy objects such as bigger glass shards

☐ This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from this. Children may not play with the device. Cleaning and user maintenance may not be performed by children, unless they are supervised.

☐ The device is intended for domestic, not commercial, use.
☐ Only use the device as described in these instructions. Any other use is deemed improper.
☐ Defects arising due to improper handling, damage or attempts at repair are excluded from the warranty. This also applies to normal wear and tear.

Safety instructions

Risks of injury

☐ Risk of suffocation! Keep the packaging material away from children and animals.
☐ Keep the device, cord and plug away from water or other liquids in order to avoid the risk of electrical shock. Never touch the mains plug, cord or device with wet or damp hands.
☐ Keep animals, hair, jewellery, loose fitting clothing, fingers and all other body parts away from the device's nozzles. They could be caught in the vacuum clean something does get caught in the vacuum cleaner, immediately turn off the device.

☐ Take special care to avoid falling when cleaning stairs.

☐ Wear firm footwear during use.

☐ Only use and store the device out of the reach of children. Improper use may result in injury and electrical shock. The mains cord may also not be accessible for children.

Proper connection

☐ Only connect the device to a properly installed socket. The socket must also be easily accessible after the device has been connected. The mains voltage must correspond to the technical data of the device (see chapter "Technical data"). Only use proper extension cords, whose technical data correspond to those of the device.
☐ Make sure that the connected mains cable does not get pinched, pose a tripping hazard or get kinked and that it does not come into contact with hot surfaces.

Proper use

☐ Only use and store the device in enclosed areas. Do not use the device outdoors, in rooms with high humidity or on hot surfaces.
☐ Check the device and accessories for damages prior to each use. If the device, cord, plug or a filter are visibly damaged do not use the device. Do not attempt to repair the device or to replace parts yourself. In the event of damage, contact customer service.
☐ Do not use the device if it malfunctions, has vacuumed up liquids or objects or has fallen down. Have the device repaired by a qualified professional.
☐ Only use the device if it has been completely and correctly assembled! The dust bin and filter must be in place and not be damaged! Dirt that has penetrated the inside of the device could damage the motor. The dust bin must be shut in order for it to be inserted properly.
☐ Do not subject the device to extreme temperatures, severe changes in temperatures, open flames, direct sunlight, moisture or wetness.
☐ Do not allow the device to fall and do not subject it to strong percussions.
☐ Never place heavy objects on the device.

☐ Do not submerge the device in water or other liquids in order to avoid electrical shocks. Do not fill the dust bin with liquids.
☐ Never touch the device, the cord or the plug with wet hands.
Do not insert anything in the device's openings/nozzles and ensure that they are not plugged.
☐ Never leave the device unattended when on or when connected to a power supply.

☐ Turn the device off by pulling the mains plug out of the socket

-if you stop using the device,

• if you are finished using the device,
  —before you change any accessories,
  -if an error or fault occurs during operation,
  -if liquids or foreign debris have penetrated the device,
  —before a storm,
  —before you clean the device parts and accessories.

☐ The device must be deactivated when you pull the mains plug out of the socket or insert it in the socket.

□ Always pull on the plug itself and never on the cable!

☐ Never move the device by pulling it by the cord. Use the handles.

☐ Do not attempt to grease the wheels with lubricants or oil. Otherwise, this may cause more dust or dirt to accumulate on the wheels.

☐ Empty the dust bin after every use. The filters must also be cleaned regularly to prevent the motor from being overloaded.

☐ Allow the dust bin, dust filter and exhaust filter to dry completely before you reinstall them in the device.

☐ Only use original spare parts provided by the manufacturer.

☐ Store the device in a cool, dry area that is not accessible to children and animals when not in use.

Product contents and device overview

Visit our website to reorder original spare parts/accessories:

www.service-shopping.de

Complete device overview

1 Suction hose
2 Dust bin
3 Plastic dust filter (located inside the dust bin)
4 Dust bin bottom
5 Suction hose connector
6 Floor nozzle
7 Dust bin cover with handle
8 Telescoping tube
9 Auxiliary air valve on the suction hose handle Not shown:

• Dust filter
• Foam dust filter
• Micro fi Iter

Rear view

10 Release button for dust bin
11 Button 📍 for cable winder
12 Suction power control
13 Mains plug
14 Bracket for hooking in the floor nozzle
15 On/Off switch Ⓘ

Not shown:

Exhaust filter compartment with HEPA-filter (below the dust bin)

Suction nozzles

ATTENTION!

□ Always turn off the vacuum cleaner first before changing the nozzles.

Floor nozzle

Close-up of a vacuum cleaner's hood with a black arrow pointing to the handle (no text or symbols visible)

Crevice and Brush Nozzle

Two black plastic cylindrical objects with internal patterns, one being rotated to the other (no text or symbols visible)

The floor nozzle is suitable both for carpets and smooth floors.

With the foot switch, you can switch between a smooth floor and a carpet. A brush is deployed on the device bottom for smooth floors.

Fold over the end piece in the direction of the arrow to convert the crevice nozzle into a brush nozzle:

The crevice nozzle is suitable for upholstery, cleaning the inside of cars and for all nooks and crannies that cannot be reached with the other nozzles.

The brush nozzle is suitable for all uneven objects, furniture, lamps, profi les and skirting boards, window ledges, etc.

Cushion nozzle

Black plastic pushpin or connector component (no text or symbols visible)

The cushion nozzle is suitable for cleaning sensitive objects and cushions, e.g. lamp shades, sofas etc.

Assembly

Unpacking the product contents

ATTENTION!

☐ Risk of suffocation! Keep the packaging material away from children and animals.
☐ Make sure that the device is not connected to the power supply before you attach or remove any accessories.

- Unpack all parts and make sure that the scope of delivery is complete (see chapter "Product contents and device overview") and check for any damages from transport. If you identify damages to the components, do not use them (!), instead contact our customer service centre.

- If necessary, remove any piece of paper or sticker etc. from the dust bin. In chapter "Cleaning the Device" you will find instructions on how to remove and open the dust bin.

Inserting/removing the hose

Close-up of a vacuum cleaner plug with a black arrow pointing to the connector (no text or symbols visible)

• Insert the suction hose connector into the suction opening on device (see arrow). It must audibly lock into place.
• To remove the suction hose push the knob on the connector and pull the suction hose out.

Inserting/removing the telescoping tube

Close-up of a black rubber hose with a downward arrow indicating compression or dislocation (no text or symbols)

• Insert the open end of the handle into the corresponding opening on the telescoping tube. In the process, turn the handle back and forth somewhat. Check to make sure that the connection is secure.
• To remove the telescoping tube pull it off of the handle.

Adjusting the length of the telescoping tube

Close-up of a black vacuum cleaner's tip with a black arrow pointing to the handle (no text or symbols visible)

• Push the slider on the telescoping tube down and set the desired length.
• Release the slider and move the tube forward until it locks into place.

Mounting/removing suction nozzles

• Insert the open end of the telescoping tube in one of the enclosed suction nozzles up to the stop. Turn the nozzle back and forth slightly in the process.
• The suction nozzles can also be attached directly to the suction hose without the telescoping tube for more fl exibility.
• To remove a suction nozzle pull it off.

Removing/inserting the dust bin

Close-up of a mechanical component with a black arrow pointing to a feature, no visible text or symbols.

• Removal: Push the release button on the dust bin and take it out of the device by the handle.
• Insertion: Take the dust bin by the handle and first place the bottom of the bin in the device (the bottom is facing down and handle is facing up). Then push the against the device housing until the dust bin audibly locks into place. Hold the device by the handle and lift it to check whether the dust bin is properly seated.

Operation

ATTENTION!

During use, always keep the nozzles away from body parts and animals and do not reach into them. You could be caught or injured. If something does get caught in the vacuum cleaner, turn it off immediately (depress the On/Off switch ①).
☐ Only turn on the vacuum cleaner once you are sure that all parts have been completely mounted and that the dust bin, dust filter and the exhaust filter have been properly inserted.
☐ To prevent the cord from becoming too hot when in use, pull at least two thirds of its entire length out of the device before you switch on the vacuum cleaner. Do not forcefully pull out the cord up to the stop point (no further than up to the red mark on the cord) in order to prevent damage!
□ Always turn off the device first and pull the mains plug out of the socket before you change a nozzle or attach or remove other accessories!

☐ Do not in any case vacuum up the following:

– Liquids or wet materials (such as wet carpet shampoo)
– smouldering ashes, cigarette butts, matches etc.
- flammable or ignitable materials
– very fine dust (e.g. cement dust), ash or toner
– hard, pointy objects such as bigger glass shards

1. Make sure that the respective accessory is properly mounted on the device (see chapter "Assembly").

2. Pull the mains cord only as far out of the housing as you need, ideally up to the yellow mark, but no further than up to the red mark on the cord!

3. Insert the mains plug in a properly installed socket that is easily accessible.
4. Press the On/Off switch ① to turn the vacuum cleaner on.
5. You can individually adjust the suction power with the suction power control.
6. Move the nozzle over the surface you want to clean. You can pull the vacuum cleaner like a sled when vacuum cleaning.
7. After vacuum cleaning, press the On/Off switch ① again to turn off the vacuum cleaner.
8. Pull the mains plug out of the socket, firmly hold the mains cord and push the button for the cord winder down with your foot. By holding the mains cord, you prevent the cord from "lashing" against your legs for example.
9. If you used the floor nozzle, hook it into the bracket on the back of the device.
10. To ensure optimum performance of the device, empty the dust bin each time after using the device and clean the dust filter and exhaust filter regularly (see chapter "Cleaning the device").

Close-up of a curved mechanical component with a double-headed arrow indicating vertical displacement (no text or symbols)

Tip: Am An auxiliary air valve is located on the handle. Slide the cover to open it, thereby reducing the suction power if you want to vacuum off cushions, carpets or light-weight, moveable objects or materials.

Normally, the auxiliary air valve is closed so as not to unnecessarily reduce the suction power.

Cleaning the device

ATTENTION!

☐ Empty the dust bin when it is full and clean the filters regularly to avoid overheating the motor.
Before cleaning the device, always pull the power plug out of the socket.
☐ Keep the device, cord and mains plug away from water or other liquids in order to avoid electrical shocks. When cleaning, make sure that no liquid penetrates the device. Only the foam dust filter, plastic dust filter, micro filter and exhaust filter may be cleaned with water. However, they must be completely dry when being placed back in the device.
☐ The filters are not suitable for the washing machine, dishwasher or dryer! Only air dry the filters and do not in any case use a hair dryer.
☐ Do not use any scouring or abrasive cleaners or cleaning pads for cleaning. They could damage the surface.

- Clean the dust filter and exhaust filter regularly or if you notice that the suction power is declining.

• If needed, clean the housing with a damp, soft cloth. Then dry it with a soft cloth.
  • Regularly remove hairs and lint from the nozzles.

The filters may discolour over time. This is normal and also does not affect functionality.

Emptying the dust bin

1. Remove the suction hose from the dust bin (see chapter "Assembly", section "Inserting/removing the hose").

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

1. Push the release button on the dust bin and pull it out of the device by the handle.
2. Hold the dust bin over an open garbage bin. The dust bin should be as close as possible to the garbage bin so that dust from the dust bin only falls into the garbage bin and is not dispersed in the surrounding area.

Hand holding a vacuum cleaner with a handle and internal structure, showing airflow direction (no text or symbols visible)

1. Push the button to open the dust bin. The bottom of the dust bin will open and the dirt will fall out.
2. Shut the bottom of the dust bin again. The fastener must audibly lock into place.
3. Insert the dust bin in the device: Take hold of it by the handle and insert the bottom of the bin in the device first. Then push the handle against the device housing until the dust bin audibly locks into place. Hold the device by the handle and lift it to check whether the dust bin is properly seated.

Cleaning the dust fi Iter

The dust fi Iter is located in the dust bin.

1. Remove the suction hose from the device (see chapter "Assembly", section "Inserting/removing the hose").
2. Push the release button on the dust bin and pull it out of the device by the handle.

Hand holding a vacuum cleaner with a curved arrow indicating motion (no text or symbols visible)

1. Turn the dust bin cover to remove it. NOTE: Orientation marks for the removal and placement of the cover are provided on the cover and dust bin. You can remove the cover when the mark on the dust bin is pointing towards the open lock symbol on the cover.
2. Pull the dust bin cover with the dust filter out.

Micro fi Iter

Close-up of a mechanical component with a perforated base and a black arrow pointing to a cutaway section (no text or symbols visible)

1. Release the Velcro® of the microfilter and remove it. If necessary, rinse the micro filter out thoroughly with clean, lukewarm water. ATTENTION: Do not in any case clean the filter in the washing machine or dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.

Dust fi Iter

Cross-sectional diagram of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

1. Open the dust bin cover by using the lever to push it up.
2. Take out the dust filter and the foam dust filter (B). If necessary, rinse the foam dust filter out thoroughly with clean, lukewarm water. ATTENTION: Do not in any case clean the filter in the washing machine or dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.

3. The dust filter (A) may only be tapped out over a garbage bin and not rinsed off with water.

4. Place the foam dust filter (B) back on the dust filter (A).

Plastic dust fi Iter

1. Rinse the plastic dust filter and the dust bin cover out thoroughly with clean, lukewarm water. ATTENTION: Do not in any case clean the filter in the dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.
2. Place the dust filter back in the dust bin cover and close it. The lever must audibly lock into place.
3. Place the dust filter cover with the dust filter back in the dust bin and turn it until firmly tightened. The cover is properly in place when the mark on the cover is pointing towards the closed lock symbol on the dust bin.
4. Then insert the dust bin back in the device. Make sure that the dust bin locks into place properly.

Cleaning the exhaust filter

The HEPA-exhaust filter is located in the compartment on the inside of the vacuum cleaner, under the dust filter (see chapter "Product contents and device overview", section "Rear view").

3D rendering of a mechanical component with internal structure and a detached part (no text or symbols visible)

1. Press the catch toward the compartment cover and remove the cover.
2. Remove the exhaust filter from the compartment and its holder.

3. Tap the exhaust filter out over a garbage bin and brush off any loose dirt. If necessary, wipe out the compartment cover with a damp cloth.

4. If necessary, rinse out the exhaust filter thoroughly with clean, lukewarm water. ATTENTION: Do not in any case clean the filter in the washing machine or dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.

5. Once all parts are dry, place the exhaust filter back in the holder and then into the filter compartment.
6. Fit the compartment cover again and press it down until it engages audibly.

Storage

• You can hook the floor nozzle into the bracket on the back of the device for convenient storage and push the telescoping tube together as far as possible.
• Store the vacuum cleaner in a dry, cool indoor room that is not accessible for children and animals.

Troubleshooting

If your device no longer functions properly, exhibits damages or requires a spare part, please contact our customer service centre. For your own safety, do not perform any repairs yourself. The following table gives you tips on how to resolve minor problems yourself.

Problem	Potential cause/solution/tips
The vacuum cleaner has no suction power.	Is the mains plug not correctly connected with the socket? Correct the position of the mains plug.Is the socket defective? Try another socket.Check the fuse for your mains connection.Are the filters plugged? Clean the dust and exhaust filter.
The suction power is weak.	Is the auxiliary air valve on the handle open? Close it.Is the dust bin too full? Empty the bin.Are the filters very dirty? Clean them.Is the nozzle, telescoping tube or suction hose plugged? Turn the device off, pull the mains plug out of the socket and remove the obstruction (also see chapter “Assembly”).
The device emits dust when vacuuming.	Has the dust bin not been closed properly and/or is it not (properly) inserted in the device? Correct this.
The power cord cannot be wound up completely.	The cord has not been properly wound up in the device. Pull it out somewhat and then push the button ⏻ for engaging the cord winder again.
An unpleasant odour develops when vacuuming.	Are you using the device for the first time? An odour often develops when using new devices for the fi rst time. The odour should disappear once you have used the device a few times.

Technical data

Model number: XL-812E-100

Product number: Z 08938

Voltage supply: 220 – 240 V\~, 50 Hz

Output: adjustable up to max. 1000 W

Safety class: II

Disposal

The packaging material can be recycled. Dispose of the packaging in an environmentally-friendly manner and make it available to the collection service for recyclable materials.

Dispose of the device in an environmental-friendly manner. The device does not belong in the household waste. Dispose of it at a recycling centre for old electrical and electronic devices.

For more information, please contact the administration in your community.

Contenu

Close-up of a black vacuum cleaner with a handle and arrow indicator (no text or symbols)

Two black plastic cylindrical objects with internal patterns, one being shifted to the other (no text or symbols visible)

Black plastic object with a tapered tip, resembling a stylized tool or bracket (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a threaded cable or connector (no visible text or symbols)

Close-up of a black rubber hose with a downward arrow indicating compression or dislocation (no text or symbols)

Close-up of a black vacuum cleaner's base with a black arrow pointing to the component (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Close-up of a curved mechanical component with a double-headed arrow indicating vertical displacement (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a feature, no visible text or symbols.

Hand holding a black vacuum cleaner with a handle and control panel, showing internal components and a downward arrow (no text or symbols visible)

Hand holding a black vacuum cleaner with a curved arrow indicating airflow or motion (no text or symbols visible)

Close-up of a mechanical component with a perforated base and a black arrow pointing to a feature (no visible text or symbols)

Close-up of a mechanical device with labeled parts A and B, showing internal components and a cylindrical base (no text or symbols beyond labels)

Top-down view of a mechanical device with internal compartments and a detached blade (no text or symbols visible)

www.service-shopping.de

Close-up of a vacuum cleaner's head and lever with an arrow pointing to the lever (no text or symbols visible)

Two black plastic clip holders with a right-hand arrow indicating transformation (no text or symbols)

Black plastic pushpin or grip component (no text or symbols visible)

Close-up of a vacuum cleaner plug with a black arrow pointing to the connector (no text or symbols visible)

Close-up of a black rubber hose with a downward arrow indicating compression or dislocation (no text or symbols)

Close-up of a black mechanical component with a metallic tool inserted, showing a small inset detail (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a feature, no visible text or symbols.

Close-up of a curved mechanical component with a double-headed arrow indicating vertical displacement (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a feature, no visible text or symbols.

Hand holding a vacuum cleaner with a handle and control panel, showing internal structure and wheels (no text or symbols visible)

Hand holding a vacuum cleaner with a curved arrow indicating airflow or motion (no text or symbols visible)

Close-up of a mechanical component with a perforated base and cylindrical shaft (no visible text or symbols)

Close-up of a mechanical device with labeled parts A and B, showing internal components and a cylindrical base (no text or symbols beyond labels)

Top-down view of a mechanical device with internal compartments and a detached blade (no text or symbols visible)
