Z 09242 - Vacuum Cleaner Cleanmaxx - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Cleanmaxx
Model	Z 09242
Rated Power	800 W
Tank Capacity	2.5 L
Filtration Type	HEPA 13
Noise Level	75 dB
Cable Length	5 m
Operating Radius	7.5 m
Weight	5.5 kg
Dimensions (L x W x H)	40 x 25 x 30 cm
Bag Type	Paper bag or reusable
Fill Indicator	Yes
Power Regulator	Electronic
Included Accessories	Crevice tool, parquet brush, upholstery nozzle
Filter Maintenance	Wash with cold water, dry 24h
Container Cleaning	Damp cloth, do not immerse
Safety	Automatic shutdown in case of overheating
Spare Parts	Bags, filters, brush available
Repairability	Repairability index 6.2/10
Country of Origin	China
Warranty	2 years

Frequently Asked Questions - Z 09242 Cleanmaxx

How do I empty and replace the bag of the Cleanmaxx Z 09242 vacuum cleaner?

Open the tank cover, remove the full bag. Discard it. Insert a new bag, making sure it is securely attached. Close the cover. For reusable bags, empty them and wash if possible.

How do I clean the HEPA filter of my vacuum cleaner?

Remove the HEPA filter located at the back or under the tank. Tap it gently to remove dust. Wash it with cold water (no detergent) and let it dry completely for 24 hours before putting it back.

What should I do if the vacuum cleaner no longer sucks properly?

Check if the bag is full or the filter is clogged. Inspect the hose and accessories for a blockage. Clean the filter and empty or replace the bag. If the problem persists, consult the manual.

My Cleanmaxx Z 09242 vacuum cleaner turns off by itself, why?

This may be due to overheating. The vacuum cleaner has thermal protection: it turns off automatically. Let it cool for at least 30 minutes before restarting. Also check that the bag is not too full.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a crevice tool for corners, a parquet brush for delicate floors, and an upholstery nozzle for sofas and curtains. All attach to the telescopic tube.

How do I adjust the suction power?

Use the electronic regulator located on the body of the vacuum cleaner or on the handle. Turn the dial to increase or decrease the power according to the surface to be cleaned.

Can I use the vacuum cleaner without a bag?

No, the Z 09242 model is designed to work with a bag. You must use an appropriate bag (paper or reusable) to collect dust. Never operate the vacuum cleaner without a bag.

Where can I buy replacement bags and filters for the Cleanmaxx Z 09242?

Bags and filters are available on online sales sites (Amazon, Cdiscount) or in supermarkets. Use the references indicated in the manual: bag type Cleanmaxx Z 09242, HEPA filter type HP-13.

How do I maintain the motor unit?

Always unplug the vacuum cleaner before any maintenance. Clean the ventilation grille with a dry cloth. Do not blow compressed air inside. Have the motor checked by a professional if you hear abnormal noise.

Is the vacuum cleaner under warranty and how do I claim?

The warranty is 2 years. For any claim, contact Cleanmaxx customer service with the proof of purchase. Do not open the device yourself, as this would void the warranty.

USER MANUAL Z 09242 Cleanmaxx

Black and white photo of a vacuum cleaner with coiled hose and control panel (no visible text or symbols)

Gebrauchsanleitung

ab Seite 3

Instruction manual

starting on page 17

Mode d'emploi

www.service-shopping.de

Close-up of a black mechanical component with a pointed tip and cylindrical shaft (no visible text or symbols)

Black plastic pushener component with tapered tip and textured base (no text or symbols)

Close-up of a black vacuum cleaner with attached hose and bulb (no visible text or symbols)

Close-up of a curved mechanical component with an arrow indicating downward motion (no text or symbols)

Close-up of a black mechanical component with a pointed tip and arrow indicator (no text or symbols)

Close-up of a mechanical component with a central hole and mounting holes, no visible text or symbols

Close-up of a black curved object with a double-headed arrow indicating vertical motion (no text or symbols)

Close-up of a mechanical component with a highlighted section and arrow indicator (no text or symbols)

Close-up of a black industrial vacuum cleaner with internal components and a curved arrow indicating rotation (no text or symbols visible)

Exterior view of a black and white compact vacuum cleaner with handle and internal structure (no text or symbols visible)

Close-up of a black and white industrial vacuum cleaner with internal filter and handle (no visible text or symbols)

Meaning of symbols in these instructions 18

Proper use 18

Safety instructions 18

Risks of injury 18

Proper connection 19

Proper use 19

Product contents and device overview 20

Complete device overview 20

Rear view 21

Suction nozzles 21

Assembly 22

Unpacking the product contents 22

Inserting/removing the hose 22

Inserting/removing the telescoping tube 23

Adjusting the length of the telescoping tube 23

Mounting/removing suction nozzles 23

Removing/inserting the dust bin 23

Operation 24

Cleaning the device 25

Emptying the dust bin 25

Cleaning the dust filter 26

Cleaning the exhaust filter 26

Storage 27

Troubleshooting 27

Technical data 28

Disposal 28

Dear customer,

We are delighted that you have decided on this vacuum cleaner.

Prior to using the device for the first time, please carefully read through the operating instructions and store them in a safe place. These instructions are to accompany the device when it is passed on to others. The manufacturer and importer assume no liability in the event the data in these instructions have not been observed!

As part of ongoing development, we reserve the right to alter the device, packaging or enclosed documentation at any time.

If you have any questions, please contact customer service via our website:

www.service-shopping.de

Meaning of symbols in these instructions

All safety notices are marked with this symbol. Please carefully read through and obey the safety notices in order to avoid injury to persons and damage to property.

Tips and recommendations are marked with this symbol.

Proper use

☐ This device is designed for vacuuming up normal household dust.

☐ Do not in any case vacuum up the following:

–Liquids or wet materials (such as wet carpet shampoo)

–smouldering ashes, cigarette butts, matches etc.

-fl ammable or ignitable materials

– very fine dust (e.g. cement dust), ash or toner

-hard, pointy objects such as bigger glass shards

☐ This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from this. Children may not play with the device. Cleaning and user maintenance may not be performed by children, unless they are supervised.

☐ The device is intended for domestic, not commercial, use.

☐ Only use the device as described in these instructions. Any other use is deemed improper.

☐ Defects arising due to improper handling, damage or attempts at repair are excluded from the warranty. This also applies to normal wear and tear.

Safety instructions

Risks of injury

☐ Risk of suffocation! Keep the packaging material away from children and animals.

☐ Keep the device, cord and plug away from water or other liquids in order to avoid the risk of electrical shock. Never touch the mains plug, cord or device with wet or damp hands.

☐ Keep animals, hair, jewellery, loose fitting clothing, fingers and all other body parts away from the device's nozzles. They could be caught in the vacuum cleaner. If something does get caught in the vacuum cleaner, immediately turn off the device.

☐ Take special care to avoid falling when cleaning stairs.

☐ Wear firm footwear during use.

☐ Only use and store the device out of the reach of children. Improper use may result in injury and electrical shock. The mains cord may also not be accessible for children.

Proper connection

☐ Only connect the device to a properly installed socket. The socket must also be easily accessible after the device has been connected. The mains voltage must correspond to the technical data of the device (see chapter "Technical data"). Only use proper extension cords, whose technical data correspond to those of the device.

☐ Make sure that the connected mains cable does not get pinched, pose a tripping hazard or get kinked and that it does not come into contact with hot surfaces.

Proper use

☐ Only use and store the device in enclosed areas. Do not use the device outdoors, in rooms with high humidity or on hot surfaces.

☐ Check the device and accessories for damages prior to each use. If the device, cord, plug or a filter are visibly damaged do not use the device. Do not attempt to repair the device or to replace parts yourself. In the event of damage, contact customer service.

☐ Do not use the device if it malfunctions, has vacuumed up liquids or objects or has fallen down. Have the device repaired by a qualified professional.

☐ Only use the device if it has been completely and correctly assembled! The dust bin and filter must be in place and not be damaged! Dirt that has penetrated the inside of the device could damage the motor. The dust bin must be shut in order for it to be inserted properly.

☐ Do not subject the device to extreme temperatures, severe changes in temperatures, open flames, direct sunlight, moisture or wetness.

☐ Do not allow the device to fall and do not subject it to strong percussions.

☐ Never place heavy objects on the device.

☐ Do not submerge the device in water or other liquids in order to avoid electrical shocks. Do not fill the dust bin with liquids.

☐ Never touch the device, the cord or the plug with wet hands.

Do not insert anything in the device's openings/nozzles and ensure that they are not plugged.

□ Never leave the device unattended when on or when connected to a power supply.

☐ Turn the device off by pulling the mains plug out of the socket – if you stop using the device,

- if you are finished using the device, - before you change any accessories, - if an error or fault occurs during operation, - if liquids or foreign debris have penetrated the device, - before a storm, - before you clean the device parts and accessories.

☐ The device must be deactivated when you pull the mains plug out of the socket or insert it in the socket.

□ Always pull on the plug itself and never on the cable!

☐ Never move the device by pulling it by the cord. Use the handles.

☐ Do not attempt to grease the wheels with lubricants or oil. Otherwise, this may cause more dust or dirt to accumulate on the wheels.
☐ Empty the dust bin after every use. The filters must also be cleaned regularly to prevent the motor from being overloaded.
☐ Allow the dust bin, dust filter and exhaust filter to dry completely before you reinstall them in the device.
☐ Only use original spare parts provided by the manufacturer.
Store the device in a cool, dry area that is not accessible to children and animals when not in use.

Product contents and device overview

Visit our website to reorder original spare parts/accessories:

www.service-shopping.de

Please note: The illustrations in these operating instructions may vary slightly from the real appliance.

Complete device overview

I Suction hose
2 Suction hose connector
3 Dust filter (located inside the dust bin)
4 Dust bin
5 Dust bin bottom
6 Floor nozzle
7 Dust bin cover with handle
8 Telescoping tube
9 Auxiliary air valve on the suction hose handle
Not shown: Holder for storing suction nozzles.

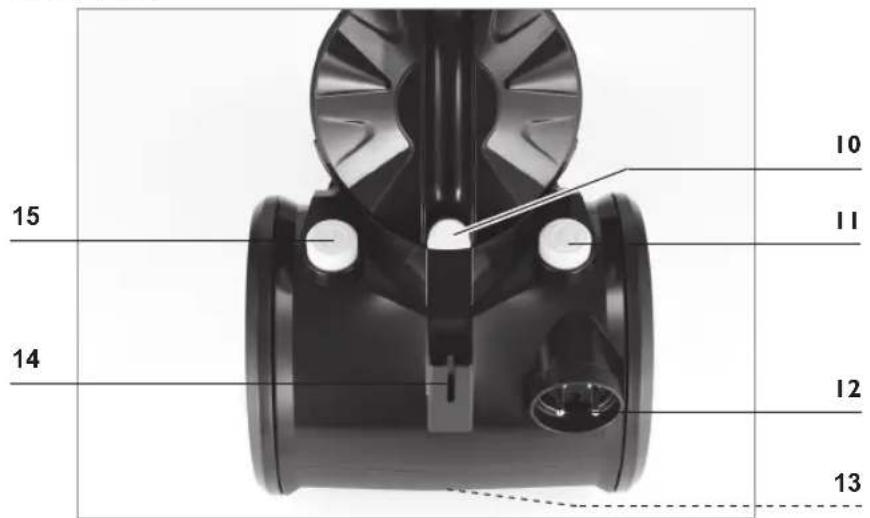

Rear view

10 Release button for dust bin

II Button for cable winder

12 Mains plug

13 Exhaust filter compartment on the bottom of the device

14 Bracket for hooking in the floor nozzle

15 On/Off switch ①

Suction nozzles

ATTENTION!

□ Always turn off the vacuum cleaner first before changing the nozzles.

Floor nozzle

Close-up of a black mechanical component with a pointed tip and cylindrical shaft (no visible text or symbols)

The floor nozzle is suitable both for carpets and smooth floors.

With the foot switch, you can switch between a smooth floor and a carpet. A brush is deployed on the device bottom for smooth floors.

Tile nozzle

Simple black vertical object on white background, no text or symbols visible

The tile nozzle is suitable for cleaning corners, nooks and crannies that can't be reached with other nozzles.

Cushion nozzle

Black plastic pushpin component with textured base and tapered tip (no text or symbols visible)

The cushion nozzle can be used with and without a brush. The brush adapter is simply pushed onto or pulled off of the cushion nozzle. The cushion nozzle is suitable for cleaning sensitive objects and cushions, e.g. lamp shades, sofas etc.

Assembly

Unpacking the product contents

ATTENTION!

☐ Risk of suffocation! Keep the packaging material away from children and animals.
☐ Make sure that the device is not connected to the power supply before you attach or remove any accessories.

- Unpack all parts and make sure that the scope of delivery is complete (see chapter "Product contents and device overview") and check for any damages from transport. If you identify damages to the components, do not use them (!), instead contact our customer service centre.

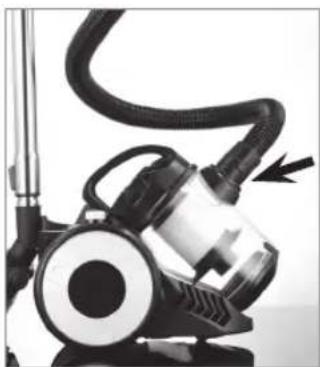

Inserting/removing the hose

Close-up of a black vacuum cleaner with attached hose and mechanical components (no visible text or symbols)

• Insert the suction hose connector into the suction opening on the dust bin. It must audibly lock into place.
• To remove the suction hose push the knobs on the connector and pull the suction hose out.

Inserting/removing the telescoping tube

Close-up of a black curved object with a downward arrow indicating a change or motion (no text or symbols visible)

- Insert the open end of the handle into the corresponding opening on the telescoping tube. In the process, turn the handle back and forth somewhat. Check to make sure that the connection is secure.

• To remove the telescoping tube pull it off of the handle.

Adjusting the length of the telescoping tube

Close-up of a black mechanical component with a pointed tip and arrow indicator (no visible text or symbols)

- Push the slider on the telescoping tube down and set the desired length.

- Release the slider and move the tube forward until it locks into place.

Mounting/removing suction nozzles

- Insert the open end of the telescoping tube in one of the enclosed suction nozzles up to the stop. Turn the nozzle back and forth slightly in the process.

- The suction nozzles can also be attached directly to the suction hose without the telescoping tube for more fl exibility.

• To remove a suction nozzle pull it off.

- You can put the suction nozzles onto the holder supplied for convenient storage. Clip the holder on the telescoping tube.

Removing/inserting the dust bin

Close-up of a mechanical component with a knob and handle (no visible text or symbols)

- Removal: Push the release button on the dust bin and take it out of the device by the handle.

- Insertion: Take the dust bin by the handle and first place the bottom of the bin in the device (the bottom is facing down and handle is facing up). Then push the handle against the device housing until the dust bin audibly locks into place. Hold the device by the handle and lift it to check whether the dust bin is properly seated.

Operation

ATTENTION!

During use, always keep the nozzles away from body parts and animals and do not reach into them. You could be caught or injured. If something does get caught in the vacuum cleaner, turn it off immediately (depress the On/Off switch Ⓜ)

☐ Only turn on the vacuum cleaner once you are sure that all parts have been completely mounted and that the dust bin, dust filter and the exhaust filter have been properly inserted.

☐ To prevent the cord from becoming too hot when in use, pull at least two thirds of its entire length out of the device before you switch on the vacuum cleaner. Do not forcefully pull out the cord up to the stop point (no further than up to the red mark on the cord) in order to prevent damage!

□ Always turn off the device first and pull the mains plug out of the socket before you change a nozzle or attach or remove other accessories!

☐ Do not in any case vacuum up the following: -Liquids or wet materials (such as wet carpet shampoo) -smouldering ashes, cigarette butts, matches etc. -fl ammable or ignitable materials - very fine dust (e.g. cement dust), ash or toner -hard, pointy objects such as bigger glass shards

1. Make sure that the respective accessory is properly mounted on the device (see chapter "Assembly").
2. Pull the mains cord only as far out of the housing as you need, ideally up to the yellow mark, but no further than up to the red mark on the cord!
3. Insert the mains plug in a properly installed socket that is easily accessible.
4. Press the On/Off switch ① to turn the vacuum cleaner on.
5. Move the nozzle over the surface you want to clean. You can pull the vacuum cleaner like a sled when vacuum cleaning.

Close-up of a curved black object with an upward arrow, possibly indicating motion or change (no text or symbols visible)

Am An auxiliary air valve is located on the handle. Slide the cover to open it, thereby reducing the suction power if you want to vacuum off cushions, carpets or light-weight, moveable objects or materials. Normally, the auxiliary air valve is closed so as not to unnecessarily reduce the suction power.

1. After vacuum cleaning, press the On/Off switch ① again to turn off the vacuum cleaner.
2. Pull the mains plug out of the socket, firmly hold the mains cord and push the button for the cord winder down with your foot. By holding the mains cord, you prevent the cord from "lashing" against your legs for example.
3. If you used the floor nozzle, hook it into the bracket on the back of the device.
4. To ensure optimum performance of the device, empty the dust bin each time after using the device and clean the dust filter and exhaust filter regularly (see chapter "Cleaning the device").

Cleaning the device

ATTENTION!

☐ Empty the dust bin when it is full and clean the filters regularly to avoid overheating the motor.
Before cleaning the device, always pull the power plug out of the socket.
☐ Keep the device, cord and mains plug away from water or other liquids in order to avoid electrical shocks. When cleaning, make sure that no liquid penetrates the device. Only the dust filter and exhaust filter may be cleaned with water. However, they must be completely dry when being placed back in the device.
☐ The filters are not suitable for the washing machine, dishwasher or dryer! Only air dry the filters and do not in any case use a hair dryer.
☐ Do not use any scouring or abrasive cleaners or cleaning pads for cleaning. They could damage the surface.

• Clean the dust filter and exhaust filter regularly or if you notice that the suction power is declining.
• If needed, clean the housing with a damp, soft cloth. Then dry it with a soft cloth.
  • Regularly remove hairs and lint from the nozzles.

The filters may discolour over time. This is normal and also does not affect functionality.

Emptying the dust bin

1. Remove the suction hose from the dust bin (see chapter "Assembly", section "Inserting/removing the hose").

Close-up of a mechanical component with a dial and arrow indicator (no visible text or symbols)

1. Push the release button on the dust bin and pull it out of the device by the handle.
2. Hold the dust bin over an open garbage bin. The dust bin should be as close as possible to the garbage bin so that dust from the dust bin only falls into the garbage bin and is not dispersed in the surrounding area.

Close-up of a black and white portable vacuum cleaner with internal blades and handle, showing mechanical components and airflow direction arrows (no text or symbols)

1. Push the button to open the dust bin. The bottom of the dust bin will open and the dirt will fall out.

2. Shut the bottom of the dust bin again. The fastener must audibly lock into place.

3. Insert the dust bin in the device: Take hold of it by the handle and insert the bottom of the bin in the device first. Then push the handle against the device housing until the dust bin audibly locks into place. Hold the device by the handle and lift it to check whether the dust bin is properly seated.

Cleaning the dust fi Iter

The dust filter is located in the dust bin.

1. Remove the suction hose from the dust bin (see chapter "Assembly", section "Inserting/removing the hose").
2. Push the release button on the dust bin and pull it out of the device by the handle.
3. Empty the dust bin as described in the the previous section.

Exterior view of a black and white industrial vacuum cleaner with handle and internal components (no text or symbols visible)

1. Turn the dust bin cover to remove it. NOTE: Orientation marks for the removal and placement of the cover are provided on the cover and dust bin. You can remove the cover when the mark on the dust bin is pointing towards the open lock symbol on the cover.
2. Pull the dust bin cover with the dust filter out.
3. Turn the dust filter to decouple it from the dust bin cover.

4. Tap out the dust filter over a waste bin.

5. If necessary, rinse the dust filter out thoroughly with clean, lukewarm water.

ATTENTION: Do not in any case clean the filter in the washing machine or dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.

1. If necessary, wipe out the dust bin cover with a damp cloth.
2. Place the dust filter back on the dust filter cover and turn into place.

Close-up of a black vacuum cleaner with internal components and a handle, shown against a plain white background (no text or symbols visible)

1. Place the dust filter cover with the dust filter back in the dust bin and turn it until firmly tightened. The cover is properly in place when the mark on the dust bin is pointing towards the closed lock symbol on the cover.
2. Then insert the dust bin back in the device. Make sure that the dust bin locks into place properly.

If the filter is damaged or worn, you can order a new filter at www.service-shopping.de.

Cleaning the exhaust fi Iter

The exhaust filter is located in the compartment on the bottom of the vacuum cleaner (see chapter "Product contents and device overview", section "Rear view").

1. Press the catch toward the compartment cover and remove the cover.
2. Remove the exhaust filter from the compartment and its holder.
3. Tap the exhaust filter out over a garbage bin and brush off any loose dirt. If necessary, wipe out the compartment with a damp cloth.

4. If necessary, rinse out the exhaust filter thoroughly with clean, lukewarm water. ATTENTION: Do not in any case clean the filter in the washing machine or dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.

5. Once all parts are dry, place the exhaust filter back in the holder and then into the filter compartment.

6. Fit the compartment cover again and press it down until it engages audibly.

Storage

• You can push the telescoping tube together as far as possible and hook the floor nozzle into the bracket on the back of the device for convenient storage.
• Store the vacuum cleaner in a dry, cool indoor room that is not accessible for children and animals.

Troubleshooting

If your device no longer functions properly, exhibits damages or requires a spare part, please contact our customer service centre. For your own safety, do not perform any repairs yourself. The following table gives you tips on how to resolve minor problems yourself.

Problem Potential cause/solution/tips
The vacuum cleaner has no suction power.	• Is the mains plug not correctly connected with the socket? Correct the position of the mains plug.• Is the socket defective? Try another socket.• Check the fuse for your mains connection.• Are the filters plugged? Clean the dust and exhaust filter.
The suction power is weak.	• Is the auxiliary air valve on the handle open? Close it.• Is the dust bin too full? Empty the bin.• Are the fi Iters very dirty? Clean them.• Is the nozzle, telescoping tube or suction hose plugged? Turn the device off, pull the mains plug out of the socket and remove the obstruction (also see chapter “Assembly”).
The device emits dust when vacuuming.	• Has the dust bin not been closed properly and/or is it not (properly) inserted in the device? Correct this.
The power cord cannot be wound up completely.	• The cord has not been properly wound up in the device. Pull it out somewhat and then push the button 🎨 for engaging the cord winder again.
An unpleasant odour develops when vacuuming.	• Are you using the device for the first time? An odour often develops when using new devices for the first time. The odour should disappear once you have used the device a few times.

Technical data

Model number: EV-805-S14

Product number: Z 09242

Voltage supply: 220 – 240 V\~, 50 Hz

Output: 1400 W

Safety class: II

Disposal

The packaging material can be recycled. Dispose of the packaging in an environmentally-friendly manner and make it available to the collection service for recyclable materials.

Dispose of the device in an environmental-friendly manner. The device does not belong in the household waste. Dispose of it at a recycling centre for old electrical and electronic devices.

For more information, please contact the administration in your community.

Customer service/importer:

*) Calls subject to a charge.

All rights reserved.

FR

Contenu

3D rendered mechanical component with a black housing and arrow indicating a feature (no text or symbols)

Black rectangular object with a vertical top, isolated on white background (no text or symbols)

Black rubber clip with serrated edge and tapered tip (no text or symbols)

Close-up of a black vacuum cleaner with attached hose and mechanical components (no visible text or symbols)

Close-up of a curved mechanical component with an arrow indicating downward motion (no text or symbols)

Close-up of a black electronic device with a lever and indicator arrow (no visible text or symbols)

Close-up of a mechanical valve component with a highlighted section (no text or symbols visible)

Close-up of a black curved object with a double-headed arrow indicating vertical motion (no text or symbols)

Close-up of a mechanical component with a highlighted section and arrow indicator (no visible text or symbols)

Close-up of a black industrial vacuum cleaner with internal structure and directional arrows (no text or symbols)

Close-up of a black and white compact vacuum cleaner with handle and internal structure (no visible text or symbols)

Close-up of a black industrial vacuum cleaner with internal structure and airflow direction arrow (no text or symbols visible)

www.service-shopping.de

3D rendering of a mechanical component with a pointed tip and cylindrical body (no text or symbols visible)

Black rectangular object with a vertical top, isolated on white background (no text or symbols)

Black plastic pushener component with tapered tip and textured base (no text or symbols)

Close-up of a black vacuum cleaner with attached hose and bulb (no visible text or symbols)

Close-up of a curved mechanical component with an arrow indicating downward motion (no text or symbols)

Close-up of a black mechanical component with a pointed tip and arrow indicator (no text or symbols)

Close-up of a mechanical valve component with a black arrow pointing to a specific part (no text or symbols visible)

Close-up of a black curved object with a double-headed arrow indicating vertical motion (no text or symbols)

Close-up of a mechanical component with a central hole and a curved blade (no visible text or symbols)

Close-up of a black and white industrial vacuum cleaner with internal components and directional arrows indicating flow or movement (no text or symbols visible)

Exterior view of a black and white portable vacuum cleaner with handle and internal structure (no text or symbols visible)

Close-up of a black and white industrial vacuum cleaner with internal components (no visible text or symbols)
