Z 09270 - Vacuum Cleaner Cleanmaxx - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Cleanmaxx
Model	Z 09270
Dimensions (L x W x H)	420 x 280 x 340 mm
Weight	4.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Maximum Power	1800 W
Suction Type	Canister with bag
Tank Capacity	2.5 liters
Operating Radius	8 meters
Noise Level	78 dB(A)
Main Functions	Floor and carpet vacuuming, furniture brush, crevice tool
Filter	Washable HEPA filter
Maintenance and Cleaning	Empty and clean the tank, wash the filter every 3 months
Safety	Unplug before any maintenance, do not vacuum liquids
Spare Parts	Replacement bags and filters available
Repairability	Refer to the manual for parts replacement
Color	Black and red
Warranty	2 years

Frequently Asked Questions - Z 09270 Cleanmaxx

How to use the Cleanmaxx Z 09270 vacuum cleaner?

Plug in the appliance, press the on/off switch and select the desired power. Use the appropriate accessories for each surface. Refer to the manual for more details.

How to clean the vacuum cleaner filter?

Unplug the appliance, remove the filter and wash it with warm water. Let it dry completely before reinstalling. Replace the filter every 6 months.

What to do if the vacuum cleaner does not start?

Check that the outlet works, the cord is not damaged, and the tank is properly engaged. If the problem persists, contact customer service.

How to change the dust bag?

Open the compartment, remove the full bag, insert a new bag following the installation direction. Close the lid until it clicks.

What accessories are supplied with the Cleanmaxx Z 09270?

The package includes a crevice tool, a furniture brush, a floor brush, and a carpet nozzle. Check the list in the manual.

Can the vacuum cleaner vacuum liquids?

No, this vacuum cleaner is designed only for dry vacuuming. Vacuuming liquids would damage the appliance.

How to store the vacuum cleaner after use?

Wind the cable around the hooks, store the accessories in their holder, and place the appliance in a dry place away from dust.

The suction power decreases, what to do?

Check that the tank is not full, the filter is not clogged, and the hose is not blocked. Clean or replace components if necessary.

Where to find spare parts?

Bags and filters are available from authorized dealers or on spare parts websites. Have the model number Z 09270 ready.

What to do in case of malfunction?

Refer to the manual for error codes. If the problem persists, contact Cleanmaxx customer service with the model and serial number.

USER MANUAL Z 09270 Cleanmaxx

Black and white photo of a vacuum cleaner with coiled hose and handle, no visible text or symbols

Gebrauchsanleitung

ab Seite 3

Instruction manual

starting on page 18

Mode d'emploi

www.service-shopping.de

Close-up of a black vacuum cleaner with a downward arrow indicating motion (no text or symbols visible)

Two black plastic clip holders with different internal patterns, one being rotated to form a textured edge (no text or symbols visible)

Black plastic object with a tapered tip, isolated on white background (no text or symbols)

Close-up of a vacuum cleaner's hose with a black arrow pointing to the cable (no text or symbols visible)

Close-up of a black rubber hose with a downward arrow indicating compression or dislocation (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Close-up of a curved mechanical component with a double-headed arrow indicating vertical displacement (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Hand holding a black appliance with a mesh chamber and arrow indicating a process (no text or symbols visible)

Close-up of a vacuum cleaner with a black arrow indicating motion (no text or symbols visible)

Close-up of two industrial filter or filter components with a magnified inset showing internal structure (no text or symbols visible)

Two circular objects labeled A and B, one containing a white substance inside a dark casing (no text or symbols on the objects themselves)

Meaning of symbols in these instructions 19

Proper use 19

Safety instructions 20

Risks of injury 20

Proper connection 20

Proper use 20

Product contents and device overview 22

Complete device overview 22

Rear view 23

Suction nozzles 23

Assembly 24

Unpacking the product contents 24

Inserting/removing the hose 24

Inserting/removing the telescoping tube 24

Adjusting the length of the telescoping tube 24

Mounting/removing suction nozzles 25

Removing/inserting the dust bin 25

Operation 25

Cleaning the device 26

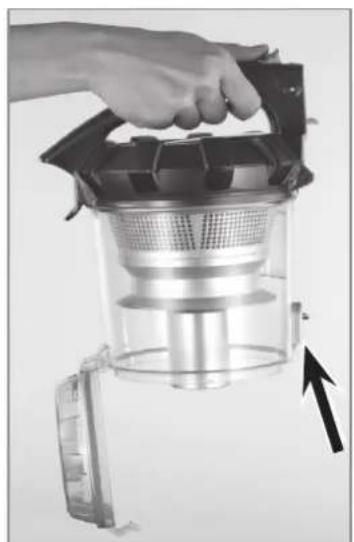

Emptying the dust bin 27

Cleaning the dust filter 27

Cleaning the exhaust filter 28

Storage 29

Troubleshooting 29

Technical data 30

Disposal 30

Dear customer,

We are delighted that you have decided on this vacuum cleaner.

Prior to using the device for the first time, please carefully read through the operating instructions and store them in a safe place. These instructions are to accompany the device when it is passed on to others. The manufacturer and importer assume no liability in the event the data in these instructions have not been observed!

As part of ongoing development, we reserve the right to alter the device, packaging or enclosed documentation at any time.

If you have any questions, please contact customer service via our website:

www.service-shopping.de

Please note: The illustrations in these operating instructions may vary slightly from the real appliance.

Meaning of symbols in these instructions

All safety notices are marked with this symbol. Please carefully read through and obey the safety notices in order to avoid injury to persons and damage to property.

Tips and recommendations are marked with this symbol.

Proper use

☐ This device is designed for vacuuming up normal household dust.

☐ Do not in any case vacuum up the following:
–Liquids or wet materials (such as wet carpet shampoo)
–smouldering ashes, cigarette butts, matches etc.
-fl ammable or ignitable materials
– very fine dust (e.g. cement dust), ash or toner
-hard, pointy objects such as bigger glass shards

☐ This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from this. Children may not play with the device. Cleaning and user maintenance may not be performed by children, unless they are supervised.

☐ The device is intended for domestic, not commercial, use.
☐ Only use the device as described in these instructions. Any other use is deemed improper.
☐ Defects arising due to improper handling, damage or attempts at repair are excluded from the warranty. This also applies to normal wear and tear.

Safety instructions

Risks of injury

☐ Risk of suffocation! Keep the packaging material away from children and animals.
☐ Keep the device, cord and plug away from water or other liquids in order to avoid the risk of electrical shock. Never touch the mains plug, cord or device with wet or damp hands.
☐ Keep animals, hair, jewellery, loose fitting clothing, fingers and all other body parts away from the device's nozzles. They could be caught in the vacuum clean something does get caught in the vacuum cleaner, immediately turn off the device.

☐ Take special care to avoid falling when cleaning stairs.

☐ Wear firm footwear during use.

☐ Only use and store the device out of the reach of children. Improper use may result in injury and electrical shock. The mains cord may also not be accessible for children.

Proper connection

☐ Only connect the device to a properly installed socket. The socket must also be easily accessible after the device has been connected. The mains voltage must correspond to the technical data of the device (see chapter "Technical data"). Only use proper extension cords, whose technical data correspond to those of the device.
☐ Make sure that the connected mains cable does not get pinched, pose a tripping hazard or get kinked and that it does not come into contact with hot surfaces.

Proper use

☐ Only use and store the device in enclosed areas. Do not use the device outdoors, in rooms with high humidity or on hot surfaces.
☐ Check the device and accessories for damages prior to each use. If the device, cord, plug or a filter are visibly damaged do not use the device. Do not attempt to repair the device or to replace parts yourself. In the event of damage, contact customer service.
☐ Do not use the device if it malfunctions, has vacuumed up liquids or objects or has fallen down. Have the device repaired by a qualified professional.
☐ Only use the device if it has been completely and correctly assembled! The dust bin and filter must be in place and not be damaged! Dirt that has penetrated the inside of the device could damage the motor. The dust bin must be shut in order for it to be inserted properly.
☐ Do not subject the device to extreme temperatures, severe changes in temperatures, open flames, direct sunlight, moisture or wetness.
☐ Do not allow the device to fall and do not subject it to strong percussions.
☐ Never place heavy objects on the device.

☐ Do not submerge the device in water or other liquids in order to avoid electrical shocks. Do not fill the dust bin with liquids.
☐ Never touch the device, the cord or the plug with wet hands.
Do not insert anything in the device's openings/nozzles and ensure that they are not plugged.
☐ Never leave the device unattended when on or when connected to a power supply.

☐ Turn the device off by pulling the mains plug out of the socket

-if you stop using the device,

• if you are finished using the device,
  —before you change any accessories,
  -if an error or fault occurs during operation,
  -if liquids or foreign debris have penetrated the device,
  —before a storm,
  —before you clean the device parts and accessories.

☐ The device must be deactivated when you pull the mains plug out of the socket or insert it in the socket.

□ Always pull on the plug itself and never on the cable!

☐ Never move the device by pulling it by the cord. Use the handles.

☐ Do not attempt to grease the wheels with lubricants or oil. Otherwise, this may cause more dust or dirt to accumulate on the wheels.

☐ Empty the dust bin after every use. The filters must also be cleaned regularly to prevent the motor from being overloaded.

☐ Allow the dust bin, dust filter and exhaust filter to dry completely before you reinstall them in the device.

☐ Only use original spare parts provided by the manufacturer.

☐ Store the device in a cool, dry area that is not accessible to children and animals when not in use.

Product contents and device overview

Visit our website to reorder original spare parts/accessories:

www.service-shopping.de

Complete device overview

1 Suction hose
2 Dust bin
3 Dust filter (located inside the dust bin)
4 Plastic dust filter (located inside the dust bin)
5 Dust bin bottom
6 Suction hose connector
7 Floor nozzle
8 Dust bin cover with handle
9 Telescoping tube
10 Auxiliary air valve on the suction hose handle

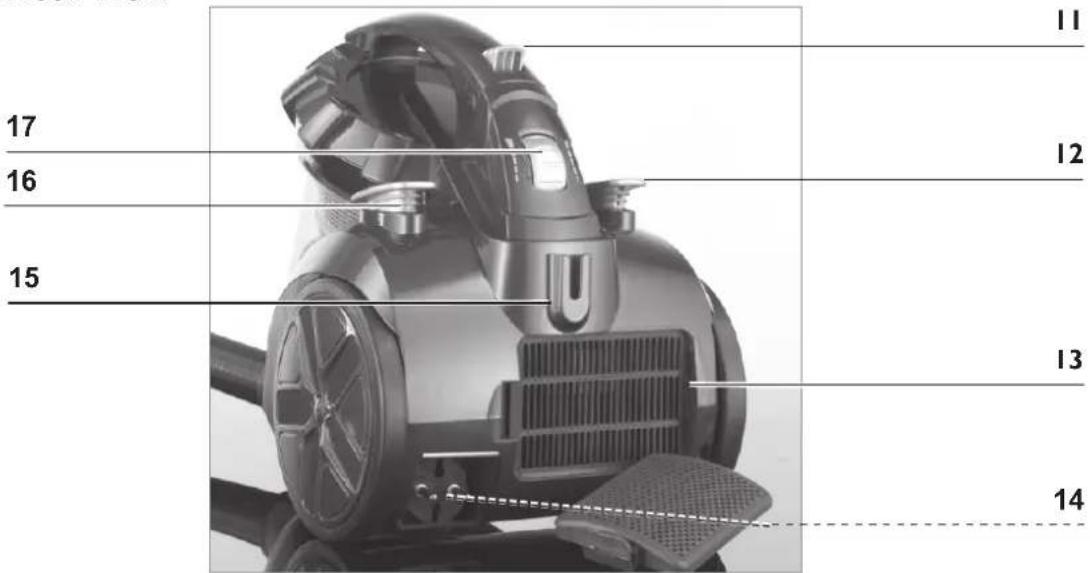

Rear view

11 Release button for dust bin
12 On/Off switch ①
13 Exhaust filter compartment
14 Mains plug
15 Bracket for hooking in the floor nozzle
16 Button ⏻ for cable winder
17 Suction power control

Suction nozzles

ATTENTION!

□ Always turn off the vacuum cleaner first before changing the nozzles.

Floor nozzle

Close-up of a black vacuum cleaner with a downward arrow indicator (no text or symbols visible)

Crevice and Brush Nozzle

Two black plastic cylindrical objects with internal patterns, one being shifted to the other (no text or symbols visible)

The floor nozzle is suitable both for carpets and smooth floors.

With the foot switch, you can switch between a smooth floor and a carpet. A brush is deployed on the device bottom for smooth floors.

Fold over the end piece in the direction of the arrow to convert the crevice nozzle into a brush nozzle:

The crevice nozzle is suitable for upholstery, cleaning the inside of cars and for all nooks and crannies that cannot be reached with the other nozzles.

The brush nozzle is suitable for all uneven objects, furniture, lamps, profi les and skirting boards, window ledges, etc.

Cushion nozzle

Black plastic object with a tapered tip, isolated on white background (no text or symbols)

The cushion nozzle is suitable for cleaning sensitive objects and cushions, e.g. lamp shades, sofas etc.

Assembly

Unpacking the product contents

ATTENTION!

☐ Risk of suffocation! Keep the packaging material away from children and animals.
☐ Make sure that the device is not connected to the power supply before you attach or remove any accessories.

- Unpack all parts and make sure that the scope of delivery is complete (see chapter "Product contents and device overview") and check for any damages from transport. If you identify damages to the components, do not use them (!), instead contact our customer service centre.

- If necessary, remove any piece of paper or sticker etc. from the dust bin. In chapter "Cleaning the Device" you will find instructions on how to remove and open the dust bin.

Inserting/removing the hose

Close-up of a vacuum cleaner plug with a black arrow pointing to the cable (no text or symbols visible)

• Insert the suction hose connector into the suction opening on device (see arrow). It must audibly lock into place.
• To remove the suction hose push the knob on the connector and pull the suction hose out.

Inserting/removing the telescoping tube

Close-up of a curved black rubber tube with a downward arrow indicating compression or dislocation (no text or symbols)

• Insert the open end of the handle into the corresponding opening on the telescoping tube. In the process, turn the handle back and forth somewhat. Check to make sure that the connection is secure.
• To remove the telescoping tube pull it off of the handle.

Adjusting the length of the telescoping tube

Close-up of a black vacuum cleaner's base with a black arrow pointing to the tip (no text or symbols visible)

• Push the slider on the telescoping tube down and set the desired length.
• Release the slider and move the tube forward until it locks into place.

Mounting/removing suction nozzles

• Insert the open end of the telescoping tube in one of the enclosed suction nozzles up to the stop. Turn the nozzle back and forth slightly in the process.
• The suction nozzles can also be attached directly to the suction hose without the telescoping tube for more fl exibility.
• To remove a suction nozzle pull it off.

Removing/inserting the dust bin

Close-up of a mechanical component with a black arrow pointing to a specific feature (no visible text or symbols)

• Removal: Push the release button on the dust bin and take it out of the device by the handle.
• Insertion: Take the dust bin by the handle and first place the bottom of the bin in the device (the bottom is facing down and handle is facing up). Then push the against the device housing until the dust bin audibly locks into place. Hold the device by the handle and lift it to check whether the dust bin is properly seated.

Operation

ATTENTION!

During use, always keep the nozzles away from body parts and animals and do not reach into them. You could be caught or injured. If something does get caught in the vacuum cleaner, turn it off immediately (depress the On/Off switch ①).
☐ Only turn on the vacuum cleaner once you are sure that all parts have been completely mounted and that the dust bin, dust filter and the exhaust filter have been properly inserted.
☐ To prevent the cord from becoming too hot when in use, pull at least two thirds of its entire length out of the device before you switch on the vacuum cleaner. Do not forcefully pull out the cord up to the stop point (no further than up to the red mark on the cord) in order to prevent damage!
□ Always turn off the device first and pull the mains plug out of the socket before you change a nozzle or attach or remove other accessories!

☐ Do not in any case vacuum up the following:

– Liquids or wet materials (such as wet carpet shampoo)
– smouldering ashes, cigarette butts, matches etc.
- flammable or ignitable materials
– very fine dust (e.g. cement dust), ash or toner
– hard, pointy objects such as bigger glass shards

1. Make sure that the respective accessory is properly mounted on the device (see chapter "Assembly").

2. Pull the mains cord only as far out of the housing as you need, ideally up to the yellow mark, but no further than up to the red mark on the cord!

3. Insert the mains plug in a properly installed socket that is easily accessible.
4. Press the On/Off switch ① to turn the vacuum cleaner on.
5. You can individually adjust the suction power with the suction power control.
6. Move the nozzle over the surface you want to clean. You can pull the vacuum cleaner like a sled when vacuum cleaning.
7. After vacuum cleaning, press the On/Off switch ① again to turn off the vacuum cleaner.
8. Pull the mains plug out of the socket, firmly hold the mains cord and push the button for the cord winder down with your foot. By holding the mains cord, you prevent the cord from "lashing" against your legs for example.
9. If you used the floor nozzle, hook it into the bracket on the back of the device.
10. To ensure optimum performance of the device, empty the dust bin each time after using the device and clean the dust filter and exhaust filter regularly (see chapter "Cleaning the device").

Close-up of a curved mechanical component with a double-headed arrow indicating vertical displacement (no text or symbols)

Tip: Am An auxiliary air valve is located on the handle. Slide the cover to open it, thereby reducing the suction power if you want to vacuum off cushions, carpets or light-weight, moveable objects or materials.

Normally, the auxiliary air valve is closed so as not to unnecessarily reduce the suction power.

Cleaning the device

ATTENTION!

☐ Empty the dust bin when it is full and clean the filters regularly to avoid overheating the motor.
Before cleaning the device, always pull the power plug out of the socket.
☐ Keep the device, cord and mains plug away from water or other liquids in order to avoid electrical shocks. When cleaning, make sure that no liquid penetrates the device. Only the foam dust filter, plastic dust filter and exhaust filter may be cleaned with water. However, they must be completely dry when being placed back in the device.
☐ The filters are not suitable for the washing machine, dishwasher or dryer! Only air dry the filters and do not in any case use a hair dryer.
☐ Do not use any scouring or abrasive cleaners or cleaning pads for cleaning. They could damage the surface.

- Clean the dust filter and exhaust filter regularly or if you notice that the suction power is declining.

• If needed, clean the housing with a damp, soft cloth. Then dry it with a soft cloth.
• Regularly remove hairs and lint from the nozzles.

The filters may discolour over time. This is normal and also does not affect functionality.

Emptying the dust bin

1. Remove the suction hose from the dust bin (see chapter "Assembly", section "Inserting/removing the hose").

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

1. Push the release button on the dust bin and pull it out of the device by the handle.
2. Hold the dust bin over an open garbage bin. The dust bin should be as close as possible to the garbage bin so that dust from the dust bin only falls into the garbage bin and is not dispersed in the surrounding area.

Hand holding a cleaning or cleaning device with a mesh chamber and handle, showing internal structure (no text or symbols visible)

1. Push the button to open the dust bin. The bottom of the dust bin will open and the dirt will fall out.
2. Shut the bottom of the dust bin again. The fastener must audibly lock into place.
3. Insert the dust bin in the device: Take hold of it by the handle and insert the bottom of the bin in the device first. Then push the handle against the device housing until the dust bin audibly locks into place. Hold the device by the handle and lift it to check whether the dust bin is properly seated.

Cleaning the dust fi Iter

The dust fi Iter is located in the dust bin.

1. Remove the suction hose from the dust bin (see chapter "Assembly", section "Inserting/removing the hose").
2. Push the release button on the dust bin and pull it out of the device by the handle.

Close-up of a mechanical device with a handle and internal structure, showing no visible text or symbols.

1. Turn the dust bin cover to remove it. NOTE: Orientation marks for the removal and placement of the cover are provided on the cover and dust bin. You can remove the cover when the mark on the dust bin is pointing towards the open lock symbol on the cover.
2. Pull the dust bin cover with the dust filter out.

Dust filter

Two-panel image showing a device with a lid and a close-up of its internal components, labeled A and B (no text or symbols on the devices themselves)

1. Open the dust bin cover by using the lever to push it up.

2. Take out the dust filter and the foam dust filter (B). If necessary, rinse the foam dust filter out thoroughly with clean, lukewarm water. ATTENTION: Do not in any case clean the filter in the washing machine or dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.

3. The dust filter (A) may only be tapped out over a garbage bin and not rinsed off with water.

4. Place the foam dust filter (B) back on the dust filter (A).

Plastic dust fi Iter

1. Rinse the plastic dust filter and the dust bin cover out thoroughly with clean, lukewarm water. ATTENTION: Do not in any case clean the filter in the dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.
2. Place the dust filter back in the dust bin cover and close it. The lever must audibly lock into place.
3. Place the dust filter cover with the dust filter back in the dust bin and turn it until firmly tightened. The cover is properly in place when the mark on the dust bin is pointing towards the closed lock symbol on the cover.
4. Then insert the dust bin back in the device. Make sure that the dust bin locks into place properly.

Cleaning the exhaust filter

The exhaust filter is located in the compartment on the backside of the vacuum cleaner (see chapter "Product contents and device overview", section "Rear view").

1. Press the catch toward the compartment cover and remove the cover.
2. Remove the exhaust filter from the compartment and its holder.
3. Tap the exhaust filter out over a garbage bin and brush off any loose dirt. If necessary, wipe out the compartment cover with a damp cloth.
4. If necessary, rinse out the exhaust filter thoroughly with clean, lukewarm water. ATTENTION: Do not in any case clean the filter in the washing machine or dishwasher! Then shake off any remaining water and let the filter air dry completely before reinstalling it.
5. Once all parts are dry, place the exhaust filter back in the holder and then into the filter compartment.
6. Fit the compartment cover again and press it down until it engages audibly.

Storage

• You can hook the floor nozzle into the bracket on the back of the device for convenient storage and push the telescoping tube together as far as possible.
• Store the vacuum cleaner in a dry, cool indoor room that is not accessible for children and animals.

Troubleshooting

If your device no longer functions properly, exhibits damages or requires a spare part, please contact our customer service centre. For your own safety, do not perform any repairs yourself. The following table gives you tips on how to resolve minor problems yourself.

Problem Potential	cause/solution/tips
The vacuum cleaner has no suction power.	Is the mains plug not correctly connected with the socket? Correct the position of the mains plug.Is the socket defective? Try another socket.Check the fuse for your mains connection.Are the filters plugged? Clean the dust and exhaust filter.
The suction power is weak.	Is the auxiliary air valve on the handle open? Close it.Is the dust bin too full? Empty the bin.Are the filters very dirty? Clean them.Is the nozzle, telescoping tube or suction hose plugged? Turn the device off, pull the mains plug out of the socket and remove the obstruction (also see chapter “Assembly”).
The device emits dust when vacuuming.	Has the dust bin not been closed properly and/or is it not (properly) inserted in the device? Correct this.
The power cord cannot be wound up completely.	The cord has not been properly wound up in the device. Pull it out somewhat and then push the button for engaging the cord winder again.
An unpleasant odour develops when vacuuming.	Are you using the device for the first time? An odour often develops when using new devices for the first time. The odour should disappear once you have used the device a few times.

Technical data

Model number: XL-186

Product number: Z 09720

Voltage supply: 220 – 240 V\~, 50 Hz

Output: adjustable up to max. 1000 W

Safety class: II

Disposal

The packaging material can be recycled. Dispose of the packaging in an environmentally-friendly manner and make it available to the collection service for recyclable materials.

Dispose of the device in an environmental-friendly manner. The device does not belong in the household waste. Dispose of it at a recycling centre for old electrical and electronic devices.

For more information, please contact the administration in your community.

Contenu

Close-up of a vacuum cleaner's hood with a black arrow pointing to the handle (no text or symbols visible)

Two black plastic spray holders with different internal patterns, shown in a transformation process (no text or symbols)

Black plastic object with a tapered tip, resembling a stylized tool or bracket (no text or symbols visible)

Close-up of a vacuum cleaner plug with a black arrow pointing to the cable (no text or symbols visible)

Close-up of a curved black rubber tube with a downward arrow indicating compression or dislocation (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing to a specific feature (no visible text or symbols)

Close-up of a curved pipe or tube with a double-headed arrow indicating vertical displacement (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Hand holding a transparent cylindrical device with a mesh chamber and a black arrow pointing to the interior (no text or symbols visible)

Close-up of a black and white industrial vacuum cleaner with a curved arrow indicating motion (no text or symbols visible)

Close-up of two industrial air purifiers with a lid removed, showing internal structure and part assembly (no text or symbols visible)

Two circular objects labeled A and B, one containing a white inner ring and the other a dark outer ring (no text or symbols on the objects themselves)

www.service-shopping.de

Close-up of a black vacuum cleaner's hood with a black arrow pointing to the handle (no text or symbols visible)

Two black plastic spray holders with a right-hand rule showing the change from left to right (no text or symbols)

Black plastic pushpin or clip component (no text or symbols visible)

Close-up of a vacuum cleaner plug with a black arrow pointing to the cable (no text or symbols visible)

Close-up of a black rubber hose with a downward arrow indicating compression or dislocation (no text or symbols)

Close-up of a black mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing to a specific feature (no visible text or symbols)

Close-up of a curved pipe or tube with a double-headed arrow indicating vertical displacement (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Hand holding a cleaning or cleaning device with a mesh chamber and handle, showing internal structure (no text or symbols visible)

Close-up of a mechanical vacuum cleaner with a black arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical component with a lid removed, showing internal structure and part assembly (no text or symbols visible)

Two circular containers labeled A and B, one containing a white inner container and the other a dark lid (no text or symbols on the main objects)
