Z 09294 - Vacuum Cleaner Cleanmaxx - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Cleanmaxx
Model	Z 09294
Power	800 W
Tank capacity	2 L
Filter type	Washable HEPA
Noise level	75 dB
Cord length	5 m
Weight	5.5 kg
Dimensions (L x D x H)	40 x 28 x 25 cm
Power supply	220-240 V, 50/60 Hz
Main functions	Hard floor and carpet vacuuming, furniture brush
Included accessories	Crevice nozzle, furniture brush, telescopic tube
Bag type	Dust bag (optional reusable)
Energy class	A
Operating range	8 m (cord + hose)
Maintenance	Clean the filter monthly, empty the tank after each use
Safety	Do not vacuum liquids, unplug before maintenance
Spare parts	Filter, bag, brush available separately
Warranty	2 years

Frequently Asked Questions - Z 09294 Cleanmaxx

How to empty the tank of the Cleanmaxx Z 09294 vacuum cleaner?

Unplug the appliance, then press the latch to open the tank. Empty the contents into a trash can and clean the seal to prevent leaks.

How to clean the HEPA filter?

Remove the filter, tap it gently to remove dust. Wash it with warm water (no detergent) and let it dry for 24 hours before reinstalling.

What to do if the vacuum no longer sucks?

Check that the tank is not full, the filter is not clogged, and that the hose or brush is not blocked. If the problem persists, contact customer service.

The power cord does not retract fully, what to do?

Pull out the cord completely then rewind it gently, guiding the first few meters manually. Avoid twisting. If the spring is broken, contact after-sales service.

Can I vacuum cold ashes with this vacuum?

No, this vacuum is not designed for ashes. Use a special ash vacuum to avoid damaging the filter.

How to change the dust bag?

Open the compartment, remove the full bag, insert the new bag by aligning the opening with the suction tube. Close the cover until it clicks.

The vacuum makes a strange noise, what should I check?

Turn off the appliance and check that no object is stuck in the brush or hose. Clean the filter if necessary. If the noise persists, take the appliance to an authorized repair shop.

Where to find spare parts for the Cleanmaxx Z 09294?

Parts like the filter, bag or brush are available on the manufacturer's website or at authorized dealers. Search using the reference Z 09294.

What is the warranty of the Cleanmaxx Z 09294 vacuum?

The appliance has a 2-year warranty against manufacturing defects. Keep the receipt to exercise your rights.

Can I use the vacuum without a bag?

Yes, the tank can be used without a bag, but you will need to empty it more often and clean the filter regularly. The noise level may be slightly higher.

USER MANUAL Z 09294 Cleanmaxx

Exterior view of a modern vacuum cleaner (no text or symbols visible)

Gebrauchsanleitung

ab Seite 3

Instruction manual

starting on page 14

Mode d'emploi

www.service-shopping.de

2

Close-up of a mechanical device with labeled parts A and B, showing internal components and no visible text or symbols.

Close-up of a mechanical device with arrows indicating rotational motion (no text or symbols visible)

Close-up of a kitchen blender with labeled parts A and B (no text or symbols on the device itself)

Close-up of a transparent cylindrical device with a handle and top component, no visible text or symbols.

Mechanical component diagram showing a valve or actuator with an arrow indicating direction (no text or symbols present)

Meaning of the Symbols in These Instructions 15

Intended Use 15

Safety Instructions 15

Incorrect Use 15

Dangers of Injury 15

Proper Connection 16

Proper Use 16

Items Supplied 17

Device Overview 18

Accessories 18

Before Initial Use 19

Attaching and Detaching Accessories 19

Attaching/Detaching the Floor Nozzle, Brush Nozzle and Crevice Nozzle 20

Attaching/Detaching the 8-Piece Accessory Set 20

Use 20

Cleaning and Storing the Device 21

Emptying the Dust Container 21

Cleaning the Filter 21

Cleaning the Housing, Nozzles and Extension Suction Tubes 22

Storage 22

Troubleshooting 23

Technical Data 23

Disposal 23

Dear Customer,

We are delighted that you have chosen this handheld vacuum cleaner.

Before using the device for the first time, please read the instructions through carefully and store them in a safe place. If the device is given to someone else, it should always be accompanied by these instructions. The manufacturer and importer do not accept any liability if the information in these instructions is not complied with!

We reserve the right to modify the product, packaging or enclosed documentation at any time in conjunction with our policy of continuous development.

If you have any questions, contact the customer service department via our website:

www.service-shopping.de

Meaning of the Symbols in These Instructions

All safety instructions are identified with this symbol. Please read them carefully and comply with the safety instructions in order to prevent personal injury and damage to property.

Tips and recommendations are identified with this symbol.

Intended Use

☐ This device is only intended to be used for dry cleaning indoors.
☐ The device is for personal use only and is not intended for commercial applications.
☐ This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from this. Children may not play with the device. Cleaning and user maintenance may not be carried out by children.
Children younger than 8 years of age and animals must be kept away from the device and the connecting cable!
☐ Use the device only as described in the instructions. Any other use is deemed to be improper.
☐ The following are excluded from the warranty: all defects caused by improper handling, damage or unauthorised attempts at repair. This also applies to normal wear and tear.

Safety Instructions

Incorrect Use

☐ On no account should the device be used to suck up the following:
–Liquids or wet substances (e.g. wet carpet shampoo)
-Glowing ash, cigarettes, matches, etc.
- Inflammable or explosive substances
- Very fine dust (e.g. concrete dust), ash or toner
-Pointed, hard objects such as large pieces of broken glass

Dangers of Injury

• Keep children and animals away from the packaging film. There is a danger of suffocation!
  ☐ Never touch the mains plug, the cable or the device with wet hands.
  ☐ Keep hair, jewellery, wide clothing, fingers and all other body parts away from the nozzle of the device.
  ☐ Please take particular care when cleaning stairs so that you do not stumble and fall.

☐ Make sure you wear closed shoes when using this device!

☐ Never hold the nozzle close to parts of your body or animals during use. They could become stuck to the device. Should the vacuum cleaner become stuck, switch the device off immediately.
The device should be used and stored out of the reach of children and animals. Improper use can lead to injuries and electric shock. The mains cable must also be kept out of the reach of children and animals.

Proper Connection

Only ever connect the device to a properly installed plug socket. The plug socket must also be readily accessible after connection. The mains voltage must match the technical data for the device (see the "Technical Data" chapter). Only use suitable extension cables whose technical data is the same as that of the device.
☐ Make sure that the connected mains cable does not present a trip hazard.
☐ Position the cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces.

Proper Use

☐ Use the device only in closed rooms. Do not operate it outdoors or in rooms with high humidity.
☐ If you wish to use the device as a handheld vacuum cleaner for cleaning a car, make sure that the device is not exposed to rain or moisture.
□ Always check the device for damage before putting it into operation. If the device, cable and/or mains plug shows visible signs of damage, the device must not be used. Do not try to repair the device yourself or to replace any individual parts. In the event of any damage, contact our customer service department.
☐ Do not use the device if it has malfunctioned, sucked up liquids or objects or been dropped. Have the device checked by a specialist or contact the customer service department.
☐ The device should only be used when it is fully and correctly assembled. The dust container and filters must be inserted.
☐ Do not immerse the device in water or other liquids in order to avoid electric shocks.

☐ Never touch the device, the cable or the plug with wet hands.

☐ Do not expose the device to extreme temperatures, wide temperature fluctuations, open fire, direct sunlight, moisture or wet conditions.

☐ Do not drop the device or allow it to be knocked violently.

☐ Do not suck up any liquids and do not pour any liquids into the dust container.
☐ Do not insert anything into the openings/nozzles of the device and make sure that these do not become clogged.
☐ Never leave the device unattended when it is switched on or connected to the mains.
☐ Switch the device off immediately and pull the mains plug from the mains socket – if you stop working with the device for a period of time,

—when the device is not in use,
—before you change the nozzles and other accessories,
-if a fault or error occurs while the device is in operation,
-if liquids or foreign bodies have found their way into the device,
—before a thunderstorm,
—before you clean parts of the device and accessories.

☐ The device must be switched off when inserting or removing the mains plug.
□ Always pull on the plug and never the cable to pull the mains plug out of the mains socket!
☐ Never carry the device by the cable. Use the handle to carry the device.
☐ Empty the dust container after each use. The filters must also be regularly cleaned in order to prevent overloading of the motor.
☐ The dust container and filters must be completely dry before you insert them again and use or store away the device.
Store the device in a dry place that is not accessible to children and animals when it is not being used.
□ Use only original manufacturer's accessories.

Items Supplied

• Handheld Vacuum Cleaner
• 2 extension suction tubes
• 1 floor nozzle
- 1 crevice nozzle
- 1 brush nozzle
• 8-piece small accessory set
- 1 Nozzle adapter

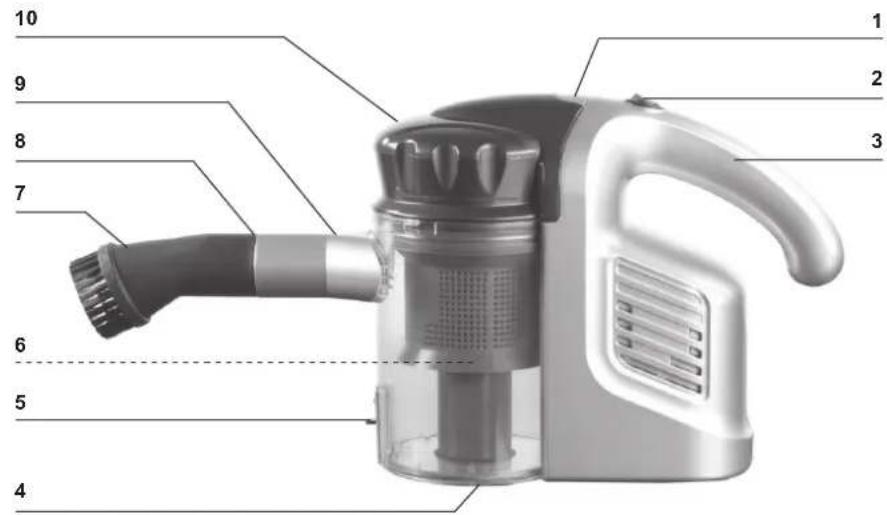

Device Overview

1 Release button for dust container
2 On/Off switch
3 Handle
4 Bottom fl ap of dust container
5 Catch for bottom fl ap of dust container
6 Plastic fi Iter (in the dust container)
7 Large upholstery brush nozzle
8 Nozzle adapter
9 Suction opening
10 Dust container lid

Accessories

• Floor nozzle: You can use the floor nozzle to use the handheld vacuum cleaner like a floor vacuum cleaner. The floor nozzle is suitable for both carpets and hard floors. Thanks to the flat design, even inaccessible places such as under the sofa, under radiators, etc. can be reached.
• Large crevice nozzle: The crevice nozzle is suitable for cleaning all nooks and crannies that cannot be reached with the other nozzles (e.g. between upholstery).
• Large upholstery brush nozzle: Use the brush nozzle for cleaning all uneven objects, furniture, lamps, profi les and skirting boards, window ledges, etc.

- Nozzle adapter and 8-piece accessory set:

1 Nozzle adapter (is always plugged onto the suction opening first!)
2 Small round brush
3 Small long brush
4 Adapter for the 8 accessory nozzles (is plugged onto the nozzle adapter!)

5 Small suction tube (2x)
6 Narrow suction tube
7 Small crevice nozzle
8 Small angled nozzle

Before Initial Use

CAUTION!

☐ Keep children and animals away from the packaging material. There is a danger of suffocation!
- Unpack all parts and check the items supplied to make sure they are complete (see the "Items Supplied" chapter); also check for transport damage. If you find any damage to the components, do not use them (!), but contact our customer service department.
- Please note: Possible dirt residues in the dust container are attributable to the fact that this device is tested prior to delivery and do not represent any defect with the device!

Attaching and Detaching Accessories

CAUTION!

Before you attach or detach any accessories, ensure that the device is not connected to the mains power.
☐ The nozzle adapter (1) (see the "Items Supplied" chapter, "Accessories" section, "Nozzle adapter and 8-piece accessory set" point) is always plugged onto the suction opening first, regardless of whether you are using one of the three large nozzles (or the extension suction tubes) or the small accessory nozzles! For the small accessory nozzles, the accessory nozzle adapter (4) is also plugged onto the nozzle adapter (1)!

Attaching/Detaching the Floor Nozzle, Brush Nozzle and Crevice Nozzle

1. Plug the nozzle adapter onto the suction opening.
2. If you wish, plug the extension suction tubes onto the nozzle adapter.
3. Plug the floor nozzle or the brush nozzle or the crevice nozzle onto the extension suction tube.

The nozzles can also be plugged directly onto the adapter without placing the extension suction tubes in between.

1. When you want to detach the nozzles, simply pull them off the adapter or the extension suction tubes.

Attaching/Detaching the 8-Piece Accessory Set

1. Plug the nozzle adapter onto the suction opening.
2. Plug the accessory nozzle adapter onto the nozzle adapter.
3. Select an accessory nozzle and plug it onto the accessory nozzle adapter.
4. When you want to detach the accessory nozzles, simply pull them off the accessory nozzle adapter.

Use

CAUTION!

☐ The openings on the device must not be blocked to ensure that the motor does not overheat or suffer damage.
☐ Never hold the nozzles close to parts of your body or animals during use and do not place your hands inside the nozzles. They could become stuck to the device / injured. Should the vacuum cleaner become stuck, switch the device off immediately.
☐ Switch on the vacuum cleaner only when you have checked that all the parts have been fully attached and that the dust container and the filters are correctly inserted.
Always switch the device off first and pull the mains plug from the mains socket before you replace the nozzles and any other accessories!

☐ On no account should the device be used to suck up the following:

–Liquids or wet substances (e.g. wet carpet shampoo)

-Glowing ash, cigarette ends, matches, etc.

– Inflammable or explosive substances
- Very fine dust (e.g. concrete dust), ash or toner -Pointed, hard objects such as large pieces of broken glass

1. Select a nozzle and attach it in the manner described in the "Attaching and Detaching Accessories" chapter.

2. Unwind the mains cable to its full length and insert the mains plug into a properly installed mains socket that is easily accessible.

3. Move the On/Off switch to the 1 position to switch on the vacuum cleaner.

4. Guide the nozzle over the surface to be cleaned.

5. After you have finished vacuuming, move the On/Off switch to 0 and pull the mains plug out of the plug socket.

6. To ensure optimum performance of the device, you should empty the dust container and clean the filter (see the next "Cleaning and Storing the Device" chapter) after every use.

Cleaning and Storing the Device

CAUTION!

□ Always remove the mains plug from the plug socket before removing the dust container.
☐ Never immerse the motor housing in water or other liquids.
Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These could damage the surfaces.

Emptying the Dust Container

The dust container should be emptied at regular intervals to maintain good suction force. You can look through the transparent housing to see how much dirt has accumulated inside.

Close-up of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

Mechanical component with directional arrows indicating motion or force (no text or symbols)

Cleaning the Filter

Close-up of a portable blender with labeled parts A and B (no text or symbols on the device itself)

1. Press down the release button for the dust container (A) and tip the dust container slightly forwards (B) to release it. Then remove the dust container upwards.

2. Hold the dust container over a dustbin or similar outlet. Pull the catch for the bottom of the dust container downwards. The bottom of the dust container will flip open.

3. Then flip the bottom of the dust container shut again until the catch correctly locks in place.

4. Insert the dust container back into the motor unit by first hooking the bottom part of the dust container onto the motor unit and then pressing it against the motor unit until the release button for the dust container engages.

5. Press down the release button for the dust container and tip it slightly forwards to release the dust container. Then remove it upwards.

6. Turn the dust container lid anticlockwise until you can pull it off.

Close-up of a mechanical component with a handle and central hub, no visible text or symbols

1. Remove the fabric filter and tap it out or brush it down using a soft brush if necessary.

CAUTION! Under no circumstances should you rinse the fabric filter with water! The filter must not become wet or be immersed in liquids!

Close-up of a mechanical component with an arrow indicating a specific part (no visible text or symbols)

1. Pull the catch for the bottom of the dust container downwards to open the dust container in the manner described in the "Emptying the Dust Container" section.

2. Reach into the dust container and press out the plastic dust filter upwards.

3. Rinse the dust container and the plastic dust filter as required with clear, hot water.

CAUTION! Never wash the dust container and the plastic dust filter in the dishwasher or in the washing machine!

1. Allow the dust container and the plastic dust filter to dry fully in the air.

CAUTION! Under no circumstances should you use a hair dryer to dry the dust container or the plastic dust filter. Never reinsert the container and the filter if they are still damp!

1. When all parts are fully dry, insert the plastic dust filter back into the dust container.
2. Place the fabric filter back onto the plastic dust filter.
3. Place the dust container lid back onto the dust container and turn it tight.
4. Insert the dust container back into the motor unit by first hooking the bottom part of the dust container onto the motor unit and then pressing it against the motor unit until the release button for the dust container engages.

Cleaning the Housing, Nozzles and Extension Suction Tubes

• Clean the housing, the nozzles and the extension suction tubes if necessary using a damp, soft cloth. Dry them with a soft cloth.
• Remove hair and fl uff from the nozzles at regular intervals.

Storage

Store the vacuum cleaner in a cool, dry place out of the reach of children and animals.

Troubleshooting

Should your device stop working properly at any time, exhibit signs of damage or require a spare part, please contact the customer service department. For your own safety, do not attempt to carry out repairs yourself. The following table contains tips on how you can remedy small problems yourself.

Problem Possible cause/solution/tips
The device does not work.	Is the plug not inserted in the mains socket correctly? Insert the plug correctly.Is the plug socket defective? Try another plug socket.Check the fuse of your mains connection.
The performance is weak.	Is the dust container too full? Empty the container.Are the dust fi Iters heavily clogged? Clean them.Are the nozzles blocked? Clean the nozzles.
Dust escapes from the device during cleaning.	Is the dust container full? Empty the dust container.Are the dust filters not inserted correctly? Make sure that the plastic dust filter is fitted correctly in the dust container and the fabric filter is placed correctly on the plastic dust filter.
During vacuum cleaning, an unpleasant smell is detected.	Is the device being used for the first time? A smell often develops when new devices are fi rst used. The smell should disappear after you have used the device several times.

Technical Data

Model:		GW906-S60
Article number:		Z	09294
Voltage supply: 230 V ~ 50 Hz
Power:		max.	600	W
Protection class:		II,	IP20

Disposal

The packaging material is recyclable. Please dispose of it in an environmentally friendly manner and take it to a recycling centre.

Dispose of the device in an environmentally friendly manner. It should not be disposed of alongside general household waste. Dispose of it at a recycling centre for used electrical and electronic devices.

You can obtain more information from your local authorities.

Customer Service / Importer:

All rights reserved.

FR

Contenu

www.service-shopping.de

Close-up of a mechanical device with labeled parts A and B, showing internal components without any readable text or symbols.

Close-up of a mechanical device with arrows indicating rotational motion (no text or symbols visible)

Close-up of a white manual blender with labeled parts A and B (no text or symbols on the device itself)

Close-up of a transparent cylindrical device with a handle and an arrow pointing upward (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a specific part (no visible text or symbols)

www.service-shopping.de

Close-up of a kitchen blender with labeled parts A and B (no text or symbols on the device itself)

Mechanical component with directional arrows indicating motion or rotation (no text or symbols)

Close-up of a kitchen blender with labeled parts A and B (no text or symbols on the device itself)

3D rendering of a mechanical component with an arrow indicating upward motion (no text or symbols)

Close-up of a mechanical valve or pump component with a black arrow indicating direction (no text or symbols visible)
