Product type	Steam iron
Brand	Moulinex
Model	Ocealys 250 A BA4
Power	2400 W
Supply voltage	220-240 V, 50-60 Hz
Water tank capacity	270 ml
Continuous steam output	Up to 40 g/min
Variable steam output	Yes, with dial
Vertical steam function	Yes
Soleplate	Ceramic
Automatic shut-off	Yes, after 8 minutes in vertical position, 30 seconds in horizontal
Anti-scale system	Yes, with self-cleaning rod
Anti-drip function	Yes
Dimensions (L x W x H)	28 x 12 x 15 cm
Weight	1.2 kg
Cord length	2.5 m
Cleaning and maintenance	Clean the soleplate with a non-abrasive damp cloth. Use the self-cleaning function regularly.
Safety	Automatic shut-off, anti-overheating system
Spare parts and repairability	Water tank, soleplate, buttons, power cord. Repair by Moulinex approved service center.
General information	Steam iron with temperature control and variable steam, ideal for efficient ironing.

Frequently Asked Questions - Ocealys 250 A BA4 MOULINEX

How to descale my Moulinex Ocealys 250 A BA4 iron?

Use the self-cleaning function: fill the water tank, plug in the iron, set temperature to maximum, then press the self-cleaning button. Repeat if necessary.

What to do if my iron does not produce steam?

Check that the tank is full, the temperature is sufficient (steam active only at high temperature) and that the steam dial is open. If the problem persists, descale the iron.

How to use the vertical steam function?

Hold the iron vertically, press the steam button and pass the iron over hanging clothes. Ideal for curtains or jackets.

My iron drips water, what to do?

The anti-drip function prevents dripping at low temperature. If this happens, increase the temperature or wait for the iron to heat up. Also check that the cap is closed properly.

How to adjust temperature for different fabrics?

Use the adjustment dial: set to Synthetic (low), Silk/Wool (medium), Cotton/Linen (high). Consult the markings on the iron.

The iron turns off by itself, is this normal?

Yes, the iron is equipped with a safety automatic shut-off: it turns off after 8 minutes in vertical position or 30 seconds in horizontal. Shake it to reactivate.

How to clean the ceramic soleplate?

Use a soft damp cloth once the iron has cooled. Do not use abrasive products. For stubborn residue, run the iron over a cloth soaked in white vinegar.

Can I use tap water?

Yes, but to avoid scale, use a mixture of 50% tap water and 50% demineralized water. Use the self-cleaning function regularly.

What is the weight of the iron?

The iron weighs approximately 1.2 kg, making it light and easy to handle for fatigue-free ironing.

Where to find spare parts for my Moulinex iron?

Contact an Moulinex approved service center or check the official website. Parts such as the water tank or soleplate are available.

USER MANUAL Ocealys 250 A BA4 MOULINEX

Thank you for choosing an appliance from the Moulinex range.

This instruction manual contains an ironing guide. We recommend it is read before using your iron for the first time.

Description

① A Satin Soleplate 2

B Spray

C Refill hole

D Steam Control

E Shot of steam button

F Spray control button

G Flexible mains lead

H Temperature control indicator light

I Scale collector device (according to model)

J Thermostat control

K Water tank

L Water tank maximum fill level

Safety Recommendations

- Keep the iron out of reach of children and do not let the mains lead hang loose.

- Never leave the iron unattended when switched on

- Always check that the voltage of your appliance matches that of your electrical installation

- Check that your electric meter and fusebox has a power of at least 10Amps

- This appliance must be used with an earthed connection. If an extension is used, make sure it is an earthed 10 amp bipolar type.

Any error in connecting the appliance invalidates the guarantee

- Never plug in the iron if the mains lead is damaged, or if you drop the iron, or if it leaks.

- If the mains lead is damaged, it must be replaced by the manufacturer, its after sales service, or an approved technician, in order to avoid any danger.

Wiring instructions for U.K and Ireland only :

APPLIANCES WITH FITTED PLUG

Important: For your convenience this appliance is supplied complete with a plug incorporating a 13 amp fuse.

In the event of replacing a fuse in the plug supplied, a 13 amp fuse approved by ASTA to BS1362 must be used.

If the socket outlets are not of the 13A BS 1363 type, and therefore do not accept the plug connected to this appliance, cut off the plug.

When cut off, this plug is a shock hazard if inserted into a socket outlet and must therefore be disposed of safely.

If the fuse cover is detachable, never use the plug with the cover omitted. Replacement covers can be obtained from your service agent.

Fit the appropriate plug according to the instructions in paragraph «Fitting a plug». With alternative plugs a 15 amp fuse must be fitted either in the plug or adaptor or at the main fuse box.

APPLIANCES WITHOUT FITTED PLUG FITTING A PLUG - IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

GREEN & YELLOW : EARTH

BLUE : NEUTRAL

BROWN : LIVE

As the colours in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN & YELLOW must be connected to the terminal in the plug which is marked with the letter "E" or by the earth symbol ⊥ or coloured green or green and yellow. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter "N" or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter "L" or coloured red.

This appliance is manufactured to conform to the Low Voltage Electrical Equipment (Safety) Regulations 1989 and is designed to comply with BS 3456. It complies with the requirements of the EEC Directive (89/336/EEC).

- Always disconnect the appliance:

before refilling the water tank,

and after each use or whenever not in use.

Do not disconnect the appliance by pulling the mains lead.

Never let the mains lead hang loose within reach of children.

Leave to cool before putting the iron away.

Your iron is equipped with a thermal safety device which cuts current supply when any anomaly or problem arises.

Do not immerse the iron in water nor under running water.

If your iron has a collector, empty it when cool, before ironing for example, to avoid risk of burning.

Your appliance is for domestic use only, and only to be used for ironing cloth fabrics.

Attention: Moulinex will not be held responsible for any use which is inappropriate or which does not conform to the safety guidelines.

Usage Recommendations

USING THE APPLIANCE

• Check that the steam control (D) is in ✕ position.
• Plug the iron in.

Control the temperature with the thermostat control (J). The temperature control indicator light (H) will come on. It will go out when the soleplate has reached the required temperature.

When using the appliance for the first time, a little smoke may be given off. This will pass, and does not affect the quality of your iron.

FILLING THE WATER TANK (large capacity 300cm³)

• Always unplug the appliance before filling the water tank.
• Set the steam control (D) to ✕ position.

Fill the water tank via the refill hole (C) situated at the front of the iron.

Do not exceed the maximum fill level (L).

STEAM IRONING

According to the model, the steam output of your iron will vary between 5 to 20g or 25g per minute.

Select the steam output by setting the steam control (D) to the required sector.

Notes

Steam ironing is only possible within the range indicated on the thermostat control (J).

DRY IRONING

Set the steam control (D) to ✕ position.

SPRAY

Press button (F) in short bursts. The spraying of water allows the dampening of fabric when in dry or in steam position. This is very effective for smoothing out a crease.

⑥. SHOT OF STEAM

- Press the steam shot button (E). Your iron will let out an immediate powerful jet of steam.

Note:

• Do not do more than 5 successive short bursts, this will prevent the iron from dripping.
• Always use this function within the range indicated on the thermostat control (J)
• When using steam shot for the first time, small deposits of scale may be thrown out

along with the steam, through the soleplate. We therefore recommend not to use the first jets of steam, in short bursts, on fabrics.

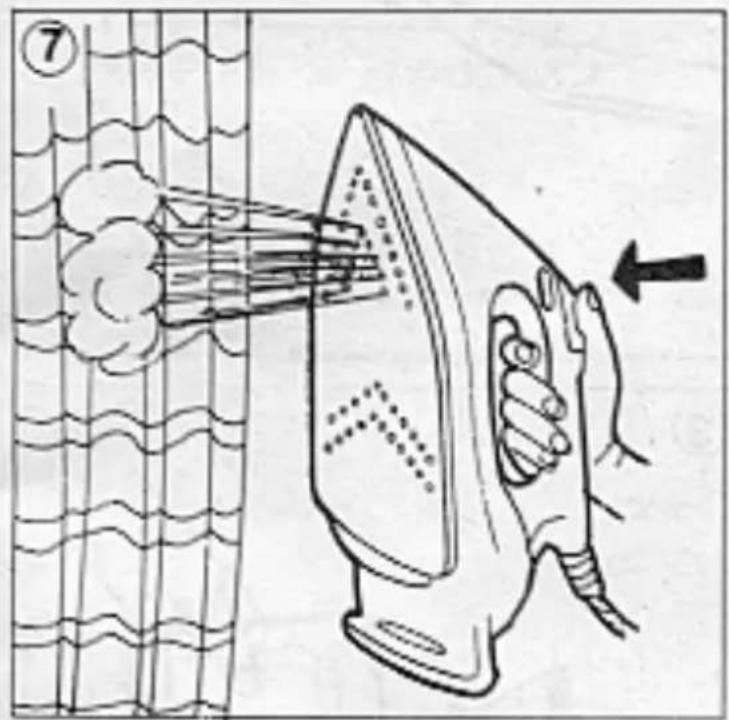

⑦. VERTICAL PRESS (according to model)

It is possible to use the iron in vertical position to press clothes on hangers, curtains etc.

- Set the thermostat control (J) to MAXI position.

- Hold the iron in vertical position near to the material without touching it. Press the button (E) at the rate of one short burst per second maximum. The produced steam is not always visible, but still retains its pressing power.

Note: You can do up to 5 short bursts when the iron is in vertical position. Return the iron to horizontal position for a few seconds and then resume vertical pressing.

Important:

• It is not recommended that vertical press is used on synthetic fibres.
• Always keep a distance between the iron and the material to avoid burning.
• As the produced steam is always very hot, never press clothes when being worn by somebody. Always use clothes on a hanger.

“AQUA-STOP” (anti-drip) (according to model)

This system permanently controls the temperature of the soleplate. Below a certain temperature, the ‘Aqua-stop’ system cuts off the water flow, preventing it from dripping on to clothes.

Maintenance

SCALE COLLECTOR DEVICE (I) (according to model)

- Remove the scale collector device (I) regularly in order to remove scale deposits which have built up inside it.

- Carry out this operation before each use or when the soleplate is cold.

- With one hand, hold the iron by the handle (pointed end upwards)

⑧ - With the other hand, gently pull the collector with an upward and downward movement until it comes away from its housing.

- Empty the contents

- Replace the collector.

Note: The hardness of the water used will determine how often you need to carry out this procedure. We recommend every 3 months after each ‘auto-clean’.

"AUTO CLEAN" (every 3 months)

In order to reduce scale build-up, Moulinex has equipped your iron with a self-cleaning system which we recommend is used regularly. Follow these steps:

- Take the iron, cold and unplugged

• Set the steam control (D) to the ✕ position.
• Fill the water tank with the equivalent of one measuring beaker, set the thermostat control (J) to MAX. Plug in the iron. As soon as the temperature control indicator light (H) goes out, unplug the iron and, above a sink, turn the steam control (D) to the auto-clean position, letting the water tank empty completely. The water/steam mixture will take away scale residue from the soleplate.
• After 2 minutes, reset the steam control (D) to the ✕ position.
• Slowly and carefully, tilt the iron from left to right to rinse the soleplate well and remove any water remaining in it.
• Plug the iron in again to dry the soleplate, doing this above a cloth.
• When you have done this, unplug the iron again.
• Drain the collector (according to model).
• Clean the soleplate with a thick, clean, damp cotton cloth before putting the iron away or using it again (when the iron is cold).

Storage

After each use:

⑨- Empty the water tank. - Set the steam control (D) to the ✕ position. - Leave the iron to cool. ⑩- Wind the mains lead into a loop of around 10 cm. - Store the iron vertically on its base.

Problem Cause Solution
Iron will not heat up	Bad connection Check	the plug connection
	Thermostat control Adjust thermostat (J) on Minimum control (J)
No steam, iron is Steam hot position section	Steam control (D) in Set to required
	Water tank empty Fill	the water tank
	Temperature con- Set trol too low for to appropriate 'aqua-stop' model steam section, according to the fabric being ironed

Water dripping Iron from holes on steam soleplate when iron is used	being used in mode befo- rature re indicator light (H) has gone out.	until tempe-control indi-cator light (H) goes out for the first time before iron in steam mode
	Steam output too high	Lower output with steam control (D)
Spray or shot of steam does not work	Water tank empty Refill water tank
Reduction in steam output	Scale beginning to build up clean' function	Carry out 'auto
	Water tank almost empty	Fill water tank
Iron causes brown marks on clothes organic products	Water used contains Clean organic products	Carry out the 'Auto clean' operation and change water. See "recommended water types"
Water dripping from holes of soleplate when iron is stored	Iron stored flat with water in the water tank	Set steam control (D) to position, empty and store vertically on its base

If you have followed all the instructions and your iron still does not work, consult a Moulinex approved service centre (see list in the Moulinex Service Booklet).

Ironing Guide

. WHICH TEMPERATURE TO USE

Look at the labels on your clothes to find out the composition of the material or the ironing instructions.

Ironing Instructions	Fabric Type	Thermostat
	Synthetic Fibres:acrylic, polyamide, polyesterArtificial Fibres:Viscose	•
	Natural fibres (1):wool, silk	••
	Natural Fibres (2):Cotton	•••
	Thick cotton, linen	Maxi
	Attention: Do not iron this item of clothing

If the fabric is made up of different types of textile, set the control to the lowest recommended temperature. If you cannot find the composition of the fabric on the label, try to iron on a part of the item of clothing not clearly visible, starting with the lowest temperature.

If possible, try ironing on a part of the garment that is not clearly visible, starting with the lowest temperature.

Sort out your clothes before ironing into groups of the same type of material. The iron heats up faster than it cools down, start with items requiring a lower temperature and work upwards (see table above).

Woollens can be steam ironed. In order that the soleplate does not come into contact with the wool, place a dry piece of fabric on top of the item to be ironed. You can also iron the item inside out.

To avoid marking delicate materials (silk, velvet, viscose, etc.) or for fabrics with printed designs (transfers, etc.), iron inside out.

. Certain stains become fixed at high temperatures, therefore it is better to iron clothes when not stained.

Tap water if it is not too hard. (see table below)

Example of water considered hard

- Enquire at your water board as to the hardness of your water.

France Germany UK International
30°f	17°d	21°e	30mml/lor 6 mEq/l

- Enquire at your water board as to the hardness of your water.

. Commercial demineralised water . Commercial distilled water

+ tap water (half and half) in case of hard water.

We strongly recommend you do not use other types of water:

We strongly recommend you do not use other types of water:

. water with additives (perfumes, essences, starch etc.)

. Commercial mineral water

. Rain water, thawed ice from the freezer, water from clothes dryer - they contain organic elements which could leave brown marks on your clothes.

. water softened by domestic recycling installation

PRACTICAL HINTS

. Maintenance of the soleplate

- Clean regularly. The longer you wait to clean the soleplate, the more difficult the stains will be to remove.

- Do not scour the soleplate, and do not use rough or abrasive substances to clean the soleplate

Traces of water, starch or scale

When the iron is cold, rub with a thick cotton cloth soaked in alcohol vinegar. Rinse immediately with water and dry.

Fabric stuck to soleplate

• Leave the iron to cool for 30 minutes at least after unplugging, then plug in again and set the thermostat to Maxi position.
• With the iron is hot, place a clean cotton cloth on the ironing board and rub the iron soleplate vigorously on to it. To make this more effective, use the side of the ironing board. Do not forget to clean the sides of the soleplate.
• Always use the temperature suited to the item of clothing or material that you are ironing.

Grooves

To keep stainless steel, chrome or non-stick soleplates in good working order, avoid grooves and dirty marks:

• Do not rest the soleplate on a rough or abrasive support.
• Do not iron metallic parts of clothes (zips, etc.).

Maintenance of the iron (auto-clean function) - for 3 hours' ironing per week:

• If your tap water is not too hard, Moulinex recommend that you carry out a regular cleaning every 3 months.
• If your water is hard, mix it with distilled or demineralised water, and clean every month.

Note: If your water causes brown marks, it is because it contains organic substances. Clean the iron in this case. If the stains persist, you should change the type of water.

Moulinex do not recommend using descaling products (powder or liquid).

Ironing Board

Moulinex recommend a stable ironing board, at least 42cm wide, equipped with a metallic grid style support, with very thick padding.

Board cover

Moulinex recommend a thick cotton ironing board cover.
