Product type	Range hood
Brand	Ignis
Model	AKS 429
Width (cm)	60
Depth (cm)	50
Height (cm)	17 (built-in)
Net weight (kg)	9.5
Power supply	220-240 V, 50 Hz
Maximum power (W)	200
Number of speeds	3
Extraction type	External evacuation or recirculation
Lighting	2 halogen bulbs (max 40 W each)
Max air flow (m³/h)	400
Max noise level (dB)	65
Energy class	C
Filters	Washable metal grease filter, charcoal filter (optional)
Maintenance	Clean the grease filter every 2 months, replace the charcoal filter every 6 months
Auto shut-off	No
Spare parts	Charcoal filters, bulbs, remote control (not supplied)
Repairability	Repairability index: 7.6/10

Frequently Asked Questions - AKS 429 IGNIS

How to install the Ignis AKS 429 hood?

Installation must be carried out by a qualified professional. Respect safety distances: at least 65 cm above an electric cooktop, 75 cm for a gas cooktop. Ensure proper evacuation or recirculation with a charcoal filter.

What type of filter to use for recirculation?

For recirculation mode, you must use an activated charcoal filter (ref. Ignis 100338) to be replaced every 6 months. The hood is not supplied with this filter.

How to clean the grease filter?

The metal grease filter can be washed in the dishwasher at 65°C or by hand with hot water and detergent. Let it dry before reinstalling. Clean it every 2 months or more often with intensive use.

What to do if the hood does not turn on?

Check the electrical supply (fuse or circuit breaker). Make sure the plug is properly connected. If the problem persists, contact Ignis after-sales service.

What is the noise level of the AKS 429 hood?

The noise level varies by speed: approximately 55 dB in speed 1, 60 dB in speed 2, and 65 dB in speed 3. These values are measured under standard conditions.

Can I use the hood without external evacuation?

Yes, the hood can operate in recirculation mode by installing a charcoal filter (optional). In this mode, the air is filtered and then returned to the room.

How to replace the bulbs?

Unplug the hood. Remove the lighting cover. Replace the defective bulb with a halogen bulb of the same type (G4, 12 V, max 40 W). Reassemble the cover. Do not touch the bulb with bare hands.

What is the power consumption of the hood?

The total power is 200 W (motor 130 W + lighting 2x40 W). In standby, consumption is less than 1 W. The energy class is C.

Is the hood supplied with a charcoal filter?

No, the charcoal filter is not supplied. It must be purchased separately (ref. 100338) if you wish to use the hood in recirculation mode.

Where to find spare parts for the Ignis AKS 429 hood?

Spare parts (filters, bulbs, etc.) are available on the official Ignis website or from authorized retailers. Use the model number AKS 429 to identify compatible parts.

USER MANUAL AKS 429 IGNIS

EN - Instruction on mounting and use

EN - Instruction on mounting and use

Consult the designs in the front pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product. ! Read the instructions carefully: there is important information about installation, use and safety. ! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the authorised authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

In this case the fumes are conveyed outside by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring = 150mm.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10° ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section. ! Use a duct with an as smooth as possible inside. ! The duct must be made of certified material.

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 75cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

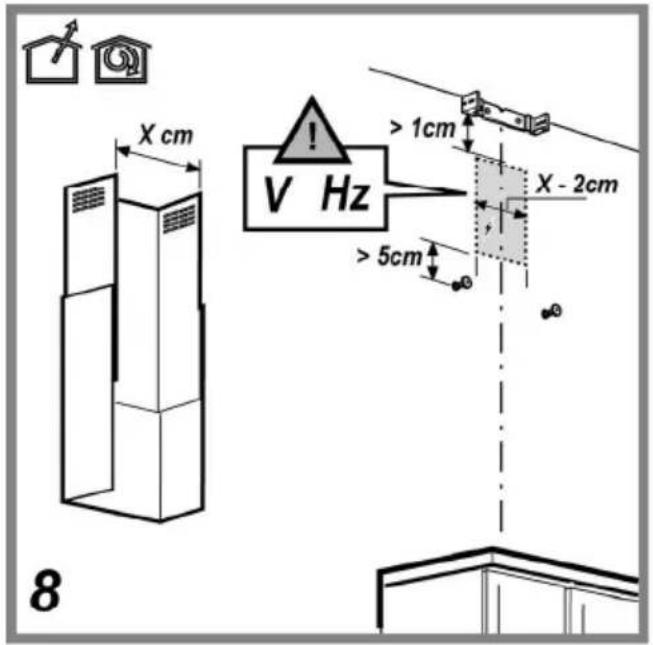

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! Power cable replacement must be undertaken by the authorised service assistance centre or similar qualified person.

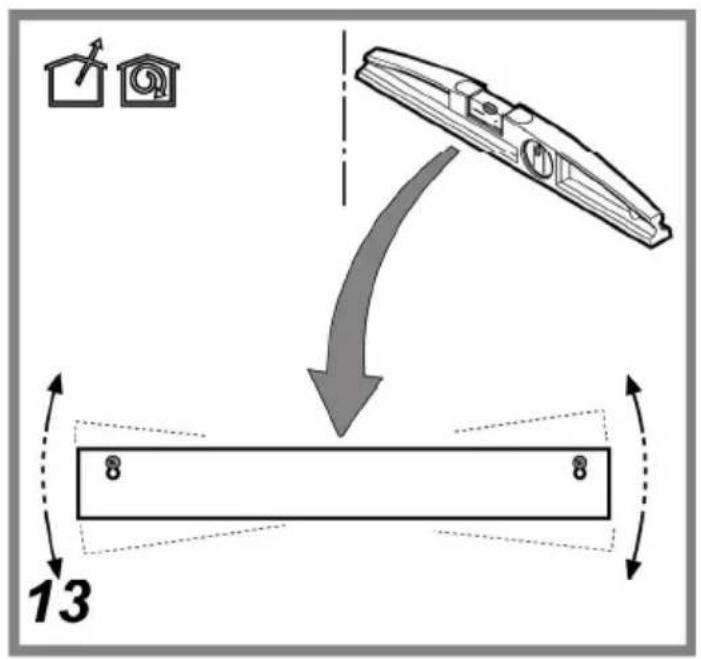

Mounting

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using a cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Fig. 9-26

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 25

It absorbs unpleasant odours caused by cooking.

The saturation of the activated charcoal occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The carbon filter may NOT be washed or regenerated.

Mounting: Remove the cover by rotating the knobs to 90°, fit the filter inside and lock it in place with the central knob, then close the cover.

Proceed in the reverse order for dismounting.

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs, ensure they are cooled down.

Fig. 27

Model with halogen light bulbs.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch the new light with bare hands.
3. Reinstall the light cover. (It will snap shut.)

Model with incandescent light bulbs:

1. Remove the grease filters.
2. Replace faulty bulbs, always using new bulbs of max. 40 W (E14).
3. Refit the grease filters.

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
