Brand	Electrolux
Model	EHS90270X
Product type	Electric cooker
Width	90 cm
Depth	60 cm
Height	85 cm
Net weight	55 kg
Power supply	220-240 V ~ 50 Hz
Total electrical power	11000 W
Cooking hob	5 vitroceramic zones
Oven	Multifunction oven 70 L
Oven functions	Fan oven, grill, natural convection, defrost
Oven cleaning	Pyrolytic (self-cleaning)
Control type	Touch electronic and rotary knobs
Display	Digital screen
Timer	Electronic programmer
Safety	Child safety, automatic shut-off, control lock
Material	Stainless steel
Oven door	Removable tempered glass
Oven lighting	Halogen lamp
Noise level	48 dB(A)
Repairability index	8.5 / 10

Frequently Asked Questions - EHS90270X ELECTROLUX

How to install the Electrolux EHS90270X cooker?

Make sure the appliance is plugged into a suitable power socket (220-240 V). Respect safety distances from walls and furniture: at least 50 mm at the back and 20 mm on the sides. Use a residual current device. Consult the manual for detailed electrical connection.

How to clean the vitroceramic hob?

Use a special vitroceramic cleaner and a scraper. Clean after each use when the surface is warm. Avoid abrasive sponges. For burnt residues, apply the product and let it sit for a few minutes.

What to do if the oven does not heat?

First check that the appliance is powered on (display lit). Make sure the cooking mode is selected correctly. If the problem persists, check the fuse or circuit breaker. Contact an approved technician if necessary.

How to use the pyrolytic function?

Pyrolysis cleans the oven by heating it to a very high temperature (about 500 °C). Remove removable accessories. Select the pyrolysis program in the menu. The duration varies (1h30 to 2h30). Do not leave children nearby during the cycle.

How to activate child safety?

Press the lock key (often a padlock) for 3 seconds until a symbol appears. To deactivate, repeat the operation. This function locks the controls to prevent unintended use.

What type of pots to use on the vitroceramic hob?

Use pots with a flat and smooth base, preferably stainless steel, enameled cast iron or induction-compatible aluminium. Avoid rough or copper bases. Make sure the diameter matches the cooking zone.

How to set the oven clock?

Press the clock or menu key. Use the +/- keys to set the time. Confirm with the OK key. The clock must be set for the programming to work correctly.

What is the energy consumption of this appliance?

The energy class is A (for the oven). Typical consumption is about 0.89 kWh for a conventional cycle and 0.79 kWh for fan oven. The hob has a total power of about 7.2 kW.

What are the exact dimensions for built-in installation?

For a built-in installation, allow a recess of width 90 cm, depth 60 cm and height 85 cm. The cooker requires adequate ventilation, allow an opening of at least 5 cm at the back.

Where to find spare parts for the EHS90270X cooker?

You can order spare parts via the Electrolux website, from authorized retailers, or on platforms like Spareka or Adepem. Use the complete model number to identify parts.

USER MANUAL EHS90270X ELECTROLUX

Thinking of you Electrolux

User manual Benutzerinformation Notice d'utilisation Gebruiksaanwijzing

Ceramic glass hob Glaskeramik-Kochfeld Table de cuisson vitrocéramique Glaskeramische kookplaat

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety instructions 2

Description of the Appliance 3

Operating the Appliance 4

Tips on cooking and frying 9

Cleaning and care 10

What to do if... 11

Disposal 12

Installation Instruction 12

Service 14

Subject to change without notice

Safety instructions

Warning! Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.

Correct use

• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children's safety

• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.
• To avoid small children and pets unintentionally switching the appliance on, we recommend activation of the child safety device.

General safety

• The appliance may only be installed and connected by trained, registered service engineers.
• Built-in appliances may only be used after they have been built into suitable built-in units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

• Overheated fats and oils can ignite very quickly. Warning! Fire hazard! - There is the risk of burns from the appliance if used carelessly. - Remove stickers and film from the glass ceramic. - Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. - Switch the cooking zones off after each use. - Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and saucepan lids on the cooking surface, as they can get hot.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.
• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance

Cooking surface layout

1 Triple ring cooking zone 1050/1950/2700 W 2 Single cooking zone 1200 W 3 Multi-purpose cooking zone 1400/2200 W 4 Double ring cooking zone 700/1700 W 5 Control panel

Control panel layout

1 Child Lock with pilot light 2 STOP+GO with pilot light 3 Auto switch-off indicator 4 Cooking zone indicators Timer function 5 Timer display 6 Timer 7 Residual heat indicator

8 Heat setting indicator 9 Multi-purpose zone with pilot lights 10 Double ring cooking zone with pilot lights 11 Heat setting selection 12 Automatic warm-up function 13 Triple ring cooking zone with pilot lights 14 On/Off with pilot light

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals.

Touch the sensor fields from above, without covering other sensor fields.

If the sensor field is touched for longer than 6 seconds, a signal sounds and the appliance switches itself off.

Sensor field Function
1	On / Off To switch the appliance on and off
	Lock Locking/unlocking the control panel
STOP+GO	STOP+GO To switch the Keep Warm setting on/off
0	Cooking zone Off To switch off the cooking zone
1-9/ A	Heat settings To set heat settings
A	Automatic warm-up Switching the automatic warm-up function on and off
	Timer Timer selection
+	Increase settings To increase Timer time
-	Reduce settings To reduce Timer time
◎	Double ring switch To switch outer ring on and off
	Triple ring switch To switch outer ring on and off
	Multi-purpose zone switch To switch the outside ring on and off

Displays

Display Description
###	Residual heat Cooking zone is still hot
◎	Middle ring of triple ring function / Outer ring of double ring function	The middle ring of the triple-ring function is on / The outer ring of the double-ring function is on
◎	Outer ring of triple ring function	The outer ring of triple ring function is on
◎	Outer ring of multi-purpose function	The outer ring of multi-purpose function is on
E+ number	Fault	Malfunction has occurred
?	Automatic switch off	Switch off is active.

Residual heat indicator

Warning! Risk of burns from residual heat. After being switched off, the cooking zones take some time to cool down. Look at the residual heat indicator.

The induction cooking zones create the heat required for cooking directly in the base of the

cookware. The glass ceramic is merely heated by the residual heat of the cookware. The cooling fan switches itself on and off depending upon the temperature of the electronics.

Operating the Appliance

Use the induction cooking zones with suitable cookware

Switching the appliance on and off

Control panel Display
To switch on	Touch for 1 second	lights up. The operational readiness indicators of the individual cooking zones also light up.
To switch off	Touch for 1 second	goes out. The operational readiness indicators of the individual cooking zones also go out.

i After switching on, within approx. 10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches itself off.

Setting the heat setting

The control bar is touched where the desired heat setting is positioned. The heat setting is shown in the display. Correct to the left or the right, if necessary. Do not release before the desired heat setting is reached.

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface can be matched to the size of the cookware.

Before an outside ring can be switched on, the inside ring must be switch on.

Triple cooking zone Sensor panel Pilot light
To switch on the central ring	Touch for 1-2 seconds. lights up	◎
To switch on the outside ring	Touch for 1-2 seconds.	◎ and light up
To switch off the outside ring	Touch for 1-2 seconds. light goes out	◎
To switch off the central ring	Touch for 1-2 seconds. goes out	◎
Double cooking zone Sensor field Pilot light
To switch on outside ring	Touch for 1-2 seconds lights up	◎
To switch off outside ring	Touch for 1-2 seconds goes out	◎
Multi-purpose zone Sensor field Pilot light
To switch on outside ring	Touch for 1-2 seconds lights up	◎
To switch off outside ring	Touch for 1-2 seconds goes out	◎

Locking/unlocking the control panel

The control panel, with the exception of the "On/Off" sensor field, can be locked at any

time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth.

Control panel Display
To switch on	Touch [IMAGE]	Indicator lights up
To switch off	Touch [IMAGE]	Indicator goes out

When you switch the appliance off, the locking function is automatically switched off.

Switching the STOP+GO function on and off

The STOP+GO function simultaneously switches all cooking zones that are switched on to the keep warm setting and then back to the heat setting that was previously set.

The STOP+GO function simultaneously switches all cooking zones that are switched on to the keep warm setting and then back to the heat setting that was previously set.

Control panel Display
To switch on	Touch STOP \\ + \\ GO
To switch off	Touch STOP \\ + \\ GO	Heat setting that was previously set (not automatic warm up function)

Note: STOP+GO does not stop the Timer function.

Note: STOP+GO locks the whole control panel except the sensor field ①.

Using the automatic warm-up function

All cooking zones are equipped with an automatic warm-up function. When setting a heat setting using the automatic warm-up function, the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set.

function, the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set.

Step Control panel Display
1.	Select warm-up setting A	A display flashes
2. Select the desired heat setting between 1 and 8		The desired heat setting is displayed. A display lights up.As long as the A display is lit, the appliance is working at full power.After the automatic warm-up is completed, the A display goes out.

The length of time that the automatic warm-up function operates depends on the heat setting selected.

Heat setting Length of the automatic warm up [min:sec]
1 1:00
2 1:40
3 4:50
4 6:30
5 10:10
6 2:30
7 3:30
8 4:30
9 ---

The child safety device prevents unintentional use of the appliance.

The child safety device prevents unintentional use of the appliance.

Overriding the child safety device

Step Control panel Pilot light
1.	Switch on appliance. Do not set a heat setting.	lights up. The operational readiness indicators of the individual cooking zones light up.
2.	Touch for 4 seconds	above lights up
The child safety device is switched on.

The child safety device can be switched off in this way for a single cooking session; it remains activated afterwards.

The child safety device can be switched off in this way for a single cooking session; it remains activated afterwards.

Step Control panel Pilot light
1.	Switch appliance on above lights up
2.	Touch for 4 seconds	above goes out
Until the appliance is next switched off, it can used as normal.

After overriding the child safety device, a heat setting or a function must be set within approx. 10 seconds, otherwise the appliance automatically switches itself off.

Switching off the child safety device

Step Control panel Pilot light
1.	Switch on appliance. Do not set a heat setting.	above lights up
2.	Touch for 4 seconds	above goes out
3.	Switch appliance off.
The child safety device is switched off.

Using the timer

Function Condition	Outcome after the time has elapsed
Automatic cut-out	a heat setting is set	acoustic signal00 flashesCooking zone switches off
Countdown timer	cooking zones not in use	acoustic signal00 flashes

If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed.

If a cooking zone is switched off, the timer function set is also switched off.

Selecting a cooking zone

Step	Control panel	Display
1	Touch once	Pilot light of the first cooking zone flashes	88
2	Touch once	Pilot light of the second cooking zone flashes	88
3	Touch once	Pilot light of the third cooking zone flashes	88
Step Control panel Display
4	Touch once	Pilot light of the fourth cooking zone flashes	88

If other timer functions are set, after a few seconds the shortest remaining time of all the timer functions is displayed and the corresponding pilot light flashes.

Setting the time

Step Control panel Indicator
1	Select cooking zone	Pilot light for the cooking zone selected flashes
2	Touch or -	00 to 99 minutes
After a few seconds the pilot light flashes more slowly.The time is set.The time counts down.

Switching off the timer function

Step Control panel Indicator
1	Select cooking zone	Pilot light of cooking zone selected flashes fasterTime remaining is displayed
2	Touch —	The time remaining counts backwards to 00 .
The pilot light goes out.The Timer function for the selected cooking zone is switched off.

Changing the time

Step Control panel Display
1	Select cooking zone	Pilot light of the selected cooking zone flash-es fasterRemaining time is displayed
2	Touch or -	0 to 99 minutes
After a few seconds the pilot light flashes more slowly.The time is set.The time counts down.

Displaying the time remaining for a cooking zone

Step Control panel field Display
1	Select cooking zone	Pilot light of the cooking zone selected flash-es fasterThe time remaining is displayed
After a few seconds the pilot light flashes more slowly.

Switching off the acoustic signal

Step Control panel field Acoustic signal
1	Touch ⏻	Acoustic signal to acknowledge.
Acoustic signal stops.

Automatic switch off

Cooking surface

• If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off.
• If one or more sensor fields are covered by objects (a pan, etc.) for longer than approx. 10 seconds, a signal sounds and the cooking surface switches off automatically.
• If all cooking zones are switched off, the cooking surface automatically switches itself off after approx. 10 seconds.

Control panel

- When the appliance is switched off, if one or more of the sensor fields on the control panel are covered for more than 10 seconds, an acoustic signal sounds. The acoustic signal switches itself off automatically when the sensor fields are no longer covered.

Induction cooking zones

- In the case of overheating (e.g. when a saucepan boils dry) the cooking zone au-

tomatically switches itself off. ☐ is displayed. Before being used again the cooking zone must be set to 0 and allowed to cool.

- If cookware that is not suitable is used, lights up in the display and after 2 minutes the indicator for the cooking zone switches itself off.

- If one of the cooking zones is not switched off after a certain time, or if the heat setting is not modified, the relevant cooking zone switches off automatically. ② is displayed. Before being used again, the cooking zone must be set to 0.

Heat setting Switches off after

1 - 2 6 hours

3 - 4 5 hours

5 4 hours

6 - 9 1.5 hour

Tips on cooking and frying

i Information about acrylamides

According to the latest scientific research, intensive browning of food, especially in products containing starch, may present a health risk due to acrylamide. Therefore we recommend cooking at low temperatures and not browning foods too much.

Cookware

• You can recognise good cookware from the bottoms of the pans. The bottom should be as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolorations on the glass ceramic surface which are difficult or impossible to remove.

Energy saving

Always place cookware on the cooking zone before it is switched on.

If possible, always place lids on the pans.

Switch cooking zones off before the end of the cooking time, to take advantage of residual heat.

Bottom of pans and cooking zones should be the same size.

Examples of cooking applications

The information given in the following table is for guidance only.

Heat setting	Cooking process	suitable for Cook time Tips/Hints
0 Off position
1 Keeping food warm		Keeping cooked foods warm	as required Cover
1-2 Melting Hollandaise sauce, melt-ing butter, chocolate, gelatine			5-25 mins. Stir occasionally
1 - 2 Solidifying Fluffy omelettes, baked eggs			10-40 mins. Cook with lid on
2-3 Simmering on low heat		Simmering rice and milk-based dishesHeating up ready-cooked meals	25-50 mins. Add at least twice as much liquid as rice, stir milk dishes part way through cooking
3-4 Steaming Braising		Steaming vegetables, fishBraising meat	20-45 mins. With vegetables add only a little liquid (a few tablespoons)
4-5 Boiling		Steaming potatoes	20-60 mins. Use only a little liquid, e.g.: max. 1⁄4 l water for 750 g of potatoes
7-9 Boiling Cooking larger quantities of food, stews and soups			60-150 mins. Up to 3 l liquid plus ingredients
6-7 Gentle frying Frying escalope, vealcordon bleu, cutlets, rissoles, sausages, liver,roux, eggs, pancakes,doughnuts			Steady frying Turn halfway through cooking
7-8 Heavy frying Hash browns, loinsteaks, steaks, Flädle (pancakes for garnishing soup)			5-15 mins. per pan Turn halfway through cooking
9 Boiling Searing Deep frying		Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast), deep frying chips

Cleaning and care

Warning! Sharp objects and abrasive cleaning agents will damage the appliance. Clean the appliance and remove the residues with water and washing up liquid after each use. Remove also the remnants of the cleaning agents!

Scratches or dark stains on the glass ceramic that cannot be removed do not affect the functioning of the appliance.

Cleaning the appliance after each use

1. Food containing sugar, plastics, tin foil residues should be removed at once using a scraper. Place a scraper on the glass ceramic surface at an angle and re-

move residues by sliding the blade over the surface. Wipe the appliance with a damp cloth and a little washing up liquid. Finally, rub the appliance dry using a clean cloth.

1. Limescale rings, water rings, fat splashes, shiny metallic discolorations should be removed after the appliance has cooled down using cleaner for glass ceramic or stainless steel.

What to do if...

Problem Possible cause Remedy
The cooking zones will not switch on or are not functioning	More than 10 seconds have passed since the appliance was switched on	Switch the appliance on again.
The child safety device is switch- ed on	Deactivate child safety device (See the section “Child safety device”)
Several sensor fields were	touched at the same time	Only touch one sensor field
Automatic switch off has been	triggered	Remove any objects (pan, cloths, etc.) that are lying on the control panel. Switch the appli- ance on again
There is water on the control	panel, or the control panel is covered with splashes	Wipe the control panel
	STOP + GO is active Switch off	STOP + GO
Acoustic signal sounds when appliance is switched off	The control panel is wholly or partly covered by objects.	Remove objects.
There is water or fat splashes on	the control panel	Wipe the control panel
The residual heat indicator is not displaying anything	The cooking zone was only on for a short time and is therefore not hot	If the cooking zone is supposed to be hot, call the Customer Service Department.
Acoustic signal sounds and ap- pliance switches itself on and then off again; after 5 seconds another acoustic signal sounds	The On/Off sensor field has been covered up, e.g. by a cloth	Do not place any objects on the control panel
is lit	Automatic switch-off has been triggered	Switch off the cooking zone. Switch the cooking zone on again
and number are displayed	Electronics fault Disconnect the appliance from the electrical supply for a few mi- nutes (Take the fuse out of the house's wiring system) If after switching on again, E is dis- played again, call the customer service department

If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department.

engineers. Considerable danger to the user may result from improper repairs.

Warning! Repairs to the appliance are only to be carried out by qualified service

If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place

free of charge, even during the warranty period.

Disposal

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this

product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities.

Installation Instruction

Safety instructions

Warning! This must be read!

The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed.

Anti-shock protection must be provided by the installation, for example drawers may only be installed with a protective floor directly underneath the appliance. The cut surfaces of the worktop are to be protected against moisture using a suitable sealant.

The sealant seals the appliance to the work top with no gap. When building in, protect the underside of the appliance from steam and moisture, e.g. from a dishwasher or oven. Avoid installing the appliance next to doors and under windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.

Warning! Risk of injury from electrical current.

• The electrical mains terminal is live.
• Make electrical mains terminal free of voltage.
• Follow connection schematic.
• Observe electrical safety rules.
• Ensure anti-shock protection by installing correctly.
• The appliance must be connected to the electrical supply by a qualified electrician.
• Loose and inappropriate plug and socket connections can make the terminal overheat.
• Have the clamping connections correctly installed by a qualified electrician.
• Use strain relief clamp on cable.
• In the event of single-phase or two-phase connection, the appropriate mains cable of type H05BB-F Tmax 90°C (or higher) must be used.
• If this appliance's mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90°C; or higher). Please contact your local Service Force Center for further advice.

A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

Sticking on the seal

- Clean the worktop in the area of the cut-out section.

- Stick the one-sided self-adhesive sealing tape supplied all the way round the lower edge of the cooking surface along the outer edge of the glass ceramic panel. Do not stretch it. The cut ends should lie in the middle of one side. When you have cut it to length (add a few mm), press the two ends flush up against one another.

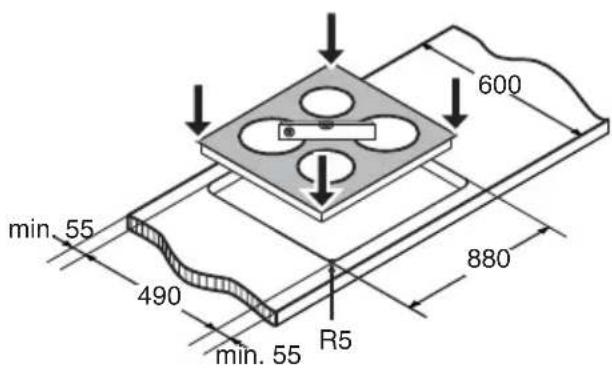

Assembly

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section "What to do if..."). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. In order to be able to assist you quickly, we require the following information:

• Three-digit-letter combination for glass ceramic
• Model description
• Product number (PNC)
• Serial number

(S No. - see rating plate)

• Type of fault
• Any error messages displayed by the appliance

Electrolux. Thinking of you.

You can order accessories, consumables and spare parts via our online shop at: www.electrolux.be
