TexStyle Control SI 18890 - Iron BRAUN - Free user manual and instructions

Type	Steam Iron
Model	TexStyle Control SI 18890
Brand	Braun
Power	2400 W
Water Tank Capacity	300 ml
Soleplate Material	Eloxal
Continuous Steam Output	Up to 40 g/min
Steam Boost	Yes, up to 150 g/min
Auto Shut-Off	Yes, after 8 min vertical / 30 sec horizontal
Anti-Calc System	Yes, built-in
Self-Clean Function	Yes
Spray Function	Yes
Anti-Drip System	Yes
Dimensions (L x W x H)	30 x 12 x 15 cm
Weight	1.2 kg
Cord Length	2.5 m
Voltage	220-240 V
Frequency	50-60 Hz
Heating Time	Approx. 45 seconds
Water Fill Opening	Large, easy to fill
Storage	With heel rest

Frequently Asked Questions - TexStyle Control SI 18890 BRAUN

How do I descale the Braun TexStyle Control SI 18890?

Use the self-clean function: Fill the tank with water, set steam to max, hold iron over a sink, and press the self-clean button until water runs out. Repeat if necessary.

Why is my iron not producing steam?

Check if the water tank is empty. Ensure the steam control is set to a high level. If the iron is not hot enough, wait until the temperature light goes out. Also, clean the soleplate and use distilled water to prevent scaling.

Can I use tap water in the iron?

Yes, but to reduce scaling, mix tap water with distilled water in a 1:1 ratio. In hard water areas, use only distilled or demineralized water.

How does the auto shut-off work?

The iron switches off automatically if left horizontal for 30 seconds or vertical for 8 minutes. Move the iron to reactivate.

What type of soleplate does this iron have?

It features an Eloxal soleplate, which is a ceramic-coated aluminium soleplate that glides smoothly and is scratch-resistant.

How to clean the soleplate?

Allow the iron to cool. Wipe with a damp cloth. For stubborn residues, use a mixture of vinegar and water on a soft cloth. Do not use abrasive cleaners.

What is the maximum steam output?

Continuous steam up to 40 g/min and steam boost up to 150 g/min for stubborn wrinkles.

How do I store the iron after use?

Empty the water tank, wind the cord loosely, and store the iron upright on its heel rest. Ensure it is completely cool.

Why does the iron drip water?

This may happen if the iron is not hot enough. Set the temperature to a higher setting. The anti-drip system should prevent this when used correctly.

What should I do if the iron is not heating?

Check the power cord and outlet. Ensure the temperature dial is set above minimum. If the auto shut-off has activated, move the iron. If still not heating, contact Braun service.

USER MANUAL TexStyle Control SI 18890 BRAUN

(Audio Supplies Company Ltd.)

Internet:

www.braun.com

www.service.braun.com

Braun GmbH

E Textile Protector (☐) (SI 18.895/SI 18.890 only)

F

G

H Cleaning the anti-calc valve

| Anticalc system

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun steam iron.

Important Safeguards

• Before using the iron, read the use instructions completely. Keep the use instructions during the entire life of the appliance. • Make sure your voltage corresponds to the voltage printed on the iron.
• Caution: Due to the high power of this steam iron please make sure that your mains supply is sufficient. Please contact your local electric power company to make sure that the so called mains impedance is not higher than 0.31 Ohm. • Always unplug the iron before filling with water. Always pull the plug, not the cord.
• The cord should never come in contact with hot objects or the sole plate.
• Never immerse the iron in water or other liquids.
• The iron must be used and rested on a stable surface.
• During ironing pauses, always place the iron upright on its heel rest and ensure that the heel rest is placed on a stable surface.
• The iron must not be left unattended while it is connected to the mains supply.
• This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety.
• Keep the iron away from children, especially when using the Precision Shot function. Electric irons combine high temperatures and hot steam that could lead to burns.
• Never iron or dampen clothes while wearing them.
• The iron is not to be used if it has dropped, if there are visible signs of damage or if it is leaking. Regularly check the cord for damage.
• If the appliance (including cord) shows any defect, stop using it and take it to a Braun Service Centre for repair. Faulty or unqualified repair work may cause accidents or injury to the user. Braun electric appliances meet applicable safety standards.

A Description

1 Preconditioning nozzles 2 Spray nozzle 3 Water tank opening 4 Precision Shot button 5 Spray button 6 Steam regulator

7 Temperature selector

8 Temperature pilot light

9 «auto-off» light (only with SI 18.895 and SI 18.835 models)

10 Heel rest 11 Textile Protector (only with SI 18.895 and SI 18.890 models)

B Before starting off

This iron is designed for tap water. If you have extremely hard water, we recommend that you use a mixture of 50% tap water and 50% distilled water. Fill the water tank to the "max" marking. Never use distilled water exclusively. Do not add any additives (e.g., starch).

• Before filling with water, turn off the steam regulator ("0" = steam off).
• Holding the iron slightly inclined (as shown in B), fill the water tank up to the "max" marking.
• Place the iron upright on its heel rest and connect it to the mains.

Select the temperature according to the ironing guide on the heel rest of the iron or on the label in your garments.

The pilot light (8) goes off when the desired temperature is reached (after approx. 1 1/2 min.).

C Ironing

Vario steam

You can select the steam quantity by turning the steam regulator (6) in a range from "0" to "6".

The temperature selector (7) has to be set within the red range.

We recommend a medium steam setting for all normal ironing. Only when ironing linen, thick cotton or similar fabrics we recommend the maximum steam setting.

Notice: While ironing, do not turn the steam regulator beyond setting "6".

Vario plus steam

For extra steam, press the steam regulator (6) for max. 30 seconds.

The temperature selector (7) has to be set within the solid red range.

Precision Shot

Prior to use, press the Precision Shot button (4) 3 to 4 times to activate it.

Press the Precision Shot button in intervals of at least 5 seconds for a powerful steam shot with preconditioning steam.

Precision Shot can be activated when dry ironing. However, the temperature selector has to be within the solid red range.

The Precision Shot function can also be used in the vertical position for steaming hanging clothes.

Caution: Hot steam comes out from the preconditioning nozzles.

Spray function

Press the spray button (5).

Dry ironing

Set the steam regulator (6) on position «0» (= steam off).

D Automatic shut-off

(SI 18.895 and SI 18.835 models only)

The «auto-off» mechanism causes a slight rattling noise during ironing. This is normal and in no case indicates a fault of the iron. The red «auto-off» light (9) will flash when the automatic shut-off is activated.

This happens when the iron has rested

• horizontally on its sole plate for about 30 seconds or
• vertically on its heel rest for about 8 minutes.

To turn on the iron again, just move it. When the «auto-off» pilot light stops flashing, the electrical power is on again. The automatic shut-off will be activated approximately 2 minutes after the iron is plugged into a socket.

E Textile Protector

(SI 18.895 and SI 18.890 models only)

Before attaching the Textile Protector (11) for the first time, iron approximately 2 minutes without Textile Protector. The Braun Textile Protector protects delicate fabrics from heat damage and makes it possible to iron most dark fabrics without an intermediate cloth.

A special coating avoids shiny patches. However, in order not to damage the coating, avoid ironing over e.g. zippers, metal buttons/rivets or strass with the Textile Protector attached.

To check the reaction of your fabrics before you start ironing, we recommend that you iron a small section of material on the reverse side. With the Protector, you are able to iron delicate fabrics with the temperature setting within the solid red range so that you can use all steam functions your iron offers.

After having attached the Textile Protector, wait about 1 1/2 minutes before you start ironing. Always store your iron with the Textile Protector detached.

F After ironing

Unplug the iron and turn the steam regulator to position «0». To prolong the life of the iron, empty the water tank.

Store the cool iron in a dry place always standing on its heel rest.

G Maintenance and cleaning

To clean the sole plate, use steel wool. Never use a scouring pad, vinegar or other chemicals. To clean the soft material on the handle, use soapy water.

H Cleaning the anticalc valve

The anticalc valve located on the lower end of the steam regulator has to be decalcified regularly (e.g. whenever steam development is insufficient). For this, the water tank has to be empty.

Removing the steam regulator with the anticalc valve

Turn the steam regulator clockwise towards the steam setting «6». Keep on turning firmly beyond the resistance until the steam regulator is lifted. When positioned at ●, pull it out vertically. Do not touch the anticalc valve at its lower end. Immerse the anticalc valve in vinegar (not vinegar essence) or lemon juice for a minimum of 30 minutes. Brush off remaining residues and rinse under running water (fig. H, 1-7).

Re-inserting the steam regulator

When re-inserting the steam regulator, make sure the steam regulator base still points on setting ● (fig. H 8). Firmly push down the steam regulator until it turns back to setting «6» (fig. H) where it catches.

Notice: The iron must never be used without steam regulator.

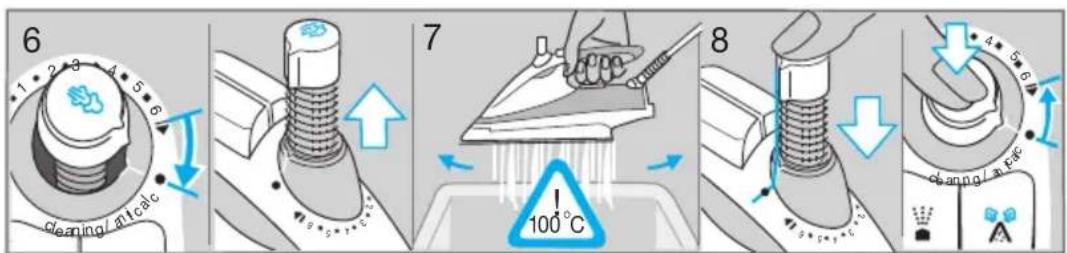

I Decalcifying/anticalc system

In order to clean the steam chamber from residues, decalcify it as shown in picture section I, 1-8.

Caution: Hot water and steam will come out from the sole plate when the steam regulator is turned clockwise beyond setting «6».

Wait for the sole plate to cool down, then clean it as described above. Then refill the tank with water, heat up the iron and press the Precision Shot button 4 times to rinse the iron before ironing (fig. I, 9-13).

Do not use commercial decalcifiers, they may damage the iron.

Trouble-shooting guide

Problem Remedy

Drops coming out of the steam vents.	Turn the steam regulator anti-clock-wise to reduce the steam or turn it off.Take longer intervals when pressing the Precision Shot button.Select a higher temperature setting.
Less steam develops or no steam at all.	Check water level.Clean the anticalc valve.
Calcium particles coming through the steam vents.	Decalcify the steam chamber.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

Country of origin: Hungary

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of the manufacture.

Example: "538" – The product was manufactured in week 38 of 2005.

Made in Hungary

Year of manufacture
