Brand Bosch
Model GIN25P60
Product Type Free-standing freezer
Dimensions (H x W x D) 185 cm x 60 cm x 65 cm
Net Weight 72 kg
Net Capacity 242 liters
Energy Class A+
Annual Consumption 234 kWh/year
Power Supply 220-240 V, 50 Hz
Climate Class SN-T (10°C to 43°C)
Noise Level 42 dB(A)
Defrost System Manual Defrost
Cooling Type Ventilated (No Frost)
Number of Shelves 6 glass shelves
Freezing Capacity 14 kg/24h
Power Failure Storage Time 18 hours
Lighting Type Interior LED
Adjustable Thermostat Yes, dial
Door Reversibility Kit Yes
Refrigerant R600a (isobutane)
Cleaning and Maintenance Clean with warm water and mild detergent; vacuum condenser 2x/year
Child Safety Secure closure (lockable handle)
Spare Parts Availability Spare parts available for at least 10 years after end of production
After-Sales Service Contact Bosch at 0 800 111 111 (toll-free)

Frequently Asked Questions - GIN25P60 BOSCH

How do I adjust the temperature of my Bosch GIN25P60 freezer?
Use the thermostat dial located inside the freezer, usually on the top wall. Turn it to a higher number for more intense cold (recommended: 3 or 4 for optimal storage at -18°C).
Why is my freezer making noise?
Normal noises include the hum of the compressor and gurgling of refrigerant. A clicking noise may come from the expansion valve. If the noise becomes abnormal, check that the appliance is level and not in contact with furniture.
How do I defrost the GIN25P60 freezer?
This model is equipped with No Frost technology: defrosting is automatic. No manual intervention is required. If ice forms, check that the door closes properly.
What to do in case of power failure?
The storage time is approximately 18 hours. Avoid opening the door during the outage to keep the cold. Consult the manual for exact durations depending on ambient temperature.
How to clean the inside of the freezer?
Unplug the appliance, remove food and shelves. Clean with a soft cloth soaked in warm water and mild detergent. Rinse and dry thoroughly before restarting.
Can the door opening direction be reversed?
Yes, the door is reversible. Consult the manual for steps: remove the handle, unscrew the hinges and reassemble them on the other side. A reversibility kit is included.
What is the best temperature for freezing fresh food?
Set the thermostat to the maximum position (5 or 6) 24 hours before adding food. Do not exceed the freezing capacity of 14 kg per 24 hours.
How to change the interior light bulb?
The lighting is LED and cannot be replaced by the user. Contact Bosch after-sales service if the light no longer works.
Where to find the serial number (E-Nr) of my appliance?
The E-Nr number is on the rating plate inside the freezer, usually on the left side wall or at the top. It is required for any spare part request.
My freezer shows an audible alarm, what should I do?
The alarm indicates a temperature that is too high (door left open or recent power failure). Check the door closure and that the alarm indicator turns off after cooling. If it persists, contact customer service.

User questions about GIN25P60 BOSCH

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Freezer in PDF format for free! Find your manual GIN25P60 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GIN25P60 by BOSCH.

USER MANUAL GIN25P60 BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

- 18 TouchTechnology - +

Freezer

en Instruction for Use

BOSCH GIN25P60 - 2

BOSCH

Safety and warning information ...... 21

Information concerning disposal ..... 23

Scope of delivery 24

Ambient temperature and ventilation 25

Installation location 25

Connecting the appliance 25

Getting to know your appliance ..... 26

Switching on the appliance 27

Setting the temperature 27

Alarm functions 28

Usable capacity 28

Freezer compartment 29

Max. freezing capacity 29

Freezing and storing food 29

Freezing fresh food 30

Super freezing 31

Thawing frozen food 31

Interior fittings 31

Switching off and disconnecting the appliance 32

Defrosting 32

Cleaning the appliance 32

Light (LED) 33

Tips for saving energy 33

Operating noises 34

Eliminating minor faults yourself ..... 34

Customer service 35

Safety and warning information

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

Technical safety

The appliance contains a small quantity of environmentally friendly but flammable refrigerant R600a. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

If damage has occurred

  • Keep naked flames and/or ignition sources away from the appliance, thoroughly ventilate the room for several minutes,

switch off the appliance and pull out the mains plug, inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

An extension cable may be purchased from customer service only.

Important information when using the appliance

■ Never use electrical appliances inside the appliance (e.g., heater, electric ice maker, etc.). Explosion hazard! ■ Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short circuit. Risk of electric shock! - Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite. - Do not store products which contain flammable propellants (e.g., spray cans) or explosive substances in the appliance. Explosion hazard! ■ Do not stand on or lean heavily against the base of the appliance, drawers, or doors, etc. ■ For defrosting and cleaning, pull the mains plug out or switch off the fuse. Do not pull out the mains plug by tugging on the power cord. ■ Store high-percentage alcohol tightly closed and standing up.

- Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.

■ Never cover or block the ventilation openings of the appliance!

■ Avoiding placing children and vulnerable people at risk:

At risk are children, people who have limited physical, mental, or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

Ensure that children and vulnerable people have understood the hazards.

A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.

Only children from 8 years and above may use the appliance.

Supervise children who are cleaning and maintaining the appliance.

Never allow children to play with the appliance.

■ Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! ■ Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns! ■ Avoid prolonged touching of frozen food, ice, or the evaporator pipes, etc. Risk of low-temperature burns!

Children in the household

  • Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film! ■ Do not allow children to play with the appliance! ■ If the appliance features a lock: keep the key out of the reach of children!

General regulations

The appliance is suitable

■ for freezing food, ■ for making ice.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EU Directive 2004/108/EC.

The refrigeration circuit has been checked for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

en

BOSCH GIN25P60 - en - 1

Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

BOSCH GIN25P60 - Disposal of your old appliance - 1

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

BOSCH GIN25P60 - Disposal of your old appliance - 2

Warning

Redundant appliances

  1. Pull out the mains plug.
  2. Cut off the power cord and discard with the mains plug.
  3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!
  4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

■ Built-in appliance ■ Interior fittings (depending on model) ■ Bag containing installation materials - Operating instructions ■ Installation manual - Customer service booklet ■ Warranty enclosure ■ Information on the energy consumption and noises

Ambient temperature and ventilation

Ambient temperature

The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures.

The climate class can be found on the rating plate. Fig. 10

Climate class Permitted ambient temperature
SN +10 °C to 32 °C
N +16 °C to 32 °C
ST +16 °C to 38 °C
T +16 °C to 43 °C

Note

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.

Ventilation

Fig. 1/12

This area needs to be well ventilated. Otherwise, the refrigeration unit will work harder. This increases energy consumption. Therefore: Never cover or block the ventilation opening!

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

■ 3 cm to electric or gas cookers. ■ 30 cm to an oil or coal-fired cooker.

Connecting the appliance

After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”).

en

Electrical connection

The socket must be near the appliance and also freely accessible following installation of the appliance.

The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.

For appliances operated in non-European countries, check whether the stated voltage and current type match the values of your mains supply. This information can be found on the rating plate. Fig. 10

BOSCH GIN25P60 - Electrical connection - 1

Warning

Never connect the appliance to electronic energy saver plugs.

Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

Getting to know your appliance

Illustration showing a hand holding an open document with a curved arrow pointing to a grid-like panel, indicating a transformation or mapping process.

Please fold out the illustrated last page. These operating instructions refer to several models.

The features of the models may vary. The diagrams may differ.

Fig. 1

* Not all models.

1-5 Controls 6 NoFrost System 7 Light (LED) 8* Freezer compartment flap 9 Glass shelf 10 Frozen food container (small) 11 Frozen food container (large) 12 Ventilation opening

Controls

Fig. 2

1 Alarm button

Used to switch off the warning signal, see chapter “Alarm function”.

2 "super" button

Switches super freezing on and off.

Illuminates when super freezing is on.

3 Temperature selection button

The required temperature is set with this button.

4 Temperature display

Indicates the set temperature of the freezer compartment.

5 On/Off button

Serves to switch the appliance on and off.

Switching on the appliance

Fig. 2

  1. Switch on the appliance with the On/Off button 5.

A warning signal sounds, the temperature display 4 and the “alarm” button 1 flash.

  1. Press the alarm button 1.

The warning signal is switched off, the appliance starts to cool. The alarm button is lit and the temperature display flashes until the appliance has reached the set temperature.

We recommend a factory setting of

-18 °C in the freezer compartment.

Operating tips

■ After the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put any food in the appliance beforehand. ■ The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is not required. ■ The sides of the housing are sometimes heated slightly. This prevents condensation in the area of the door seal. If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised.

Setting the temperature

Freezer compartment

The temperature can be set from -16 °C to -24 °C.

Keep pressing temperature setting button 3 until the required freezer compartment temperature is set.

The value last selected is saved. The set temperature is indicated on temperature display 4.

Alarm functions

The warning signal switches on if the freezer compartment is too warm.

Switching off the warning signal

Fig. 2

Press the alarm button 1 to switch off the warning signal. The display is reset to standby.

Door alarm

The door alarm (continuous sound) switches on if the appliance door is open for longer than one minute. Close the door to switch off the warning signal.

Temperature alarm

The temperature alarm switches on if the freezer compartment is too warm and the frozen food is at risk of thawing. A beeping signal sounds.

Alarm buttonTemperature displayExplanation
illuminates flashes Temperature
alarm:Frozen food is not at risk of thawing.
flashes flashes Thaw alarm:
Frozen food is at risk of thawing.
flashes illuminates Thaw alarm:
At some time the freezer compartment was too warm. Frozen food is at risk of thawing.

Temperature warning

The alarm may switch on without any risk to the frozen food

■ when the appliance is switched on, ■ when large quantities of fresh food are placed in the appliance, ■ if the freezer compartment door is open too long.

Note

Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.

No longer store the frozen produce for the max. storage period.

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate. Fig. 10

Fully utilising the freezer volume

The maximum amount of food can be placed in the freezer by removing all fittings. The food can be stacked directly on the shelves and in the bottom of the freezer compartment.

Removing the fittings

■ Pull out the frozen food container all the way, lift at the front and remove. Fig. 3 Before inserting the frozen food container with telescopic rails, remove the latter. Fig. 4 ■ Open freezer compartment flap, hold one of the bearing pins and remove flap. Fig. 5

Note

Freezer compartment

Use the freezer compartment

■ To store deep-frozen food. ■ To make ice cubes. ■ To freeze food.

Note

Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!

Max. freezing capacity

Information about the max. freezing capacity within 24 hours can be found on the rating plate. Fig. 10

Prerequisites for max. freezing capacity

  • Switch on super freezing before placing fresh products in the compartment (see chapter entitled “Super freezing”). ■ Removing the fittings
  • The food can be stacked directly on the shelves and in the bottom of the freezer compartment.

Note

Do not cover the ventilation slots on the rear panel with frozen food.

■ Freeze large quantities of food preferably in the very top compartment where food freezes particularly quickly and therefore also gently.

Freezing and storing food

Purchasing frozen food

■ Packaging must not be damaged. ■ Use by the “use by” date. ■ Temperature in the supermarket freezer must be -18 °C or lower. If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Note when loading products

■ Preferably freeze large quantities of food in the top compartment, where food freezes particularly quickly and therefore also gently. - Do not cover the ventilation slots on the rear panel with frozen food. - Place the food over the whole area of the compartments or the frozen food containers.

Note

Food which is already frozen must not come into contact with the food which is to be frozen. If required, move the frozen food to the frozen food container.

■ To ensure air circulation in the appliance, insert frozen food container all the way.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Literature on freezing and blanching can be found in bookshops.

Note

Keep food which is to be frozen away from food which is already frozen.

■ The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

■ The following foods are not suitable for freezing:

Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place in airtight containers.

  1. Place food in packaging.
  2. Remove air.
  3. Seal the wrapping.
  4. Label packaging with contents and date of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Unsuitable packaging:

Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.

Items suitable for sealing packaged food:

Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.

Bags and tubular film made of polyethylene can be sealed with a film heat sealer.

Shelf life of frozen food

Storage duration depends on the type of food.

At a temperature of -18 °C:

■ Fish, sausage, ready meals and cakes and pastries: up to 6 months ■ Cheese, poultry and meat: up to 8 months ■ Vegetables and fruit: up to 12 months

Super freezing

Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.

Several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise.

This appliance runs constantly and the freezer compartment drops to a very low temperature.

If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment.

Smaller quantities of food (up to 2 kg) can be frozen without “super freezing”.

Note

When super freezing is switched on, increased operating noises may occur.

Switching on and off

Fig. 2

Press the "super" button 2.

If super freezing has been activated, the button is illuminated.

Super freezing automatically switches off after approximately 2 1/2 days.

Thawing frozen food

Depending on the type and application, select one of the following options:

■ at room temperature ■ in the refrigerator ■ in an electric oven, with or without fan-assisted hot air, or in the microwave

BOSCH GIN25P60 - Thawing frozen food - 1

Caution

Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.

Do not store the frozen produce for longer than the maximum storage period.

Interior fittings

(not all models)

Frozen food container (large)

Fig. 1/11

For the storage of large frozen items, e.g., turkey, duck, and goose.

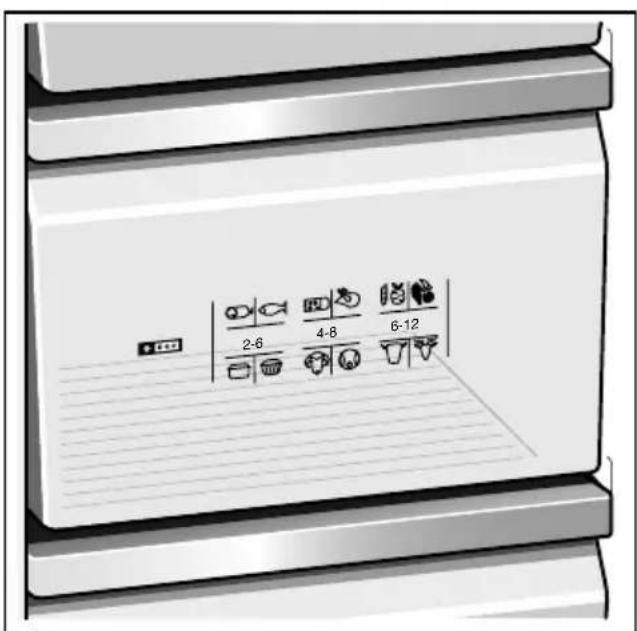

Freezer calendar

Fig. 6

To prevent the quality of the frozen food from deteriorating, do not exceed the storage duration. The figures next to the symbols indicate the permitted storage period of the produce in months. In the case of commercially available frozen food observe the date of manufacture or use-by date.

en

Ice pack

Fig. 7

If a power failure or malfunction occurs, the ice packs can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack on the food in the top compartment.

Ice cube tray

Fig. 8

  1. Fill the ice cube tray 3/4 full of drinking water and place in the freezer compartment.
  2. If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).
  3. To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.

Switching off and disconnecting the appliance

Turn off appliance

Fig. 2

Press the On/Off button 5.

Temperature display 4 goes out, refrigeration unit switches off.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

  1. Switch off the appliance.
  2. Pull out mains plug or switch off fuse.
  3. Clean the appliance.
  4. Leave the appliance door open.

Defrosting

Freezer compartment

The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required.

Cleaning the appliance

BOSCH GIN25P60 - Cleaning the appliance - 1

Caution

  • Do not use abrasive, chloride or acidic cleaning agents or solvents.
  • Do not use scouring or abrasive sponges. The metallic surfaces could corrode. ■ Never clean shelves and containers in the dishwasher. The parts may become deformed!

Note

Approx. 4 hours before cleaning the appliance, switch on super freezing so that the food drops to a very low temperature and can therefore be stored at room temperature for a longer period.

Proceed as follows:

  1. Before cleaning: Switch off the appliance.
  2. Pull out mains plug or switch off fuse.
  3. Take out the frozen food and store in a cool location. Place the ice pack (if enclosed) on the food.
  4. Wait until the layer of frost has thawed.
  5. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.
  6. Wipe the door seal with clear water only and then wipe dry thoroughly.
  7. After cleaning reconnect and switch the appliance back on.
  8. Put the frozen food back into the appliance.

Interior fittings

All variable parts of the appliance can be taken out for cleaning.

Take out glass shelves

Fig. 9

Pull the glass shelf forwards, lower and swing out to the side.

Taking out the freezer compartment flap

Fig. 5

Open the freezer compartment flap, hold one of the bearing pins, and remove the flap.

Taking out the frozen food container

Fig. 3

Pull out the frozen food container all the way, lift it at the front, and remove it.

Note

Before inserting the frozen food container with telescopic rails, remove the latter. Fig. 4

Light (LED)

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorized technicians only.

Tips for saving energy

■ Install the appliance in a dry, well-ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g., radiator, cooker). If required, use an insulating plate. - Open the appliance as briefly as possible. ■ To prevent increased power consumption, occasionally clean the ventilation opening with a paint brush or vacuum cleaner. ■ Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food. - Leave warm food to cool down before placing it in the appliance! - Ensure that the freezer compartment door is always closed properly. ■ The arrangement of the fittings does not affect the energy rating of the appliance.

Operating noises

Quite normal noises

Droning

Motors are running (e.g., refrigerating units, fans).

Bubbling, humming, or gurgling noises

Refrigerant is flowing through the tubing.

Clicking

Motors, switches, or solenoid valves are switching on/off.

Cracking

Automatic defrosting is running.

Preventing noises

The appliance is not level.

Please align the installation cavity with a spirit level. To do this, use the height-adjustable feet of the cavity or place something underneath.

Containers or storage areas wobble or stick.

Please check the removable parts and re-insert them correctly if required.

Receptacles are touching each other.

Move the receptacles slightly away from each other.

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice – even if the appliance is still under guarantee!

Fault Possible cause Remedial action
Temperature differs greatly from the set value.In some cases it is adequate to switch off the appliance for 5 minutes.If the temperature is too high wait a few hours and check whether the temperature has approached the set value.If the temperature is too low check the temperature again the next day.
Displays do not illuminate. Power failure; the fuse has been switched off; the mains plug has not been inserted properly.Connect mains plug. Check whether the power is on, check the fuses.
The refrigerating unit is switching on more frequently and for longer.Appliance opened frequently.Do not open the appliance unnecessarily.
The ventilation openings have been covered.Remove obstacles.
Appliance is not cooling, temperature display and light are lit.Showroom mode is switched on.Hold down alarm button, Fig 2/1, for 10 seconds until an acknowledgement signal sounds.After a short time check whether your appliance is cooling.
The light does not function. The LED light is defective. See chapter “Light (LED)” section.
Appliance was open too long.Light is switched off after approx. 10 min.When the appliance is closed and opened, the light is on again.
The freezer compartment is too warm.Temperature display, Fig. 2/4, is flashing.Appliance opened frequently.Do not open the appliance unnecessarily.
Too much food was placed in the compartment.Switch on super freezing before inserting the food.
Warning signal sounds and the temperature display flashes.The freezer compartment is too warm! Frozen food is at risk.Freezer compartment door is open.See chapter entitled “Alarm functions”.
Too much food was placed in the freezer compartment at once.

Customer service

Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD).

These specifications can be found on the rating plate. Fig. 10

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

GB 0344 892 8979 Calls charged at local or mobile rate.

IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.

US 800 944 2904 toll-free

Technical line drawing of a mechanical assembly or bracket with no visible text or symbols

Technical diagram of a mechanical component with mounting brackets and a circular symbol (no text or labels)

5

2-6 4-8 6-12

6

Line drawing of an open refrigerator with a tray and drawer (no text or symbols)

7

Illustration of hands placing a grid-shaped object into a bowl with a cube, showing motion arrows (no text or symbols)

8

Diagram of a mechanical assembly with a downward arrow indicating force or motion, no text or symbols present

9

E - Nr FD - Nr

10

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : BOSCH

Model : GIN25P60

Category : Freezer
