Product type	Fridge freezer
Brand	Sharp
Model	SJ-F790ST
Total capacity	700 L
Fridge capacity	500 L
Freezer capacity	200 L
Dimensions (H x W x D)	180 x 80 x 70 cm
Weight	85 kg
Power supply	220-240 V, 50 Hz
Energy class	A++
Annual consumption	350 kWh
Cooling type	No Frost (frost-free)
Compressor	Inverter
Defrost	Automatic
Lighting	LED
Shelves	5 tempered glass shelves
Door bins	4 door bins
Vegetable drawer	1 large capacity drawer
Water dispenser	No
Holiday function	Yes
Open door alarm	Yes

Frequently Asked Questions - SJ-F790ST SHARP

How to set the temperature of the fridge and freezer?

Use the control panel on the front. For the fridge, set between 2°C and 8°C, for the freezer between -18°C and -24°C. Press the Temp. buttons to adjust.

How to clean my Sharp SJ-F790ST refrigerator?

Unplug the appliance. Remove the shelves and drawers. Clean the interior with a soft cloth and soapy water. Avoid abrasive products. Dry thoroughly before plugging back in.

Why is my refrigerator making noise?

Noises may come from the Inverter compressor or the circulation of refrigerant. This is normal. If the noise is excessive, check that it is level and not touching a wall.

How to reverse the door opening direction?

The procedure is described in the manual. Generally, you need to disassemble the hinges and reposition the door on the other side. Refer to the Installation section of your manual.

What to do if the alarm light comes on?

The alarm may indicate an open door or a temperature that is too high. Check that the door is properly closed. If the problem persists, reduce the load of fresh food and wait a few hours.

How long does it take to reach temperature after installation?

After plugging in, set the desired temperature. The refrigerator takes about 4 to 6 hours to cool down, the freezer up to 24 hours. Avoid opening the door frequently.

Can I freeze fresh food in the freezer?

Yes, but do not freeze more than 4 kg of fresh food in 24 hours. Use the Quick Freeze function if available to preserve quality.

How to defrost the freezer?

The No Frost model does not require manual defrosting. The appliance automatically removes humidity. If frost appears, check that the door closes properly.

What to do in case of a power outage?

Keep the doors closed. Food stays cold for up to 6 hours in the refrigerator and 24 hours in the freezer. Do not refreeze thawed food without cooking it.

Where can I find spare parts?

Contact Sharp customer service or an authorized dealer. Parts like shelves, door bins, or filters are available. Use the model number SJ-F790ST to order them.

USER MANUAL SJ-F790ST SHARP

SJ-F740ST

SJ-F790ST

GB REFRIGERATOR-FREEZER OPERATION MANUAL 5
E FRIGORIFICO-CONGELADOR MANUAL DE MANEJO....12
FRIGORIFERO-FREEZER MANUALE DI ISTRUZIONI....19
F REFRIGERATEUR-CONGELATEUR MODE D'EMPLOI 26
P FRIGORÍFICO-CONGELADOR FUNCIONAMENTO MANUAL....33
GR ΨΥΓΕΙΟ - ΚΑΤΑΨΥΚΤΗΣ ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ 40
D KÜHLSCHRANK MIT TIEFKÜHLFACH BEDIENUNGSANLEITUNG 47
NL KOELKAST-VRIEZER GEBRUIKSAANWIJZING....54
PL CHŁODZIARKO - ZAMRAŻARKA INSTRUKCJA OBSŁUGI 61
H HÜTÖSZEKRÉNY-FAGYASZTÓ HASZNÁLATI UTASÍTÁS 68
RO FRIGIDER-CONGELATOR MANUAL DE UTILIZARE 75
CZ CHLADNIČKA-MRAZÁK NÁVOD K OBSLUZE 82
SK CHLADNIČKA-MRAZNIČKA NÁVOD NA OBSLUHU 89
LT ŠALDYTUVAS - ŠALDIKLIS EKSPLOATAVIMO INSTRUKCIJA ..... 96
LV LEDUSSKAPIS – SALDËTÄJKAMERA ROKASGRÄMATA 103
KÜLMIK-SÜGAVKÜLMIK KASUTUSJUHEND 110
SLO HLADILNIK-ZAMRZOVALNIK PRIROČNIK Z NAVODILI ZA DELOVANJE. . 117
UA ХОЛОДИЛЬНИК-МОРОЗИЛЬНИК ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ.... 124
BG ХЛАДИЛНИК – ФРИЗЕР РЪКОВОДСТВО ЗА РАБОТА.... 131

GB CONTENTS

WARNING• • ΠΡΩΣΩΧΗ 5 40

• AVVERTENZE....19 • WAARSCHUWING....54

ATTENZIONE• LET OP 19 54

• INSTALLAZIONE....20 • INSTALLATIE....55

• INDICATORE DELLA TEMPERATURA ..... 20 • TEMPERATUURINDICATOR ..... 55

DESCRIZIONE• BESCHRIJVING 21 56

• COMANDI....22 GEBRUIK•

• CONSERVAZIONE DEGLI ALIMENTI 23 • OPBERGEN VAN VOEDSEL 58

• MANUTENZIONE E PULIZIA....24 • ONDERHOUD EN SCHOONMAKEN ....59

• PRIMA DI CHIAMARE IL SERVIZIO DI ASSISTENZA .. 25 • ALVORENS VOOR REPARATIE TE BELLEN..... 60

F TABLE DES MATIERES

• AVERTISSEMENT .... 26 • OSTRZEŽENIE .... 61

• ATTENTION 26 • ŚRODKI OSTROŻNOŚCI 61

INSTALLATION• INSTALACJA 27 62

• INDICATEUR DE TEMPÉRATURE • WSKAŻNIK.TEMPERATURY 62

DESCRIPTION• OPIS.CZEŚCI 28 63

• UTILISATION 29 • OBSŁUGA 64

• CONSERVATION DES ALIMENTS .... 30 • PRZECHOWYWANIE ŻYWNOŚCI .... 65

• ENTRETIEN ET NETTOYAGE 31 • CZYSZCZENIE LODÓWKI 66

• AVANT D'APPELER LE SERVICE APRES-VENTE ..... 32 • ZANIM WEZWIESZ SERWIS ..... 67

P ÍNDICE

• AVISO....33 • FIGYELMEZTETÉS....68

• CUIDADO 33 • VIGYÁZAT 68

INSTALAÇÃO• • ÜZEMBE. HELYEZÉS 34 69

• INDICADOR DE TEMPERATURA 34 • HÖMÉRSÉKLETJELZÖ 69

• DESCRICÃO 35 • LEÍRÁS 70

• BESCHRIJVING....21....56

GEBRUIK•

• OPBERGEN VAN VOEDSEL 58

• ONDERHOUD EN SCHOONMAKEN 59

• ALVORENS VOOR REPARATIE TE BELLEN...... 60

PL SPIS TREŚCI

• OSTRZEŻENIE 61

• ŚRODKI OSTROŻNOŚCI 61

• INSTALACJA 27 62

• WSKAŻNIK.TEMPERATURY 62

• OPIS.CZEŚCI....28....63

• OBSŁUGA 64

• PRZECHOWYWANIE ŻYWNOŚCI 65

• CZYSZCZENIE LODÓWKI....66

• ZANIM WEZWIESZ SERWIS 67

H TARTALOMJEGYZÉK

• FIGYELMEZTETÉS....68

• VIGYÁZAT 68

•ÜZEMBE. HELYEZÉS....34....69

• HÖMÉRSÉKLETJELZŐ 69

• LEÍRÁS 70

• MÜKÖDTETÉS....71

• INDIKÁTOR TEPLOTY 83

- POPIS....84

• OBSLUHA 85

• ULOŽENÍ POTRAVIN.... 86

• PÉČE A ČIŠTĚNÍ 87

• NEŽ ZAVOLÁTE OPRAVÁŘE 88

SK OBSAH

• UPOZORNENIE 89

• POZOR....89

• INŠTALÁCIA....90

• INDIKÁTOR TEPLOTY....90

• POPIS....91

• PREVÁDZKA....92

• SKLADOVANIE POTRAVÍN 93

• STAROSTLIVOST A ČISTENIE.... 94

• SKÔR NEŽ ZAVOLÁTE DO SERVISU ..... 95

LT TURINYS

• ISPÉJIMAS 96

• ATSARGUMO PRIEMONÉS 96

• INSTALIAVIMAS 97

• TEMPERATÜROS INDIKATORIUS 97

• APRAŠYMAS 98

• APTARNAVIMAS 99

• MAISTO LAIKYMAS.... 100

• PRIEŽIŪRA IR VALYMAS.... 101

• PRIES SKAMBINANT [ APTARNAVIMO SKYRIU .. 102

LV SATURS

• BRĪDINĀJUMS 103

• UZMANĪBU 103

• UZSTĀDĪŠANA 104

• TEMPERATÜRAS INDIKATORS 104

APRAKSTS•

• DARBĪBA.... 106

• PÄRTIKAS UZGLABÄŠANA 107

• KOPŠANA UN TİRİŞANA 108

• PIRMS ZVANIT APKALPES DIENESTAM...... 109

EST SISUKORD

• ETTEVAATUST 75 110

• TÄHELEPANU 110

• PAIGALDAMINE....111

• TEMPERATUURINÄIDIK 111

• KIRJELDUS.... 112

•TÖÖTAMINE 78..113

• TOIDUAINETE HOIDMINE ....114

• HOOLDUS JA PUHASTAMINE.... 115

• ENNE MEHAANIKU KUTSUMIST 116

SLO VSEBINA

• OPOZORILO 117

• PREVIDNOST 117

• NAMESTITEV....118

• INDIKATOR TEMPERATURE.... 118

• OPIS 119

• DELOVANJE 120

• SHRANJEVANJE HRANE.... 121

• VZDRŽEVANJE IN ČIŠČENJE 122

• PREDEN POKLIČETE SERVISNO SLUŽBO ..... 123

UA 3MICT

• ОБЕРЕЖНО! 124

• УВАГА 124

■ This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane).

Observe the following rules to prevent ignition and explosion.

The refrigeration system behind and inside the refrigerator • contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

Do not use mechanical devices or other means to • accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)

Do not use electric appliances inside the refrigerator.

- Use only the specified parts for the refrigerator compartment light.

Do not block the openings on the circumference of the refrigerator.

Do not use fl ammable sprays, such as spray paint near the refrigerator. It may cause explosion or fire.

If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.

This refrigerator should be disposed appropriately. Take the • refrigerator to a recycling plant for fl ammable refrigerant and insulation blowing gases.

■ Do not store highly volatile and flammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc.

These materials are liable to explode.

■ Dust deposited on the power plug may cause fire. Wipe it off carefully.

Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.

Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.

Do not use an extension cord or adapter plug.

Do not place bottled and canned drinks in the freezer as they may crack when frozen.

Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.

■Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.

Do not place objects containing liquid or unsteady objects on top of refrigerator.

IMPORTANT

- Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Information on Disposal for Users (private households)

Attention:

Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

^* Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

WARNING

Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leakage. Condensation may also build on the outer cabinet and cause rust.

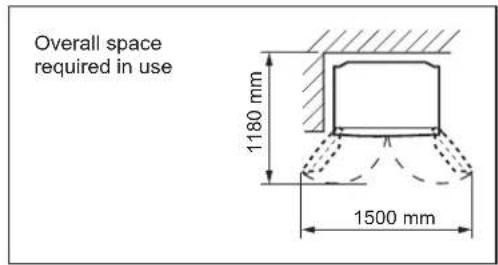

1 Keep adequate ventilation space around the refrigerator.

The figure shows the minimum required space for installing the refrigerator. The measurement condition of power

consumption is conducted under a different space dimension.

By keeping greater space, the refrigerator may be operated under a less amount of power consumption.

If using the refrigerator in the smaller space dimension - than the below figure, it may cause the temperature rise in the unit, loud noise and failure.

The space between the rear of the refrigerator and the wall should be 60mm or more and less than 75mm.

If the space is wider than 75mm, you may get injured by touching compressor and its peripheral parts which are extremely hot during the operation.

2 Use the two front adjustable feet, to ensure that the refrigerator is positioned firmly and flat on the floor.

3 When right and left doors are not properly aligned, adjust using the adjustable feet.

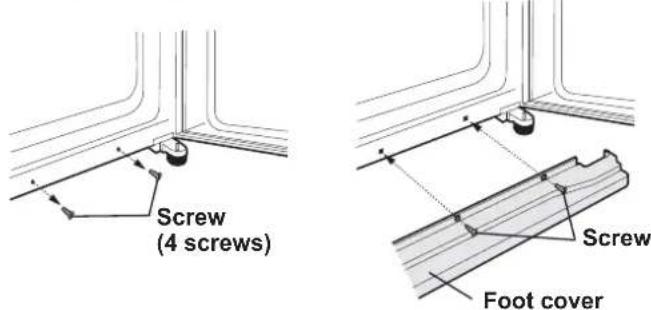

4 Remove the 4 screws of the cabinet lower part, and then set the foot cover (supplied inside the refrigerator compartment) with removed 4 screws.

NOTE

Position your refrigerator so that the plug is accessible. Keep your refrigerator out of direct sunlight.

Do not place next to heat generating appliance.

Do not place directly on the ground. Provide suitable stand. To insert the power plug when the door is opened, door alarm sounds but it is not abnormal. This sound stops when closing the door.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

INDICATOR OF TEMPERATURE

This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment.

(The door pocket positioned at the same height isn't the coldest zone.)

Symbol

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control.

To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

BLUE

Correct setting

WHITE

Temperature too high, adjust the refrigerator temp. control.

NOTE

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

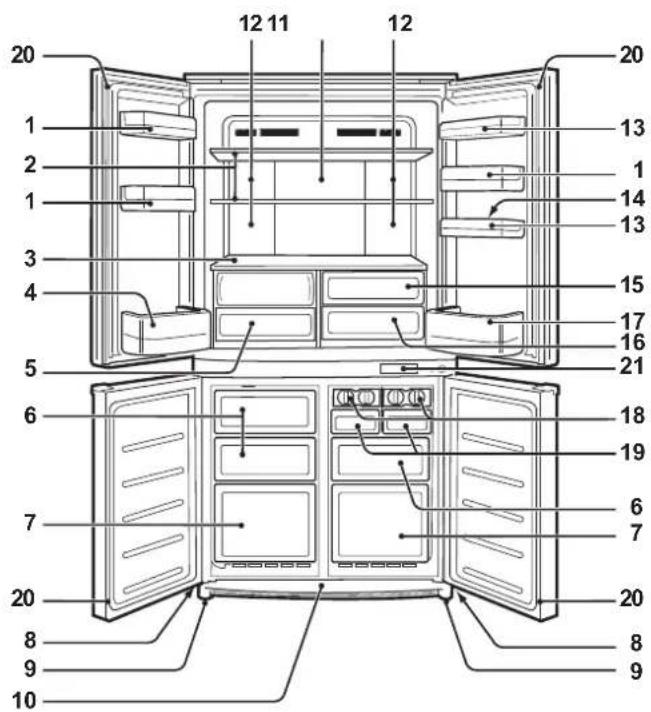

SJ-F790ST

Door pocket1.

Adjustable glass shelf2.

Fixed glass shelf3.

Bottle pocket (left)4.

Vegetable crisper5.

Freezer case (small)6.

Freezer case (large)7.

Casters8.

Adjustable feet9.

Foot cover10.

Hybrid cooling panel11.

The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

Light12.

Utility pocket13.

(SJ-F790ST ; 2 pockets, SJ-F740ST ; 1 pocket)

1. Egg holder

2. Fruit case

3. Fresh case

4. Bottle pocket (right)

5. Ice cube maker

When the ice cubes are made, turn the lever clockwise to empty the ice into the Ice storage box. Do not overfi ll the tray.

1. Ice storage box

2. Magnetic door seal

Partition

Lever

Ice storage box

SJ-F740ST

21. Control panel and electronic display

• The preset temperature is displayed.
(It is not an actual temperature in the compartment.)
- The display of the refrigerator compartment and the freezer compartment can be changed by pressing the CHOOSE button.

Refrigerator compartment preset temperature

R lamp (lighting)
LED display
CHOOSE button

It suggests "Refrigerator".

Freezer compartment preset temperature

F lamp (lighting)
LED display
CHOOSE button

It suggests "Freezer".

NOTE

The LED lamp and the temperature display will turn off when there is no operation for 1 minute.

(When either of buttons is pressed, it lights again.)

More food can be stored by taking out the internal accessories with duly cooling.

How to remove

To remove the partition, pull it to the front while pushing the claw.

How to set

Insert the four projections into the upper parts.

OPERATION

Controlling Temperature

The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.

Refrigerator compartment

① Press the CHOOSE button and make the R lamp to light.

② Press the ▲ button and select the desired temperature.

[▲: increase, ▼: decrease]

③ Press the "button.

Adjustable between 0° C and 6° C in steps of 1° C.

↑6°C	When the refrigerator provides excessive cooling.
3°C	When the refrigerator provides excessive cooling.
0°C	For keeping foods fresher tasting. When the refrigerator does not provide sufficient cooling.

Deodorizing unit

A built-in unit which requires no manual operation because it automatically starts operating when the refrigerator is powered on.

Defrosting

The defrosting system incorporates a fully automatic energy • efficiient defrosting system.

The defrost water collects in the evaporating pan, where it is evaporated by the heat of the compressor, etc.

The evaporating pan does not require cleaning or maintenance.

Freezer compartment

① Press the CHOOSE button and make the F lamp to light.

② Press the ▲ button and select the desired temperature.

[▲: increase, ▼: decrease]

③ Press the "button.

Adjustable between -13°C and -21°C in steps of 1°C.

	When frozen food or ice cream is not stored.
	For normal freezing.
	For making ice rapidly or fast freezing.

Door Alarm

When the refrigerator or freezer door is left open, the door alarm will sound.

The door alarm will sound 1 minute after opening the door and • again after 1 minute (once in each case).

If the door is left open for approx. 3 minutes, the alarm will sound continuously.

To cancel operation

Press the "button continuously 3 seconds or more while holding down the CHOOSE button.

It shows the door alarm stop.

It is the same method also when restarting the operation.

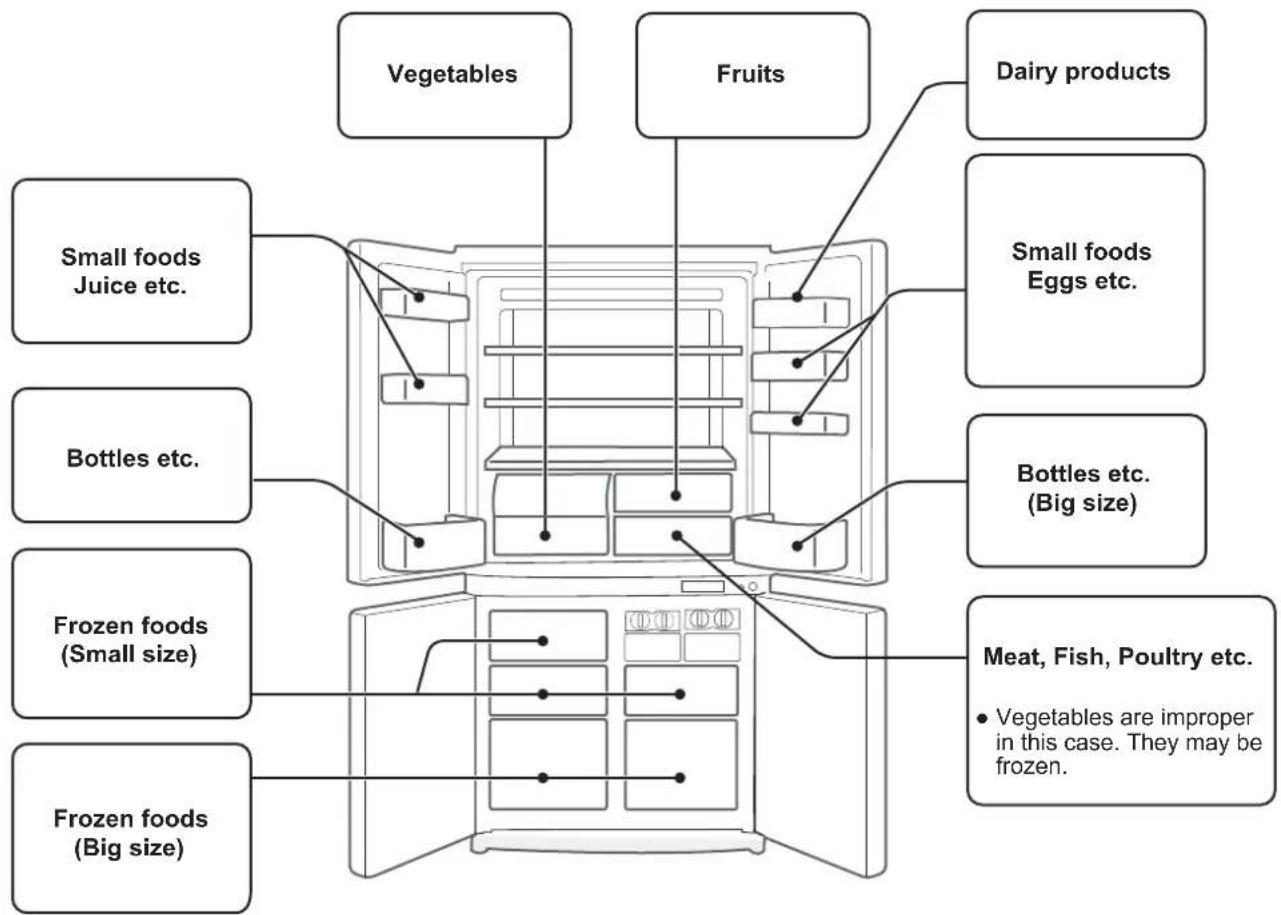

Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is of the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the vegetable crisper or the fruit case. If you store a lot of vegetables, dew may form. This has no effect on the operation or the performance. Use a dry cloth to remove the dew.

Dairy Products & Eggs

Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.

Eggs should be stored in the Egg holder.*

Meats / Fish / Poultry

Place on a plate or dish and cover with paper or plastic wrap. For larger cuts of meat, fish, or poultry, place to the rear of the shelves.

Ensure all cooked food is wrapped securely or placed in an • airtight container.

NOTE

Evenly place the • food on the shelves to allow the cooling air to circulate effi ciently.

Hot foods should be cooled before • storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.

Do not block the outlet and inlet of the • cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.

Keep the door securely closed.

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

For best freezing

Quality of foods should be fresh.
Freeze small quantities of food at a time to freeze them. quickly.
Food should be properly sealed, sealed tightly or covered. Evenly place the food in the freezer. Label bags or containers to keep an inventory of freezing food.

CARE AND CLEANING

WARNING

■ Unplug the refrigerator first to prevent electric shock. Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT

To prevent cracking on inside surfaces and plastic components, follow these tips.

Wipe any food oils adhered to plastic components.

Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).

If undiluted detergent is used or soapy water is not wiped off • thoroughly, cracking of plastic parts can result.

1 Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.
2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.
2 Wipe the exterior with a soft cloth each time it is soiled.
4 Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water.
5 Wipe the control panel with the dry cloth.

NOTE

To prevent damage to your refrigerator, do not use heavy duty • cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.).

If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.

- The glass shelves weigh approximately 3 kg each. Hold firmly when removing from the cabinet or carrying. Do not drop objects inside the refrigerator or strike the inner wall. - This may cause the inner surface to crack.

Replacing method of the lamp bulb

1. Unplug the refrigerator first to prevent electric shock.
2. Remove the light cover.
3. Replace the lamp bulb with the same type.

Lamp cap E14, MAX 15W, 4 pieces

CAUTION

Do not touch the aluminum board around the lamp. The edge face of the metal may cause injury.

When transporting

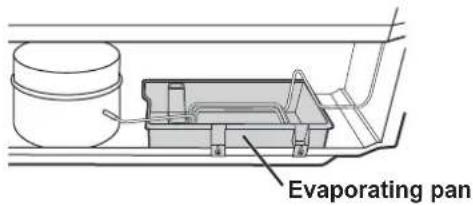

- Wipe up water in the evaporating pan. Before wiping up the water, wait more than 1 hour after pulling out the plug because refrigeration cycle equipment is extremely hot. (The evaporating pan is located on the rear of the product.)

- The casters allow the refrigerator to move back and forth.

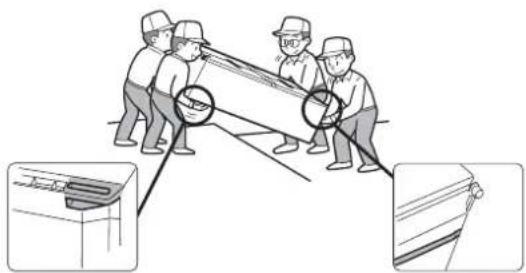

- Carry the refrigerator by holding the handles located on the rear and bottom.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

Tips for saving energy

• Keep the ventilation space as much as possible around the refrigerator.
• Keep your refrigerator out of direct sunlight, and do not place next to heat generating appliance.
  ■ Open your refrigerator door as briefly as possible.
  ■ Hot foods should be cooled before storing.
  ■ Place the food evenly on the shelves to allow the cooling air to circulate efficiently.

The amount of power consumption of this model is measured according to the international standard of the refrigerator performance under the following conditions.

- All accessories in the freezer compartment are taken out as indicated on the figure.

- Space dimensions.

BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

Problem Solution
The outside of the cabinet is hot when touched.	It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds.Loud noise produced by the compressor when operation starts ·--- Sound becomes quieter after a while.Loud noise produced once a day by the compressor ·--- Operating sound produced immediately after automatic defrost operation.·Sound of flowing fluid (gurgling sound, fizzing sound)--- Sound of refrigerant flowing in pipes (sound may become louder from time to time).Cracking or crunching sound, squeaking sound ·--- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs inside or outside the refrigerator.	This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.·When the door is frequently opened and closed.·When foods containing plenty of moisture is stored. (Wrapping is required.)·
Foods in the refrigerator compartment freeze.	Is the refrigerator operated for a long time with refrigerator temp. control set at 0°C?·Is the refrigerator operated for a long time with freezer temp. control set at -21°C?·Low ambient temperatures may cause placed foods to freeze even if the refrigerator ·temp. control is set to 6°C.
It smells in the compartment: Wrapping is required for the foods with strong smell.·Deodorizing unit cannot remove all of the smell.
The control panel does not work.	This may occur in one of the following cases.·The panel or your finger is soiled with dripping, oil and etc.·When you touch the panel with gloved hand, adhesive bandage on your finger, nail or objects.·Sticker or tape is affi xed on the keys.·Touch position is slightly off from the keys.·Operate time is not enough for the keys to work.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

Indicador F (iluminado) Sugiere "Congelador"

Pantalla LED

Botón CHOOSE

NOTAS

Cómo extraerla

ANTES DE LLAMAR AL SERVICIO TECNICO

Spia R (illuminata)

Display LED

Tasto CHOOSE

Spia F (illuminata)

Display LED

Tasto CHOOSE

Come rimuoverla

PRIMA DI CHIAMARE IL SERVIZIO DI ASSISTENZA

(SJ-F790ST; 2 balconnets, SJ-F740ST; 1 balconnet)

Témoin R (allumé)

Affichage LED

Touche CHOOSE

Témoin F (allumé)

Affichage LED

Touche CHOOSE

Pour le retirer

- Dimensions de l'espace.

AVANT D'APPELER LE SERVICE APRES-VENTE

Como remover

③ Prima o botão "1

③ Prima o botão "1

Desligando o seu frigorífico

ANTES DE CHAMAR PELO SERVIÇO DE ASSISTÊNCIA TÉCNICA

• Διαστάσεις χώρου.

• Raumabmessungen.

BEVOR SIE DEN SHARP-SERVICE KONTAKTIEREN

R lampje (is aan)

LED display

CHOOSE toets

F lampje (is aan)

LED display

CHOOSE toets

Verwijderen

[▲: verhogen, ▼: decrease]

[▲: verhogen, ▼: decrease]

Zwenkwieltjes

ALVORENS VOOR REPARATIE TE BELLEN

Jak wyjąć

Wyłączanie lodówki

ZANIM WEZWIESZ SERWIS

Kiemelés

• Térbeli kiterjedés.

MIELÖTT SZERVIZHEZ FORDULNA

Bec F (iluminat)

Afişaj LED

Buton CHOOSE

Modul de detaşare

- Dimensiuni spatiu.

ÎNAINTE DE A CHEMA SERVICIUL DE DEPANARE

Indikátor R (svíti)

Indikátor LED

Tlačítko CHOOSE

Označuje "chladničku".

Indikátor F (svítí)

Indikátor LED

Tlačítko CHOOSE

Označuje "mrazák".

POZNÁMKA

Jak vyjmout

Nastavitelná od 0°C do 6°C v krocich po 1°C.

- Rozměry prostoru.

NEŽ ZAVOLÁTE OPRAVÁŘE

Pozor:

Ako sa vyberá

- Rozmery priestoru.

SKÔR NEŽ ZAVOLÁTE DO SERVISU

Kaip išimti

③ Paspauskite mygtuka „

③ Paspauskite mygtuka „ I

Atstumu matmenys.

PRIEŠ SKAMBINANT I APTARNAVIMO SKYRIŲ

Regulējama kāja

F lampina (deg)

LED displejs

CHOOSE poga

Kā nonemt

③ Nospiediet pogu „”

③ Nospiediet pogu „”

- Attālumi.

PIRMS ZVANİŞANAS APKALPES DIENESTAM

Kuidas eemaldada

③ Vajutage “ ”-happu.

Reguleeritav vahemikus 0°C ... 6°C sammuga 1°C.

③ Vajutage “ ”-happu.

Reguleeritav vahemikus -13°C ... -21°C sammuga 1°C.

- Ruumi möötmed.

ENNE MEHAANIKU KUTSUMIST

Kako odstraniti

Če želite odstraniti eno polico, jo povlecite naprej tako, da potisnete na kaveličke.

Kako namestiti

③ Pritisnite gumb »

Nastavljivo od 0 °C do 6 °C v korakih po 1 °C.

③ Pritisnite gumb »

Nastavljivo od -13 °C do -21 °C v korakih po 1 °C.

Izklop hladilnika

- Dimenzije prostora.

PREDEN POKLIČETE SERVISNO SLUŽBO

Як зняти

Внимание:

R светодиод (свети)

Светодиоден дисплей

Бутон CHOOSE

Означава "Хладилник".

F светодиод (свети)

Светодиоден дисплей

Бутон CHOOSE

Означава "Фризер".

ЗАБЕЛЕЖКА

Изваждане

③ Натиснете бутона "1"

In Europe represented by

SHARP ELECTRONICS EUROPE LTD.

4 Furzeground Way, Stockley Park, Uxbridge, Middlesex, UB11 1EZ, U.K.

Printed in Thailand
