Product Type	Combined Refrigerator-Freezer
Brand	Sharp
Model	SJ-43N
Total Net Capacity	Approximately 330 litres
Refrigerator Capacity	Approximately 240 litres
Freezer Capacity	Approximately 90 litres
Energy Class	E (according to EU regulations)
Dimensions (H × W × D)	185 × 60 × 65 cm
Net Weight	65 kg
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a
Noise Level	42 dB
Climate Class	N-ST (16 °C to 38 °C)
Refrigerator Defrost	Automatic
Freezer Defrost	Manual
Lighting	LED
Shelves	3 tempered glass shelves
Door Type	Reversible hinged door
Holiday Mode	Yes
Open Door Alarm	Yes
Maintenance and Cleaning	Unplug before cleaning. Use a soft cloth and soapy water.
Safety	Conforms to CE standards. Child lock on controls.
Spare Parts and Repairability	Available from Sharp after-sales service. Repairability index: 7.3/10

Frequently Asked Questions - SJ-43N SHARP

How to adjust the temperature of the Sharp SJ-43N refrigerator?

Use the temperature control knob located inside the refrigerator. Turn it to a position between 1 and 5, where 1 is least cold and 5 is coldest. The ideal temperature is 4 °C for the refrigerator and -18 °C for the freezer.

How to defrost the freezer?

Unplug the appliance, remove the food, and leave the freezer door open. Place towels to absorb melting water. Never use sharp tools to scrape off ice. Once defrosted, clean and plug back in.

What to do if the refrigerator is not cooling enough?

Check that the temperature is set correctly, the door seals properly, the condenser at the back is not dusty, and there is enough air circulation around the appliance. If the problem persists, contact after-sales service.

How to change the door opening direction?

The Sharp SJ-43N has a reversible door. Unscrew the hinges, swap the handles and hinge holes according to the instructions in the manual. Make sure to tighten all elements properly.

Why is there frost in the refrigerator?

This may be due to a poorly closed door, excessive humidity, or the temperature setting being too low. Check the gasket seal and reduce door opening. Ensure that hot foods are not placed inside.

How to clean the door gasket?

Clean the gasket with a soft cloth dampened with warm soapy water. Rinse with clean water and dry thoroughly. Avoid abrasive products or solvents that could damage the gasket.

What to do in case of a power outage?

Keep the doors closed to maintain temperature. Food stays cold for about 4 to 6 hours. For frozen food, avoid refreezing after thawing without cooking it first.

How to activate holiday mode?

Holiday mode maintains a stable temperature while reducing consumption. Press the corresponding button (often marked with a 'vacation' or 'holiday' symbol) until the indicator lights up. See the manual for details.

What are the normal noises emitted by the refrigerator?

Gurgling noises (refrigerant circulation), clicking sounds (compressor cycle), and cracking sounds (expanding materials) are normal. If the noise becomes loud or unusual, check that the appliance is level.

Where to find spare parts for the Sharp SJ-43N?

Contact Sharp after-sales service or visit the official website. The most common parts (water filter, light bulb, shelves) are available. The repairability index of the appliance is 7.3/10.

USER MANUAL SJ-43N SHARP

SJ-P47N

SJ-P43N

SJ-47N

SJ-43N

REFRIGERATOR-FREEZER

FRIGORIFICO-CONGELADOR

FRIGORIFERO-FREEZER

REFRIGERATEUR-CONGELATEUR

FRIGORÍFICO-CONGELADOR

ΨΥΓΕΙΟ - ΚΑΤΑΨΥΚΤΗΖ

KÜHLSCHRANK MIT TIEFKÜHLFACH

KOELKAST-VRIEZER

Thank you very much for buying this SHARP product. Before using your SHARP fridge freezer, please read this operation manual to ensure that you gain the maximum benefit from it.

All persons using the fridge freezer must be thoroughly familiar with its operation and safety features. Keep this operation manual with the fridge freezer if you move or if the fridge freezer changes owners so that whoever uses it can read about the various features and safety rules.

This equipment complies with the requirements of Directives 96/57/EC, 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

Important:

• This fridge freezer is for domestic use only, with an ambient temperature between +5°C and +38°C. The fridge freezer should not be subjected to temperatures of -10°C for long periods.
• To be used on 220-240V mains voltage.

WARNING

1. This fridge freezer is airtight. TO PREVENT FATAL ACCIDENTS TO CHILDREN, please completely remove the door prior to discarding the fridge freezer.
2. Highly volatile and inflammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the fridge freezer.
3. To prevent damage to the outer cabinet, avoid contact with lacquer, and paint, etc.
4. When cleaning your fridge freezer, do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.
5. When cleaning any areas adjacent to electrical components or replacing the lamp bulb, unplug the fridge freezer first to prevent electric shock.
6. Should electrical components be accidentally immersed in water, unplug the fridge freezer, dry the parts and contact your nearest service agent approved by SHARP.
7. When disconnecting the power plug, do not touch the pin of plug. This may cause electric shock.
8. This fridge freezer is designed solely for the purpose of storing foodstuff for domestic use in accordance with the instructions given in this manual. Using the fridge freezer for other purposes might be harmful to persons or property.
9. This fridge freezer is not suitable for the storage of materials requiring precise temperatures. Deterioration of these materials will be dangerous.
10. Dust deposited on the power plug may cause fire. Wipe it off carefully.
11. Do not attempt to change or modify this fridge freezer. This may result in fire, electric shock or injury.
12. Information regarding disposal of the appliance Flammable insulation blowing gases should be disposed appropriately. Take the cabinet and doors to a recycling plant for flammable insulation blowing gases.

CAUTION

1. Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.
2. If the power supply is accidentally disconnected, please wait for at least 5 minutes before re-connecting the power, as back pressure in the compressor may trip the overload relay.
3. Avoid removing food from the freezer with your bare hands. Directly touching products stored at sub-zero temperatures can result in frostbite.
4. To prevent accidental power disconnection, plug the fridge freezer directly to the source. Do not use a double adaptor as loss of power could lead to the spoiling of the stored food.
5. Do not place bottles in the freezer as they may crack when frozen.
6. Keep the door securely closed. If the door is left ajar, the controlled inner temperature will rise, resulting in food spoilage and increase in electricity costs.
7. Do not install the fridge freezer in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust.
8. When installing or moving the fridge freezer, make sure that you do not nip or kink the power cord. Damage of the power cord may cause electric shock or fire.
9. Do not use this fridge freezer when the power cord or plug is damaged, or the outlet attachment is loose, as they may cause electric shock or fire.
10. Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.
11. Make sure that you leave adequate ventilation space around the fridge freezer to prevent the compressor from overheating and stopping. Please follow the instructions given for installation.
12. The refrigeration system behind and inside the fridge freezer contains refrigerant. If this system is punctured it could result in serious damage to your fridge freezer, therefore do not allow any sharp objects to come into contact with the refrigeration system.
13. Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.
14. In case of gas leak, ventilate the area by opening a window, etc. Do not touch the fridge freezer or the power outlet.
15. Do not place heavy or easily broken objects on top of the fridge freezer. Objects may fall when opening or closing the fridge freezer, causing injury.
16. Do not place objects containing liquid on top of the fridge freezer. Spillage may cause electric shock or fire.
17. Do not drop objects inside the fridge freezer or strike the inner wall. This may cause the inner surface to crack.
18. This fridge freezer is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the fridge freezer.

DESCRIPTION

1. Freezer temp. control knob
2. Freezer shelf
3. Ice cube maker
4. Ice cube box
5. Deodorizing unit
6. Fresh case

The cover of the Fresh case opens as the case is pulled.

1. Refrigerator temperature control knob
2. Light
3. Refrigerator shelf

To remove, pull it up slightly, and then pull it off.

1. Shelf
2. Vegetable crisper
3. Divider
4. Evaporating pan (rear side)
5. Casters
6. Foot cover
7. Adjustable feet
8. Fan switch
9. Fan & light switch
10. Utility pocket
11. Magnetic door seal
12. Egg holder
13. Egg pocket
14. Small pocket

Small foods can be stored in these pockets. Tall foods like a bottle of juice may fall down from the pocket when the door is opened or closed.

1. Bottle guard
2. Bottle pocket
3. Plasmacluster panel (Only for SJ-P47N, SJ-P43N)

INSTALLATION

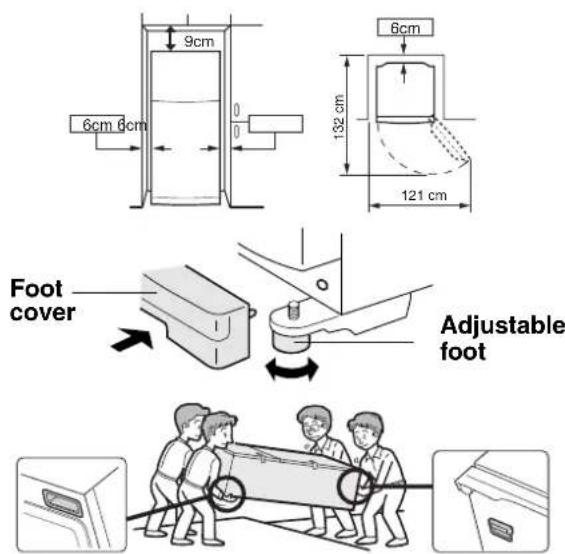

1. To ensure adequate ventilation for your fridge freezer, it is recommended to provide space of 6cm on both sides and at the back, and space of 9cm above the fridge freezer. Insufficient spacing will decrease the cooling efficiency, resulting in unnecessary consumption of electricity.
2. Using the two front Adjustable feet, ensure that the fridge freezer is positioned firmly and level on the floor.

NOTE:

• Position your fridge freezer so that the plug is accessible.
• Keep your fridge freezer out of direct sunlight.
• Do not place next to heat generating appliance.

When transporting

1. Before transporting, wipe dry any water in the Evaporating pan located on the rear.
2. Carry the fridge freezer by holding the handles located on the rear and bottom.

Before using your fridge freezer

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly.

OPERATION

CONTROLLING TEMPERATURES

The fridge freezer controls its temperature automatically. However, if needed, adjust the temperature as follows.

Freezer compartment

Refrigerator compartment

7(MAX)	For making ice rapidly or fast freezing.
4(MED)	For normal freezing.
1(MIN)	When frozen food or ice cream is not stored.

• If the fridge freezer is operated for a long time with FREEZER TEMP. CONTROL set at 7 (MAX), foods stored in the refrigerator compartment may also freeze.
• 2 star section for storing frozen foods only. (not freezing)

7(Coldest)	For keeping foods fresher tasting. When the refrigerator does not provide sufficient cooling.
4(MED)	For normal operation.
1(MIN)	When the refrigerator provides excessive cooling.

• If the fridge freezer is operated for a long time with REFRIGERATOR TEMP. CONTROL set at 7 (Coldest), foods stored in the refrigerator compartment may also freeze.
• Low ambient temperature may cause placed foods to freeze even if REFRIGERATOR TEMP. CONTROL is set to 1 (MIN).

HINTS WHEN MAKING ICE

1. Do not overfill the ice cube trays; otherwise, the ice cubes will be joined together when frozen.
2. When the ice cubes are made, turn the lever clockwise to empty the ice into the ice cube box.

NOTE:

To prevent damage to the ice cube box, do not make ice in the ice cube box or pour oil into it.

PLASMACLUSTER (Only for SJ-P47N, SJ-P43N)

The plasmacluster automatically starts operating when the fridge freezer is powered on.

1. Press the "PLASMACLUSTER (ON/OFF) button", and the PLASMACLUSTER lamp goes out and the plasmacluster turns off.
2. Press the "PLASMACLUSTER (ON/OFF) button" again, and the PLASMACLUSTER lamp lights up. The plasmacluster turns on.

Notes about PLASMACLUSTER operation

The ionizer inside your fridge freezer releases clusters of ions, which are collective masses of positive and negative ions, into the freezer and refrigerator compartments. These ion clusters reduce airborne mold fungus.

- There may be a slight odor in the fridge freezer. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and it quickly decomposes in the fridge freezer.

DEFROSTING

Defrosting is fully automatic due to a unique energy saving system. The defrost cycle start time is proportional to the running time of your fridge freezer compressor, i.e., the less time the fridge freezer compressor operates (during the winter season or when you're away on holidays), the longer the time between each defrost cycle.

DEODORIZING UNIT

A built-in unit which requires no manual operation because it automatically starts operating when the fridge freezer is powered on.

STORING FOOD

Refrigeration reduces the rate of food spoilage.

To maximize the shelf life of perishable food products, ensure that the food is of the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the Vegetable crisper. Those fruits and vegetables with thick skins e.g. oranges do not require wrapping.

Dairy Products & Eggs

• Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.
• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

NOTE:

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the fridge freezer.

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

FOR BEST FREEZING

• Quality of foods should be fresh. - Freeze small quantities of food at a time to freeze them quickly. - Food should be properly stored or covered and the air should be removed to seal tightly. - Evenly place the food in the freezer. - Label bags or containers to keep an inventory of freezing food.

CARE AND CLEANING

Some household cleaning chemicals may affect the inside surfaces and plastic shelves resulting in splitting or cracks occurring.

When cleaning all plastic parts inside this fridge freezer, only use diluted dishwashing liquid (soapy water). Make sure that all plastic parts are thoroughly rinsed with water after cleaning.

1. Remove the shelves and pockets from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.
2. Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water. 3. Wipe the exterior with a soft cloth each time it is soiled.
3. Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water.
4. Whenever the fridge freezer is moved to clean or repositioned, the Evaporating pan should be removed and cleaned.

NOTE:

• Do not use polishing powder, benzine, hot water etc.
• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.
• Wipe any food oils adhered to plastic components as they can cause cracking of the plastic surface.
• The glass shelves weigh approximately 2kg each. Hold firmly when removing from the cabinet or carrying.

Evaporating pan;

How to remove/set

Remove the two screws to take the Evaporating pan off. Please pay attention to the safety since the compressor is very hot.

Replacing method of the lamp bulb

1. Unplug the fridge freezer first to prevent electric shock.
2. Remove the Light cover.
3. Replace the lamp bulb with the same type.

Base E12, MAX 15W, T-20

Switching off your fridge freezer

If you switch your fridge freezer off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

WHAT TO DO BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

IT IS NORMAL for the refrigerator to produce the following sounds.

• Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while.
• Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation.
• Sound of flowing fluid (gurgling sound, fizzing sound) --- Sound of refrigerant flowing in pipes (sound may become louder from time to time).
• Cracking or crunching sound --- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
• Squeaking sound --- Sound produced by expansion and contraction of internal parts.

IT IS NORMAL that the outside of a cabinet may be hot when touched. The hot pipe is in the cabinet in order to prevent dew generation.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

TEMPERATURE CONTROL

"PLASMACLUSTER" IONIZER (Only for models SJ-P47N, SJ-P43N)

FOR BETTER FREEZING

SJ-P47N, SJ-P43N SJ-47N, SJ-43N

4(MED) Normal freezing.

"PLASMACLUSTER" IONIZER (Only for SJ-P47N, SJ-P43N)

Base E12, MAX 15W, T-20

Lamp cover

Evaporation tray

Base E12, MAX 15W, T-20

SJ-P47N, SJ-P43N SJ-47N, SJ-43N

"PLASMACLUSTER" IONIZER (only for SJ-P47N, SJ-P43N)

"PLASMACLUSTER" IONIZER (Only models SJ-P47N, SJ-P43N)

FOR OPTIMAL FREEZING

Fitting E12, MAX 15 W, T-20
