Product type	Refrigerator
Brand	Sharp
Model	SJ-B1261M0X
Total net capacity	120 L
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	35 kg
Power supply	220-240 V ~ 50 Hz
Energy class	A+
Annual consumption	180 kWh
Cooling type	Static
Defrost	Manual
Interior lighting	LED
Glass shelves	Yes
Vegetable drawer	Yes
Door shelves	3
Door reversibility	Yes
Adjustable thermostat	Yes
Freezer compartment	No
Noise level	40 dB
Warranty	2 years

Frequently Asked Questions - SJ-B1261M0X SHARP

How to adjust the temperature?

Use the thermostat knob inside. Turn it to a higher number for colder. The middle position (3-4) is recommended.

How to defrost the refrigerator?

Unplug, remove food, leave the door open to melt ice. Do not use sharp objects.

Why is the appliance making noise?

Normal noises are due to the compressor and fluid circulation. If excessive, check leveling and spacing.

How to clean the interior?

Use a soft cloth and soapy water. Avoid abrasive products. Rinse and dry.

What to do if the door does not close properly?

Check the seals, clean them, adjust hinges if needed.

How to change the door opening direction?

Consult the manual. Usually unscrew hinges and reverse parts.

What is the ideal temperature?

Between 2°C and 5°C for the refrigerator.

Can I freeze food?

This model is a refrigerator without a freezer compartment. It does not allow freezing.

How to save energy?

Place the appliance away from heat sources, do not overload, let food cool before storing.

Where to find spare parts?

Contact Sharp after-sales service or an authorized dealer. Provide model SJ-B1261M0X.

USER MANUAL SJ-B1261M0X SHARP

Fridge-freezers

EN User Manual DE Bedienungsanleitung FR Guide D'Utilisation NL Handleiding ES Manual de uso PT Manual de Instruções DK Brugsanvisning NO Bruksanvisning SE Instruktionsbok FI Käyttöohje EE Kasutusjuhend LV Lietošanas Pamācība LT Naudojimo Instrukcija

Bottom Freezer

SJ-B1261M0X-EU

Contents

CHAPTER -1: GENERAL WARNINGS ....2

CHAPTER -2: YOUR FRIDGE FREEZER....5

CHAPTER -3: USING YOUR FRIDGE FREEZER....5

CHAPTER -4: FOOD STORAGE GUIDANCE ....8

CHAPTER -5: TROUBLESHOOTING ....8

CHAPTER -6: TIPS FOR SAVING ENERGY ......9

Your fridge freezer conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage, read this manual carefully before using your fridge freezer for the first time. It contains important safety information on the installation, safety, use, and maintenance of your fridge freezer. Retain this manual for future use.

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the fridge freezer clear from obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process.

WARNING: Do not use other electrical appliances inside the fridge freezer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid personal injury or damage, this appliance must be installed in accordance with the manufacturer's instructions.

The small quantity of refrigerant used in this fridge freezer is eco-friendly R600a (an isobutene) and is flammable and explosive if ignited in enclosed conditions.

* While carrying and positioning the fridge, do not damage the cooler gas circuit. * Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the fridge freezer. * This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

* Your fridge freezer requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician.

* This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

CHAPTER -1: GENERAL WARNINGS

hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

* A damaged power cord/plug can cause fire or give you an electric shock. When damaged, it must be replaced, and this should only be done by qualified personnel. * This appliance is not intended for use at altitudes exceeding 2000 m.

CHAPTER -1: SAFETY INSTRUCTIONS

Disposal

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.
• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from.

Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
• A damaged power cord / plug can cause fire or give you and electric shock. When damaged it must be replaced, this should only be dine by qualified personnel.

- Never bend the power cord excessively.

• Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.
• Do not remove items from the freezer if your hands are damp or wet. This could cause skin abrasions or frost / freezer burns.
• Do not refreeze food once it has thawed out.

Installation Information

Before unpacking and manoeuvring your fridge freezer please take some time to familiarise yourself with the following points.

- Position away from direct sunlight and away from any heat source such as a radiator.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Do not expose your fridge freezer to moisture or rain.

- Your fridge freezer should be positioned at least 20mm away from another freezer.

- Clearance of at least 150 mm is required at the top and back of your fridge freezer. Do not place anything on top of your fridge freezer.

- For safe operation it is important that your fridge freezer is safe and balanced. The adjustable feet are used to level your fridge freezer. Make sure that your appliance is level before placing any foodstuffs inside it.

- We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.

- Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Before Using your Fridge

• Before setting up your fridge freezer, check for any visible damage. Do not install or use your fridge freezer if it is damaged
• When using your fridge freezer for the first time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efficient operation and prevents damage to the compressor.
• You may notice a light odour when using your fridge freezer for the first time. This is perfectly normal and will fade away as the fridge starts to cool.

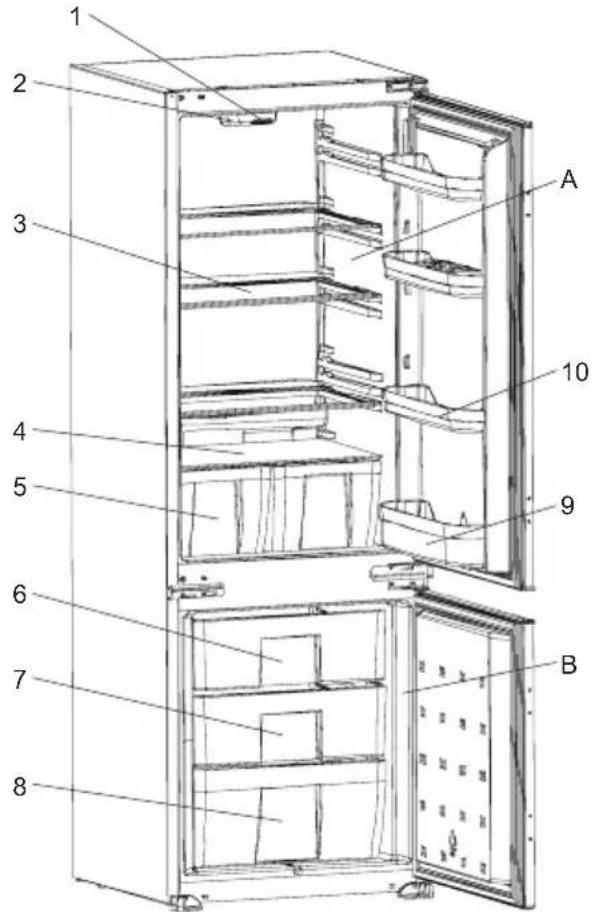

CHAPTER -2: YOUR FRIDGE FREEZER

A) Freezer compartment B) Refrigerator compartment

1) Thermostat box 2) Refrigerator lamp and cover 3) Fridge shelves 4) Crisper cover 5) Crispers 6) Freezer upper flap 7) Freezer upper drawer 8) Freezer bottom drawer 9) Bottle shelf 10) Door shelves 11) Ice tray 12) Plastic ice blade 13) Egg holder

This figure has been drawn for information purposes to show the various parts and accessories in the appliance. Parts may vary according to the model of the appliance.

CHAPTER -3: USING YOUR FRIDGE FREEZER

Thermostat setting

The thermostat automatically regulates the temperature inside the fridge and freezer compartments. To change the temperature the knob can be rotated from position 1 to 5 (5 being the coldest).

• For short-term storage of food in the freezer compartment, you can set the knob between 1 and 2 position.
• For long-term storage of food in the freezer compartment, you can set the knob to the 3-5 position.

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

Super Freeze and low ambient switch (In some models)

Low ambient temperature control switch

0 : OFF position.

I: ON position.

a) Super freezing: If ambient temperature is more than 18 °C, this switch can be used as superfreeze switch.

The appliance will work longer when superfreeze button is switched on for freezing the fresh food. So after you get the cold condition (minimum 24 hours later) superfreeze button should be switched off because of energy saving.

CHAPTER -3: USING YOUR FRIDGE FREEZER

b) Low ambient performance: If ambient temperature is less than 18 °C, this button should be switched on for improving low ambient performance.

If ambient temperature is more than 18 °C this button should be switched off because of energy saving (except freezing fresh food).

Please note that:

For energy saving do not switch on "I" position, if you do not need.

Warnings for temperature settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10 °C.
• The thermostat setting should be set by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator and the environment in which and the positioning of the appliance.
• We recommend that when first using the fridge freezer it should be left running for 24 hours uninterrupted to ensure it is completely cooled. Do not open the fridge doors, or put food inside for this period.
• Your fridge freezer has a 5 minute built in delay function, designed to prevent damage to the compressor.

When power is applied to your fridge freezer, it will begin to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated on the information label. It is not recommended that your fridge be operated in environments that are outside the stated temperature intervals, in terms of cooling efficiency.

- This appliance is designed for use at an ambient temperature within the 16°C - 32°C range.

Climate Class Ambient Temperature °C
T Between	16 and 43 (°C)
ST Between	16 and 38 (°C)
N Between	16 and 32 (°C)
SN Between	10 and 32 (°C)

Temperature indicator

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.

To better store the food in your refrigerator, especially in the coldest area, make sure the message "OK" appears on the temperature indicator. If "OK" does not appear, this means the temperature has not been set properly.

It may be difficult to see the indicator; make sure it is properly lit. Each time the temperature setting device is changed, wait for the temperature inside the appliance to stabilize before proceeding, if necessary,

with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change.

NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication "OK" not to appear in the temperature setting indicator. If there is an abnormal build-up of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.

OK

Store food in the coldest area of the refrigerator.

Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.

The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.

The upper limit of the coldest area is indicated by the lower side of the

sticker (head of the arrow). The coldest area upper shelf must be at the same level as the arrow head. The coldest area is below this level.

As these shelves are removable, make sure they are always at the same level as these zone limits described on the stickers, in order to guarantee temperatures in this area.

Accessories

Ice tray

• Fill the ice tray with water and place in freezer compartment. After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

CHAPTER -3: USING YOUR FRIDGE FREEZER

Bottle holder (In some models)

In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.

Visual and text descriptions on the accessories section may vary according which model you have.

Cleaning

Before cleaning your fridge freezer, turn your mains supply off and remove the plug from the socket. Do not wash your fridge freezer by pouring water on to it. Use a warm, soapy cloth or sponge to wipe the interior and exterior of your fridge freezer. Carefully remove all shelves and drawers by sliding upwards or outwards and clean with soapy water. Do not wash in a washing machine or dishwasher. Do not use solvents, abrasive cleaners, glass cleaners or all purpose cleaning agents to clean your fridge freezer. This may cause damage to the plastic surfaces and other components with the chemicals they contain. Clean the condenser at the back of your fridge freezer at least once a year with a soft brush or vacuum cleaner.

Make sure that your fridge is unplugged while cleaning.

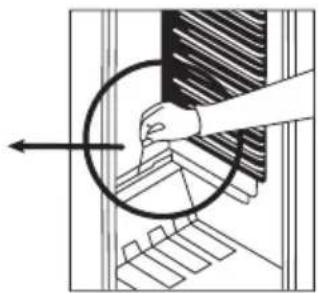

Defrosting

Refrigerator compartment;

• Defrosting occurs automatically in the refrigerator compartment during operation; water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator.

Freezer compartment;

• The frost that accumulates on the shelves of the freezer compartment should be removed periodically.
• Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit. Use the plastic scraper provided.
• When there is more than 5 mm of frost on the shelves, defrosting must be done.
• Before defrosting, place the frozen food in a cool place after wrapping them in sheets of newspaper to keep their temperature steady for a long time. To accelerate the defrosting process, place one or more basins of warm water in the freezer compartment.
• Dry the inside of the compartment with a sponge or a clean cloth.
• Once the unit has been defrosted, place the food back into the freezer and remember to consume it within a short period of time.

Replacing the light bulb

To replace the bulb in the fridge compartment:

1. Unplug your fridge.
2. Remove the refrigerator light cover (A) by pressing the hooks placed on both sides of the cover.
3. Replace with a bulb of maximum 15 Watts (B).
4. Install the cover.
5. Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

CHAPTER 3: USING YOUR FRIDGE FREEZER

Replacing LED Lighting

If your fridge freezer has LED lighting, contact the Sharp help desk as this should be changed by authorized personnel only.

CHAPTER 4: FOOD STORAGE GUIDANCE

Refrigerator compartment

• To reduce frost build-up, never place liquids with unsealed containers in the fridge compartment. Allow warm or hot food to cool down before storing. This helps reduce power consumption. To avoid frost build-up, ensure that nothing is stored touching the back wall. The coldest area of the refrigerator is at the bottom. We recommend using this area to store food that will perish easily, such as fish, ready meals, baked goods, or dairy products. The warmest area is the top shelf of the door. We recommend you store butter or cheese here.

Freezer compartment

• Use the freezer to store frozen foods for long periods of time and make ice cubes.
• To freeze fresh food, ensure that as much of the surface of the food to be frozen is in contact with the cooling surface.
• Do not put fresh food on either side of frozen food, as it can thaw it.
• When freezing fresh foods (i.e., meat, fish, and mincemeat), divide into portion sizes.
• Once the unit has been defrosted, replace the foods into the freezer and remember to consume them in a short period of time.
• Never place warm food in the freezer compartment.
• The instructions shown on frozen food packages should always be followed carefully, and if no information is provided, food should not be stored for more than 3 months from the purchase date.
• When buying frozen foods, ensure that these have been frozen at suitable temperatures and that the packaging is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be stored in the freezer as soon as possible.
• If a package of frozen food shows signs of humidity and abnormal swelling, it has been previously stored at an unsuitable temperature and the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

If you decide to open the freezer door again immediately after closing, it may be difficult to re-open. This is normal and after the freezer has reached an equilibrium condition the door will open easily.

Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.
• The taste of some spices found in cooked dishes (anise, basil, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, only add a small amount of spice if planning to freeze, or the desired spice should be added after the food has been thawed.
• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.
• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

CHAPTER -5: TROUBLESHOOTING

If your fridge freezer is not operating as expected, there may be a simple solution.

If your refrigerator is not working.

Check that ;

- It is switched on at the mains,

If the different compartments of the fridge do not get cold enough: Check that ;

• You have not overloaded the appliance, • The doors are closed perfectly, • There is no dust on the condenser,
• There is enough space at the rear and side walls.

Your fridge freezer is too noisy.

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different, check that:

CHAPTER -5: TROUBLESHOOTING

The appliance is well leveled,

Nothing is touching the rear.

If there is water in the lower part of the refrigerator:

Check that:

The drain hole for defrost water is not clogged. (Use the defrost drain plug to clean the drain hole.)

Recommendations

• In instances of a power cut, unplug the appliance. This prevents damage to the compressor. You should delay plugging in 5–10 minutes after you regain power supply. This will avoid damage to components.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or ice may occur on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal. There is no need to start manual defrost unless the ice formation is excessive.
• Unplug your fridge if you will not be using it for an extended period of time (e.g., during summer holidays). Clean your fridge according to the chapter on cleaning and leave the door open to keep humidity and odors from forming.
• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or other use. If the consumer uses the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• If the problem persists after you have followed all the instructions above, please consult an authorized service provider.

CHAPTER -6: TIPS FOR SAVING ENERGY

1. Always allow foodstuffs to cool before storing in the appliance.
2. Thaw food in the fridge compartment, this helps save energy.

Accessories

ice cube tray;

A) Refrigerator compartment B) Freezer compartment

1) Thermostat compartment 2) Refrigerator light 3) Refrigerator shelf 4) Vegetable drawer cover 5) Vegetable drawer 6) Upper freezer compartment cover 7) Upper freezer drawer 8) Lower freezer drawer 9) Bottle shelf 10) Butter and cheese shelf 11) Ice tray 12) Plastic scraper 13) Egg holder

Thermostat compartment

the image.

Refrigerator compartment

Accessories

Replacing the LED lights

Bottle holder (on some models)

Defrosting and contact for low ambient temperature (on some models)

0: OFF position. I: ON position.

in the illustration.

CHAPTER 4: GUIDE TO FOOD STORAGE

Refrigerator compartment

Thermostat box

Low ambient temperature switch

Accessories

Ice tray

CHAPTER 3: HOW TO USE YOUR COMBI FRIDGE

CHAPTER 3: HOW TO USE YOUR COMBI FRIDGE

Replacing the light bulb

CHAPTER 4: GUIDELINES FOR FOOD STORAGE

Refrigerator

Installation information

A) Refrigerator B) Freezer

1) Thermostat 2) Light cover 3) Refrigerator shelf 4) Glass shelf 5) Vegetable drawer 6) Upper freezer flap 7) Upper freezer drawer 8) Bottom freezer drawer 9) Bottle shelf 10) Butter/cheese shelf 11) Ice tray 12) Plastic scraper 13) Egg holder

CHAPTER 3: USING YOUR REFRIGERATOR AND FREEZER

Thermostat

0: OFF position.

I: ON position.

CHAPTER 3: USING YOUR REFRIGERATOR AND FREEZER

Please note that:

Accessories

Ice tray

CHAPTER 3: USING YOUR REFRIGERATOR AND FREEZER

CHAPTER 3: USING YOUR REFRIGERATOR AND FREEZER

Replacing the light bulb

0: OFF position. I: ON position.

Accessories

Ice tray

CHAPTER 3: USING THE REFRIGERATOR-FREEZER

CHAPTER 3: USING THE REFRIGERATOR-FREEZER

Replacing the light bulb

CHAPTER 5: TROUBLESHOOTING

CHAPTER 5: TROUBLESHOOTING

Accessories

Ice tray

CHAPTER 3: USING THE REFRIGERATOR-FREEZER

CHAPTER 3: USING THE REFRIGERATOR-FREEZER

Accessories

Ice tray

3. SECTION: USING YOUR REFRIGERATOR-FREEZER

5. SECTION: TROUBLESHOOTING

Thermostat dial

Low ambient

Accessories

Ice cube tray

3. SECTION: USING YOUR REFRIGERATOR-FREEZER

4. SECTION: STORING FOOD

Refrigerator compartment

www.sharphomeappliances.com

Or contact us:

YouTube
