Product type	Microwave with grill
Brand	BEKO
Model	MWC 2010 MX
Capacity	20 liters
External dimensions (W x D x H)	454 x 330 x 262 mm
Internal dimensions (W x D x H)	315 x 296 x 211 mm
Net weight	10.5 kg
Power supply	230 V ~ 50 Hz, 1080 W
Microwave power	700 W
Grill power	800 W
Operating frequency	2,450 MHz
Power consumption	1.2 kVA
Microwave power levels	Low (17%), Medium-low (33%), Medium (55%), Medium-high (77%), High (100%)
Functions	Microwave, Grill, Combination (C1, C2, C3), Defrost
Timer	0 to 30 minutes
Safety	Door lock, automatic stop when opened, internal fuse 8 A / 250 V~
Maintenance and cleaning	Glass turntable and roller ring dishwasher safe; interior cleaned with damp cloth and mild detergent
Spare parts and repairability	Bulb replaceable only by a professional; power cord replaced by manufacturer or qualified agent
Accessories included	Glass turntable, roller ring, grill rack
Installation	Solid horizontal surface; side clearance ≥ 8 cm, rear ≥ 10 cm, top ≥ 30 cm
Intended use	Indoor domestic, heating food and beverages
Warranty	See warranty document provided with the appliance

Frequently Asked Questions - MWC 2010 MX BEKO

How do I adjust the cooking power?

Turn the power selection knob to the desired level: Low (17%), Medium-low (33%), Medium (55%), Medium-high (77%), High (100%) or the combined modes C1, C2, C3. Refer to the manual for details.

Can I use metal containers in this microwave?

No, never use metal containers or those with metal handles, nor metal ties. They may cause sparks and damage the appliance.

What should I do if the oven does not heat?

First check that the timer is set and the door is properly closed with safety locks engaged. If the problem persists, test the wall outlet with another appliance.

How do I clean the glass turntable and roller ring?

Remove the glass turntable and roller ring. Wash them in warm soapy water or dishwasher. Wipe the oven floor with a mild detergent.

Can I cook eggs in this microwave?

No, eggs in their shell and hard-boiled eggs should not be heated in the microwave as they may explode, even after cooking.

The oven makes excessive noise, is this normal?

Noise may come from the roller ring or the oven floor. Clean the roller ring and oven bottom regularly to reduce noise.

How do I defrost food?

Use the defrost function (Defrost position) by selecting the weight. The oven automatically adjusts the time. Follow the control panel instructions.

What should I do if there is smoke inside the oven?

Leave the door closed, turn off the appliance and unplug it. Do not open the door to smother flames. If necessary, turn off the power at the circuit breaker.

How do I replace the interior bulb?

The bulb replacement must be carried out by a qualified technician. Contact your dealer for this service.

What is the warranty of this BEKO microwave?

The warranty is detailed in the document provided with the appliance. Generally, it covers manufacturing defects for a specified period. Consult your dealer.

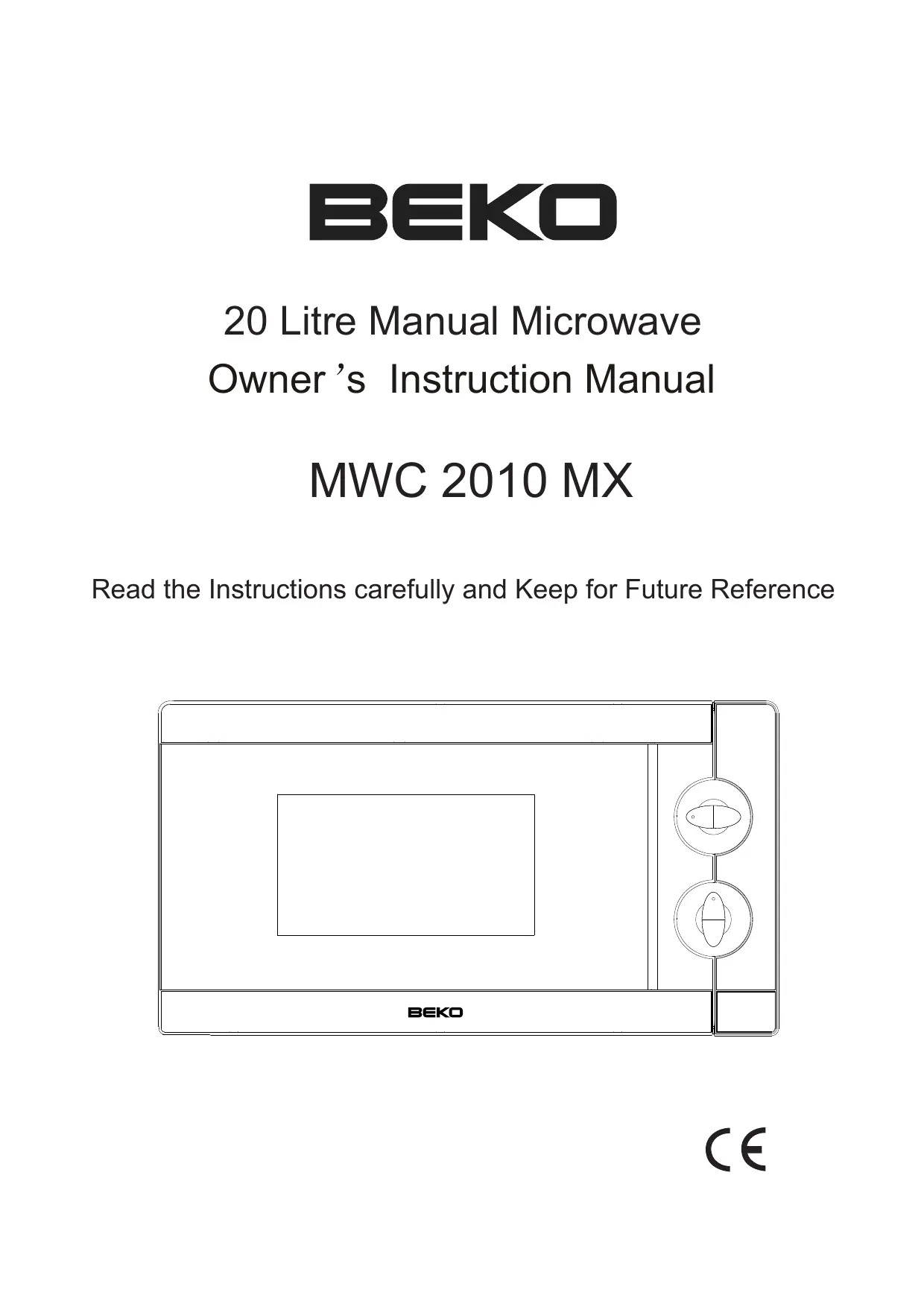

USER MANUAL MWC 2010 MX BEKO

Read the Instructions carefully and Keep for Future Reference

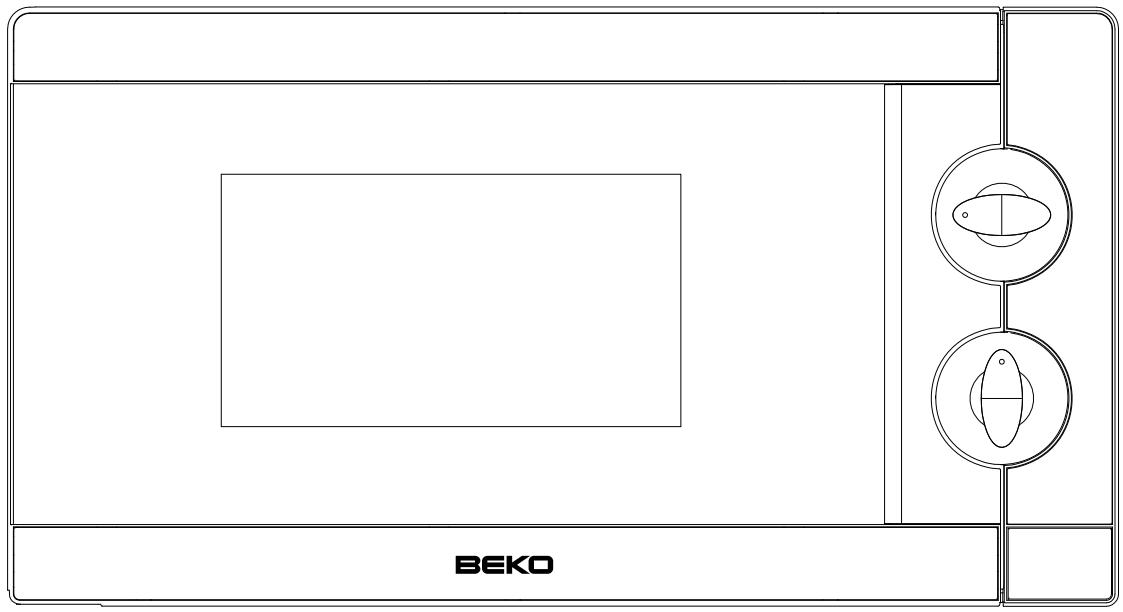

Technical line drawing of a device casing with two circular components and a labeled base (Beko), no readable text or symbols beyond the label.

CE

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• WARNING: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated;
• WARNING: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode
• WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
• only use utensils that are suitable for use in microwave ovens
• when heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• if smoke is observed, switch of or unplug the appliance and keep the door closed in order to stifle any flames;
• microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• the contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• the oven should be cleaned regularly and any food deposits removed;
• failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• if the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The temperature of accessible surfaces may be high when the appliance is operating.

SPECIFICATIONS

Power consumption:	230V~50Hz,1080W
Output:	700W
Grill heater:	800W
Operating Frequency:	2,450MHz
Outside Dimensions:	454mm(W) X 330mm(D) X 262mm(H)
Oven Cavity Dimensions:	315mm(W) X 296mm(D) X 211mm(H)
Oven Capacity:	20 litres
Uncrated Weight:	Approx. 10.5kg

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappears:
   a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
   b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly,

test the outlet with another appliance.

1. If the microwave power does not function:
   a) Check to see whether the timer is set.
   b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.

Note:

The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:

Misaligned Door

Damaged Door

Dents or Holes in Door Window and Screen

Dents in Cavity

If any of the above are visible, DO NOT use the oven.

1. This Microwave Oven weighs 10.5 kg and must be placed on a horizontal surface strong enough to

support this weight.

1. The oven must be placed away from high temperature and steam.

2. DO NOT place anything on top of the oven.

3. Keep the oven at least 8 cm away from both sidewalls and 10 cm away from rear wall to ensure the correct ventilation.

4. DO NOT remove the turn -table drive shaft.

5. As with any appliance, close supervision is necessary when used by children.

WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach of the power cord

2. This oven requires 1.2 KVA for its input. consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by ac 250V, 8 Amp Fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green of green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT SAFETY INSTRUCTIONS

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

- The oven must have sufficient air flow. Keep 10 cm space at back; 15 cm at both sides and 30cm from top of the oven. Don't remove oven's feet, do not block air events of the oven.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

- The oven should be cleaned regularly and any food deposits removed;

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.

5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.

6. Do not insert any object into the openings on the outer case.

7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
9. IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

Do not use metal pans or dishes with metal handles.

Do not use anything with metal trim.

Do not use paper covered wire twist-ties on plastic bags.

Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.

Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.

Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.

Do not use conventional meat or candy thermometers.

There are the thermometers available specifically for microwave cooking. These may be used.

1. Microwave utensils should be used only in accordance with manufacturer's instructions.
2. Do not attempt to deep-fry foods in this oven.
3. Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when

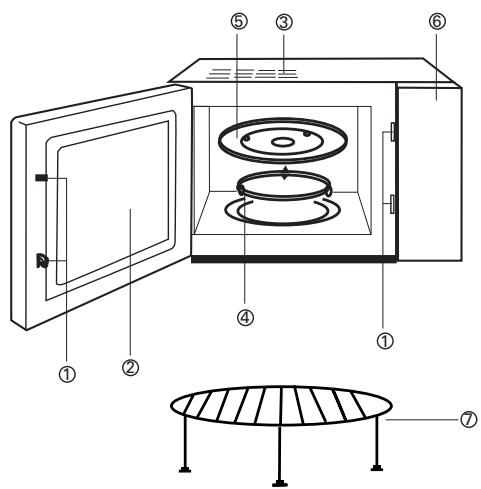

FEATURE DIAGRAM

Technical diagram of a microwave oven with labeled components and a corresponding schematic view.

removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
5. To reduce the risk of fire in the oven cavity:

(a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

(b) Remove wire twist-ties from bags before placing bag in oven.
(c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

(1) Door Safety Lock System
(2) Oven Window
(3) Oven Air Vent
(4) Roller Ring
(5) Glass Tray
(6) Control Panel
(7) Grill rack

CONTROL PANEL

(1) Power Select Control

(2) Timer-0-30 Minutes

Low: 17% Power Output

M.Low: 33% Power Output

Med: 55% Power Output

M.High: 77% Power Output

High: 100% Power Output

C1: 17% Power Output+83% Grill Power Output

C2: 28% Power Output+72% Grill Power Output

C3: 40% Power Output+60% Grill Power Output

Grill: 100% Grill Power Output

Operation Instruction

To set a cooking program: Put the food onto the glass turntable in the oven and close the door.

Turn Power Control knob to correct required power level.

* Defrost(kg)

Time(min)

Select correct cooking time by using timer.

Note: Oven will start cooking food once the timer is turned.

If you need cooking time for less than 5 minutes, turn timer past 5 minutes and then return to correct timing.

ALWAYS RETURN TIMER BACK TO ZERO position when food is removed from oven but the set cooking time has not completed.

STOP OVEN: Turn timer to Zero position. If the door of oven is opened during cooking, the microwave oven will automatically stop working, the cooking will continue after closing the door. If the remaining cooking time is not required, return timer back to Zero position before closing the door.

1. Turn the oven off and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth.

The use of harsh detergent or abrasives is not recommended.

1. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

2. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.

3. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

4. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

5. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapour collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

6. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

7. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

BEKO

Technical line drawing of a device casing with two circular components and a label 'BEKO' at the bottom (no readable text or symbols beyond label)

Technical diagram of a microwave oven with labeled components and a circular base structure.

Technical line drawing of a microwave oven with two circular components and a label 'BEKO' at the bottom (no other text or symbols)

CONSIGNES DE SECURITE IMPORTANTES VEUILLEZ LIRE ATTENTIVEMENT LES INSTRUCTIONS ET LES CONSERVER POUR REFERENCE ULTERIEURE

Technical diagram of a microwave oven with numbered components and a circular base structure labeled ⑦.

Technical line drawing of a device casing with two circular components and a labeled base (Beko), no readable text or symbols present.

SVARBIOS SAUGOS INSTRUKCIJOS – ATIDŽIAI PERSKAITYKITE IR SAUGOKITE, KAD GALĖTUMĖTE PASKAITYTI ATEITYJE

Technical diagram of a microwave oven with numbered components and a corresponding schematic view below.

(1) Galios parinkimo valdiklis
(2) Laikmatis: 0 – 30 minučių
Maža: 17% galios
Vid. maža: 33% galios
Vid.: 55% galios
Vid. aukšta: 77% galios
Didelè: 100% galios
C1: 17% galios + 83% grilio galios
C2: 28% galios + 72% grilio galios
C3: 40% galios + 60% grilio galios
Grilis: 100% grilio galios

Technical line drawing of a device casing with two circular components and a label 'BEKO' at the bottom (no readable text or symbols beyond branding)

INSTRUÇÕES IMPORTANTES SOBRE A SEGURANÇA LEIA CUIDADOSAMENTE E MANTENHA-AS PARA REFERÊNCIA POSTERIOR.

454mm(L) X 330mm(P) X 262mm(A)

315mm(L) X 296mm(P) X 211mm(A)

20 litros

Aprox. 10,5kg

ANTES DE TELEFONAR PARA A ASSISTÊNCIA TÉCNICA

Technical diagram of a microwave oven with numbered components and a corresponding schematic view.
