Product Type	Bagless Upright Vacuum Cleaner
Model	Philips StudioPower FC9088
Color	Red and Black
Dust Capacity	2.0 L (Transparent Dustbin)
Filtration System	HEPA 13 Filter
Motor Power	1400 W
Suction Power Control	Electronic with Foot Pedal
Maximum Suction Power	380 Air Watts
Cord Length	9 m
Operating Radius	12 m
Weight	6.0 kg
Dimensions (L x W x H)	300 x 380 x 490 mm
Noise Level	78 dB
Energy Efficiency Class	Class A
Washable Filter	Yes (HEPA Filter)
Dustbin Emptying Method	Quick Release with No Mess
Reach Around	360° Swivel Steering
Accessories Included	Crevice Tool, Small Brush, Large Floor Nozzle
Repair Index (France)	8.5 / 10
Spare Parts Available	Filter, Dustbin, Brush Roll, Hose

Frequently Asked Questions - StudioPower FC9088 PHILIPS

Why does the vacuum lose suction?

Check if the dustbin is full or the filter is clogged. Empty the dustbin and clean the HEPA filter under running water. Let it dry for 24 hours before reinserting.

How often should I clean the filter?

Clean the HEPA filter at least every 3 months. If you notice a drop in suction, clean it more frequently.

Can I wash the HEPA filter?

Yes, the HEPA 13 filter is washable. Rinse under cold water without detergent, then air dry completely before reuse.

What accessories come with the FC9088?

The vacuum includes a crevice tool, a small dusting brush, and a large floor nozzle. Additional accessories can be purchased separately.

How do I empty the dustbin?

Press the release button on the dustbin to detach it from the main body. Open the bottom flap over a trash bin to empty. The bin is easy to clean with a damp cloth.

The brush roll stopped spinning. What should I do?

Check if the brush roll is blocked by hair or debris. Remove the bottom plate and cut away tangled hair with scissors. Ensure the belt is intact.

Is the vacuum suitable for pet hair?

Yes, the StudioPower FC9088 has a powerful cyclonic suction and a brush roll designed to pick up pet hair effectively. Clean the brush roll regularly.

How long is the power cord?

The cord is 9 meters long, giving you a wide cleaning radius without needing to change outlets often.

Can I use the vacuum on hardwood floors?

Yes, the floor nozzle has soft bristles and the suction can be reduced via pedal to avoid scratching delicate surfaces.

Where can I find replacement parts?

Replacement filters, dustbins, brush rolls, and hoses are available on Philips’ official website or from authorized retailers. Use the model number FC9088.

USER MANUAL StudioPower FC9088 PHILIPS

Register your product and get support at

www.philips.com/welcome

StudioPower FC9080 SERIES

ENGLISH 6

DANSK 18

DEUTSCH 30

ΕΛΛΗΝΙΚΑ 43

ESPAÑOL 56

SUOMI 69

FRANÇAIS 81

ITALIANO 94

NEDERLANDS 107

NORSK 120

PORTUGUÊS 132

SVENSKA 145

TURKISH 157

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

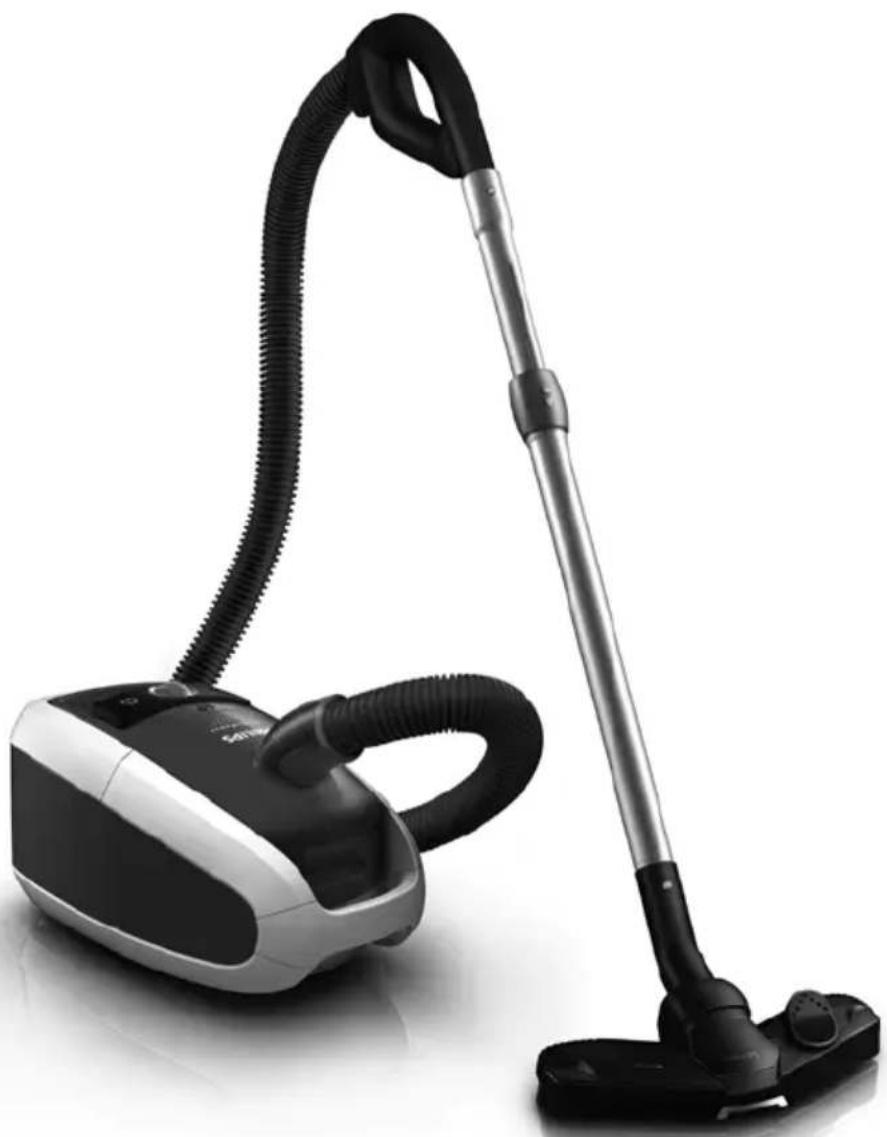

General description (Fig. 1)

1 Cover release tab 2 Filter grille release tab 3 Dustbag holder 4 Dustbag 5 Front handle 6 Hose connection opening 7 Dustbag-full indicator 8 On/off button 9 Suction power selection wheel 10 Cord rewind button 11 Hard floor nozzle (specific types only) 12 Tri-Active nozzle 13 Parking/storage ridge 14 Rocker switch for carpet/hard floor settings 15 Side brush 16 Mini turbo brush (specific types only) 17 Standard handgrip 18 Hose 19 Crevice tool 20 Small brush (specific types only) 21 Small nozzle 22 Accessory holder (specific types only) 23 Telescopic tube with conical connection (specific types only) 24 Accessory clip (specific types only) 25 Telescopic tube with button connection (specific types only) 26 Exhaust grille 27 HEPA 13 washable filter 28 HEPA-filter lock grille 29 Parking slot 30 Mains plug 31 Swivel wheel 32 Storage slot 33 Type plate 34 Rear wheels

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Never suck up water or any other liquid. Never suck up flammable substances and do not suck up ashes until they are cold.

Warning

- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth when it is connected to the vacuum cleaner and the vacuum cleaner is switched on.

Caution

• When you use the vacuum cleaner to vacuum ashes, fine sand, lime, cement dust and similar substances, the pores of the dustbag become clogged. As a result, the dustbag-full indicator will indicate that the dustbag is full. Replace the disposable dustbag or empty the reusable dustbag, even if it is not full yet (see chapter ‘Replacing/emptying the dustbag’).
• Never use the appliance without the motor protection filter. This could damage the motor and shorten the life of the appliance.
• Only use Philips s-bag™ synthetic dustbags or the reusable dustbag provided (some countries only).

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Before first use

1 Take the appliance and its accessories out of the box. 2 Remove any sticker, protective foil or plastic from the appliance.

Preparing for use

Connecting the hose

1 To connect the hose, push it firmly into the appliance ('click'). Make sure the recess in the hose connection fits exactly on the projection on housing of the appliance.

2 To disconnect the hose, push the buttons (1) and pull the hose out of the appliance (2).

Connecting the telescopic tube

1 To connect the telescopic tube to the handgrip:

- Telescopic tube with conical connection (specific types only): Insert the handgrip into the telescopic tube and turn a little.

- Telescopic tube with button connection (specific types only): Press the spring-loaded lock button on the handgrip and insert the handgrip into the telescopic tube. Fit the spring-loaded lock button into the opening in the tube ('click').

To disconnect the telescopic tube from the handgrip:

- Telescopic tube with conical connection (specific types only): Pull the handgrip out of the telescopic tube while turning it a little.

- Telescopic tube with button connection (specific types only): Press the spring-loaded lock button and pull the handgrip out of the tube.

2 Adjust the telescopic tube to the length you find most comfortable during vacuuming.

Hold the collar with one hand and pull the tube part above the collar upwards or push it downwards with the other hand.

3 To connect the tube to a nozzle, press the spring-loaded lock button on the tube and insert the tube into the nozzle. Fit the spring-loaded lock button into the opening in the nozzle ('click').

Accessory clip (specific types only)

1 Snap the crevice tool and the small nozzle into the clip. 2 Snap the accessory clip onto the tube. 3 Pull the accessory clip from the tube to remove it.

Accessory holder (specific types only)

1 Snap the accessory holder onto the handgrip. 2 Store accessories in the accessory holder by pushing them into the holder. To detach the accessories, pull them out of the holder.

You can store two accessories at a time in the accessory holder.

- Crevice tool and small nozzle.

Note: The small nozzle must be placed in the accessory holder as shown in the picture.

- Crevice tool and small brush.

Tri-Active nozzle

The Tri-Active nozzle is a multi-purpose nozzle for carpets and hard floors.

- The side brushes catch more dust and dirt at the sides of the nozzle and allow you to clean better along furniture and other obstacles.

- The opening at the front of the nozzle allows you to suck up larger particles.

1 Use the hard floor setting to clean hard floors (for instance for tiled, parqueted, laminated and linoleumed flooring): push the rocker switch on top of the nozzle with your foot to make the brush strip come out of the housing. At the same time, the wheel is lifted to prevent scratching and to increase manoeuvrability.

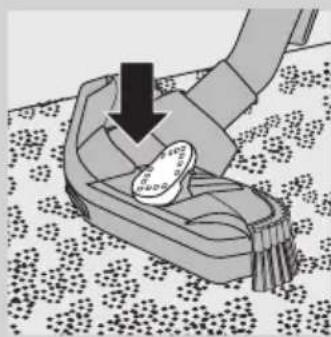

2 Use the carpet setting to clean carpets: push the rocker switch again to make the brush strip disappear into the nozzle housing. The wheel is lowered automatically.

Hard-floor nozzle (specific types only)

- The hard-floor nozzle is designed for gentle cleaning of hard floors.

Mini turbo brush (specific types only)

The mini turbo brush is specially designed for effectively picking up animal hairs and fluff from furniture and mattresses. The unique brush inside the mini turbo brush loosens the hair from the fabric. Then the hair is picked up by the vacuum cleaner.

The mini turbo brush can be attached to the handgrip of the hose or to the telescopic tube.

1 To attach the mini turbo brush, insert it into the handgrip or the telescopic tube and turn a little. 2 To detach the mini turbo brush, pull it out of the handgrip or the telescopic tube while turning it a little.

Using the appliance

1 Pull the cord out of the appliance and put the mains plug in the wall socket. 2 Press the on/off button on top of the appliance to switch on the appliance.

Tip: To avoid bending your back, press the on/off button with your foot.

3 If you want to park the tube for a moment during vacuum cleaning, insert the ridge on the nozzle into the parking slot. 4 To ensure stable parking of the telescopic tube, adjust the tube to the shortest length. 5 To switch off the appliance, press the on/off button on top of the appliance or the on/off/standby button on the remote control.

Adjusting suction power

1 During vacuum cleaning, you can adjust the suction power with the selection wheel on top of the appliance.

- Use maximum suction power to vacuum very dirty carpets and hard floors.

- Use minimum suction power to vacuum curtains, tablecloths etc.

Storage

1 Switch off the appliance and remove the mains plug from the wall socket.

2 Press the cord rewind button to rewind the mains cord.

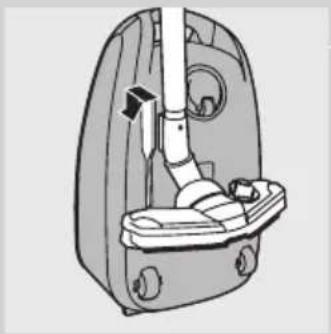

3 Put the appliance in upright position. To attach the nozzle to the appliance, insert the ridge on the nozzle into the storage slot.

- To ensure stable parking of the telescopic tube, adjust the tube to the shortest length.

4 Specific types only: Always put the Tri-Active nozzle in the carpet setting when you store it. Also prevent the side brushes from becoming bent.

Replacing/emptying the dustbag

Always unplug the appliance before you replace the disposable dustbag or empty the reusable dustbag.

Replacing the disposable dustbag

- Replace the dustbag as soon as the dustbag-full indicator has changed colour permanently, i.e. even when the nozzle is not placed on the floor.

1 Pull the cover upwards to open it.

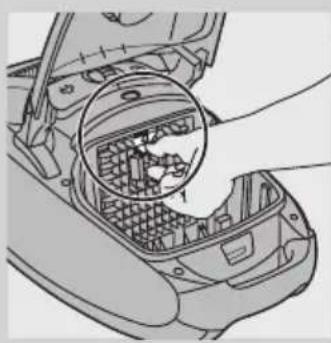

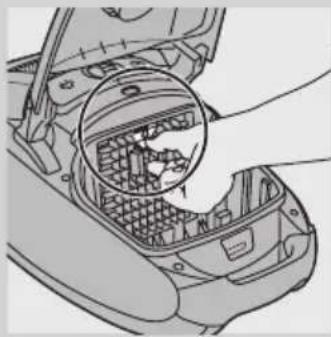

2 Lift the dustbag holder out of the appliance.

Make sure you hold the dustbag upright when you lift it out of the appliance.

3 Pull at the cardboard tag to remove the full dustbag from the holder. When you do this, the dustbag is sealed automatically.

4 Slide the cardboard front of the new dustbag into the two grooves of the dustbag holder as far as possible.

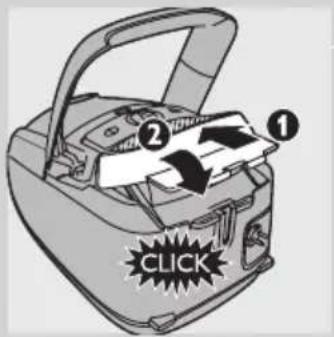

5 Put the dustbag holder back into the vacuum cleaner. Note: If no dustbag has been inserted, you cannot close the cover. 6 Push the cover downwards to close it.

Emptying the reusable dustbag (some countries only)

In some countries, this vacuum cleaner also comes with a reusable dustbag that can be used and emptied repeatedly. You can use the reusable dustbag instead of disposable dustbags.

To remove and insert the reusable dustbag, simply follow the instructions in 'Replacing the disposable dustbag'.

To empty the reusable dustbag:

1 Slide the clip off the dustbag sideways. 2 Shake out the contents into a dustbin. 3 To close the dustbag, slide the clip back onto the bottom edge of the dustbag.

Cleaning and maintenance of filters

Always unplug the appliance before you clean or replace the filters.

Permanent motor protection filter

Clean the permanent motor protection filter every time you empty the reusable dustbag or replace the disposable dustbag.

1 Remove the dustbag holder with the dustbag.

1 Remove the dustbag holder with the dustbag.

2 Press the tab at the top of the motor protection filter holder down to release it.

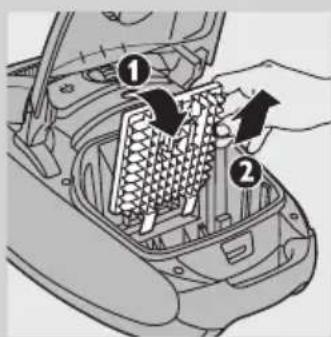

3 Pull the top of the motor protection filter holder towards you (1) and lift the filter holder out of the dustbag compartment (2).

4 Shake the filter over a dustbin to clean it.

5 Put the clean filter back into the filter holder.

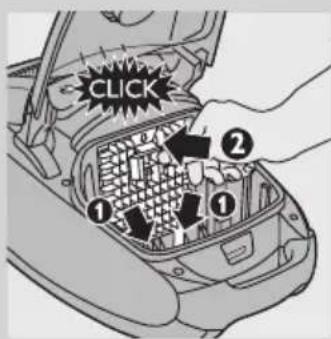

6 Fit the two lugs of the filter holder behind the ridge at the bottom to ensure that it fits properly at the top (1). Then press the filter holder home ('click') (2). 7 Place the dustbag holder with the dustbag back into the appliance and close the cover.

HEPA 13 washable filter

HEPA 13 washable filter is able to remove 99.95% of all particles down to 0.0003mm in size from the outlet air. This not only includes normal house dust, but also harmful microscopic vermin such as dust mites and their excrements, which are well-known causes of respiratory allergies.

Note: To guarantee optimal dust retention and performance of the vacuum cleaner, always replace the HEPA filter with an original Philips filter of the correct type (see chapter 'Ordering accessories').

Clean the washable HEPA 13 filter every 6 months. You can clean the washable HEPA 13 filter max. 4 times. Replace the filter after it has been cleaned 4 times.

1 Open the exhaust grille (1) and pull it out of the appliance (2).

2 Pull the top of the HEPA-filter lock grille towards you and put it in upright position.

3 Take out the washable HEPA 13 filter. 4 Rinse the pleated side of the HEPA 13 filter under a hot slow-running tap.

- Hold the filter in such a way that the pleated side points upwards and the water flows parallel to the pleats. Hold the filter at an angle so that the water washes away the dirt inside the pleats.

• Turn the filter 180° and let the water flow along the pleats in opposite direction.
• Continue this process until the filter is clean.

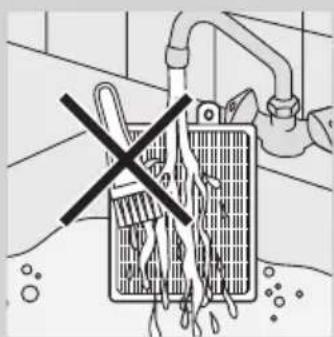

Never clean the washable filter with a brush.

Note: Cleaning does not restore the original colour of the filter, but does restore its filtration power.

5 Carefully shake the water from the surface of the filter. Let the filter dry at least 2 hours before you put it back into the vacuum cleaner. 6 Put the filter back into the appliance. Lower the HEPA-filter lock grille onto the HEPA filter. 7 Insert the filter grille into the appliance (1) and push the other end of filter grille home ('click') (2).

Ordering accessories

For purchasing dustbags, filters or other accessories for this appliance, please visit www.philips.com, consult the worldwide guarantee leaflet or contact the Philips Consumer Care Centre in your country.

Ordering dustbags

• Philips Classic s-bag ^TM synthetic dustbags are available under type number FC8021.
• Philips Clinic s-bag ^™ high filtration synthetic dustbags are available under type number FC8022.
• Philips Anti-odour s-bag ^TM synthetic dustbags are available under type number FC8023.

- Reusable dustbags (some countries only) are available under code number 4322 004 93290.

Note: Please visit www.s-bag.com for more information about the s-bag.

Ordering filters

- HEPA 13 washable filters are available under type number FC8038.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

1 The suction power is insufficient.

A Check if the dustbag is full. If necessary, replace the disposable dustbag or empty the reusable dustbag (some countries only). B Check if the filters need to be cleaned or replaced. If necessary, clean or replace the filters. C Check if the suction power selection wheel is in maximum position. D Check if the nozzle, tube or hose is blocked up. - To remove the obstruction, disconnect the blocked-up item and connect it (as far as possible) the other way around. Switch on the vacuum cleaner to force the air through the blocked-up item in opposite direction.
