KEI8440XXK - Cooker ZANKER - Free user manual and instructions

Product type	Electric cooker
Brand	Zanker
Model	KEI8440XXK
Dimensions (W x H x D)	60 cm x 90 cm x 60 cm
Net weight	55 kg
Power supply	220-240 V ~ 50/60 Hz
Total power	12 kW
Hob type	Ceramic hob with 4 cooking zones
Oven functions	Fan-assisted, grill, natural convection, defrost
Oven capacity	65 liters
Energy class	A
Oven cleaning	Catalytic (catalytic back wall)
Child safety	Control lock
Automatic shut-off	Yes, programmable
Residual heat indicator	Yes, for each cooking zone
Oven door	Removable double glazing
Spare parts	Available (plates, heating elements, glass panels)
Repairability	Repairability index: 8.0/10
Package contents	Cooker, grid, drip tray, user manual

Frequently Asked Questions - KEI8440XXK ZANKER

How to turn on the Zanker KEI8440XXK cooker?

To turn on the cooker, plug it into a suitable power outlet. Turn the oven function knob to the desired position (fan-assisted, grill, etc.) and set the temperature using the thermostat. For the hobs, turn the corresponding knob to the desired cooking zone.

How to clean the ceramic hob?

Use a special ceramic hob cleaner and a soft cloth. Apply the product, let it sit for a few minutes, then wipe with a damp cloth. Avoid abrasive sponges that could scratch the surface.

What to do if the oven stops heating?

Check that the cooker is properly plugged in and that the circuit breaker has not tripped. Make sure the function and temperature are correctly set. If the problem persists, contact customer service.

How to use the grill function?

Place the food on the grid at the top level of the oven. Select the grill function (wavy lines symbol) and set the maximum temperature. Monitor cooking to avoid burning the food.

Is there a child lock?

Yes, the cooker has a child lock. To activate it, press and hold the lock button (often a padlock symbol) for 3 seconds. An audible signal confirms activation.

How to replace an oven bulb?

First unplug the cooker. Remove the glass cover of the bulb, unscrew the defective bulb and replace it with a bulb of the same type (usually 25 W, E14 base). Refit the cover and plug back in.

The residual heat indicator stays on for a long time, is this normal?

Yes, it's normal. Ceramic hob zones cool down slowly. The indicator turns off automatically when the temperature drops below 60 °C. Do not touch the zones while the indicator is on.

How to set the oven timer?

Press the 'Timer' key, set the desired time using the +/- keys, then confirm. The oven will turn off automatically at the end of the programmed time. An audible alarm sounds.

What is the energy consumption of this cooker?

The Zanker KEI8440XXK cooker is rated A in energy efficiency. Consumption depends on use, but a standard oven consumes approximately 0.8 kWh per conventional cooking cycle.

Where to find the user manual?

The manual is available in PDF format on notice-facile.com. You can download it for free by searching for model KEI8440XXK. It contains 60 pages detailing installation, use, and maintenance.

USER MANUAL KEI8440XXK ZANKER

Powerfunctie

Timer

Diagram showing a beam supported by a circular component and a tray with circular holes, with arrows indicating force direction (no text or symbols)

i

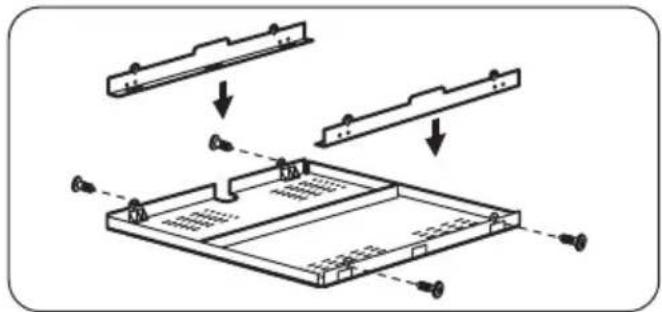

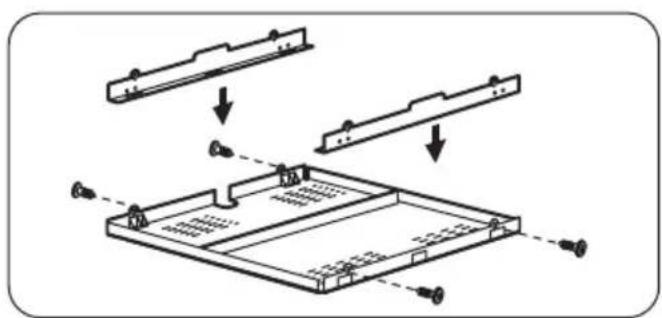

Technical diagram showing assembly steps of a mechanical component with no visible text or symbols

Induction 7,4 kW Made in Germany

Ser.Nr. ..... 7,4 kW

ZANKER

Safety information	16
Safety instructions	17
Product description	19
Daily use	20
Helpful hints and tips	22

Care and cleaning	23
Troubleshooting	24
Installation instructions	25
Technical information	28
Environment concerns	28

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

⚠ Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
  • If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• If the glass ceramic surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• After use, switch off the hob element by its control and do not rely on the pan detector.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.

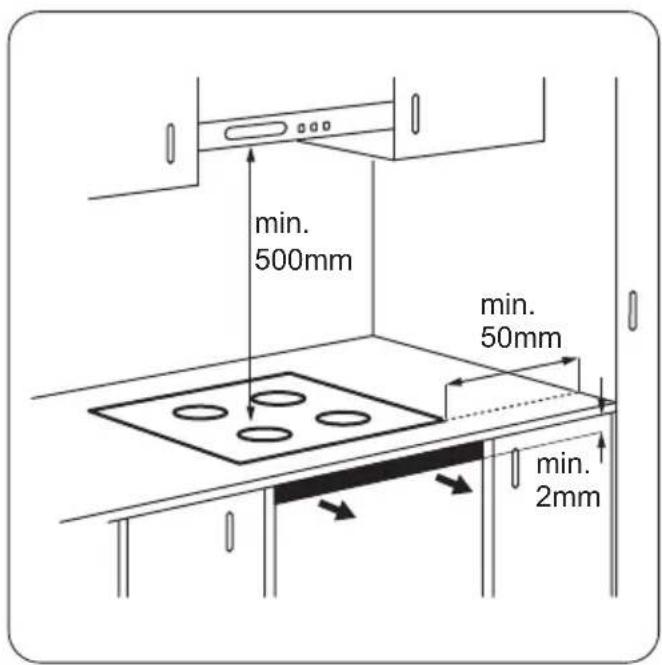

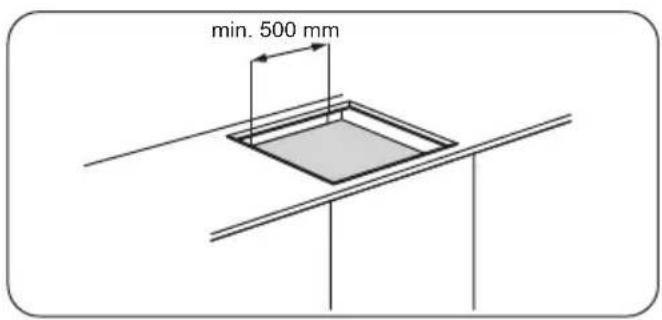

• Keep the minimum distance from the other appliances and units.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.

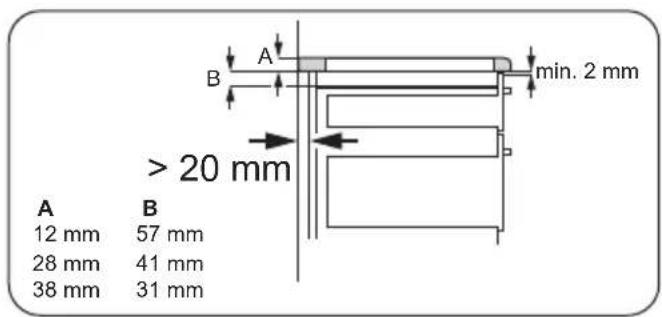

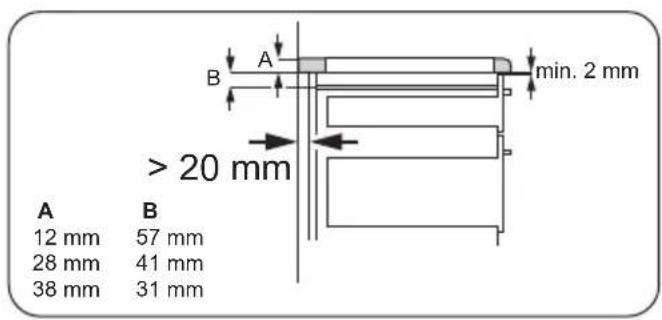

• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.

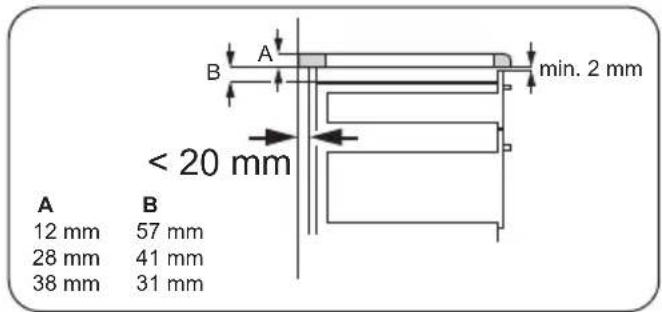

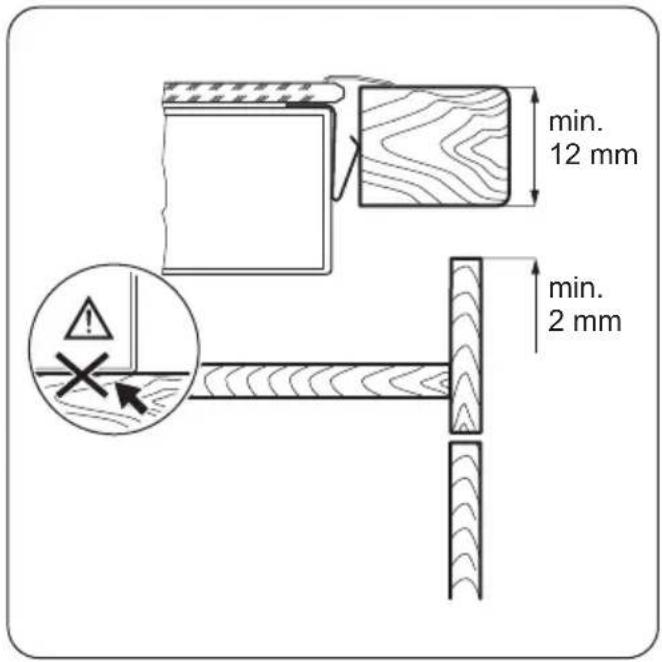

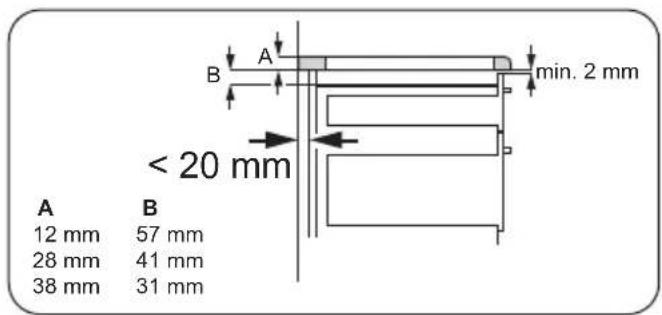

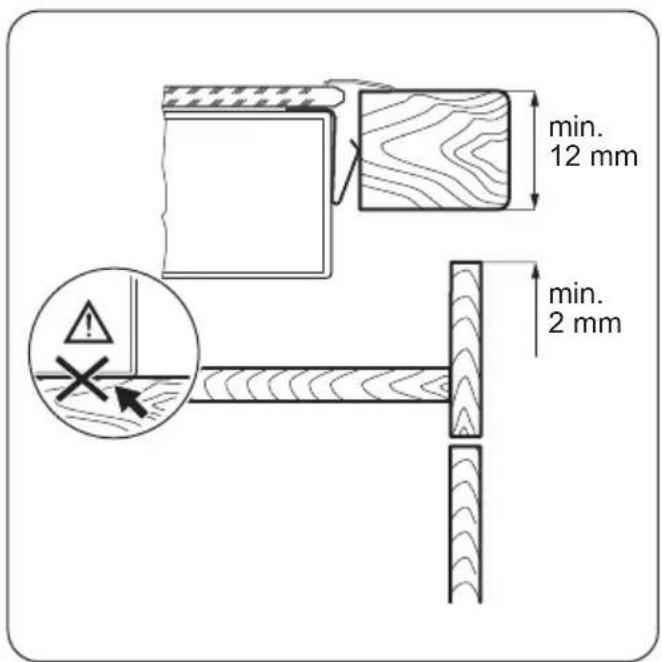

• Make sure that the ventilation space of 2 mm, between the worktop and the front of the below unit, is free. The warranty does not cover damages caused by the lack of an adequate ventilation space.

- The bottom of the appliance can get hot. We recommend to install a non-combustile separation panel under the appliance to prevent access to the bottom.

Electrical connection

Warning! Risk of fire and electrical shock.

• All electrical connections must be made by a qualified electrician.
  • The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on cable.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• The electrical installation must have an isolation device which lets you disconnect the appliance from

the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

- Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

Use

Warning! Risk of injury, burns or electric shock.

- Use this appliance in a household environment.

- Do not change the specification of this appliance.

- Do not use an external timer or a separate remote-control system to operate the appliance.

- Do not let the appliance stay unattended during operation.

- Do not operate the appliance with wet hands or when it has contact with water.

- Do not put cutlery or saucepan lids on the cooking zones. They can become hot.

- Set the cooking zone to "off" after each use. Do not rely on the pan detector.

- Do not use the appliance as a work surface or as a storage surface.

- If there is a crack on the surface, disconnect power supply to prevent the electrical shock.

- Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.

Warning! Risk of fire or explosion.

- Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.

- The vapours that very hot oil releases can cause spontaneous combustion.

- Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.

- Do not put flammable products or items that are wet with flammable products in, near or on the appliance. - Do not try to extinguish a fire with water. Disconnect the appliance and cover the flame with a lid or a fire blanket.

Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

Care and Cleaning

Warning! Risk of damage to the appliance.

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

Warning! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

1 Induction cooking zone
2 Induction cooking zone
3 Control panel
4 Induction cooking zone
5 Induction cooking zone

Control panel layout

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

Sensor field Function
1	➊	To activate and deactivate the appliance.
2	Tunisia	To lock / unlock the control panel.
3	P	To activate the Power function.
4	A heat setting display. To show the heat setting.
5	Timer indicators of cooking zone.	To show for which zone you set the time.
6	The timer display. To show the time in minutes.
7	+ / —	To increase or decrease the heat setting.
8	+ / —	To increase or decrease the time.
9	Tunisia	To select a cooking zone.

Heat setting displays

Display Description
0	The cooking zone is deactivated.
u	The Keep Warm function operates.
1 - 9	The cooking zone operates.
R	The Automatic Heat-up function operates.
F	The cookware is incorrect or too small, or there is no cookware on the cooking zone.
E	There is a malfunction.
H	A cooking zone is still hot (residual heat).
L	The Lock / The Child Safety Device operates.
P	The Power function operates.
-	The Automatic Switch-Off operates.

Residual heat indicator

Warning! The risk of burns from residual heat!

The induction cooking zones make the heat necessary for cooking directly in the bottom of the cookware. The glass ceramic is hot from the heat of the cookware.

Daily use

Activation and deactivation

Touch for 1 second to activate or deactivate the appliance.

Automatic Switch Off

The function deactivates the appliance automatically if:

• All cooking zones are deactivated (☐).
- You do not set the heat setting after you activate the appliance.
- You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth, etc.). An acoustic signal sounds some time and the appliance deactivates. Remove the object or clean the control panel.
- The appliance becomes too hot (e.g. when, a saucepan boils dry). Before you use the appliance again, the cooking zone must be cool.
- You use incorrect cookware. The symbol F comes on and the cooking zone deactivates automatically after 2 minutes.

• You do not deactivate a cooking zone or change the heat setting. After some time - comes on and the appliance deactivates. See below.
• The relation between heat setting and times of the Automatic Switch Off function:

• ☐, ☐—☐6 hours
• 3 - 4 - 5 hours
- 5 — 4 hours
- 6 -9 1.5 hours

The heat setting

Touch + to increase the heat setting. Touch - to decrease the heat setting. The display shows the heat setting. Touch + and - at the same time to deactivate the cooking zone.

Automatic Heat Up

You can get a necessary heat setting in a shorter time if you activate the Automatic Heat Up function. This function sets the highest heat setting for some time (see the diagram), and then decreases to the necessary heat setting.

To start the Automatic Heat Up function for a cooking zone:

1. Touch P. The symbol comes on in the display.
2. Immediately touch + . The symbol ☐ comes on in the display.
3. Immediately touch — again and again until the necessary heat setting comes on. After 3 seconds R comes on in the display.

To stop the function, touch + .

Power function

The Power function makes more power available to the induction cooking zones. The Power function can be activated for a limited period of time (see Technical Information chapter). After that, the induction cooking zone automatically sets back to highest heat setting. To activate, touch P , comes on. To deactivate, touch P or —

Power management

The power management divides the power between two cooking zones in a pair (see the illustration). The power function increases the power to the maximum level for one cooking zone in the pair. The power in the second cooking zone automatically decreases. The heat setting display for the reduced zone changes between two levels.

Timer

Count Down Timer

Use the Count Down Timer to set how long the cooking zone operates for only this one time.

Set the Timer after the selection of the cooking zone.

You can set the heat setting before or after you set the timer.

• To set the cooking zone: touch 🏠 again and again until the indicator of a necessary cooking zone comes on.
- To activate or change the Timer: touch + or — of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone starts to flash slow, the time counts down.
- To deactivate the Timer: set the cooking zone with ⏻ and touch – to deactivate the Timer. The remaining time counts back to ☐. The indicator of the cooking zone goes out.
- To see the remaining time: set the cooking zone with ⏻. The indicator of the cooking zone starts to flash quickly. The display shows the remaining time. When the time comes to an end, the sound operates and 00 flashes. The cooking zone deactivates.
• To stop the sound: touch ⏻

Minute Minder

You can use the Timer as a Minute Minder while the cooking zones do not operate. Touch ⏻ . Touch or — to set the time. When the time comes to an end, the sound operates and 00 flashes

• To stop the sound: touch 🔊

Lock

When the cooking zones operate, you can lock the control panel, but not Ⓘ. It prevents an accidental change of the heat setting.

First set the heat setting.

To start this function touch ⏻The symbol comes on for 4 seconds.

The Timer stays on.

To stop this function touch 🔒. The heat setting that you set before comes on.

When you stop the appliance, you also stop this function.

The Child Safety Device

This function prevents an accidental operation of the appliance.

To activate The Child Safety Device

• Activate the appliance with ⏻. Do not set the heat settings.
• Touch 🔒 for 4 seconds. The symbol 📁 comes on.
• Deactivate the appliance with ①.

Helpful hints and tips

INDUCTION COOKING ZONES

For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.

Cookware for induction cooking zones

Important! Use the induction cooking zones with correct cookware.

Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, the bottom made of multi-layer (with correct mark from a manufacturer).
• not correct: aluminium, copper, brass, glass, ceramic, porcelain.

Cookware is correct for an induction hob if ...

• ... some water boils very quickly on a zone set to the highest heat setting.
  • ... a magnet pulls on to the bottom of the cookware.

The bottom of the cookware must be as thick and flat as possible.

Cookware dimensions: induction cooking zones adapt to the dimension of the bottom of the cookware automatically to some limit.

To deactivate The Child Safety Device

• Activate the appliance with ⏻. Do not set the heat settings. Touch 🔒 for 4 seconds. The symbol 📄 comes on.
• Deactivate the appliance with ①.

To override The Child Safety Device for only one cooking time

• Activate the appliance with ⏻. The symbol Ⓛ comes on.
• Touch 🔒 for 4 seconds. Set the heat setting in 10 seconds. You can operate the appliance.
• When you deactivate the appliance with Ⓐ, The Child Safety Device operates again.

The noises during operation

If you can hear

• crack noise: cookware is made of different materials (Sandwich construction).
• whistle sound: you use one or more cooking zones with high power levels and the cookware is made of different materials (Sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.

The noises are normal and do not refer to appliance malfunction.

Energy saving

How to save energy

• If it is possible, always put the lids on the cookware.
• Put cookware on a cooking zone before you start it.
• Use the residual heat to keep the food warm or to melt it.

The cooking zone efficiency

The cooking zone efficiency is related to the diameter of the cookware. The cookware with a smaller diameter than the minimum receives only a part of the power generated by the cooking zone. For the minimum diameters see the Technical Information chapter.

The Examples of cooking applications

The relation between the heat setting and the cooking zone consumption of power is not linear. When you increase the heat setting it is not proportional to the increase of the cooking zone consumption of power.

It means that the cooking zone with the medium heat setting uses less than a half of its power.

The data in the table is for guidance only.

Heat setting	Use to: Time Hints Nominal power			consumption
1	Keep warm the food you cooked	as required	Put a lid on a cookware	3 %
1 - 2 Hollandaise sauce, melt: butter, chocolate, gelatine		5 - 25 min Mix from time to time 3 – 5 %
1 - 2 Solidify: fluffy omelettes, baked eggs		10 - 40 min Cook with a lid on 3 – 5 %
2 - 3 Simmer rice and milkbased dishes, heating up ready-cooked meals		25 - 50 min Add the minimum twice as much liquid as rice, mix milk dishes part procedure through		5 – 10 %
3 - 4	Steam vegetables, fish, meat	20 - 45 min	Add some tablespoons of liq-uid	10 – 15 %
4 - 5	Steam potatoes	20 - 60 min	Use max. 1⁄4 l water for 750 g of potatoes	15 – 21 %
4 - 5 Cook larger quantities of food, stews and soups		60 - 150 min Up to 3 l liquid plus ingredi-ents		15 – 21 %
6 - 7 Gentle fry: escalope, veal cor-don bleu, cutlets, rissoles, saus-ages, liver, roux, eggs, pan-cakes, doughnuts		as necessary Turn halfway through 31 – 45 %
7 - 8 Heavy fry, hash browns, loin steaks, steaks		5 - 15 min Turn halfway through 45 – 64 %
9	Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips			100 %
P	Boil large quantities of water. Power management is activated.

Information on acrylamides

Important! According to the newest scientific knowledge, if you brown food (specially the one which

contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

Care and cleaning

Clean the appliance after each use. Always use cookware with clean bottom.

Scratches or dark stains on the glass-ceramic cause no effect on how the appliance operates.

To remove the dirt:

1. – Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the appliance. Use a special

scraper for the glass. Put the scraper on the glass surface at an acute angle and move the blade on the surface.

- Remove after the appliance is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discolorations. Use a special

cleaning agent for glass ceramic or stainless steel.

1. Clean the appliance with a moist cloth and some detergent.

2. At the end rub the appliance dry with a clean cloth.

Troubleshooting

Problem Possible cause Remedy
You cannot activate the appliance or operate it.	Activate the appliance again and set the heat setting in less than 10 seconds.
You touched 2 or more sensor	fields at the same time.	Touch only one sensor field.
There is water or fat stains on the	control panel.	Clean the control panel.
An acoustic signal sounds and the appliance deactivates.An acoustic signal sounds when the appliance is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The appliance deactivates. You put something on the sensor field ➊ .		Remove the object from the sensor field.
The residual heat indicator does not come on.	The cooking zone is not hot because it operated only for a short time.	If the cooking zone operated sufficiently long to be hot, speak to the service centre.
The heat setting changes between two levels.	The Power management is activated.	Refer to “Power management”.
The sensor fields become hot. The cookware is too large or you put it too near to the controls.		Put large cookware on the rear cooking zones if necessary.
- comes on.	The Automatic Switch Off operates.	Deactivate the appliance and activate it again.
L comes on.	The Child Safety Device or the Lock function operates.	Refer to the chapter “Daily Use”.
F comes on.	No cookware is on the cooking zone.	Put cookware on the cooking zone.
The cookware is incorrect. Use the correct cookware.
The diameter of the bottom of the	cookware is too small for the cooking zone.	Move cookware to a smaller cooking zone.
E and a number come on.	There is an error in the appliance. Disconnect the appliance from the electrical supply for some time. Disconnect the fuse from the electrical system of the house. Connect it again. If E comes on again, speak to the service centre.
E4 comes on.	There is an error in the appliance because a cookware boils dry. The overheating protection for the cooking zones and the Automatic Switch Off operate.	Deactivate the appliance. Remove the hot cookware. After, approximately 30 seconds, activate the cooking zone again. If the cookware was the problem, the error message goes out of the display, but the residual heat indicator can stay. Let the cookware become sufficiently cool and refer to “Cookware for the induction cooking zone” to see if your cookware is compatible with the appliance.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the customer service. Give the data from the rating plate, three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on.

Installation instructions

Make sure, you operated the appliance correctly. If not the servicing by a customer service technician or dealer will not be free of charge, also during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

Warning! Refer to "Safety information" chapter.

Before the installation

Before the installation of the appliance, record the information below from the rating plate. The rating plate is on the bottom of the appliance casing.

• Model ......
• PNC ....
• Serial number ....

Built-in appliances

- Only use the built-in appliances after you assemble the appliance into correct built-in units and work surfaces that align to the standards.

Connection cable

• The appliance is supplied with the connection cable.
• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90°C; or higher). Speak to your local Service Centre.

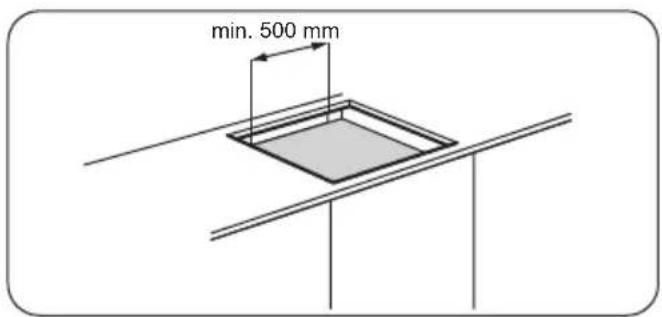

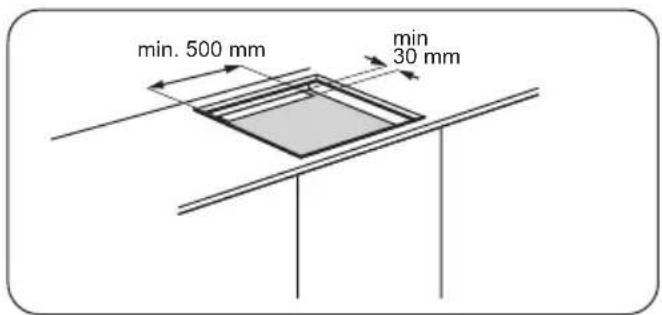

Assembly

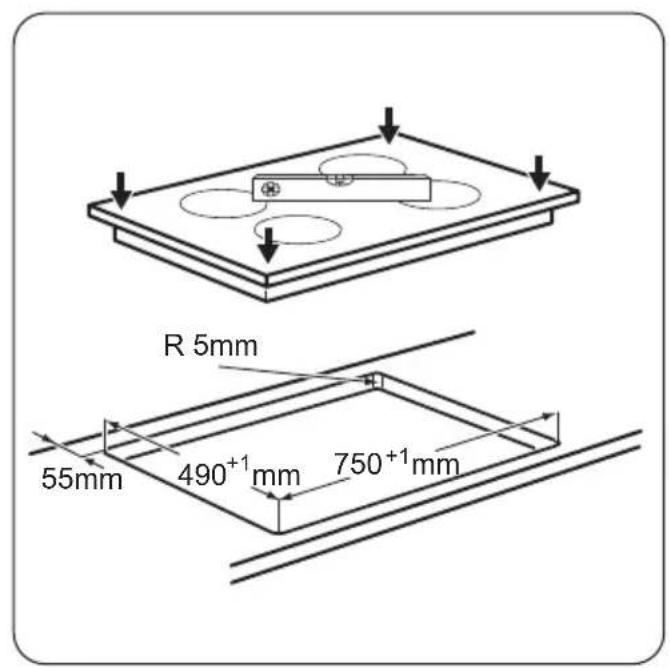

Diagram showing a beam supported by circular supports and a tray with circular holes, with arrows indicating force direction (no text or symbols)

i

Technical diagram showing assembly steps of a mechanical component with no visible text or symbols

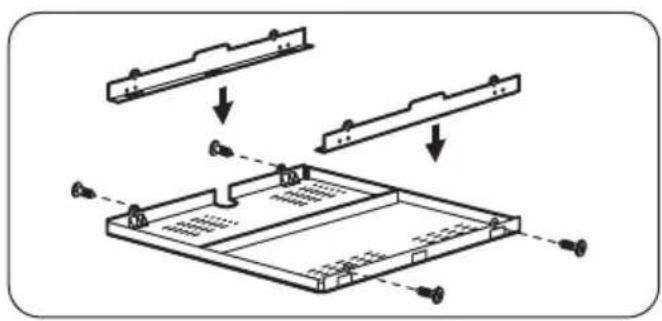

If you use a protection box (an additional accessory ¹ ), the front airflow space of 2 mm and protective floor directly below the appliance are not necessary. You can not use the protection box if you install the appliance above an oven.

1) The protection box accessory may not be available in some countries. Please contact your local supplier.

Technical information

Induction 7,4 kW Made in Germany

Ser.Nr. ..... 7,4 kW

ZANKER

Cooking zones power

Cooking zone Nominal Power (Max heat setting) [W]	Power Function activated [W]	Power function maximum duration [min]	Minimum cook-ware diameter [mm]
Right rear — 300 mm	2400 W 3700 W 10 210
Middle front — 145 mm	1400 W 125
Left rear — 180 mm 1800 W 145
Left front — 210 mm 2300 W 3700 W 10 180

The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.

Environment concerns

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging materials are friendly to the environment and can be recycled. The plastic compo-

nents are identified by marking: >PE<,>PS<, etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.

Sommaire

Fonction Booster

Minuteur

Minuteur dégressif

Diagram showing a beam supported by circular supports and a tray with circular holes, with arrows indicating force direction (no text or symbols)

i

Technical diagram showing assembly steps of a mechanical component with no visible text or symbols

Induction 7,4 kW Made in Germany

Ser.Nr. ..... 7,4 kW

ZANKER

Power-Funktion

Timer

Kurzzeitmesser

Diagram showing a beam supported by circular supports and a tray with circular holes, with arrows indicating force direction (no text or symbols)

i

Induction 7,4 kW Made in Germany

Ser.Nr. ..... 7,4 kW

ZANKER

Kochzonenleistung
