GVC D91CB - Tumble dryer CANDY - Free user manual and instructions

Product Type	Condenser Tumble Dryer
Brand	Candy
Model	GVC D91CB
Drying Capacity	9 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Net Weight	42 kg
Power Supply	220-240 V, 50 Hz
Maximum Absorbed Power	2200 W
Ventilation Type	Condenser
Number of Programs	15
Main Programs	Cotton, Synthetics, Delicate, Mixed, Shirts, Sport, Express 30 min
Options	Delayed Start, Anti-crease, Child Safety
Noise Level	65 dB(A)
Energy Class	B
Annual Energy Consumption	560 kWh
Maintenance	Clean filter after each cycle, empty water tank after each use
Water Tank Full Indicator	Yes, with audible signal
Filter Indicator	Yes, after each cycle
Drum Reversal	Yes, reversible movement
Overheat Protection	Yes, automatic shut-off
Spare Parts Available	Filters, belts, heating elements, capacitors, timers
Repairability	Repairability index: 8/10 (according to manufacturer)

Frequently Asked Questions - GVC D91CB CANDY

How to clean the filter of the Candy GVC D91CB tumble dryer?

Open the door and remove the filter located at the bottom of the opening. Remove lint by hand or with a vacuum cleaner. Rinse the filter with clean water if necessary, dry it and put it back in place. Do this after each cycle.

What to do if the dryer does not start?

Check that the appliance is plugged in and that the fuse or circuit breaker has not tripped. Make sure the door is properly closed and that the delayed start button is not activated. Refer to the manual for troubleshooting steps.

How to empty the water tank?

The water tank is usually located at the top right. Pull it towards you, empty it into a sink and replace it. The tank full indicator will go out automatically.

The dryer takes too long to dry, why?

This may be due to a clogged filter, a full water tank, or too large a load. Select the program suitable for the fabric. Clean the filter and check the tank.

Can I dry woolen clothes with this model?

Some special programs (wool, delicate) allow drying wool at low temperature. Use a laundry net and do not overload. Check the garment label.

How to activate child safety?

Press and hold the 'Child Safety' button (often symbolized by a padlock) for 3 seconds. An indicator light comes on. To deactivate, repeat the operation.

The dryer makes unusual noise, what to do?

Check that there are no foreign objects in the drum (coins, buttons). Make sure the appliance is level. If the noise persists, contact customer service.

How to use the delayed start function?

Select the desired program, then press the 'Delayed Start' button several times to choose the number of hours delay. Press 'Start' to begin the countdown.

Can I stop the cycle in progress?

Yes, press the 'Stop/Pause' button or turn the dial to 'Stop'. Wait a few seconds before opening the door. Close and restart if necessary.

How to maintain the condenser?

The condenser should be cleaned periodically. Open the dedicated flap (often at the bottom of the appliance), remove the condenser and rinse it with clean water. Let it dry before putting it back.

USER MANUAL GVC D91CB CANDY

Safety Reminders	3
Drain Hose Kit: Fitting Instructions	8
Preparing the Load	9
Controls and Indicators	10
Selecting the Programme	11
Door and Filter	12
Condenser	13
Operation	14
Cleaning and Routine Maintenance	14
Troubleshooting	15
Customer Service	15

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

SAFETY REMINDS

Use

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

- WARNING Misuse of a tumble dryer may create a fire hazard.

- This appliances is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments"

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use ( even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.'

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.

• Do not allow children to play with the machine or its controls.

• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

• WARNING Where the hot surface symbol is 🔒 located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
  •Maximum load drying weight: see energy label.

The Laundry

- Do not dry unwashed items in the tumble dryer.

- WARNING Do not tumble dry fabrics treated with dry cleaning fluids.

- WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

- Always refer to the laundry care labels for directions on suitability for drying.

•Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

- Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
• Installing the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.
• Check regularly that the air flowing through the dryer is not restricted.
• Check frequently the fluff filter after use, and clean, if necessary.
• Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet
• NEVER install the dryer up against curtains.
• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.

-Stacking kit Mod 35100019: for minimum washing machine depth 49 cm -Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of that above, obtainable from our spa service.

The stacking kit shall be one of that above, obtainable from our spare service.

The instructions for installation and any fixing attachments, are provided with the staking kit.

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between +2°C and +35°C. Please note that operating in cold condition (between +2 and +15°C) might simply some water condensation and water drops on floor.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
  • To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2012/19/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 10A.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extensionleads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.
If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.
Do not plug the machine in and switch it

DRAIN HOSE : FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of:1 hose and 1 tap.

WARNING!

Switch off and remove the tumble dryer plug from the before carrying out any work.

Fit the Hose as Follows:

1. Tilt the machine backwards.

2. The waste water pipe is situated at the left-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

3. Pull the hose off the bridge connection.

4. Attach the black hose from the kit, (using the connector and pipe clips supplied), to the hose removed from the bridge connection.

1. Place the tap supplied by the kit to close the remaining hose.

2. Once the machine is in place the feet should be adjusted to ensure that the new hose does not kink when pushing the tumble dryer into position.

3. Connect the new drain hose to the waste Water pipe.

4. Connect to the mains electricity supply.

PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Try to dry the maximum weight of laundry, this will save time and electricity.
• Check that the filter is clean before every drying cycle.

NEVER

• Exceed the maximum weight, this will waste time and electricity.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Cottons	Max.	10 Kg	9 Kg	8 Kg	7 Kg	6 Kg
Synthetics	Max.	4 Kg	4 Kg	4 Kg	3,5 Kg	3 Kg

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

•• Tumble drying at high temperature.
• Tumble drying at low temperature only.
Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the Delicates button to select low drying temperature.

CONTROLS AND INDICATORS

Programme

Display

Filter Care

Indicator

Start/Pause

Button

Programme

Selector

Time Selection

Button

Delay Start

Button

Acrylic Synthetic

Button

Anti-Crease

Button

Control Panel and Indicator Lights

Memo Button – Allows user to record the programme by pressing simultaneously the Anti-Crease and the Acrylic Synthetic buttons for 3 seconds, after 2 minutes duration of the chosen programme/option.

SELECTING THE PROGRAMME

The Candy Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table on the next page lists the programmes and the function of each programme.

Note:

The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes. If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown. If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after approximately 3 hours. In these cases we advise to use a time cycles between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type.

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine. M1524.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

SELECTING THE PROGRAMME

PROGRAMME DESCRIPTION

Perfect Home

Store Dry

Hang Dry

Iron Dry

Anti Crease

Wool Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are more heavy, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle. Attention: felting process of wool is irreversible; please dry exclusively clothes with symbol (symbol "ok tumble"); this program is not indicated for acrylic clothes.

Mix & Dry

Shirts

Rapid 40 Min. The Rapid 40' programme allows a drying cycle to be completed quickly. This is an ideal programme for having dry, refreshed and ready-to-wear clothes in less than 40'. This special programme constantly monitors the temperature in the drum. The maximum load is 2 kg and the programme is suitable for all types of fabrics where tumble drying is appropriate.

Time

Memo Memo Program allows to re-perform a program that the user has saved before, without selecting the correct sequence of program selector positions and option buttons for that particular program.

DOOR and FILTER

Pull on handle to open the door.

To restart the dryer, close the door and press Start / Pause button

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

1. Pull the filter upwards.

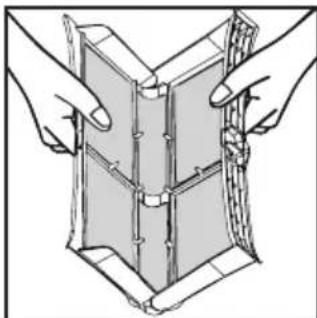

2. Open filter as shown.

3. Gently remove lint using a soft brush or your fingertips.

4. Snap the filter together and push back into place.

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

DO NOT USE WATER TO CLEAN THE FILTER

WARNING! If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull out the water container holding the handle.

When it is full the water container will weigh about 6 kg.

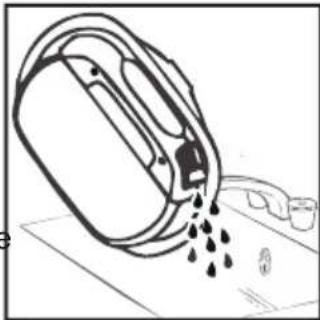

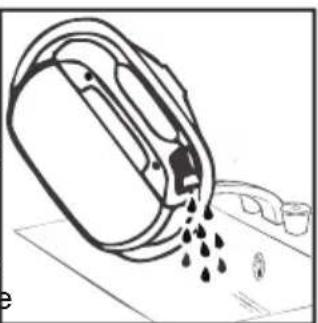

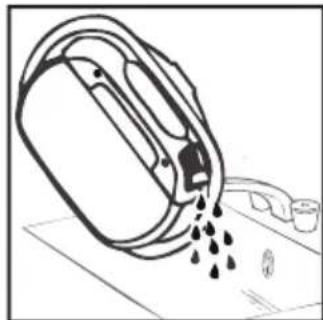

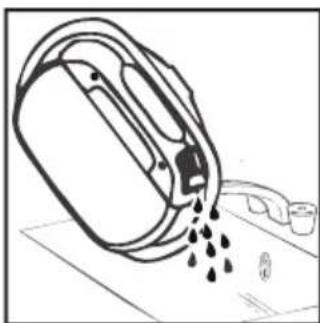

1. Ti lt t he wa ter container to empty the water out through the spout.

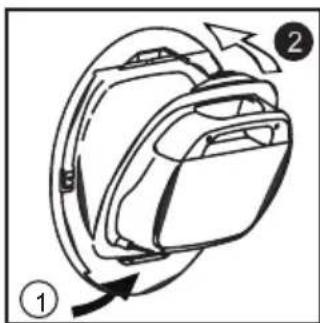

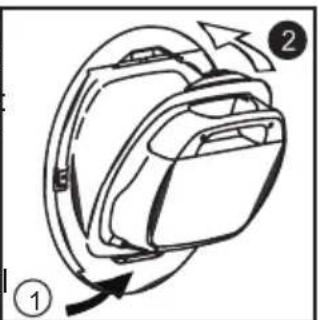

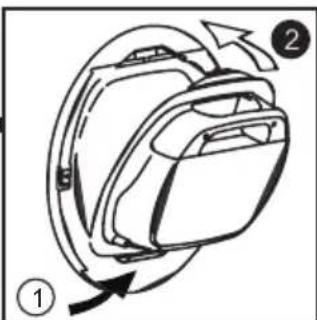

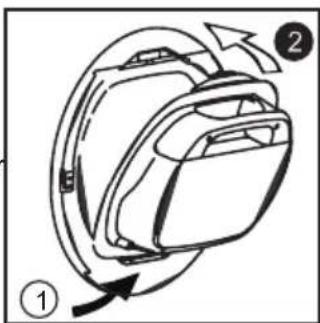

When empty, replace the water container back as shown; first insert the base of the container into position as shown then gentle push the top into position.

1. Press ▷ Button to restart the cycle.

NOTE: If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

WARNING! If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

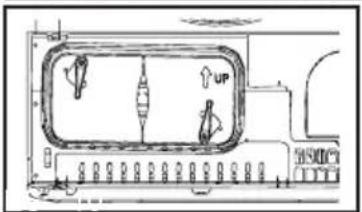

CONDENSER

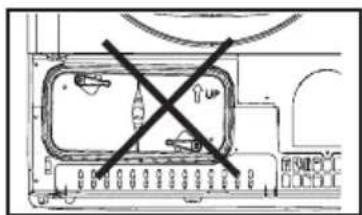

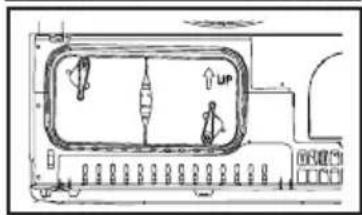

Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer regularly check that the condenser is clean.

To Remove the Condenser

1. Remove the kickplate.

2. Turn the two locking levers anti-clockwise and pull out the condenser.
   3.Pull out the condenser unit.

3. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

4. Check the gasket position after cleaning. Fit the gasket in to the groove if it is misaligned.

5. Refit the condenser ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise. Be sure that condenser unit fixed to the basement tightly.

6. Refit the kickplate.

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
4. If drying synthetics, acrylics or delicate items, press the 📋 button to reduce the heat level.

The indicator will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the button, after this time reset the machine to change the setting.

1. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.
2. If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.
3. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
4. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programs in order to obtain a proper drying.

OPERATION

Delay Start Function

The Delay Start Function allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of the button will increase the delay with 1 hour steps.

To commence the programme press and the appliance will complete the drying cycle at the end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the button for 3 seconds. In the TIME CONTROL display 0:00 Light will flash to indicate that it has been reset.

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
• Regularly clean the condenser.

- After each period of use, wipe the inside of the drum and leave the door open for a while t allow circulation of air to dry it.

- Wipe the outside of the machine and the door with a soft cloth.

- DO NOT use abrasive pads or cleaning agents.

- To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may be very hot.

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

WARNING! The Drum, door and load may be very hot.

Drying Guide

The standard cycle HANG DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table in last page shows the approximate time and energy consumption of the main drying programmes.

Capacity (as energy label)	6 kg	7 kg	8 kg	9 kg / 10 kg
Power consumption of off-mode	0,20 W	0,25 W	0,20 W	0,15 W
Power consumption of on-mode	0,75 W	0,80 W	0,80 W	0,75 W

Information for Test Laboratory

EN 61121 Programme Programme To Use

-DRY COTTON	-HANG DRY
-IRON DRY COTTON	-IRON DRY
-EASY-CARE TEXTILE	-HANG DRY + SYNTHETIC

Technical Specifications

Drum capacity 115

Maximum load See energy label

Height 85 cm

Width 60 cm

Depth 60 cm

Energy class See energy label

TROUBLESHOOTING

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

*Have you selected the correct drying time/programme?

- Were the clothes too wet? Were the clothes thoroughly wrtung or spindried?

•Does the filter need cleaning?

*Is the dryer overloaded?

Has the 0 option been selected from a previous

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

• Does the filter need cleaning?

The η_md Indicator is on...

• Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.

- Has not been installed in accordance with the installation instructions.

• Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS

ÍNDICE

KONDENSWASSER-BEHÄLTER

FUNCIONAMIENTO

- Dans des bed and breakfast,

KIT TUYAU D'ÉVACUATION : INSTRUCTIONS DE MONTAGE

PRÉPARATION DE LA CHARGE

RÉSERVOIR D'EAU

FONCTIONNEMENT

Flusensieb-Anzeige

Wassertank

BETRIEB

Companies in documentations in the bioplane apparatus and their material are but not associated

KIT ACCESSORIO TUBO FLESSIBILE DI SCARICO: ISTRUZIONI PER IL MONTAGGIO

NON USARE ACQUA PER PULIRE IL FILTRO

VASCHETTA DELL'ACQUA

FUNZIONAMENTO

ВИКОРИСТАННЯ

VESISÄILIÖ

KÄYTTÖ

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste

Elektriske Krav

FORBEREDELSE AF ILÆGNING AF T∅J

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

VIGTIGT: For at bevare tørretumblerens effektivitet skal det kontrolleres, at fnugfiltret er rent før hver tørrecyklus.

BRUG IKKE VAND TIL RENG∅RING AF FILTERET

VANDBEHOLDER

BETJENING

Capacity (in energy/dwt)	6 kg	7 kg	8 kg	8 kg / 10 kg
Power consumption of soft-mode	0.20 kWh	0.25 kWh	0.20 kWh	0.15 kWh
Power consumption of co-mode	0.75 kWh	0.90 kWh	0.80 kWh	0.75 kWh

Oplysninger til Testlaboratorium

EN 61121 Program

SIKKERHETSPÄMINNELSER

Bruk

GJ∅RE KLART T∅YET

Indikator For Filtervedlikehold

VANNBEHOLDER

BRUK AV MASKINEN

FÖRBEREDA LASTEN

Filterindikator

WATER CONTAINER

ANVÄNDNING

PREPARAÇÃO DA CARGA

Indicador de Controlo do Estado do Filtro

DEPÓSITO DA ÁGUA

Capacity (in energy/toler)	6 kg	7 kg	8 kg	9 kg / 10 kg
Power consumption of diffronide	0.2100	0.2500	0.2310	0.1500
Power consumption of on-mode	0.7100	0.8000	0.8100	0.7500

1. Odklopite cev od spoja na mostičku.

2. Priključite črno cev, ki ste jo dobili v kompletu (uporabite konektor in priložene sponke), na cev, ki ste jo ločili od spoja na mostičku.

PRIPRAVA NA POLNJENJE STROJA

Signalna Lučka za Stanje Filtra

se prižge, ko je treba filter očistiti.

Če se perilo ne suši pravilno, preverite, da ni filter Zamašen.

POSODA ZA VODO

UPORABA SUŠILNEGA STROJA

data was updated on the

INDEX

Electrical Requirements

ΛΕΙΤΟΥΡΓΙΑ

Capacity (in mbar) (km2)	6 kg	7 kg	9 kg	9 kg / 100 g
Power consumption of off-mode	0.2100	0.2000	0.2100	0.1500
Power consumption of on-mode	0.7500	0.8000	0.8300	0.7500

HET WASGOED VOORBEREIDEN

BEDIENING

Capacity (in energy/ton)	6 kg	7 kg	8 kg	9 kg × 10 kg
Power consumption of offshore	0.2100	0.2500	0.3100	0.1500
Power consumption of offshore	0.7300	0.8000	0.8100	0.7500

Testspecifications

EN 61121 Programma Programmakeuze

PROBLEMEN OPLOSSEN
