Marque	Philips
Modèle	Elance GC4023
Product type	Iron
Dimensions (L x W x H)	30 x 12 x 15 cm
Weight	1.2 kg
Power	2000 W
Voltage	220-240 V
Water tank capacity	250 ml
Steam function	Yes, continuous steam up to 30 g/min
Spray function	Yes
Soleplate	Ceramic soleplate
Anti-scale system	Yes, integrated
Automatic shut-off	Yes, after 30 seconds in horizontal position
Cord	Length 2 m, swivel
Care and cleaning	Clean the soleplate with a damp cloth; descale regularly
Available spare parts	Water tank, soleplate, steam button
Repairability	Repairability index: 7.5/10

Frequently Asked Questions - Elance GC4023 PHILIPS

How to fill the water tank of the Philips Elance GC4023 iron?

Open the water tank cap located at the front of the iron. Use lukewarm tap water. Do not exceed the indicated maximum capacity (250 ml). Close the cap before plugging in the appliance.

How to use the steam function?

Make sure the water tank is filled. Set the temperature according to the fabric. Once the temperature light goes out, press the steam button to release steam. For continuous steam, hold the button down while ironing.

Why is my iron not producing steam?

Check that the water tank has enough water and that the iron is at the correct temperature (light off). If the problem persists, descaling may be necessary. Refer to the manual for the descaling procedure.

How to clean the iron's soleplate?

Let the iron cool down. Wipe the soleplate with a soft, damp cloth. Do not use abrasive products. If residue persists, iron over a cloth soaked in diluted white vinegar.

How to descale the Philips Elance GC4023 iron?

Fill the tank halfway with a mixture of water and white vinegar (50/50). Plug in the iron and set it to a high temperature. Let it sit for 5 minutes, then empty the tank. Rinse several times with clean water before reuse.

The iron turns off by itself, is that normal?

Yes, the iron is equipped with an automatic safety shut-off. If you do not move the iron for 30 seconds in the horizontal position, it turns off. Shake it to turn it back on automatically.

What is the best position to store the iron?

Always store the iron in a vertical position, on its heel. Make sure it has completely cooled down. Never store the iron with water in the tank to avoid leaks and scale buildup.

Can I use demineralized water?

Yes, you can use demineralized or distilled water. Avoid chemically softened water. Tap water is also suitable, but regular descaling is recommended.

How to change the power cord?

The cord replacement must be carried out by a qualified professional. Do not attempt to do it yourself for safety reasons. Contact Philips customer service for a quote.

What to do if the soleplate sticks or scratches?

Clean the soleplate with a damp cloth. If it is damaged, replace it. To avoid scratches, do not iron over zippers or buttons.

USER MANUAL Elance GC4023 PHILIPS

PHILIPS

ENGLISH 4

DEUTSCH 12

FRANÇAIS 20

NEDERLANDS 28

ESPAÑOL 36

ITALIANO 44

PORTUGUÊS 52

TÜRKÇE 60

Important

Read these instructions for use carefully before using the appliance and save them for future reference.

• Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.
• Only connect the appliance to an earthed wall socket.
• Do not use the appliance if the plug, the cord or the appliance itself shows visible damage, or if the appliance has been dropped or is leaking.
• Check the cord regularly for possible damage.
• If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• Never leave the appliance unattended when it is connected to the mains.
• Never immerse the iron and the stand, if provided, in water.
• Keep the appliance out of the reach of children.
• The soleplate of the iron can become extremely hot and may cause burns if touched.
• Do not allow the cord to come into contact with the soleplate when it is hot.
• When you have finished ironing, when you clean the appliance, when you fill or empty the water tank and also when you leave the iron even for a short while: set the steam control to position O, put the iron on its heel and remove the mains plug from the wall socket.
• Always place and use the iron and the stand, if provided, on a stable, level and horizontal surface.
• Do not put perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the water tank.
• This appliance is intended for household use only.

Before first use

Check if the voltage rating on the typeplate corresponds to the mains supply in your home. 2 Remove any sticker, protective foil or storage cover (Type GC4043, GC4040, GC4028, GC4025 only) from the soleplate. 3 Heat up the iron to maximum temperature and iron over a piece of damp cloth for several minutes to remove any residue on the soleplate.

The iron may give out some smoke when using it for the first time. After a short while this will cease.

Filling the water tank

Do not immerse the iron in water.

1 Remove the mains plug from the wall socket. 2 Set the steam control to position O (= no steam). 3 Open the filling cap. 4 Hold the iron in a tilted position. 5 Pour tap water from the filling jug into the water tank up to the maximum level.

Do not fill the tank beyond the MAX indication.

If the tap water in your area is very hard, we advise you to mix it with an equal portion of distilled water, or to use distilled water only. Do not use vinegar, starch or chemically descaled water.

6 Press to close the filling cap (click!).

Setting the temperature

1 (Type GC4043, GC4040, GC4028, GC4025 only). Remove the protective storage cover.

Do not use the cover during ironing.

2 Put the iron on its heel.

3 Set the temperature control to the required ironing temperature by turning it to the position of the temperature indicator.

- Check the garment label for the required ironing temperature.

• ● Synthetic fabrics (e.g. acrylic, viscose, polyamide, polyester)
• ● Silk
• ●● Wool
• ●●● Cotton, linen
• When you do not know what kind of fabric(s) the article is made of, try to iron on a spot which will be invisible when you wear it.
• Silk, woolen and synthetic materials: iron the reverse side of the fabric to prevent shiny spots. To prevent stains, avoid using the spray function.
• Start ironing the articles that require the lowest ironing temperature, such as those made of synthetic fibers.

4 Put the mains plug in an earthed wall socket. 5 When the amber temperature pilot light has first gone out, wait for a while before start ironing.

The amber pilot light will come on from time to time during ironing.

For Auto-shut-off versions (Type GC4043, GC4040, GC4038, GC4035, GC4033, GC4030)

If the Auto-shut-off is activated (red pilot light blinks), move the iron slightly to deactivate it (blinking stops).

Steam-ironing

Make sure that there is enough water in the water tank.

I Set the temperature control to the recommended position. See section 'Setting the temperature'.

2 Set the steam control to the appropriate steam position. - 1 - 3 for moderate steam (temperature settings ●● to ●●●) - 4 - 6 for maximum steam (temperature settings ●●● to MAX)

▶ Steaming will start as soon as the set temperature has been reached.

Ironing without steam

I Set the steam control to position O (= no steam).

2 Set the temperature control to the recommended position. See section 'Setting the temperature'.

Other features

Spraying

To remove stubborn creases at any temperature. Make sure that there is enough water in the water tank.

Press the spray button a couple of times to moisten the laundry.

Shot of Steam

A powerful "shot" of steam helps remove stubborn creases. The Shot-of-Steam function can only be used at temperature settings between ●● and MAX.

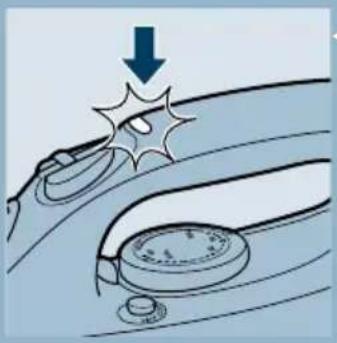

Press and release the Shot-of-Steam button.

Drip Stop

This iron features a "Drip Stop" steam shut-off facility: the iron automatically stops steaming at too low temperatures to prevent water from dripping out of the soleplate. When this happens you may hear a sound.

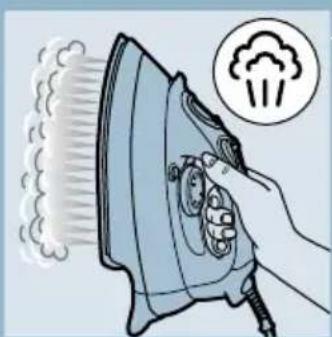

Vertical Shot of Steam (Type GC4043, GC4040, GC4038, GC4035, GC4033, GC4030, GC4028, GC4025, GC4023, GC4020, GC4018, GC4015, GC4013, GC4010)

I The Shot of Steam function can also be used when you hold the iron in vertical position.

Never direct the steam towards people.

Automatic Anti-Calc system (Type GC4043, GC4040, GC4038, GC4035, GC4033, GC4030, GC4028, GC4025, GC4023, GC4020, GC4018, GC4015)

The built-in Anti-Calc system automatically reduces deposit of scale and ensures a longer life of the iron.

Auto-shut-off (Type GC4043, GC4040, GC4038, GC4035, GC4033, GC4030)

1 An electronic safety device will automatically switch off the iron if it has not been moved for a while.

- To indicate that the iron has been switched off, the red auto-off pilot light will start blinking.

To heat up the iron again:

• Pick up the iron or move it slightly.
• The red auto-off pilot light will go out. The amber temperature pilot light may come on, depending on the soleplate temperature.
• If the amber pilot light comes on after the iron is moved, wait for it to go out before starting to iron.
• If the amber pilot light does not come on after the iron is moved, the iron is ready for use.

Cleaning and maintenance

Calc-Clean

This is a Calc-Cleaning function which removes scale and impurities. Use the Calc-Clean function once every two weeks. If the water in your area is very hard (when flakes come out from the soleplate during ironing), the Calc-Clean function should be used more frequently.

1. Set the steam control to position O.

2. Fill the water tank to the maximum level. Do not use vinegar or other descaling agents.

3. Set the temperature control to MAX.

4. Put the plug in the wall socket.

5. Unplug the iron when the amber pilot light has gone out.

6. Hold the iron over the sink, press and hold the calc-clean button and gently shake the iron.

Steam and boiling water will come out of the soleplate. Impurities and flakes (if any) will be flushed out.

7 Release the Calc-Clean button as soon as all the water in the tank has been used up.

Repeat the calc-cleaning process if the iron still contains a lot of impurities.

After calc-cleaning

• Plug in the iron to let the soleplate dry up.
• Unplug the iron when the amber pilot light has gone out.
• Move the hot iron gently over a piece of used cloth to remove any water stains that may have formed on the soleplate.
• Let the iron cool down before you store it.

After ironing

Remove the mains plug from the wall socket and let the iron cool down. 2 Wipe flakes and any other deposits off the soleplate with a damp cloth and a non-abrasive (liquid) cleaner. 3 Clean the upper part of the iron with a damp cloth. 4 Regularly rinse the water tank with water. Empty the water tank after cleaning.

Storage

Remove the mains plug from the wall socket and set the steam control to position 0. 2 Empty the water tank. 3 Type GC4038, GC4035, GC4033, GC4030, GC4023, GC4020, GC4018, GC4015, GC4013, GC4010, GC4005.

a) Let the iron cool down. Wind the mains cord around the cord storage facility and fix it with the cord clip. Type GC4040 comes with a 3m cord. b) Always store the emptied iron horizontally on a stable surface and use a cloth to protect the soleplate.

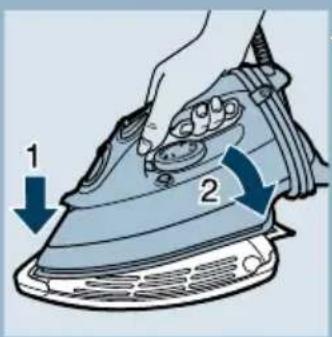

4 Protective storage cover (Type GC4043, GC4040, GC4028, GC4025).

a) Put the protective storage cover on the iron.

Do not use the protective storage cover during ironing.

b) Wind the mains cord around the cord storage facility. c) Store the iron with the protective storage cover horizontally on a stable surface.

Environment

- Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Troubleshooting guide

This chapter summarizes the most common problems you could encounter with your iron. Please read the different sections for more details. If you are unable to solve the problem, please contact the nearest Philips Service Centre or one of its representatives. See the worldwide guarantee leaflet for telephone numbers of the Philips Helpdesk or visit our website at www.philipsonline.com.

Problem	Possible cause(s)	Solution
The iron is plugged in but the soleplate is cold.	Connection problem.	Check the mains cord, the plug and the wall socket.
No steam	Not enough water in the water tank.	Fill the water tank (see Filling the water tank).
	The steam control has been set to position O.	Set to steam position between 1-6 (see Steam ironing).
	The iron is not hot enough and/or Drip Stop is activated.	Set the temperature control to the steam area (●●to MAX). Put the iron on its heel and wait until the amber pilot light has gone out before you start ironing.
No Shot of Steam or No Vertical Shot of Steam (Type GC4043, GC4040, GC4038, GC4035, GC4033, GC4030, GC4028, GC4025, GC4023, GC4020, GC4018, GC4015, GC4013, GC4010)	The (Vertical) Shot of Steam function has been used too often within a very short period.	Put the iron in horizontal position and wait for a while before using the (Vertical) Shot of Steam function again.
	The iron is not hot enough and/or Drip Stop is activated.	Set the temperature control to the steam area (●●to MAX). Put the iron on its heel and wait until the amber pilot light has gone out before you start ironing.
Water droplets on fabric	The filling cap is not closed properly.	Press to close the filling cap tightly until you hear a click.
Flakes and impurities coming out from soleplate during ironing.	Hard water form flakes inside the soleplate.	Apply Calc-Clean a few times (see Calc-Clean).
Red pilot light blinks (Type GC4043, GC4040, GC4038, GC4035, GC4033, GC4030).	Auto-shut-off is activated. See "Auto-shut-off" section.	Shake the iron slightly to deactivate the Auto-shut-off, the lamp will stop blinking.

Important

3 (Only types GC4038, GC4035, GC4033, GC4030, GC4023, GC4020, GC4018, GC4015, GC4013, GC4010, GC4005)

Automatic Anti-Calc System (Only models GC4043, GC4040, GC4038, GC4035, GC4033, GC4030, GC4028, GC4025, GC4023, GC4020, GC4018, GC4015)

3 Only models GC4038, GC4035, GC4033, GC4030, GC4023, GC4020, GC4018, GC4015, GC4013, GC4010, GC4005.

I (Only mod. GC4043, GC4040, GC4028, GC4025). Remove the protective cover.

1 Check if the voltage indicated on the type plate of the iron corresponds to the local mains voltage.

2 Remove any sticker, protective film or cover (only on models GC4043, GC4040, GC4028, GC4025) from the soleplate.
