KL-611TBMH - Range hood SHARP - Free user manual and instructions

Product Type	Range Hood
Brand	Sharp
Model	KL-611TBMH
Width	60 cm
Height	15 cm (telescopic)
Depth	50 cm
Weight	8.5 kg
Power Supply	220-240 V, 50 Hz
Motor Power	200 W
Maximum Extraction Rate	600 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3
Control Type	Push buttons
Lighting	2 x 40 W halogen
Filter Type	Aluminum grease filter (washable)
Installation Type	Wall-mounted, ducted/recirculating
Material	Stainless steel
Energy Efficiency Class	B
Annual Energy Consumption	50 kWh
Fluid Dynamic Efficiency	25
Grease Filtering Efficiency	Class C
Duct Diameter	150 mm
Warranty	2 years

Frequently Asked Questions - KL-611TBMH SHARP

How do I clean the grease filter?

Remove the filter and wash it with warm water and mild detergent, or place it in the dishwasher. Dry thoroughly before reinstalling.

How often should I replace the charcoal filter (if recirculating)?

Every 3-4 months, depending on usage.

How to reduce noise level?

Use lower speeds or ensure proper installation with vibration dampers.

Can I install the hood as recirculating?

Yes, with optional charcoal filter for recirculation mode.

How to adjust the telescopic cover?

Extend or retract the cover to match your ceiling height, then lock in place.

What is the maximum distance above the hob?

Typically 65-75 cm for electric hobs, 75-85 cm for gas.

How to replace the halogen bulbs?

Remove the bulb cover, unscrew the old bulb and replace with a new one of the same type (12V, 40W).

Why is the hood not operating?

Check power supply, fuse, or if the motor thermal protection has tripped.

How to enable auto-off timer?

Not all models have this; if yours does, press and hold the speed button for 3 seconds.

What to do if the hood vibrates?

Check mounting, tighten screws, ensure it's installed on a solid wall.

USER MANUAL KL-611TBMH SHARP

Cooking

EN

User Manual

Hood

KL-611TBMH-UK

KL-611TBMH-CH

KL-611TBMH-EU

Table of Contents

1 Pre-Installation Safety Rules 4 2 Technical Specifications 6 3 General Appearance....7 4 Assembling the Appliance 8 5 Operation 10 6 Cleaning and Maintenance.... 11 7 Replacement Of Lamps 11 8 Troubleshooting 12 9 Service & Warranty 13

Dear Customer,

Thank you for choosing a Sharp Home Appliance. We hope you enjoy using your new product, and recommend that you carefully read these instructions and take note of our recommendations for care and maintenance. This will help to ensure trouble free operation for many years to come.

Important Safety-Related Information

• These instructions contain useful information to help you get to know the features and get the best out of your new appliance. • Always keep this user manual close to your appliance.

WARNING: Read this user manual carefully before starting to use your appliance to be able to prevent risks of dangerous situations, fire, electric shock and personal injury. Please follow the instructions at all times.

• This appliance should be assembled by a qualified installer.

• Appliance must be grounded.

RISK OF ELECTRIC SHOCK: Dangerous voltage.

CAUTION: Risk of injury or damage to properties.

WARNING: Risk of serious injury or death.

1 Pre-Installation Safety Rules

• Follow the instructions in this manual. Sharp cannot be held liable for accidents, damages or fire that might occur as a result of failure to follow the instructions in this manual. The User manual is an integral part of the appliance and must be kept. • This cooker hood is intended for domestic use only.

WARNING: Use of your appliance beyond its intended purpose might cause damage or hazardous situations, and leads to the warranty being voided.

• The appliance must only be used over Electric or Gas cookers.
• The hood must be mounted at a minimum of 65 cm and maximum 70 cm to the cooking surface of electric cookers.
• Do not mount this appliance on the wall using plaster or silicon. Mount only on the surface.
• Since maintenance might be required on the air outlet flue, do not secure the appliance on furniture or shelves that do not allow easy disassembly.
• The flue outlet of the cooker hood shouldn't be connected to flues which have warm gas connections such as water heater, stove, natural gas.
• Risk of fire is higher with oil that is used frequently. Food that is cooked in the deep fryer and with oil must be cooked under supervision.
• Avoid high flame cooking since faults may occur in the appliance due to fire hazard and the high heat that will be generated.
• The aluminum oil filter must be on during operation, and these filters must be cleaned periodically. Otherwise oil deposit on the filter might lead to deflagration.
• Assembly and electric connection must be performed by authorized people.
• Call the nearest Authorized Service in case of any failure.
• Energy inlet cord shouldn't be subject to heating, jamming or crushing during assembly.
• While performing lamp replacement and cleaning processes on the appliance, the cord must be disconnected or the fuse must be turned off.
• Problems that could prevent the aluminium flap at the flue outlet to be turned off when the motor is not operative must be eliminated.
• This appliance is not intended to be used by people with physical, sensory and mental impairments (including children) or those who do not have adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for the safety of the appliance.
• This appliance can be used by children of 8 years and older, people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided with supervision or instructions for the safe use of the appliance and they understand the dangers.
• Operating voltage of your appliance is 220 - 240 Volt ~ 50. A grounded plug has been mounted on the mains cable of your appliance. That cable must be connected to a grounded socket.
• In case of any deflagration, switch off the cooker hood and cooking appliances, and cover the flame. Never use water to extinguish the fire.
• While the electric cooker hood and other electric appliances operate simultaneously, negative pressure in the room shouldn't exceed 4 Pa (4 X 10 bar).
• Since the packing materials could be dangerous, keep them away from children.

Safety Information to Be Considered During Cleaning and Maintenance

• The cable of the appliance must be disconnected or the fuse must be turned off prior to all cleaning and maintenance processes.
• The appliance should not be cleaned with steam cleaning devices.
• The fire risk increases due to oil deposits if cleaning and maintenance are not performed. Therefore, have your appliance cleaned and maintained regularly.
• Repairs should be carried out by technical service personnel.

Efficient ventilation

To allow for ventilation, kitchen windows must be kept closed. To create air flow, operate the cooker hood and cooker simultaneously. This will positively affect suction power. After cooking has finished, leave the appliance on for a while to extract remaining odours and vapour.

IMPORTANT NOTE

Be careful when using the appliance simultaneously with other appliances (e.g., gas, diesel, coal, wood burning heaters, shower heaters) that use the same air in the environment. The cooker hood might adversely affect combustion since it discharges air to the atmosphere. This warning does not apply to flueless use.

2 Technical Specifications

Model	KL-611TBMH-UKKL-611TBMH-CHKL-611TBMH-EU
Supply voltage	220-240 V 50Hz
Lamp power(W) 7 W
Motor power(W) 210 W
Flow rate( m3/h ) 548
InsulationClass CLASS I

• Specifications of the device and this manual may be modified without prior notification.
• Complies with the AEEE Regulation.

This product complies with the 2004/108/EC (Regulation on Electromagnetic Compatibility) and 2006/95/EC (Regulation on Low Voltage Devices (LVD)) Directives.

This device complies with the Directive on the Control of Waste Electrical and Electronic Equipment.

Consumer Services General Information

This Operating Manual has been prepared for Sharp cooker hoods.

This cooker hood is designed for use over a cooker. Make sure that your wall can support the weight of your cooker hood. Processes such as breaking, cutting, etc. performed on the wall or closet during assembly must be borne by the user. Your cooker hood is suitable for use with a flue system, or flueless use (by using a charcoal filter). Before starting assembly, pay attention to potential problems you may encounter. Assembly must be carried out by a trained, specialized, and authorized person.

Safety Information to Be Observed During Transportation and Shipping

Your device must be kept in its original package to protect it from damage during transportation and shipping.

Keep the product in its normal position during transportation. Do not drop the device during transportation and protect it against impacts.

Damages and faults that occur during transportation after the delivery of the appliance to the customer are not covered by the warranty.

Liability Limitation

All technical information, instructions for use, and information on the operation and maintenance of the device provided in this manual includes the latest information regarding your product. Sharp does not take any responsibility for damages and injuries that might be caused by not observing the instructions in this user manual, using the device outside its intended use, unauthorized repairs or modifications on the device, and using spare parts not provided by Sharp.

3 General Appearance

Figure 1

Dimensions given in technical drawings are in mm.

The purpose of this image is to familiarize you with the parts of your appliance. The parts may vary depending on the model of the appliance. Images are for reference only.

1. Inner Flue
2. Outer Flue
3. Glass
4. Motion Sensor (Smart Lighting Function)
5. Control Button
6. Cooker Lighting

Position of Cooker Hood

Distance between the cooker and the cooker hood must be considered prior to assembly. This distance must be minimum 65 cm and maximum 70 cm in electric cookers.

This distance must be minimum 65 cm and maximum 75 cm in gas cookers.

Figure 2

4 Assembling the Appliance

Figure 3 : Installation Diagram and Components

1. Inner Flue
2. Outer Flue
3. 2x M5x35 Screw
4. Product Hanging Plate
5. Body
6. 3x 5.5x60 Wall Mount Screw
7. 3x ∅10mm Plastic Dowel
8. 2 × 3.9 × 22 Screw
9. Flue Connection Plate
10. 2x ∅6mm Plastic Dowel

Affix the assembly pattern on the wall at the specified height (see the minimum and maximum distances intended for the worktop in the assembly pattern). Perforate points A, B, and C (Figure 3).

Insert ∅10mm dowels (10) into the holes drilled as A, B, C, and screw down the screws at points A + B so that 5mm space remains between the screw head and the wall (Figure 3).

Affix the hanging plates (4) of the cooker hood to the body of the cooker hood with M5x35 screws (3) (Figure 3).

Hang it on the wall with the hanging plate of the cooker hood.

If the cooker hood is not parallel, loosen or tighten the M5x35 screws to make it parallel.

Tighten the A + B fixing screws (9) on the wall, and completely secure the product from its point C.

Connection of Air Discharge Outlet

Figure 4

Assembly of Flues

Figure 5: Installation of the Sheet Metal Flue

1. Inner Flue
2. Flue Fixing Screws
3. Flue Connection Plate

∅150/120 mm Flue Adapter (Option) Motor Flue Outlet

Connect the flue adapter (1) to the motor flue outlet (2) when required (Figure 4).

The outer and inner sheet metal flues (Figure 5) are encased one within the other.

For this purpose:

The cooker hood is set in the middle, and then the flue connecting plate (8) is directly affixed to the wall, under the cover, or points D and E are marked after performing a measurement (Figure 3).

Drill points D and E with a ∅6mm drill bit, and insert ∅6mm plastic dowels (9). Insert the flue connection plate with 3.9x22 screws (7) (Figure 3). Secure the inner flue (1) to the flue connection plate (3) with a screw (Figure 5).

5 Operation

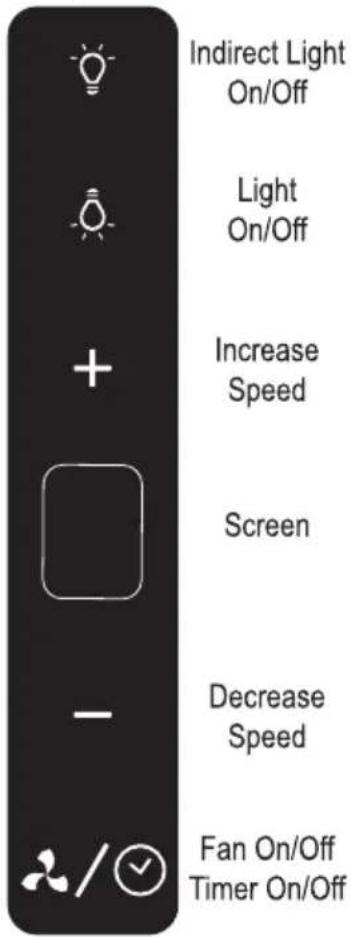

Figure 6: Touch Control on Glass

Fan on/off (The device starts at 2nd speed level as default). Timer function. Filter cleaning reset.

This button will turn down the fan level.

+ button will turn up the fan level.

Press the lamp button to operate the cooker lighting.

When this button is pressed and held for 3 seconds, smart lighting function will be activated, and a dot icon will be lit on the screen. When the motion sensor detects any motion while this function is active, wall lighting will be on for 15 seconds. This duration will restart each time a motion is detected by the sensor. When this button is pressed and held for 3 seconds while Smart Lighting function is active, the function and the dot icon will turn off.

Operating the Timer Function

When you press this button for 2 seconds while the appliance is on, a switch-off timer of 15 minutes is started and the number of that cycle starts to flash on the screen. In timer function, the lamp (if it is on) and motor shall be automatically turned off after 15 minutes. If the button is pressed for about 2 seconds again, flashing stops and the timer is cancelled.

Cleaning Periods of the Metal Filter:

The filters must be cleaned when the "C" signal appears on the digital screen or (depending on usage) after every 2-3 weeks. When the filters are cleaned and mounted in their places, press this button for more than 5 seconds in order to delete the "C" signal (when the product is inactive). Letter "E" will appear on the digital screen, and the product will switch to normal operation.

Boost Ventilation Mode:

The model you have purchased has a boost mode for energy efficiency.

When the product is switched to maximum speed while it is operated, a 'b' symbol shall be displayed on the screen. The boost symbol indicates that (boost ventilation) mode is active on the model. The product shall operate for 7 minutes in this mode and the 'b' symbol shall flash on the screen during this period. After 7 minutes, the product shall automatically switch down one speed level and shall resume operation in the lower speed level.

Note: It is not possible to use the timer feature in the boost mode.

6 Cleaning and Maintenance

WARNING: Ensure that the appliance is unplugged or the fuse is turned off before all cleaning and maintenance operations.

A) Cleaning and Maintenance Time

The hood must be cleaned and maintained regularly to ensure its usage life and performance.

Deposit of oil and dirt in aluminium filters of the hood may affect its normal operation.

Unnecessary oil residue on the inner parts of the device and its flue increases the risk of fire. The charcoal filter(s) inside the inner part, which are required for flueless use, may be used for a specific duration. They cannot be cleaned and washed. Thus, charcoal filter(s) must be replaced regularly. You can procure the charcoal filters suitable for your appliance from authorized retailers.

- Aluminium filters must be cleaned every 2 - 3 weeks.

This cleaning and maintenance should be performed regularly to prevent the formation of oil residues on your kitchen furniture and walls.

B) Cleaning the Appliance

• Cut the power to your hood by unplugging it or turning off its fuse.
• Do not clean the appliance with steam or a cleaning appliance that uses steam.
• Do not clean the hood surface with unsuitable cleaning materials. Otherwise, color changes may occur on the product.
• The outer surface of the appliance must be cleaned using an Inox surface cleaner and a soft cloth. The device must be dried after cleaning. The glass parts of devices should be cleaned with a suitable cleaning material.

C) Opening the Side Peripheral Suction Panel

To remove the side peripheral suction panel, hold it from the right and left front points and pull it towards yourself.

D) Disassembly of the Aluminum Filter

Press the locking latch of the aluminum filters backwards and pull them below the appliance to remove.

E) Cleaning Operation

Submerge the aluminum filter in hot water with dish detergent and wait for some time; then clean with a soft brush. Rinse with hot water after cleaning. Repeat this operation if necessary. You can wash the aluminum filter in the dishwasher on a normal program at 55 degrees.

WARNING: Take care not to cause damage to the grid while cleaning the aluminum filters. Color changes may be observed on the filters when hard cleaning materials are used. This will not adversely affect the appliance and is not a cause of malfunction.

7 Replacement of Lamps

WARNING: Disconnect the electrical supply of the cooker hood.

Leave the lamps to cool down first because they could burn your hands when they are hot.

Replacement of Lamp

• Push on the lamp with your hand to remove it.
• Separate the self-adhesive tape around the lamps and the body plate from each other.
• Before placing the new LED lamp, remove the protective film from the frame, and then stick it in its place on the body of the product (Figure 7).

Figure 7

Disposal of your appliance in an environment-friendly way

In order to prevent uncontrolled waste disposal from damaging the environment or human health, please set this appliance apart from other waste types and ensure its responsible recycling to support the sustainable reuse of material resources. Please contact the retailer you purchased the product from or other local establishments to receive information on where and how to take this appliance for environmentally safe recycling. This product must not be mixed with other trade waste for recycling.

Recommendations for Energy Saving

If you use your appliance with charcoal filters, replace them regularly.

Regularly clean your aluminium filters. Since dirty filters will block the air passage, you might have to use the appliance at a higher speed. Use your product at its normal speeds. Use at higher speed would cause an increase in the energy consumption.

Package information

The product package is made of recyclable materials. Do not dispose of the packaging waste together with the household waste or other wastes, dispose of it through your local recycling centre.

8 Troubleshooting

Should you experience any problems with your appliance, please first check the troubleshooting guide below. If this does not solve the problem, please contact Sharp via the contact information in this manual or through the website.

PROBLEM CAUSE REMEDY
Appliance doesn't operate.	It is not plugged in properly. Plug it tightly.
	There's no power in the socket. Check the fuse and the socket.
	Power On/Off switch isn't pressed. Press the power on/off switch.
Lighting is not functioning.	Appliance might not be plugged in. Make sure the power cord is plugged in.
	Appliance key may not be functioning. Check the button.
Dirty air enters through the flue.	Check the aluminium flap at the flue outlet.	The flap should cover the air outlet when the appliance is not running. Remove the obstacles that prevent this closing.
Performance of the appliance is not adequate or the appliance makes too much noise during operation.	Diameter of the flue may not be sufficient (Minimum ∅120 mm).	Make sure that the diameter of the flue is at least ∅120 mm.
	If you use the cooker hood without a flue, make sure that the charcoal filters are not older than 6 months.	Replace the charcoal filters.
	Be attentive to ventilate your kitchen adequately, in order to provide an airflow.	Let the environment be ventilated by opening the windows.

9 Service & Warranty

If you are unable to resolve a problem using the checks covered in the last few pages, do not attempt to service the cooker hood yourself.

In the unlikely event of the product requiring repair, please contact the Customer Support Centre. Telephone: [phone]. Lines are open Mon to Fri 09.00 to 20.00 & Sat and Sun 10.00 to 16.00. Vestel UK, the licence partner for Sharp, guarantees that for a period of 2 years from the date of purchase the enclosed product will be free from defects in materials and workmanship. Vestel UK agrees to provide for the repair or, at its option, the replacement of a defective product. Vestel UK reserves the right to replace defective parts, or the product, with new or refurbished items. Items that are replaced become the property of Vestel UK. To benefit from this guarantee, any fault that occurs must be notified to Vestel UK, or its appointed Service Facility, within two years from the date the product was purchased. Proof of purchase, such as a receipt or invoice, must be provided. If the product is exchanged, the replacement shall be covered by the unexpired portion of the original guarantee.

This guarantee shall only apply to faults that are due to an electrical or mechanical breakdown. It does not cover faults or damage caused by accident, misuse, fair wear and tear, neglect, tampering with the product, or repair other than by a Service Facility appointed by Vestel UK.

The product is intended for private domestic use only. The guarantee will not apply if the product is used in the course of a business, trade or profession.
