USER MANUAL i-SENSYS MF734Cdw CANON
Please read "Important Safety Instructions" before operating this product. After you finish reading this guide, store it in a safe place for future reference.
The information in this document is subject to change without notice.
You can access canon.com/oip-manual
to read the User's Guide that describes all functions of this machine.
Quick Setup
Getting Started
Please read "Important Safety Instructions" before operating this product.
P.138
After you finish reading this guide, store it in a safe place for future reference.
The information in this document is subject to change without notice.
Getting Started
canon.com/oip-manual to read the User's Guide that describes all functions of this machine.
Items Included with the Machine
Starter toner cartridges are included.
Installing the Machine
Before starting the installation
- Remove all of the tape.
- Do not remove the cap that covers the USB port.
Installation Requirements
Provide a space of 100 mm or more around the machine.
1
2
3
4
5
6
7
8
9
10
11 Attach the handset (optional).
12 Install the cassette feeding module (optional).
Next, proceed to configure the machine.
Configuring the Initial Settings of the Machine
About Application Library (MF735Cx)
Application Library is an application that allows you to use useful functions for routine jobs or other convenient functions in a one-touch operation without the necessity of making functional settings every time. You can access each registered function by simply pressing the appropriate button displayed in the Home screen. For the respective function, see the description displayed in the Setup Guide.
- Configure the initial settings, according to the screen.
- Set the language and country/region.
- Set the time zone and current date/time.
- Configure the settings to prevent unauthorized access.
- For the purpose of confirmation, enter the same PIN twice.
- Perform color correction.
Configuring the Method of Connecting to a Computer
Before starting the configuration
• The machine cannot be connected to both wired and wireless LANs at the same time. • If the machine is connected to an unsecured network, your personal information might be leaked to a third party. Please be aware and careful of this. • The machine does not come with a router. Please have one ready, if necessary. • Even in an environment without wireless LAN router, you can use Access Point Mode to make a wireless connection to the machine directly from your mobile device (Direct Connection).
→ User's Guide
Specifying the connection method
• To connect via wireless LAN : • To connect via wired LAN or USB :
To connect via wireless LAN
- Make sure that the computer is connected to a router properly.
- Check the network settings on the computer.
- Take note of the SSID and network key.
- Check the label on the router. ➕ User's Guide
- The setting operation is easier if the router is provided with a WPS mark. ➕ User's Guide
- Set the access point and network key according to the screen below.
- Press .
- Press .
- Press .
- Select the access point (SSID), and press .
- Enter a WEP key (network key), and press .
- Press .
• The IP address will be automatically configured in a few minutes. - "Connected." is displayed.
- Install the driver and software.
"Installing the software" on P.10
Now you are finished with the configuration of the initial settings.
If your machine is provided with the fax function, proceed to configuring the fax settings. P.11
To connect via wired LAN
The machine does not come with a LAN cable. Please have one ready, if necessary.
- Make sure that the computer is connected to a router properly.
- Check the network settings on the computer.
- Connect the LAN cable.
• After connecting the cable, wait a few minutes (until the IP address is set automatically). - If a static IP address has been set on the computer, set the machine's IP address manually.
- Install the driver and software.
→ "Installing the software" on P.10
Now you are finished with the configuration of the initial settings.
If your machine is provided with the fax function, proceed to configuring the fax settings. P.11
To connect via USB
• The machine does not come with a USB cable. Please have one ready, if necessary.
• Make sure that the USB cable you use has the following mark.
- Do not connect the USB cable before installing the driver. If you did, disconnect the USB cable from the computer, close the dialog box, and then perform the following procedure from step 1.
- Install the driver and software.
→ "Installing the software" on P.10
- When the screen to connect the USB cable to the machine is displayed, remove the cap that covers the USB port.
Now you are finished with the configuration of the initial settings.
If your machine is provided with the fax function, proceed to configuring the fax settings. P.11
Installing the software
• The procedure described here is only applicable when your computer runs on the Windows OS. For more details on the software installation procedure, see the driver's manual. - For the installation when your computer runs on the Mac OS, see the driver's manual. - Your machine may not come with the driver for the Mac OS, depending on the time of purchase. New drivers are uploaded to the Canon website, and you can download and use the latest one.
If the screen is not displayed properly, re-insert the DVD-ROM or search for "D:\MInst.exe" on the Windows platform (This description assumes that "D:" is the DVD-ROM drive name).
Using the scanner conveniently
Configuring the network settings with "Send Function Setting Tool" allows you to directly send scanned originals with e-mail or I-Fax or store them in a shared folder or on the FTP server.
In the screen displayed in step 2, select [Start Software Programs] ▶ [Send Function Setting Tool] to start the Send Function Setting Tool.
Configuring Fax Settings
Before starting the configuration:
If your machine does not come with a telephone cable, have one ready, as necessary.
Configure the fax settings, according to the screen below.
- Press .
- Press .
- Register the machine's telephone number (fax number) and abbreviated user name.
• The information below will be printed at the top part of the paper output from the destination machine as sender information.
- Set the reception mode. • Make the setting by answering the questions on your purposes of using the fax function.

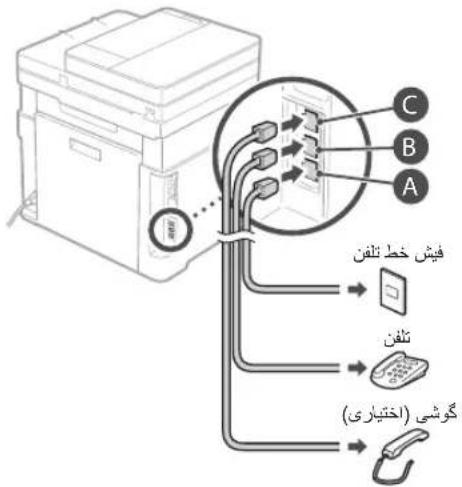

- Connect to a telephone line.
- Press .
- Press .
Now you are finished with the configuration.
CAUTION!
When you load paper of a size other than A4, change the paper settings. ➕ Steps 5 and 6 in "Loading in the Paper Drawer" on P.136
2.
2.
2.
2.
2.
The machine does not come with a LAN cable.
Have one ready if needed.
2.
If the screen does not display properly, install the DVD-ROM or search for "D:\Minst.exe" on the Windows system (This description assumes that the DVD-ROM drive letter is "D:").
Using the scanner
2.
2.
2.
2.
- Check that the computer is correctly connected to a router.
- Wait a few minutes after the cable is connected (until the IP address is automatically set).
- If a static IP address is set for the computer, the machine's IP address must be set manually.
- Install the driver and software.
2.
2.
2.
2.
2.
2.
- The device is supplied without a USB cable. If needed, purchase it.
2.
2.
2.
2.
2.
The device is not equipped with a LAN cable.
Provide it if necessary.
- If the device is not equipped with a USB cable, provide it if necessary.
2.
- Configure the initial settings according to the screen.
- Set the language and country/region.
- Set the time zone and current date/time.
- Configure the settings to prevent unauthorized access. • To confirm, enter the same PIN twice.
- Perform color correction.
Configuring the method of connecting to a computer
- After connecting the cable, wait a few minutes (until the IP address is set automatically).
- If a static IP address is set on the computer, manually set the IP address of the device.
- Install the driver and software.
"Installing the Software" on P.102
2.
If the screen does not display correctly, reinsert the DVD-ROM or look for "D:\MInst.exe" on Windows (In this description, "D:" indicates the DVD-ROM drive name).
Easy scanner use
Configuring network settings using the "Send Function Setting Tool" allows you to send scanned originals directly via e-mail or I-fax, or store them in a shared folder on an FTP server.
On the screen shown in Step 2, select [Start Software Programs] [Send Function Setting Tool] to launch the Send Function Setting Tool.
For details
Configuring initial settings for fax functions in the User's Guide
Configuring fax settings
2.
2.
2.
2.
- Press <Finish>.
Press <Yes>.
• USB
•
Memo
Quick
Operation
| Quick Operation | En |
| Utilisation rapide | Fr |
| Kurzanleitung | De |
| Funzionamento rapido | It |
| Funcionamiento rápido | Es |
| Funcionament ràpid | Ca |
| Erabilera azkarra | Eu |
| Operação rápida | Pt |
| Грήγορη λειτουργία | El |
| Hurtig betjening | Da |
| Snelle bediening | NI |
| Hurtigstart | No |
| Snabbfunktioner | Sv |
| Pikakäyttö | Fi |
| Краткое руководство по эксплуатации | Ru |
| Швидка експлуатация | Uk |
| Ätrā lietošana | Lv |
| Trumpa naudojimo instrukcija | Lt |
| Kiirtoimingud | Et |
| Szybkie rozpoczęcie pracy | Pl |
| Rychlé použití | Cs |
| Rýchla prevádzka | Sk |
| Hitri postopki uporabe | Sl |
| Brzi postupak | Hr |
| Gyors használat | Hu |
| Operare rapidă | Ro |
| Кратко ръководство за работа | Bg |
| Hızlı Çalıştırma | Tr |
| التشغيل Silver | Ar |
| عمليات سريع | Fa |
| הכלהה | He |
Place the Original Properly
Remember before You Start Operation
Place your original on the platen glass
Suitable for scanning book pages, magazine pages and newspaper clips.
Place your originals into the feeder
Suitable for continuously scanning many pages of literature, quotation, etc.
Start the Operation from the Operation Panel
Machine

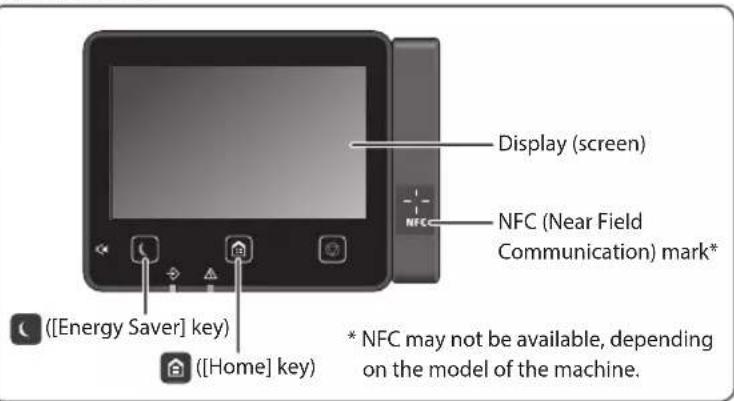

Operation Panel![Display (screen) NFC (Near Field Communication) mark* ([Energy Saver] key) ([Home] key) * NFC may not be available, depending on the model of the machine.](/content/2026/06/1296427/images/4fd1e4a569b07dcc33106c722b3cb61d0bfc42e290e99b42664cfd35a44d1741.jpg)
Scanning
- Place the original.
- Press 🏠, and select .
- Select the type of scan, and enter the necessary information.
- Select , or .
Types of scan
■ Store in USB memory device ■ Send e-mail ■ Send to file server
To scan from a computer
■ MF Scan Utility
For details
→ "Scanning" in the User's Guide
Copying
- Place the original.
- Press 📄, and then select .
- Specify the copy settings, as necessary.
- Enter the desired number of copies.
- Select or .
Useful copy settings
■ Non 1 ■ 2-Sided or 1-Sided ■ Enlarging or reducing ■ Copying ID cards
For details
→"Copying" in the User's Guide
Faxing*
- Place the original.
- Press 📋, and select .
- Enter the destination information.
- Specify the fax settings, as necessary.
- Select .
Useful fax functions
■ Sequential Broadcast ■ Memory Reception PC Fax
For details
→"Faxing" in the User's Guide
Printing
- Open the document to print, and select the print function of the application.
- Select the printer driver for the machine, and select [Preferences] or [Properties].
- Specify the paper size.
- Specify the paper source and paper type.
- Specify the print settings, as necessary.
- Select [OK].
- Select [Print] or [OK].
Useful print settings
■ 2-sided ■ Non 1 ■ Booklet Printing
For details
"Printing" in the User's Guide
Loading in the Paper Drawer
1 Pull out the paper drawer.
4 Insert the paper drawer into the machine.
If you load a different size or type of paper from the one before, make sure to change the settings.
5 Press and select .
6 Specify the size and type of paper, according to the screen.
Loading in the Multi-Purpose Tray
5 Specify the size and type of paper, according to the screen.
The Machine Does Not Seem to Work
Check the following.
• Is the power turned ON? • Is the machine out of sleep mode?
If both the display and ☐ are not lit, press the power switch.
• Is the power cord connected correctly?
If the problem persists, see the User's Guide.
Paper Jams Have Occurred
When paper is jammed, a screen, as shown below, appears.
Clear the paper jams according to the on-screen instructions.
Replacing the Toner Cartridge
Replace the toner cartridge according to the on-screen instructions.
Model number of replacement toner cartridge
• Canon Cartridge 046 Black • Canon Cartridge 046 Cyan • Canon Cartridge 046 Magenta • Canon Cartridge 046 Yellow
• Canon Cartridge 046 H Black • Canon Cartridge 046 H Cyan • Canon Cartridge 046 H Magenta • Canon Cartridge 046 H Yellow
Appendix
Important Safety Instructions
This chapter describes important safety instructions for the prevention of injury to users of this machine and others, and damage to property. Read this chapter before using the machine, and follow the instructions to use the machine properly. Do not perform any operations not described in this manual. Canon will not be responsible for any damages resulting from operations not described in this manual, improper use, or repair or changes not performed by Canon or a third party authorized by Canon. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty.
A WARNING
Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.
CAUTION
Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.
IMPORTANT
Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or property.
Installation
To use this machine safely and in a trouble-free way, carefully read the following precautions and install the machine in an appropriate location.
WARNING
Do not install in a location that may result in a fire or electrical shock
- A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects) • A damp or dusty location
- A location exposed to direct sunlight or outdoors • A location subject to high temperatures • A location exposed to open flames
- Near alcohol, paint thinners or other flammable substances
Other warnings
- Do not connect unapproved cables to this machine. Doing so may result in a fire or electrical shock.
- Do not place necklaces and other metal objects or containers filled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a fire or electrical shock.
- When installing and removing the optional accessories, be sure to turn OFF the power, unplug the power plug, and then disconnect all the interface cables and power cord from the machine. Otherwise, the power cord or interface cables may be damaged, resulting in a fire or electrical shock.
- If any foreign substance falls into this machine, unplug the power plug from the AC power outlet and contact your local authorized Canon dealer.
Do not install in the following locations
The machine may drop or fall, resulting in injury.
• An unstable location • A location exposed to vibrations
CAUTION
Do not install in the following locations. Doing so may result in damage to the machine.
• A location subject to temperature and humidity extremes, whether low or high • A location subject to dramatic changes in temperature or humidity • A location near equipment that generates magnetic or electromagnetic waves • A laboratory or location where chemical reactions occur • A location exposed to corrosive or toxic gases • A location that may warp from the weight of the machine or where the machine is liable to sink (a carpet, etc.)
Avoid poorly ventilated locations
This machine generates a slight amount of ozone and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated rooms. To maintain a comfortable working environment, it is recommended that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.
Do not install in a location where condensation occurs
Water droplets (condensation) may form inside the machine when the room where the machine is installed is heated rapidly, and when the machine is moved from a cool or dry location to a hot or humid location. Using the machine under these conditions may result in paper jams, poor print quality, or damage to the machine. Let the machine adjust to the ambient temperature and humidity for at least 2 hours before use.
In altitudes of above sea level 3,000 m or higher
Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 meters above sea level, or higher.
Leveling feet (only for products with leveling feet)
Do not remove the machine's leveling feet after the machine has been installed, as this may cause the machine to fall or tip over, resulting in personal injury.
Connecting the Telephone Line (Only for Products with a Fax Function)
This machine conforms to an analog telephone line standard. The machine can be connected to the public switched telephone network (PSTN) only. If you connect the machine to a digital telephone line or a dedicated telephone line, it might impede proper operation of the machine and could be the cause of damage. Make sure to confirm the type of telephone line before connecting the machine. Contact your optical fiber line or IP telephone line service providers if you want to connect the machine to those telephone lines.
When using wireless LAN (only for products with a wireless LAN function)
• Install the machine at a distance of 50 meters or less from the wireless LAN router. - As far as possible, install in a location where communication is not blocked by intervening objects. The signal may be degraded when passing through walls or floors.
- Keep the machine as far as possible from digital cordless phones, microwave ovens, or other equipment that emits radio waves.
- Do not use near medical equipment. Radio waves emitted from this machine may interfere with medical equipment, which may result in malfunctions and accidents.
Power Supply
WARNING
- Use only a power supply that meets the specified voltage requirements. Failure to do so may result in a fire or electrical shock.
- Do not use power cords other than the one provided, as this may result in a fire or electrical shock.
- The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
- Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a fire or electrical shock.
- Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.
- Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a fire or electrical shock.
- Do not wrap the power cord or tie it in a knot, as this may result in a fire or electrical shock.
- Insert the power plug completely into the AC power outlet. Failure to do so may result in a fire or electrical shock.
- Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a fire, electrical shock, or damage to the machine.
• Make sure that the power supply for the machine is safe, and has a steady voltage
- Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt, resulting in a fire or electrical shock.
- If excessive stress is applied to the connection part of the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a fire. Avoid the following situations:
- Connecting and disconnecting the power cord frequently.
- Tripping over the power cord.
- The power cord is bent near the connection part, and continuous stress is being applied to the power outlet or the connection part.
- Applying excessive force on the power plug.
CAUTION
Install this machine near the power outlet and leave sufficient space around the power plug so that it can be unplugged easily in an emergency.
IMPORTANT
When connecting power
- Do not connect the power cord to an uninterruptible power source. Doing so may result in malfunction of or damage to the machine at power failure.
- If you plug this machine into an AC power outlet with multiple sockets, do not use the remaining sockets to connect other devices.
- Do not connect the power cord to the auxiliary AC power outlet on a computer.
Other precautions
Electrical noise may cause this machine to malfunction or lose data.
Handling
WARNING
- Immediately unplug the power plug from the AC power outlet and contact an authorized Canon dealer if the machine makes an unusual noise, emits an unusual smell, or emits smoke or excessive heat. Continued use may result in a fire or electrical shock.
- Do not disassemble or modify this machine. There are high-voltage and high-temperature components inside the machine. Disassembly or modification may result in a fire or electrical shock.
- Place the machine where children will not come in contact with the power cord and other cables or gears and electrical parts inside the machine. Failure to do so may result in unexpected accidents.
- Do not use flammable sprays near this machine. If flammable substances come into contact with electrical parts inside this machine, it may result in a fire or electrical shock.
- When moving this machine, be sure to turn OFF the power of this machine, and then unplug the power plug and interface cables. Failure to do so may damage the power cord or interface cables, resulting in a fire or electrical shock.
- When plugging or unplugging a USB cable when the power plug is plugged into an AC power outlet, do not touch the metal part of the connector, as this may result in an electrical shock.
- Use a modular cable that is shorter than 3 meters. • Use a USB cable that is shorter than 3 meters.
If the operating noise concerns you
Depending on the use environment and operating mode, if the operating noise is of concern, it is recommended that the machine be installed in a place other than the office.
If you are using a cardiac pacemaker
This machine generates a low level magnetic flux. If you use a cardiac pacemaker and feel abnormalities, please move away from this machine and consult your physician immediately.
CAUTION
- Do not place heavy objects on this machine as they may fall, resulting in injury.
- For safety, unplug the power plug if the machine will not be used for a long period of time.
- Use caution when opening and closing covers to avoid injury to your hands.
- Keep hands and clothing away from the rollers in the output area. If the rollers catch your hands or clothing, this may result in personal injury.
- The inside of the machine and the output slot are very hot during and immediately after use. Avoid contact with these areas to prevent burns. Also, printed paper may be hot immediately after being output, so use caution when handling it. Failure to do so may result in burns.
- Be careful not to drop a heavy object, such as a dictionary, on the platen glass. Doing so may damage the platen glass and result in injury.
- Do not carry the machine with the optional paper drawer installed. Otherwise, the paper drawer may fall and result in injury.
Feeder (only for products with a feeder)
- Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.
- Close the feeder gently to avoid catching your hands, as this may result in personal injury.
- Close the feeder gently to avoid catching your hands in the back of the feeder, as this may result in personal injury.
Finisher (only for products with a finisher)
- Do not place your hands in the part of the tray where stapling is performed (near the rollers), especially pay careful attention to the sharp staples, as this may result in personal injury.
Paper drawer (only for products with a paper drawer)
- Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal injury.
Energy Saver key (only for products with an Energy Saver key)
- Press (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.
Laser Safety
This product is confirmed as a Class 1 laser product in IEC60825-1:2014 and EN60825-1:2014.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.
- Never open covers other than those instructed in the manuals for this machine.
- If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.
CAUTION
Use of controls, adjustments, or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.
Other precautions
- Follow the instructions on the caution label attached to this machine.
- Do not subject the machine to strong shocks or vibration.
- Do not forcibly open and close doors, covers, and other parts. Doing so may result in damage to the machine.
- Do not touch the toner cartridge contacts (a). Doing so may result in damage to the machine.
- Do not turn the main power switch OFF or open the covers while the machine is in operation. This may result in paper jams.
When transporting the machine
To prevent damage to the machine during transport, perform the following.
- Remove the toner cartridges.
- Securely pack the machine in the original box with packing materials.
Appendix
Maintenance and Inspections
Clean this machine periodically. If dust accumulates, the machine may not operate properly. When cleaning, be sure to observe the following. If a problem occurs during operation, see Troubleshooting. If the problem cannot be resolved or you feel the machine requires an inspection, see When a Problem Cannot Be Solved.
WARNING
- Before cleaning, turn OFF the power and unplug the power plug from the AC power outlet. Failure to do so may result in a fire or electrical shock.
- Unplug the power plug periodically and clean with a dry cloth to remove dust and grime. Accumulated dust may absorb humidity in the air and may result in a fire if it comes into contact with electricity.
- Use a damp, well wrung-out cloth to clean the machine. Dampen cleaning cloths with water only. Do not use alcohol, benzenes, paint thinners, or other flammable substances. Do not use tissue paper or paper towels. If these substances come into contact with electrical parts inside the machine, they may generate static electricity or result in a fire or electrical shock.
- Check the power cord and plug periodically for rust, bent prongs, fraying, cracks, or excessive heat generation. Use of poorly-maintained power cord or plug may result in a fire or electrical shock.
CAUTION
- The inside of the machine has high-temperature and high-voltage components. Touching these components may result in injury or burns. Do not touch any part of the machine that is not indicated in the manual.
- When loading paper or removing jammed paper, be careful not to cut your hands with the edges of the paper.
Legal Limitations on the Usage of Your Product and the Use of Images
Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance with your legal advisor for guidance.
- Paper Money
- Travelers Checks
- Money Orders
- Food Stamps • Certificates of Deposit
- Passports • Postage Stamps (canceled or uncanceled) • Immigration Papers • Identifying Badges or Insignias
- Internal Revenue Stamps (canceled or uncanceled)
- Selective Service or Draft Papers • Bonds or Other Certificates of Indebtedness
- Checks or Drafts Issued by Governmental Agencies • Stock Certificates • Motor Vehicle Licenses and Certificates of Title • Copyrighted Works/Works of Art without Permission of Copyright Owner
Power switch: "ON" position
Power switch: "OFF" position
Power switch: "STAND-BY" position
① Push-push switch "N" "OFF
Protective earthing terminal
Dangerous voltage inside. Do not open covers other than instructed.
CAUTION: Hot surface. Do not touch.
Class II equipment
Moving parts: Keep body parts away from moving parts
[NOTE]
Some of symbols shown above may not be affixed depending on the product.
v1602_00_en-GB
Laser Safety Label
- Do not dispose of used toner cartridges in open flames. This may cause an ignition, and result in burns or fire.
- If you accidentally spill or scatter toner, carefully wipe up the loose toner with a damp, soft cloth and avoid inhaling any toner dust. Never use a vacuum cleaner to clean up loose toner. Doing so may cause a malfunction in the vacuum cleaner or result in a dust explosion due to static discharge.
CAUTION
- Keep the toner cartridges and other consumables out of the reach of small children. If toner is ingested, consult a physician or poison control center immediately.
- Do not attempt to disassemble the toner cartridge. The toner may scatter and get into your eyes or mouth. If toner gets into your eyes or mouth, wash them immediately with cold water and consult a physician.
- If toner spills from the toner cartridge, avoid inhaling it or allowing it to come into contact with your skin. If the toner comes into contact with your skin, wash immediately with soap. If you inhale the toner or your skin becomes irritated due to contact with the toner, consult a physician or poison control center immediately.
IMPORTANT
Handling the toner cartridge
- Be sure to hold the toner cartridge using the handle.
- Do not scratch the drum surface (a) or expose it to light. Do not touch the electrical contacts (b) or the toner cartridge memory (c).
- Do not remove the toner cartridge from this machine or from the protective bag unnecessarily.
- The toner cartridge is a magnetic product. Do not move it close to products susceptible to magnetism including floppy disks and disk drives. Doing so may result in data corruption.
Storing the toner cartridge
- Store in the following environment to ensure safe and satisfactory use.
Storage temperature range: 0 to 35°C
Storage humidity range: 35 to 85% RH (relative humidity/no condensation)*
- Store without opening until the toner cartridge is to be used.
- When removing the toner cartridge from this machine for storage, attach the protective cover for the drum, and then place the removed toner cartridge into the original protective bag or wrap it with a thick cloth.
- When storing the toner cartridge, do not store it upright or upside down. The toner will solidify and may not return to its original condition even if it is shaken.
* Even within the storable humidity range, water droplets (condensation) may develop inside the toner cartridge if there is a difference of temperature inside and outside the toner cartridge. Condensation will adversely affect the print quality of toner cartridges.
Do not store the toner cartridge in the following locations
• Locations exposed to open flames - Locations exposed to direct sunlight or bright light for five minutes or more - Locations exposed to excessive salty air - Locations where there are corrosive gases (i.e. aerosol sprays and ammonia) - Locations subject to high temperature and high humidity
- Locations subject to dramatic changes in temperature and humidity where condensation may easily occur
- Locations with a large amount of dust
- Locations within the reach of children
Be careful of counterfeit toner cartridges
- Please be aware that there are counterfeit Canon toner cartridges in the marketplace. Use of counterfeit toner cartridge may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner cartridge. For more information, see http://canon.com/counterfeit.
Availability period of repairing parts and toner cartridges
- The repairing parts and toner cartridges for the machine will be available for at least seven (7) years after production of this machine model has been discontinued.
Toner cartridge packing materials
- Save the protective bag for the toner cartridge and protective cover for the drum. They are required when transporting this machine.
- The packing materials may be changed in form or placement, or may be added or removed without notice.
- Dispose of the removed sealing tape according to local regulations.
When disposing of a used toner cartridge
- Attach the protective cover for the drum, place the toner container into its protective bag to prevent the toner from scattering, and then dispose of the toner cartridge according to local regulations.
Notice
Product Name
Safety regulations require the product's name to be registered.
In some regions where this product is sold, the following name(s) in parentheses () may be registered instead.
MF735Cx / MF734Cdw (F170402)
MF732Cdw (F170400)
EMC requirements of EC Directive
This equipment conforms with the essential EMC requirements of EC Directive. We declare that this product conforms with the EMC requirements of EC Directive at nominal mains input 230 V, 50 Hz although the rated input of the product is 220 to 240 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.
WEEE and Battery Directives
You can see the WEEE and Battery Directives information in the latest User's Guide (HTML manual) from the Canon website (http://canon.com/oip-manual).
Regulatory information for users in Jordan MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
• The information in this document is subject to change without notice. - CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.
About This Manual
The following symbols and key names are a few examples of how keys to be pressed are expressed in this manual.
• Operation panel keys: [Key icon] Example: • Display:
- Buttons and items on the computer display: [Preferences]
Illustrations and Displays Used in This Manual Illustrations and displays used in this manual are which of MF735Cx unless specified.
Trademarks
Mac is a trademark of Apple Inc.
Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Other product and company names herein may be the trademarks of their respective owners.
Third Party Software
This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the "SOFTWARE") are subject to license conditions (1) through (9) below.
(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country. (2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE. (3) You may use the SOFTWARE solely for use with the PRODUCT. (4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE. (5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions. (6) You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form. (7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE. (8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT. (9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.
Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions.
Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at http://canon.com/oip-manual.
By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.
Memo

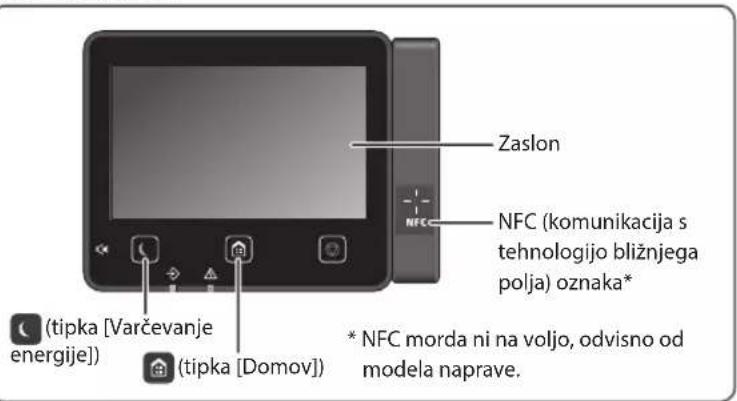

Control panel
CLASS 1 LASER PRODUCT
LASER KLASSE 1
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
LASER PRODUCT CLASS 1
Regulatory information for users in Jordan MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
Regulatory information for users in Jordan MF735Cx / MF734Cdw / MF732Cow includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Control panel
CLASS 1 LASER PRODUCT
LASER KLASSE 1
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS
Regulatory information for users in UAE
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Control panel
For details
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
Regulatory information for users in Jordan MF/35Cx / MF/34Cdw / MF/32Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel![Screen NFC (Near Field Communication) mark* ([Energy Saver] delete key) ([Home] delete key) * Depending on the machine model, the NFC function may not be available.](/content/2026/06/1296427/images/a5358ee06e68409906661b98875b4534071e5c25ef3d0dc10592c26da6f149b2.jpg)
Scanning
Feeder (for products with feeder only)
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF/35Cx / MF/34Cdw / MF/32Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Painel de operações
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
CLASS 1 LASER PRODUCT
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Operation table
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
Regulatory information for users in Jordan MF/35Cx/MF/34Cdw/MF/32Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Betjeningspanel
Find information in
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF/35Cx / MF/34Cdw / MF/32Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Control panel
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER TUOTE
LASERPRODUKT KLASS 1
• Identification badges or insignia
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s): 2412-2472 MHz Maximum radio-frequency power: 15.98 dBm
Slide the paper drawer into the machine.
See the user manual if the problem persists.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
Regulatory information for users in Jordan MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
CLASS 1 LASER PRODUCT
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF/35Cx / MF/34Cdw / MF/32Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Control panel![Construction screenshot: 'Construction1 - [Drawing1] [Drawing2] [Sales]' with menu bar 'File Edit View Insert Tools Help', settings table with columns 'Name', 'Size', 'Parameters', 'Sub-Parameters', and rows 'Extrude', '1 Mb', 'System System (Configuration)', 'Application Status', 'Restructuring', '…](/content/2026/06/1296427/images/bbca03f63ca950f994cc804b544badb45245ce5bf6038e5975b2dda0b344857e.jpg)
Additional information
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
More details
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Control panel![File Selection preferences. New Document - Page Data (Drawing) [View Source Documents]. Name: Edit Type: View Import: Export: Export Path: Export Link: (repeated many times) Output: (repeated many times)](/content/2026/06/1296427/images/3ebbe4612b8fba6ab14d3a796f367dd33e8a7365abd35c4c425d00846076f2fa.jpg)
For more information
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
• Is the power cord properly connected?
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
Regulatory information for users in Jordan: MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE: MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
Additional information
"Reproduction" in the user's manual
Fax function*
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
CLASS 1 LASER PRODUCT LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel
Feeder (only products with feeder)
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
CLASS 1 LASER APPARATUS
CLASS 1 LASER PRODUCT
LASER PRODUCT CLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel![Display (screen) NFC (Near Field Communication) mark* ([Power Saver] key) ([Home] key) * NFC may not be available depending on the device model.](/content/2026/06/1296427/images/a2face69862d167f3d3e1232724ce0c0d5ecd0ca547f64cc15eee3e1489e9745.jpg)
Scanning
4. Insert the paper into the paper tray.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER TUOTE
LASERPRODUKT KLASS
- Do not scratch the surface of the drum (a) or expose it to light. Do not touch the electrical contacts (b) on the toner cartridge memory (c).
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/FU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Control panel![Display NFC (Near Field Communication) mark* ([Power Saver] key) ([Home] key) * NFC may not be available depending on the device model.](/content/2026/06/1296427/images/7b434d4c973ff41bfa27daf513a5c2aa9a5d4e90959402cf7d8e2645c96cdd97.jpg)
Scanning
Details
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
CLASS 1 LASER APPARATUS
CLASS 1 LASER PRODUCT
LASER PRODUCT CLASS 1
- Be careful not to scratch or expose the drum surface (a) to sunlight. Do not touch the electrical contacts (b) or the toner cartridge memory (c).
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Control panel
Scanning
- Place the original.
- Press 🏠 and select .
- Select the scan type and enter the required information.
- Select , or .
Scan types
■ Save to USB memory device ■ Send e-mail message ■ Send to file server
For scanning from a computer
■ MF Scan Utility
For details on
“Scanning” in the User's Guide
Copying
- Place the original.
- Press 🏠, then select .
- Set copy settings as needed.
- Enter the desired number of copies.
- Select or .
Useful copy settings
■ N on 1 ■ Duplex or simplex ■ Enlarge or reduce ■ ID card copy
For details, see
"Copying" in the User's Guide
Faxing*
- Place the original.
- Press and select .
- Enter the destination information.
- Set fax settings as needed.
- Select .
5 Specify the paper size and type according to the screen.
If a problem occurs
For details, see
If the problem persists, refer to the User's Guide.
Paper Jam
When a paper jam occurs, a screen like the one shown below appears.
Remove the jammed paper according to the instructions on the screen.
Feeder (only for models with a feeder)
CLASS 1 LASER PRODUCT LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
- Do not scratch the surface of the drum (a) or expose it to light. Do not touch the electrical contacts (b) or the memory of the toner cartridge (c).
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF/35Cx / MF/34Cdw / MF/32Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s): 2412-2472 MHz Maximum radio-frequency power: 15.98 dBm
Control panel
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Control panel
For details
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
Control panel![File Selection - View Label View Label: [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] File Format: View Page Type: 123 View Type: New Page Typ…](/content/2026/06/1296427/images/1b24709276e34b71188811059e3969c912c0a9cce8dd51b7d513b3b3ea66f21d.jpg)
For details
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio frequency power: 15.98 dBm
Control panel![File Options Form 10 - [Single Text - Open Text] (Windows Not App) File Edit View Insert Modify Export History Export History Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit…](/content/2026/06/1296427/images/9ebab3842cbd450fd5eb9fa03e760ac104237aabb398e8abf9ebad1357b002ac.jpg)
For details
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARECCHIO LASER DI CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN 1 LASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
Contains Wireless LAN Module approved by TRC/SS/2014/38
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
APPARELLO À LASER DE CLASSE 1
PRODUCTO LÁSER DE CLASE 1
APARELHO A LASER DE CLASSE 1
LUOKAN LEASER-TUOTE
LASERPRODUKT KLASS 1
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
RE Directive (For Europe Only)
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s):2412-2472MHz
Maximum radio-frequency power:15.98dBm
Toner cartridge replacement
CLASS 1 LASER PRODUCT LASER KLASSE 1
• CLASS 1 LASER APPARATUS
• CLASS 1 LASER APPARATUS
CLASS 1 LASER PRODUCT
CLASS 1 LASER APPARATUS
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
Regulatory information for users in Jordan
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
Regulatory information for users in Russian
RE Directive
(For Europe Only)
RE Declaration of Conformity
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation
Wireless LAN Specifications
Frequency band(s): 2412-2472 MHz
Maximum radio-frequency power: 15.98 dBm
תפַרְשׁה בְּרָה
CLASS 1 LASER PRODUCT
LASER KLASSE 1
CLASS 1 LASER APPARATUS
CLASS 1 LASER APPARATUS
CLASS 1 LASER PRODUCT
CLASS 1 LASER APPARATUS
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383). Contains Wireless LAN Module approved by TRC/SS/2014/38
Regulatory information for users in UAE MF735Cx / MF734Cdw / MF732Cdw includes approved Wireless LAN Module (Model name: AW-NM383).
TRA
REGISTERED No: ER0126617/14
DEALER No: DA0060877/11
English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s): 2412-2472 MHz Maximum radio-frequency power: 15.98 dBm
[הכלה]
"Apple is not to Mac, Windows Vista, Windows, Microsoft Excel, Internet Explorer, Windows Server PowerPoint, Microsoft Corporation and its Government
תְאַלָה בְרִיֹת
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
One Canon Park, Melville, NY 11747, U.S.A.
CANON EUROPA N.V.
Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands
2F Jinbao Building No.89, Jinbao Street,
Dongcheng District, Beijing 100005, PRC
CANON SINGAPORE PTE LTD
1 Fusionopolis Place, #15-10, Galaxis, Singapore
138522
CANON AUSTRALIA PTY LTD
Building A, The Park Estate, 5 Talavera Road,
Macquarie Park, NSW 2113, Australia
CANON GLOBAL WORLDWIDE SITES
http://www.canon.com/
Printed on non-chlorine bleached paper.
