Product Type	Condenser Tumble Dryer
Model	DS 7334 PXO
Brand	Beko
Capacity	7 kg
Energy Efficiency Class	C
Dimensions (H x W x D)	84.6 cm x 59.7 cm x 59.7 cm
Weight	37 kg
Power Supply	230 V / 50 Hz
Annual Energy Consumption	561 kWh
Noise Level	66 dB(A)
Drying Programs	Cotton, Synthetics, Cottons Eco, Mix, Delicates, Wool, Shirts, Jeans, Duvet, Hygiene, Time Programs, Anti-Allergy
Condensation Efficiency Class	B
Anti-Crease Function	Yes, up to 2 hours
Delayed Start	Up to 24 hours
Filter Cleaning Indicator	Yes
Water Tank Full Indicator	Yes
Drum Type	Stainless Steel
Child Lock	Yes
Door Hinge	Reversible
Net Weight	37 kg

Frequently Asked Questions - DS 7334 PXO BEKO

What is the capacity of the Beko DS 7334 PXO tumble dryer?

The Beko DS 7334 PXO has a capacity of 7 kg, suitable for medium-sized households.

How do I clean the lint filter on this dryer?

Open the door, pull out the lint filter located at the bottom of the door opening, remove lint, rinse under water if needed, dry thoroughly, and reinsert. Clean after every use.

What should I do if the dryer stops mid-cycle and displays an error code?

Refer to the user manual for specific error codes. Common steps: empty water tank, clean filter, check for blockages in the condenser, and ensure the dryer is not overloaded. Restart after resolving.

How do I empty the water tank on the DS 7334 PXO?

Remove the water tank drawer (usually bottom left), pour out water, rinse if necessary, and reinsert. The tank full indicator will alert you.

What are the dimensions of this dryer for installation?

Dimensions are approximately 84.6 cm high, 59.7 cm wide, and 59.7 cm deep. Ensure adequate ventilation space.

Can I install this dryer in a cupboard or under a counter?

This condenser dryer can be installed in a cupboard or under a counter, but must have sufficient air circulation. Minimum gaps: 1 cm on sides, 2 cm on top, and 5 cm at back.

What programmes are available for delicate fabrics?

The dryer has a Delicates program for low heat drying, plus a Wool program for machine-washable woollens.

Does the DS 7334 PXO have a child lock?

Yes, it has a child lock function to prevent accidental setting changes. Activate by pressing and holding a specific button combination as described in the manual.

How long does a typical cotton drying cycle take?

A full load cotton cycle at maximum heat takes approximately 120-150 minutes, depending on initial moisture content.

What is the energy efficiency class of this model?

The Beko DS 7334 PXO has energy efficiency class C on the EU scale (A+++ to D), with annual consumption around 561 kWh.

USER MANUAL DS 7334 PXO BEKO

Installation

Low volume level

High volume level

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that your product, which has been manufactured with high quality and technology, will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Explanation of symbols

Throughout this user manual the following symbols are used:

	Important information or useful hints about usage.
	Warning for hazardous situations with regard to life and property.
	Warning against electric shock.
	Warning against hot surfaces.
	Warning against fire hazard.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes; discard them to the dedicated collection points designated by the local authorities.

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

• The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Children under 3 years of age should be kept away from the dryer unless continuously supervised.
• Do not remove the adjustable feet. Do not reduce the gap between the dryer and the floor with materials such as carpet, wood, or tape, as this can cause problems with the dryer.
• Always have installation and repair procedures carried out by the Authorized Service. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto it! There is a risk of electric shock!

Important instructions for safety and environment

1.1.1 Electrical safety

Electrical safety instructions should be followed while making the electrical connection during installation.

• Connect the dryer to a grounded outlet protected by a fuse with the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with local regulations.
• The voltage and allowed fuse protection are stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning, and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable; always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs, or adaptors to connect the dryer to the power supply in order to decrease the risk of fire and electric shock.
• The power cable plug must be easily accessible after installation.

A damaged mains cable should be replaced, notifying the Authorized Service.

If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is a risk of electric shock!

Important safety and environment instructions

1.1.2 Product safety

Points to consider regarding fire hazard:

The following laundry or items must not be dried in the dryer due to fire hazard.

• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin, or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

For this reason, especially items containing the above specified stains must be washed very well. To do this, use adequate detergent and choose a high washing temperature.

The following laundry or items must not be dried in the dryer due to fire hazard:

- Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water-resistant textiles, materials with rubber reinforcement, and rubber foam pads.

- Clothing cleaned with industrial chemicals.

Items such as lighters, matches, coins, metal parts, needles, etc. may damage the drum set or may lead to functional problems. Therefore, check all the laundry that you will load into your dryer.

Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.

Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

- You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

Important instructions for safety and environment

	Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.
	Use softeners and similar products in accordance with the instructions of their manufacturers.
	Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer

Important instructions for safety and environment

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62cm 60	cm 54 cm	50 cm 49 cm	45 cm 40 cm
54 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed
60 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed	Cannot be installed

Important instructions for safety and environment

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

Child-proof lock is on the control panel. (See Child lock)

- Keep loading door closed even when the dryer is not in use.

Important instructions for safety and environment

1.5 Compliance with the WEEE regulation and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other

wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.6 Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Please visit the following website to get more information on the product.

http://www.beko.com

Important instructions for safety and environment

1.8 Technical Specifications

EN

Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 54 cm
Capacity (max.) 7 kg**
Net weight (plastic front door usage) 46,5 kg
Net weight (glass front door usage) 48,5 kg
Voltage	See type label***Rated power
Model code

* Min. height: Height with adjustable feet are closed.

Max. height: Height with adjustable feet are opened maximum.

** Dry laundry weight before washing.

*** Type label is located behind the loading door.

	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
	Figures in this manual are schematic and may not match the product exactly.
	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

2.1 Package Contents

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*

*It can be supplied with your machine depending on its model.

3 Installation

Before calling the nearest Authorized Service for the installation of the dryer, ensure that the electrical installation and water drain are appropriate, referring to the user's manual. (See 3.3 Connecting to the drain and 3.5 Electrical connection) If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

Preparation of the dryer's location as well as the electrical and waste water installations is under the customer's responsibility.

Prior to installation, visually check if the dryer has any defects. If the dryer is damaged, do not have it installed. Damaged products cause risks for your safety.

Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface.

The dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well-ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by materials such as carpet, wood, and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding, or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Once the dryer is installed, it should stay in the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from the edges of other furniture.
• Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside this range, operation of the dryer will be adversely affected and it can get damaged.
• The rear surface of the tumble dryer shall be placed against a wall.

Do not place the dryer on the power cable.

3.2 Removing the transportation safety assembly

Remove the transportation safety assembly before using the dryer for the first time.

• Open the loading door.
• There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
• Pull the nylon towards yourself and remove the transportation safety assembly.

Check that no part of the transportation safety assembly remains inside the drum.

3.3 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

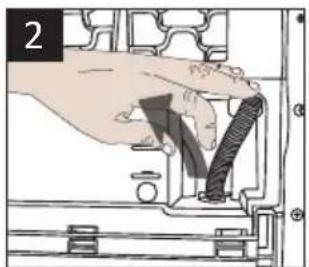

Connecting the water drain hose

1-2 Pull the hose at the back of the dryer by hand to disconnect it from where it is connected. Do not use any tools to remove the hose. 3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in the previous step. 4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

Installation

	Hose connection should be made in a safe manner. Your drain house will be flooded if the hose comes out of its housing during water discharge.
	Water drain hose should be attached to a height of maximum 80 cm.
	Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

3.4 Adjusting the feet

• In order to ensure that the dryer operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.
• Turn the feet to the left or right until the dryer stands level and firmly.

Never unscrew the adjustable feet from their housings.

3.5 Electrical connection

For specific instructions for electrical connection required during installation (see 1.1.1 Electrical Safety)

3.6 Transportation of the dryer

Unplug the dryer before transporting it. Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

We recommend carrying the dryer in an upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked at from the front.

3.7 Warnings about sounds

It is normal to hear a metallic noise from the compressor sometimes during operation.

Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

3.8 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer

To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place laundry in the tumble dryer in a comfortable way.

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS

Drying Symbols

Suitable for dryer

No Iron

Sensitive / Delicate dry

Do not dry with dryer

Do not dry

Do not dry-clean

Drying Settings

○At any temperature

●At high temperature

●At medium temperature

●At low temperature

●Without heating

○Hang to dry

—Lay to dry

■Hang wet to dry

□Lay in shadow to dry

PDry-cleanable

IRON

Iron -

●●●

●●●

●●●

×××

×××

Dry or Steam

Iron at high temperature

Iron at medium temperature

Iron at low temperature

Do not iron

Iron without steam

Maximum temperature

200 °C 150

°C 110

°C

	Drying Settings
		At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable

	Iron -
IRON	Dry or Steam	Iron at high temperature	Iron at medium temperature	Iron at low temperature	Do not iron	Iron without steam
	Maximum temperature	200 °C 150	°C 110	°C

4.2 Laundry not suitable for drying in the dryer

Delicate embroidered fabrics, woollen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

The following information will help you use the dryer in an ecological and energy-efficient manner.

• Spin your laundry at the highest possible speed when washing them. This shortens drying time and reduces energy consumption.
• Sort laundry by type and thickness. Dry the same type of laundry together. For example, thin kitchen towels and tablecloths dry earlier than thick bathroom towels.
• Follow the instructions in the user manual for programme selection.
• Do not open the loading door of the machine during drying unless necessary. If you must open it, do not keep it open for a long time.
• Do not add wet laundry while the dryer is in operation.
• Clean the lint filter before or after each drying cycle. (See 6.1 Cleaning Lint Filter / Loading Door Inner Surface)

Preparation

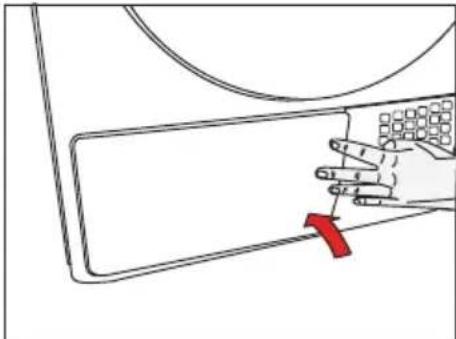

• Clean the filter drawer regularly, either when the Filter Drawer Cleaning warning symbol appears or after every 5 drying cycles. (See 6.4 Cleaning the filter drawer)
• Ventilate the room where the dryer is located well during drying.

4.5 Correct load capacity

Follow the instructions in the “Programme selection and consumption table”. Do not load more than the capacity values stated in the table.

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, the dryer and the laundry can get damaged.

The following weights are given as examples.

Laundry	Approximate weights (g)*
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

*Dry laundry weight before washing.

5 Operating the product

5.1 Control Panel

1. Program Selection button
2. Display
3. On-Off button
4. Start/Stand-by button
5. End Time button
6. Time Programs Adjusting button
7. Audio Warning Level button
8. Dryness Settings Selection button

5.2 Screen symbols

* Time displayed indicates the remaining time to the end of the cycle and this time varies as per the humidity of the laundry.

Operating the product

5.3 Preparing the dryer

Plug in the tumble dryer

Open device door.

Place the laundry into the tub in a slightly loose manner.

Close the door by pushing.

Make sure there is nothing

between the door and the device while closing the door.

Press and hold On/Off/Cancel button for 1 second.

- When dryer is used for the first time, declaration program (cupboard dry cottons) is selected.

Program doesn't start immediately only by pressing the On/Off/Cancel button.

Start the program with the On/Off/Cancel button after program selection.

5.4 Program selection

Your dryer has 16 different programs.

• Select the desired program by turning the program selection button.
• Displayed program selection and consumption chart are based on sorting by preferences of majority of users.

5.5 Program selection and consumption chart

Programs Program Definition		Capacity (kg)*	Washing Machine Spin Cycle (rpm)	Drying Time (min)
Cotton Cupboard Dry	You can dry all your cotton laundry with this program. (T-shirt, pant, pyjama, baby clothes, underwear, sheet etc.) You can put your laundry into the cupboard without ironing.	7 1000	174
Cotton Iron Dry	You can damp-dry your cotton laundry to be ironed to provide ease of ironing with this program. (Shirt, t-shirt, table cloth etc.)	7 1000	139
Cotton Extra Dry	You can dry your thick cotton laundry, such as towel, bedclothes and bathrobe, with this program. You can put your laundry into the cupboard without ironing.	7 1000	184
Synthetic Cupboard Dry	You can dry all your synthetic laundry with this program. (Shirt, t-shirt, underwear, table cloth etc.) You can put your laundry into the cupboard without ironing.	3,5 800	70
Synthetic Iron Dry	You can damp-dry your synthetic laundry to be ironed to provide ease of ironing with this program. (Shirt, t-shirt, table cloth etc.)	3,5 800	59
Jeans	You can dry your denim pant, skirt, shirt or coat with this program.	4 1200	125
Sport	Use for drying laundry made out of synthetic, cotton or mixed type of fabrics.	4 1000	110
Express	You can use this for drying your cotton laundry wrung with high rpm in your washing machine. It dries 1 kg of cotton laundry (3 Shirts/ 3 T-Shirts) in 60 minutes.	1 1200		60
Mix	Use for drying colour-free synthetic and cotton laundry together.	4 1000	120
Shirt 30'	Use this program to prepare 2 shirts ready for ironing in 30 minutes.	0,5	1200	30
Daily	The program used for daily drying of cotton and synthetic clothes and takes 110 minutes.	4 1000		110
BabyProtect	The program used for baby clothes with a permission mark on its label for drying.	3 1000	90
Delicate	You can dry your drying compliant delicate laundry or hand wash recommended laundry (silk blouses, slim underwear etc.) at low temperatures.	2	600 50
Programs	Program Definition	Capacity (kg)*	Washing Machine Spin Cycle (rpm)	Drying Time (min)
Wool refresh	Use this programme to ventilate and soften the woollen laundry that can be washed in the washing machine. Do not use to dry the laundry completely. Take out and ventilate the laundry immediately after the programme is over.	1.5 600	8
Refreshing	Ventilates for 10 minutes without blowing hot air. You can ventilate the cotton and linen clothes that have been enclosed for a long time with this program to remove their odour.	-	-	10
Timer programs	You can select the timer programs from 10 mins to 160 mins to achieve the desired final drying level under low temperature. In this program, the dryer dries for the time set, regardless of the dryness of the laundry.	-	-	-

* Weight of dry laundry before washing

	When the program ends for not having wrinkles on your delicate laundry, take out your laundry immediately and hang them.
Energy consumption values
Programs	Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons linen Ready to wear**	7	1000	60 %	1,8
Cottons Ready to iron	7	1000	60 %	1,3
Synthetics Ready to wear	3,5	800	40 %	0,59
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)				0,1
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)				1,0
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed. R134a / 0,350 kg

„Cotton cupboard dry programme“ used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

	To get better results from drying machine programs, your laundry should be washed with suitable program in your washing machine and wrung with recommended wringing speed.
	Shirt might remain slightly damp at the end of the program. It is recommended not to leave the shirts inside the drying machine.

** : Energy Label standard program (EN 61121:2012) All the values on the chart are identified according to EN 61121:2012 standard. Consumption values may vary from the values in the chart depending on laundry type, wringing speed, ambient conditions and voltage levels.

Operating the product

5.6 Auxiliary functions

Audible warning

The machine makes an audible warning when the program is completed. To adjust the sound level, use the Sound Warning Level button.

You can change the sound level before the program starts or while the program continues.

Volume level low

Volume level high

Dryness settings selection

The Dryness settings button is used for adjusting to desired dryness. Program time may change depending on the selection.

You can activate this function only prior to start of program.

Operating the product

5.9 Warning symbols

Warning symbols may vary depending on the model of your machine.

Fibre filter cleaning

When the program is completed, the warning symbol for filter cleaning turns on.

For detailed information, see 6 Maintenance and cleaning.

If the filter cleaning symbol constantly flashes, see 7 Troubleshooting.

Emptying the water tank

When the program is completed, the warning symbol to empty the water tank turns on.

For detailed information, see 6 Maintenance and cleaning.

If the water tank fills up while the program continues, the warning symbol starts flashing and the machine goes into stand-by. In this case, empty the water tank and start the program by pressing the Start / Stand-by button. The warning symbol turns off and the program resumes.

Cleaning the filter drawer

The warning symbol flashes periodically to remind that the filter drawer must be cleaned.

For detailed information, see 6 Maintenance and cleaning.

Loading cover is open

If the loading cover of the dryer is open while drying, the Stand-by symbol turns on and the program progress symbol flashes.

End time

You can delay the end time of the program up to 24 hours with the end time function.

• Open the loading door and place the laundry.
• Select drying program, spin cycle and if needed, additional functions.
• Press the End Time selection button and set the delay time you wish. The End Time symbol turns on. (When the button is pressed and held, End Time proceeds non-stop).
• Press the Start / Stand-by button. The End Time countdown starts and the Start symbol turns on. The “:” separator in the middle of the displayed delay time flashes.

You can add or remove laundry within the end time. The End Time symbol will turn off at the end of the countdown, drying starts and the duration of the program is displayed. The displayed time is the sum of the normal drying time and the end time.

Operating the product

Changing the end time

If you want to change the duration during the countdown:

• Press the On/Off/Cancel button for 3 seconds to cancel the program. Turn on the machine again and repeat the Delay Setting process for the duration you wish.
• When your machine is turned on for the first time, it turns on with the declaration program (cotton wardrobe dry).

Cancelling the end time function

If you want to cancel the end time countdown and start the program immediately:

• Press the On/Off/Cancel button for 3 seconds to cancel the program.
• Press the On/Off/Cancel button to start your previously selected program.

5.10 Starting the program

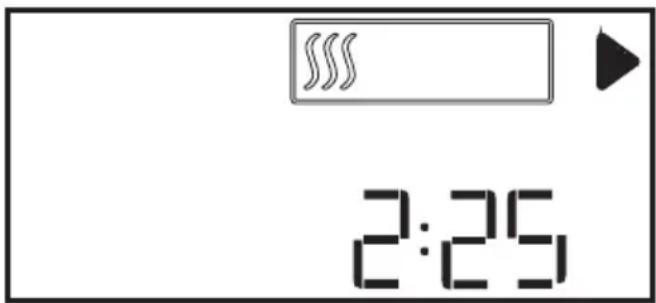

Press the ▶ Start/Stand-by button to start the program. Indicating the start of the program, the Start symbol turns on, the “:” separator in the middle of the remaining time keeps flashing. The Program Progress Symbol turns on.

5.11 Program progress status

5.12 Child Lock

The machine has a child lock which prevents the program flow from being interrupted when the buttons are pressed during a program. To activate the child lock:

• Press and hold the time programs and audio warning buttons for 3 seconds.
• When the child lock is activated, the lock symbol on the screen turns on.

• When the child lock is activated, all buttons on the panel except the On/Off/Cancel and Child Lock buttons are deactivated.
• When the child lock is activated, indicator symbols don't change if the position of the Program Selection button is changed. When the Program Selection button is turned and function buttons are pressed, the letters "CL" flash on the screen.

- The child lock has to be deactivated to be able to start a new program after the current program is finished or to be able to interfere with the program.

To Deactivate The Child Lock:

• Press and hold the child lock button for 3 seconds.
• Child lock deactivates when the dryer is turned off and on by the On/Off/Cancel button.

Operating the product

5.13 Changing the program after it is started

You can change the program you selected to dry your laundry with a different program after the machine starts running.

• For example, to select Extra Dry instead of Iron Dry, pause the program by pressing the Start / Stand-by button.
• Select the Extra Dry program using the Program Selection button.
• Press the Start/Stand-by button to start the program.

Adding and removing clothes during stand-by

• If you want to add or remove clothes to/from the machine after the drying program starts:
• Press the Start/Stand-by button to put the machine in Stand-by state. The drying operation stops.
• Open the loading door while in Stand-by state, and close the door after you remove or add laundry.
• Press the Start/Stand-by button to start the program.

	Adding laundry after the drying operation starts may cause the dried laundry inside the machine to mix with wet laundry and leave the laundry damp at the end of operation.
	Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases program duration and energy consumption. So, it is recommended to add laundry before the program starts.
	If a new program is selected by turning the program selection knob while the machine is in stand-by; the running program terminates and new program information is displayed on the screen.
	WARNING: Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot.

5.14 Cancelling the program

If you want to cancel the program and terminate the drying operation for any reason after the machine starts running, keep the On/Off/Cancel button pressed for 3 seconds.

WARNING: The inside of the machine shall be extremely hot when you cancel the program during machine operation, so run the ventilation program to allow it to cool down.

5.15 End of program

When the program ends, the Fibre Filter Cleaning and Water Tank warning symbols on the program observation indicator turn on. Loading door may be opened and machine becomes ready for another run. To turn off the machine, press the On/Off/Cancel button.

	Wrinkle Prevention function activates the 2 hour-Wrinkle Prevention program if laundry isn’t taken out of machine after completion of the program.
	Clean the fibre filter after each drying. See6.1 Cleaning Lint Filter / Loading Door Inner Surface
	Empty the water tank after each drying.See6.3 Draining the water tank

6 Maintenance and cleaning

Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals.

6.1 Cleaning Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry into the air during the drying cycle are collected in the lint filter.

	Such fiber and lint are generally formed during wearing and washing.
	Always clean the lint filter and the inner surfaces of the loading door after each drying process.
	You can clean the lint filter housing with a vacuum cleaner.

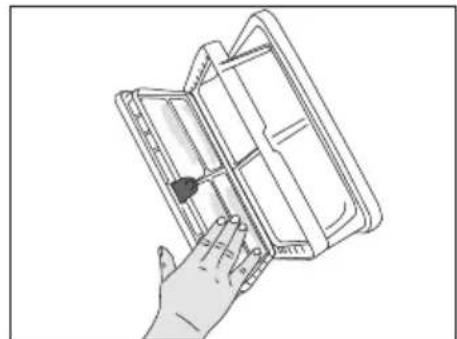

To clean the lint filter:

• Open the loading door.
• Remove the lint filter by pulling it up and open the lint filter.
• Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
• Close the lint filter and place it back into its housing.

A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

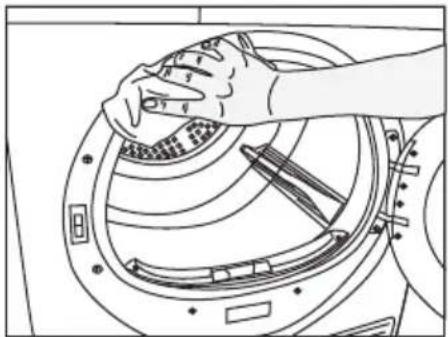

Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth.

Maintenance and cleaning

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.
• Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar, and dry them.

	Clean metal surfaces of the sensors 4 times a year.
	Do not use metal tools when cleaning metal surfaces of the sensors.
	Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during the drying process, and the resulting water accumulates in the water tank. Drain the water tank after each drying cycle.

	Condensed water is not drinkable!
	Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during subsequent drying cycles when the water tank is full, and the Water Tank warning symbol will flash. If this happens, drain the water tank and press the Start/Pause button to resume the drying cycle.

To drain the water tank:

Pull the drawer and remove the water tank carefully.

Drain the water in the tank.

• If there is lint accumulation in the funnel of the water tank, clean it under running water.
• Place the water tank back into its seat.

i	If the direct water draining is used as an option, there is no need to empty the water tank.

Maintenance and cleaning

6.4 Cleaning the filter drawer

Lint and fibers that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. The Filter Drawer Cleaning warning light will light up at most every 5 drying cycles as a reminder.

There is a two-level filter in the filter drawer. The first level is the filter drawer sponge, and the second level is the filter cloth.

To clean the filter drawer:

Press the kick plate button to open the kick plate.

Remove the filter drawer cover by turning it in the direction of the arrow.

• Pull out the filter drawer.

- Open the filter drawer by pressing the red button.

• Take out the filter drawer sponge.

- Clean lint, fiber, and cotton raveling on the filter cloth by hand or with a soft piece of cloth.

- When you notice a layer that may lead to clogging on the filter cloth, please clean the layer by washing in warm water. Let the filter cloth dry thoroughly before installing back the filter drawer.

- Wash the filter drawer sponge by hand to remove the fiber and lint on the surface. After washing the sponge, squeeze it by hand and remove the excess water. Well-dry the sponge before storing it.

It is not necessary to clean the sponge if lint and fiber accumulation on it is not significant.

Maintenance and cleaning

- Place the sponge back into its place.

- Close the filter drawer as to lock the red button.

- Place the filter drawer back into its place, turn the filter drawer cover in the arrow direction and close it securely.

- Close the kick plate cover.

Drying without the filter drawer sponge in place will damage the machine!

A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption.

6.5 Cleaning the evaporator

Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner.

You can also clean by hand provided that you wear protective gloves. Do not attempt to clean with bare hands. Evaporator fins can harm your hand.

7 Troubleshooting

Drying process takes too much time.

• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation is not sufficient since the room where the machine is installed is very small. >>> Open the door and window of the room to avoid the room temperature increase too much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Laundry comes out wet at the end of drying.

After drying, the hot clothes feel damper than their actual dampness level.

• It is likely that the selected programme did not suit the laundry type. >>> Checking the care labels on clothes, select appropriate programme for the laundry type or use timer programmes in addition.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Excessive laundry is loaded. >>> Do not overload the dryer.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

• It is not plugged in. >>> Make sure that the machine is plugged in.
• The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause / Cancel button is not pressed. >>> Make sure that the programme is selected and the machine is not in Pause mode.
• Childproof Lock is activated. >>> Deactivate the Childproof Lock.

Programme is interrupted without any cause.

• Loading door is ajar. >>> Make sure that the loading door is closed securely. • There was a power failure. >>> Press Start / Pause / Cancel button to start the programme. • Water tank is full. >>> Drain the water tank.

Laundry has shrunk, become felted or deteriorated.

- A programme suitable for the laundry type is not used. >>> Check the garment tag and select a programme suitable for the fabric type.

Drum lighting does not turn on. (On models with lamp)

• Dryer is not switched on with the On / Off button. >>> Make sure that the dryer is switched on.
• Lamp is defective. >>> Call Authorized Service Agent to have the lamp replaced.

End/Anti-creasing symbol is on.

- Anti-creasing programme is activated in order to prevent laundry that has remained in the machine from creasing. >>> Turn off the dryer and take out the laundry.

Troubleshooting

End symbol is on.

• Programme is over. Turn off the dryer and take out the laundry.

Lint Filter Cleaning symbol is on.

• Lint filter is not cleaned. >>> Clean the lint filter.

Lint Filter Cleaning symbol is flashing.

• Filter housing is clogged with lints. >>> Clean the lint filter housing.• A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.

Water leaks from the loading door

• Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket.

Loading door opens spontaneously.

• Loading door is ajar. >>> Push the loading door to close until you hear a locking sound.

Water Tank warning symbol is on/flashing.

• Water tank is full. >>> Drain the water tank.• Water draining hose is bent. >>> If the product is connected directly to a wastewater drain, check the water drain hose.

Filter Drawer Cleaning warning symbol is flashing.

• Filter drawer is not cleaned. >>> Clean the sponge and the filter cloth in the filter drawer.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.
