Product type	4-in-1 electric tabletop barbecue
Brand	Solis
Model	4 in 1 Table Grill 790
Dimensions (L x W x H)	Approx. 60 x 30 x 15 cm
Weight	Approx. 5.5 kg
Power supply	220-240 V ~ 50-60 Hz
Power	2400 W
Main functions	Grill, cooking plate, raclette, pierrade
Non-stick coating	Yes, on the plates
Adjustable thermostat	Yes, from 100 to 230 °C
Operating indicator light	Yes
Non-slip feet	Yes
Included accessories	Cooking plates, spatulas, raclette cups
Care and cleaning	Removable plates dishwasher safe
Safety	Overheat protection, cool handles
Spare parts available	Yes, plates and accessories on the manufacturer's website
Repairability	Repairability index not communicated
Warranty	2 years

Frequently Asked Questions - 4 in 1 Table Grill 790 Solis

What cooking modes does the Solis 4 in 1 Table Grill 790 offer?

This appliance combines four functions: grill, cooking plate, raclette and pierrade. You can grill meat, cook eggs, prepare raclette or sear food on stone.

How do I clean the cooking plates?

The plates are removable and dishwasher safe. You can also wash them by hand with a non-abrasive sponge and soapy water. Let them dry thoroughly before putting them back.

Can I use the appliance outdoors?

No, the Solis 4 in 1 Table Grill 790 is an electric appliance designed for indoor use only. Do not use it outdoors or in a damp environment.

What is the maximum power of the appliance?

The appliance has a power of 2400 W, which allows rapid heating and even cooking.

Is the thermostat adjustable?

Yes, the thermostat is adjustable from 100 °C to 230 °C according to your cooking needs. An indicator light shows when the temperature is reached.

How to prevent food from sticking?

The plates are non-stick, but it is recommended to lightly oil them before each use for optimal cooking and easier cleaning.

What to do in case of overheating?

The appliance is equipped with overheat protection that automatically cuts off the power. Let it cool completely before using again.

Can I use metal utensils?

It is not recommended to use metal or sharp utensils as they may scratch the non-stick coating. Prefer wooden, silicone or plastic utensils.

Where can I buy spare parts?

Spare parts (plates, cups, spatulas) are available on the official Solis website or from authorized dealers. Contact customer service for more information.

Does the appliance turn off automatically?

The Solis 4 in 1 Table Grill 790 does not have a programmed automatic shut-off. It is recommended never to leave the appliance unattended during use and to unplug it after use.

USER MANUAL 4 in 1 Table Grill 790 Solis

Solis of Switzerland AG

▲ DESCRIPTION DE L'APPAREIL

▲ DESCRIPTION DE L'APPAREIL

Solis of Switzerland SA

Solis-Haus • CH-8152 Glattbrugg-Zurich • Suisse

▲ DESCRIZIONE DEL DISPOSITIVO

▲ DESCRIZIONE DEL DISPOSITIVO

Solis of Switzerland SA

Solis-Haus • CH-8152 Glattbrugg-Zurigo • Svizzera Telefono [phone] • Fax [phone] [e-mail] • www.solis.ch • www.solis.com

▲ IMPORTANT SAFETY PRECAUTIONS

Please read through this user manual thoroughly before using your Solis Table Grill, so that you become familiar with your appliance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

For your own safety, please observe the following safety measures when using electrical appliances:

1. To prevent electric shock, neither the appliance nor the power cord and the power plug resp. connection adapter must come into contact with water or other liquids. Danger of electric shock! Should the appliance while connected to the power resp. the power cord or the power plug / connection adapter come into contact with liquid, use dry rubber gloves to immediately pull the power plug out of the socket.
2. Do not operate or unplug the appliance with wet or moist hands or feet.
3. Before using the appliance, check that the voltage stated on the type plate matches your mains voltage.
4. Do not leave the power cable hanging over table edges so that it can be pulled. Make sure that it does not come into contact with hot surfaces, such as hotplates or a radiator, or that they come into contact with the appliance.
5. Keep the appliance away from hot gas, hot ovens and other heat-emitting appliances or heat sources. Never use the appliance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.
6. Never carry the appliance by the power cord and do not place anything on the power cord. Never pull on the power cord to disconnect the appliance from the power mains. Only pull on the plug.

7. We recommend that you do not use an extension cable with this appliance. Do not place the appliance directly underneath a power socket.

8. During use, the appliance must be placed on a dry, stable and heat resistant surface. Place the appliance in the middle of the table, not near the corners of the table. Furthermore, the surface should be resistant to drops that might originate from the appliance.

9. The appliance is not designed for outdoor use. Do not use in vehicles or on boats.
10. Keep a minimum distance of 50 cm between the appliance and walls, curtains or other heat and steam sensitive materials and objects. Please note that air must be allowed to circulate freely around the appliance.
11. Never cover the appliance with cloths or the like while it is in use or in a still warm state.
12. Always pull the power plug while the appliance is unsupervised or out of use or if it needs to be disassembled, reassembled or cleaned. We recommend the use of a residual current device (RCD safety switch) to ensure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30 mA maximum. For professional advice consult an electrician.
13. Do not make any adjustments to the appliance, cable, plug or accessories.
14. Improper use creates the risk of injury! No liability is assumed in the case of potential damages or injuries.
15. Never take hold of an appliance that has fallen into water or another liquid. Always pull the power plug before removing it. Do not use the appliance again until you have had it's ability to function safely checked by Solis or a Solis approved service centre.
16. Never place the appliance in such a way that it might fall into water or come into contact with water or another liquid (f.e. in or next to a sink).
17. Never submerge the appliance, power cable or plug in water, or bring it into contact with water or other liquids.

18. Place the appliance so that it is never exposed to direct sunlight.

19. Never put sharp or pointed objects and tools into the appliance openings. The appliance may become damaged – danger of electric shock!

20. Never use kitchen utensils or barbecue tools on the grill plate and the trays resp. on the accessories (raclette pans, round mini-woks). Never use a knife to cut on the grill plate or in the pans. The non-stick coating might be damaged.
21. Do not shake or move the appliance while it is in use. Never relocate the switched-on appliance! The surfaces of the Table Grill get very hot and might cause burns.
22. Only use the appliance as described in this manual. Only use with the provided accessories or accessories recommended by Solis, incorrect accessories can lead to damage of the appliance, resp. to fire, electric shock or personal damage.
23. Never start the appliance using a remote or timer.
24. This appliance is only for domestic use and is not suitable for commercial use.
25. Remove and discard all packaging materials and potential stickers or labels before using the appliance for the first time.
26. Check the appliance before each use and ensure that the appliance, power cord and plug resp. connection adapter are not damaged.
27. To prevent electric shock, do not use the appliance if cord or power plug are damaged or if the appliance has other faults, has fallen down or is damaged in any other way. Never attempt repairs yourself, but take your appliance to Solis or a Solis approved service centre in order to get it inspected or mechanically and electrically repaired.

28. People with limited physical, sensorial or mental capabilities as well as unknowing or inexperienced people and children must not use the Table Grill except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done by unsupervised children. Under no circumstances must the appliance be used or cleaned by children under the age of 8.

29. Keep the appliance and the power cord away from children during and even after use, while it is still warm – risk of burns!

30. Children must be supervised to prevent them from playing with the Table Grill.
31. CAUTION: The temperatures of the appliance parts, grill plate and stainless steel plating are very high during and some time after use! Do not touch the hot appliance parts. Always let the appliance cool down completely first – risk of burns!
32. Always set the temperature control all the way to the left and disconnect the power plug and the connection adapter from the appliance when not using the appliance or before cleaning it. Let the appliance cool down completely before disassembling, cleaning or moving the appliance.
33. Only plug the power plug into the power socket resp. only switch the appliance on if the appliance is placed on a dry, stable and heat resistant surface.
34. Never place empty or used pans or spatulas on the hot grill plate or cooking surfaces – the food leftovers burn! Always use the cold zone as a depositing area, meaning the heat resistant stainless steel plate.
35. NOTE: When using the appliance for the first time, a little bit of smoke might develop. This is normal for appliances that heat up during use and will stop after a short period of time.
36. Pull the plug after every use. Only then, the appliance is fully switched off.
37. Keep the appliance clean. Always switch the appliance off and pull the plug from the power socket and the connection adapter from the appliance socket before cleaning and storing the appliance. Please refer to the notes given in the section "Cleaning and care" on page 61 of this manual.
38. Always fully unwind the power cord before connecting the connection adapter to the appliance socket and the power plug to the power socket.

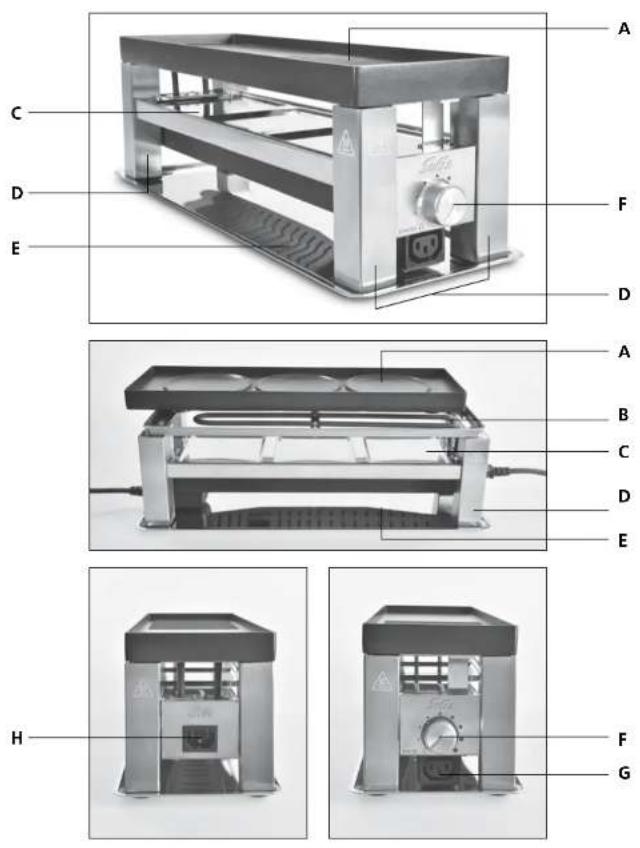

APPLIANCE DESCRIPTION

APPLIANCE DESCRIPTION

A Grill plate with two usable sides
B Heating element (heating coil)
C Stainless steel plating
D Stainless steel feet with plastic knobs
E Stainless steel plate (cold zone)
F Temperature control
G Appliance jack for connection adapter of the intermediate cable, in case another Solis 4 In 1 Table Grill needs to be connected
H Appliance jack for connection adapter of power cord
I Accessories:

3 square raclette pans with non-stick coating

3 round mini-woks with non-stick coating for warming up and gratinating small portions

3 plastic spatulas to easily take the content out of the pans

Power cord with power plug and connection adapter (country-specific) Connection cord (intermediate cable) for connecting one more Solis 4 in Table Grill

▲ APPLIANCE DESCRIPTION

A Grill plate with two usable sides:

• Classic grill plate with grooved and smooth zone; the grooved area is suitable for grilling meat, the smooth area for grilling fish, seafood, vegetables etc.
• Grill plate with round insets for preparing crêpes, or as a heater plate for the 3 round mini-woks.

The grill plate is made from die-cast aluminum, is extremely heat resistant and also equipped with a special non-stick coating.

B Heating element (heating coil)

The heating coil is positioned directly beneath the grill plate, it heats the grill plate and supplies the foods in the pans on the stainless steel plating directly beneath it with top heat.

The temperature of the heating coil is smoothly adjustable thanks to the temperature control.

C Stainless steel plating

The raclette pans and round mini-woks are placed on the stainless steel plating during grilling to gratinate and heat their contents.

D Stainless steel feet with plastic knobs

Thanks to the plastic knobs there will not be any scratches on the plate below.

E Stainless steel plate (cold zone)

The stainless steel plate, the so-called cold zone, serves as a tray for unused pans and spatulas during grilling.

It is separated from the grill itself and thus can be easily removed and cleaned.

There are additional plastic knobs on the corners of the tray to prevent it from scratching the table.

F Temperature control

Once you have connected the connection adapter of the power cord to the appliance jack and the power plug to a suitable power outlet, a red or green light lights up around the temperature control.

You can smoothly adjust the temperature with the temperature control. The bigger the dots around the temperature control, the hotter the heating element gets.

Turn the temperature control to the right (clock wisely) to the desired position. The light surrounding the temperature control glows red as long as the appliance heats up.

Once the set temperature is reached, the light surrounding the temperature control switches to green.

This will happen within the first approx. 75% of the heating power range. Within the remaining approx. 25% to the maximum heating power, the light surrounding always lights up red.

Red light = Heating-up phase

Green light = Temperature has been reached

CAUTION: The power cord has to be removed from the appliance resp. the power plug has to be pulled if you do not use the appliance. Only then, the appliance is definitely switched off.

G Appliance jack for the connection adapter of the connection cord

You can connect up to two separate Solis 4 in 1 Table Grills to this 4 in 1 Table Grill.

Plug the adapter with the contact pins of the included connection cord into the appliance jack below the temperature control. Plug the other end into the appliance jack of the second 4 in 1 Table Grill.

Just like that, you have two Table Grills on your table, with only one power cord (and requiring only one power socket), connected by a intermediate cable.

A third Solis 4 in 1 Table Grill can be connected in the same manner.

H Appliance jack for connection adapter of power cord

The connection adapter on the power cord has to be connected to this appliance jack before the power cord is plugged into the power socket to connect the appliance to the power grid.

BEFORE FIRST USE

• To burn production residues on the grill plate and to burn in the protective coating on the heating element, all removable appliance parts have to be cleaned and the assembled appliance has to heated up before first use.
• Remove the grill plate from the appliance base. Clean the grill plate, the square pans and the round mini-woks as well as the plastic spatulas in hot dish water with a soft towel or sponge. After that, rinse all parts in clear water and dry them.
• Wipe the stainless steel plating and the cold zone tray clean with a moist, soft towel.
• Place the appliance on a dry, heat and moisture resistant worktop.
• Place the dry grill plate back on the base and plug the connection adapter of the power cord into the appliance jack and the power plug into a suitable power outlet. The pans should not be in the appliance.
• Set the temperature control to the highest position (all the way to the right). The red heating-up light surrounding of the temperature control lights up.
• Let the appliance heat up for 10 minutes, after that return the temperature control to its lowest setting (all the way to the left). Pull the plug and let the appliance cool down.
• Wipe both sides of the cooled down grill plate with a slightly wet towel.
• Your appliance is now ready for use.

STARTING UP

1. Place the clean appliance on a dry, stable and heat and moisture resistant table.
2. Choose which side of the grill plate suits you best and place it on the appliance base. Rub the grill plate with a paper towel soaked in cooking oil.
3. Plug the connection adapter of the power cord into the appliance jack and the power plug into a suitable power outlet.
4. Set the temperature control to the maximum power and let the appliance heat up for approx. 15 minutes. In this setting, the light surrounding lights up red.
5. In case you want less than maximum power, turn the temperature control to the desired position.

You can now freely place your grillables on the grill plate. The grooved area is especially suitable for meat, the smooth area is especially suitable for fish, seafood or vegetables.

The raclette cheese can be put in the square pans and placed on the stainless steel plating. This way, everything will be deliciously baked.

Please use the included plastic spatulas to take the foods out of the pans.

Please use a heat resistant plastic kitchen spatula to remove the grillables from the grill plate. Never use metal kitchen tools, these might damage the non-stick coating. For the same reason, do not cut directly on the grill plate or in the pans and never use barbecue tools. Avoid prolonged contact of the plastic tools with the hot grill plate / the hot pans.

TIPS FOR PERFECT GRILLING:

• Both the square raclette pans and the round mini-woks can be placed on the stainless steel plating.
• Always park the pans and plastic spatulas on the lower stainless steel plate, the so-called cold zone, when taking a break from eating. If you leave the food-filled pans on or in the hot appliance, the foods will burn in and the coating might be damaged.
• Never turn the grill plate around while the appliance is hot. The grill plate is very hot, you might burn yourself.
• Do not use any metal kitchen utensils or knives on the grill plate or in the pans, they might damage the non-stick coating.
• Marinate or spice the meat before grilling but salt it only after you have taken it from the grilling surface, otherwise the meat will lose too much of its juice.
• Bratwursts should be broached before grilling to prevent them from cracking.
• Ideally, take the grillables out of the freezer 30 minutes before grilling them. They will grill faster and you prevent thicker pieces of meat from staying cold inside.

GRILLING SURFACE WITH ROUND INSETS

You can also use the side of the grilling surface with the round insets.

It is especially suited to preparing foods in the round mini-woks or making crêpes directly on the grilling surface.

SWITCHING THE APPLIANCE OFF

Turn the temperature control to the lowest temperature (turn the knob all the way to the left).

To switch the appliance off entirely, pull the power plug and let the appliance cool down completely before cleaning it. We recommend carefully cleaning the grill plate, the accessories and also the appliance base after every use.

▲ CLEANING AND CARE

Check if the power cord has been removed from the appliance and if the grill plate and stainless steel plating have cooled down completely.

If the grill plate and the pans are heavily dirty, you can soak them in lukewarm water for some time or remove the dirt with a bit of oil and a paper towel. Under no circumstances use abrasive cleaners or solvents or steel scourers.

Clean the grill plate, the pans and the plastic spatulas in hot water with a mild detergent and a soft sponge or towel. After that, rinse and dry everything carefully. The parts are not dishwasher safe.

The stainless steel plate can be cleaned with a wet towel and then dried.

Clean the appliance base with the stainless steel plating for the pans as well as the power cord – in case should it be dirty – with a slightly wet towel. Never submerge the appliance base, the power cord and the power plug resp. connection adapter in water or other liquids and do not spray water or other liquids onto the appliance parts. Risk of electric shock!

Do not use aggressive cleaners or solvents as well as abrasive materials for any of the appliance parts. They might damage the surface.

Afterwards, reassemble the appliance.

▲ STORAGE

When you do not need the table grill, it has to be disconnected from the power grid and cleaned and dried.

The power cord should be removed and stored next to the completely cooled down appliance.

Best store the completely cooled, cleaned and dry appliance fully assembled in the original packaging, including the accessories. Do not place any objects on the appliance.

▲ TECHNICAL SPECIFICATIONS

Model-no. Type 790

Product description 4 in 1 Table Grill

Table Grill/Raclette Set

Voltage/frequency 230 V\~/50 Hz

Power Output 650 watts

Dimensions approx. 44,5 x 15,0 x 15,5 cm (length x height x depth)

Weight approx. 2,5 kg

Technical changes reserved.

▲ DISPOSAL

EU 2002/96/EC

Information for correct disposal of the product in accordance with the European Directive 2002/96/EC

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time.

SOLIS HELPLINE:

091 802 90 10

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or all technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require.

Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.

Solis of Switzerland Ltd

Solis-House • CH-8152 Glattbrugg-Zurich • Switzerland

Phone [phone] • Fax [phone]

[e-mail] • www.solis.ch • www.solis.com

▲ BELANGRIJKE VEILIGHEIDSINFORMATIE

▲ APPARAATBESCHRIJVING

▲ APPARAATBESCHRIJVING

▲ APPARAATBESCHRIJVING

Solis of Switzerland AG

Solis-Haus • CH-8152 Glattbrugg-Zürich • Zwitserland

Telefoon [phone] • Fax [phone]

[e-mail] • www.solis.ch • www.solis.com
