USER MANUAL SC-PT160 PANASONIC

Operating Instructions

DVD Home Theater Sound System

Model No. SC-PT160

SC-PT165

Product line drawing of a multi-unit electronic device with speakers, monitors, and control unit (no text or symbols visible)

The illustration shows SC-PT160 for Continental Europe.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

Your unit may not look exactly the same as illustrated.
The player plays DVD-Video marked with labels containing the region number or "ALL".

Region Number
Continental Europe, the Middle East, South Africa, Saudi Arabia and Kuwait	2
Southeast Asia and Thailand 3

Example: For Continental Europe

USB connection for MP3 players page 33

E GCS GCT GC GS

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Operations in these instructions are described mainly with the remote control, but you can perform the operations on the main unit if the controls are the same.

Unless otherwise indicated, all illustrations shown are of SC-PT160 for Continental Europe.

System	SC-PT160 SC-PT165
Main unit	SA-PT160 SA-PT160
Front speakers	SB-HF150 SB-HF165
Center speaker	SB-HC150 SB-HC150
Surround speakers	SB-HS151 SB-HS151
Subwoofer	× 1 × 2 SB-HW150 (Black) or × 1 SB-W340 (Silver)	× 1 × 2 SB-HW150 (Black) or × 1 SB-W340 (Silver)

×1

For Continental Europe

×2

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

Caution for AC Mains Lead

(For Saudi Arabia and Kuwait)

("GS" area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📍 or the BSI mark 🍽 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as stated below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL ⊥ OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

1. Replace the fuse and close or attach the fuse cover.

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

• DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
- DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
  • DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.
  • DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

The socket outlet shall be installed near the equipment and easily accessible.

The mains plug of the power supply cord shall remain readily operable.

To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.

SUOMI

VAROITUS!

LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VAROITUS:

VÄHENNA TULIPALON, SÄHKÖISKUN TAI LAITTEISTON VAHINGOITTUMISEN VAARAA

• TÄTÄ LAITETTA EI SAA ALTISTAA SATEELLE, KOSTEUDELLE, ROISKEILLE TAI TIPPUVILLE NESTEILLE. LAITTEEN PÄÄLLE EI SAA MYÖSKÄÄN ASETTAA MITÄÄN NESTEELLÄ TÄYTETTYÄ ESINETTÄ, KUTEN MALJAKKOA.
  • KÄYTÄ VAIN SUOSITELTUJA LISÄVARUSTEITA.
• ÄLÄ IRROTA KANTTA (TAI TAUSTAA). SISÄLLÄ EI OLE KÄYTTÄJÄN HUOLLETTAVISSA OLEVIA OSIA. HUOLLON SAA SUORITTAA VAIN AMMATTITAITOINEN HENKILÖKUNTA.

VAROITUS!

• ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI TULIPALOVAARA.
• ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA ESINEELLÄ.
• ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE.
• HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA TAVALLA.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.

For Continental Europe

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

SUOMI

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA ILMASTOSSA.

NORSK

DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE KLIMAFORHOLD.

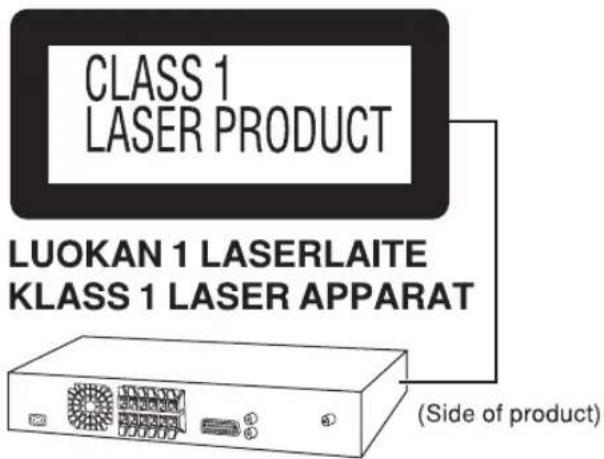

CAUTION	- LASER RADIVATION WHEN OPEN, DO NOT STAVE INTO BEAM.	FDA 21 CFR / Class II
CAUTION	- CLASS TM VIBILE AND INNIBLE LASER RADIVATION WHEN OPEN, DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.	ECKANSI-1 + A31 Class TM
VARNING	- KLAS TM SYNLOG OCH DYNING LASERSTRALNING NAP OCHINA DEL RAP OPPMAD. BETANORA EU STRÅLEN DIRECT QENON OPTIST INSTRUMENTS.
FORSIGTIG	- SYNLOG OG USYRILE LASERSTRALNING KLAS TM, RAR LAGET OR ABENT, UNOGÄT BELIDE PÅ MED OPTIKE INSTRUMENTEN.
VARO!	- AWITKESKA CLET ALTINA LUCKAN TM NARKVÄL JAKNYATENTVL LASERSTRATEYA ALÄKATIVO OPTINELLA LARTTELLA SLURAVN SÄTEBSEN.
VORSICHT	- ICHTBARE UND UNICHTBARE LASERSTRALNING KLASSE TM, MENN ABDECKUNG GEOPEACE, INDT DIRECT MET OPTICHEN INSTRUMENTEN BEACHASTEN.
ATTENTION	- RAYONDMENT LASER VINBLE ET INNIBLE, CLASSE TM, EN CAS O'OUVERTURE NE PAS REGARDER DIRECTMENT A LAIDE INSTRUMENTS O'OPTIQUE.
注意	- ここを聞く対応及び不可視レーザ光が出ます。ビームを見たり,触れたりしないでください。
注意	- 打开时有可見及不可見激光機材,避免有害機材。SB7241_1-2021TM 門HQJXS62075

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit's service life.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and cause a fire. Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other places where DC is used.

AC mains lead protection

Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

GETTING STARTED

Caution for AC Mains Lead 2

Safety precautions ....4

Accessories....6

Preparing the remote control ....6

Placement of speakers ....7

PT165 Assembling the front speakers 8

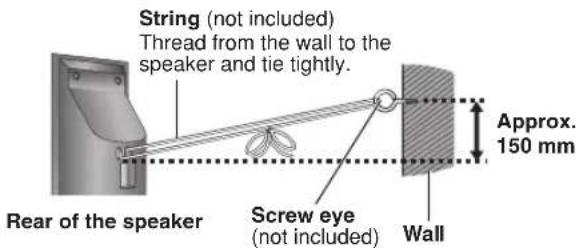

Speaker installation options 9

Simple setup 10

Making the connections 10

Optional antenna connections 12

Performing QUICK SETUP 13

Disc information 14

Discs that can be played....14

Overview of controls 15

Main unit / Remote control....15

DISC OPERATIONS

Disc — Basic play 16

Using the main unit / Using the remote control 16

Advanced play 18

Displaying current playback condition....18

Program and Random play 18

Playing data discs using navigation menus 19

Playing data discs 19

Playing RAM and DVD-R/-RW (DVD-VR) discs 19

Using on-screen menus 20

Functions menu 20

Changing the player settings 23

MAIN menu 23

Changing the delay time of the speakers....25

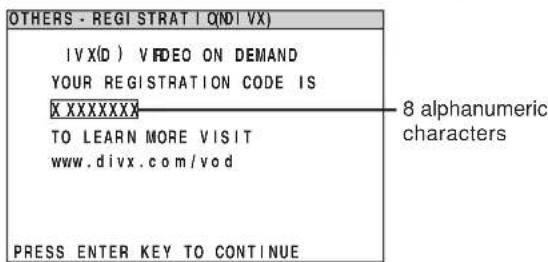

About DivX VOD content 26

Tips for making data discs 26

OTHER OPERATIONS

Using the radio 28

Manual tuning 28

Automatic presetting 28

Selecting the preset channels....28

Using sound effects.... 29

Enhancing the sound from the center speaker: Center Focus....29

Adjusting the amount of bass: Subwoofer level 29

Changing the sound quality: Equalizer Mode (EQ) 29

Enhancing the stereo sound: Dolby Pro Logic II 29

Enhancing the stereo sound: Super Surround....29

Adjusting the volume of each speaker: Speaker level adjustments....30

Enjoying Karaoke 30

Enjoying karaoke with karaoke DVD and VCD 30

Enjoying karaoke with other sources 31

Mic volume adjustment 31

Adding an echo effect 31

Vocal cancel function 31

Changing the pitch 31

Operating other equipment 32

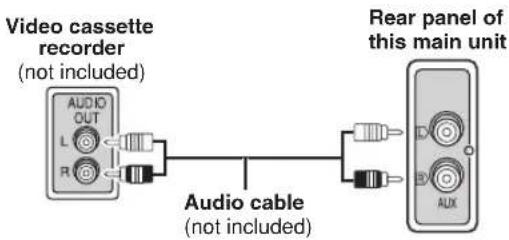

Optional audio connection for video cassette recorder or television....32

Optional connection for set top box, cable TV box or video cassette recorder 32

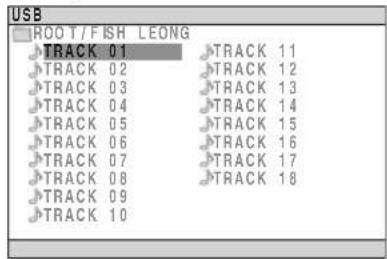

Optional USB connection and operation....33

Operating the television 34

Changing the main unit and remote control 34

REFERENCE

Troubleshooting guide 35

Language code list 38

Glossary 39

Specifi cations 40

Maintenance....42

Accessories

Please check and identify the supplied accessories.

□1 Remote control

For Continental Europe

(N2QAYB000091)

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

(N2QAYB000092)

□ 2 Remote control batteries

□1 FM indoor antenna

□ 1 Sheet of speaker cable stickers

□1 AC mains lead

For Saudi Arabia and Kuwait

For Continental Europe, Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

□1 Video cable

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

□ PT165 cover plates

PT165 er stands

2 Stands (with cable)

PT165

PT165 Sorrows

Preparing the remote control

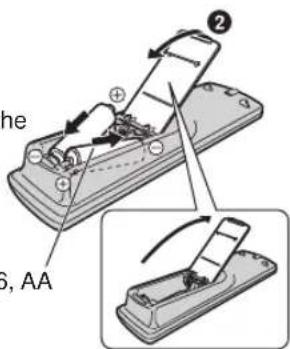

① Insert so the poles (+ and -) match those in the remote control.

R6/LR6, AA

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

• Do not use rechargeable type batteries.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period of time with doors and windows closed.

Do not:

• mix old and new batteries.
• use different types of batteries at the same time.
  • take apart or short circuit the batteries.
• attempt to recharge alkaline or manganese batteries.
• use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can severely damage the remote control.

Remove the batteries if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

■ Use

Aim at the remote control signal sensor ( page 15), avoiding obstacles, at a maximum range of 7 m directly in front of the unit.

How you set up your speakers can affect the bass and the sound fi eld. Note the following points:

• Place speakers on fl at secure bases.
• Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains.

Setup example

Place the front, center, and surround speakers at approximately the same distance from the seating position. The angles in the diagram are approximate.

PT160

1 FRONT (L, R)

② SURROUND (L, R)

3 CENTER

4 SUBWOOFER

PT165

1 FRONT (L, R)

② SURROUND (L, R)

③ CENTER

4 SUBWOOFER

• Use only supplied speakers

Using other speakers can damage the unit, and sound quality will be negatively affected.
- Set the speakers up on an even surface to prevent them from falling. Take proper precautions to prevent the speakers from falling if you cannot set them up on an even surface.

Main unit

• Keep your speakers at least 10 mm away from the system for proper ventilation.
• To allow proper ventilation and to maintain good airflow around the main unit, position it with at least 5 cm of space on all sides.
• Do not block the ventilation holes of the main unit.

Caution

- Do not stand on the base. Be cautious when children are near. e.g. PT165 ont speaker

- Do not touch the front netted area of the speakers. Hold by the sides. e.g. Center speaker

Center speaker

• Vibration caused by the center speaker can disrupt the picture if it is placed directly on the television. Put the center speaker on a rack or shelf.
  • To prevent the speakers from falling, do not place directly on top of the television.

Subwoofer

- Place to the right or left of the television, on the floor or a sturdy shelf so that it will not cause vibration. Leave a space of 30 cm from the television.

Caution

• The main unit and supplied speakers are to be used only as indicated in this setup. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.
• Do not attempt to attach these speakers to walls using methods other than those described in this manual.

Placement of speakers (continued)

Note

• You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.
• Reduce the volume in the following cases to avoid damage:
• When playing distorted sound.
• When the speakers are reverberating due to a record player, a microphone (except For Continental Europe), noise from FM broadcasts, or continuous signals from an oscillator, test disc, or electronic instrument.
• When adjusting the sound quality.
• When turning the unit on or off.

If irregular coloring occurs on your television

The front and center speakers are designed to be used close to a television, but the picture may be affected with some televisions and setup combinations.

If this occurs, turn the television off for about 30 minutes.

The television's demagnetizing function should correct the problem. If it persists, move the speakers further away from the television.

Assembling the front speakers

Preparation

• To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
• For assembly, use a Phillips-head screwdriver.
• For optional wall mount, refer to page 9.

Make sure you have all the indicated components before starting assembly, setup, and connection.

2 Front speakers (with cover plate)

2 Stands (with cable) 2 Bases 8 Screws

1

2

3 Tighten securely.

5 Slide into the groove.

■ Preventing the speakers from falling

• You will need to obtain the appropriate screw eyes to match the walls or pillars to which they are going to be fastened.
• Consult a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a surface that may not have strong enough support. Improper attachment may result in damage to the wall or speakers.

■ Attaching to a wall

You can attach all of the speakers (except subwoofer) to a wall.

- The wall or pillar on which the speakers are to be attached should be capable of supporting 10 kg per screw. Consult a qualified building contractor when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers.

PT165
Preparation for front speakers

3
Connect the cable ^× ( page 8).
* Use the cable from the stand by releasing it from the grooves at both ends.

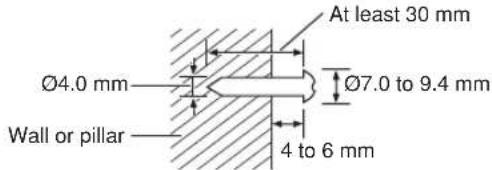

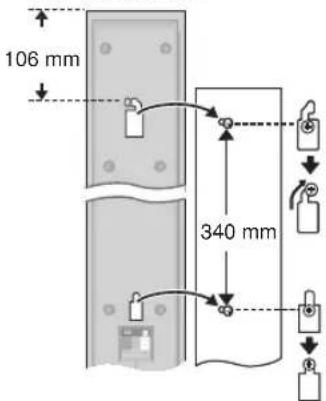

1 Drive a screw (not included) into the wall.

2 Fit the speaker securely onto the screw(s) with the hole(s).

PT160
Front and surround speakers
Surround speaker

PT165

PT165
Front speaker
Attach to a wall without the base and the stand

Example:
In this position, the speaker will likely fall if moved to the left or right.

Move the speaker so that the screw is in this position.

■ Reattaching the speaker cable to the stand PT165

1 Remove the eight screws from the stand, and remove the speaker net.

2 Position the cable.

3 Attach the speaker net with the screws.

Making the connections

Connect the AC mains lead only after all other connections have been made.

- Ensure that you have the complete accessories before making the connections.

Conserving power

The main unit consumes a small amount of power, even when it is in standby mode (approx. 1 W). To save power when the unit is not to be used for a long time, unplug it from the household mains socket. You will need to reset some memory items after plugging in the unit.

Connect to the power supply.

For Saudi Arabia and Kuwait

BE SURE TO READ THE NOTE ON AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.

Note

The included AC mains lead is for use with this unit only. Do not use it with other equipment.

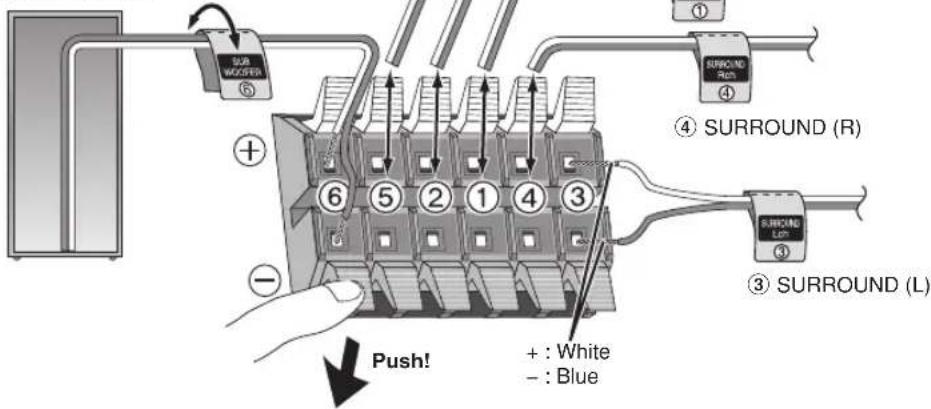

Connect to the speakers.

Attach the speaker-cable stickers to make connection easier.

Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the speakers.

Do not insert the wires beyond the wire insulation.

⑥ SUBWOOFER

⑤ CENTER

② FRONT (R)

① FRONT (L)

+ : White
- : Blue

Connect to the antenna.

■ FM indoor antenna

Tape the antenna where reception is the best.

Connect to the various television terminals.

• Do not connect the unit through a video cassette recorder.
• Due to copy guard protection, the picture may not be displayed correctly.
• Turn the television off before connecting, and refer to the television's operating instructions.

For Continental Europe

■ Television with SCART terminal

Using the SCART (AV) terminal

To improve picture quality, you can change the video signal output from the SCART (AV) terminal from "VIDEO" to either "S-VIDEO" or "RGB" to suit the type of television you are using. Select "S-VIDEO" or "RGB" from "VIDEO OUT-SCART" in "VIDEO" tab (→ page 24). This connection will also enable you to play audio from your television through your home theater system. Refer to "Operating other equipment" (→ page 32).

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

■ Television with a VIDEO IN terminal

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

■ Television with COMPONENT VIDEO IN terminals

Using the COMPONENT VIDEO OUT terminals

The COMPONENT VIDEO OUT terminals provides a purer picture. These terminals can be used for either interlaced or progressive output. Connection using these terminals outputs the color difference signals ( P_B/P_R ) and luminance signal (Y) separately in order to achieve high fi delity in reproducing colors.

• The description of the component video input terminals depends on the television or monitor (example: Y/P_B/P_R , Y/B-Y/R-Y, Y/C_B/C_R ).
• The description of the component video input terminals depends on the television or monitor (example: Y/P_B/P_R , Y/B-Y/R-Y, Y/C_B/C_R ).
• Connect to terminals of the same color.

To enjoy progressive video

• Connect to a progressive output compatible television.
• Set the "VIDEO OUT (I/P)" to "PROGRESSIVE" (→ page 24, "VIDEO" tab).
• All Panasonic televisions that have "PROGRESSIVE" input connectors are compatible. Consult the manufacturer if you have another brand of television.

Optional antenna connections

Use outdoor antennas if radio reception is poor.

Note

• Disconnect the outdoor antenna when the unit is not in use.
• Do not use the outdoor antenna during a lightning storm.

FM outdoor antenna

(Using a television antenna)

Rear panel of this main unit

• Disconnect the FM indoor antenna.
• The outdoor antenna should be installed by a competent technician.

The QUICK SETUP screen assists you to make necessary settings.

To display the picture from this main unit, switch on the television and change the television's input mode which is connected to this main unit (example: VIDEO 1, AV 1, etc.).

To change your television's input mode, refer to its operating instructions.

- This remote control is able to perform some basic television operations (→ page 34).

3 Shows the QUICK SETUP screen.

4 Follow the messages and make the setting.

5 Finish the QUICK SETUP.

6 Press to exit.

To change these settings later

Select "QUICK SETUP" in "OTHERS" tab (→ page 25).

■ Details of settings
Menu languageChoose the language for the on-screen messages.	ENGLISH (Language options) *
TV TypeSelect to suit the type of television.	STANDARD CRT LCDPROJECTION PLASMA
TV's Aspect RatioChoose the setting to suit your television and preference.	4:3 PAN&SCAN 4:3 LETTERBOX 4:3 ZOOM16:9 NORMAL 16:9 SHRINK 16:9 ZOOM
* Language options :For Continental Europe, the Middle East, South Africa, Saudi Arabia and Kuwait :FRANÇAIS, ESPAÑOL, DEUTSCH, PYCCKIЙ, MAGYAR, ČESKY, POLSKIFor Southeast Asia and Thailand :繁體中文

• Underlined items in the above table are the factory preset.

Discs that can be played

■ Commercial discs

Disc Logo		Indicated in these instructions by	Remarks
DVD-Video		DVD-V	High quality movie and music discs.
Video CD		VCD	Music discs with video. Including SVCD (Conforming to IEC62107).
CD		CD	Music discs.

■ Recorded discs (○: Playable, X: Not playable)

Disc Logo	Recorded on a DVD video recorder, etc.		Recorded on a personal computer, etc.					Finalizing ^× 6
	DVD-VR ^×2	DVD-V ^×4	WMA	MP3	JPEG	MPEG4	DivX ^×9
DVD-RAM		○	—	×	○	○	○ ^×8	○	Not necessary
DVD-R/RW		○	○	×	○	○	○	○	Necessary
DVD-R DL		○ ^×3	○	×	×	×	×	×	Necessary
+R/+RW —		×	(○) ^×5	×	×	×	×	×	Necessary
+R DL —		×	(○) ^×5	×	×	×	×	×	Necessary
CD-R/RW ^×1	—	—	—	○	○	○	○	○	Necessary ^×7

• It may not be possible to play all the above-mentioned discs in some cases due to the type of disc, the condition of the recording, the recording method, or how the files were created (→ page 26, Tips for making data discs).
  ^*1 This unit can play CD-R/RW recorded with CD-DA or Video CD format.
  ^※2 Discs recorded on DVD video recorders or DVD video cameras, etc. using Version 1.1 of the Video Recording Format (a unified video recording standard).
  ^3 Discs recorded on DVD video recorders or DVD video cameras using Version 1.2 of the Video Recording Format (a unified video recording standard).
  ※4 Discs recorded on DVD video recorders or DVD video cameras using DVD-Video Format.
  ※5 Recorded using a format different from DVD-Video Format, therefore, some functions cannot be used.
  ^※6 A process that allows play on compatible equipment. To play a disc that is displayed as “Necessary” on this unit, the disc must first be finalized on the device it was recorded on.
  ※7 Closing the session will also work.
  ^8 MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profi le) video system/G.726 audio system].
  ※9 Functions added with DivX ultra are not supported.

Note about using a DualDisc

The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so playback may not be possible.

■ Discs that cannot be played

DVD-RW version 1.0, DVD-Audio, DVD-ROM, CD-ROM, CDV, CD-G, SACD, Photo CD, DVD-RAM that cannot be removed from their cartridge, 2.6-GB and 5.2-GB DVD-RAM, and "Chaoji VCD" available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

■ Video systems

• This unit can play PAL and NTSC, but your television must match the system used on the disc.
• PAL discs cannot be correctly viewed on an NTSC television.
• This unit can convert NTSC signals to PAL 60 for viewing on a PAL television (→ page 24, "NTSC DISC OUT" in "VIDEO" tab).

Main unit

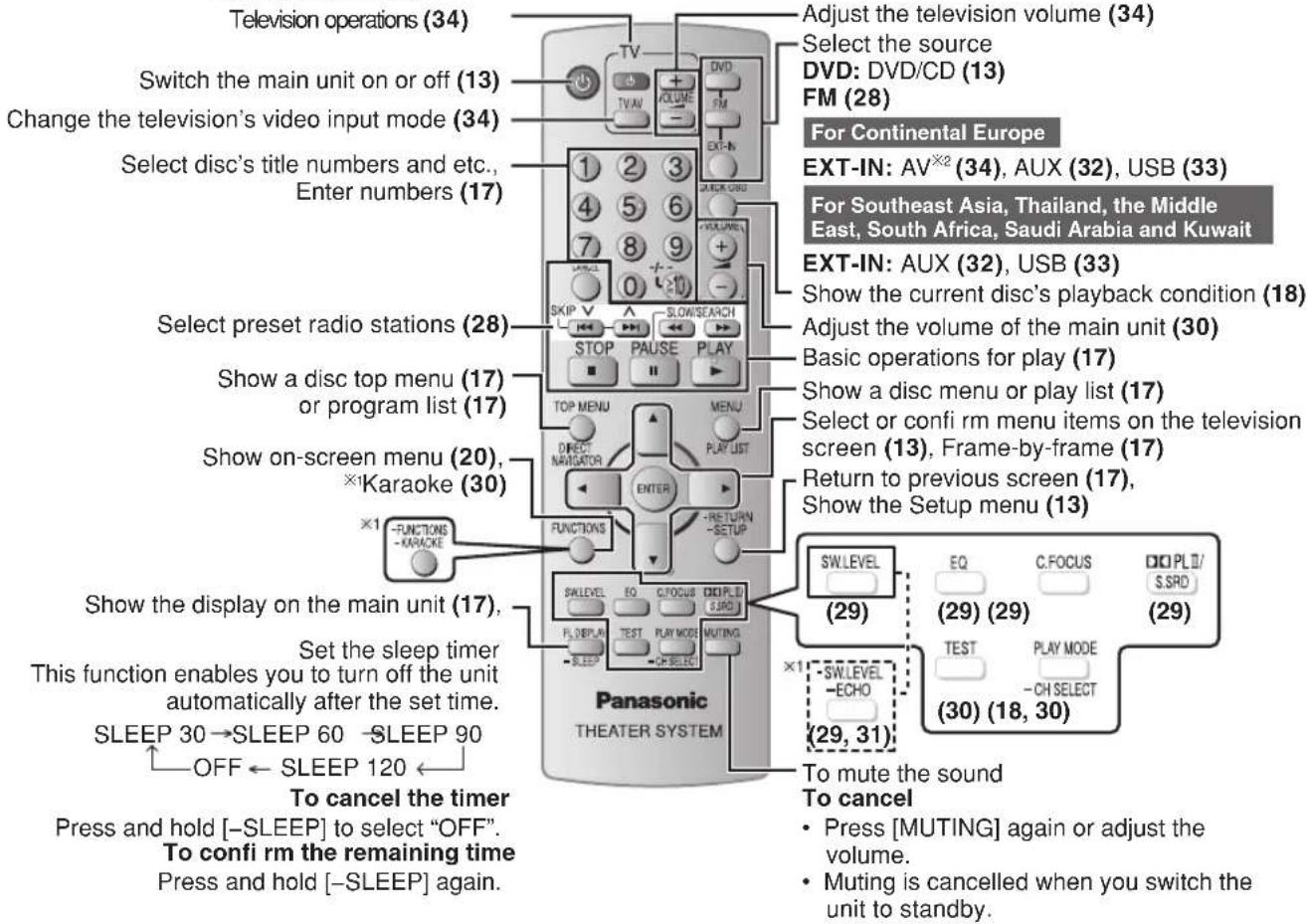

Remote control

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

^2 “AV” works only when the scart cable is connected ( page 32).

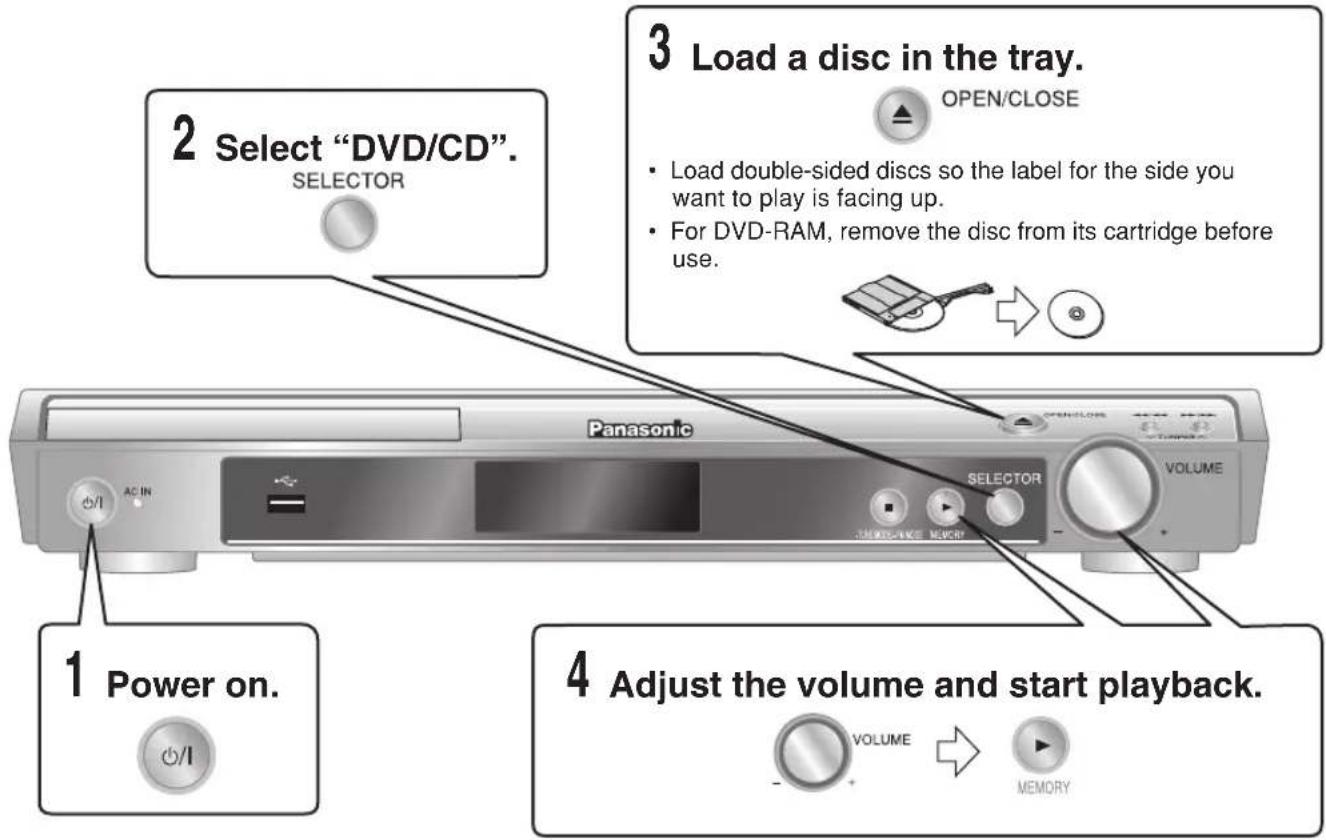

Using the main unit

Using the remote control

Stop

The position is memorised while "RESUME" is on the display.

- Press [▶, PLAY] to resume. - Press [■, STOP] again to clear the position.

Pause

- Press [▶, PLAY] to resume playback.

Search (during play)

- Play speed increases up to 5 steps. - Press [▶, PLAY] to resume normal playback.

Slow-motion play (during pause)

- Play speed increases up to 5 steps. - Motion play is for forward direction only. - Except MPEG4 DivX - Press [▶, PLAY] to resume normal playback.

Main unit display

DVD-V DVD-VR WMA MP3 MPEG4 DivX Time display ←Information display JPEG SLIDE ←Information display

Skip

On-screen item select


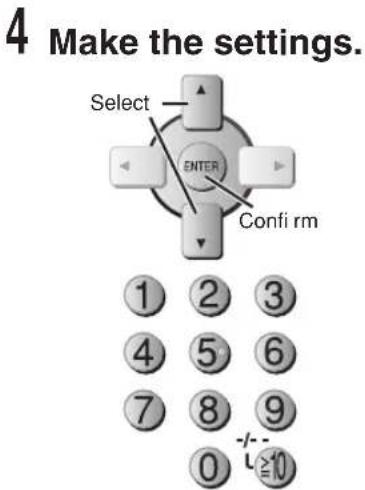

Enter numbers

DVD-V (while stopped) DVD-VR VCD CD

Example: To select 12,

VCD with Playback control (PBC)

Press [■, STOP] and then press the numeric buttons to cancel the PBC functions.

Note

- The numeric buttons that can function depend on the number of tracks on the VCD.

Cancel the numbers

Disc menus

Shows a disc top menu.

Shows the program (→ page 19).

Shows a disc menu.

Shows the playlist ( page 19).

VCD with Playback control (PBC)

Shows a disc menu.

Frame-by-frame (during pause)

Circular button with four directional arrows pointing inward and center labeled 'ENTER' (no additional text or symbols)

- DVD-VR Forward direction only.

Return to previous screen

Note

• DISC CONTINUES TO ROTATE WHILE MENUS ARE DISPLAYED.
Press [■, STOP] when you finish to preserve the unit's motor and your television screen.
• Total title number may not be displayed properly on +R/+RW.

Displaying current playback condition

The OSD's (on-screen display) abbreviations are as described below;

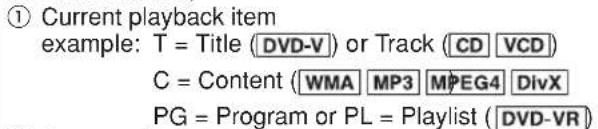

② Current playback chapter example: C= Chapter (DVD-V)
③ Elapsed or remaining play time (Press [▲, ▼] to view the elapsed or remaining play time.)
④ Play mode condition
⑤ Playback condition
⑥ Current playback position

Note

WMA MP3

Remaining play time cannot be viewed.

Program and Random play

To exit program or random play mode while stopped.

• DVD-V Some items cannot be played even if you have programmed them.
• Program and random play functions only within the selected "AUDIO", "PICTURE" and "VIDEO" folder.

Program play (up to 30 items)

1 To select the items.

• Press [-RETURN] to select from the previous folders.
• Repeat this step to program other items.

Example:

DVD-V PROGRAM
SELECT TITLE	TITLE CHAP.
TITLE 1	1
TITLE 2	2
TITLE 3	3
TITLE 4	4
TITLE 5	5
TITLE 6	6
TITLE 7	7
	8
	9
	10
START:PLAY CLEAR ALL

DVD-V PROGRAM
SELECT CHAPTER		TITLE CHAP.
ALL		1 2	1
CHAP.	1	2 2	2
CHAP.	2	3 3	6
CHAP.	3	4 3	3
CHAP.	4	5 5	1
CHAP.	5	6 5	5
CHAP.	6	7 5	7
CHAP.	7	8 5	8
CHAP.	8	9 2	1
CHAP.	9	10 2	4

2

To select all the Items

Press [▲, ▼] to select "ALL". Then press [ENTER] again to confirm.

To clear the selected program

1. Press [▶, ▲, ▼] to select the program number.
2. Press [CANCEL].

To clear the whole program

Select "CLEAR ALL" with [▶] and press [ENTER]. The whole program is also cleared when the unit is turned off, the disc tray is opened or another source is selected.

Random play

1 To select a title.

Example: DVD-V

- Press [ENTER] again to cancel the selection.

2

Playing data discs

Select "DATA" in "OTHERS" tab (→ page 25) to play WMA, MP3, JPEG, MPEG4 or DivX content.

WMA MP3 JPEG MPEG4 DivX

Playing items in order (PLAYBACK MENU)

To select "AUDIO/PICTURE" or "VIDEO".

Playing from the selected item

1

PLAY LIST

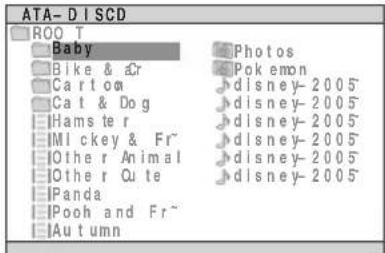

Group (Folder)*

JPEG

: WMA/MP3 content (File) ^4

MPEG4 and DivX video content (File)

* Files are treated as contents and folders are treated as groups in these instructions.

Maximum fi le or folder name: approximate 12 characters

2 To select the group.

3 To start play from the selected content.

To exit the screen Press [MENU].

Playing RAM and DVD-R/-RW (DVD-VR) discs

DVD-VR

• Titles appear only if the titles are recorded on the disc.
• You cannot edit programs, play lists and disc titles.

Playing the programs

1

TOP MENU

(during stop)

2 To select from the program.

3

To exit the screen

Press [DIRECT NAVIGATOR].

Playing a play list

Applicable only when the disc contains a play list.

1

(during stop)

PLAY LIST

2 To select from the play list.

3

To exit the screen

Press [PLAY LIST].


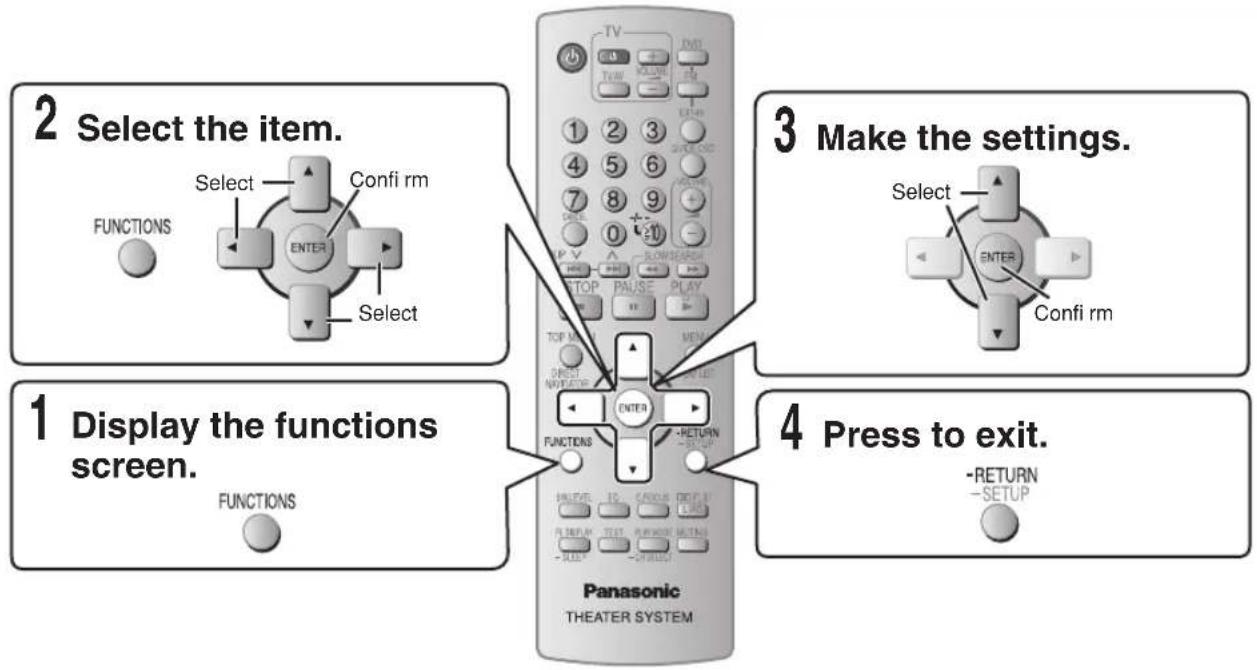

    A["1 Select the function screen."] --> B["2 Select the item."]
    B --> C["3 Make the settings."]
    C --> D["4 Press to exit."]

Items shown differ depending on the type of disc as well as the recording format.

Functions menu

TRACK SEARCHTITLE SEARCHCONTENT SEARCHCHAPTER SEARCHPG (Program) SEARCHPL (Playlist) SEARCH	To start from a specifi c itemExample: DVD-VTP1 1: ENG/3 2.1c hOFF OFFTITLE SEARCHx1 . 0
AUDIO	Example: DVD-VT2 C1 [IMAGE]DV-DV DivX (with multiple soundtracks)To select audio soundtrackDVD-VR VCDTo select “L”, “R”, “L+R” or “L R”DVD-V (Karaoke disc) (→ page 30, Enjoying Karaoke)To select “ON” or “OFF” for vocalsTo select “OFF”, “V2”, “V1” or “V1+V2” for different vocal selectionsRead the disc’s instructions for details.Signal type/dataLPCM/PPCM/ Digital/DTS/MP3/MPEG: Signal type kHz (Sampling frequency)/bit/ch (Number of channels)Example: 3 /2 .1ch1: Low frequency effect (not displayed if there is no signal)0: No surround1: Mono surround2: Stereo surround (left/right)1: Center2: Front left + Front right3: Front left + Front right + CenterDivX It may take some time for play to start if you change the audio on a DivX video disc.
DATE DISPLAY	JPEG : OFF ONC 8 OFF Q0OFF DAT E D IS P LAY
PLAY SPEED	To change play speed- from "x0.6" to "x1.4" (in 0.1-unit steps)Example: DVD-VT2 C 2 📌1 : *** /20ch 📄1 .OFF 📌 :1 E N G 📌1PLAY SPEEDDVD-V DVD-VRPress [►, PLAY] to resume normal playback.After you change the speed.- Dolby Pro Logic II has no effect.- Audio output switches to 2-channel stereo.- Sampling frequency of 96 kHz is converted to 48 kHz.This function may not work depending on the disc's recording.
ROTATION	To rotate a picture (during pause)JPEG : 0 →90 →180 →270C8 OFFOFFROT AT ION
REPEAT MODE	Example: DVD-VT2 C2 📌1 :*** 2/0ch 📄1 .0OFF 📌 :1 ENG 📌1REPEAT MODE(Only when the elapsed play time can be displayed.)DVD-V : OFF →TITLE →CHAP. (Chapter) →A-BDVD-VR : OFF →ALL →PG (Program) or PL (Playlist) →A-BVCD CD : OFF →ALL →TRACK →A-BWMA MP3 : OFF →ALL →GROUP*1 →CONTENT →A-BDivX MPEG4 : OFF →ALL →GROUP*1 → CONTENTJPEG : OFF →ALL →GROUP*1*1*GROUP" will not be displayed during program or random play.
SUBTITLE	To select subtitle languageExample: DVD-VT2 C 2 📌1 : *** /20ch 📄1 . 0OFF 📌 :1 ENG 📌1SUBTITLEDVD-V 📌1 multiple subtitles)VCD (SVCD only)On +R/+RW, a subtitle number may be shown for subtitles that are not displayed.DVD-VR "ON" or "OFF" appears only with discs that contain subtitle on/off information (Subtitle on/off information cannot be recorded using Panasonic DVD Recorders).
ANGLE	(with multiple angles) To select a video angleExample: DVD-VT2 C 2 📌1 : *** /20ch 📄1 . 0OFF 📌 :1 ENG 📌1ANGLE
PICTURE MODE	Example: DVD-VNORMAL NORMALPICTURE MODENORMAL : Normal images.CINEMA1 : Mellows images and enhances detail in dark scenes.CINEMA2 : Sharpens images and enhances detail in dark scenes.DYNAMIC : Enhances the contrast for powerful images.ANIMATION : Suitable for animation.
ZOOM	To select various zoom sizesExample: DVD-VNORMAL AUTOx2x4
SOURCE SELECT	DivXWhen you select “AUTO” the constructing method of the DivX contents is automatically distinguished and output. If the picture is distorted, select “INTERLACE” or “PROGRESSIVE” depending on which constructing method was used when the contents were recorded to disc.AUTOINTERLACE PROGRESSIVEExample:
DIALOGUE ENHANCER	To make the dialogue in movies easier to hearExample: DVD-VDVD-V(Dolby Digital, DTS, MPEG, 3-channel or higher, with the dialogue recorded in the center channel)
Dolby PLII	OFF → MOVIE → MUSIC(→ page 29, Enhancing the stereo sound : Dolby Pro Logic II)Example: DVD-V
KARAOKE MODE※2	OFF ↔ ON (→ page 30, Enjoying Karaoke)Example: DVD-V
TRANSFER MODE※2	Example: DVD-VIf you have set “VIDEO OUT (I/P)” to “PROGRESSIVE” (→ page 24, “VIDEO” tab), press [▲, ▼] to select the method of conversion for progressive output to suit the type of material.• The setting will return to AUTO or AUTO1 when the disc tray is opened.contentsdeo content, and appropriately converts it.VIDEO : Select when using AUTO, and the content is distorted.FILM : Select this if the edges of the film content appear jagged or rough when AUTO is selected. However, if the video content is distorted as shown in the illustration to the right, then select AUTO.deo content, and appropriately converts it.detects film contents with different frame rates and C2, and the content is distorted.

• If you have not performed QUICK SETUP (→ page 13), the QUICK SETUP screen appears.

• The settings remain intact even if you switch the unit to standby.
• Underlined items are the factory settings in the following table.

QUICK SETUP enables successive settings of the items in the shaded area.

MAIN menu

■“DISC” tab
AUDIOChoose the audio language.	·ENGLISH ·(Language options) ×1 ·ORIGINAL OTHER ---- ×3
SUBTITLEChoose the subtitle language.	·AUTO×4 · ENGLISH · (Language other -- options)
MENUSChoose the language for disc menus.Changing the menu language in QUICKSETUP also changes this setting.	·ENGLISH ·(Language options) ×1
	·OTHER ---- ×3
RATINGSSet a ratings level to limit DVD-Video play.	Setting ratings (When level 8 is selected)·0 LOCK ALL: To prevent play of discs without rating levels.·1 to 7: To prohibit play of DVD-Video with corresponding ratings recorded on them.·8 NO LIMITWhen you select your ratings level, a password screen is shown.Enter your password and then follow the on-screen instructions.Do not forget your password.A message screen will be shown if a DVD-Video disc exceeding the ratings level is inserted in the unit.Follow the on-screen instructions.
PASSWORDChange the password for “RATINGS”.	·SETTINGChanging ratings (When level 0 to 7 is selected)·CHANGEFollow the on-screen instructions.

※1 Language options :

For Continental Europe, the Middle East, South Africa, Saudi Arabia and Kuwait

FRENCH, SPANISH, GERMAN, RUSSIAN, HUNGARIAN, CZECH and POLISH.
For Southeast Asia and Thailand : CHINESE TRAD.
2	The original language designated on the disc is selected.
3	Input a code number referring to the table (→ page 38).
4	If the language selected for “AUDIO” is not available, subtitle appears in that language (if available on the disc).

QUICK SETUP enables successive settings of the items in the shaded area.

MAIN menu (continued)

TV ASPECTChoose the setting to suit your television and preference.	4:3 PAN&SCAN: Regular aspect television (4:3)The sides of the widescreen picture are cut off so it fi lls the screen (unless prohibited by the disc).4:3 LETTERBOX: Regular aspect television (4:3)Widescreen picture is shown in the letterbox style.4:3 ZOOM: Regular aspect television (4:3)The picture zooms in and out.16:9 NORMAL: Widescreen television (16:9)Laterally stretches image.16:9 SHRINK: Widescreen television (16:9)Images appear in the center of the screen.16:9 ZOOM: Widescreen television (16:9)Expands to 4:3 aspect ratio.
TV TYPESelect to suit the type of television.	STANDARD CRT LCDPROJECTION PLASMA
TIME DELAYWhen connected with a Plasma display, adjust if you notice the audio is out of sync with the video.	0 ms 20 ms 40 ms 60 ms 80 ms 100 ms
NTSC DISC OUTChoose PAL 60 or NTSC output when playing NTSC discs (→ page 14, Video systems).	NTSC: When connected to a NTSC television.PAL60: When connected to a PAL television.(※“NTSC” is the factory preset.)

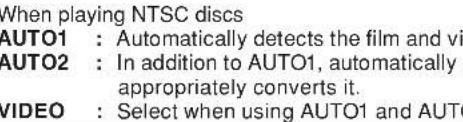

STILL MODESpecify the type of picture shown when paused.	AUTOFIELD※5: The picture is not blurred, but picture quality is lower.FRAME※5: Overall quality is high, but the picture may appear blurred.
VIDEO OUT - SCART※7Choose the video signal format to be output from the SCART (AV) terminal.	VIDEO S-VIDEO RGB
VIDEO OUT (I/P)※9Select “PROGRESSIVE” only if connecting to a progressive output compatible television.	INTERLACEPROGRESSIVE (a message screen will appear, follow the on-screen instructions)
■ “AUDIO” tab
DYNAMIC RANGE	ON: Adjust for clarity even when the volume is low by compressing the range of the lowest sound level and the highest sound level. Convenient for late night viewing.(Only works with Dolby Digital)OFF
SPEAKER SETTINGS (→ page 25)Set the delay time for your center and surround speakers	SETTINGSC DELAY: 0ms 1ms 2ms 3ms 4ms 5msSL/SR DELAY: 0ms 5ms 10ms 15ms
■ “DISPLAY” tab
LANGUAGE	※8 ENGLISH FRANÇAIS ESPAÑOL DEUTSCH PYCCKÍJMAGYAR CESKY POLSKIENGLISH 紫體中文
※5 For Southeast Asia and Thailand※6 Refer to “Frame still and fi eld still” (→ page 39, Glossary).※7 For Continental Europe※8 For Continental Europe , the Middle East, South Africa, Saudi Arabia and Kuwait※9 For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait
■ “OTHERS” tab
REGISTRATIONDivXDisplays the unit’s registration code.	SHOW CODEYou need this registration code to purchase and play DivX Video-on-Demand (VOD) content.(→ page 26, “About DivX VOD content”)
JPEG TIMESet the speed of the slideshow.	1 SEC • 2 SEC • 3 SEC • 4 SEC to 15 SEC15 SEC to 60 SEC (in 5-unit steps)60 SEC to 180 SEC (in 30-unit steps)
FL DIMMERChange the brightness of the unit’s display.	BRIGHTDIMAUTO: The display is dimmed, but brightens when you perform some operations.
QUICK SETUP	SETYESNO
DVD-VR/DATASelect to play only DVD-VR or DATA format (→ page 19).	DVD-VRDATA
DEFAULTSThis returns all values in the MAIN menu to the default settings.	RESETThe password screen is shown if “RATINGS” (→ page 23) is set. Please enter the same password, then turn the unit off and on again.

Changing the delay time of the speakers

Effective when playing multi-channel audio

(Center and surround speakers only) For optimum listening with 5.1-channel sound, all the speakers, except for the subwoofer, should be the same distance from the seating position. If you have to place the center or surround speakers closer to the seating position, adjust the delay time to make up for the difference.
        J["Actual speakers position"]
        K["Ideal speakers position"]
        L["Primary listening distance"]
    end

If either distance a or b is less than c, find the difference in the table and change to the recommended setting.

a Center speaker
Difference (Approx.)	Setting
30 cm 1 ms
60 cm 2 ms
90 cm 3 ms
120 cm 4 ms
150 cm 5 ms

b Surround speaker
Difference (Approx.)	Setting
150 cm 5 ms
300 cm 10 ms
450 cm 15 ms

■ To enter the speaker setting

1 To select the speaker.

C DELAY = Center delay

SL / SR DELAY = Surround left / Surround right delay

2 To select the delay time.

To exit the setup

Press and hold [-SETUP].

About DivX VOD content

DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this unit, you first need to register the unit.

Follow the online instructions for purchasing DivX VOD content to enter the unit's registration code and register the unit. For more information about DivX VOD, visit www.divx.com/vod.

■ Display the unit's registration code

(→ page 25, "REGISTRATION (DIVX)" in "OTHERS" tab)

• We recommend that you make a note of this code for future reference.
- After playing DivX VOD content for the first time, another registration code is then displayed in "REGISTRATION (DIVX)". Do not use this registration code to purchase DivX VOD content. If you use this code to purchase DivX VOD content, and then play the content on this unit, you will no longer be able to play any content that you purchased using the previous code.

- If you purchase DivX VOD content using a registration code different from this unit's code, you will not be able to play this content. ("Authorization Error" is displayed.)

■ Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. ("RENTAL EXPIRED" is displayed.)

When playing this content

• The number of remaining plays is reduced by one if
- you press [◎] or press and hold [-SETUP].
- you press [■, STOP].
- you press [◀◀, ▶▶▶] (skip) or [◀◀, ▶▶▶] (slow/search) etc. and arrive at another content.
- Resume (→ page 17, Stop) function does not work.

Tips for making data discs

• When there are more than eight groups, the eighth group onwards will be displayed on one vertical line in the menu screen.
• There may be differences in the display order on the menu screen and computer screen.
• This unit cannot play files recorded using packet write.

DVD-RAM

• Discs must conform to UDF 2.0.

DVD-R/RW

• Discs must conform to UDF bridge (UDF 1.02/ISO9660).
- This unit does not support multi-session. Only the default session is played.

CD-R/RW

• Discs must conform to ISO9660 level 1 or 2 (except for extended formats).
- This unit supports multi-session but if there are many sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.

Naming folders and fi les

Files are treated as contents and folders are treated as groups on this unit.

At the time of recording, prefix folder and file names. This should be with numbers that have an equal number of digits, and should be done in the order you want to play them (this may not work at times). Files must have the extension ( see below).

WMA (Extension: ".WMA" or ".wma")

• Compatible compression rate: between 48 kbps and 320 kbps.
• You cannot play WMA files that are copy-protected.
• This unit does not support Multiple Bit Rate (MBR).

MP3 (Extension: ".MP3" or ".mp3")

• Compatible compression rate: between 32 kbps and 320 kbps.
• This unit does not support ID3 tags.
• Compatible sampling rates:
  – DVD-RAM, DVD-R/RW: 11.02, 12, 22.05, 24, 44.1 and 48 kHz
• CD-R/RW: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1 and 48 kHz

JPEG (Extension: ".JPG", ".jpg", ".JPEG" or ".jpeg")

• JPEG files taken on a digital camera that conform to DCF Standard (Design rule for Camera File system) Version 1.0 are displayed. Files that have been altered, edited or saved with computer picture editing software may not be displayed.
• This unit cannot display moving pictures, MOTION JPEG and other such formats, and still pictures other than JPEG (Example: TIFF), or play pictures with attached audio.

MPEG4 (Extension: ".ASF" or ".asf")

• You can play MPEG4 data [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profi le) video system/G.726 audio system] recorded with Panasonic SD multi cameras or DVD video recorders with this unit.
• The recording date may differ from that of the actual date.

DivX (Extension: ".DIVX", ".divx", ".AVI" or ".avi")

• You can play all versions of DivX® video (including DivX®6) [DivX video system/MP3, Dolby Digital or MPEG audio system] with standard playback of DivX® media fi les. Functions added with DivX Ultra are not supported.
• DivX fi les greater than 2 GB or have no index may not be played properly on this unit.
• This unit supports all resolutions up to maximum of 720 x 480 (NTSC)/720 x 576 (PAL).
• You can select up to eight types of audio and subtitles on this unit.

Disc handling precautions

• Do not attach labels or stickers to discs. This may cause disc warping, rendering it unusable.
• Do not write on the label side with a ball-point pen or other writing instrument.
• Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
• Do not use scratch-proof protectors or covers.
• Do not use the following discs:
  – Discs with exposed adhesive from removed stickers or labels (rented discs, etc).
  – Discs that are badly warped or cracked.
• Irregularly shaped discs, such as heart shapes.

■ To clean discs

Wipe with a damp cloth and then wipe dry.

Two hand diagrams showing correct and incorrect ways to change a circular object, no text or symbols present.

Manual tuning

1 To select "FM".

SELECTOR

(main unit)

OR

(remote control)

2 To select "MANUAL".

-TUNE MODE-FM MODE

(main unit)

3 To select the frequency.

(main unit)

OR

(remote control)

Press and hold [V TUNING ∧] until the frequency starts scrolling to start automatic tuning. Tuning stops when a station is found.

Presetting the channel

Remote control only

Up to 30 stations can be set for FM.

1. While listening to the radio broadcast Press [ENTER].
2. While the frequency and "PGM" are flashing on the display

Press the numeric buttons to select a channel.

• To select a 2-digit number

Example: To select 12,

• Alternatively, press [V, ∧], then press [ENTER].

The station occupying a channel is erased if another station is preset to that channel.

Automatic presetting

1 To select "FM".

SELECTOR

(main unit)

OR

(remote control)

2 Press and hold.

MEMORY

(main unit)

OR

(remote control)

Release the button when "FM AUTO" is displayed.

The tuner tunes to the lowest frequency and starts to preset all the stations it can receive into the channels in ascending order.

• "SET OK" is displayed when the stations are set, and the radio tunes to the last preset station.
• "ERROR" is displayed when automatic presetting is unsuccessful. Preset the channels manually (→ see left).

Selecting the preset channels

1 To select "FM".

2 To select the channel.

TO

• Alternatively, press [V, ∧].
- To perform the step on the main unit, first press [-TUNE MODE] to select "PRESET", and then press [√ TUNING ∧] to select the channel. When a stereo FM broadcast is being received, "ST" lights in the display.

If noise is excessive in FM

Main unit only

Press and hold [- FM MODE] to display "MONO". Press and hold [- FM MODE] again to cancel the mode. The mode is also cancelled when you change the frequency.

Note

• The following sound effects may not be available or have no effect depending on the type of source.
• You may experience a reduction in sound quality when these sound effects are used with some sources. If this occurs, turn the sound effects off.

Enhancing the sound from the center speaker: Center Focus

This applies to discs where the dialogue is recorded in the center channel.

You can make the sound of the center speaker seem like it is coming from within the television.

C FOCUS ON ← C FOCUS OFF

• This also works when Dolby Pro Logic II is turned on.

Adjusting the amount of bass: Subwoofer level

You can adjust the amount of bass. The unit automatically selects the most suitable setting according to the type of playback source.

• DVD-V DVD-VR

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

- When AV or AUX source is selected

For Continental Europe

- When another source is selected

• To check the current setting, press [SW.LEVEL].
- The setting you make is retained, and recalled every time you play the same type of source.

Changing the sound quality: Equalizer Mode (EQ)

SOFT ^※ : For background music .

HEAVY : Adds punch to rock.

CLEAR : Clarifi es higher sounds.

FLAT : Cancel (no effect is added) (factory preset).

• To check the current setting, press [EQ].
- You can adjust the volume of the surround speakers to get the best surround effect (→ page 30, Adjusting the volume of each speaker: Speaker level adjustments).

Enhancing the stereo sound: Dolby Pro Logic II

Except DivX

Dolby Pro Logic II is an advanced decoder that derives 5-channel surround (Left and Right Front, Center, Left and Right Surround) from stereo sound sources, whether or not it has been specifically Dolby Surround encoded.

MOVIE : Movie software, recorded in Dolby Surround.

MUSIC : Stereo sources.

OFF : Cancel.

• This function is only available for DVD/CD and USB mode.
• “□□PLII” lights when there is effect.

Enhancing the stereo sound: Super Surround

MOVIE : Use this mode when playing movie software.

MUSIC : Adds surround effects to stereo sources.

OFF : Cancel.

• Super Surround and EQ can be turned on simultaneously.
• This function is only available for FM, AV and AUX mode.

Using sound effects (continued)

Adjusting the volume of each speaker: Speaker level adjustments

This is one of the ways to get appropriate surround effects.

Preparation

1 While stopped and no on-screen display is shown To output a test signal.

L: Front left

C: Center

R: Front right

RS: Right surround

LS: Left surround

• There is no output from SW (subwoofer) channel.

2 To set the volume level normally used for listening.

3 To adjust the speaker level for each speaker.

OR

- Adjust the speaker levels to the same level as the front speakers.

C, RS, LS: -6 dB to +6 dB

To stop the test signal

Press [TEST] again.

To adjust speaker level during play

(Effective when playing multi-channel audio or when Dolby Pro Logic II is on.)

1. Press and hold [-CH SELECT] to select the speaker.

SW: Subwoofer

• You can adjust SW only if the disc includes a subwoofer channel.
• "SW" does not appear on the display and is not adjustable when "☐☐PLII" is lit.
• "S" appears on the display when "MOVIE", "MUSIC" is selected with Super Surround (→ page 29).

In this case, you can adjust both surround speaker levels at the same time using [▲, ▼].

S: -6 dB to +6 dB

1. Press [▲] (increase) or [▼] (decrease) to adjust the speaker level for each speaker.

C, RS, LS, SW: -6 dB to +6 dB

(L, R: Only the balance is adjustable.)

- To adjust the balance of the front speakers, while "L" or "R" is selected, press [◀, ▶].

Enjoying Karaoke

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

Preparation

1 Lower the microphone volume to "MIN".

2 Connect the microphone to the jack.

Use a dynamic microphone. Microphone plug type: ∅6.3 mm monaural (not included).

Note

• If a strange noise (howling) is emitted during use, move the microphone away from the speakers, or turn down the microphone volume.
• When you are not using the microphone, disconnect it from the microphone jack, and turn down the microphone volume level to "MIN".
• While karaoke mode is turned on, multi channel signals will be down-mixed to 2 channel signals.
• Karaoke function will automatically turn off when the tray opens, when you change the source or when the unit is turned off.

Enjoying karaoke with karaoke DVD and VCD

1 Start playback.

2 To display the audio menu on the television.

(Press and hold)

3 To switch on the karaoke function.

4 Adjust the mic volume and sing along.

To exit the screen

Press [-KARAOKE].

Enjoying karaoke with other sources

You can also perform karaoke with discs other than those described and also in USB mode.

1 Start play.

Refer to the pages for the source

- Discs: (→ page 16), Disc - Basic play

- Optional USB connection and operation (audio mode does not work) ( page 33).

2 Make the selection ( see below, Audio mode). Only necessary if the vocals and melody are spilt between the left and right channels.

3 Start singing ( see right, Mic volume adjustment). Even if the vocals and melody are not split, you may still be able to lower the volume of the vocals. ( see right, Vocal cancel function)

Audio mode (AUDIO CHANGE)

1 Repeat steps 1 to 3 of Enjoying karaoke with karaoke DVD and VCD ( page 30).

2 To select "AUDIO CHANGE".

3 To select audio mode.

DVD-V (Karaoke discs)

Solo

Off : No vocal

On : Vocal

Duet

Off: No vocal

V1+V2 : Vocal 1 and 2

V1 : Vocal 1

V2 : Vocal 2

- Choose "Off" for karaoke.

- Choose "V1" or "V2" to duet with the player.

VCD and other sources

L R: Left channel sound is heard from the left speaker and right channel sound is heard from the right speaker — vocal and accompaniment

L: Only left channel sound — no vocal

R: Only right channel sound — vocal

L + R: Left and right channel sounds are mixed and heard from both speakers

- Select no vocal for karaoke.

• Vocal and no vocal may be reversed.

Mic volume adjustment

Main unit only

Turn to adjust the microphone's volume level.

Adding an echo effect

(Press and hold)

The effect increases with the level.

Vocal cancel function

Use this function on stereo sources to block out the vocals so you can sing along to the music.

1 Repeat steps 1 to 3 of Enjoying karaoke with karaoke DVD and VCD (→ page 30).

2 To select "VOCAL CANCEL".

3 To switch the function on or off.

This function is not suitable for the following sources.

• Monaural recordings
• Chorus works or duets

Changing the pitch

Use this function to change the pitch level.

1 Repeat steps 1 to 3 of Enjoying karaoke with karaoke DVD and VCD (→ page 30).
2 To select "KEY CONTROL".

3 To select the pitch level.

Optional audio connection for video cassette recorder or television

Press [EXT-IN] (→ page 15) to select "AUX" as the source to operate the audio input.

For Continental Europe

This audio connection will enable you to play audio from your video cassette recorder through your home theater system.

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

This audio connection will enable you to play audio from your television through your home theater system.

Optional connection for set top box, cable TV box or video cassette recorder

For Continental Europe

SCART cable (not included)
- To listen to the sound from the television, select the appropriate audio out (example: Monitor) on the television.
Sound from the television
- Press [EXT-IN] (→ page 34) to select the "AV" audio input from the remote control.

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

To your cable TV service or television antenna

Optional USB connection and operation

WMA MP3 JPEG MPEG4

The USB connectivity enables you to connect and play tracks or files from USB mass storage class devices. Typically, USB memory devices. (Bulk only transfer)

Preparation

Before connecting any USB mass storage device to the unit, ensure that the data stored therein has been backed up.

It is not recommended to use a USB extension cable. The USB device is not recognised by this unit.

1 Connect the USB mass storage device (not included).

(not included)

It is not recommended to use a USB extension cable. The device connected via the cable will not be recognised by this unit.

2 To select "USB" as the source, press several times.

Select the desired item for playback.

OR

Example:

3 Adjust the volume of the main unit.

VOLUME

4 Begin playback by selecting the track from the USB mass storage device.

Example:

OR

OR

To return to the previous screen Press [-RETURN].

For other operating functions, they are similar as those described on "DISC OPERATIONS" (→ page 16 to 27).

※1

For Continental Europe

Compatible Devices

• Devices which are defined as USB mass storage class:

• USB devices that support bulk only transfer.
• USB devices that support USB 2.0 full speed.

Supported Formats

	File name	File extension
Still pictures	JPG ^※2	.jpg .jpeg
Music	MP3WMA	.mp3.wma
Video	MPEG4 ^※3	.asf

✗2 It may not be possible to play all the fi les due to the condition on how they were created.
※3 For Panasonic D-Snap/DIGA.

Optional USB connection and operation (continued)

Note

• CBI (Control/Bulk/Interrupt) is not supported.
- Digital Cameras that use PTP protocol or which require additional program installation when connected to a PC are not supported.
- A device using NTFS file system is not supported. [Only FAT 12/16/32 (File Allocation Table 12/16/32) file system is supported].
- Depending on the sector size, some files may not work.
- It will not operate with Janus enabled MTP (Media Transfer Protocol) devices.

• Maximum folder: 256 folders
• Maximum file: 4000 files
• Maximum fi le name: 12 characters
• Maximum folder name: 12 characters
- Only one memory card will be selected when connecting a multiport USB card reader. Typically the first memory card inserted.

Operating the television

You can use the remote control to operate a Panasonic television.

Aim the remote control at the television.

To switch the television on or off

To switch the television's video input mode

Adjust the volume

To play audio from your television through your home theater system

Preparation

Connect your equipment referring to ✗"Connect to the various television terminals" (→ page 11) and ✗"Optional audio connection for video cassette recorder or television" (→ page 32).

×1

For Continental Europe

Press [EXT-IN] to select "AV" as the source. Then reduce the volume on the television to its minimum, and control the volume on this main unit.

※2

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

Press [EXT-IN] to select "AUX" as the source. Then reduce the volume on the television to its minimum, and control the volume on the main unit.

Note

• The remote control may not work properly with some models.
• You can enjoy 5.1-channel surround sound when you turn on Super Surround (MOVIE, MUSIC) (→ page 29).

The remote control and main unit are factory-set to "REMOTE 1" mode.

If your remote control affects other equipment during operation, you can switch to operate in "REMOTE 2" mode.

To switch to "REMOTE 2" mode

1 While pressing and holding [▶▶/▶▶] on the main unit

"REMOTE 2" appears on the main unit display.

2 To operate in "REMOTE 2" mode

(Press and hold for 2 seconds)

Changing the main unit and remote control

To return to "REMOTE 1" mode

Perform steps 1 and 2 but use [1] instead of [2] for both steps. ("REMOTE 1" appears on the main unit during step 1.)

The remote control cannot work with the main unit if their modes are different.

"REMOTE 1" or "REMOTE 2" appears on the main unit display when you operate the remote control.

- If "REMOTE 1" appears (The main unit is in "REMOTE 1" mode.)

Press and hold [ENTER] and [1] on the remote control for at least 2 seconds.

- If "REMOTE 2" appears (The main unit is in "REMOTE 2" mode.)

Press and hold [ENTER] and [2] on the remote control for at least 2 seconds.

Note

You can still operate a television using the remote control ( see above) even after switching the mode.

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, consult your dealer for instructions.

■ Power Page

No power.	• Insert the AC mains lead securely. 10
The unit is automatically switched to the standby mode.	• The Sleep timer was working and had reached the set time limit. 15

■ Unresponsive or inoperable function

No response when any buttons are pressed.	This unit cannot play discs other than the ones listed in these operating instructions.The unit may not be operating properly due to lightning, static electricity or some other external factor. Turn the unit off and then back to on. Alternatively, turn the unit off, disconnect the AC mains lead, and then reconnect it.Condensation has formed: Wait 1 to 2 hours for it to evaporate.	14—
No response when remote control buttons are pressed.	Check that the batteries are installed correctly.The batteries are depleted. Replace them with new ones.Aim the remote control at the remote control signal sensor and operate.	6615
Other products respond to the remote control.	Change the remote control operating mode. 34
No picture or sound.	Check the video or speaker connection.Check the power or input setting of the connected equipment and the main unit.Check that the disc has something recorded on it.	10, 11—
You have forgotten your ratings password.Reset all the settings to Factory Preset.	While stopped and “DVD/CD” is the source, press and hold [■] on the main unit and [≥10] on the remote control until “INITIALIZED” (or “INITIALISED”) disappears from the television. Turn the unit off and on again.All settings will return to the default values.	—

■ Specifi c operation undesirable or unexpected

It takes time before play starts.	Play may take time to begin when an MP3 track has still picture data. Even after the track starts, the correct play time will not be displayed. This is normal. MP3This is normal on DivX video. DivX	—
Folders on a data CD are not displayed correctly. WMA MP3 JPEG MPEG4 DivX	Folders deeper than the eighth layer are displayed as the eighth layer. —
A menu screen appears during skip or search. VCD	This is normal for Video CDs. —
Playback control menu does not appear. VCD with playback control	Press [■, STOP] twice and then press [▶, PLAY].	—
The program and random play functions do not work. DVD-V	These functions do not work with some DVD-Videos.	—
Play does not start.	This unit may not play WMA and MPEG4 that contains still picture data.If playing DivX VOD content, refer to the homepage where you purchased the DivX VOD content. (Example: www.divx.com/vod) DivXIf a disc contains CD-DA and other formats, proper playback may not be possible.	——

■ Subtitle

No subtitles.

Display the subtitles. ("SUBTITLE" in Functions menu)Subtitles may not be displayed depending on the disc.DivX

2121

■ A-B repeat

Point B is automatically set.

• The end of an item becomes point B when it is reached.

—

■ Menus

The Setup menu cannot be accessed.

Select “DVD/CD” as the source.Cancel program and random play.Cancel JPEG’s playback.

—18—

■ Sound abnormal or improper

Sound is distorted.	• Noise may occur when playing WMA.	—
Effects do not work.	• Some audio effects do not work or have less effect with some discs.• Dolby Pro Logic II does not work if you have changed the play speed.	— —
Humming is heard during play.	• An AC mains lead or fluorescent light is near the main unit. Keep other appliances and cables away from the main unit.	—
No sound.	• There may be a slight pause in sound when you change the play speed.• Audio may not be output due to how files were created. DivX	— —

■ Picture abnormal or unviewable Page

The picture on the television is not displayed correctly or disappears.	·The unit and television are using different video systems.×1Use a multi-system or NTSC television.×2Use a multi-system or PAL television.·The system used on the disc does not match your television.-PAL discs cannot be correctly viewed on an NTSC television.-This unit can convert NTSC signals to PAL 60 for viewing on a PAL television ("NTSC DISC OUT" in "VIDEO" tab).·Ensure that the unit is connected directly to the television, and is not connected through a video cassette recorder.·Mobile telephone chargers can cause some disturbance.·If you are using an indoor television antenna, change to an outdoor antenna.·The television antenna wire is too close to the unit.Move it away from the unit.·Change "SOURCE SELECT" in Functions menu.DivX	—
		—
		24
		32
		—
		—
		—
		—
		22
Picture stopsDivX	·Picture may stop if the DivX fi les are greater than 2 GB. —
Picture size does not fi t the screen.	·Change "TV ASPECT" in the "VIDEO" tab.·Use the television to change the aspect.·Change the zoom setting. ("ZOOM" in Functions menu.)	24
		—
		22
Menu is not displayed correctly.	·Restore the zoom ratio to "NORMAL". ("ZOOM" in Functions menu.) 22
Auto zoom function does not work well.	·Turn off television zoom function.·Zoom function may not work well, especially in dark scenes and may not work depending on the type of disc.	—
		—
When playing PAL disc, picture is distorted.×3	·Set "TRANSFER MODE" in Functions menu to "AUTO". 22

■ Progressive video ×3

Pictures not in progressive output.

Select “PROGRESSIVE” in “VIDEO OUT (I/P)” in the “VIDEO” tab.The unit’s VIDEO OUT terminal outputs the interlaced signal even if “PRG” is displayed.

2411

■ Unit displays

The display is dark.	·Select “BRIGHT” in “FL DIMMER” in the “OTHERS” tab. 25
“NO PLAY”	·You inserted a disc the unit cannot play; insert one it can.	14
	·You inserted a blank disc.	—
	·You inserted a disc that has not been fi nalized.	—
“NO DISC”	·You have not inserted a disc; insert one.	—
	·You have not inserted the disc correctly; insert it correctly.	16
“OVER CURRENT ERROR”	·The USB device is drawing too much power. Switch to DVD/CD mode, remove the USB and turn the unit off.	—
“F61”	·Check and correct the speaker cable connections. If this does not fi x the problem, consult the dealer.	10
“F76”	·There is a power supply problem. Consult the dealer. —
“DVD U11”	·Disc may be dirty. Wipe it clean. 27
“ERROR”	·Incorrect operation performed. Read the instructions and try again. —
“DVD H □ □”	·Trouble may have occurred. The numbers following “H” and “F” depend on the status of the unit. Turn the unit off and then back on. Alternatively, turn the unit off, disconnect the AC mains lead, and then reconnect it.	—
“DVD F □ □ □”	·If the service numbers fail to clear, note the service number and contact a qualifi ed service person.	—
□ stands for a number.
“REMOTE 1” or “REMOTE 2”	·Match the modes on the main unit and remote control. Depending on the number being displayed (“1” or “2”), press and hold [ENTER] and the corresponding numbered button ([1] or [2]) for at least 2 seconds.	34

×1 For Southeast Asia and Thailand
^2 For the Middle East, South Africa, Saudi Arabia, Kuwait and Continental Europe
For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

■ Television displays Page

“∅”	• The operation is prohibited by the unit or disc. —
“ERROR”	• You are trying to display an incompatible group or content.• You are trying to play a protected group or content. You cannot play it.	——
“Check the disc”	• This disc may be dirty. —
“This disc may not be played in your region”	• Only DVD-Video discs that include or have the same region number as the one on the rear panel of this unit can be played.	Cover page
“Authorization Error” DivX	• You are trying to play the DivX VOD content that was purchased with a different registration code. You cannot play the content on this unit.	26
“RENTAL EXPIRED” DivX	• The DivX VOD content has zero remaining plays. You cannot play it. 26

USB

The USB drive or its contents cannot be read.	· The USB drive format or its contents is/are not compatible with the system.· The USB host function of this product may not work with some USB devices.· USB devices with storage capacity of more than 32 GB may not work in some instances.	—
		—
		—
Slow operation of the USB device.	· Large fi le size or high memory USB fl ash drive takes longer time to read and display on the TV.	—

■ Listening to the radio

Distorted sound or noise is heard.“ST” fl ickers or does not light.	Adjust the position of the FM antenna.Use an outdoor antenna.	—12
A beat sound is heard.	Turn the television off or move it away from the unit. —

Abkhazian:	6566	Hausa:		7265
Afar:	6565	Hebrew:		7387
Afrikaans:	6570	Hindi:		7273
Albanian:	8381	Hungarian:		7285
Ameharic:	6577	Icelandic:		7383
Arabic:	6582	Indonesian:		7378
Armenian:	7289	Interlingua:		7365
Assamese:	6583	Irish:		7165	$
Aymara:	6589	Italian:		7384
Azerbaijani:	6590	Japanese:		7465	Si
Bashkir:	6665	Javanese:	7487	Slovak:	8375
Basque:	6985	Kannada:	7578	Slovenian:	8376
Bengali; Bangla:	6678	Kashmiri:	7583	Somali:	8379
Bhutani:	6890	Kazakh:		7575
Bihari:	6672	Kirghiz:		7589
Breton:	6682	Korean:		7579
Bulgarian:	6671	Kurdish:		7585
Burmese:	7789	Laotian:		7679
Byelorussian:	6669	Latin:	7665	Tajik:	8471
Cambodian:	7577	Latvian, Lettish:	7686	Tamil:	8465
Catalan:	6765	Lingala:
Chinese:	9072	Lithuanian:	7684	Telugu:	8469
Corsican:	6779	Macedonian:		7775
Croatian:	7282	Malagasy:		7771
Czech:	6783	Malay:		7783
Danish:	6865	Malayalam:		7776
Dutch:	7876	Maltese:		7784
English:	6978	Maori:		7773
Esperanto:	6979	Marathi:	7782	Twi:	8487
Estonian:	6984	Moldavian:		7779
Faroese:	7079	Mongolian:		7778
Fiji:	7074	Nauru:		7865
Finnish:	7073	Nepali:		7869
French:	7082	Norwegian:	7879	Volapük:	8679
Frisian:	7089	Oriya:		7982
Galician:	7176	Pashto, Pushto:	8083	Wolof:	8779
Georgian:	7565	Persian:		7065
German:	6869	Polish:		8076
Greek:	6976	Portuguese:		8084
Greenlandic:	7576	Punjabi:		8065	Zulu
Guarani:	7178	Quechua:		8185
Gujarati:	7185	Rhaeto-Romance:		8277

Decoder

A decoder restores the coded audio signals on DVDs to normal. This is called decoding.

DivX

DivX is a popular media technology created by DivX, Inc. DivX media fi les contain highly compressed video with high visual quality that maintains a relatively small fi le size.

Dolby Digital

This is a method of coding digital signals developed by Dolby Laboratories. Apart from stereo (2-channel) audio, these signals can also be multi-channel audio. A large amount of audio information can be recorded on one disc using this method.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters around the world. There is good separation between the channels, so realistic sound effects are possible.

Dynamic range

Dynamic range is the difference between the lowest level of sound that can be heard above the noise of the equipment and the highest level of sound before distortion occurs.

Film and video

DVD-Videos are recorded using either fi lm or video. This unit can determine which type has been used, then uses the most suitable method of progressive output.

Film: Recorded at 25 frames per second (PAL discs) or 24 frames per second (NTSC discs). (NTSC discs recorded at 30 frames per second as well). Generally appropriate for motion picture fi lms.

Video: Recorded at 25 frames/50 fi elds per second (PAL discs) or 30 frames/60 fi elds per second (NTSC discs). Generally appropriate for TV drama programs or animation.

Frame still and fi eld still

Frames are the still pictures that go together to make a moving picture.

There are about 30 frames shown each second. One frame is made up of two fi elds. A regular television shows these fi elds one after the other to create frames. A still is shown when you pause a moving picture. A frame still is made up of two alternating fi elds, so the picture may appear blurred, but overall quality is high.

A fi eld still is not blurred, but it has only half the information of a frame still so picture quality is lower.

I/P/B

MPEG 2, the video compression standard adopted for use with DVD-Video, codes frames using these 3 picture types.

I: Intra coded picture

This picture has the best quality and is the best to use when adjusting the picture.

P: Predictive coded picture

This picture is calculated based on past I or P-pictures.

B: Bidirectionally-predictive coded picture

This picture is calculated by comparing past and future I and P-pictures so it has the lowest volume of information.

JPEG (Joint Photographic Experts Group)

This is a system used for compressing/decoding color still pictures. If you select JPEG as the storage system on digital cameras, etc., the data will be compressed to 1/10–1/100 of its original size. The benefit of JPEG is less deterioration in picture quality considering the degree of compression.

Linear PCM (Pulse Code Modulation)

These are uncompressed digital signals, similar to those found on CDs.

MP3 (MPEG Audio Layer 3)

An audio compression method that compresses audio to approximately one tenth of its size without any considerable loss of audio quality.

MPEG4

A compression system for use on mobile devices or a network, that allows highly efficient recording at a low bit rate.

Playback control (PBC)

If a Video CD has playback control, you can select scenes and information with menus.

Progressive/Interlaced

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

The PAL video signal standard has 576 interlaced (i) scan lines, whereas progressive scanning, called 576p, uses twice the number of scan lines. For the NTSC standard, these are called 480i and 480p respectively. Using progressive output, you can enjoy the high-resolution video recorded on media such as DVD-Video. Your television must be compatible to enjoy progressive video.

Sampling frequency

Sampling is the process of converting the heights of sound wave (analog signal) samples taken at set periods into digits (digital encoding).

Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound.

WMA (Windows Media™ Audio)

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

AMPLIFIER SECTION

For Continental Europe

RMS Output Power: Dolby Digital Mode

Front Ch

55 W per channel (5 ), 1 kHz, 10 % THD

Surround Ch

55 W per channel (5 Ω), 1 kHz, 10 % THD

Center Ch

55 W per channel (5 ), 1 kHz, 10 % THD

Subwoofer Ch

55 W per channel (5 ), 100 Hz, 10 % THD

Total RMS Dolby Digital mode power 330 W

DIN Output Power: Dolby Digital Mode

Front Ch

25 W per channel (5 ), 1 kHz, 1 % THD

Surround Ch

25 W per channel (5 ), 1 kHz, 1 % THD

Center Ch

25 W per channel (5 ), 1 kHz, 1 % THD

Subwoofer Ch

25 W per channel (5 ), 100 Hz, 1 % THD

Total DIN Dolby Digital mode power 150 W

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

RMS Output Power: Dolby Digital Mode

Front Ch

55 W per channel (5 ), 1 kHz, 10 % THD

Surround Ch

55 W per channel (5 ), 1 kHz, 10 % THD

Center Ch

55 W per channel (5 ), 1 kHz, 10 % THD

Subwoofer Ch

55 W per channel (5 ), 100 Hz, 10 % THD

Total RMS Dolby Digital mode power 330 W

PMPO output power 2800 W

DIN Output Power: Dolby Digital Mode

Front Ch

25 W per channel (5 ), 1 kHz, 1 % THD

Surround Ch

25 W per channel (5 ), 1 kHz, 1 % THD

Center Ch

25 W per channel (5 ), 1 kHz, 1 % THD

Subwoofer Ch

25 W per channel (5 ), 100 Hz, 1 % THD

Total DIN Dolby Digital mode power 150 W

FM TUNER, TERMINALS SECTION

Preset Memory FM 30 stations

Frequency Modulation (FM)

Frequency range

87.50 to 108.00 MHz (50-kHz step)

Sensitivity

S/N 26 dB 1.4 μV

Antenna terminals 75 (unbalanced) Ω

Mic jack

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

Discs played (8 cm or 12 cm)

(1) DVD (DVD-Video, DivX×1, ×2)

(2) DVD-RAM (DVD-VR, MP3×2, ×6, JPEG×2, ×3, MPEG4×2, ×4, DivX×1, ×2)

(3) DVD-R (DVD-Video, DVD-VR, MP3×2, ×6, JPEG×2, ×3, MPEG4×2, ×4, DivX×1, ×2)

(4) DVD-R DL (DVD-Video, DVD-VR)

(5) DVD-RW (DVD-Video, DVD-VR, MP3×2, ×6, JPEG×2, ×3, MPEG4×2, ×4, DivX×1, ×2)

(6) +R/+RW (Video)

(7) +R DL (Video)

(8) CD, CD-R/RW (CD-DA, Video CD, SVCD ^X5 , MP3 ^X2,X6 , WMA ^X2,X7 , JPEG ^X2,X3 , MPEG4 ^X2,X4 , DivX ^X1,X2 )

^※1 Plays all versions of DivX® video (including DivX®6) with standard playback of DivX® media files. Certified to the DivX Home Theater Profile.

^2 The total combined maximum number of recognizable audio, picture and video contents and groups: 4000 audio, picture and video contents and 400 groups.

X3 Exif Ver 2.1 JPEG Baseline files Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and narrow pictures may not be displayed.

×4 MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders Conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system

※5 Conforming to IEC62107

※6 MPEG-1 Layer 3, MPEG-2 Layer 3

^※7 Windows Media Audio Ver.9.0 L3 Not compatible with Multiple Bit Rate (MBR)

Pick up

Wavelength (DVD/CD) 662/785 nm Laser power (DVD/CD) CLASS 1/CLASS 1M

Audio output (Disc)

Number of channels 5.1ch (FL, FR, C, SL, SR, SW)

USB SECTION

USB Port

USB Standard USB 2.0 full speed

Media file format support

MP3 (*.mp3)

WMA (×.wma)

JPEG (*.jpg, *.jpeg)

MPEG4 (*.asf)

USB device file system

FAT12

FAT16

FAT32

USB port power 500 mA (Max)

μV (IHF)

VIDEO SECTION

Video system PAL625/50, PAL525/60, NTSC

Composite video output

Output level 1 Vp-p (75 ) Ω

Terminal

For Continental Europe

Scart jack (1 system)

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia, Kuwait

Pin jack (1 system)

For Continental Europe

S-video output

Y output level 1 Vp-p (75) Ω

C output level PAL; 0.3 Vp-p (75) Ω

NTSC; 0.286 Vp-p (75 Ω)

Terminal Scart jack (1 system)

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia, Kuwait

Component video output

(NTSC: 480p/480i, PAL: 576p/576i)

Y output level 1 Vp-p (75) Ω

P_B output level 0.7 Vp-p (75) Ω

P_R output level 0.7 Vp-p (75 ) Ω

Terminal

Pin jack (Y: green, P_B : blue, P_R : red) (1 system)

For Continental Europe

RGB video output

R output level 0.7 Vp-p (75) Ω

G output level 0.7 Vp-p (75) Ω

B output level 0.7 Vp-p (75) Ω

Terminal Scart jack (1 system)

SPEAKER SECTION

* Rating with low-cut filter equipped amplifier.

PT160 Front speakers SB-HF150

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 5 Ω

Full range 6.5 cm Cone type

Input power (IEC) 55 W* (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 96 Hz to 25 kHz (-16 dB)

120 Hz to 22 kHz (-10 dB)

Dimensions (W x H x D) 92 mm x 135 mm x 95.4 mm

Mass 0.6 kg

PT165 Front speakers SB-HF165

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 5 Ω

Full range 6.5 cm Cone type

Input power (IEC) 55 W* (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 87 Hz to 25 kHz (-16 dB)

98 Hz to 22 kHz (-10 dB)

Dimensions (W x H x D) 252 mm x 1123 mm x 234 mm

Mass 3.7 kg

Surround speakers SB-HS151

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 5 Ω

Full range 6.5 cm Cone type

Input power (IEC) 55 W× (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 96 Hz to 25 kHz (-16 dB)

20 Hz to 22 kHz (-10 dB)

Dimensions (W x H x D) 92 mm x 135 mm x 95.4 mm

Mass 0.6 kg

Center speaker SB-HC150

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 5 Ω

Full range 6.5 cm Cone type

Input power (IEC) 55 W× (Max)

Output sound pressure 80 dB/W (1.0 m)

frequency range 91 Hz to 25 kHz (-16 dB)

120 Hz to 22 kHz (-10 dB)

Dimensions (W x H x D) 135 mm x 92 mm x 95.4 mm

Mass 0.6 kg

For Continental Europe

Subwoofer SB-W340 (Silver) or SB-HW150 (Black)

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia, Kuwait

Subwoofer SB-HW150

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 5 Ω

Woofer 12 cm Cone type

Input power (IEC) 55 W (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range 31 Hz to 173 Hz (-16 dB)

40 Hz to 148 Hz (-10 dB)

Dimensions (W x H x D) 152 mm x 339 mm x 258 mm

Mass 3 kg

GENERAL

Power supply

For Continental Europe

AC 230 V, 50 Hz

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia, Kuwait

AC 110 to 240 V, 50/60 Hz

Power consumption

Main unit 105 W

Dimensions (W x H x D)

430 mm x 60 mm x 342 mm

Mass

Main unit 3 kg

Operating temperature range

0 °C to +40 °C

Operating humidity range

35 % to 80 % RH (no condensation)

Power consumption in standby mode approx. 1 W

Note

1. Specifications are subject to change without notice. Weight and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum analyzer.

Clean this unit with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.
  — Before using chemically treated cloth, carefully read the instructions that came with the cloth.
• Do not use commercially available lens cleaners as they may cause malfunction. (Cleaning the lens is generally not necessary although this depends on the operating environment.)

Before moving the unit, ensure the disc tray is empty.

Failure to do so will risk severely damaging the disc and the unit.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Surround" are registered trademarks of DTS, Inc.

U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

This product is licensed under the MPEG-4 Visual patent portfolio license for the personal and non-commercial use of a consumer for (i) encoding video in compliance with the MPEG-4 Visual Standard ("MPEG-4 Video") and/or (ii) decoding MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed by MPEG LA to provide MPEG-4 Video. No license is granted or shall be implied for any other use. Additional information including that relating to promotional, internal and commercial uses and licensing may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

Official DivX® Certified product.

Plays all versions of DivX® video (including DivX®6) with standard playback of DivX® media files.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

MEMO

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Cd
