Product type	Freestanding electric cooker
Brand	Electrolux
Model	EHT6433K
Dimensions (H x W x D)	90 x 60 x 60 cm
Net weight	55 kg
Power supply	230 V / 50 Hz, 16 A
Total power	10.5 kW
Cooking type (hob)	Ceramic 4 zones
Cooking type (oven)	Multifunction electric oven
Oven volume	67 litres
Oven functions	Fan-assisted, bottom heat, top heat, grill, defrost
Oven cleaning	Catalytic (self-cleaning walls)
Child safety	Control lock
Automatic shut-off	Yes (programmable)
Residual heat indicator	Yes (for cooking zones)
Oven door	Removable cold glass
Included accessories	Grill rack, drip tray, baking tray
Spare parts available	Yes (heating elements, glass, bulb, etc.)
Repairability	Repairability index: 8.2/10
Energy class (oven)	A+

Frequently Asked Questions - EHT6433K ELECTROLUX

How to turn on the hob?

Press the On/Off key, then select the desired cooking zone by touching the corresponding control. Use the slider or +/- keys to adjust the power.

The oven is not heating, what should I do?

Check that the appliance is properly plugged in and that the circuit breaker has not tripped. Make sure the cooking mode is correctly selected and the timer is not set on delayed start. If the problem persists, contact customer service.

How to clean the oven walls?

The walls are coated with a catalytic lining: run an empty cleaning cycle at 250°C for 1 hour. Grease decomposes into ash. Then wipe with a damp cloth.

How to lock the controls to prevent children from using them?

Press and hold the Lock key (usually the padlock symbol) for 3 seconds. An audible signal confirms activation. To unlock, repeat the operation.

What is the maximum power of the hob?

The total power of the hob is 7.2 kW distributed over the 4 zones. Each zone can reach up to 2.3 kW depending on the diameter.

How to change the oven bulb?

Disconnect the appliance from the mains. Remove the protective glass (turn the support counterclockwise). Replace the bulb with a new one of type G9, 40 W, 230 V. Reassemble the glass.

What to do if an error code appears?

Note the code (e.g., E10). Consult the manual for its meaning. Common codes indicate a temperature sensor or overheating fault. Turn off the power for 5 minutes then turn on again. If the error persists, call a technician.

How to use the pyrolysis function?

This model does not have a pyrolysis function but has a catalytic cleaning system. For stubborn residues, use an oven cleaning spray after cooling.

Where to find spare parts for this model?

Spare parts are available from Electrolux customer service or authorised spare parts websites. Specify model EHT6433K. Heating elements, bulbs and glass are easily replaceable.

How to set the oven timer?

Press the Timer key, set the desired time with the +/- keys (max 23h59). The oven stops automatically. An audible beep sounds at the end of cooking.

USER MANUAL EHT6433K ELECTROLUX

Thinking of you Electrolux

user manual

Gas hob

Gas hob

Electrolux. Thinking of you.

PRODUCT DESCRIPTION

Hob layout

1 Semi-rapid burner

2 Semi-rapid burner

3 Control knobs

4 Simmer burner

5 Rapid burner

Control knobs

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 14

Installation

Product description 19

Operating instructions 19

Helpful hints and tips 20

Care and cleaning 20

What to do if... 22 16

Technical data 23

Environment concerns 23

Subject to change without notice

SAFETY INFORMATION

Warning! These instructions are only valid in the countries whose symbols appear on this booklet's cover.

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

General safety

Warning! Persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, must not use the appliance. They must have supervision or instruction for the operation of the appliance by a person responsible for their safety.

Child safety

• Only adults can use this appliance. Children must be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children. There is a risk of suffocation and physical injury.
• Keep children away from the appliance during and after operation, until the appliance is cold.

Use

- Remove all packaging, stickers, and the protective layer of the stainless steel hob panel (if present) from the appliance before first use. Do not remove the rating plate. It can invalidate the guarantee.

• Set the cooking zones to the "off" position after each use.
• Burners and accessible parts become hot during and after use. Do not put cutlery or saucepan lids on the cooking surface. Cookware and its contents can tip over. There is a risk of burns.

- Too hot fats and oils can ignite very quickly. There is a risk of fire.

- Do not leave the appliance unattended during operation.

- Always monitor the appliance during operation.

- Do not let liquids overflow into the holes of the top of the hob.

- Do not use the hob without cookware.

- The appliance is only for domestic use. Do not use the appliance for commercial and industrial use.

- Only use the appliance for domestic cooking tasks. This is to prevent physical injury to persons or prevent damage to property.

- Use only cookware with diameter applicable to the dimensions of burners. There is a risk of overheating and rupture of the glass plate (if applicable).

- Do not use a pan with diameter smaller than burner dimension - flames will heat up the pan handle.

- Pots must not enter the control zone.

- Do not use not stable cookware to prevent from tilt and accident.

- Do not put flammable products or items that are wet with flammable products, and/or fusible objects (made of plastic or aluminium) and/or fabrics in, near or on the appliance. There is the risk of explosion or fire.

• Use only the accessories supplied with appliance.
• Be careful when you connect the appliance to the near sockets. Do not let electricity bonds touch the appliance or hot cookware. Do not let electricity bonds tangle.
• If there is a crack on the surface, disconnect power supply to prevent the electric shock.

Installation

• You must read these instructions. The manufacturer is not responsible for any injury to persons and pets or damage to property caused by failure to obey these requirements.
• To prevent the risks of structural damage or physical injury, installation, connection of the appliance to the power supply and gas system, setting up and maintenance must only be done by qualified personnel in compliance with standards and local regulation force.

- Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If it is necessary, speak to the supplier.

- Only use built-in appliances after you assemble the appliance into correct built-in units and work surfaces that obey the standards.

- Do not install the hob over a domestic appliances if the installation instructions do not allow it.

- Install the appliance only on a worktop with a flat surface.

- Do not change the specifications or modify this product. There is a risk of injury and damage to the appliance.

- Fully obey the laws, ordinances, directives, and standards in force in the country where you use the appliance (safety regulations, recycling regulations, electrical safety rules, etc.).

- Keep the minimum distances to other appliances and units.

- Install anti-shock protection, for example, install the drawers only with a protective panel directly below the appliance.

- Prevent damage to the cut surfaces of the worktop against moisture with a correct sealant.

- Seal the appliance to the worktop with no space left with a correct sealant.

- Prevent damage to the bottom of the appliance from steam and moisture, e.g., from a dishwasher or oven.

- Do not install the appliance adjacent to doors and below windows. Hot cookware can be hit off the hob when you open the doors or windows.

- Before installation, make sure that the local supply conditions (gas type and pressure) agree with the adjustment of the appliance. The adjustment conditions for the appliance are on the rating plate, which you can find near the gas supply pipe.

- This appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention must be given to the relevant requirements regarding ventilation.

- The use of a gas cooking appliance causes heat and moisture in the room in which it is installed. Make sure that the ventilation in the kitchen is good: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

- More ventilation (for example, opening a window or increasing the level of mechanical ventilation where present) is necessary when you operate the appliance with intensity for a long time.

- Carefully obey the instructions for electrical connections. There is a risk of injury from electrical current.

- Disconnect the appliance from the electrical supply before you do the maintenance work or clean it.

- The electrical mains terminal is live.

- Make the electrical mains terminal free of voltage.

- Install correctly to provide anti-shock protection.

- A loose and incorrect mains plug and socket connections can cause the terminal to become too hot.

• A qualified electrician must install the clamping connections correctly.
• Use a strain relief clamp on the cable.
• Use the correct mains connection cable and replace a damaged mains cable with an applicable cable. Contact your local Service Force Centre.
• The appliance must have an electrical installation that allows you to disconnect the appliance from the mains at all poles with a contact opening width of at least 3 mm.
• If the fixing bracket is near the terminal block, always ensure that the connection cable does not come into contact with the edge of the bracket.

- You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), ground leakage trips, and contactors.

Disposal of the appliance

• To prevent the risk of physical injury or damage: - Disconnect the appliance from the power supply. - Cut off the mains cable where it connects to the appliance and discard it. - Flatten the external gas pipes if fitted. - Contact your local authorized facilities for disposal of your appliance.

INSTALLATION

Warning! The following instructions regarding installation, connection, and maintenance must be carried out by qualified personnel in compliance with standards and local regulations in force.

Gas Connection

It is necessary that the connection to the gas mains is carried out by means of an AGB tap. Choose fixed connections or use a flexible pipe in AGB (stainless steel) in compliance with the regulation in force. If you use flexible metallic pipes, be careful that they do not come in touch with mobile parts or that they are not squeezed. Also be careful when the hob is put together with an oven.

The connection must be done according to regulation NBN D 51.003.

Important! Make sure that the gas supply pressure of the appliance obeys the recommended values. The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut G 1/2". All the components shown in the figure have already been assembled in the factory. The appliance, before leaving the factory, has been tested in order to give you the best results.

1 End of shaft with nut 2 Washer 3 Elbow

Rigid connection:

Carry out connection by using metal rigid pipes (copper with mechanical end).

"Flexible" connection with mechanical end:

• Natural gas: connection carried out with a flexible pipe with mechanical end which is screwed directly on the elbow finishing the slope of the appliance.
• Butane / Propane: use a flexible tube, equipped with its collars if it is worth visiting over all its length and if the appliance runs only on butane. If the appliance runs on Propane, use a flexible pipe with suitable metal end.

venting over all its length and if the appliance runs only on butane. If the appliance runs on propane, use a flexible pipe with suitable metal end.

If it is possible to easily control the connection in its full area, you can use a flexible pipe. Tightly attach the flexible pipe by clamps.

If it is possible to easily control the connection in its full area, you can use a flexible pipe. Tightly attach the flexible pipe by clamps.

Liquid gas: use the rubber pipe holder. Always engage the gasket. Then continue with the gas connection. The flexible pipe is prepared for application when:

• it cannot get hotter than room temperature, higher than 30°C; – it is no longer than 1500 mm;
• it shows no throttles; – it is not subject to traction or torsion;
• it does not get in touch with cutting edges or corners;
• it can be easily examined in order to check its condition.

The control of preservation of the flexible pipe consists in checking that:

– it does not show cracks, cuts, marks of burnings on the two ends and on its full length; – the material is not hardened, but shows its correct elasticity; – the fastening clamps are not rusted; - expired term is not due.

If one or more defects are visible, do not repair the pipe, but replace it.

Important! When installation is complete, make sure that the seal of each pipe fitting is correct. Use a soapy solution, not a flame!

Injectors replacement

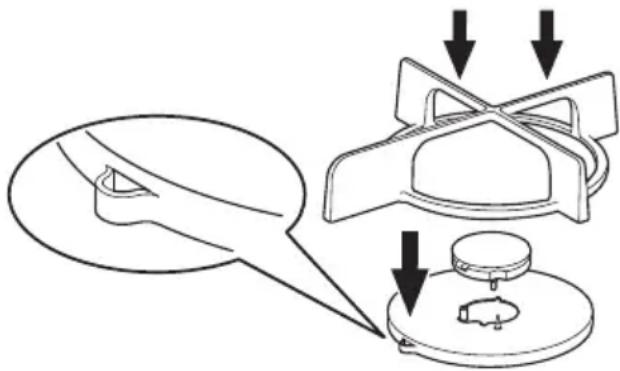

1. Remove the pan supports.
2. Remove the caps and crowns of the burner.
3. With a socket spanner 7 remove the injectors and replace them with the ones which are necessary for the type of gas you use (see table in Technical Data section).
4. Assemble the parts, follow the same procedure backwards.
5. Replace the rating label (it is near the gas supply pipe) with the one for the new type of gas supply. You can find this label in the package of the injectors supplied with the appliance.

If the supply gas pressure is changeable or different from the necessary pressure, you must fit an applicable pressure adjuster on the gas supply pipe.

Adjustment of minimum level

To adjust the minimum level of the burners:

1. Light the burner.
2. Turn the knob to the minimum position.
3. Remove the control knob.
4. With a thin screwdriver, adjust the bypass screw position. If you change from natural gas 20 mbar to liquid gas, fully tighten the adjustment screw in. If you change from liquid gas to natural gas 20 mbar, undo the by-pass screw approximately 1/4 of a turn.

1 Minimum adjustment screw

1. Make sure the flame does not go out when you quickly turn the knob from the maximum position to the minimum position.

Electrical connection

• Ground the appliance according to safety precautions.
• Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply.
• This appliance is supplied with a mains cable. It has to be supplied with a correct plug, able to support the load marked on the identification plate. The plug has to be fitted in a correct socket.
• Any electrical component must be installed or replaced by the Service Force

Centre technician or qualified service personnel.

• Always use a correctly installed shock-proof socket. - Make sure that there is an access to the mains plug after installation. - Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. - The appliance must not be connected with an extension cable, an adapter or a multiple connection (risk of fire). Check that the ground connection is in conformity with the standard and regulations force. - The power cable must be placed in such a way that it does not touch any hot part. - Connect the appliance to the mains with a device that lets to disconnect the appliance from the mains at all poles with a

contact opening width of minimum 3 mm, e.g. automatic line protecting cut-out, earth leakage trips or fuse.

None of the parts of the connection cable can reach a temperature of 90 °C. The blue neutral cable must be connected to the terminal block labeled "N". The brown (or black) phase cable (fitted in the terminal block contact marked with "L") must always be connected to the live phase.

Replacement of the connection cable

To replace the connection cable use only H05V2V2-F T90 or equivalent type. Make sure that the cable section is applicable to the voltage and the working temperature. The yellow/green earth wire must be approximately 2 cm longer than the brown (or black) phase wire.

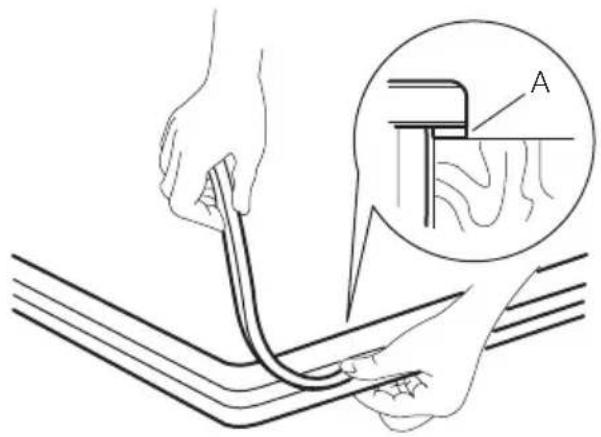

Building In A) supplied seal B) supplied brackets

Possibilities for insertion

Kitchen unit with door

The panel installed below the hob must be easy to remove and allow easy access in case a technical assistance intervention is necessary.

a) Removable panel b) Space for connections

Kitchen unit with oven

The hob recess dimensions must obey the indication and the kitchen unit must be

equipped with vents to allow a continuous supply of air. The electrical connection of the hob and the oven must be installed separately for safety reasons and to allow easy removal of the oven from the unit.

MANUFACTURER:

ELECTROLUX ITALIA S.p.A. C.so Lino Zanussi, 30 33080 PORCIA (PN) - ITALIA

PRODUCT DESCRIPTION

Cooking surface layout

1 Semi-rapid burner 2 Semi-rapid burner 3 Control knobs 4 Auxiliary burner 5 Rapid burner

Control knobs

Symbol Description
	no gas supply / off position
	ignition position / maximum gas supply

Symbol Description
	minimum gas supply

OPERATING INSTRUCTIONS

Ignition of the burner

Warning! Be very careful when you use open fire in kitchen environment. Manufacturer decline any responsibility in case misuse of the flame

i Always light the burner before you put cookware.

To light the burner:

1. Turn the control knob counterclockwise to the maximum position (☆) and push it down.
2. Keep the control knob pushed for approximately 5 seconds; this will let thermocouple to warm up. If not, the gas supply will be interrupted.
3. Adjust the flame after it is regular.

If after some tries the burner does not light, check if the crown and its cap are in correct positions.

1 Burner cap

2 Burner crown

3 Ignition candle

4 Thermocouple

Warning! If the burner does not light after 15 seconds, release the control knob, turn it to the off position and try to light the burner again after at least 1 minute.

HELPFUL HINTS AND TIPS

Energy savings

- If possible, always put the lids on the pans.

- When the liquid starts to boil, turn down the flame to barely simmer the liquid.

Warning! Use pots and pans with bottoms applicable to the dimension of the burner.

Do not use cooking vessels on the hot-plate that overlap its edges.

Burner Diameters of cookware

Rapid 160 - 240 mm

Semi-rapid 120 - 220 mm

Auxiliary 80 - 160 mm

Warning! Pots must not enter the control zone.

Warning! Make sure pot handles do not protrude over the front edge of the

CARE AND CLEANING

Warning! Switch the appliance off and let it cool down before you clean it. Disconnect the appliance from the electrical supply.

Important! In the absence of electricity you can ignite the burner without an electrical device; in this case, approach the burner with a flame, push the relevant knob down and turn it counter-clockwise to the maximum gas release position.

If the burner accidentally goes out, turn the control knob to the off position and try to light the burner again after at least 1 minute.

The spark generator can start automatically when you switch on the mains, after installation or a power cut. This is normal.

Turning the burner off

To put the flame out, turn the knob to the symbol ■.

Warning! Always turn the flame down or switch it off before removing the pans from the burner.

Ensure that the cooktop is clean and that pots are centrally positioned on the rings in order to achieve maximum stability and to obtain lower gas consumption.

Do not place unstable or deformed pots on the rings to prevent spills and injury.

Warning! Flame diffusers are not recommended.

Information on acrylamides

Important! According to the newest scientific knowledge, if you brown food (especially food that contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

Disconnect the appliance from the electrical supply before carrying out any cleaning or maintenance work.

Warning! For safety reasons, do not clean the appliance with steam cleaners or high-pressure cleaners. Warning! Do not use abrasive cleaners, steel wool pads or acids, as they can cause damage to the appliance. Scratches or dark stains on the glass have no effect on how the appliance operates.

• You can remove the pan supports to easily clean the hob.
• To clean the enamelled parts, cap and crown, wash them with warm soapy water and dry them carefully before putting them back.
• Wash stainless steel parts with water, then dry them with a soft cloth.
• The pan supports are not dishwasher proof; they must be washed by hand.
• When washing the pan supports by hand, take care when drying them as the enamelling process occasionally leaves rough edges. If necessary, remove stubborn stains using a paste cleaner.
• Make sure you position the pan supports correctly after cleaning.
• To make burners work correctly, make sure that the arms of the pan supports are in the centre of the burner.
• Be very careful when you replace the pan supports to prevent damage to the hob top.

After cleaning, dry the appliance with a soft cloth.

Removing the dirt:

1. – Remove immediately: melting plastic, plastic foil, and food containing sugar.

- Stop the appliance and let it cool down before you clean: limescale rings, water rings, fat stains, shiny metallic discolorations. Use a special cleaner applicable for the surface of the hob.

1. Clean the appliance with a damp cloth and some detergent.
2. At the end, rub the appliance dry with a clean cloth.

In order to properly place the pan supports, make sure that the longest arm of the pan support is positioned in correspondence with the hole placed at the base of the burner as shown in the picture. This way, the pan support will be stable and fixed.

Cleaning of the spark plug

This feature is obtained through a ceramic ignition candle with a metal electrode. Keep these components well clean to prevent difficult lighting and check that the burner crown holes are not obstructed.

Periodic maintenance

Periodically contact your local Service Force Centre to check the conditions of the gas supply pipe and the pressure adjuster, if fitted.

WHAT TO DO IF...

Problem Possible cause Remedy
There is no spark when lighting the gas	· There is no electrical supply · Make sure that the unit is connected and the electrical supply is switched on.· Control the fuse. If the fuse is released more than one time, refer to a qualified electrician.
· Burner cap and crown are	placed uneven	· Make sure that the burner cap and crown are in correct positions.
The flame is blow out immediately after ignition	· Thermocouple is not heated sufficient	· After lightning the flame, keep the knob pushed for approximately 5 seconds.
The gas ring burns unevenly · Burner crown is blocked with food residues		· Make sure that the injector is not blocked and the burner crown is clear of food particles.

If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact your dealer or the local Service Force Centre.

If you operated the appliance incorrectly, or the installation was not carried out by a registered engineer, the visit from the customer service technician or

dealer may not take place free of charge, even during the warranty period.

Labels supplied with the accessories bag

Stick the adhesive labels as indicated below:

1 Stick it on Guarantee Card and send this part 2 Stick it on Guarantee Card and keep this part 3 Stick it on instruction booklet These data are necessary to help you quickly and correctly. These data are

available on the identification plate from the injectors kit.

• Model description ......
• Product number (PNC) ....
• Serial Number (S.N.) ....

Use the original spare parts only. They are available at Service Force Centre and approved spare parts shops.

TECHNICAL DATA

Hob dimensions

Width: 580 mm
Length: 510 mm

Hob recess dimensions

Width: 550 mm
Length: 470 mm

Heat input

Rapid burner: 2.9 kW

Semi-rapid burner: 1.9 kW

Auxiliary burner: 1.0 kW

TOTAL POWER: G20/G25 (2E+) 20/25 mbar = 7.7 kWG30 (3+) 28-30 mbar = 545 g/hG31 (3+) 37 mbar = 536 g/h

Electric supply: 230 V ~ 50 Hz
Category: II2E+3+
Gas connection: G 1/2"
Gas supply: G20/G25 (2E+) 20/25 mbar
Appliance class: 3

By-pass diameters

Burner ∅ By-pass in 1/100 mm.
Auxiliary 28
Semi-rapid 32
Rapid 42

Gas burners

BURN-ER	NOR-MAL POWER	RE-DUCED POWER	NORMAL POWER
			NATURAL GAS G20/G25 (2E+) 20/25 mbar			LPG (Butane/Propane) G30/G31 (3+) 28-30/37 mbar
	kW	kW	inj. 1/100 mm	G20 20 mbar m3/h	G25 25 mbar m3/h	inj. 1/100 mm	G30 g/h	G31 g/h
Auxiliary burner	1.0	0.33	70	0.095	0.111	50	73	71
Semi-rapid burner	1.9	0.45	96	0.181	0.210	71	138	136
Rapid burner	2.9 (natural gas) 2.7 (LPG)	0.75	119	0.276	0.321	86	196	193

ENVIRONMENT CONCERNS

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please

contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging materials are friendly to the environment and can be recycled.

The plastic components are identified by marking: >PE<,>PS<, etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.

Electrolux. Thinking of you.

Electrolux. Thinking of you.
