78435 - Kettle TEFAL - Free user manual and instructions

Product Type	Electric Kettle
Brand	Tefal
Model	78435
Capacity	1.7 L
Power	2200 W
Power Supply	220-240 V ~ 50/60 Hz
Dimensions (L x D x H)	22 x 17 x 26 cm
Weight	1.2 kg
Material	Stainless steel and plastic
Base Type	Cordless, 360° swivel
Limescale filter	Removable mesh filter
Automatic shut-off	Yes, upon boiling
Overheating protection	Yes, shuts off if dry boiled
Indicator light	Power indicator
Lid opening	Push-button with spring
Maintenance and cleaning	Descale regularly with vinegar or descaling product
Safety	Double safety: automatic shut-off + overheating protection
Spare parts and repairability	Limescale filter, power base, lid available separately
General information	User manual available in PDF format

Frequently Asked Questions - 78435 TEFAL

What is the capacity of the Tefal 78435 kettle?

The capacity is 1.7 liters, ideal for preparing several cups at once.

How to descale my Tefal kettle?

Use a mixture of white vinegar and water (1:2) or a suitable descaling product. Boil, let it sit for 15 minutes, then rinse thoroughly. Recommended every month.

Does the kettle shut off automatically?

Yes, it is equipped with automatic shut-off upon boiling and dry-boil protection.

Can I heat something other than water?

No, use it exclusively to heat water. Any other liquid could damage the appliance.

What to do if the kettle stops heating?

Check the power outlet, the switch, and the power base. If the problem persists, contact customer service.

Is the limescale filter removable?

Yes, the mesh filter can be easily removed for cleaning with soapy water or replacement.

Does the kettle make noise when heating?

A slight heating noise is normal. A loud whistle may indicate the need for descaling.

What is the kettle's material?

The body is stainless steel with plastic parts for better thermal insulation.

Can I use the kettle without the filter?

Not recommended, as the filter retains limescale deposits. Without it, the poured water will contain more particles.

Where to find the user manual?

The manual is available for free download in PDF format on notice-facile.com.

USER MANUAL 78435 TEFAL

Close-up of a cup filled with dark liquid, enclosed in a purple circular border (no visible text or symbols)

Close-up of a purple circular frame containing a blurred, smooth surface with no visible text or symbols.

Close-up of a bowl of soup with visible ingredients, enclosed in a purple circular border (no text or symbols)

Illustration of a white kettle with two blades, enclosed in a purple circular frame (no text or symbols)

1

Illustration of a kettle with a blue ribbon, enclosed in a circular frame (no text or symbols)

2

Simple diagram of a magnifying glass with an arrow pointing to it, enclosed in a circular frame (no text or symbols)

3

Simple line drawing of a kettle inside a circular frame (no text or symbols)

4

Simple line drawing of a steaming bowl (no text or symbols)

Illustration of a laboratory pipette with liquid and test tube inside a circular frame (no text or symbols)

5

Illustration of a kettle connected to a power cord with a small meter, enclosed in a circular frame (no text or symbols)

6

Illustration of a kettle with arrows indicating motion or movement (no text or symbols)

7

Simple line drawing of a kettle inside a circular frame (no text or symbols)

8

Simple line drawing of a steaming bowl (no text or symbols)

Thank you for buying a Tefal kettle. Read the following instructions carefully, common to all our models, and keep them in a safe place.

Use

Illustration of a white kettle with a purple handle, enclosed in a circular frame (no text or symbols)

1

Open the lid: while pressing on the locking system (depending on model), pull from the front towards the rear. Toclose, press the lid down firmly.

Illustration of a rolled-up container with a blue ribbon, enclosed in a purple circular border (no text or symbols)

2

Remove all packaging, stickers or other accessories from the inside and outside of the kettle.

Simple diagram of a magnifying glass with a red handle and blue arrow pointing to it, enclosed in a purple circular border (no text or symbols)

3

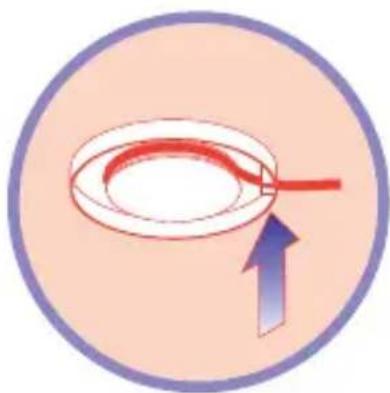

Adjust the length of the cord by winding it under the base. Wedge the cord in the slot.

Simple line drawing of a kettle and a lid inside a circular frame (no text or symbols)

4

Place the base on a smooth surface which is clean and cool.

- Only boil water in the kettle

Simple line drawing of a steaming bowl (no text or symbols)

Place the kettle and its base towards the back of the working surface.

- D o not place the kettle on or near surfaces which are slippery or hot and do not let the cord hang over a source of heat (hot plates, gas cookers). Keep away from children

• The kettle must only be used with its original base.

Illustration of a laboratory pipette with a test tube inside, enclosed in a circular frame (no text or symbols)

5

Fill the kettle with the required amount of water.

Illustration of a kettle connected to a power cord with a small electrical outlet (no text or symbols)

6

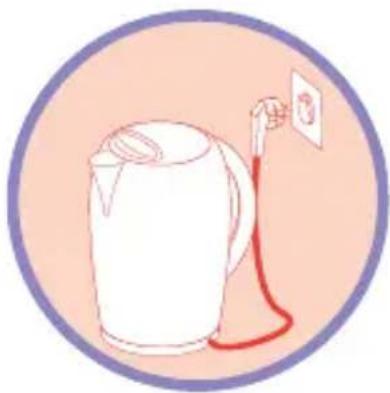

Place the kettle on its base. Connect to the mains.

Illustration of a kettle with arrows indicating motion or force (no text or symbols)

7

Turn it on using the switch or the trigger handle. The kettle will turn itself off automatically when the water is boiling.

Simple line drawing of a kettle inside a circular frame (no text or symbols)

8

Check that the kettle has stopped automatically or turn it off manually before removing it from the base to pour the water.

You can fill the kettle through the spout to keep the filter in good condition.

At the very least, cover the heating element (or the bottom of the kettle) with water.

• Never fill the kettle when it is on its base.
• Do not fill it above the max. level or below the min. level. If the kettle is overfilled, boiling water may escape.
• Do not use without water.
• Check that the lid is closed properly to avoid steam near the handle.

Check that the electrical supply is compatible with the power and voltage indicated beneath your model.

• Only plug the kettle into a socket with a built-in earth connection.
• Never lift the lid whilst the water is boiling.

The first two or three times that you use the kettle, throw the water away because it may contain foreign particles.

Rinse the kettle and filter separately.

We recommend that you do not leave any water in the kettle after use

To clean your kettle

Unplug it.

Leave it to cool and then clean with a soft damp sponge.

Certain models are equipped with a bottom surface or a heating element which is gold-plated to limit scale deposits and facilitate cleaning.

To clean the filter (depending on model)

The removable filter is made up of fabric which retains the particles of scale and stops them from falling into your cup when you pour. This filter does not treat the water or remove the scale from it. It therefore preserves all the qualities of the water.

With very hard water, the filter becomes clogged with scale very quickly (10 to 15 uses). It is important to clean it regularly.

If it is wet, rinse it with water, and if it is dry, scrub it gently. Sometimes the scale does not come away; if so, descaling is necessary.

- Never immerse the kettle or its base in water, as the electrical connections and the switch must not be allowed to come into contact with water.

- Never use abrasive cleaning pads.

- Never rub the "gold" coating as this will damage its surface.

Descaling

Descale regularly, preferably at least once a month and more frequently if your water is very hard.

To descale your kettle, use:

• white vinegar
• fill the kettle with half a litre of vinegar
• leave to stand for 1 hour without heating
• citric acid:
• boil half a litre of water
• add 25g of citric acid and leave to stand for 15 minutes.
• a specific descaling agent for plastic kettles:
• follow the manufacturer's instructions.

Empty your kettle and rinse it 5 or 6 times.

Repeat if necessary.

To descale your filter (depending on model):

Soak the filter in white vinegar or diluted citric acid.

Rinse thoroughly with water before putting back in the kettle.

- Never use descaling methods other than those recommended

There is no visible damage to your kettle

The kettle does not work or stops before boiling.

• Check that the kettle is plugged in properly.
• The kettle has been operated without water or scale has accumulated, triggering the safety system to prevent dry operation: leave the kettle to cool and then fill with water. Use the switch to turn it on: the kettle starts working again after about 15 minutes.

The water tastes of plastic

This usually occurs when the kettle is new. Throw away the water the first few times you use it. If the problem persists, fill the kettle to maximum, add two teaspoonfuls of bicarbonate of soda. Boil and throw away the water. Rinse the kettle thoroughly.

If your kettle has fallen, if it leaks, or if the cord, the plug or the base of the kettle are visibly damaged

Return your kettle to your Tefal After-Sales Service Centre, the only organization authorized to repair it. See warranty conditions and list of centres in the booklet supplied with your kettle. The type and serial number are indicated on the bottom of your model.

This product has been designed for domestic use only. Any professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Tefal reserves the right to modify the characteristics or components of its kettles at any time, in the interests of consumers.

• Do not use the kettle. No attempt should be made to dismantle the appliance or the safety systems.
• If the base of your kettle is assembled with screws and if the power cable is damaged, it must be replaced by the manufacturer, its after-sales department or a person with similar qualifications for safety reasons
• If the base does not include any screws, the power cable cannot be replaced. If the cable, the base or the connector are damaged, the base must be replaced completely.

Prevention

of accidents in the home

For a child, even a slight burn may sometimes be serious.

As they grow up, teach your children to be careful with hot fluids in the kitchen.

Place the kettle and cord towards the back of the working surface, out of children's reach.

If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

Simple line drawing of a steaming bowl (no text or symbols)

• T o avoid accidents, never carry your child or baby when you are drinking or carrying a hot drink.

Illustration of a white kettle with two blades, enclosed in a purple circular border (no text or symbols)

1

Illustration of a kettle with a blue ribbon, enclosed in a purple circular border (no text or symbols)

2

Simple diagram of a magnifying glass with a red handle and an arrow pointing upward, enclosed in a purple circular border (no text or symbols)

3

Simple line drawing of a kettle with a lid, enclosed in a circular frame (no text or symbols)

4

Simple line drawing of a steaming bowl (no text or symbols)

Illustration of a glass pitcher with liquid and a straw inside, enclosed in a circular frame (no text or symbols)

5

Illustration of a kettle with a red cord and a small paper clip attached to it, enclosed in a purple circle (no text or symbols)

6

Illustration of a kettle with arrows indicating motion or force (no text or symbols)

7

Simple line drawing of a kettle inside a circular frame (no text or symbols)

8

Simple line drawing of a steaming bowl (no text or symbols)

Simple line drawing of a steaming bowl (no text or symbols)

Illustration of a white kettle with three blades, enclosed in a purple circular frame (no text or symbols)

1

Illustration of a white kettle with a blue ribbon, enclosed in a purple circular border (no text or symbols)

2

Simple diagram of a magnifying glass with an arrow pointing to it, enclosed in a circular frame (no text or symbols)

3

Simple line drawing of a kettle with a lid and base, enclosed in a circular frame (no text or symbols)

4

Illustration of a laboratory pipette with liquid and test tube inside a circular frame (no text or symbols)

5

Illustration of a kettle connected to a power cord with a small object inside (no text or symbols)

6

Illustration of a kettle with arrows indicating motion or movement (no text or symbols)

7

Simple line drawing of a kettle inside a circular frame (no text or symbols)

8

Simple line drawing of a steaming bowl (no text or symbols)

Simple line drawing of a steaming bowl (no text or symbols)

Brug

Illustration of a white kettle with two blades, enclosed in a purple circular border (no text or symbols)

1

Illustration of a kettle with a blue ribbon, enclosed in a circular frame (no text or symbols)

2

Simple diagram of a magnifying glass with an arrow pointing to it, enclosed in a circular frame (no text or symbols)

3

Simple line drawing of a kettle inside a circular frame (no text or symbols)

4

Illustration of a laboratory pipette with liquid and test tube inside a circular frame (no text or symbols)

5

Illustration of a kettle with a red cord and a small paper clip attached to it, enclosed in a purple circular border (no text or symbols)

6

Illustration of a kettle with arrows indicating motion or force (no text or symbols)

7

Simple line drawing of a kettle inside a circular frame (no text or symbols)

8

Simple line drawing of a steaming bowl (no text or symbols)

Simple line drawing of a steaming bowl (no text or symbols)

Illustration of a white kettle with two blades, enclosed in a purple circular frame (no text or symbols)

1

Illustration of a kettle inside a circular frame, showing a blue ribbon and handle (no text or symbols)

2

Simple diagram of a magnifying glass with a red handle and blue arrow pointing to it, enclosed in a purple circular border (no text or symbols)

3

Simple line drawing of a kettle inside a circular frame (no text or symbols)

4

Simple line drawing of a steaming bowl (no text or symbols)

Illustration of a laboratory pipette with liquid and test tube inside a circular frame (no text or symbols)

5

Illustration of a kettle with a red cord and a small electrical outlet, enclosed in a purple circle (no text or symbols)

6

Illustration of a kettle with arrows indicating motion or force (no text or symbols)

7

Simple line drawing of a kettle inside a circular frame (no text or symbols)

8

Simple line drawing of a steaming bowl (no text or symbols)

Simple line drawing of a steaming bowl (no text or symbols)

Red oval shape with a white letter 'S' in the center (no additional text or symbols)

Användning

Illustration of a white kettle with two blades, enclosed in a purple circular border (no text or symbols)

1

Illustration of a kettle with a blue ribbon, enclosed in a purple circular border (no text or symbols)

2

Simple diagram of a magnifying glass with an arrow pointing to it, enclosed in a circular frame (no text or symbols)

3

Simple line drawing of a kettle inside a circular frame (no text or symbols)

4

Illustration of a laboratory pipette with liquid and test tube inside a circular frame (no text or symbols)

5

Illustration of a kettle with a red cord and a small paper clip attached to it, enclosed in a purple circular frame (no text or symbols)

6

Illustration of a kettle with arrows indicating motion or force (no text or symbols)

7

Simple line drawing of a kettle inside a circular frame (no text or symbols)

8

Simple line drawing of a steaming bowl (no text or symbols)

Simple line drawing of a steaming bowl (no text or symbols)

Apparaten visar inga synliga skador

Simple line drawing of a steaming bowl (no text or symbols)

Illustration of a white kettle with three blades, enclosed in a purple circular frame (no text or symbols)

1

Illustration of a kettle inside a circular frame, no text or symbols present

2

Simple diagram of a magnifying glass with a red handle and blue arrow pointing to it, enclosed in a purple circular border (no text or symbols)

3

Simple line drawing of a kettle inside a circular frame (no text or symbols)

4

Simple line drawing of a steaming bowl (no text or symbols)

Plasser vannkokeren og ledningen innerst på benken/bordet.

- Plasser aldri vannkokeren ved eller på glatte eller varme underlag. La heller ikke ledningen komme i nærheten av en varmekilde (kokeplate).

Illustration of a test tube being dispensed into a glass pitcher, enclosed in a circular frame (no text or symbols)

5

Illustration of a kettle connected to a wall-mounted power outlet (no text or symbols)

6

Illustration of a kettle with arrows indicating motion or movement (no text or symbols)

7

Simple line drawing of a kettle inside a circular frame (no text or symbols)

8

Simple line drawing of a steaming bowl (no text or symbols)

Vannkokeren har ingen synlige skader

Simple line drawing of a steaming bowl (no text or symbols)
