GSN40A30 - Freezer BOSCH - Free user manual and instructions
Find the device manual for free GSN40A30 BOSCH in PDF.
| Product type | Upright freezer |
| Brand | Bosch |
| Model | GSN40A30 |
| Climate class | SN-T (10 °C to 43 °C) |
| Energy class | A++ |
| Total net volume | 242 liters |
| Freezer volume | 242 liters |
| Freezing capacity in 24h | 22 kg |
| Power failure autonomy | 25 hours |
| Dimensions (H x W x D) | 176,0 x 60,0 x 65,0 cm |
| Net weight | 72,5 kg |
| Electrical supply | 220-240 V, 50 Hz |
| Power consumption | 160 W |
| Rated current | 10 A |
| Main functions | Super freezing, door alarm, electronic temperature display |
| Number of shelves | 5 glass shelves |
| Number of freezer drawers | 3 drawers |
| Defrost type | Manual defrost (No Frost) |
| Maintenance and cleaning | Clean regularly with warm water and mild detergent; do not use steam cleaner |
| Safety | Key lock, temperature alarm |
| Spare parts and repairability | Repairability index: 7,2/10; available parts (motor, thermostat, door seals) |
| General information | User manual available online; Bosch Europe support |
Frequently Asked Questions - GSN40A30 BOSCH
User questions about GSN40A30 BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual GSN40A30 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GSN40A30 by BOSCH.
USER MANUAL GSN40A30 BOSCH
BOSCH
de Gebrauchsanleitung en Instruction for Use fr Mode d'emploi
Safety and warning information ..... 22
Information concerning disposal ..... 24
Scope of delivery 24
Observe ambient temperature and ventilation 25
Connecting the appliance 25
Getting to know your appliance ..... 26
Switching the appliance on 27
Setting the temperature 28
Alarm function 28
Usable capacity 29
Freezer compartment 29
Max. freezing capacity 29
Freezing and storing food 30
Freezing fresh food 30
Super freezing 31
Thawing frozen food 32
Interior fittings 32
Switching off and disconnecting the appliance 33
Defrosting 33
Cleaning the appliance 33
Tips for saving energy 34
Operating noises 34
Eliminating minor faults yourself ..... 35
Customer service 38
Safety and warning information
Before you switch ON the appliance
Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.
Retain all documents for subsequent use or for the next owner.
Technical safety
This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.
If damage has occurred
- Keep naked flames and/or ignition sources away from the appliance, thoroughly ventilate the room for several minutes,
- switch off the appliance and pull out the mains plug, inform customer service.
The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.
Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.
Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
A power cable extension may be purchased from customer service only.
Important information when using the appliance
Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Risk of explosion! Never use a steam cleaner to defrost or clean the appliance! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock! Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries. Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Risk of explosion! Do not stand or support yourself on the base, drawers or doors, etc.
Before defrosting and cleaning the appliance, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging the cable. Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position. Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous. Never cover or block the ventilation openings for the appliance. People (children incl.) who have limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions. Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode! Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns! Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!
Children in the household
- Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film! Do not allow children to play with the appliance! If the appliance features a lock: keep the key out of the reach of children!
General regulations
The appliance is suitable
for freezing food, for making ice.
This appliance is intended for use in the home and the home environment.
The appliance is suppressed according to EU Directive 2004/108/EC.
The refrigeration circuit has been checked for leaks.
This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).
Information concerning disposal
Disposal of packaging
The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.
Please ask your dealer or inquire at your local authority about current means of disposal.
Disposal of your old appliance
Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.
This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment – WEEE. The directive specifies the framework for an EU-wide valid return and re-use of old appliances.
Warning
Redundant appliances
- Pull out the mains plug.
- Cut off the power cord and discard with the mains plug.
- Do not take out the trays and receptacles: children are therefore prevented from climbing in!
- Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!
Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.
Scope of delivery
After unpacking all parts, check for any damage in transit.
If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.
The delivery consists of the following parts:
■ Free-standing appliance ■ Interior fittings (depending on model) - Operating instructions ■ Installation manual ■ Customer service booklet ■ Warranty enclosure ■ Information on the energy consumption and noises ■ Bag containing installation materials
Observe ambient temperature and ventilation
Ambient temperature
The appliance is designed for a specific climatic class. Depending on the climatic class, the appliance can be operated at the following room temperatures.

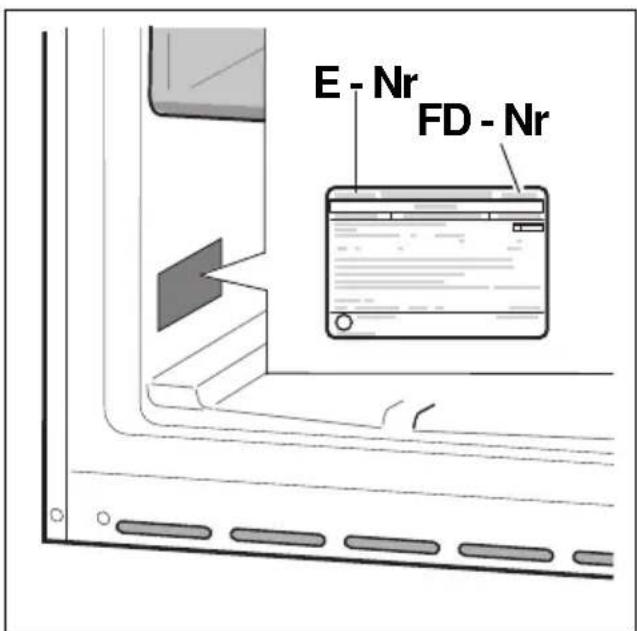

The climatic class can be found on the rating plate, Fig. 12.
| Climatic class Permitted ambient temperature |
| SN +10 °C to 32 °C |
| N +16 °C to 32 °C |
| ST +16 °C to 38 °C |
| T +16 °C to 43 °C |
Ventilation
Fig. 3
The air on the rear panel of the appliance heats up.
Conduction of the heated air must not be obstructed. Otherwise, the refrigerating unit must work harder.
This increases power consumption.
Therefore: Never cover or block the ventilation openings!
Connecting the appliance
After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.
Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”).
Electrical connection
The socket must be near the appliance and also freely accessible following installation of the appliance.
The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.
For appliances operated in non-European countries, check whether the stated voltage and current type match the values of your mains supply. This information can be found on the rating plate. Fig. 12
en
Warning
Never connect the appliance to electronic energy saver plugs.
Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.
Getting to know your appliance
Please fold out the illustrated last page. These operating instructions refer to several models.
The features of the models may vary. The diagrams may differ.
Fig. 1
* Not all models.
1-7 Controls
8 Light
9 No Frost System
10 Freezer compartment flap 11 Glass shelf 12 Ice maker/pizza box * 13 Frozen food container (small) 14 Freezer shelf 15 Frozen food container (large) 16 Ventilation opening 17 Height-adjustable feet 18 Ice pack 19 Freezer calendar 20 Door ventilation
Controls
Fig. 2
1 Temperature display
Indicates the set temperature of the freezer compartment.
2 Alarm display
Lights up if the freezer compartment becomes too warm. It goes out when the freezer compartment has reached the set temperature.
3 Display super freezing
Illuminates when super freezing is on.
4 Temperature selection button
The required temperature is set with this button.
5 "super" button
To switch on super freezing function.
See chapter entitled "Super freezing".
6 Alarm button
Used to switch off the warning signal, see chapter “Alarm function”.
7 On/Off button
Serves to switch the whole appliance on and off.
Switching the appliance on
Switch on the appliance with the On/Off button 7.
A warning signal sounds. "AL" flashes on the temperature display 1, the super freezing display 3 flashes and the alarm display 2 is lit.
Press the alarm button 6. The warning signal switches off and the super freezing display 3 goes out.
When the appliance has reached the set temperature, the temperature display 1 indicates the set temperature. Alarm display 2 goes out.
When the door is open, the light is lit.
Operating tips
- When the appliance has been switched on, it may take several hours until the set temperature has been reached. ■ The fully automatic No Frost system ensures that the freezer compartment remains free of ice. Defrosting is not required. ■ The sides of the housing are sometimes heated slightly. This prevents condensation in the area of the door seal. ■ The appliance features door ventilation to prevent a partial vacuum in the freezer compartment and to ensure that the appliance door can be opened easily at any time.
Setting the temperature
Fig. 2
Freezer compartment
The temperature can be set from -16 °C to -26 °C.
Keep pressing temperature selection button 4 until the required freezer compartment temperature is set. The value last selected is stored.
The set temperature is indicated on display 1.
We recommend a factory setting of -18°C in the freezer compartment.
Alarm function
Switching off the warning signal
Fig. 2
Press the “alarm” button 6 to switch off the warning signal.
Door alarm
The door alarm switches on if an appliance door is left open for longer than one minute. Close the door to switch off the warning signal.
Temperature alarm
The temperature alarm switches on if the freezer compartment is too warm and the frozen food is at risk of thawing.
“AL” flashes on the temperature display 1, and the “alarm” display 2 is lit.
When the alarm button 6 is pressed, the temperature display 1 indicates for five seconds the warmest temperature reached in the freezer compartment.
Then this value is deleted. “AL” is indicated on the temperature display 1 and the “alarm” display 2 is lit until the set temperature is reached. The temperature display 1 then indicates the set temperature.
Henceforth the “warmest temperature” will be redefined and stored.
The alarm may switch on without any risk to the frozen food:
■ when the appliance is switched on, ■ when large quantities of fresh food are placed in the appliance, ■ if the freezer compartment door is open too long.
Note
Do not refreeze thawing or thawed food. It can only be refrozen when it has been used to prepare a ready meal (boiled or fried).
No longer store the frozen produce for the max. storage period.
Usable capacity
Information on the usable capacity can be found inside your appliance on the rating plate.
Fully utilising the freezer volume
The maximum amount of food can be placed in the freezer by removing several fittings. The food can be stacked directly on the freezer shelves.
Note
To comply with the values indicated on the rating plate, the fittings at the very top and bottom should remain in the appliance.
Removing the fittings
■ Pull out the frozen food container all the way, lift at the front and remove. Fig. 4 ■ Open freezer compartment flap, hold one of the bearing pins and remove flap. Fig. 5 If appliances feature an ice maker, the latter can be taken out. Fig. 6 ■ The glass shelf, Fig. 1/11, can be taken out and inserted above the frozen food container 13.
Freezer compartment
Use the freezer compartment
■ To store deep-frozen food. ■ To make ice cubes. ■ To freeze food.
Note
Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!
Max. freezing capacity
Information about the max. freezing capacity within 24 hours can be found on the rating plate (see chapter "Customer service").
Freezing and storing food
Purchasing frozen food
■ Packaging must not be damaged. ■ Use by the “use by” date. ■ Temperature in the supermarket freezer must be -18 °C or lower. If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.
Note when loading products
Freeze large quantities of food preferably in the very top compartment where food freezes particularly quickly and therefore also gently. Place the food over the whole area of the compartments or in the frozen food container. Food which is already frozen must not come into contact with the food which is to be frozen. If required, move the frozen food to the frozen food container.
To ensure good air circulation in the appliance, insert the frozen food container all the way.
Do not cover the ventilation slots on the rear panel with frozen food!
Freezing fresh food
Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.
Literature on freezing and blanching can be found in bookshops.
Note
Keep food which is to be frozen away from food which is already frozen.
The following foods are suitable for freezing: cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. The following foods are not suitable for freezing: types of vegetables which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.
Packing frozen food
To prevent food from losing its flavour or drying out, place in airtight containers.
- Place food in packaging.
- Remove air.
- Seal the wrapping.
- Label packaging with contents and date of freezing.
Suitable packaging:
Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.
These products are available from specialist outlets.
Unsuitable packaging:
Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.
Items suitable for sealing packaged food:
Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.
Bags and tubular film made of polyethylene can be sealed with a film heat sealer.
Shelf life of frozen food
Depends on the type of food.
At a temperature of -18°C:
■ Fish, sausage, ready meals and cakes and pastries: up to 6 months ■ Cheese, poultry and meat: up to 8 months ■ Vegetables and fruit: up to 12 months
Super freezing
Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.
To prevent an undesirable temperature rise when placing fresh food in the freezer compartment, switch on super freezing several hours beforehand.
If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment.
Smaller quantities of food (up to 2 kg) can be frozen without “super freezing”.
Note
When super freezing is switched on, increased operating noises may occur.
Switching on and off
Fig. 2
Press "super" button 5.
When super freezing is switched on, "SU" is indicated on the temperature display 1 and the super freezing display 3 is lit.
This appliance runs constantly and the freezer compartment drops to a very low temperature.
Super freezing automatically switches off after approx. 2 1/2 days.
Thawing frozen food
Depending on the type and application, select one of the following options:
■ at room temperature ■ in the refrigerator ■ in an electric oven, with/without fan assisted hot-air in the microwave
Note
Do not refreeze food which is beginning to thaw or which has already thawed. It can only be refrozen when it has been used to prepare a ready meal (boiled or fried).
No longer store the frozen produce for the max. storage period.
Interior fittings
(not all models)
Frozen food container (large)
Fig. 1/15
For freezing and storing large food items, e.g. turkey, duck and goose.
Freezer calendar
Fig. 7/A
To prevent the quality of the food from deteriorating, it is important that the permitted storage period is not exceeded. The storage period depends on the type of produce. The figures next to the symbols indicate the permitted storage period of the produce in months. When purchasing frozen produce, observe the date of manufacture or use-by date.
Ice pack
Fig. 7/B
If a power failure or malfunction occurs, the ice packs can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack directly on the food in the top compartment.
To save space, the ice pack can be stored in the door compartment.
The ice packs can also be used to cool food temporarily, e.g. in a cold bag.
Ice cube tray
Fig. 8
Fill the ice cube tray 3/4 full of water and place in the freezer compartment.
If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).
To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.
Ice maker
Fig. 9
- Remove the ice cube tray, fill 3/4 full of water and re-insert.
- When the ice cubes are frozen, rotate the knobs on the ice cube trays several times to the right and release. The ice cubes loosen and fall into the storage container.
- Remove ice cubes from the storage container.
Switching off and disconnecting the appliance
Switching off the appliance
Fig. 2
Press the On/Off button 7.
Temperature display goes out, refrigerating unit switches off.
Disconnecting the appliance
If you do not use the appliance for a prolonged period:
- Switch off the appliance.
- Pull out mains plug or switch off fuse.
- Clean the appliance.
- Leave the appliance door open.
Defrosting
Freezer compartment
The fully automatic No Frost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required.
Cleaning the appliance
Caution
- Do not use abrasive or acidic cleaning agents and solvents.
- Do not use scouring or abrasive sponges. The metallic surfaces could corrode. Never clean shelves and containers in the dishwasher. The parts may become deformed!
Proceed as follows:
- Before cleaning: Switch the appliance off.
- Pull out the mains plug or switch off the fuse.
- Take out the frozen food and store in a cool location.
- Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.
- Wipe the door seal with clear water only and then wipe dry thoroughly.
- Rinsing water must not run through the drainage hole into the evaporation area.
- After cleaning reconnect and switch the appliance back on.
- Put the frozen food back in the freezer compartment.
Tips for saving energy
- Install the appliance in a dry, well-ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g., radiator, cooker). If required, use an insulating plate.
- Do not block the ventilation openings in the appliance.
- Allow warm food and drinks to cool down before placing them in the appliance!
- When thawing frozen products, place them in the refrigerator. Use the coldness of the frozen food to cool other food.
■ Open the appliance as briefly as possible.
■ Ensure that the freezer compartment door is always closed properly.
■ Occasionally clean the rear of the appliance with a vacuum cleaner or paint brush to prevent increased power consumption.
- There must be a gap of 60 mm from the back wall so that the heated air can escape without obstruction.
Operating noises
Quite normal noises
Droning
Motors are running (e.g., refrigerating units, fan).
Bubbling, humming, or gurgling noises
Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are switching on/off.
Preventing noises
The appliance is not level
Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them.
The appliance is not free-standing
Please move the appliance away from adjacent units or appliances.
Containers or storage areas wobble or stick
Please check the removable parts and re-insert them correctly if required.
Eliminating minor faults yourself
Before you call customer service:
Please check whether you can eliminate the fault yourself based on the following information.
Customer service will charge you for advice – even if the appliance is still under guarantee!
| Fault Possible cause Remedial action | ||
| Temperature differs greatly from the set value. | In some cases it is adequate to switch off the appliance for 5 minutes.If the temperature is too high wait a few hours and check whether the temperature has approached the set value.If the temperature is too low check the temperature again the next day. | |
| The light does not work. | The bulb is defective. | Replace bulb. Fig.10/B1. Switch the appliance off.2. Pull out mains plug or switch off fuse.3. Slide cover forwards and remove.4. Change the bulb.(Replacement bulb: 220-240 V a.c., E14 bulb holder, see defective bulb for wattage.) |
| Light switch is jammed. | Check whether it can be moved. Fig.10/A | |
| Displays do not illuminate. | Power failure; the fuse has been switched off; the mains plug has not been inserted properly. | Connect mains plug. Check whether the power is on, check the fuses. |
| Display indicates “E..”. Electronics module defective. | Call customer service. | |
| Warning signal sounds. “AL” flashes on the temperature display, Fig. 2/1, and the “alarm” display 2 is lit. | Fault – the freezer compartment is too warm! | To switch off the warning signal, press the “alarm” button 6. The temperature display 1 stops flashing.The temperature display 1 indicates for 5 seconds the warmest temperature which was reached in the freezer compartment. |
| Frozen food is at risk! Note | Frozen food which has started thawing or which has thawed can be refrozen if meat and fish were above +3 °C for not more than one day or other frozen food for not more than three days.If taste, odour and appearance have not changed, the food can be boiled or fried and then refrozen.No longer store the frozen produce for the max. storage period. | |
| Appliance is open. Close the appliance. | ||
| Ventilation openings have been covered. | Ensure that there is adequate ventilation. | |
| Too much food was placed in the freezer compartment at once. | Do not exceed max. freezing capacity. | |
| When the fault has been eliminated, the alarm button goes out shortly afterwards. | ||
| Temperature display flashes. Fig. 2/1 | A fault caused the freezer compartment to become too warm in the past. | When the “alarm” button 6 is pressed, the temperature display 1 stops flashing.The temperature display 1 indicates for 5 seconds the warmest temperature which was reached in the freezer compartment. |
| Super freezing display flashes. Fig. 2/3 | Power failureThe frozen food is not at risk of thawing!Attention!If another fault is indicated at the same time, proceed according to “Eliminating minor faults yourself”.The frozen food is at risk of thawing! | Press any button, the super freezing display stops flashing. |
| Freezer compartment door was open for a long time; temperature is no longer reached. | The evaporator (refrigeration generator) in the No Frost system is covered in thick ice and can no longer be defrosted fully automatically. | To defrost the evaporator, remove the frozen food with the compartments, insulate well and store in a cool location.Switch off the appliance and move it away from the wall. Leave the appliance door open.After approx. 20 min.the condensation begins to run into the evaporation pan, at the rear of the appliance. Fig. 11To prevent the evaporation pan from overflowing in this case, mop up the condensation with a sponge.The evaporator is defrosted when the water stops running into the evaporation pan. Clean the interior. Switch the appliance back on again. |
Customer service
Your local customer service
can be found in the telephone directory
or in the customer-service index. Please
provide customer service
with the appliance product number
(E-Nr.) and production number (FD).
These specifications can be found
on the rating plate. Fig. 12
To prevent unnecessary call-outs, please
assist customer service by quoting
the product and production numbers.
This will save you additional costs.
Repair order and advice on faults
Contact information for all countries can be found on the enclosed customer service list.
GB 0844 8928979 Calls from a BT
landline will be
charged at up
to 3 pence per
minute. A call
set-up fee of up
to 6 pence may
apply.
IE 01450 2655
US 800 944 2904 toll-free
4
5
6
7
8
9
10
11
12
- SAFETY AND WARNING INFORMATION
- BEFORE YOU SWITCH ON THE APPLIANCE
- TECHNICAL SAFETY
- IMPORTANT INFORMATION WHEN USING THE APPLIANCE
- CHILDREN IN THE HOUSEHOLD
- GENERAL REGULATIONS
- INFORMATION CONCERNING DISPOSAL
- DISPOSAL OF PACKAGING
- DISPOSAL OF YOUR OLD APPLIANCE
- WARNING
- SCOPE OF DELIVERY
- OBSERVE AMBIENT TEMPERATURE AND VENTILATION
- AMBIENT TEMPERATURE
- VENTILATION
- FIG
- CONNECTING THE APPLIANCE
- ELECTRICAL CONNECTION
- EN
- GETTING TO KNOW YOUR APPLIANCE
- CONTROLS
- TEMPERATURE DISPLAY
- ALARM DISPLAY
- DISPLAY SUPER FREEZING
- TEMPERATURE SELECTION BUTTON
- SUPER" BUTTON
- ALARM BUTTON
- ON/OFF BUTTON
- SWITCHING THE APPLIANCE ON
- OPERATING TIPS
- SETTING THE TEMPERATURE
- FREEZER COMPARTMENT
- ALARM FUNCTION
- SWITCHING OFF THE WARNING SIGNAL
- DOOR ALARM
- TEMPERATURE ALARM
- NOTE
- USABLE CAPACITY
- FULLY UTILISING THE FREEZER VOLUME
- REMOVING THE FITTINGS
- USE THE FREEZER COMPARTMENT
- MAX. FREEZING CAPACITY
- FREEZING AND STORING FOOD
- PURCHASING FROZEN FOOD
- NOTE WHEN LOADING PRODUCTS
- FREEZING FRESH FOOD
- PACKING FROZEN FOOD
- SUITABLE PACKAGING
- UNSUITABLE PACKAGING
- ITEMS SUITABLE FOR SEALING PACKAGED FOOD
- SHELF LIFE OF FROZEN FOOD
- SUPER FREEZING
- SWITCHING ON AND OFF
- THAWING FROZEN FOOD
- INTERIOR FITTINGS
- FROZEN FOOD CONTAINER (LARGE)
- FREEZER CALENDAR
- ICE PACK
- ICE CUBE TRAY
- ICE MAKER
- SWITCHING OFF AND DISCONNECTING THE APPLIANCE
- SWITCHING OFF THE APPLIANCE
- DISCONNECTING THE APPLIANCE
- DEFROSTING
- CLEANING THE APPLIANCE
- CAUTION
- TIPS FOR SAVING ENERGY
- OPERATING NOISES
- QUITE NORMAL NOISES
- DRONING
- BUBBLING, HUMMING, OR GURGLING NOISES
- CLICKING
- PREVENTING NOISES
- THE APPLIANCE IS NOT LEVEL
- THE APPLIANCE IS NOT FREE-STANDING
- CONTAINERS OR STORAGE AREAS WOBBLE OR STICK
- ELIMINATING MINOR FAULTS YOURSELF
- CUSTOMER SERVICE
- REPAIR ORDER AND ADVICE ON FAULTS
Brand : BOSCH
Model : GSN40A30
Category : Freezer
