GVH D1013A2 - Tumble dryer CANDY - Free user manual and instructions

Product type	Tumble dryer
Brand	Candy
Model	GVH D1013A2
Drying capacity	10 kg
Drying type	Heat pump
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	45 kg
Power supply	230 V / 50 Hz
Energy class	A++
Drying programmes	Cotton, Synthetic, Delicate, Mixed, Quick 30 min, Wool, Shirts, Sport
Main functions	Delayed start, Automatic drying, Anti-crease, Buzzer, Start/Pause button
Noise level	65 dB(A)
Water tank capacity	4.5 L
Lint filter	Yes, to be cleaned after each cycle
Condenser	Self-cleaning
Child safety	Yes
Overheat protection	Yes
Repairability index	8.0 / 10
Spare parts available	Filter, belt, heating element, capacitor, door seal
Routine maintenance	Clean the filter and condenser regularly

Frequently Asked Questions - GVH D1013A2 CANDY

How to clean the lint filter of the Candy GVH D1013A2?

Open the door, remove the filter located at the bottom front, remove the lint by hand or with a vacuum cleaner, rinse with warm water if necessary, dry it and put it back. Do this after each cycle to avoid fire hazards.

What to do if the tumble dryer does not start?

Check that the door is properly closed, the plug is connected and the fuse has not blown. Make sure the water tank is not full and the filter is properly in place. If the problem persists, consult the manual or a technician.

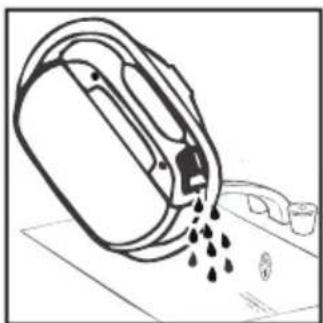

How to empty the condensation water tank?

Pull out the tank drawer located at the top left (depending on model), empty the water into a sink, then put the drawer back. The tank has a capacity of 4.5 L.

What are the symbols on the control panel?

The symbols include drying programmes (cotton, synthetic, etc.), options (delayed start, anti-crease), drying level (ready to store, very dry), and indicator lights (filter, tank). Consult the manual for a detailed description.

The tumble dryer is very noisy, what to do?

Check that the appliance is level and the feet are properly adjusted. Make sure there are no metal objects in the drum (keys, coins). An abnormal noise may indicate a mechanical problem; contact customer service.

How to activate delayed start?

Select the desired programme, then press the 'Delayed start' button several times to choose the delay (1h to 24h). Press 'Start/Pause' to start the countdown.

Can I dry shoes in this tumble dryer?

Yes, use a shoe drying accessory (sold separately) or place the shoes in a laundry bag. Select a delicate programme and do not overload the drum.

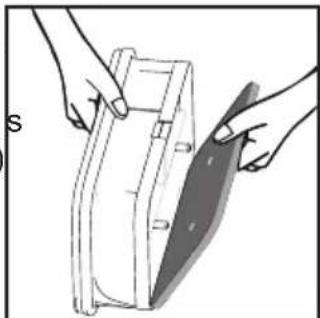

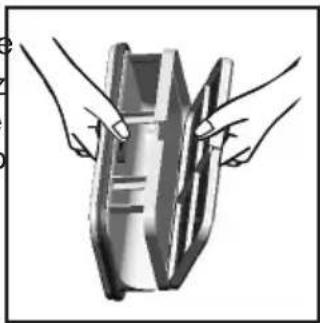

How to clean the condenser?

The Candy GVH D1013A2 is equipped with a self-cleaning condenser, but it is recommended to rinse it manually every 3-6 months. Remove the lower panel, pull out the condenser, rinse under running water, brush gently, then put back in place.

What does the 'Filter' indicator light mean?

The 'Filter' light turns on to remind you to clean the lint filter. After cleaning it, the appliance automatically detects the change and turns off the light.

How to reset the tumble dryer after a power cut?

Unplug the appliance for one minute, then plug it back in. Select a new programme. If the problem persists, contact a professional.

USER MANUAL GVH D1013A2 CANDY

Heat Pump Tumble Dryer

Grand Vita

English	2
Español	16
Français	30
Deutsch	44
Italiano	58
Polish	72
Suomi	86
Dansk	100
Norsk	114
Svenska	128
Porteguese	142
Slovensko	156
Ελληικα	170
Dutch	184

INDEX

Safety Reminders	3
Drain Hose Kit: Fitting Instructions	8
Preparing the Load	9
Controls and Indicators	10
Selecting the Programme	11
Door and Filter	12
Water Container	13
Operation	14
Cleaning and Routine Maintenance	14
Troubleshooting	15
Customer Service	15

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

SAFETY REMINDS

Use

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

●WARNING Misuse of a tumble dryer may create a fire hazard.

- This appliances is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments"

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use ( even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.'

- This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.

- Do not touch the appliance when hands or feet are damp or wet.

- Do not lean on the door when loading the machine or use the door to lift or move the machine.

- Do not allow children to play with the machine or its controls.

• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
• WARNING Where the hot surface symbol is 🔒 located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
  ●Maximum load drying weight: see energy label.

The Laundry

- Do not dry unwashed items in the tumble dryer.

- WARNING Do not tumble dry fabrics treated with dry cleaning fluids.

- WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

- Always refer to the laundry care labels for directions on suitability for drying.

•Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

- Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Ventilation

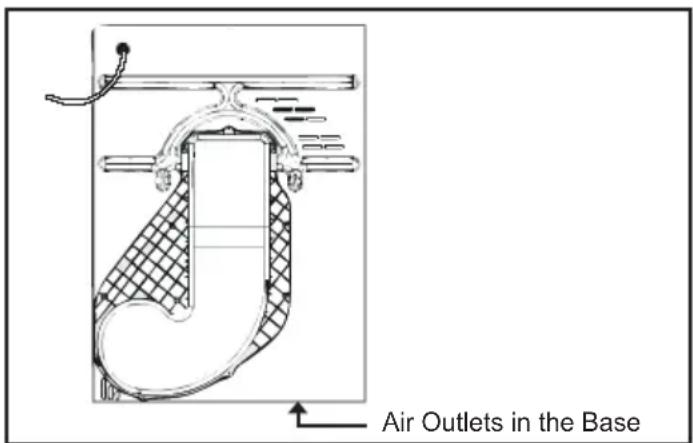

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
• Installing the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.
• Check regularly that the air flowing through the dryer is not restricted.
• Check frequently the fluff filter after use, and clean, if necessary.
• Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet
• NEVER install the dryer up against curtains.
• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.

-Stacking kit Mod 35100019: for minimum washing machine depth 49 cm -Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of that above, obtainable from our spa service.

The stacking kit shall be one of that above, obtainable from our spare service.

The instructions for installation and any fixing attachments, are provided with the staking kit.

⚠ Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between +2°C and +35°C. Please note that operating in cold condition (between +2 and +15°C) might simply some water condensation and water drops on floor.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
  • To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2012/19/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 6A.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extensionleads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.
If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.
Do not plug the machine in and switch it

DRAIN HOSE : FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of:1 hose and 1 tap.

WARNING! Switch off and remove the able dryer plug from the electricity supply are carrying out any work.

Fit the Hose as Follows:

1. Flip the machine slowly to the right side.

2. The waste water pipe is situated at the right-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

3. Pull the hose off the bridge connection.

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

1. Attach the black hose from the kit, (using the connector and pipe clips supplied), to the hose removed from the bridge connection.

Close-up of hands using a soldering iron to apply material (no text or symbols visible)

1. Once the machine is in place, check the bottom to ensure that the new hose does not kink when pushing the tumble dryer into position.

Close-up of a hand holding a black cable with metal rings, no visible text or symbols

1. Connect the new drain hose to the waste Water pipe.

Close-up of hands holding a white cylindrical object with a label 'ty' visible (no other text or symbols)

1. Connect to the mains electricity supply.

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compresso. Failure to do this could result in damage to the compressor.

Exterior view of a white toilet in a tiled room with a black hose and brick wall (no visible text or symbols)

PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Try to dry the maximum weight of laundry, this will save time and electricity.
• Check that the filter is clean before every drying cycle.

NEVER

• Exceed the maximum weight, this will waste time and electricity.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Cottons	Max.	10 Kg	9 Kg	8 Kg	7 Kg	6 Kg
Synthetics	Max.	4 Kg	4 Kg	4 Kg	3,5 Kg	3 Kg

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

•• Tumble drying at high temperature.
• Tumble drying at low temperature only.
Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the Delicates button to select low drying temperature.

CONTROLS AND INDICATORS

Control Panel and Indicator Lights

Knob: You can turn it in both directions to choose the required programme.

Time selection ⚙:To modify the drying timing of required programme; it works only with certain programmes.

Delay start ⏻: To delay the start of the drying cycle and to dry your laundry when electricity costs less (please see dedicated section)

Delicate fabrics: When pulled, this indicator 📋 turns off and this new one 🌐 turns on; with this special function, the drying temperature is lower to better protect your delicate clothes.

Anti-Crease Button ☑ – Select the anti-crease function at the end of drying cycle. The drum keeps moving at regular phases to refresh the laundry.

Cool down ⚙: This indicator turns on during the final cool phase of the cycle.

Start/Pause ▷: To start the programme required or to pause the cycle.

Automatic programmes: Depending on desired programme, specific indicators turn on (please see "programme list")

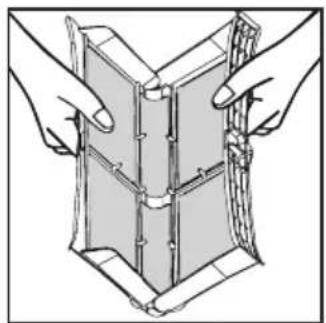

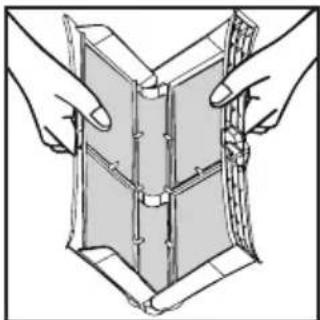

Filter care ☐: When on, please clean the filters.

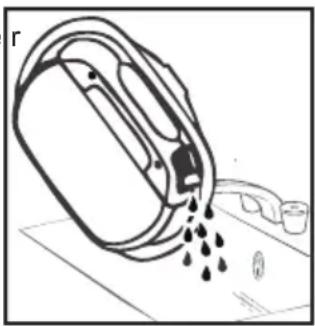

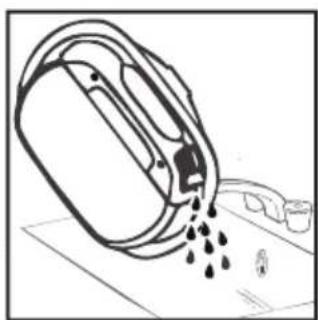

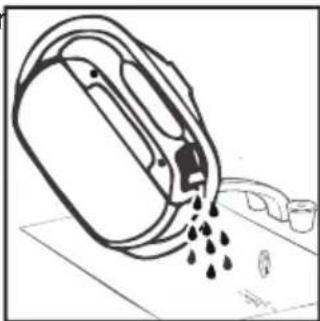

Full water tank 📋: When on, please empty the water tank.

SELECTING THE PROGRAMME

The Candy Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table on the next page lists the programmes and the function of each programme.

Note:

The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes. If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown. If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after approximately 3 hours. In these cases we advise to use a time cycles between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type.

WOOLMARK APPAREL CARE

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine. M1530.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

SELECTING THE PROGRAMME

PROGRAMME		IDEAL FOR
Perfect Home	###	Clothes you want completely dried, e.g. towels, bathrobes, table clothes or sheet. Time: around 3h.
Store Dry	###	Clothes you want to fold and store without ironing, e.g. shirts in mixed fabrics, socks, baby clothes. Time: around 2h and 45 min.
Hang Dry	###	Clothes you don't need to iron, but just hang after the drying cycle. Time: around 2h and 30 min.
Iron Dry	###	Leave clothes slightly damp to allow easier ironing. Time: around 1h and 50 min.
Anti Crease	###	Clothes you just need to refresh. Good for items of clothing which have been left prior to ironing or if they have been dried outside or on radiators. This programme has a specific Anti-Crease function that relaxes fibres and makes easier ironing. Time: 9 min + 3 min cool down.
Wool	###	Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are more heavy, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle. Attention: felting process of wool is irreversible; please dry exclusively clothes with symbol (symbol "ok tumble"); this program is not indicated for acrylic clothes.
Mix & Dry		To dry mixed cotton and synthetic clothes: save time and no need to separate the washing and dry them in different cycles. Time: around 2h (max 4 kg).
Shirts		To dry shirts both cotton and synthetic fabrics. Time: 1h for 2kg of synthetic shirts (around 10 shirts); 1h and 20 min for 3 kg of cotton shirts (around 10 shirts).
Rapid 40 Min.		For dry, refreshed and ready to dress clothes in onyl 40 minutes. Sensor system keeps under control the temperature to have always the best result. Max 2 kg.
Time		If you want to choose drying times, from 30 to 180 minutes. By selecting “20 min” you choose a “cool programme”, ideal to refresh clothes and to remove eventual smells.
Jeans		To dry up to 4 kg of Jeans (around 5 pairs). The programme works for around 2h, but timing can change according to the load and washing spin speed. Jeans programme can only be used for 100% cotton items, please do not mix colours nor dry jeans with embroideries or accessories.

DOOR and FILTER

Pull on handle to open the door.

To restart the dryer, close the door and press Start / Pause button

WARNING! When the tumble dryer is in use of drum and door may be VERY HOT. Never to a tumble dryer before the end of the drying one unless all items are quickly removed and head out so that the heat is dissipated.

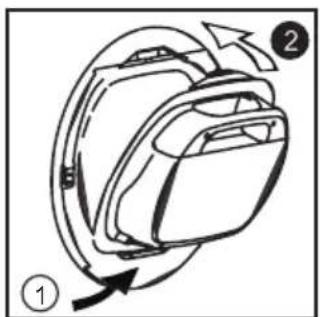

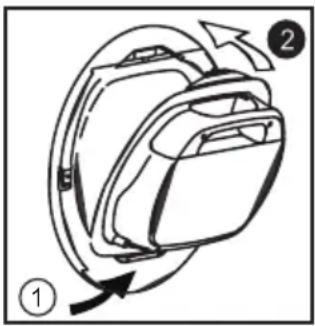

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

1. Pull the filter upwards.

2. Open filter as shown.

3. Gently remove lint using a soft brush or your fingertips.

4. Snap the filter together and push back into place.

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Filter Care Indicator

Lights when the

filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

Illustration of two hands assembling or folding a rectangular panel (no text or symbols visible)

DO NOT USE WATER TO CLEAN THE FILTER

WARNING! If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

To Clean the Condenser Filter

1. Remove the kickplate.

2. Turn the two locking levers anti-clockwise and pull out the front cover.

3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.

4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap turning it so to remove any dust or fluff.

5. Refit the front cover ensuring it is in the correct way (a indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.

6. Refit the kickplate.

Line drawing of hands holding a fan with a circular component, no text or symbols present

Illustration of two hands opening a rectangular object with a striped pattern (no text or symbols)

Illustration of hands holding a device with a shaded blade (no text or symbols)

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the indicator on the control panel will light, and the closure of the door.

container MUST be emptied. However, we recommend that the container is emptied after2. Gently close the door pushing it slowly until each drying cycle. you hear the door 'click' shut.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull out the water container holding the handle.

When it is full the water container will weigh about 6 kg.

1. Tilt the wate container to empty the water out through the spout.

When empty, replace the water container back as shown; first insert the base of the container into position as shown then gentle push the top into position.

1. Press ▷ Button to restart the cycle.

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with a small object nearby (no text or symbols)

NOTE: If you have the option of drainage near to the dryer you can use

the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

Diagram of a car backbelt with directional arrows indicating movement (no text or symbols)

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly until you hear the door 'click' shut.

3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).

4. If drying synthetics, acrylics or delicate items, press the ☐ button to reduce the heat level.

The indicator will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the button, after this time reset the machine to change the setting.

1. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.

2. If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.

3. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

4. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programs in order to obtain a proper drying.

OPERATION

Delay Start Function

The Delay Start Function ⏻ allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of the button will increase the delay with 1 hour steps.

To commence the programme press ▷III and the appliance will complete the drying cycle at the end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the ▷■ button for 3 seconds. In the TIME CONTROL display 0:00 Light will flash to indicate that it has been reset.

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
• Regularly clean the condenser.
• After each period of use, wipe the inside of the drum and leave the door open for a while t allow circulation of air to dry it.

- Wipe the outside of the machine and the door with a soft cloth.

- DO NOT use abrasive pads or cleaning agents.

- To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may very hot.

IMPORTANT Always switch off and remove plug from the electricity supply before ning this appliance.

For electrical data refer to the rating label on front of the dryer cabinet (with the door open).

WARNING! The Drum, door and load may very hot.

Drying Guide

The standard cycle HANG DRY (☐) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table in last page shows the approximate time and energy consumption of the main drying programmes.

Power consumption of off-mode	0,20 W
Power consumption of on-mode	0,75 W

Information for Test Laboratory

EN 61121 Programme Programme To Use

-DRY COTTON

-HANG DRY

-IRON DRY COTTON

-IRON DRY

-EASY-CARE TEXTILE

-HANG DRY + SYNTHETIC

Technical Specifications

Drum capacity 115
Maximum load See energy label
Height 85 cm
Width 60 cm
Depth 60 cm
Energy class See energy label

TROUBLESHOOTING

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

*Have you selected the correct drying time/programme?

- Were the clothes too wet? Were the clothes thoroughly wrtung or spindried?

•Does the filter need cleaning?

*Is the dryer overloaded?

Has the 0 option been selected from a previous

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

• Does the filter need cleaning?

The _md Indicator is on...

• Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.

- Has not been installed in accordance with the installation instructions.

• Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS

ÍNDICE

Line drawing of a washing machine with a circular vent and side button (no text or symbols)

Close-up of hands using a tool to clean or lubricate a car (no visible text or symbols)

Close-up of hands using a power tool to apply cable or wire (no visible text or symbols)

Close-up of a hand holding a black tool with metal rings, partially connected to a coiled cable or connector (no visible text or symbols)

Close-up of hands holding a white cylindrical object, possibly a tool or device (no visible text or symbols)

Exterior view of a white wall with a coiled black hose and brick wall in the background (no text or symbols visible)

Line drawing of a hand holding a rectangular object inside a car's side panel (no text or symbols)

Illustration of hands assembling or folding a rectangular panel (no text or symbols visible)

Line drawing of hands holding a fan with a circular component, no text or symbols present

Illustration of two hands holding a device with a stylized panel (no text or symbols visible)

Illustration of hands holding a medical or surgical device (no text or symbols visible)

Diagram of a device with a handle and internal components, showing no text or symbols

Pure mechanical cross-section diagram without any text, numbers, or symbols

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

- Dans des bed and breakfast,

Air Outlets in the Base

Line drawing of a washing machine with a circular vent and fan (no text or symbols)

Close-up of hands holding a tool near a car window (no visible text or symbols)

Close-up of hands using a soldering iron to apply material (no text or symbols visible)

Close-up of a hand holding a black cable with metal rings attached to a white plastic connector (no text or symbols visible)

Close-up of hands holding a white cylindrical object, possibly a tool or device (no visible text or symbols)

Interior corner with a white wall and black hose, no visible text or symbols

PRÉPARATION DE LA CHARGE

Line drawing of a hand opening a rectangular box, no text or symbols present

Illustration of two hands holding a folded or layered object, no text or symbols present

Illustration of hands installing or removing a cabinet panel into a door (no text or symbols visible)

Simple diagram of a rectangular panel with three small icons on one side and one on the other, no text or symbols present.

Illustration of two hands holding a metallic object with a grid pattern (no text or symbols)

Illustration of two hands holding a rectangular object with a shaded section, no text or symbols present

Hand inserting a component into a metal enclosure (no text or symbols visible)

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

Line drawing of a washing machine with circular vent and fan (no text or symbols)

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

Close-up of a hand holding a black tool with a coiled cable or wire, no visible text or symbols

Close-up of hands holding a flexible tool or component (no visible text or symbols)

Exterior view of a white wall with a coiled black hose and brick wall in the background (no text or symbols visible)

Line drawing of a hand opening a car door with a rectangular panel on the side (no text or symbols)

Flusensieb-Anzeige

Illustration of two hands holding a folded or layered object with no visible text or symbols

Line drawing of hands holding a fan with a circular component, no text or symbols present

Top-down view of a rectangular device with four small icons on its sides, no visible text or symbols.

Illustration of hands holding a mechanical component with no visible text or symbols

Illustration of hands holding a medical or surgical device with a shaded section (no text or symbols visible)

Hand inserting a component into a metal enclosure (no text or symbols visible)

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Consequences in documentational use of human place personnel will be involved and not be associated

1. Flip the machine slowly to the right side.

2. The waste water pipe is situated at the right-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

3. Pull the hose off the bridge connection.

Line drawing of a washing machine with a circular vent and side panel (no text or symbols)

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

Close-up of a hand holding a soldering iron with a clip (no visible text or symbols)

Close-up of a hand holding a black cable with metal rings attached, against a plain background (no text or symbols visible)

Close-up of hands holding a white cylindrical object, possibly a tool or component (no visible text or symbols)

Exterior view of a white toilet with a coiled hose placed on the floor, against a brick wall background (no text or symbols visible)

Line drawing of a hand holding a book inside a car (no text or symbols)

Illustration of two hands holding a folded or folded book (no text or symbols visible)

NON USARE ACQUA PER PULIRE IL FILTRO

Pulizia Filtro

Line drawing of hands holding a fan with a circular component, no text or symbols present

Top-down view of a rectangular device with four small accessories on both sides (no text or symbols visible)

Illustration of hands holding a mechanical component (no text or symbols visible)

Illustration of hands holding a medical or surgical device (no text or symbols visible)

3D rendering of a mechanical component with internal parts and a hand interacting with it (no text or symbols visible)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Close-up of hands using a tool to clean or store items near a window (no visible text or symbols)

Close-up of hands using a power tool to apply electrical wire (no text or symbols visible)

Close-up of a hand holding a black cable with metal rings attached (no visible text or symbols)

Close-up of hands holding a white plastic tube with a coiled tube, no visible text or symbols

Interior corner of a room with a white wall and black hoses, no visible text or symbols

PRZYGOTOWANIE ŁADUNKU

Line drawing of a hand opening a car door with a rectangular panel inside (no text or symbols)

Illustration of two hands holding a folded or layered object, no text or symbols present

Line drawing of hands holding a rectangular device with a circular fan inside, no text or symbols present

Top-down view of a rectangular object with four small icons on its surface, no text or symbols visible.

Illustration of two hands holding a rectangular object with internal markings (no text or symbols visible)

Illustration of hands holding a device with a blade, no text or symbols present

Illustration of a hand inserting or adjusting a component into a metal enclosure (no text or symbols visible)

DO CZYSZCZENIA FILTRA KONDENSATORA NALEŻY UŻYWAĆ WODY!.

POJEMNIK NA WODE

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with a small object nearby (no text or symbols)

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

Technical Specifications

Air Outlets in the Base

Line drawing of a washing machine with a circular vent and side panel (no text or symbols)

Close-up of a hand holding a tool near a car window (no visible text or symbols)

Close-up of hands using a power tool to apply wire or cable (no visible text or symbols)

Close-up of a hand holding a tool with metal clamps, no visible text or symbols

Close-up of hands holding a white cylindrical object, possibly a tool or device (no visible text or symbols)

Exterior view of a white industrial or construction space with a large circular structure and a coiled black pipe, no visible text or symbols.

Line drawing of a hand opening a car door with a rectangular panel on the side (no text or symbols)

Illustration of two hands assembling or folding a rectangular object with internal components (no text or symbols)

Line drawing of hands holding a fan with a circular object above (no text or symbols)

Top-down view of a rectangular object with four small protrusions on its sides (no text or symbols visible)

Illustration of two hands holding a metallic object (no text or symbols visible)

Illustration of hands holding a device with a shaded blade (no text or symbols)

Illustration of a hand inserting a component into a plastic housing (no text or symbols visible)

1. A seta al ao sa n pe it e le v y t a ka is i n paikoilleen.

ÄLÄ PUHDISTA SUODATINTAVEDELLÄ.

VESISÄILIÖ

Pure mechanical cross-section diagram without any text, numbers, or symbols

Diagram of a mechanical device with liquid droplets and a handle, no text or symbols present

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste.

- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

GIAS Service

- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

Elektriske Krav

Line drawing of a washing machine with a circular vent and base mount (no text or symbols)

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

Close-up of hands using a power tool to apply electrical probes (no visible text or symbols)

Close-up of a hand holding a black tool with metal clamps, partially connected to a white cylindrical connector (no visible text or symbols)

Close-up of hands holding a white cylindrical object with a blue handle (no visible text or symbols)

Exterior view of a white industrial or construction space with a black rope and mesh structure, adjacent to a brick wall (no visible text or symbols)

FORBEREDELSE AF ILÆGNING AF T∅J

WARNING! When the tumble dryer is in use of drum and door may be VERY HOT. Never to a tumble dryer before the end of the drying one unless all items are quickly removed and head out so that the heat is dissipated.

Filter

VIGTIGT: For at bevare tørretumblerens effektivitet skal det kontrolleres, at fnugfiltret er rent før hver tørrecyklus.

Illustration of hands holding a folded or layered object with visible structural lines (no text or symbols)

BRUG IKKE VAND TIL RENG∅RING AF FILTERET

Line drawing of hands holding a fan with a circular component, no text or symbols present

Top-down view of a rectangular object with four small dark shapes on its surface, labeled 'g' at the bottom left (no other text or symbols)

Illustration of two hands holding a rectangular object with internal markings (no text or symbols)

Illustration of hands holding a device with a shaded blade (no text or symbols)

3D illustration of a mechanical component with internal parts and directional arrows indicating movement (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with labeled parts (1 and 2), showing internal components and motion arrows (no text or symbols beyond labels)

SIKKERHETSPÄMINNELSER

Bruk

Line drawing of a washing machine with a circular vent and side button (no text or symbols)

Close-up of hands using a tool to clean or store items on a curved surface (no visible text or symbols)

Close-up of a hand holding a small mechanical component, possibly a tool or connector (no visible text or symbols)

Close-up of a hand holding a black cable with metal clamps, no visible text or symbols

Close-up of hands holding a white cylindrical object, possibly a tool or device (no visible text or symbols)

Exterior view of a white industrial or construction space with a coiled black pipe and grid-patterned wall (no visible text or symbols)

GJ∅RE KLART T∅YET

Line drawing of a hand opening a car door with a rectangular panel on the side (no text or symbols)

Indikator For Filtervedlikehold

Illustration of two hands assembling or folding a rectangular panel (no text or symbols visible)

Line drawing of hands holding a fan with a circular component, no text or symbols present

Top-down view of a rectangular object with four small dark shapes on its surface, no text or symbols visible.

Illustration of two hands holding a metallic object (no text or symbols visible)

Illustration of hands holding a device with a shaded blade (no text or symbols)

3D rendering of a mechanical component with internal parts and directional arrows indicating movement (no text or symbols)

IKKE BRUK VANN FOR Å RENGJ∅RE FILTERET.

VANNBEHOLDER

Cross-sectional diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

Line drawing of a mechanical component pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with labeled parts and directional arrows (no text or symbols)

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

Close-up of hands using a power tool to apply electrical wire (no text or symbols visible)

Close-up of a hand holding a black cable with metal rings attached, no visible text or symbols

Close-up of hands holding a white cylindrical object with a blue strap (no visible text or symbols)

Exterior view of a white wall with a black hose and brick wall in the background (no visible text or symbols)

FÖRBEREDA LASTEN

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Filterindikator

Illustration of hands assembling a mechanical component (no text or symbols visible)

Rensa kondensorfiltret

Line drawing of hands holding a fan with a circular component, next to a circular object (no text or symbols)

Top-down view of a rectangular object with four small dark shapes on its sides, no visible text or symbols.

Illustration of two hands holding a mechanical component (no text or symbols visible)

Illustration of hands holding a device with a shaded blade (no text or symbols)

3D rendering of a mechanical component with internal parts and a hand interacting with it (no text or symbols visible)

Pure technical diagram of a mechanical component with no text or symbols

Line drawing of a mechanical device pouring liquid into a housing (no text or symbols)

Line drawing of a washing machine with a circular vent and side-mounted buttons (no text or symbols)

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

Close-up of hands using a power tool to apply cable or wire (no visible text or symbols)

Close-up of a hand holding a tool with metal clamps, no visible text or symbols

Close-up of hands holding a white cylindrical object, possibly a tool or device (no visible text or symbols)

Exterior view of a white industrial or construction space with a coiled black pipe and tiled roof, adjacent to a brick wall (no visible text or symbols)

Line drawing of a hand opening a car door with a rectangular panel inside (no text or symbols)

Indicador de Controlo do Estado do Filtro

Illustration of two hands holding a folded or layered object, no text or symbols present

Line drawing of hands holding a fan with a circular component, no text or symbols present

Illustration of two hands holding a rectangular object with internal markings (no text or symbols visible)

Illustration of hands holding a curved object with a shaded band, no text or symbols present

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container on a surface (no text or symbols)

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

UTILIZAÇÃO

Diagram of a hand holding a device with directional arrows indicating motion (no text or symbols)

Line drawing of a washing machine with a circular vent and side-mounted buttons (no text or symbols)

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

1. Priključite priloženo črno cev (uporabite obstoječi konektor in držalo) na cev, ki ste jo odkopili od priključka namostičku.

2. Zravnajte stroj in preverite, da se nova cev ne zvije al priščipne, ko potisnete stroj na mesto.

3. Priključite novo cev na odtok.

4. Priključite stroj na električno omrežje.

Close-up of a hand holding a small black tool with a pointed tip, against a plain background (no text or symbols visible)

Close-up of a hand holding a black tool with metal rings attached to a coiled cable or connector (no visible text or symbols)

Close-up of hands holding a white plastic pipe fitting (no visible text or symbols)

Exterior view of a white wall with a coiled hose and brick wall (no visible text or symbols)

PRIPRAVA NA POLNJENJE STROJA

Diagram of a hand holding a rectangular object inside a car's side panel (no text or symbols)

Signalna Lučka za Stanje Filtra

se prižge, ko je treba filter očistiti.

Če se perilo ne suši pravilno, preverite, da ni filter Zamašen.

Illustration of two hands holding a folded or folded object with visible internal structure (no text or symbols)

Line drawing of hands holding a fan with a circular component above (no text or symbols)

1. Obrnite jezička v levo in izvlecite sprednji pokrov.

Top-down view of a rectangular device with four small accessories on its sides (no text or symbols visible)

1. Nežno izvlecite okvir filtra in odstranite prah in delce tkanine s filtra, uporabite krpo. Filtra ne čistite z vodo!

Illustration of two hands holding a metallic object with a grid pattern (no text or symbols)

1. Nežno odstranite gobico in jo nato izperite pod tekočo vodo; pri tem ji obračajte, da z nje odstranite prah in delce tkanine.

Illustration of hands holding a medical device with a shaded blade (no text or symbols)

Illustration of a device with a handle and internal components, showing no text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

Diagram of a backpack with directional arrows indicating movement (no text or symbols)

UPORABA SUŠILNEGA STROJA

1.Odprite vrata in vložite perilo v boben. Pazite, da perilo ne ovira zapiranje vrat.

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

Close-up of a hand holding a soldering iron plug (no visible text or symbols)

Close-up of a hand holding a pen with metal rings attached to a cylindrical connector (no visible text or symbols)

Close-up of hands holding a white cylindrical object, possibly a tool or device (no visible text or symbols)

Exterior view of a white industrial pipe with black hoses on the floor, next to a brick wall (no visible text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands assembling or folding a rectangular object (no text or symbols visible)

Line drawing of hands holding a fan with a circular component above (no text or symbols)

Top-down view of a rectangular device with four small accessories on its sides (no text or symbols visible)

Illustration of two hands holding a metallic object (no text or symbols visible)

Illustration of hands holding a medical or surgical device (no text or symbols visible)

3D illustration of a mechanical component with internal parts and directional arrows indicating movement (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container on a surface (no text or symbols)

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

ΛΕΙΤΟΥΡΓΙΑ

Close-up of hands using a soldering iron to apply a cable or wire (no text or symbols visible)

Line drawing of a washing machine with a circular vent and side panel (no text or symbols)

Close-up of hands cleaning a car surface with a tool (no visible text or symbols)

Close-up of a hand holding a black tool with metal clamps, partially connected to a coiled cable or connector (no visible text or symbols)

Close-up of hands holding a cylindrical object, possibly a tool or device (no visible text or symbols)

Exterior view of a white industrial pipe with a coiled hose and brick wall in the background (no visible text or symbols)

HET WASGOED VOORBEREIDEN

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Line drawing of two hands assembling or folding a rectangular object (no text or symbols)

Line drawing of hands holding a fan with a circular component, no text or symbols present

Illustration of two hands holding a rectangular object with internal markings (no text or symbols)

Illustration of hands holding a medical device with a shaded grip (no text or symbols visible)

Illustration of a hand inserting into a metal enclosure with internal components (no text or symbols)

WATER CONTAINER

Pure mechanical cross-section diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a tank (no text or symbols)

BEDIENING
