P500X1BD - Receiver Rockford Fosgate - Free user manual and instructions

Product Type	Mono Subwoofer Amplifier
Brand	Rockford Fosgate
Model	P500X1BD
RMS Power Output	500 Watts x 1 Channel at 2 Ohms
Peak Power Output	1000 Watts
Total Harmonic Distortion	< 1%
Frequency Response	20 Hz - 200 Hz
Low-Pass Filter	Variable 30 Hz - 200 Hz
Subsonic Filter	Fixed 10 Hz
Input Sensitivity	100 mV - 4V
Impedance	2-8 Ohm Stable
Dimensions (L x W x H)	10.5 x 7.5 x 2.5 inches
Weight	5 lbs
Power Supply	12V DC (Negative Ground)
Fuse Rating	40A
Cooling	Convection cooling with heatsink
Protection Circuitry	Thermal, overcurrent, and short circuit protection
Care Instructions	Wipe with a dry cloth; avoid moisture and solvents
Safety Warning	Disconnect battery before installation; use proper gauge wire
Spare Parts	Not included; contact Rockford Fosgate for replacements
Repairability	Service by authorized technicians only

Frequently Asked Questions - P500X1BD Rockford Fosgate

What is the RMS power output of the Rockford Fosgate P500X1BD?

The P500X1BD delivers 500 Watts RMS at 2 Ohms and 300 Watts RMS at 4 Ohms.

What is the recommended impedance for this amplifier?

The amplifier is stable down to 2 Ohms and can handle up to 8 Ohms. For maximum power, use a 2 Ohm load.

Does the P500X1BD have a low-pass filter?

Yes, it features a variable low-pass filter from 30 Hz to 200 Hz to tailor the frequency range to your subwoofer.

What is the subsonic filter frequency?

The amplifier includes a fixed subsonic filter at 10 Hz to protect the subwoofer from very low frequencies.

What gauge power wire should I use?

For best performance, use 4 AWG power and ground wire for runs up to 15 feet. Always use a quality fuse holder.

Is the P500X1BD a class D amplifier?

Yes, the P500X1BD uses Class D technology for high efficiency and compact size.

Can I bridge these amplifiers?

The P500X1BD is a mono block amplifier and is not designed to be bridged with another unit. Use it as a single channel.

What is the input sensitivity range?

The input sensitivity is adjustable from 100 mV to 4V, compatible with most head units.

How do I adjust the gain correctly?

Set the gain using a multimeter or oscilloscope to match your head unit's output voltage. Start low and increase gradually to avoid distortion.

Where can I find the user manual?

The user manual is available for free download on Notice-Facile.com in PDF format.

USER MANUAL P500X1BD Rockford Fosgate

P300X1 • P300X2 • P400X1

P400X2 • P400X4 • P500X1BD

P500X2 • P600X4 • P1000X1BD

P1000X2 • P1000X5

Introduction

Specifications

Dear Customer,

Congratulations on your purchase of the world's finest brand of car audio products. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts to jackets.

Visit our web site for the latest information on all Rockford products; www.rockfordfosgate.com

or, in the U.S. call 1-800-669-9699 or FAX [phone]. For all other countries, see +001-180-967-3565 or FAX -001-180-966-2983.

Table of Content

2 Introduction

3 Specifications

4-5 Design Features

6-17 Installation

Installation Considerations

Mounting Locations

Battery and Charging

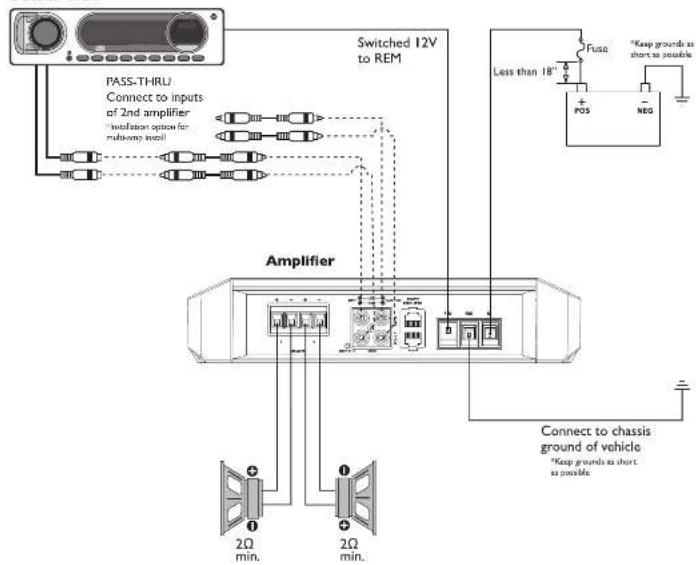

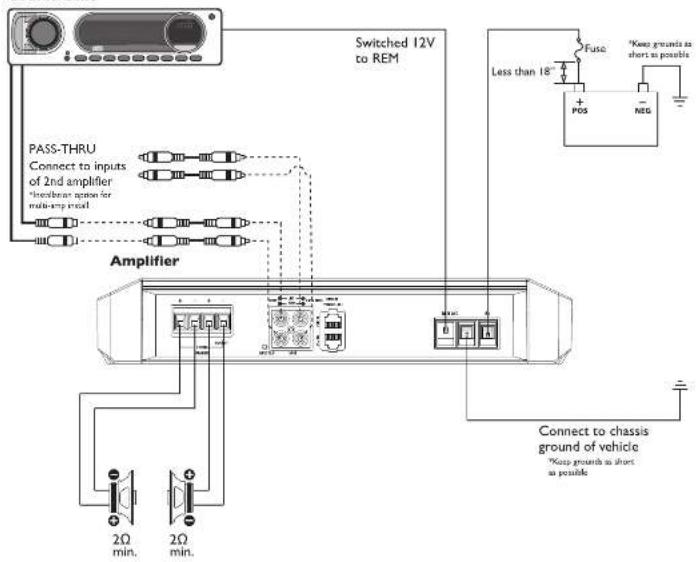

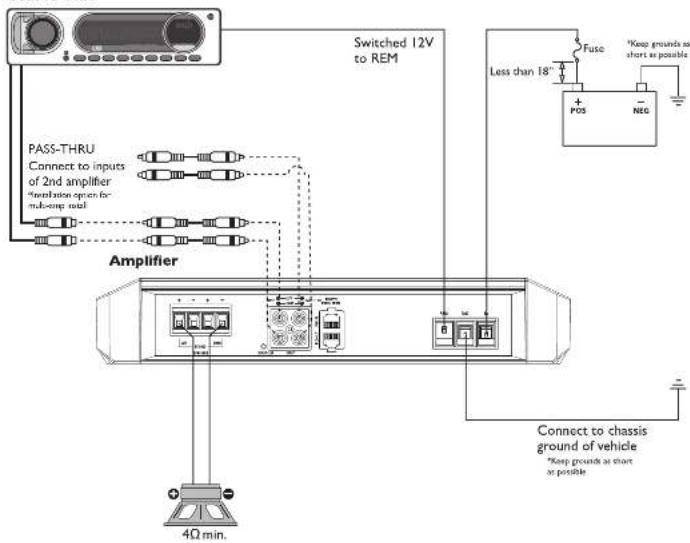

Wiring the System

18-19 Operation

Clip Indicator Setup

Adjusting Crossover Frequency

2/4 Channel Switch

Subwoofer Input Switch

Infrasonic Filler

Punch EQ

20 Troubleshooting

21 Limited Warranty Information

ll, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockfort Fsggate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 100dB. Use common sense and practice safe sound.

Safety

This symbol with "WARNING" is intended to alert the user in the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to head the instructions can result in injury or unit damage.

WARNING

CAUTION

instructions in this manual. We want you to enjoy this system, not get a headache.

by a qualified Rockford Fosgate technician.

prevent damage to the unit, fire and/or possible injury

2018 Rockford Corporation. All Rights Reserved ROCKFORD FOSICATE, FUNCH, and associated logos where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property at their respective owners. Specifications subject to change without notice.

POX2 PAREZ PAPEZ POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2 POX2	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01.2018	1000-01.2018	1000-01.2018	1000-01.2018
	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018
	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018
	1000-01-2018	1000-01-2018	1000-01-2018	999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999	1000-01-2018	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01.2018
	1000-01-2018	1000-01-2018	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-99
	1000-01-2018	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1005-01-2018
	1000-01-2018	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1000, 4018	1000-01,2018	1000-01,2018	1000-01,2018	1005-01,2018
	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1005-01,2018	1005-01,2018
	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2	1000-01,2018	1000-01,2018	1000-01,2018	1000-01,2018	1005-01,2	1005-01,2
	1000-01-2018	1000-01-2018	1000-01,2018	1000-01,2018	1000-01,2	1000-01,2	1000-01,2	1000-01,2	1000-01,2	1000-01,2	1005-01,2	1005-01,2
	1000-01-2018	1000-01-2018	1000-01,2	1000-01,2	1000-01,2	1000-01,2	1000-01,2	1000-01,2	1000-01,2	1000-01,2	1005-01,2	1005-01,2
	1000-01-2018	1075-01-2018	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01,2	1075-01,2
	1000-01-2018	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01-2	1075-01,2	999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-999-99

No.	Description
1	LPG-2003
2	LPG-2004
3	LPG-2005
4	LPG-2006
5	LPG-2007
6	LPG-2008
7	LPG-2009
8	LPG-2010
9	LPG-2011
10	LPG-2012
11	LPG-2013
12	LPG-2014
13	LPG-2015
14	LPG-2016
15	LPG-2017
16	LPG-2018
17	LPG-2019
18	LPG-2020
19	LPG-2021
20	LPG-2022
21	LPG-2023
22	LPG-2024
23	LPG-2025
24	LPG-2026
25	LPG-2027
26	LPG-2028
27	LPG-2029
28	LPG-2030
29	LPG-2031
30	LPG-2032
31	LPG-2033
32	LPG-2034
33	LPG-2035
34	LPG-2036
35	LPG-2037
36	LPG-2038
37	LPG-2039
38	LPG-2040
39	LPG-2041
40	LPG-2042
41	LPG-2043
42	LPG-2044
43	LPG-2045
44	LPG-2046
45	LPG-2047
46	LPG-2048
47	LPG-2049
48	LPG-2050
49	LPG-2051
50	LPG-2052
51	LPG-2053
52	LPG-2054
53	LPG-2055
54	LPG-2056
55	LPG-2057
56	LPG-2058
57	LPG-2059
58	LPG-2060
59	LPG-2061
60	LPG-2062
61	LPG-2063
62	LPG-2064
63	LPG-2065
64	LPG-2066
65	LPG-2067
66	LPG-2068
67	LPG-2069
68	LPG-2070
69	LPG-2071
70	LPG-2072
71	LPG-2073
72	LPG-2074
73	LPG-2075
74	LPG-2076
75	LPG-2077
76	LPG-2078
77	LPG-2079
78	LPG-2080
79	LPG-2081
80	LPG-2082
81	LPG-2083
82	LPG-2084
83	LPG-2085
84	LPG-2086
85	LPG-2087
86	LPG-2088
87	LPG-2089
88	LPG-2090
89	LPG-2091
90	LPG-2092
91	LPG-2093
92	LPG-2094
93	LPG-2095
94	LPG-2096
95	LPG-2097
96	LPG-2098
97	LPG-2099
98	LPG-2100
99	LPG-2101
100	LPG-2102

10.2.2017
Henderson
2018
2019
2020
2021
2022
2023
2024
2025
2026
2027
2028
2029
2030
2031
2032
2033
2034
2035
2036
2037
2038
2039
2040
2041
2042
2043
2044
2045
2046
2047
2048
2049
2050
2051
2052
2053
2054
2055
2056
2057
2058
2059
2060
2061
2062
2063
2064
2065
2066
2067
2068
2069
2070
2071
2072
2073
2074
2075
2076
2077
2078
2079
2080
2081
2082
2083
2084
2085
2086
2087
2088
2089
2090
2091
2092
2093
2094
2095
2096
2097
2098
2099
2100
2101
2102
2103
2104
2105
2106
2107
2108
2109
2110
2111
2112
2113
2114
2115
2116
2117
2118
2119
2120
2121
2122
2123
2124
2125
2126
2127
2128
2129
2130
2131
2132
2133
2134
2135
2136
2137
2138
2139
2140
2141
2142
2143
2144
2145
2146
2147
2148
2149
2150
2151
2152
2153
2154
2155
2156
2157
2158
2159
2160
2161
2162
2163
2164
2165
2166
2167
2168
2169
2170
2171
2172
2173
2174
2175
2176
2177
2178
2179
2180
2181
2182
2183
2184
2185
2186
2187
2188
2189
2190
2191
2192
2193
2194
2195
2196
2197
2198
2199
2200
2201
2202
2203
2204
2205
2206
2207
2208
2209
2210
2211
2212
2213
2214
2215
2216
2217
2218
2219
2220
2221
2222
2223
2224
2225
2226
2227
2228
2229
2230
2231
2232
2233
2234
2235
2236
2237
2238
2239
2240
2241
2242
2243
2244
2245
2246
2247
2248
2249
2250
2251
2252
2253
2254
2255
2256
2257
2258
2259
2260
2261
2262
2263
2264
2265
2266
2267
2268
2269
2270
2271
2272
2273
2274
2275
2276
2277
2278
2279
2280
2281
2282
2283
2284
2285
2286
2287
2288
2289
2290
2291
2292
2293
2294
2295
2296
2297
2298
2299
2300
2301
2302
2303
2304
2305
2306
2307
2308
2309
2310
2311
2312
2313
2314
2315
2316
2317
2318
2319
2320
2321
2322
2323
2324
2325
2326
2327
2328
2329
2330
2331
2332
2333
2334
2335
2336
2337
2338
2339
2340
2341
2342
2343
2344
2345
2346
2347
2348
2349
2350
2351
2352
2353
2354
2355
2356
2357
2358
2359
2360
2361
2362
2363
2364
2365
2366
2367
2368
2369
2370
2371
2372
2373
2374
2375
2376
2377
2378
2379
2380
2381
2382
2383
2384
2385
2386
2387
2388
2389
2390
2391
2392
2393
2394
2395
2396
2397
2398
2399
2400
2401
2402
2403
2404
2405
2406
2407
2408
2409
2410
2411
2412
2413
2414
2415
2416
2417
2418
2419
2420
2421
2422
2423
2424
2425
2426
2427
2428
2429
2430
2431
2432
2433
2434
2435
2436
2437
2438
2439
2440
2441
2442
2443
2444
2445
2446
2447
2448
2449
2450
2451
2452
2453
2454
2455
2456
2457
2458
2459
2460
2461
2462
2463
2464
2465
2466
2467
2468
2469
2470
2471
2472
2473
2474
2475
2476
2477
2478
2479
2480
2481
2482
2483
2484
2485
2486
2487
2488
2489
2490
2491
2492
2493
2494
2495
2496
2497
2498
2499
2500
2501
2502
2503
2504
2505
2506
2507
2508
2509
2510
2511
2512
2513
2514
2515
2516
2517
2518
2519
2520
2521
2522
2523
2524
2525
2526
2527
2528
2529
2530
2531
2532
2533
2534
2535
2536
2537
2538
2539
2540
2541
2542
2543
2544
2545
2546
2547
2548
2549
2550
2551
2552
2553
2554
2555
2556
2557
2558
2559
2560
2561
2562
2563
2564
2565
2566
2567
2568
2569
2570
2571
2572
2573
2574
2575
2576
2577
2578
2579
2580
2581
2582
2583
2584
2585
2586
2587
2588
2589
2590
2591
2592
2593
2594
2595
2596
2597
2598
2599
2600

Power clings in Bocque Fogale and Africa consortium on 064-2006 industry standards. Those were more your aquilliers and power mines are RAI 172913 numbers, not intailed realising ratios.

Installation Installation

Contents

Installation Manual)

Installation Considerations The following is a list of tools needed for installation:
specifications for fuse rating)
Wire
Turn-on Wire
Grounding Wire

This section focuses on some of the vehicle considerations for installing your new amplifier. Pre-planning your system layout and best wiring routes will save installation time. When deciding on the layout of your new system, be sure that each component will be easily accessible for making adjustments.

CAUTION If you feel unsure about installing this system yourself, have it installed by a qualified technician.

CAUTION Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Before beginning any installation, follow these simple rules.

1. Be sure to carefully read and understand the instructions before attempting to install the unit.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your unit in place.
4. Route all of the RCA cables close together and away from any high current wires.

5. Use high quality connectors for a reliable installation and to minimize signal or power loss.

6. Think before you drill Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.

7. Never run wires underneath the vehicle. Running the wires inside the vehicle provides the best protection.

8. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.

9. ALWAYS protect the battery and electrical system from damage with proper fusing, install the appropriate fuse holder and fuse on the +12V power wire within 16" (45.7 cm) of the battery terminal.

10. When grounding to the chassis of the vehicle, scrape all paint from the metal to ensure a good, clean ground connection. Grounding connections should be as short as possible and always be connected to metal that is welded to the main body, or chassis, of the vehicle. Seatbell bolts should never be used for connecting to ground.

Mounting Locations

To ensure optimal performance, mount the amplifier with at least 1" (2.54cm) of air gap around the amplifier's heat sink to provide proper cooling.

Amplifier Centering Indicators

Centering indicators have been incorporated into the amplifier's heatsink to aid in the installation process.

Trunk Mounting

Mounting the amplifier vertically or inverted will provide adequate cooling of the amplifier. Mounting the amplifier on the floor of the trunk will provide the best cooling of the amplifier.

Passenger Compartment Mounting

Mounting the amplifier in the passenger compartment will work as long as you provide a sufficient amount of air for the amplifier to cool itself. If you are going to mount the amplifier under the seal of the vehicle, you must have at least 1 ^st (2.54cm) of air gap around the amplifier's heat sink.

CAUTION Never mount this unit in the engine compartment. Mounting the unit in the engine compartment will void your warranty.

Battery and Charging

Amplifiers will put an increased load on the vehicle's battery and charging system. We recommend checking your alternator and battery condition to ensure that the electrical system has enough capacity to handle the increased load of your stereo system. Stock electrical systems which are in good condition should be able to handle the extra load of any Prime Series amplifier without problems, although battery and alternator life can be reduced slightly. To maximize the performance of your amplifier, we suggest the use of a heavy duty battery and an energy storage capacitor.

Wiring the System

CAUTION If you do not feel comfortable with wiring your new unit, please see your local Authorized Rockford Fosgate Dealer for installation.
CAUTION Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.
CAUTION Avoid running power wires near the low level input cables, antenna, power leads, sensitive equipment or harnesses. The power wires carry substantial current and could induce noise into the audio system.
1. Plan the wire routing. Keep RCA cables close together but isolated from the amolifters' powercables and any high power auto accessories, especially electric motors. This is done to prevent coupling the noise from radiated electrical fields into the audio signal. When leading the wires through the firewall or any metal barrier, protect them with plastic or rubber grammels to prevent short circuits. I saw the wires long at this point to adjust for a precise fit at a later time.
2. Prepare the HLD wire (power cable) for attachment to the amplifier by stripping 1/2" of insulation from the end of the wire. Insert the band wire into the B+ terminal and tighten the set screw to secure the cable in place.
NOTE: The B+ cable MUST be fused 18" or less from the vehicle's battery. Install the fuse holder under the hood and ensure connections are water tight.
3. Trim the RED wire (power cable) within 18 ^e of the battery and splice in a inline fuse holder (not supplied). See Specifications for the rating of the fuse to be used. DO NOT install the fuse at this time.
4. Strip 1/2" from the battery end of the power cable and crimp an appropriate size ring terminal to the cable. Use the ring terminal to connect to the battery positive terminal.
5. Prepare the BLACK wire (Ground cable) for attachment to the amplifier by stripping 1/2" of insulation from the end of the wire. Insert the bare wire into the GROUND nominal and lighton the seal screw to secure the cable in place. Prepare the chassis ground by scraping any paint from the metal surface and thoroughly clean the area of all dirt and grease. Strip the other end of the wire and attach a ring connector. Fasten the cable to the chassis using a non-ancezolized screw and a star washer. NOTE: Keep the length of the BLACK wire (Ground) as short as possible. Always less than 30".
6. Prepare the Remote turn-on wire for attachment to the amplifier by stripping 1/2" of insulation from the end of the wire. Insert the bared wire into the REMOTE terminal and tighten the set screw to secure the wire in place. Connect the other end of the Remote wire to a switched 12 volt positive source. The switched voltage is usually taken from the

source unit's remote amp on lead. If the source unit does not have this output available, the recommended solution is to wire a mechanical switch in line with a 12 volt source to activate the amplifier.

NOTE: When utilizing high-level for input signal the auto turn-on feature is active. With the auto turn-on active, the REM becomes an output to turn on/off up to two additional amplifiers or other accessories.

1. Securely mount the amplifier to the vehicle or ramp rack. Be careful not to mount the amplifier on cardboard or plastic panels. Doing so may enable the screws to pull out from the panel due to road vibration or sudden vehicle stops.
2. Connect from source signal by plugging into the RCA input jacks at the amplifier. The input sensitivity ranges from 150mV-12V to accommodate signal from other high-level(speaker) to low-level(RCA).
   NOTE: All 'ACTIVE' inputs must have RCA jacks connected. Switch in 2CHL position, "ACTIVE" - Front channel inputs only. Switch in 4CHL position, "ACTIVE" - All Front and Rear channel inputs. Switch in FRONT position, "ACTIVE" - Front channel inputs only for sub cutout. Switch in SUB position, "ACTIVE" - Sub inputs for sub output. When connecting to the 5-Channel Inputs, be sure to route front, rear and sub RCA cables lightly together.
   CAUTION Always ensure power is off or disconnected at the amplifier before connecting RCA cables. Failure to do so may cause damage to the amplifier and/or connected components.
3. Connect the speakers. Strip the speaker wires 1/2" and insert into the speaker terminal and tighten the set screw to secure into place. Be sure to maintain proper speaker polarity. DO NOT chassis ground any of the speaker leads as unstable operation may result.
4. Perform a final check of the completed system wiring to ensure that all connections are accurate. Check all power and ground connections for frayed wires and loose connections which could cause problems. Install inline fuse near battery connection.
   NOTE: Follow the diagrams for proper signal polarity.
   CAUTION This amplifier is not recommended for impedance loads below 2-Ohm stereo/4-Ohm bridged for the multi-channel amplifiers and 1-ohm for mono amplifiers.

Installation Installation

2-Channel (Stereo)

P300X2, P400X2, P500X2, P1000X2

Source Unit

2-Channel (Mono)

P300X2, P400X2, P500X2, P1000X2

Source Unit

(1) - 24

B

1.2

5

Installation Installation

4-Channel (Stereo)

P400X4, P600X4

Source Unit

4-Channel (2ch Stereo & 1ch Mono-Bridged)

P400X4, P600X4

Source Unit

10-27 10-6

10

11

Installation Installation

4-Channel (2ch Mono-Bridged)

P400X4, P600X4

Source Unit

3-Channel (2ch bridged & 1ch Mono)

P1000X5

Source Unit

10-25

12

1.2

13

Installation

Installation

5-Channel (4ch Stereo & 1ch Mono) P1000X5

Parallel Wiring (Full Range Capable) P300X1, P400X1

1.2

Installation

Installation

Mono Wiring

P300X1, P400X1, P500X1BD, P1000X1BD

Source Unit

Parallel Wiring

P500X1BD. P1000X1BD

Source Unit

102-29

15

1.1.2

17

Input Clip Indicator Setup

Step 1. Be sure to disconnect all speakers from the amplifier

CAUTION

Failure to comply may cause damage to connected components and/or amplifier.

Step 2. Turn on the source unit with volume set to zero.

Step 3. Adjust the Bass & Treble levels on the source unit to flat.

Step 4. Insert test tone or music CD to play for setup.

Note: Use the 40Hz @ 0dB tone (Track 5) for more amplifier applications or the 16 Hz @ 0dB tone (Track 7) for multi-channel amplifier applications. Be sure your x-over is switched to the appropriate filter setting.

Step 5. Increase the source unit volume until the Input Clip Indicator II-lumirales red

Note: Input Clip can be viewed remotely with optional PLC2.

Step 6. Decrease the source unit volume slightly until the light turns completely oil. This establishes your maximum source unit volume for adjusting the Output Clip Indicator.

Note. Some source units will not clip

Output Clip Indicator Setup

Step 7. Be sure to disconnect Punch Level Control - PLC (if equipped) from the amplifier.

Step 8. Adjust the Input Level knob until the Output Clip Indicator Illuminales to the appropriate solar. Repeat for all channel levels of Input.

Step 9. Turn the source unit volume down.

Step 10. Recognizes all speakers and Punch Level Control PLC (It equipped) to the amplifier. Be sure to maintain proper speaker polarity.

Adjusting Crossover Frequency

Do the following individually for each channel.

Placing the crossover switch in the HP

position sells the amplifier to the High Pass mode, enabling frequencies above the cut-off point to pass, adjustable between 50-250Hz.

Placing the crossover switch in the AP position sets the amplifier to the All Pass mode, preventing any crossover adjustment, allowing all frequencies to pass.

Placing the crossover switch in the LP position sets the amplifier to the Low Pass mode, enabling frequencies below the cut-off point to pass, adjustable between 50-250Hz.

Turn the crossover adjustment knob all the way down. With the system playing, turn the crossover adjustment knob up slowly until the desired crossover point is achieved.

2/4 Channel Switch

Setting this switch to the 2CH position, switches the inputs to a 2-channel mode allowing connection to only the front inputs with a 4-channel output.

Output controls function the same as if the amplifier was in 4-channel mode.

All "ACTIVE" inputs must have RCA jacks connected.

Switch in 2CH. position, "ACTIVE" - Front channel inputs only. Switch in 4CH. position, "ACTIVE" - All Front and Rear channel inputs.

NOTE. When connecting to the 4 Channel inputs, be sure to route both front and rear RCA cables lightly together.

Subwoofer Input Switch (P1000X5)

Setting this switch to the On position, utilizes the front inputs, allowing connection to only the front inputs with a subcooler output. Setting this switch to the On position uses sub input.

Output controls function the same as if the amplifier was in 5-channel mode.

All "ACTIVE" inputs must have RCA jacks connected.

Switch in FRONT, position, "ACTIVE" - Front channel inputs only for sub output. Switch in SUB position, "ACTIVE" - Sub inputs for sub output.

NOTE: When connecting to the 5 Channel Inputs, be sure to route front, rear and sub RCA cables lightly together.

High Level Input

Connect from source signal by plugging into the RCA input, jacks at the amplifier. The input sensitivity ranges from 150mV-12V to accommodate signal from high-level(speaker) input. When utilizing high-level for input

signal the auto turn-on feature is active. With the auto turn-on active, the RFM becomes an output to turn on/off up to two additional amplifiers or other accessories.

Pass Thru

The pass-thru RCA's are passive, including full input signal range and auto turn-on functionality when active. When utilizing Pass Thru jacks, up to two additional amplifiers can be connected together.

Inlasonic Filter

The 28Hz 12dB/octave intrasonic filter limits the amount of low frequency information going to the wacker.

NOTE: We recommend using the infrasonics filter when using vented enclosures with this amplifier.

Punch EQ

This works along with the crossover switch on the amplifier. When set to Low-Pass (LF) operation, this is a variable Bass Boost. When set to High-Pass (HP) operation, this is a variable Mid-Bass and Treble Boost. When set to All-Pass (AP) operation, both the Bass and Treble frequencies are boosted. Set this to your personal preference while listening to the system.

CAUTION

Over excursion and subsequent damage may occur at high levels of boost.

Remote Punch Level Control (Option)

NOTE: Previous(prior to 2013) FEQ, PunchBassandPara-Punch remoles will not work with these amplifiers.

Quick Install:

1. Using the screws supplied, install the mounting clip
2. Slip the remote into the mounting clip until it swaps into place.
3. Route and connect the cable to the remote and amplifier.

Operation:

1. When connected, the "Level Control" is linked and allows you to remotely control the output level of the amplifier from the dash or center console.

NOTE: Use the instructions that came with the remote for a variety of mountings that fill your preference.

Troubleshooting

NOTE: If you are having problems after installation follow the Troubleshooting procedures below.

Check Amplifier for proper connections. Verify that POWER light is on. If POWER light is on skip to Step 3, if not continue.

1. Check in-line luse on battery positive cable. Replace if necessary.
2. Check fuse(s) on amplifier. Replace if necessary.
3. Verify that Ground connection is connected to clean metal on the vehicle's chassis. Repair/replace if necessary.
4. Verify there is 9 to 14.4 Volts present at the positive battery and remote turn-on cable. Verify quality corrections for both cables at amplifier, stereo, and battery/tusenolter. Repair/replace if necessary. Protect light is on.
5. If the Protect light is on, this is a sign of a possible short in the speaker connections. Check for proper speaker connections and use a bell/chim melor to check for possible shorts in the speaker wiring. Too low of a speaker impedance may also cause Protect to light.
6. Verify good RCA input connections at stereo and amplifier. Check entire length of cables for kinks, splices, etc. Test RCA inputs for AC volts with stereo on. Repair/replace if necessary.
7. Disconnect RCA input from amplifier. Connect RCA input from test stereo directly to amplifier input.

Check Amplifier for audio output.

Check Amplifier if you experience Turn-on Pop.

1. Disconnect input signal to amplifier and turn amplifier on and off.
2. If the noise is eliminated, connect the REMOTE lead of amplifier to source unit with a delay turn-on module.

OR

1. Use a different 12 Volt source for REMOTE lead of amplifier

Check Amplifier if you experience excess Engine Noise.

1. Route all signal carrying wires (RGA, Speaker cables) away from power and ground wires.
   OR
2. Bypass any and all electrical components between the stereo and the amplifier(s). Connect stereo directly to input of amplifier. If noise goes away the unit being bypassed is the cause of the noise.
   OR
3. Remove existing ground wires for all electrical components. Reground wires to different locations. Verify that grounding location is clean, shiny metal tree of paint, rust etc.
   OR
4. Add secondary ground cable from negative battery terminal to the chassis metal or engine block of vehicle.
   OR
5. Have allemator and battery load issued by your mechanic. Verify good working order of vehicle electrical system including distributor, spark plugs, spark plug wires, voltage regulator etc.

Remote not functioning.

1. BD amplifiers remote switch in "ON" position.
   OR
2. Remote plugged into remote PLC "IN" port
   Remote Lights not functioning
3. Remote plugged into remote PLC "IN" port

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Speakers, Signal Processors, PRIME and PUNCH Amplifiers - 1 Year
POWER AMPLIMERS - 2 Years
Any Factory Reperfished Product - 90 days (receipt required)

What Is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockfords discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft, shipping.
2. Any cost of expense related to the removal or reinstallation of product.
3. Service performed by enterprise class, then Backfast or an Authorized Res
4. Service penchined by anyone other than Rockfield or an Authorized Rockford Busgate Service Center.
5. My product which has used the serial number detected, altered, or ten oves.
6. Exogenous damage to other components
7. Subsequent damage to other components.
8. Any product purchased, whichever the U.S.
9. Any product not purchased from an Audi

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Iogate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-600-669-3899 for Rockford Customer Service. You must obtain an HA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Installation assistance available at:

RFTECH

www.rockfordfosgate.com/rftech
