USER MANUAL PKL 641 D2/IX/A HOTPOINT

Operating Instructions

Operating Instructions, 1 Warnings,2

Description of the appliance. 6 Installation, 8

Start-up and use, 12 Precautions and tips, 12 Maintenance and care, 13 Troubleshooting,13

AO gl SL AL Warnings

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction conceming use ofthe appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

Never use steam cleaners or pressure cleaners on the appliance.

Remove any liquid from the lid before opening it. Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

The appliance is not intended to be operated by means of an external timer or separate remote control system.

CAUTION: the use of inappropriate hob guards can cause accidents.

*__the type of problem encountered.

+ appliance model (Mod.)

+ serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

Description of the appliance

. Support Grid for COOKWARE

+ GAS BURNERS differin size and power. Use the diameter ofthe cookware to choose the most appropriate burner to cook with.

+ Control Knobs for GAS BURNERS adjust the size of the flame.

+ GAS BURNERIGNITION enables a specific burner to be lit automatically.

+ SAFETY DEVICE stops the gas flow if the flame is accidentally extinguished.

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care ofthe appliance.

{Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

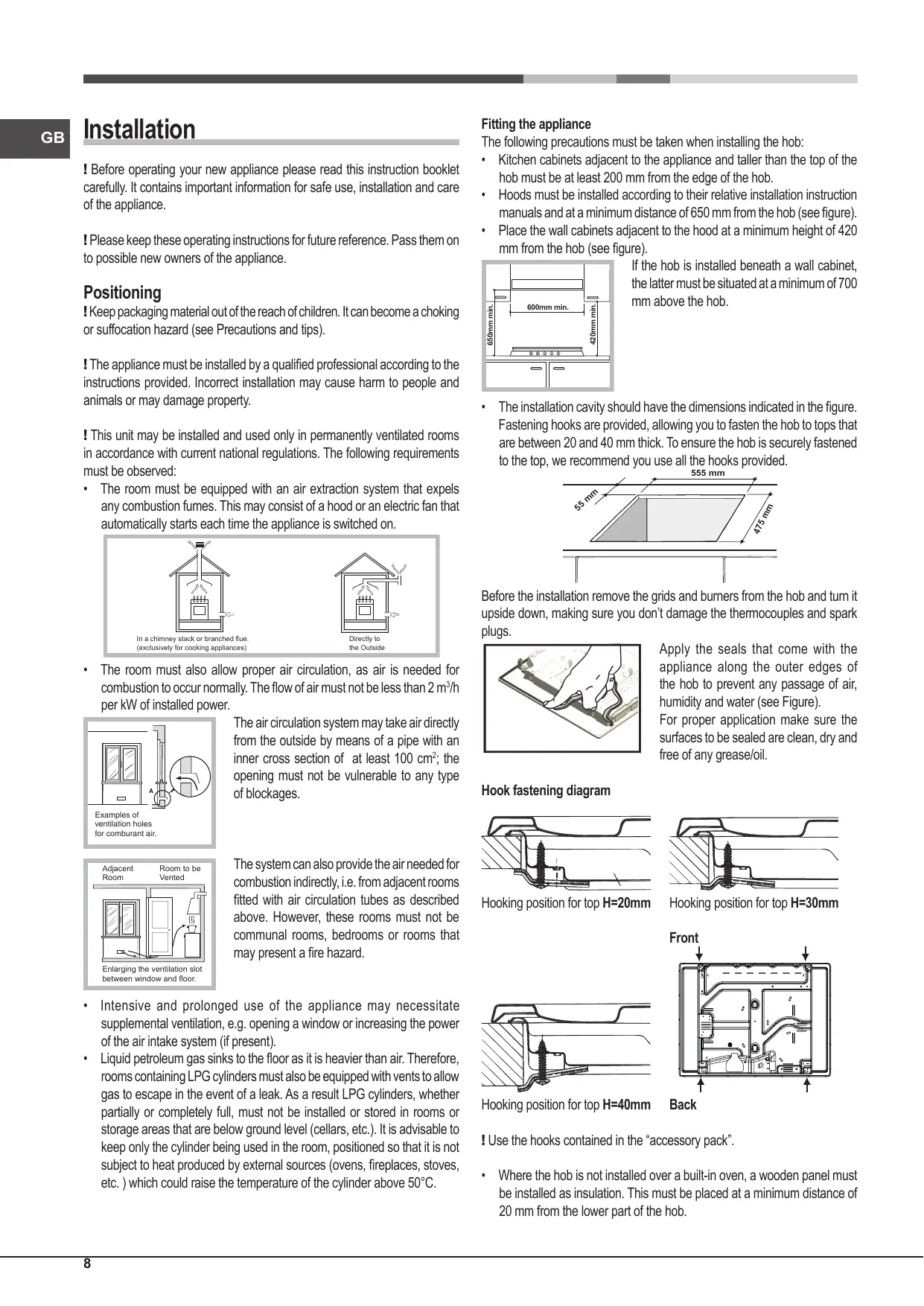

Positioning 1Keep packaging material out ofthe reach of children. lt can become a choking or suffocation hazard (see Precautions and tips).

{The appliance must be installed by a qualified professional according to the instructions provided. incorrect installation may cause harm to people and animals or may damage property.

{This unit may be installed and used only in pemmanently ventilated rooms

in accordance with current national regulations. The following requirements

+ The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on.

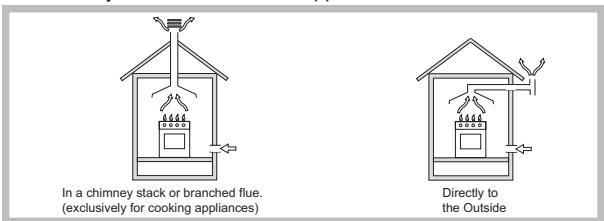

In à chimnay stack or branche fe. {excel or cooking applances)

The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2 m°/h per KW of installed power.

The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm’; the opening must not be vulnerable to any type ofblockages.

Examples of venlation holes: for comburant air.

The system can also provide the air needed for combustion indirectly, ie. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard.

Agjacent Roomiobe Room Vented

Enlarging he ventilation slot betisen window and floor.

* intensive and prolonged use of the appliance may necessitate supplemental ventilation, e.g. opening a window or increasing the power ofthe air intake system (if present).

+ Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or Storage areas that are below ground level (cellars, etc.). lt is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc. ) which could raise the temperature of the cylinder above 50°C.

Fitting the appliance

The following precautions must be taken when installing the hob:

+ Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 200 mm from the edge of the hob.

+ Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob (see figure).

+ Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure).

H the hob is installed beneath a wall cabinet,

the latter must be situated at a minimum of 700

+ Theinstallation cavity should have the dimensions indicated in the figure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend nn use all he hooks provided.

EE Before the installation remove the grids and burners from the hob and turn it upside down, making sure you don't damage the thermocouples and spark plugs.

Apply the seals that come with the appliance along the outer edges of the hob to prevent any passage of air, humidity and water (see Figure).

For proper application make sure the surfaces to be sealed are clean, dry and free of any grease/oil.

Hook fastening diagram

Hooking position for top H=40mm Back {Use the hooks contained in the “accessory pack”. + Where the hobis not installed over a built-in oven, a wooden panel must

be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ô ARISTON Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Where a hob is installed above an oven without a forced ventilation cooling system, adequate ventilation must be provided inside the cabinet by means of air holes through which air can pass (see figure).

Electrical connection

Hobs equipped with a three-pole power supply cable are designed to operate With alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. lfthe appliance is to be installed above a built-in electric oven, the electrical connection ofthe hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C.

{The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

+ the appliance is earthed and the plug is compliant with the law.

+ the socket can withstand the maximum power of the appliance, which is indicated on the data plate.

+ the voltage is in the range between the values indicated on the data plate.

+ the socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

{Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

{The cable must not be bent or compressed.

{The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

{The manufacturer declines any liability should these safety measures not be observed.

The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph “Adapting to different types of gas.”

When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 (‘Burner and nozzle specifications”). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance.

There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does nottouch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

Checking the tightness of the connection ! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default type (indicated

on the rating plate at the base of the hob or on the packaging), the burer

nozzles should be replaced as follows:

1. Remove the hob grids and slide the bumners off their seats.

2. Unscrew the nozzles using a 7 mm socket spanner, and replace them With nozzles for the new type of gas (see table 1 “Burner and nozzle characteristics”).

3. Reassemble the parts following the above procedure in the reverse order.

4. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres.

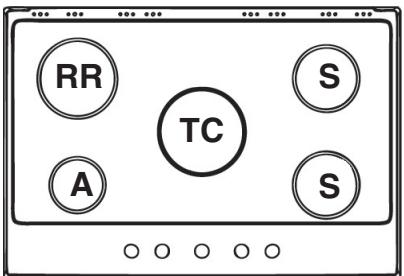

Replacing the Triple ring burner nozzles

1. Remove the pan supports and lift the burners out of their housing. The burner consists of two separate parts (see pictures).

2. Unscrew the nozzles using a 7 mm socket spanner. Replace the nozzles With models that are configured for use with the new type of gas (see Table 1). The two nozzles have the same hole diameter.

3. Replace allthe components by completing the above operations in reverse order.

+ Adjusting the burners’ primary air Does not require adjusting.

+ Setting the bumers to minimum

1. Tum the tap to the low flame position:

2. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady.

3. Having adjusted the flame to the required low setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.

4. Some appliances have a safety device (thermocouple) fitted. Ifthe device fails to work when the burers are set to the low flame setting, increase this low flame setting using the adjusting screw.

5. Once the adjustment has been made, replace the seals onthe by-passes using sealing wax or a similar substance.

!Ifthe appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible.

! Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres.

! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

DATA PLATE Electrical | see data plate connections

ECODESIGN This appliance conforms to the EU Regulation no. 66/2014 implementing Directive 2009/125/EC. standard EN 30-2-1

Burner and nozzle specifications (for 75 cm versions only)

_ cæ) Start-up and use

{The position of the corresponding gas burner is shown on every knob.

Gas cooker hobs are equipped with discrete power adjustment that allows for accurately adjusting the flame to 5 different power levels. Thanks to this system, gas hobs are also capable of guaranteeing the same cooking results for each recipe, as the optimal power level for the desired type of cooking can be identified in an easier, more accurate way.

Gas burners Each burner can be adjusted to one of the following settings using the corresponding control knob:

e Of Ô Maximum 0 Wirimum

To light one of the bumers, hold a lit match or lighter near the burner and, at the same time, press down and tum the corresponding knob anti-clockwise to the maximum setting.

Since the burner is fitted with a safety device, the knob should be pressed for approximately 2-3 seconds to allow the automatic device keeping the flame alight to heat up.

When using models with an ignition button, light the desired bumer pressing down the corresponding knob as far as possible and tuming it anticlockwise towards the maximum setting.

!fa flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the bumer, tum the knob in a clockwise direction until it stops

{when reaches the “e” position).

Discrete flame adjustment The selected burner can be adjusted - by means of the knob - to 5 different power levels.

To shift between levels, simply tum the knob towards the desired power level.

A click signals the passage from one power ô level to the other.The selected power level is indicated by the corresponding symbol

/ yaù (symbolsÜI1 D and, on hobs equipped with

a display, by the LEDs that turn on (5 = max. power; 1 = min. power). The system guarantees accurate flame adjustment and uniform cooking results by facilitating selection ofthe desired power level.

Practical advice on using the burners

To ensure the burners operate efficiently:

+ Use appropriate cookware for each burner (see table) so that the flames do not extend beyond the bottom of the cookware.

+ Always use cookware with a flat base and a cover.

+ Whenthe contents ofthe pan reach boiling point, tum the knob to minimum.

Burner 9 Cookware diameter (cm) Reduced Rapid (RR) 24-26 Semi Rapid (S) 16-20 Auxiliary (A) 10-14 Triple Crown (TC) 24-26

Toidentify the type of burner, refer to the designs in the section entitled, “Burner and Nozzle Specifications”.

For maximum stability, always make sure that the pan supports are correctly fitted and that each pan is placed centrally over the bumer. + Pan handles should be positioned in line with one of the support bars on the pan support grid. + Panhandie should be positioned so not to protrude beyond the front edge ofthe hob. The more variable aspect in terms of pan Stability can often be the pan itself, (or the positioning of that pan during use). Well balanced pans, with flat bases that are placed centrally over the burner, with ———— the pan handes aligned with one of the Support fingers obviously offer the greatest stability.

Precautions and tips

{This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

+ _ Thisis a class 3 built-in appliance.

+ Gas appliances require regular air exchange to maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph on “Positioning” the appliance.

+ These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.

+ The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

+ The appliance must not be installed outdoors, even in covered areas. ltis extremely dangerous to leave the appliance exposed to rain and storms.

+ Do not touch the appliance with bare feet or with wet or damp hands and feet.

+ The appliance must be used by adults only for the preparation offood, in accordance with the instructions outlined in this booklet. Any other use ofthe appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

+ Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.

+ The openings used for ventilation and dispersion of heat must never be covered

+ Always make sure the knobs are inthe “e"/o" position when the appliance is not in use.

+ Whenunpluggingthe appliance always pullthe plug from the mains socket, do not pull on the cable.

+ Never carry outany cleaning or maintenance work without having detached the plug from the mains.

+ Incase ofmalfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning ofthe appliance. Contact a Service Centre (see Assistance).

+ Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.

+ Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

+ Do not leave the electric hotplate switched on without a pan placed on it.

+ The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

+ Do not let children play with the appliance.

+ Theapplianceis not intended to be operated by means of an external timer or separate remote-control system.

+ When disposing of packaging material: observe local legislation so that the packaging may be reused.

+ _ The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

+ Cook your food in closed pots or pans with well-fitting lids and use as little water as possible. Cooking with the lid off will greatly increase energy consumption.

+ Use purely flat pots and pans.

+ If you are cooking something that takes a long time, its worth using a pressure cooker, which is twice as fast and saves a third of the energy.

Maintenance and care

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the hob surface

+ Allthe enamelled and glass parts should be cleaned with warm water and neutral solution.

+ Stainless steel surfaces may be stained by calcareous water or aggressive detergents ifleft in contact for too long. Any food spills (water, sauce, coffee, etc.) should be wiped away before they dry.

+ Clean with warm water and neutral detergent, and then dry with a soft cloth or chamois. Remove baked-on dirt with specific cleaners for stainless Steel surfaces.

+ Clean stainless steel only with soft cloth or sponge.

+ Donotuse abrasive or corrosive products, chlorine-based cleaners or pan scourers.

+ Do not use steam cleaning appliances.

+ Do not use flammable products.

+ Do notleave acid or alkaline substances, such as vinegar, mustard, sait, Sugar or lemon juice on the hob.

Cleaning the hob parts

+ Clean the enamelled and glass parts only with soft cloth or sponge.

+ Grids, burner caps and burners can be removed to be cleaned.

+ Clean them by hand with warm water and non-abrasive detergent, removing any food residues and checking that none ofthe burner openings is clogged.

+ Refit burners and burner caps correctly in the respective housings.

+ When replacing the grids, make sure that the panstand area is aligned with the burer.

+ Models equipped with electrical ignition plugs and safety device require thorough cleaning of the plug end in order to ensure correct operation. Check these items frequently, and if necessary, clean them with a damp cloth. Any baked-on food should be removed with a toothpick or needle.

! To avoid damaging the electric ignition device, do not use it when the burners are not in their housing.

Litis not necessary to remove the pan supports in order to clean the hob surface. Thanks to the support system, simply lift and hold the pan supports or rotate them until they rest against a rear support.

Do not place the hot grids on top of the glass cover (if applicable), otherwise the rubber plugs on the glass may be damaged.

Gas tap maintenance Over time, the taps may become jammed or difficult to tu. lf this happens, the tap must be replaced.

{This procedure must be performed by a qualified technician authorised by the manufacturer.

It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

The burner does not light or the flame is not even around the burner. Check whether:

+ The gas holes on the burner are clogged.

+ Allthe movable parts that make up the burner are mounted correctly.

+ There are draughts near the appliance.

The flame dies in models with a safety device.

Check to make sure that:

+ You pressed the knob all the way in.

+ You keep the knob pressed in long enough to activate the safety device.

+ The gas holes are not blocked in the area corresponding to the safety device.

The burner does not remain lit when set to minimum. Check to make sure that:

+ The gas holes are not blocked.

+ There are no draughts near the appliance.

+ The minimum setting has been adjusted property.

The cookware is unstable.

Check to make sure that:

+ The bottom ofthe cookware is perfectly flat.

+ The cookware is positioned correctly at the centre of the burner. + The pan support grids have been positioned correctly.

CE D dus dj as 5 45 x 560 JL os
