Product type	Professional vacuum cleaner
Brand	Nilfisk
Model	ATTIX 40-01 PC INOX
Dimensions (L × W × H)	40 × 40 × 60 cm
Weight	12 kg
Power supply	230 V / 50 Hz
Nominal power	1200 W
Tank capacity	40 L
Tank material	Stainless steel
Filtration type	Class M cartridge filter
Noise level	70 dB(A)
Cable length	10 m
Hose diameter	35 mm
Main functions	Suction of fine and coarse dust
Maintenance and cleaning	Clean the filter regularly, empty the tank after each use
Safety	Antistatic device and automatic shutdown in case of overheating
Spare parts	Filters, dust bags, hoses and nozzles available
Repairability	Repairability index: 8.2/10
Protection class	IP24
Usage	Indoor and outdoor, suitable for construction sites

Frequently Asked Questions - ATTIX 40-01 PC INOX NILFISK

How to empty the tank of the ATTIX 40-01 PC INOX vacuum cleaner?

Unplug the appliance, then open the tank latch and remove the cover. Empty the tank into a suitable bin. Close the cover and lock the latch.

What type of filter does this vacuum cleaner use?

It uses a Class M cartridge filter suitable for fine dust. A HEPA filter is available as an option.

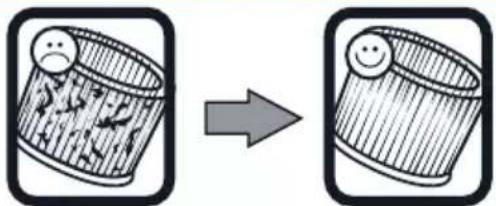

How to clean the vacuum cleaner filter?

The cartridge filter can be cleaned by tapping it gently or using a compressed air jet. Do not wash with water. Replace it regularly.

Can the vacuum cleaner suck up liquids?

No, the ATTIX 40-01 PC INOX model is designed only for dry dust suction. Do not vacuum liquids.

What to do if the vacuum cleaner does not turn on?

Check that the cable is plugged in and the socket works. Check the fuse or circuit breaker. If the problem persists, contact Nilfisk after-sales service.

What is the noise level of the vacuum cleaner?

The noise level is approximately 70 dB(A), which corresponds to a standard professional vacuum cleaner.

Where to find spare parts for the Nilfisk ATTIX 40-01 PC INOX?

Spare parts are available from authorized Nilfisk dealers or on the official website. Use the model number to identify the parts.

How to change the dust bag?

Open the bag compartment, remove the full bag and discard it. Place a new bag following the mounting direction. Close the compartment.

Is the vacuum cleaner suitable for construction dust?

Yes, thanks to its stainless steel tank and Class M filter, it is suitable for construction dust such as plaster or concrete dust.

What is the warranty of the appliance?

The standard warranty is 2 years for individuals. For professionals, it may vary. Check the warranty conditions provided with the appliance.

USER MANUAL ATTIX 40-01 PC INOX NILFISK

Operating instructions

ATTIX 30 / PC / XC

ATTIX 40 / PC / XC

ATTIX 50 / PC / XC

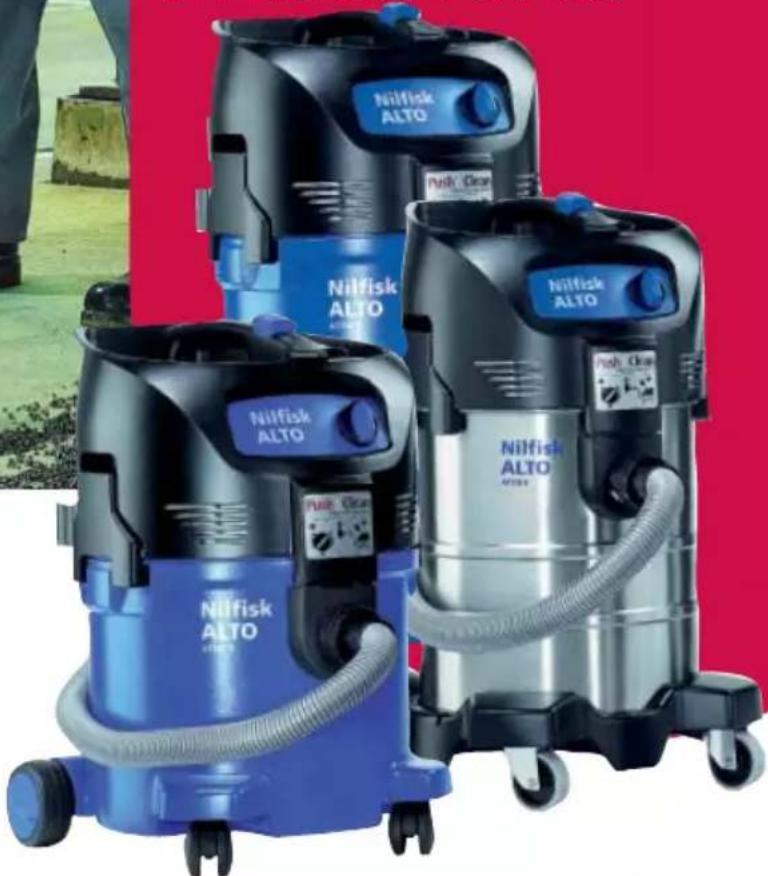

Three Nilfisk ALTO vacuum cleaner machines displayed against a red background (no visible text or symbols on the devices themselves)

Nilfisk

ALTO

works for you

A

B

Illustration of a vacuum cleaner sweeping circular patterns (no text or symbols)

ATTIX 30- / 40- / 50-01 ATTIX 30- / 40- / 50-11

ATTIX 30- / 40- / 50-21

0 = ○ 1 = ●

0 = ○ I = ● auto
ATTIX 30- / 40- / 50-21

Simple line drawing of a globe with a bird, a turtle, and a curved tube (no text or symbols)

B

Illustration of a vacuum cleaner sweeping black tiles (no text or symbols)

ATTIX 30- / 40- / 50-xx PC

Push&Clean

Filter Cleaning System

ATTIX 30- / 40- / 50-xx XC

XtremeClean

Automatic Filter Cleaning System

Simple line drawing of a mechanical tool or device with a base and handle (no text or symbols)

1.

1.

C

Diagram of a mechanical device with a curved component and circular base (no text or symbols)

ATTIX 30 / 40 / 50

Diagram of a camera mounted on a cylindrical device, showing lens and screen components (no text or symbols)

Cross-sectional diagram of a mechanical or architectural component with internal structure (no text or symbols)

Illustration of a mechanical device with arrows indicating direction (no text or symbols)

ATTIX 30 / 40 / 50

ATTIX 30 / 40 / 50 / STD / PC

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

ATTIX 30 / 40 / 50 XC

D

Technical illustration of a mechanical device with a downward arrow symbol (no text or labels)

This document

This document contains the safety information relevant for the appliance along with a quick reference guide.

Prior to using the appliance for the first time, be sure to read this document through and keep it ready to

hand.

Further support

Detailed information on the appliance can be found in the operating instructions, which you can download from our web site at www.nilfi sk-alto.com.

For further queries, please contact the Nilfi sk-Alto service representative responsible for your country.

See reverse of this document.

Important safety instructions

Symbols used to mark instructions

DANGER

Danger that leads directly to serious or irreversible injuries, or even death.

WARNING

Danger that can lead to serious injuries or even death.

CAUTION

Danger that can lead to minor injuries and damage.

The appliance must

• only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it

• only be operated under supervision
  • not be used by children

• Do not use any unsafe work techniques.

• Never use the vacuum cleaner without a filter.

• Switch off the appliance and disconnect the mains plug in the following situations: - Prior to cleaning and servicing

• Prior to replacing components

• Prior to changing over the appliance
• If foam develops or liquid emerges

Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognised regulations for safety and proper use.

Purpose and intended use

The appliance is suitable for picking up dry, non-fl ammable dust and liquids.

The appliance is suitable for commercial use, such as e.g. in

• Hotels, Schools, Hospitals, Factories, Shops, Offices, Hire shops

Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user.

Proper use also includes proper operation, servicing and repairs as specified by the manufacturer. See operating instructions.

Transport

1. Before transporting the dirt tank, close all the locks.
2. Do not tilt the cleaner if there is liquid in the dirt tank.
3. Do not use a crane hook to lift the cleaner.

Storage

1. Store the appliance in a dry place, protected from frost.

Electrical connection

1. It is recommended that the vacuum cleaner should be connected via a residual current circuit breaker.
2. Arrange the electrical parts (sockets, plugs and couplings) and lay down the extension lead so that the protection class is maintained.
3. Connectors and couplings of power supply cords and extension leads must be watertight.

Extension lead

1. As an extension lead, only use the version specified by the manufacturer or one of a higher quality. See operating instructions.
2. When using an extension lead, check the minimum cross-sections of the cable:

Cable length Cross section
	< 16 A < 25 A
up to 20 m 1.5 mm	2	2.5 mm 2
20 to 50 m 2.5 mm	2	4.0 mm 2

Warranty

Our general conditions of business are applicable with regard to the guarantee.

Unauthorised modifications to the appliance, the use of incorrect brushes in addition to using the appliance in a way other than for the intended purpose exempt the manufacturer from any liability for the resulting damage.

Tests and approvals

Electrical tests must be performed in accordance with the provisions of safety regulations (BGV A3) and to DIN VDE 0701 Part 1 and Part 3. In accordance with DIN VDE 0702 these tests must be performed at regular intervals and after repairs or modifications.

Risks

Electrical components

DANGER

Electric shock due to faulty mains connecting lead.Touching a faulty mains connect-ing lead can result in serious or even fatal injuries.1. Do not damage the mains power lead (e.g. by driving over it, pulling or crushing it).2. Regularly check whether the power cord is damaged or shows signs of ageing.3. Have the faulty mains con-necting lead replaced by your Nilfi sk-Alto service representative or a qualifi ed electrician prior to using the appliance again.

	DANGER
	The upper section of the vacuum cleaner contains live components.Contact with live components leads to serious or even fatal injuries.1. Never spray water on to the upper section of the vacuum cleaner.

CAUTION

Appliance socket ® .The appliance socket is only designed for the purposes defi ned in the operating instructions. The connection of different appliances can result in damage.1. Prior to plugging in an appliance, always switch off the vacuum cleaner and the appliance that is to be connected.2. Read the operating instructions to the appliance to be connected and observe the safety notes contained in these.

CAUTION

Damage due to unsuitable mains voltage.

The appliance can be damaged as a result of being connected to an unsuitable mains voltage.

1. Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply.

Picking up liquids

CAUTION

Picking up liquids.

Do not pick up fl ammable liquids.

1. Before liquids are picked up, always remove the fi Iter bag/ waste bag and check that the fl oat or the water level limit works properly.

2. The use of a separate fi Iter element or fi Iter screen is recommended.

3. If foam appears, stop work immediately and empty the tank.

Hazardous materials

WARNING

Hazardous materials.

Vacuuming up hazardous materials can lead to serious or even fatal injuries

1. The following materials must not be picked up by the vacuum cleaner:

2. hazardous dust

3. hot materials (burning cigarettes, hot ash, etc.)
4. fl ammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alkalis, etc.)
5. fl ammable, explosive dust (e.g. magnesium or aluminium dust, etc.)

Spare parts and accessories

CAUTION

Spare parts and accessories.

The use of non-genuine spare parts and accessories can impair the safety of the appliance.

1. Only use spare parts and accessories from Nilfi sk-Alto.
2. Use only the brushes supplied with the vacuum cleaner or specified in the operating manual.

Emptying dirt tank

CAUTION

Picking up environmentally hazardous materials.

Materials picked up can present a hazard to the environment.

1. Dispose of the dirt in accordance with legal regulations.

Recycling the cleaner

Make the old cleaner unusable immediately.

1. Unplug the cleaner.
2. Cut the power cord.
3. Do not discard of electrical appliances with household waste.

As specified in European Directive 2002/96/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically. Contact your local authorities or your nearest dealer for further information.

Quick reference guide

Pages 2 – 12 feature a pictorial quick reference guide, which is designed to help you when starting up, operating and storing the appliance.

This quick reference guide does not replace the separate operating instructions, which describes the appliance in detail. The operating instructions also contain further information on the operation, maintenance and repair of the appliance.

Meaning of the symbols

The instructions for actions are subdivided into 7 sections, which are represented by symbols.

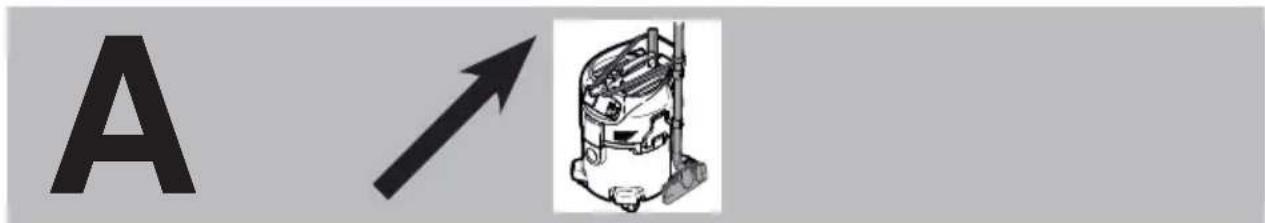

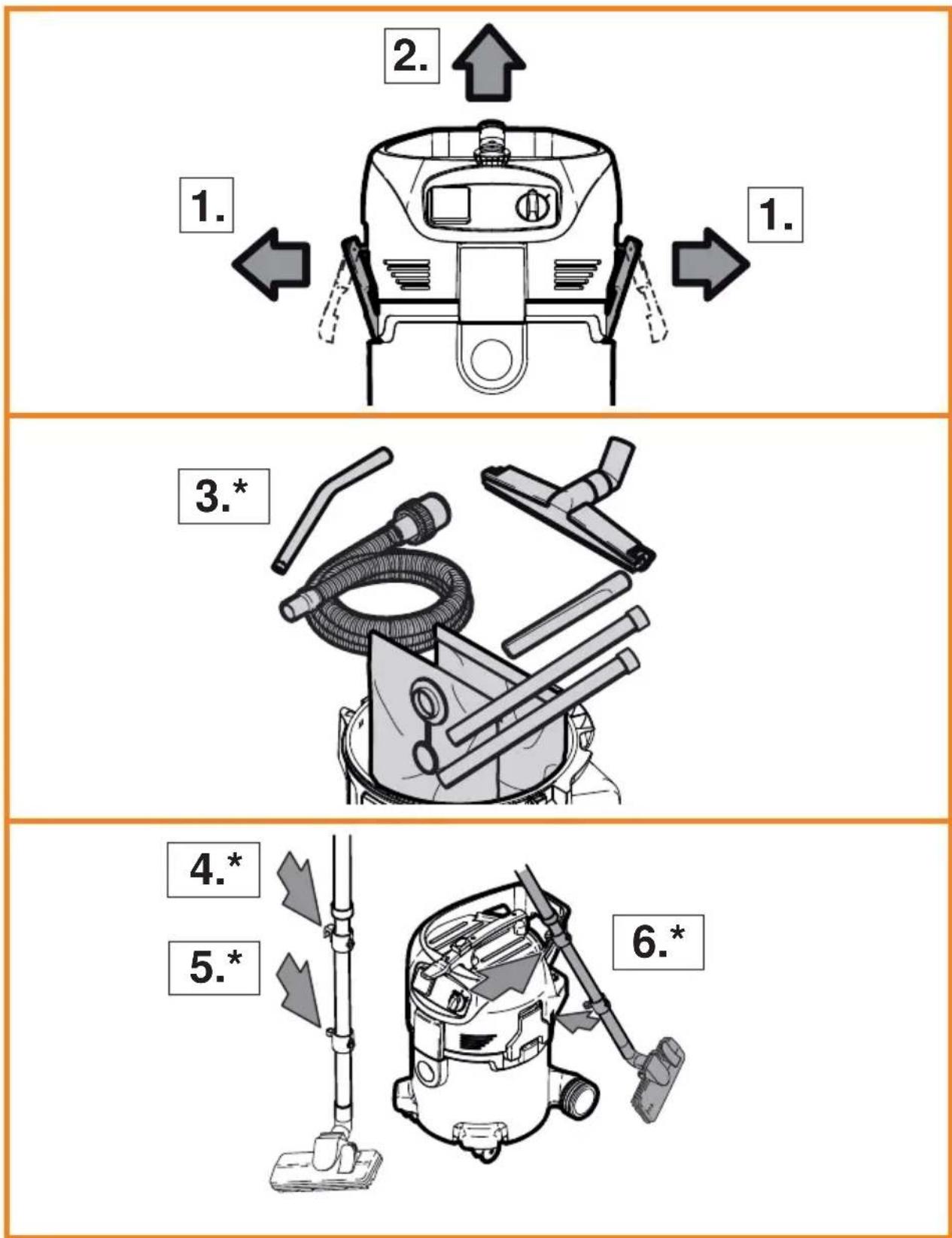

	A Before starting

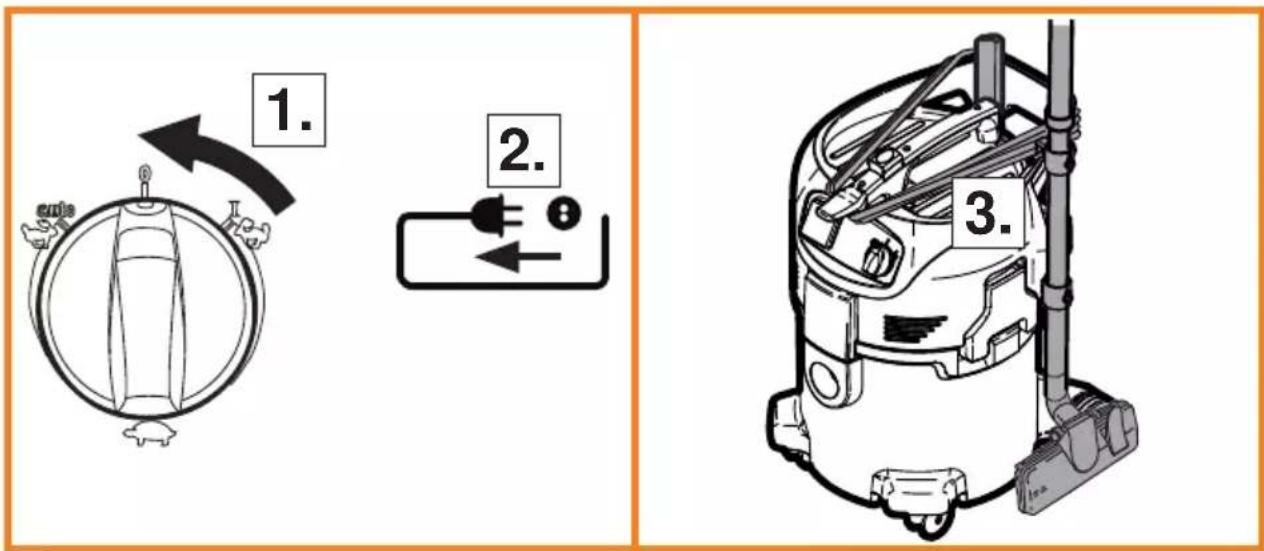

	B Control / Operation
	B Connecting electrical appliances

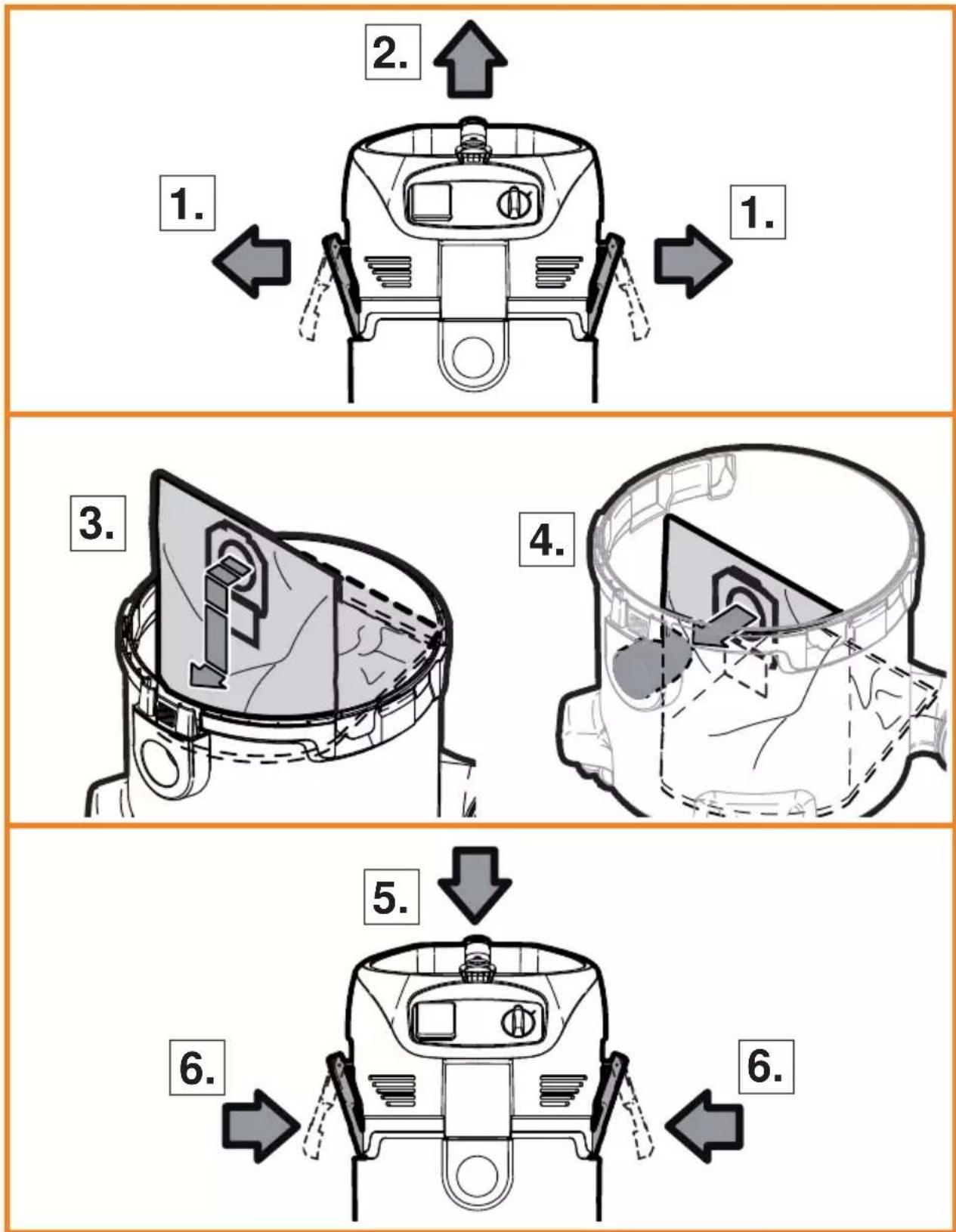

	C Replacement of filter bag
	C Replacement of disposal bag

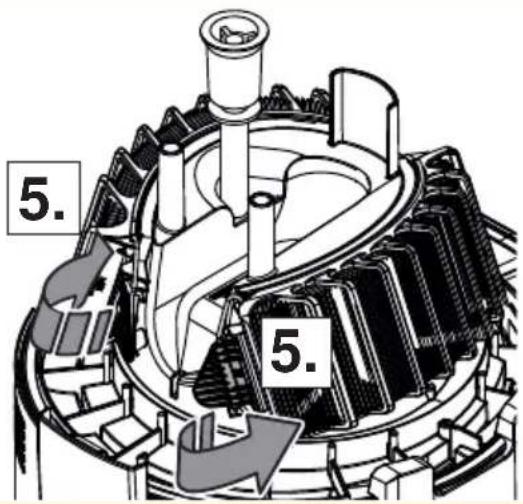

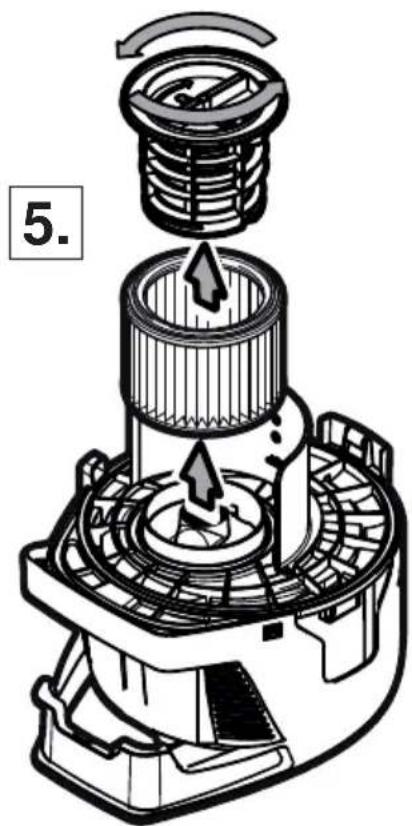

	C Replacement of filter element
	D After fi nishing work

An asterisk (*) indicates a model variant or special accessories.

Check whether your appliance is equipped with the control elements or special accessories depicted. If not, please proceed to the next action.

CAUTION:

This Nilfisk-ALTO vacuum cleaner is not to be used in explosion-hazardous areas, as serious injury could result.

Under no circumstances may this vacuum cleaner be used safely for the collection of hazardous or toxic materials unless equipped with a HEPA filter. Be sure to install the HEPA filter according to Nilfi sk-ALTO's written instructions.

Do not use this cleaner for the removal of hazardous substances unless you are licensed and/or certified for this work by the all authorities having jurisdiction.

EMPTYING:

If this vacuum cleaner is used to collect hazardous material, do not attempt to open or empty its contents without personal protective clothing and respiratory protection. This procedure must be completed in a contained environment. Contact with the cleaner, filters and all other accessories used when picking-up hazardous materials must be handled according to federal (EPA, OSHA), state and local regulations valid for the vacuumed substance.

ATTENTION EMPLOYER:

Please ensure these instructions for Use are made available and understood by your employees or any other persons who may use this equipment.

To list all toxic and hazardous materials would be beyond the scope of these instructions. It is the Employer's responsibility to identify, for Employee's and others' information, hazardous or toxic materials which may be collected by this equipment. Such information must be communicated to your Employees and other potential users of this equipment.

Nilfisk-ALTO warrants that its equipment will be free of defects in workmanship or material for a period of two years from the date of delivery. If the vacuum fails to meet these warranty standards, Nilfisk-ALTO shall, upon notification within such time period, correct such non-conformity, as its option, either by repairing any defective part or parts, or by replacing a part or parts provided that the equipment is returned to an authorized Nilfisk-ALTO service facility. In all cases freight both ways will be at expense of the customer. Equipment shall not be returned without advance notice to, and consent of Nilfi sk-ALTO.

EXCEPT AS SPECIFICALLY SET FORTH HERIN, NILFISK-ALTO MAKES NO WARRANTIES, EITHER EXPRESSED OR IMPLIED, AS TO ANY MATTER WHATSOEVER, INCLUDING WITHOUT LIMITATION ANY AND ALL WARRANTIES OF MERCHANTABILITY, FITNESS OF PURPOSE, OR OTHER WARRANTIES, ALL OF WHICH ARE EXPRESSLY DISCLAIMED AND EXCLUDED. NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF PRODUCTION, LOSS OF PROFITS OR ANY OTHER SIMILAR INDIRECT LOSSES WHICH MIGHT OCCUR AS A RESULT OF DEFECTS, PARTIAL OR TOTAL FAILURE OF THE PRODUCT TO PERFORM AS SPECIFIED.

Correction of non-conformities or defects in the manner and for the period of time provided above, shall constitute fulfillment of all Liabilities of Nilfisk-ALTO to the customer, whether based on contract, negligence or otherwise with respect to, or arising out of such equipment. The remedies set forth herein are exclusive, and the liability of Nilfisk-ALTO with respect to this sale or anything done in connection therewith, whether in contract, in tort, under any warranty, or otherwise, shall not, except as expressly provided herein, exceed the price of the equipment or part on which such liability is based.

This warranty does not cover repairs due to normal wear and tear, accident, neglect, misuse or abuse, incorrect installation or use other than described in the instruction booklet. Breaks in hoses and cables are not covered. This warranty is rendered void if the motor number plate is removed or defaced or if repairs are made or attempted by persons not authorized by Nilfi sk-ALTO.

Some states do not allow exclusion of implied warranties or limitations on how long an implied warranty lasts so the above exclusions or limitation of implied warranties may not apply. Some states do not allow exclusion or limitation of incidental or consequential damages so the above exclusion or limitation of incidental or consequential damages may not apply. Limited warranties set forth above give specific legal rights. Customer may have other rights which vary from state to state.
