Pango 1250 - Effect machine BeamZ - Free user manual and instructions

Product Type	Effect Machine (Fog Machine)
Brand	BeamZ
Model	Pango 1250
Power Consumption	1250 W
Voltage	230 V / 50 Hz
Fog Output (approx.)	150 m³/min
Warm-Up Time	5 - 6 minutes
Fluid Tank Capacity	1.5 L
Fluid Consumption	100 ml/min
Dimensions (L x W x H)	400 x 250 x 200 mm
Weight	4.5 kg
Duty Cycle	Continuous operation
Control Method	Wired remote control included
Heating Element	1250 W
Fuse Rating	10 A
Safety Features	Thermal cut-off, low fluid sensor
Maintenance	Clean heating element and pump regularly; use recommended fog fluid
Accessories Included	Wired remote control, user manual

Frequently Asked Questions - Pango 1250 BeamZ

How should I clean the fog machine?

After each use, run a mixture of distilled water and a mild cleaning solution through the machine to flush out residue. Let it cool fully before storing. Refer to the manual for detailed cleaning instructions.

What type of fog fluid should I use?

Use only high-quality water-based fog fluids designed for machine use. Avoid using oils or homemade mixtures, as they can damage the heating element and pump.

Why is my fog machine not producing fog?

Common causes: not fully warmed up (wait 5-6 minutes), empty fluid tank, clogged heating element, or faulty remote control. Check each and refer to the troubleshooting section in the manual.

How do I set up the remote control?

Connect the wired remote to the controller socket on the back of the machine. Ensure the remote's switch is in the 'on' position. Press the button to fog; release to stop. The remote may have additional controls like continuous output.

Can I use plain water instead of fog fluid?

No, plain water will not produce visible fog and can damage the machine. Always use proper fog fluid to ensure optimal performance and longevity.

How long does warm-up take?

The beamZ Pango 1250 typically requires 5 to 6 minutes to reach operating temperature. The indicator light will change when ready.

What is the maximum operating time?

The machine is designed for continuous operation, but allow it to cool down periodically if used for extended periods. Overheating may trigger the thermal cut-off.

Is the machine DMX compatible?

No, the BeamZ Pango 1250 does not feature DMX control. It operates via the included wired remote only.

How should I store the machine when not in use?

Empty the fluid tank, clean the machine, and allow it to dry. Store in a cool, dry place, protected from dust and extreme temperatures.

What do the LED indicators on the machine mean?

A red light typically indicates the machine is warming up; a green light indicates it is ready to operate. Refer to the manual for exact LED behavior.

USER MANUAL Pango 1250 BeamZ

Ref. nr.: 152.982 / 152.979

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

GEBRAUCHSANLEITUNG

MANUEL D'INSTRUCTIONS

ENGLISH

Congratulations to the purchase of this Beamz product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the unit with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This unit contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the fixture on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the unit with clean hands.
• Do not force the controls.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5° C/41°F and 35° C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

NEDERLANDS

Read for the commissioning of the laser all safety instructions and technical data of this manual carefully and thoroughly.

Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. This concentration of light power can cause instant eye injuries, primarily by burning the retina (the light sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam, it can still potentially injure or blind you or your audience. Even very small amounts of laser light are potentially hazardous even at long distances. Laser eye injuries can happen quicker than you can blink.

It is wrong to assume that a single beam of a bundle of hundreds by the laser beams made, it cannot cause injury.

It is also incorrect to assume that it is safe to look at a moving beam. In the laser safety regulation, it is not legal to aim Class 3B/4 lasers in areas which people can get exposed also on a dance floor.

Caution:

• Do not point lasers at people or animals.
• Never look into the laser aperture or laser beams, this can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.
  • Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled balconies, etc.
  • Install the laser units such that laser beams above the audience move. See section later in this manual.
• Test the laser units always first before the public is present.
• Do not point lasers into the public or at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser reflections can be hazardous.
• Never point a laser at aircraft or into the sky, this is a federal offense.
• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not expose the output optic (aperture) to cleaning chemicals.
• The operation of a laser is only allowed if the show is controlled by a skilled and well-trained operator familiar with the requirements that are needed.
• Do not use laser if housing is damaged or open, or if optics appear damaged in any way.
• Never leave this device running unattended.
  • Always use appropriate lighting safety cables when hanging lights and effects overhead.

The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements at the location/country of use.

This unit contains laser components with high power, live parts and parts that emit radiation. Therefore, DO NOT OPEN the housing, THIS CAN BE FATAL. It can also cause blindness, skin burns and fires.

Eye damage occurs faster than you can blink your eyes.

Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from “www.laserinstitute.org”. Many local governments, corporations, agencies, military and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display guidance can be obtained via the International Laser Display Association, www.laserist.org.

ENGLISH : Attention! The use in France is only allowed to the professional user and not to the enduser. See decision: www.legifrance.gouv.fr

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor. International laser safety regulations require that lasers must be operated in the fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation between the floor and the lowest laser light vertically. Additionally, 2.5 meters of horizontal separation is required between laser light and audience or other public spaces.

CAUTION: Use of controls, adjustments, or performance of procedures other than what is specified herein may result in hazardous radiation exposure!

• The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
  • Always use the supplied mounting bracket to hang the fixture.
  • The fixture should aid of a mounting bracket (not included) to the supplied mounting bracket to be confirmed.
• The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
• The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
• The fixture should be installed in the position where persons cannot reach.
• For your own safety and for others, we do strongly recommend you to use this laser emergency kill switch. (ref.no: 152.958)

CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 0.5 meter.

FRONT AND REAR PANEL – PANGO 1250

1. Laser Aperture
2. Running LED
3. Power LED indicator
4. Mic LED
5. DMX signal LED
6. Key switch
7. Interlock
8. Sound active microphone
9. LCD function setting panel
10. X invert
11. Y invert
12. Sound sensitivity knob
13. DMX in/out
14. ON/OFF switch
15. Power input
16. DB25 ILDA interface

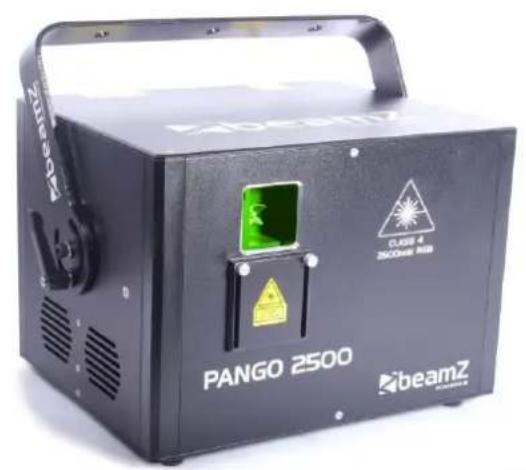

FRONT AND REAR PANEL – PANGO 2500

1. Laser Aperture
2. DMX signal LED
3. Mic LED
4. Power LED indicator
5. False LED
6. Interlock
7. Sound sensitivity knob
8. LCD function setting panel 9.
9. Y invert
10. X invert
11. Key switch
12. Sound active microphone
13. DMX in/out
14. DB25 ILDA interface
15. Power input
16. ON/OFF switch

DISPLAY

The control board offer several features: you can simple set the starting address, run the pre-programmed program or make a reset. The main menu is accessed by pressing the Mode-button, browse through the submenu by pressing Up or Down.

Press the Enter-button in order to select the desired menu.

You can change the selection by pressing Up or Down. Confirm every selection by pressing the Enter-button.

When you turn on the laser for the first time, it will take some seconds to auto load the built-in show. The default setting is AUTO EFFECT 1.

First Menu	Second Menu	Third Menu	Fourth Menu
DMX512	RunningA001 (DMX address)
AUTO(Auto running mode)	Running	Effect 1 (Full show)Effect 2 (Only beam)Effect 3 (only cartoon)
Music(Sound activate mode)	Running	Effect 1 (Full show)Effect 2 (only beam)Effect 3 (only animation)
Setting	Address	Choose DMX address
	Light(LCD backlight setting)	OFFONON 5S (ON for 5 sec)ON 10S (ON for 10 sec)
	Cartoon(Running speed)	Press “UP” and “DOWN” to choose running speed from 1~99 (Slow to fast)
	Master(set master unit)	OFFON
	Laser(size and colour setting)	Size	(Press “UP” or “DOWN” to choose the size of graphics)
		Colour	1. Single colour (1~7)2. RGY3. RBP4. GBC5. RGB
		Invert X
		Invert Y
	One beam	OFF
		ON
	Default(restore default setting)	YESNO
Testing	Testing picture

ONE BEAM PROTECTION

For safety reason you can switch the One Beam protection On/Off via display. If the One Beam is activated (ON) highly focused single beam are suppressed. Switch to OFF to deactivate the One Beam protection.

This function should only be turned off by well-trained operator, after checking well all safety aspects!

DMX-512 CONNECTION

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected. If you use a controller with 5 pin DMX connection you will need to use a 5-pin to 3-pin adapter.

DMX Signal

At the last fixture, the DMX cable has to be terminated. Solder a 120 Ohm resistor between signal (-) and signal (+) into a 3-pin XLR connector and plug this into the DMX output of the last fixture in the chain.

TROUBLE SHOOTING

1. If the power indicator is off and the laser doesn't work, please check the power supply and the input.

2. In Stand-Alone operation, if the power supply indicator is ON and sound active indicator is OFF, but the laser doesn't work.

A. The sound may be too small and cannot activate the laser running, please increase the music volume or increase sound sensitivity on rear panel.
B. Please check if unit has been set up in slave mode, or DMX mode.

1. In Master-Slave operation, slave units don't running, please check as below.

A. Make sure there's only one master in the chain, and the others are set in slave mode.
B. Make sure to use a good quality power cable and XLR connector.

1. In DMX operation, the unit can't be controlled by the DMX console, but the DMX signal indicator is flashing, please make sure the DMX console and unit have the same channel.

After trying the above solution you still cannot sort out the problem, please contact your dealer or our company for service.

MX CHANNELS

Channel	Function	Value	Description
1	Laser OFF	000-041	Laser OFF
	Auto Activate	042-083	DMX mode, CH2-CH12 valid
		084-125	Build in animation graphics auto running mode
		126-167	Build in beam graphics auto running mode
	Sound Activate	168-209	Build in beam graphics auto running mode
		210-251	Build in animation graphics auto running mode
		252-255	DMX mode, CH2-CH12 valid
2	Pattern select	000-255	Selecting built-in patterns
3	Rotation	000-127	Manual rotation
		128-191	Auto counter-clockwise rotation (from slow to fast)
		192-255	Auto clockwise rotation (from slow to fast)
4	X-axis rolling	000-127	Manual rolling
		128-255	Auto rolling (from slow to fast)
5	Y-axis rolling	000-127	Manual rolling
		128-255	Auto rolling (from slow to fast)
6	X-axis moving	000-127	Manual choose moving position
		128-255	Auto moving (from slow to fast)
7	Y-axis moving	000-127	Manual choose moving position
		128-255	Auto moving (from slow to fast)
8	Pattern size	000-063	Choose pattern size, 0 is normal size, from small to big
	Zooming	064-127	Auto zooming (-) from slow to fast
		128-191	Auto zooming (+) from slow to fast
		192-255	Manual zooming (+/-) from slow to fast
9	Drawing	000-255	Auto drawing from slow to fast
10	Scanning speed	000-127	Auto drawing from slow to fast
	Display dot	128-255	Choose the length of dot
11	Colour setting	000-024	Normal colour
		025-199	Choose every single colour
		200-224	Every single colour changing one by one
		225-255	All the colours together changing alternatively in one pattern
12	Colour change speed	000-255	Adjust colour changing speed from slow to fast

	Pango 1250	Pango 2500
Ref.nr:	152.982	152.979
Laser Green	200mW @532nm	400mW @532nm
Laser Red	300mW @635nm	600mW @637nm
Laser Blue	750mW @447nm	1500mW @447nm
Guaranteed laser power	1000mW	2000mW
Max. laser power	1250mW	2500mW
Scanner system	30K high speed optical scanner	40K high speed optical scanner
Class	4	4
Modes	Sound Active, Auto run, DMX512 (12 CH), Master/slave mode, ILDA	Sound Active, Auto run, DMX512 (12 CH), Master/slave mode, ILDA
Interface	3 pins XLR jack for DMX or Maser-Slave linking, DB25 ILDA interface for PC	3 pins XLR jack for DMX or Maser-Slave linking, DB25 ILDA interface for PC
Function	DMX, Auto, Sound active and Master-Slave	DMX, Auto, Sound active and Master-Slave
Rated voltage	AC110~240V 50/60Hz	AC110~240V 50/60Hz
Fuse	T3A	T5A
Rated power	80W	150W
Weight (per unit)	4.8Kg	8.3Kg
Dimensions per unit	218 x 235 x 172 mm	255 x 281 x 206 mm

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

CE Declaration of Conformity

Manufacturer: TRONIOS BV

Product number: 152.982; 152.979

Product Description: Pango 1250 Analog laser RGB 30kpps Pango 2500 Analog laser RGB 40kpps

Trade Name: BEAMZ PROFESSIONAL

Regulatory Requirement: EN 60598-1:2008+A11:2009

EN 60598-2-17:1989+A2:1991

EN 55015:2013

EN 61547:2009

EN 61000-3-2:2006+A2:2009

EN 61000-3-3:2013

EN 60825-1:2007

The products meet the requirements stated in Directives 2006/95 and 2004/108/EC and conform to the above mentioned Declarations.

Almelo,

04-12-2015

Name : B. Kosters

Controller regulations

Signature :

www.tronios.com

Copyright © 2015 by TRONIOS the Netherlands
