USER MANUAL FML 803 EU.M HOTPOINT

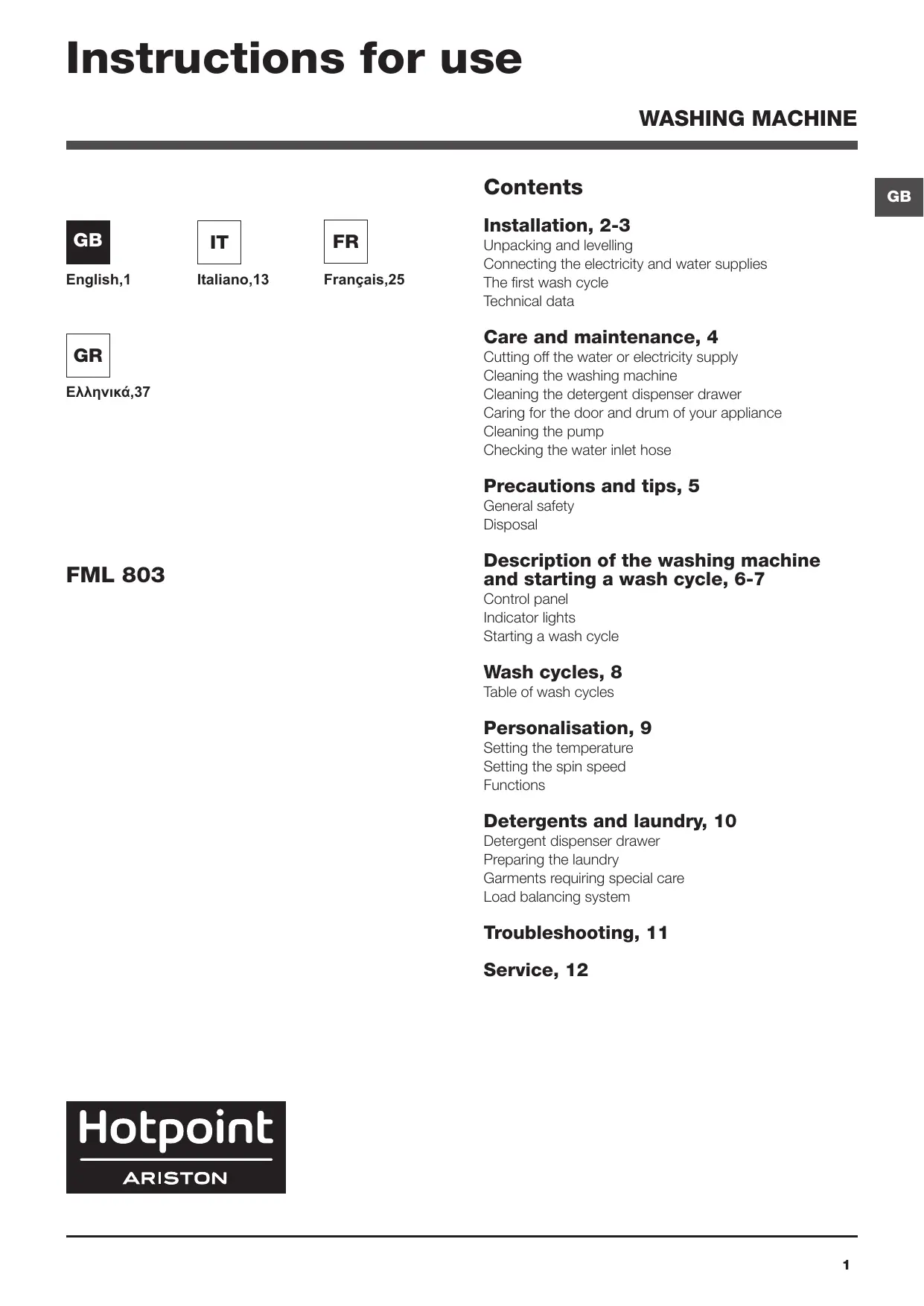

Instructions for use

WASHING MACHINE Contents EE Installation, 2-3 8 | IT FR Unpacking and levelling

Connecting the electricity and water supplies English,1 Italiano,13 Français,25 The first wash cycle

Care and maintenance, 4 GR Cutting off the water or electricity supply Cleaning the washing machine EAAnvIKG,37 Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Precautions and tips, 5 General safety Disposal

Description of the washing machine FML 803 and starting a wash cycle, 6-7

Starting a wash cycle

Wash cycles, 8 Table of wash cycles

Personalisation, 9 Setting the temperature Setting the spin speed Functions

Detergents and laundry, 10 Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing system

ARISTON Installation

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.

! Read these instructions carefully: they con- tain vital information relating to the safe instal- lation and operation of the appliance.

Unpacking and levelling Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been damaged during the transportation process. fit has been damaged, contact the retailer and do not proceed any further with the installation process.

8. Remove the 3 protective screws (used during transpor- \F-1 tation) and the rubber washer with the cor- responding spacer, located on the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them again if the washing machine ne- eds to be moved to another location.

! Packaging materials should not be used as toys for children.

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furni- ture cabinets or anything else.

2. fthe floor is not perfectly level, com- pensate for any une- venness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measu- red in relation to the worktop, must not exceed 2°.

Levelling the machine correctly will provide

it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and

Connecting the water inlet hose connection (see figu-

m1 Before performing the

WI connection, allow the water to run freely until it is perfectly clear.

1. Connect the inlet hose by screwing it to a cold water tap using a 8/4 gas threaded

2. Connect the inlet hose to the washing machine by screwing it onto the correspon- ding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the ap- pliance (see figure).

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range of values indicated in the Technical data table (see next page).

! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

ARISTON Connecting the drain hose

Connect the drain hose, without bending it, to a drain duct or

a wall drain situated between 65 and 100 cm from the floor;

alternatively, placed it over the edge of a basin, sink or tub, fa- stening the duct sup- plied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; fit is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electri- city socket, make sure that:

+ the socket is earthed and complies with all applicable laws;

+ the socket is able to withstand the maxi- mum power load of the appliance as indicated in the Technical data table (see opposite);

+ the power supply voltage falls within the va- lues indicated in the Technical data table (see opposite);

+ the socket is compatible with the plug of the washing machine. If this is not the case, repla- ce the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extreme- ly dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been instal- led, the electricity socket must remain within easy reach.

! Do not use extension cords or multiple so- ckets.

! The cable should not be bent or compressed.

! The power supply cable must only be repla- ced by authorised technicians.

Warning! The company shall not be held re- sponsible in the event that these standards are not observed.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using wash cycle number auto clean (see “Cleaning the washing machine”).

Technical data Model FML 803 width 59.5 cm

Dimensions height 85 cm

Capacity from 1 to 8 kg

please refer to the technical data plate fixed to the ma- chine

Electrical connections

maximum pressure 1 MPa (10 bar)

cycles in : programme 9;

oh rdance Eco Cotton 60°C.

gulations programme 9;

1061/2010 Eco Cotton 40°C.

This appliance conforms to the following EC Directives: - 2004/108/EC (Electroma- gnetic Compatibility)

- 2006/96/EC (Low Voltage)

Care and maintenance

Cutting off the water and electri- city supplies

< Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system in- side the washing machine and help to prevent leaks.

+ Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

+ The outer parts and rubber components

of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

+ The washing machine has a “Auto Clean” programme for its internal parts that must be run with no load in the drum.

To help the wash cycle you may want to use either the detergent (i.e. a quantity 10% the quantity specified for lightly-soiled garments) or special addlitives to clean the washing machine. We recommend running a cleaning programme every 40 wash cycles.

To start the programme press buttons À and

B simultaneously for 5 seconds (see figure). The programme will start automatically and Will run for about 70 minutes. To stop the cycle press the START/ PAUSE button.

Cleaning the detergent dispenser drawer

Remove the dispen- ser by raising it and pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

< Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

The washing machine is fitted with a self-clea- ning pump which does not require any mainte- nance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

1. using a screwdri- ver, remove the cover panel on the lower front part of the wa- shing machine (see figure);

2. unscrew the lid by rotating it anti- clockwise (see figu- re): a little water may trickle out. This is perfectly normal;

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Precautions and tips

1 This washing machine was designed and constructed in accordance with international safety regulations. The fol- lowing information is provided for safety reasons and must therefore be read carefully.

+ This appliance was designed for domestic use only.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabi- lities or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the hazards invol- ved. Children shall not play with the applian- ce. Cleaning and user maintenance shall not be made by children without supervision.

Do not touch the machine when barefoot or with wet or damp hands or feet.

Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.

Do not open the detergent dispenser drawer while the machine is in operation

Do not touch the drained water as it may reach extreme- ly high temperatures.

Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening. Ifthe appliance breaks down, do not under any circum- stances access the internal mechanisms in an attempt to repair it yourself.

Always keep children well away from the appliance while it is operating.

The door can become quite hot during the wash cycle.

If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Before loading laundry into the washing machine, make sure the drum is empty.

«Disposing of the packaging materials: observe local regu- lations so that the packaging may be re-used.

<The European Directive 2012/19/EU (WEEE) on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old applian- ces must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

ARISTON Description of the washing machine and starting a wash cycle

Detergent dispenser drawer: used to dispense detergents and washing additives (see “Detergents and laundry”).

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. Du- ring the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold wash cycle (see “Personalisation”).

SPIN SPEED knob: sets the spin speed or exclude the spin cycle completely (see “Personalisation”).

WASH CYCLE PROGRESS/DELAY TIMER indicator lights: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress.

Ifthe Delay Timer function has been set, the time remaining until the wash cycle starts will be indicated (see next page).

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

\ | START/PAUSE | button with indicator FUNCTION light

buttons with indicator lights

START/PAUSE button with indicator light: starts or tem- porarily interrupts the wash cycles.

NB. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED À indicator light is switched off, the door may be opened (wait approximately 3 minutes).

To start the wash cycle from the point at which it was inter- rupted, press this button again.

This washing machine, in compliance with new energy sa- ving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

ARISTON Indicator lights

The indicator lights provide important information. This is what they can tell you:

Ifthe DELAY TIMER function has been activated (see “Per- sonalisation”), after the wash cycle has been started the indicator light corresponding to the selected delay period will begin to flash:

As time passes, the remaining delay will be displayed and the corresponding indicator light will flash:

6h = vi 9h © 12h = C7

Once the set delay has elapsed, the flashing indicator light will switch off and the selected wash cycle will begin.

Starting a wash cycle

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress

End of wash cycle END Function buttons and corresponding indicator lights When a function is selected, the corresponding indicator light will illuminate:

If the selected function is not compatible with the pro- grammed wash cycle, the corresponding indicator light will flash and a sound alert (3 beeps); the function will not be activated.

If a function which is incompatible with another function selected previously, only the most recent selection will remain active.

À Door locked indicator light

If this indicator light is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damage, wait for the indicator light to switch off before you open the appliance door (wait approximately 3 minutes). N.-B. Ifthe DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/PAUSE button if you wish to open it.

TIfthe START/PAUSE indicator light (orange) flashes rapidly at the same time as the function indicator light, this indicates a problem has occurred (see “Troubleshooting”).

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.

. Load the laundry and close the door. . Set the WASH CYCLE knob to the desired programme. . Set the washing temperature (see “Personalisation”).

. Measure out the detergent and washing additives (see “Detergents and laundry").

2. 3. 4 5. Set the spin speed (see “Personalisation”). 6. 7. Select the desired functions.

. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the END indicator light will switch on. The DOOR LOCKED indicator light will switch off, indi- cating that the door may be opened (wait approximately 3 minutes). Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

8 Detergents £ ÈË . 15 # £ $& . Max. | Max. | LL 815 SÉ £ $ 2 | Description of the wash cycle temp. |speed| & | 2 & LE El 3é 82 È d & CO (pm) ESS) 88) 4 )8815E) 5) $ È à séalslé |H3l8e | 6 CLEAN Plus 1 [Anti Stain 40° [1000!elel-[e[4[ - [- [- [190 2 [Anti Stain Quick 40° | 1000 OBRRE - | - [eo 3 [Whites 60° |100[e|e]-|el4l - | - 195" 4 | Cotton 60°C: heavily solled whites and resistant colours. 60° [1000 | e |elele |8| - | - | | 145 (Max. 90°) 5 |Synthetics: heavi soiled resistant colours: 60° _|1000|[ e |e]e) e |35| 44 [o78] 33 | 10° 5 |Synthetics (3): ightiy soiled resistant colours. 40° [1000/ e [ele] e [35] - | - | - | 120" SPECIALS 6 [Anti allergy Plus 60° _[1000[ - [e]e]e[4! - [-]- ]200 7 [Anti allergy Delicate 40° _[1000! - [ele] e [4] - | - | - | 215 8 [Baby 40° [1000/ e [ele|e [4] - | - | - | 160 9 [Eco Cotton 60°C (1): heavy soiled whites and resistant colours. 60° [1000] - [e]-| e [8 [62 [117[547] 190' 9 |Eco Cotton 40°C (2): ightly soiled resistant and delicate colours. | 40° |1000| - |e]-] e | 8 | 62 |o.93| 82 | 170" 40 [Woo!: for wool, cashmere, etc. 40° | 800 | - |el-] e [15] - | - | - | 85 11 [Delicates 30° o |-[el-je it] - ||. |7s COLD 12 | Cotton 20°C: lightiy soiled resistant and delicate colours. 20° |1000| - [ele] e - | - | - [210 13 |Synthetics Cold Water| 1000 | - [e[-| e [3] - | - | - | 80° 14 [Fast 30° Cold Water] 800 | - [Je] -[ e | 3 | 70 [005] 56 | 30° Partial Programmes Rinse - 1000! - |-[-[e [8] - |-|- 155 Spin and Pump out - 1000 | - |-|-| - [81 - | - | - | 410 +2 | Pump out only * - S --ll let. - - 3

* If you select programme k® and exclude the spin cycle, the machine will drain only.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor- ding to factors such as water temperature and pressure, the amount of detergent used! the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with regulations 1061/2010: set wash cycle 9 with a temperature of 60°C. Ts cycle Is designed for cofton loads with a normal sol level and is the most efficient in (erms of both electriciy and water consumption: should be used for gaments wii 60°C. Me actual washng temperature may diffr from the indicatea value.

2) Test wash cycle in compliance with regulations 1061/2010; set wash cycle 9 with a temperature of 40°C. is cycle is designed for cotton load with a normal soi level and is the most efficient in terms of both electrciy and water consumption: it should be used for garments wii 40°C . The actual washing temperature may diflr from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle 9 with a temperature of 40°C. 3) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40°C.

Anti Stain: the programme 1 is suitable to heavily-soiled garments with resistant colours. It ensures a washing class that is higher than the standard class (A class).

When running the programme, do not mix garments of different colours. We recommend the use of powder detergent. Pre- treatment with special additives is recommended if there are obstinate stains.

Anti Stain Quick: this programme is ideal for washing the most difficult daily stains in 1 hour. It is ideal for mixed fabrics and coloured garments, caring for your clothes as it washes.

Whites: use this cycle 3 to wash white clothes. The programme is designed to maintain the brightness of white clothes over time. Use powder detergent for best results.

Anti allergy Plus: use programme 6 to remove major allergens such as pollen, mites, cat’s and dog's hair.

Anti allergy Delicate: cycle studied for cotton laundry and other resistant fabrics to guarantee the removal of pollen and cat and dog hair already at 40°.

Baby: use the special wash cycle 8 to remove the remove the soiling typically caused by babies, while removing all traces of detergent from nappies in order to prevent the delicate skin of babies from suffering allergic reactions. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfec- ting additives added to the detergent.

Cotton 20°C ideal for lightly soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks.

The Cycles 13-14 assure energy saving by eliminating the need of heating water! These innovative programmes are available for various fabrics (lightly soiled). For the best washing results we recommend the usage of a liquid detergent: it is advisable to pre-treat cuffs, collars and stains.

Personalisation Hotpoint

ARISTON Setting the temperature Turn the TEMPÉRATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash (k).

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle

!'Exception: if the 4 programme is selected, the temperature can be increased up to a value of 90°C.

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle. The maximum spin speeds available for each wash cycle are as follows: Wash cycles Maximum spin speed

Cottons 1000 rpm Synthetics 1000 rpm Wool 800 rpm

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol S. The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle

The various wash functions available with this washing machine will help to achieve the desired results, every time. To activate the functions

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is iluminated.

- [fthe selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and

a sound alert (3 beeps); the function will not be activated.

- fa function which is incompatible with another function selected previously, only the most recent selection will remain active. es Super Wash This option offers a high-performance wash due to the greater quantity of water used in the initial phase of the cycle, and due to the increased wash cycle duration, is particularly useful for the removal of stubborn stains. It can be used with or without bleach. If you desire bleaching, insert the extra tray compartment (4) into compartment 1. When pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure pag. 10).

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON indicator light will flash and the END phase will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or the EASY IRON button.

LP Prewash If this function is selected, the pre-wash cycle will run: this is useful for removing stubborn stains. N.B.: Put the detergent in the relevant compartment.

This timer delays the start time of the wash cycle by up to 12 hours

Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the but- ton is pressed, the function will be disabled.

NB. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it.

Detergents and laundry

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessa- rily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

? Do not use hand washing detergents because these create too much foam.

Open the detergent di- spenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder) Before pouring in the detergent, make sure that extra com- partment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

ff liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage.

If powder detergent is used, place the partition into slot B. compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

- Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites. + Empty all garment pockets and check the buttons. + Do not exceed the listed values, which refer to the weight of the laundry when dry: see “Table of wash cycles”.

How much does your laundry weigh?

1 pillow case 150-200 g 1 tablecloth 400-500 g

Garments requiring special care

Woo! - Woolmark Apparel Care - Green:

the wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool gar- ments labelled as “hand wash” provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Delicates: use programme 11 to wash very delicate gar- ments having strasses or sequins.

We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates.

Use liquid detergent on delicate garments for best results. To wash silk garments and curtains select cycle 11 and then function “Easy iron”; the machine will end the cycle while the laundry is soaking and the “Easy iron” indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the “Easy iron” button.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load

Troubleshooting Hotpoint

ARISTON Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see ‘Assistance”), make sure that the problem cannot be solved easily using the following list. Problem: The washing machine does not + The appliance is not plugged into the socket fully, or is not making contact. switch on. + There is no power in the house. The wash cycle does not start. + The washing machine door is not closed properly.

+ The ON/OFF button has not been pressed.

+ The START/PAUSE button has not been pressed

+ The water tap has not been opened.

+ A delayed start has been set (see “Personalisation”). The washing machine does not + The water inlet hose is not connected to the tap.

take in water (the indicator light for + The hose is bent. the first wash cycle stage flashes . The water tap has not been opened. rapidly). + There is no water supply in the house. + The pressure is too low. + The START/PAUSE button has not been pressed

The washing machine continuously + The drain hose is not fitted at a height between 65 and 100 cm from the floor takes in and drains water. (see “installation”). + The free end of the hose is under water (see “installation”). + The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

The washing machine does not + The wash cycle does not include draining: some wash cycles require the drain drain or spin. phase to be started manually. + The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (‘Personalisation”). + The drain hose is bent (see “nstallation”). + The drainage duct is clogged.

The washing machine vibrates a lot. The drum was not unlocked correctly during installation (see “installation”. during the spin cycle. + The washing machine is not level (see “installation”). + The washing machine is trapped between cabinets and walls (see “nstallation”).

The washing machine leaks. + The water inlet hose is not screwed on properly (see ‘“installation”). + The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”). + The drain hose is not fixed properly (see “nstallation”).

The START/PAUSE indicator light + Switch off the machine and unplug it, wait for approximately 1 minute and

(orange) and the function indicator then switch it back on again. lights flash rapidly. I the problem persists, contact the Technical Assistance Service. There is too much foam. + The detergent is not suitable for machine washing (it should display the text

“for washing machines” or “hand and machine wash”, or the like). + Too much detergent was used.

Before calling for Assistance:

+ Check whether you can solve the problem alone (see “Troubleshooting”);

+ Restart the programme to check whether the problem has been solved;

Ifthis is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate

1 Always request the assistance of authorised technicians.

Have the following information to hand:

+ _the type of problem;

+ _the appliance model (Modi.);

e_the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

COMMISSION DELEGATED REGULATION (EU) No 1061/2010 Brand IHOTPOINT/ARISTON] [Model FML 803 EU.M Rated capacity in kg of cotton 8 Energy efficiency class on a scale from A+++ (low consumption) to G (high consumption) A++ Energy consumption per year in kWh 1) 195 Energy consumption of the standard 60 °C cotton programme at full load in kWh 2) 1.176 Energy consumption of the standard 60 °C cotton programme at partial load in kWh 2) 0.66 Energy consumption of the standard 40 °C cotton programme at partial load in kWh 2) 0.594 Power consumption of the off-mode in W 0.5 [Power consumption of the left-on mode in W E [Water consumption per year in litres 3) 11830 (Spin-drying efficacy class on a scale from G (minimum efficacy) to À (maximum efficacy) a Maximum spin speed attained 4) 1000 Remaining moisture content 5) 62.0% Programme time of the "standard 60 °C cotton" at full load in minutes 190 [Programme time of the “standard 60 °C cotton” at partial load in minutes 130 [Programme time of the "standard 40°C cotton” at partial load in minutes 125 Duration of the left-on mode in minutes 30 [Noise in dB(A) re 1 pW washing 5) 55 [Noise in dB(A) re 1 pW spinning 5) 79 (Built-in model

The “standard 60°C cotton” at full and partial load and the “standard 40°C cotton” at partial load are the standard washing programmes to which the information in the label and the fiche relates. Standard 60*C cotton and standard 40-C cotton are suitable to clean normalÿ soïed cotton laundry and are the most efficient programmes in terms of combined energy and water consumption. Partial load is half the rated load

2 Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-powrer modes. Actual energy consumption will depend on how the applance is used.

%) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at ful and partial load. Actual water consumption wil depend on how the applance is used. 4) For the standard 60 °C at full and partial load or the 40°C at partial whichever is lower. 1 Attained for 60 °C cotton at full and partial load or the 40°C at partial whichever is higher.

SlBased on washing and spinning phases for the standard 60°C coton programme at ful load.

Anomalies: Causes / Solutions possibles:
